Electrolux Tinseb493mrr2 User manual

Use _ Care Guide

Convection Microwave Oven

Mode d'emploi et d'entretien

Four de Micro-onde _ convection

Ouia de Uso y Cuidado

Microondas de convecci6n

TINSEB493MRR2

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

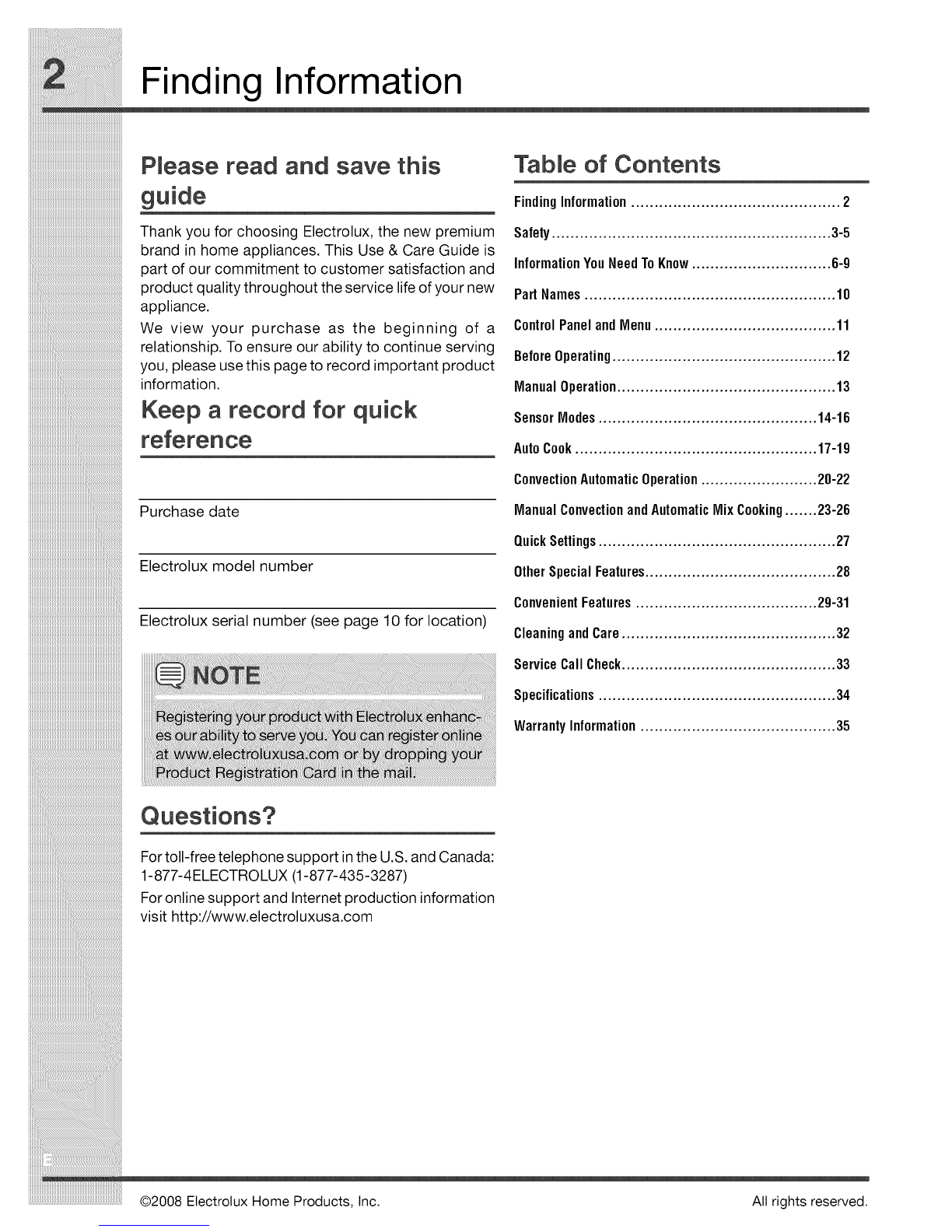

Finding Information

Please read and save this

guide

Thank you for choosing Electrolux, the new premium

brand in home appliances. This Use & Care Guide is

part of our commitment to customer satisfaction and

product quality throughout the service life of your new

appliance.

We view your purchase as the beginning of a

relationship. To ensure our ability to continue serving

you, please usethis page to record important product

information.

Keep a record for quick

Purchase date

Electrolux model number

Electrolux serial number (see page 10 for location)

Tabte of Contents

FindingInformation............................................. 2

Safety............................................................ 3-5

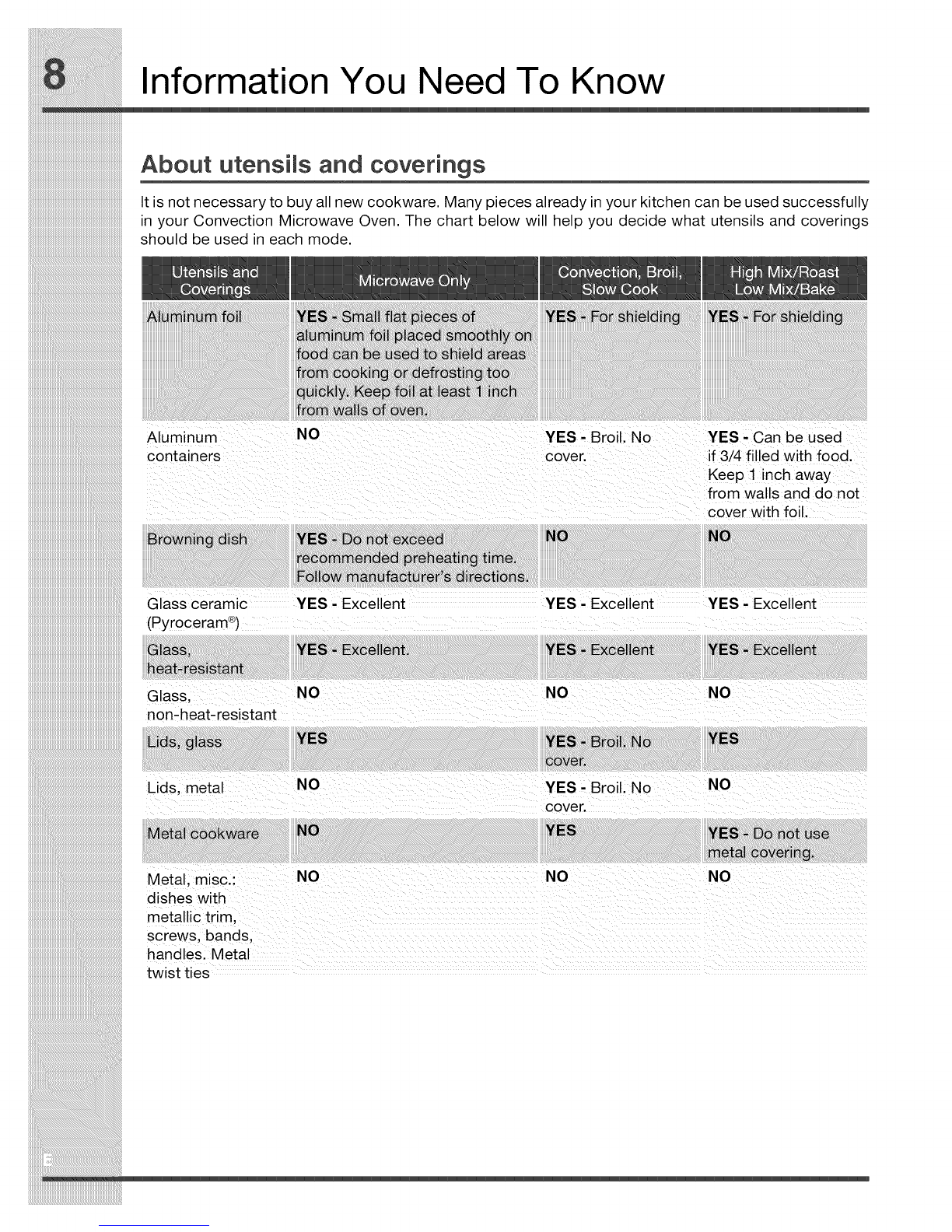

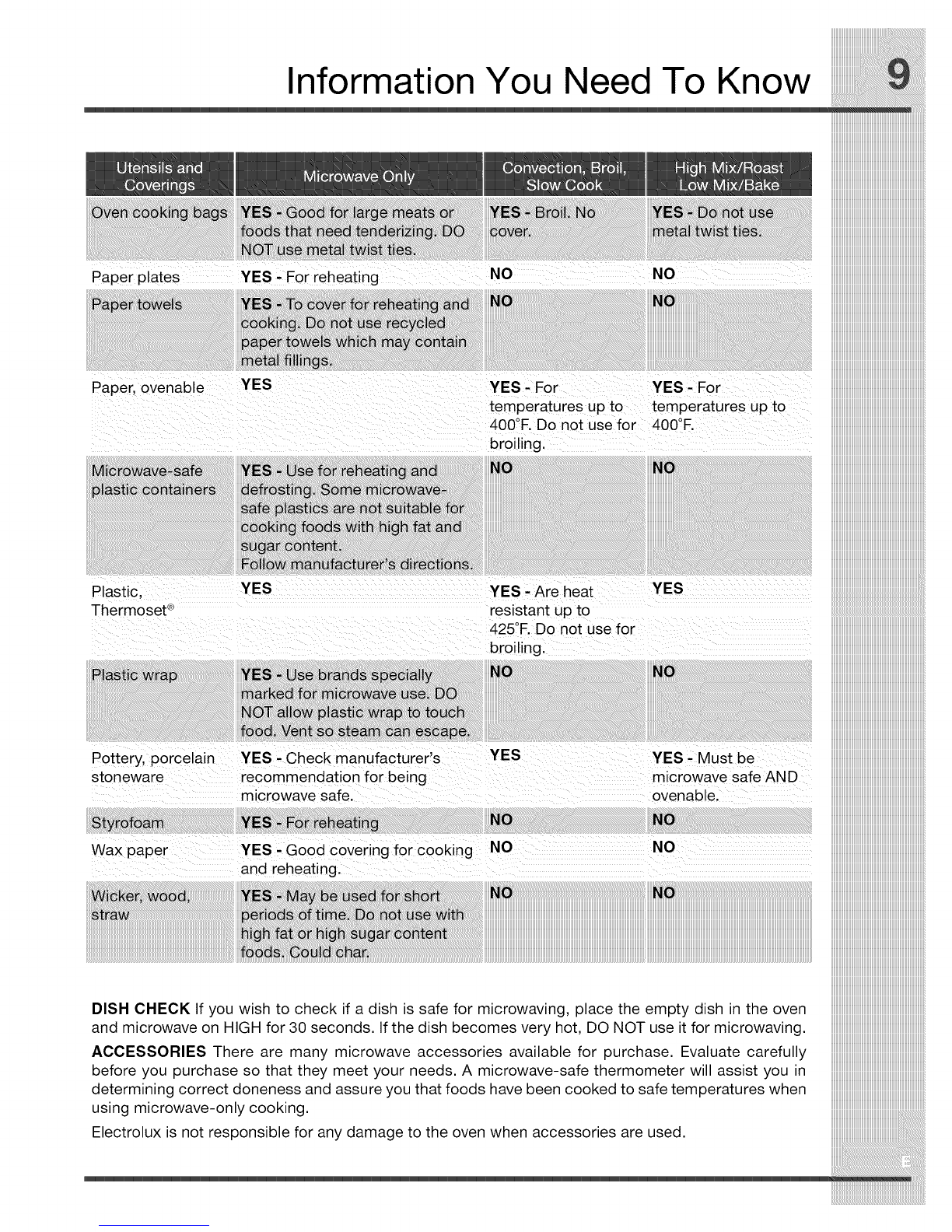

InformationYouNeedToKnow.............................. 6-9

PartNames...................................................... 10

ControlPanelandMenu....................................... 11

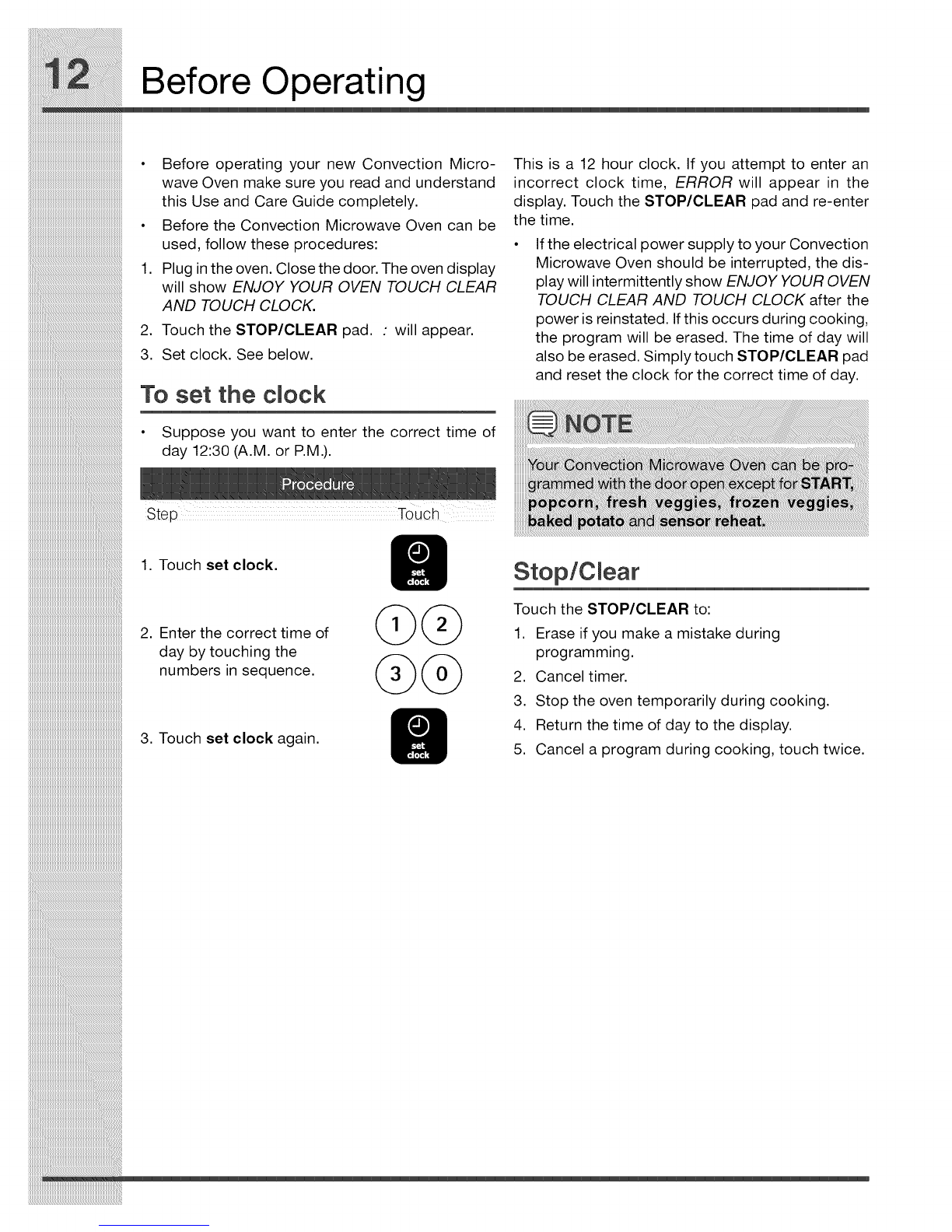

BeforeOperating................................................ 12

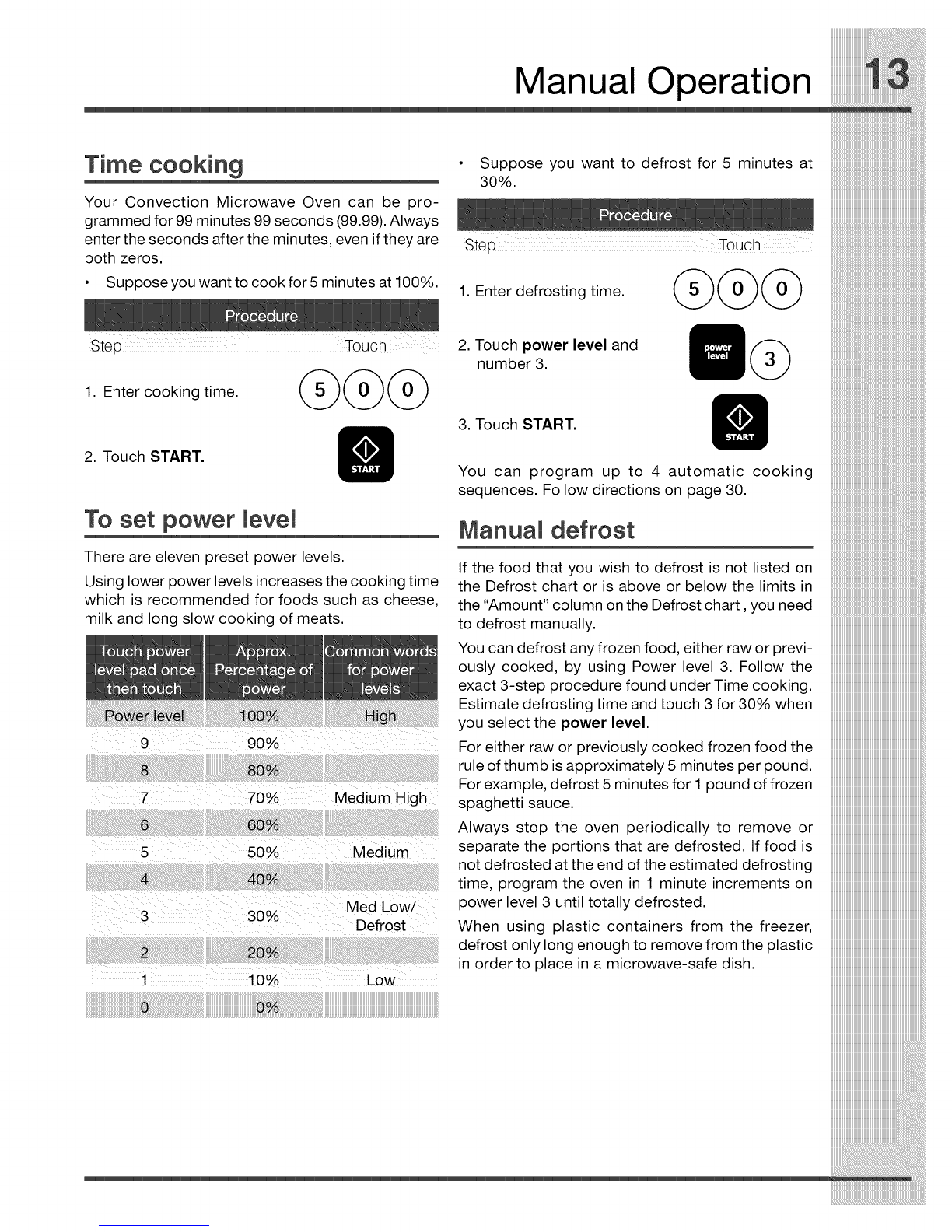

ManualOperation............................................... 13

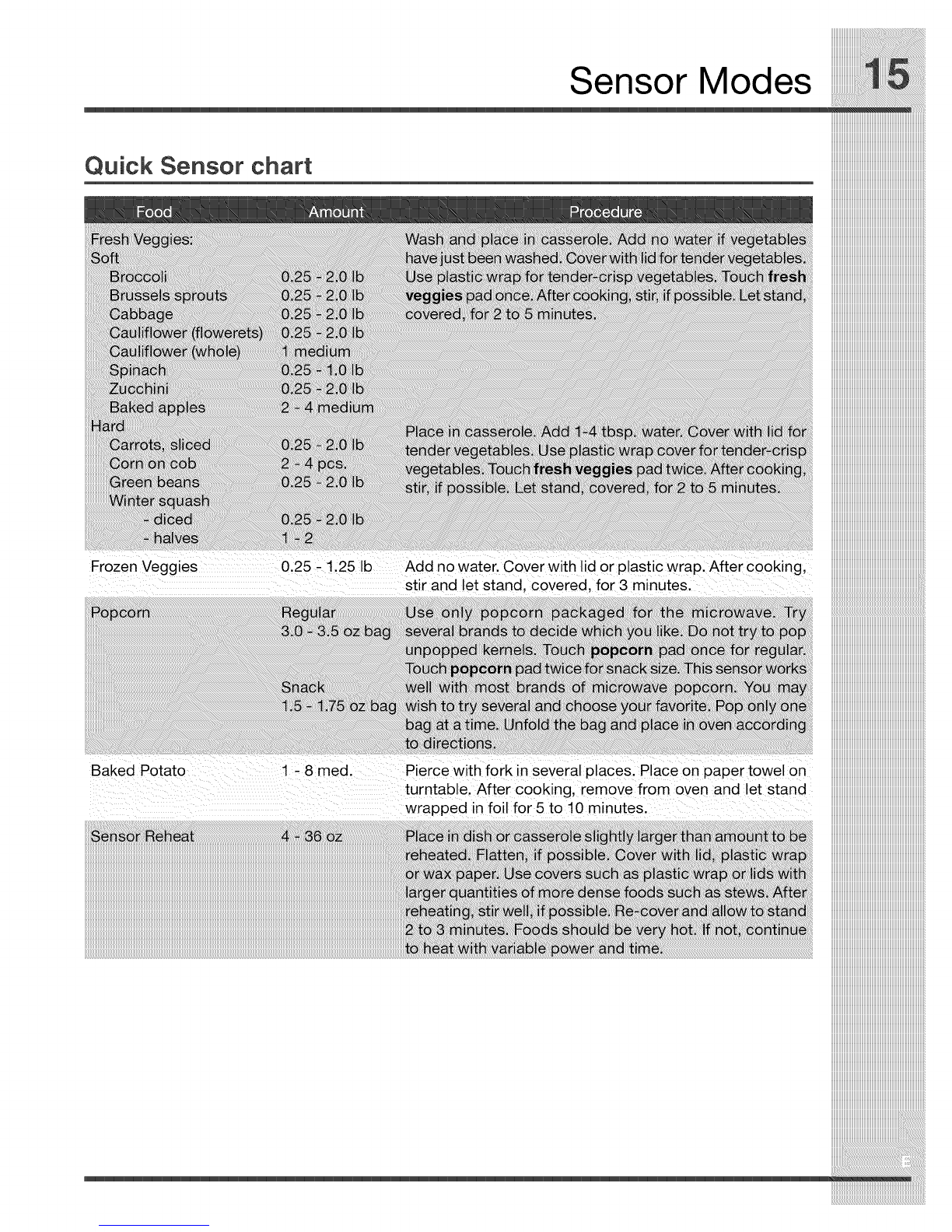

SensorModes............................................... 14-16

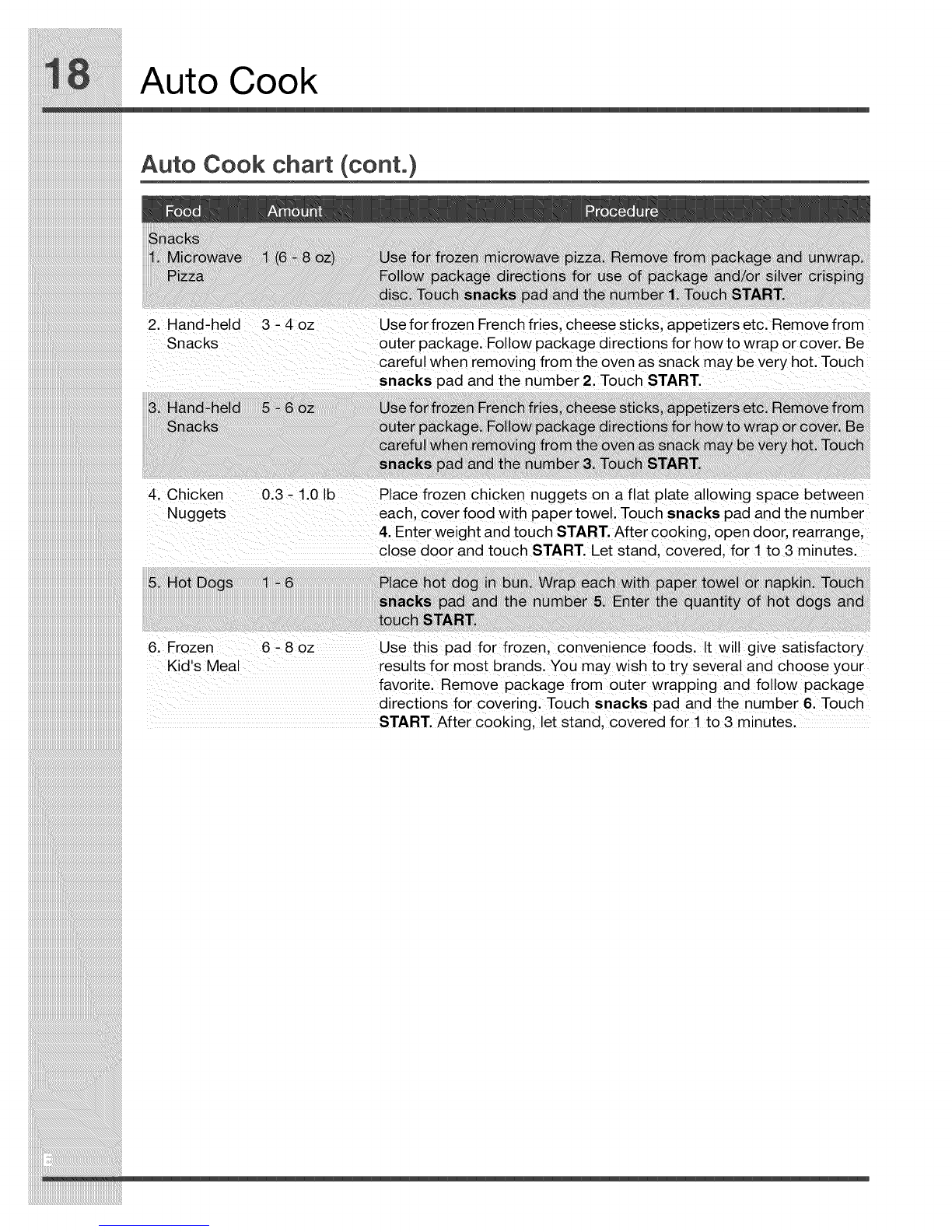

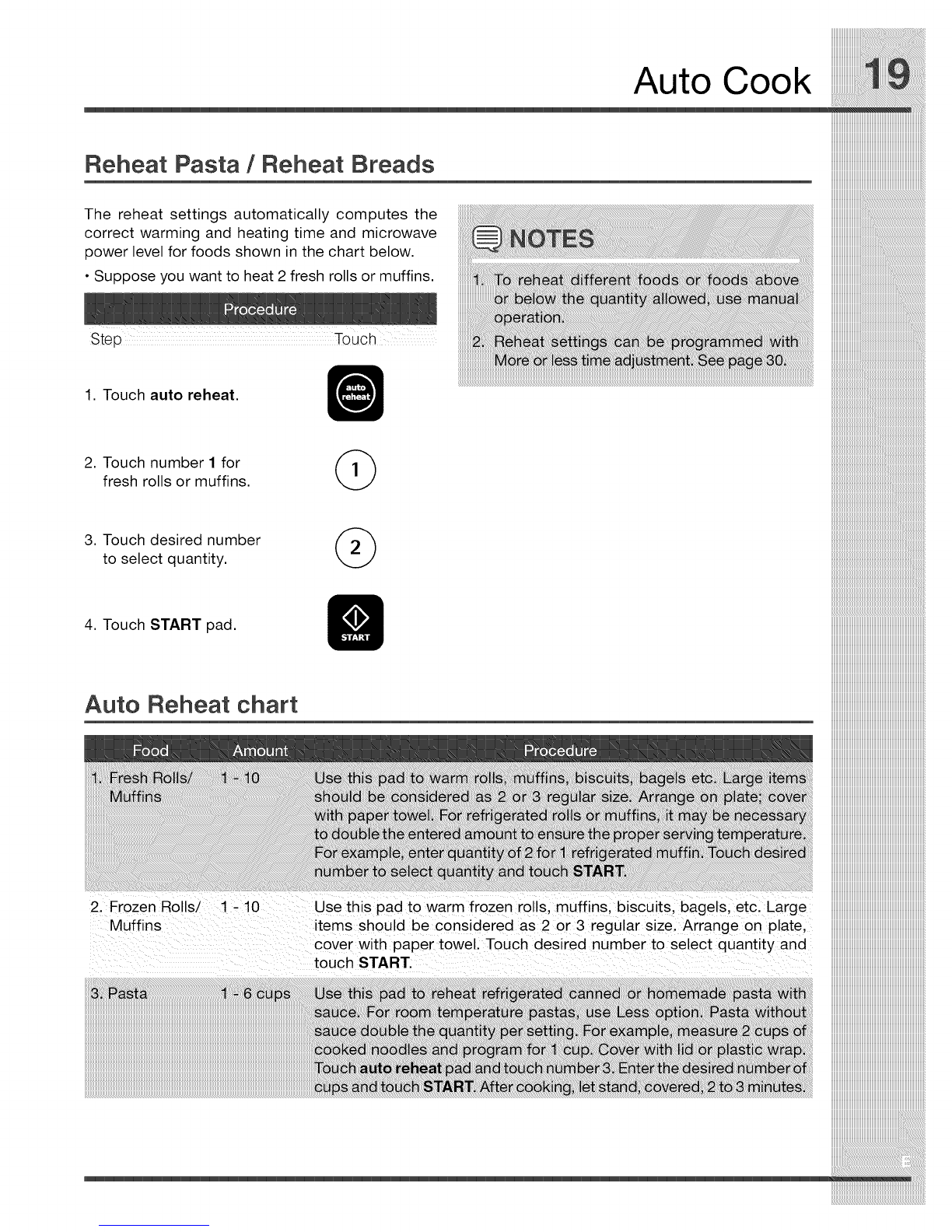

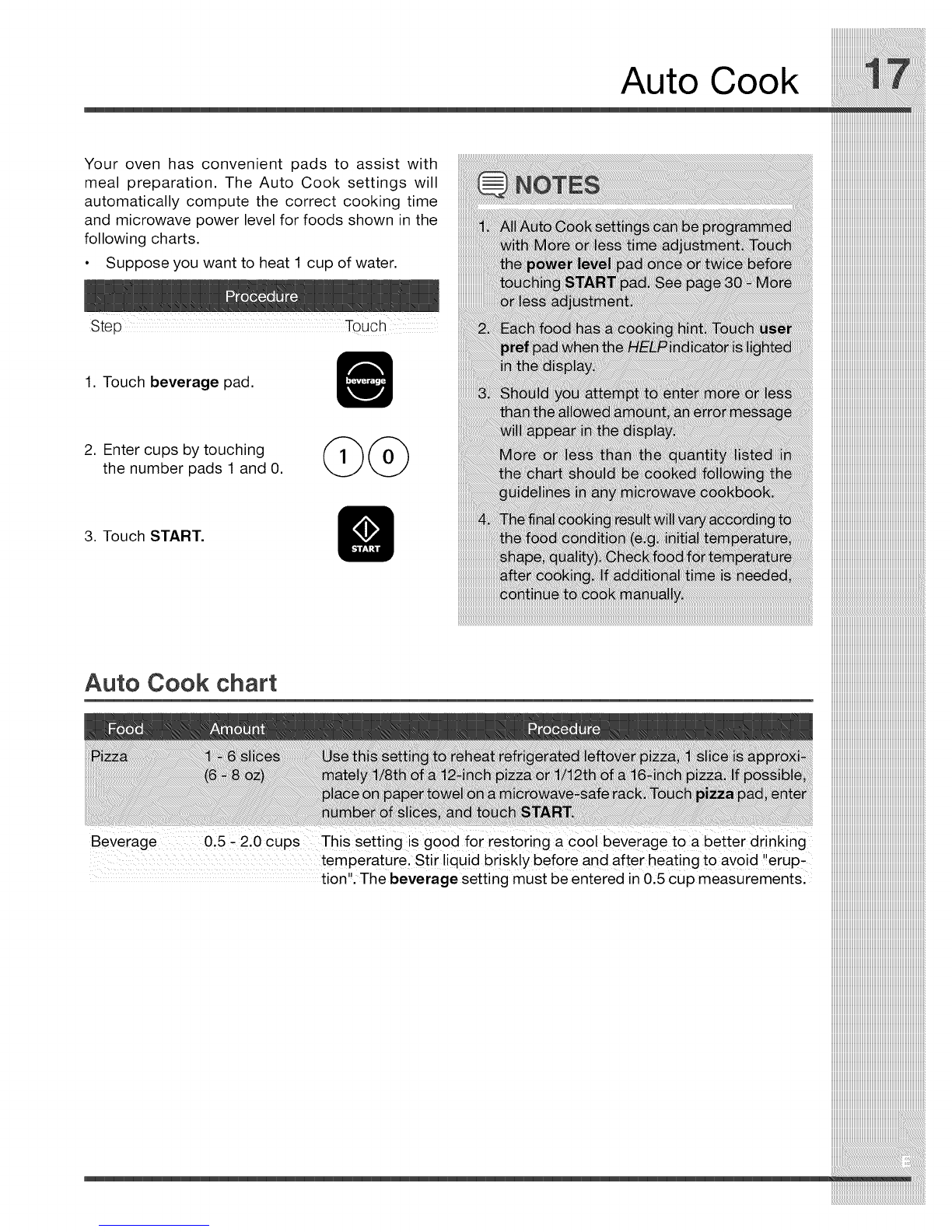

AutoCook.................................................... 17-19

ConvectionAutomaticOperation......................... 20-22

ManualConvectionandAutomaticMixCooking....... 23-26

QuickSettings................................................... 27

OtherSpecialFeatures......................................... 28

ConvenientFeatures....................................... 29-31

CleaningandCare.............................................. 32

ServiceCallCheck.............................................. 33

Specifications................................................... 34

WarrantyInformation.......................................... 35

Questions?

Fortoll-free telephone support inthe U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and Internet production information

visit http://www.electroluxusa.com

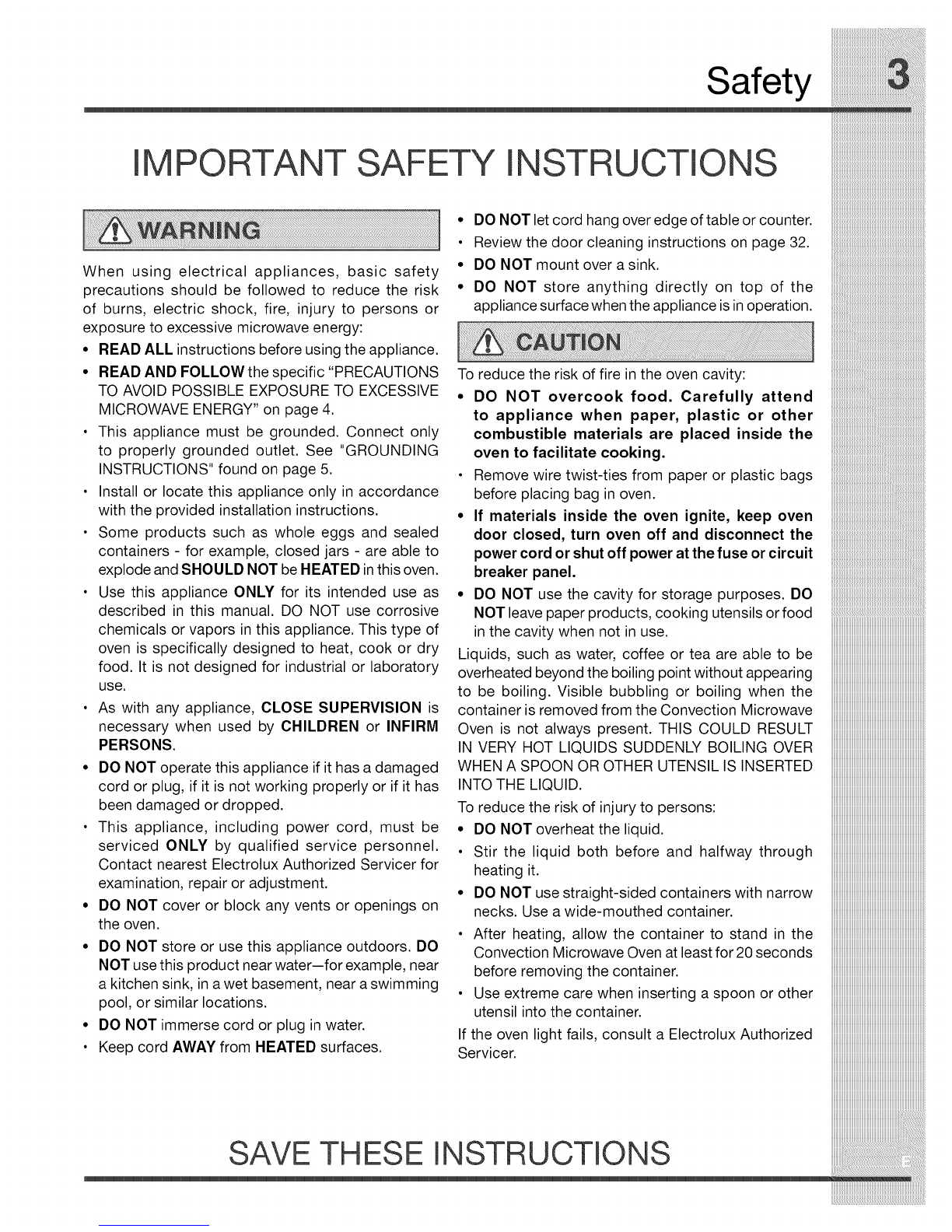

Safety

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety

precautions should be followed to reduce the risk

of burns, electric shock, fire, injury to persons or

exposure to excessive microwave energy:

• READ ALL instructions before using the appliance.

• READ AND FOLLOW the specific "PRECAUTIONS

TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY" on page 4.

• This appliance must be grounded. Connect only

to properly grounded outlet. See "GROUNDING

INSTRUCTIONS" found on page 5.

• Install or locate this appliance only in accordance

with the provided installation instructions.

• Some products such as whole eggs and sealed

containers - for example, closed jars - are able to

explode and SHOULD NOT be HEATED in this oven.

• Use this appliance ONLY for its intended use as

described in this manual. DO NOT use corrosive

chemicals or vapors in this appliance. This type of

oven is specifically designed to heat, cook or dry

food. It is not designed for industrial or laboratory

use.

• As with any appliance, CLOSE SUPERVISION is

necessary when used by CHILDREN or INFIRM

PERSONS.

• DO NOT operate this appliance if it has adamaged

cord or plug, if it is not working properly or if it has

been damaged or dropped.

• This appliance, including power cord, must be

serviced ONLY by qualified service personnel.

Contact nearest Electrolux Authorized Servicer for

examination, repair or adjustment.

• DO NOT cover or block any vents or openings on

the oven.

• DO NOT store or use this appliance outdoors. DO

NOT use this product near water--for example, near

a kitchen sink, in a wet basement, near a swimming

pool, or similar locations.

• DO NOT immerse cord or plug in water.

• Keep cord AWAY from HEATED surfaces.

• DONOTletcordhangoveredgeoftableorcounter. iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii::

•Review the door cleaning instructions on page 32.

• DO NOT mount over a sink.

• DO NOT store anything directly on top of the

appliance surface when the appliance is inoperation.

To reduce the risk of fire in the oven cavity:

• DO NOT overtook food. Carefully attend

to appliance when paper, plastic or other

combustible materials are placed inside the

oven to facilitate cooking.

• Remove wire twist-ties from paper or plastic bags

before placing bag in oven.

• If materials inside the oven ignite, keep oven

door closed, turn oven off and disconnect the

power cord or shut off power at the fuse or circuit

breaker panel.

• DO NOT use the cavity for storage purposes. DO

NOT leave paper products, cooking utensils or food

in the cavity when not in use.

Liquids, such as water, coffee or tea are able to be

overheated beyond the boiling point without appearing

to be boiling. Visible bubbling or boiling when the

container is removed from the Convection Microwave

Oven is not always present. THIS COULD RESULT

IN VERY HOT LIQUIDS SUDDENLY BOILING OVER

WHEN A SPOON OR OTHER UTENSIL IS INSERTED

INTO THE LIQUID.

To reduce the risk of injury to persons:

• DO NOT overheat the liquid.

• Stir the liquid both before and halfway through

heating it.

• DO NOT use straight-sided containers with narrow

necks. Use a wide-mouthed container.

• After heating, allow the container to stand in the

Convection Microwave Oven at least for 20 seconds

before removing the container.

• Use extreme care when inserting a spoon or other

utensil into the container.

If the oven light fails, consult a Electrolux Authorized

Servicer.

SAVE THESE iNSTRUCTiONS

Safet Y

What you need to know about safety instructions

Warning and Important Instructions appearing in this guide are not meant to cover all possible conditions

and situations that may occur. Common sense, caution and care must be exercised when installing,

maintaining or operating a microwave.

ALWAYS contact your dealer, distributor, service agent or manufacturer about problems or conditions

you do not understand.

Recognize Safety Symbols, Words, Labels

WARNING -- Hazards or unsafe practices which

COULD result in severe personal injury or death. CAUTION -- Hazards or unsafe practices which

COULD result in minor personal injury.

PRECAUTIONS TO AVOID POSSIBLE

EXPOSURE TO EXCESSIVE

CROWAVE ENERGY

Adhere to the following precautions:

•DO NOT attempt to operate this oven with the door open since open-door operation can result

in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety

interlocks.

• DO NOT place any object between the oven front face and the door or allow soil or cleaner residue

to accumulate on sealing surfaces.

• DO NOT operate the oven if it is damaged. It is particularly important that the oven door close

properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or

loosened), (3) door seals and sealing surfaces.

• The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

Improper use of the grounding plug can result in a risk of electric shock.

Electrical Requirements

The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more protected electrical supply. It

is recommended that a separate circuit serving only this appliance be provided.

The oven is equipped with a 3-prong grounding plug. It must be plugged into a wall receptacle that is

properly installed and grounded.

A short power-supply cord is provided to reduce risk of becoming entangled in or tripping over a longer

cord. DO NOT USE AN EXTENSION CORD. If the power supply cord is too short, have a qualified electri-

cian or serviceperson install an outlet near the appliance.

NOTES:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician

or serviceperson.

2. Neither Electrolux nor the dealer can accept any liability for damage to the oven or personal injury

resulting from failure to observe the correct electrical connection procedures.

Federam Communications Commission Radio Frequency

mnterference Statement (U.S.A. Only)

This equipment generates and uses ISM frequency energy and if not installed and used properly, that is

in strict accordance with the manufacturer's instructions, may cause interference to radio and television

reception. It has been type tested and found to comply with limits for ISM Equipment pursuant to part

18 of FCC Rules, which are designed to provide reasonable protection against such interference in a

residential installation.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause interference to radio or television reception, which can be determined by turning the equip-

ment off and on, the user is encouraged to try to correct the interference by one or more of the following:

• Reorient the receiving antenna of the radio or television.

• Relocate the microwave oven with respect to the receiver.

• Move the microwave oven away from the receiver.

• Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on

different branch circuits.

The manufacturer is not responsible for any radio or television interference caused by unauthorized

modification to this convection microwave oven. It is the responsibility of the user to correct such

interference.

:::::: Inform ation You Need To Know

About your oven

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii

This Use and Care Guide is valuable: read it carefully

and always save it for reference.

NEVER use the Convection Microwave Oven

without the turntable and support nor turn the

turntable over so that a large dish could be placed

in the oven. The turntable will turn both clockwise

and counterclockwise.

ALWAYS have food in the Convection Microwave

Oven when it is on to absorb the microwave energy.

When using the Convection Microwave Oven at

power levels below 100%, you may hear the mag-

netron cycling on and off. It is normal for the exterior

of the oven to be warm to the touch when cooking

or reheating.

Condensation is a normal part of microwave cook-

ing. Room humidity and the moisture in food will

influence the amount of moisture that condenses in

the oven. Generally, covered foods will not cause as

much condensation as uncovered ones. Ventilation

openings must not be blocked.

The Convection Microwave Oven is for food prepa-

ration only. It should not be used to dry clothes or

newspapers.

Your Convection Microwave Oven is rated 900 watts

by using the IEC Test Procedure. In using recipes

or package directions, check food a minute or two

before the minimum time and add time accordingly.

About safety

• Check foods to see that they are cooked to the

United States Department of Agriculture's recom-

mended temperatures.

165°F For leftover, ready:to,reheat refriger_

ated, and deli and carry:ou t !'fresh"

food.

180iF Dark meat of poultrY: ....

To test for doneness, insert a meat thermometer in

a thick or dense area away from fat or bone. NEVER

leave the thermometer in the food during cooking,

unless it is approved for microwave use.

• ALWAYS use potholders to prevent burns when

handling utensils that are in contact with hot food.

Enough heat from the food can transfer through

utensils to cause skin burns.

• Avoid steam burns by directing steam away from

the face and hands. Slowly lift the farthest edge

of a dish's covering and carefully open popcorn

and oven cooking bags away from the face.

• Stay near the oven while it's in use and check

cooking progress frequently so that there is no

chance of overcooking food.

• NEVER use the cavity for storing cookbooks or

other items.

Select, store and handle food carefully to pre-

serve its high quality and minimize the spread of

foodborne bacteria.

• Keep waveguide cover clean. Food residue can

cause arcing and/or fires.

• Use care when removing items from the oven so

that the utensil, your clothes or accessories do

not touch the safety door latches.

• Keep aluminum foil used for shielding at least

1 inch away from walls, ceiling and door.

iii i! ! ! ! i ! ! i!iiiiiiiiiiii!iii!!!i!ii!ill:I

Information You Need To Know 7

About microwave cooking

• Arrange food carefully. Place thickest areas

towards outside of dish.

• Watch cooking time. Cook for the shortest •

amount of time indicated and add more as

needed. Food severely overcooked can smoke

or ignite. •

• Cover foods while cooking. Check recipe or

cookbook for suggestions: paper towels, wax

paper, microwave plastic wrap or a lid. Covers

prevent spattering and help foodsto cook evenly. •

• Shield with small flat pieces of aluminum foil any

thin areas of meat or poultry to prevent over- •

cooking before dense, thick areas are cooked

thoroughly.

• Stir foods from outside to center of dish once or

twice during cooking, if possible.

• Turn foods over once during microwaving to

hamburgers. Large items like roasts must be

turned over at least once.

Rearrange foods such as meatballs halfway

through cooking both from top to bottom and

from the center of the dish to the outside.

Add standing time. Remove food from oven

and stir, if possible. Cover for standing time

which allows the food to finish cooking without

overLooking.

Check for doneness. Look for signs indicating

that cooking temperatures have been reached.

Doneness signs include:

- Food steams throughout, not just at edge.

- Center bottom of dish is very hot to the touch.

- Poultry thigh joints move easily.

- Meat and poultry show no pinkness.

iiiiiiiiiiiiiiiiiiiililiiii!iii!i!i!!iiiii

General • Cut baked goods with filling after heating

to release steam and avoid burns.

• Stir liquids briskly before and after

heating to avoid "eruption".

Use deep bowl, when cooking liquids or

cereals, to prevent boilovers.

• Heat or cook in closed glass jars or air

tight containers.

Can in the microwave as harmful

bacteria may not be destroyed.

Deep fat fry.

Dry wood, gourds, herbs or wet

papers

Fish is opaque and flakes easdy with a fork

speed cooking of such foods as chicken and - ' ' ' ' •

About food

Popcorn use specially bagged popcorn for P0p p0pcorn in regu ar brown bags

microwave cooking: or glasSbowtsl

'Listen while popping corn for the, Exceed maximum time on popcorn

p0pping to sow to ! or 2 seconds or use package.

spec al popcorn pad.

Information You Need To Know

iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiAboo,o,oos,,soodcovor,ogs

It isnotnecessaryto buyall newcookware. Many piecesalready in yourkitchen can beused successfully

in your Convection Microwave Oven. The chart below will help you decide what utensils and coverings

should be used in each mode.

__L

(Pyroceram °)

Metall misc:: NO NO NO

dishes with

metallic triml

twist ties

Information You Need To Know

Paper piates YES. For reheating NO NO

Paper, ovenable YES _F0r YES _F0_

temperatures up to temperatures up to

400°F. Donotuse for 400°F.

broiling[

Plastic; YES YES, Are heat YES

Thermoset resistant up to ....

425°F. Do not use for

broiiing:

stoneware recommendation for being microwave safe AND

microwave safe. ovenab!e.

DISH CHECK If you wish to check if a dish is safe for microwaving, place the empty dish in the oven

and microwave on HIGH for 30 seconds. If the dish becomes very hot, DO NOT use it for microwaving.

ACCESSORIES There are many microwave accessories available for purchase. Evaluate carefully

before you purchase so that they meet your needs. A microwave-safe thermometer will assist you in

determining correct doneness and assure you that foods have been cooked to safe temperatures when

using microwave-only cooking.

Electrolux is not responsible for any damage to the oven when accessories are used.

Part Names

1 .... L

13 12

14 16

15 17

1 Control panel

2 Ventilation openings

3 Model /Serial label

4 Door seals and sealing surfaces

5 Safety door latches -- The oven will not

operate unless the door is securely closed.

6 Oven door with see-through window

7 Door handle

8 Door hinges

9 Turntable motor shaft

10 Menu label

11 Oven light -- It will light when oven is operating

or door is open.

12 Waveguide cover: DO NOT REMOVE.

13 Time display: 99 minutes, 99 seconds

14 Removable turntable -- Place the turntable on

the turntable support securely. The turntable

will rotate clockwise or counterclockwise. Only

remove for cleaning.

15 Removable turntable support -- Carefully

place the turntable support in the center of the

oven floor.

16 Low Rack

17 High Rack

18 Convection Fan

The following accessories are designed especially

for use in this oven only for convection, mix or broil

cooking. DO NOT USE FOR MICROWAVE ONLY

COOKING. Do not substitute similar types of racks

for these specially designed ones.

High rack (Baking rack)-

for convection and low

mix.

• This rack is placed

on the turntable for

two-level cooking,

such as layer cakes,

muffins, etc.

Low rack (Broiling rack)-

for convection, broiling

or high mix.

• Place on the turntable

and use for roasting

or broiling to allow

juices to drain

away from food.

Control panel and menu

Words in the lower portion of the display will light to indicate what function is in progress.

20 21 22 23 15 30 17 27

24 25 16 15 31 29 12 18 19 28

.......................................Number next to the control panel illustration

indicates pages on which there are feature descriptions and usage information.

Refer to the menu label for quick references.

Before Operating

Before operating your new Convection Micro-

wave Oven make sure you read and understand

this Use and Care Guide completely.

Before the Convection Microwave Oven can be

used, follow these procedures:

Plug in the oven. Close the door. The oven display

will show ENJOY YOUR OVEN TOUCH CLEAR

AND TOUCH CLOCK.

Touch the STOP/CLEAR pad. :will appear.

Set clock. See below.

To set the clock

This is a 12 hour clock. If you attempt to enter an

incorrect clock time, ERROR will appear in the

display. Touch the STOP/CLEAR pad and re-enter

the time.

If the electrical power supply to your Convection

Microwave Oven should be interrupted, the dis-

play will intermittently show ENJOY YOUR OVEN

TOUCH CLEAR AND TOUCH CLOCK after the

power is reinstated. If this occurs during cooking,

the program will be erased. The time of day will

also be erased. Simply touch STOP/CLEAR pad

and reset the clock for the correct time of day.

• Suppose you want to enter the correct time of

day 12:30 (A.M. or P.M.).
