User Manual
VWM122SAA-X
VWM155SAA-X
vintec.com

As the appliance contains a
ammable refrigerant, it is
essential to ensure that the
refrigerant pipes are not dam-
aged.
The quantity and type of the
refrigerant used in your appli-
ance is indicated on the rating
plate.
Standard EN378 species that
the room in which you install
your appliance must have a
volume of 1m³ per 8 g of hydro-
carbon refrigerant used in the
appliances. This is to avoid the
formation of ammable gas/air
mixtures in the room where the
appliance is located in the event
of a leak in the refrigerant circuit.
WARNING:
Keep ventilation openings in
the appliance’s cabinet or in the
built-in structure clear of obstruc-
tion.
WARNING:
Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by the
manufacturer.
WARNING:
Do not damage the refrigerant
system.
WARNING:
Do not use electrical appli-
ances inside the refrigerated
storage compartment, unless
they are of a type recommended
by the manufacturer.
WARNING:
Do not expose the appliance to
rain.
WARNING:
This appliance may be used by
children over the age of 8 years
old and by persons with reduced
physical, sensory or mental
capabilities or by persons with
a lack of experience or knowl-
edge if they are supervised or
are instructed by a person re-
sponsible for their safety how
to use the appliance safely and
have understood the associated
hazards.
WARNING:
Children must not play with, on,
or around the appliance.
Warning
2
User Manual

WARNING:
Children must not clean the
appliance or carry out general
maintenance unless they are at
least 8 years old and are being
supervised.
WARNING:
Do not store explosives, such
as aerosol cans with ammable
propellants in the unit.
WARNING:
Danger risk of re or explosion if
ammable refrigerant are used.
To be repaired only by trained
personnel.
WARNING:
When positioning the appliance,
ensure the power cord is not
trapped or damaged.
WARNING:
Do not locate multiple portable
socket-outlets or portable power
supplies at the rear of the appli-
ance.
● Always keep the keys in a separate place
and out of reach of children.
● Before servicing or cleaning the appli-
ance, unplug the appliance from the
mains or disconnect the electrical power
supply.
●Relevant for Australia: Supply cord
tted with a plug complies with AS/NZS
3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance.
● Please note that changes to the appli-
ance construction will cancel all warranty
and product liability.
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons inor-
der to avoid a hazard.
● Do not use extension cords.
● This appliance is intended to be used
exclusively for the storage of wine
CLASS 1 LED PRODUCT
3
User Manual

On receipt, check to ensure that the ap-
pliance has not been damaged during
transport. Transport damage should be
reported to the local distributor before the
wine cooler is put to use.
Remove the packaging. Clean the inside of
the cabinet using warm water with a mild
detergent. Rinse with clean water and dry
thoroughly (see cleaning instructions). Use
a soft cloth.
If during transport the appliance has been
laid down, or if it has been stored in cold
surroundings (colder than + 5°C), it must be
allowed to stabilise in an upright position for
at least an hour before being switched on.
Before use
The energy consumption reduces ..
1)..the lower the ambient temperature is.
2)..the warmer thermostat set point is.
3)..the lower the number and the shorter the
length of the door openings is.
Savings in energy consumption in the use
Contents
Warning ......................................................2
Savings in energy consumption in the use . 4
Before use ..................................................4
Get to know your wine cooler .....................5
Technical data .............................................6
Installation and start-up ..............................6
Operation and function ...............................9
Defrosting, cleaning and maintenance .....11
Reversible door ........................................12
Fault nding ..............................................14
Warranty, spare parts and service ............15
Disposal ....................................................16
Safety instructions ....................................17
4
User Manual

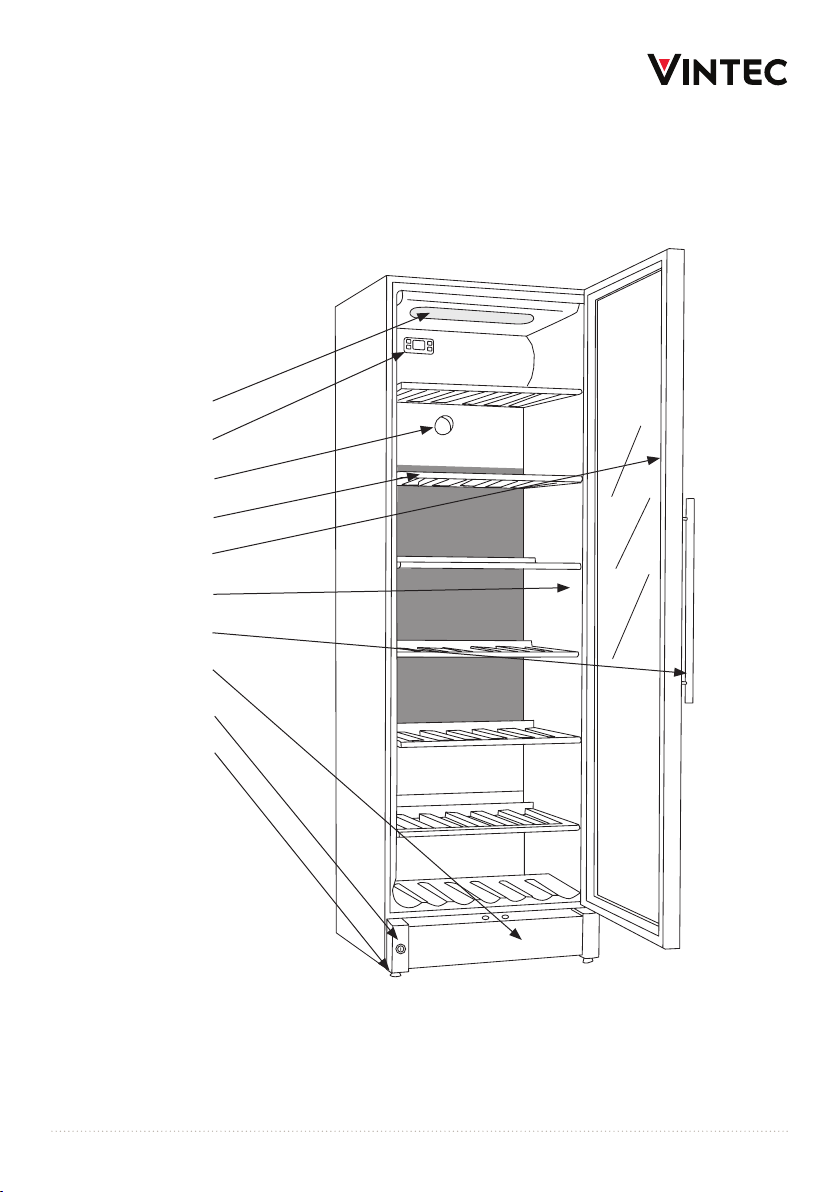

Before use Get to know your wine cooler
Lighting
Control panel
Charcoal filter
Wooden shelf
Sealing strip
Nameplate
Door handle
Kick plate
Lock
Adjustable feet
g. 1
5
User Manual

Placement
For safety and operational reasons, the ap-
pliance must not be installed outdoors.
The appliance should be placed on a level
surface in a dry, well ventilated room (max.
75% relative air humidity). Never place the
appliance close to sources of heat such as
cookers or radiators, and avoid placing it in
direct sunlight.
Ambient temperature
The climate class is stated on the name-
plate (see page 7 and page 14). This
species the optimum ambient temperature.
Wine coolers with winter position, however,
function at ambient temperatures as low as
5ºC.
Installation
The surface on which the appliance is to be
placed must be level. Do not use a frame or
similar.
The appliance can be installed as a free-
standing unit against a wall, built into a
kitchen element, or lined up with other ap-
pliances (gs 3-4).
Installation and start-up
Technical data
xxxxxxxxxxx
xxxxxxxxxxx
xxxxx
x.xxx
xxxxxxxxxxxxxxx
Wiring and connections in power supply
systems must been all applicable (local and
national) electrical codes. Consult these
codes lengths and sizes prior to cabinet
installation.
This device complies with relevant EU
directives including Low Voltage Directive
2014/35 LVD. and Electromagnetic Com-
patibility Directive 2014/30/ Electromagnetic
Com¬patibility Directive.
The socket should be freely accessible.
Connect the appliance only to 220/240 V
/ 50Hz alternating current via a correctly
installed earthed socket.
The socket must be fused with a 10-13 A
fuse.
If the appliance is to be operated in a non-
European country, check on the rating plate
whether the indicated voltage and current
type correspond to the values of your mains
supply.
Information regarding voltage, current or
power are given on the rating plate
The power cord may be replaced by a
technician only.

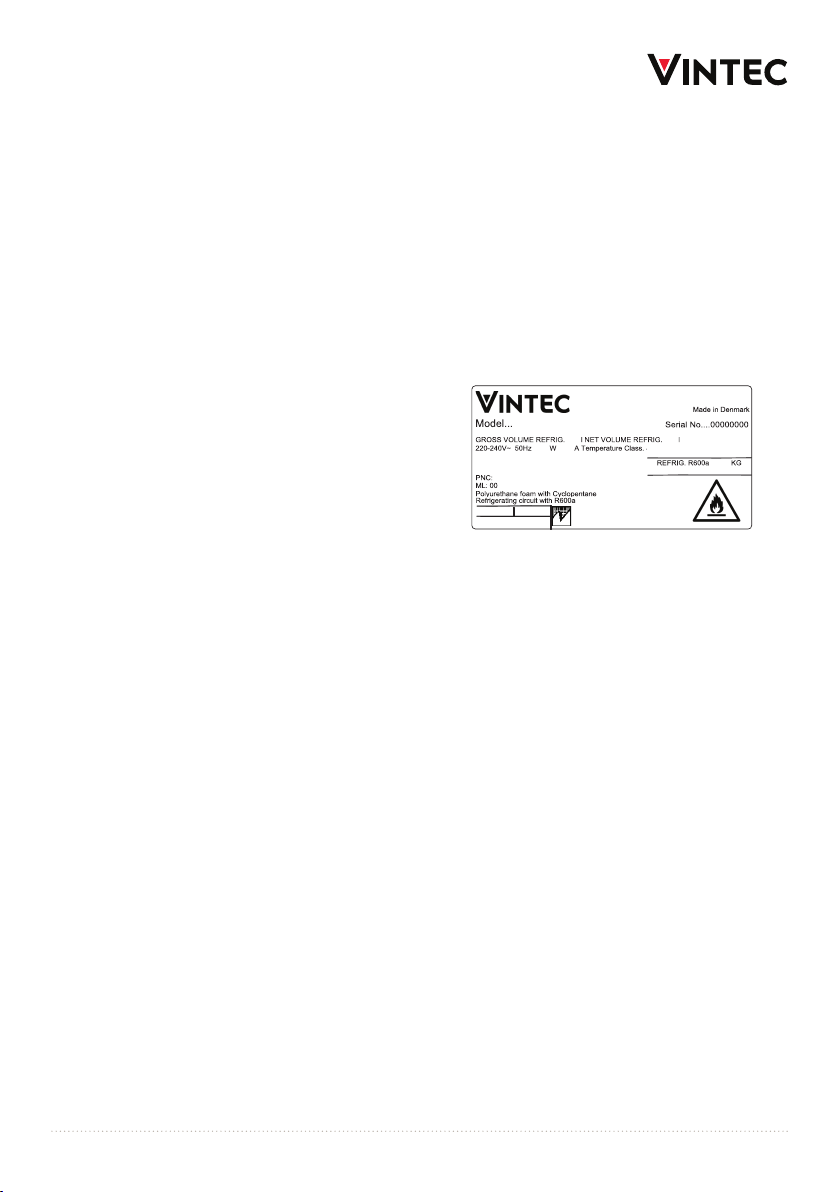

The rating plate provides various techni-
cal information as well as type and serial
number.
g. 2
Climate class Optimum room
temperature
SN +10 ºC to +32 ºC
N+16 ºC to +32 ºC
ST +16 ºC to +38 ºC
T +16 ºC to +43 ºC
6
User Manual

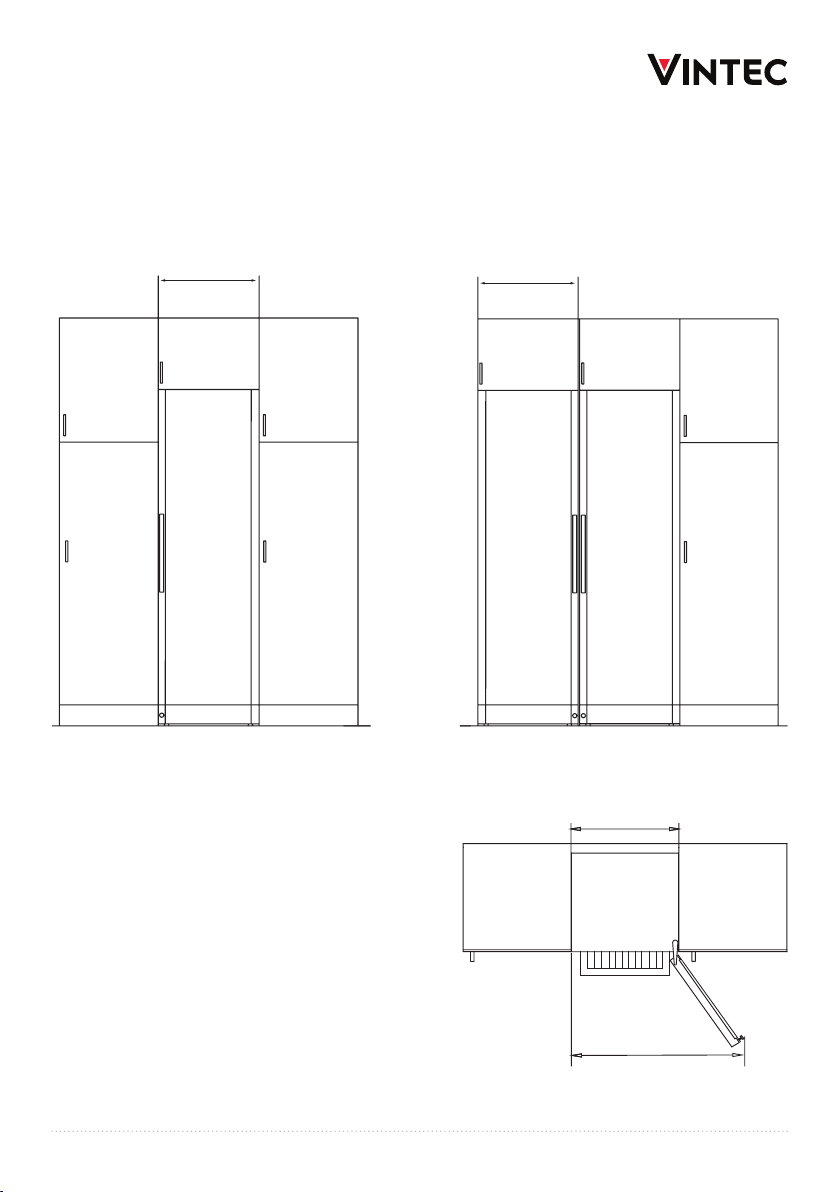

Installing the Wine Cooler
Your Electrolux wine cooler has been
designed for either free-standing instal-
lation. The front grille must NOT be
obstructed.
600 600
600 600
600 600
600 600
600
1075
The appliance viewed
from above
If the appliance is placed beside a wall,
there must be sufcient room for its
door to be opened wide enough to allow
the shelves to be pulled out.
g. 3 g. 4
g. 5
7
User Manual

Proper Storage
Stocking Recommendations.
The wine racks allow for the proper
horizontal storage of wine. The bottles
are properly positioned so that the
wine remains in contact with the cork to
assure that the cork does not become
dry. White and sparkling wines should
be maintained on the bottom to middle
racks and red wine on the top racks.
Shelf Removal
Open the door completely and pull out
the shelf to the end. Lift up on the front
of the shelf, pull slightly forward and lift
up to remove the shelf from the vine
cooler.
Shelf load
The wooden shelf can be loaded with
85 kg. If the wooden shelf loaded with
85 kg, a deection of up to 5 mm
expected.
Max. 85 kg.
85
g. 6 g. 8
The distance pieces on the rear of the ap-
pliance ensure sufcient air circulation. Fit
the two caps supplied with the appliance as
shown in g. 7.
g. 7
8
User Manual

Operation and function
g. 9
Electronic control
The electronic control ensures that the
temperatures set at the top and at the bot-
tom of the appliance are maintained. This is
achieved by means of an advanced control
of the refrigeration system, the heating ele-
ment, and the fan. The set temperature will
be stored in the event of power failure.
The electronic control has the following
functions:
● On/off switch
● Light switch*
● Temperature setting
● Temperature indication
● Alarm for too high and too low tempera-
tures
● Door alarm
* The light may either be turned on
constantly or only when the door is open.
Temperature indication
The display shows the actual temperature.
The upper digits of the display indicate the
temperature at the top of the appliance, and
the lower digits of the display indicate the
temperature at the bottom of the appliance.
The temperature indicator is equipped with
a built-in lter which simulates the actual
temperature in the bottles. Consequently,
the indicator does not react on short-term
uctuations of the air temperature
Temperature setting
The thermostat is equipped with a child lock
device. This device is activated by pushing
the “up and down” buttons simultaneously.
After approx. 3 seconds “Pof” ashes in
the display. Then the actual temperatures
are shown as usual. In addition, the set
temperatures can be shown by pushing
SET1 and SET2, respectively.
The child lock device is cancelled by
pushing the “up and down” buttons simul-
taneously. After approx. 3 seconds “Pon”
ashes in the display, and the temperature
can be set.
Temperature setting at the top
of the appliance
Push SET1. Then the temperature at the
top of the appliance can be adjusted up and
down by means of the “up and down” but-
tons. The temperature can be adjusted from
8 to 22°C, however so that the temperature
cannot be set at a lower temperature than
the actual set point for the bottom tempera-
ture sensor.
2
1
9
User Manual

Temperature setting at the bot-
tom of the appliance
Push SET2. Then the temperature at the
bottom of the appliance can be adjusted up
and down by means of the “up and down”
buttons. The temperature can be adjusted
from 5 to 22°C, however so that the tem-
perature cannot be set at a higher tempera-
ture than the actual set point for the upper
temperature sensor.
Alarm devices
There is a sub-alarm for the low-temper-
ature sensor and an excess-alarm for the
high-temperature sensor.
The alarm consists of a beeper and a warn-
ing on the display.
Alarm for high temperature: beep sound
+ alternating display of “HtA” and actual
temperature
Alarm for low temperature: beep sound
+ alternating display of “LtA” and actual
temperature
The alarm temperature depends on the set
points.
The beep sound can be cancelled by push-
ing a random thermostat button. Push the
on/off button to erase the display alarm,
rst for cancelling the alarm, then again for
restarting the compressor.
Door alarm
When the door has been open for more
than 2 minutes the door alarm is activated.
Permanent lighting
For presentation purposes of your wine,
you can turn the lights permanently. Please
press the light switch image twice. To
switch off the lights press on again.
The light will always be on when the door is
open.
Two-zone setting for serving
temperature
Typical serving temperature settings for the
top and bottom sections are 16°C and 6°C
respectively. With these settings, a suitable
temperature gradient will be achieved in
the cabinet for the storage of various types
of wine distributed from top to bottom as
follows:
● heavy red wines +16 to +19°C
● rosé and light red wines +12 to +16°C
● white wines +10 to +12°C
● champagne and sparkling wines +6 to
+8°C
It is recommended that wine be served at a
temperature which is a couple of degrees
lower than the desired drinking temperature
as the wine will be warmed slightly when it
is poured into the glass.
10
User Manual

Single-zone setting for long-
term storage
For long-term wine storage, the top and bot-
tom sections should both be set at 12°C.
With identical settings for the top and bot-
tom sections, the controls will maintain an
even temperature throughout the cabinet.
However, the temperature in the room will
gradually affect the temperature in the
cabinet through its door and sides, creating
a slight temperature gradient from top to
bottom. The controls will maintain the set
temperature at the bottom of the cabinet,
and any deviation from the setting will
therefore occur at the top.
The difference will vary from 0 to 3°C, de-
pending on the ambient temperature.
Automatic defrosting
The wine cooler is defrosted automatically.
Defrost water runs through a pipe and is
collected in a tray above the compressor
where the heat generated by the compres-
sor causes it to evaporate. The defrost
water tray should be cleaned at intervals.
Cleaning
Before cleaning the appliance, unplug it
from the main supply. The cabinet is best
cleaned using warm water (max. 65°C) with
a little mild detergent. Never use cleaning
agents that scour. Use a soft cloth. Rinse
with clean water and dry thoroughly. The
defrost water channel, in which condensa-
tion from the evaporator runs, is located
at the bottom of the rear inside wall of the
cabinet and must be kept clean. Add a few
drops of disinfectant, e.g. Rodalon, to the
Defrosting, cleaning and maintenance
defrost water drain a couple of times a year,
and clean the drain using a pipe cleaner or
similar. Never use sharp or pointed imple-
ments.
The sealing strip around the door must be
cleaned regularly to prevent discolouration
and prolong service life. Use clean water.
After cleaning the sealing strip, check that it
continues to provide a tight seal.
Dust collecting on the condenser on the
rear of the cabinet, the compressor and
in the compressor compartment is best
removed using a vacuum cleaner.
11
User Manual

The door can be changed from right-hinged to left-hinged and vice versa as follows:
Reversible door
1. Lay the appliance on its back
and loosen the upper hinge.
2. Remove the upper hinge.
6. Carefully remove the covers
on the side of the plinth using
a at-headed screwdriver.
7. Pull up the hinge pin...
...and t it on the opposite side.
8. Unscrew the lock pin using a
at-headed screwdriver.
3. Rotate the glass door 180°
(On the smaller cabinets
(1500mm) desmount the
handle. The screws are on
the inside of the sealing strip.
Move the handle 400mm up
and mount it again so it is in
the same height as before.)
4. You will need to remove the magnet on the underside of the door by unscrewing the two screws,
pulling the magnet away from the door. Also with a small Philips head screwdriver remove the Vintec
logo badge and swap the magnet where the badge was and vice versa.
5. Remove the top and bottom bushes on the door frame (the bushes are the black, round plastic
pieces which t into the top and bottom hinges) and swap them så that the bush which was on top is
now on bottom and vice versa.
12
User Manual

12. After reversing the door, it is important to check that the sealing strip provides a tight seal all the way
round. If it does not, carefully heat the strip all the way round using a hair dryer. Then ease the strip
outwards slightly so that it forms a tight seal against the cabinet. Be careful not to heat the strip so
much that it melts!
10. Click the covers into place
on the plinth sides on the
opposite side.
11. Fit the door onto the bottom
pin, t the top hinge and
tighten securely.
9. When the lock pin has been
loosened completely, pull
it up together with the lock
cylinder and ret on op-
posite side.
13
User Manual

Fault nding
Fault Possible cause Remedy
The appliance is not
working.
The appliance is switched off.
Power failure; the fuse is blown;
the appliance is not plugged in
correctly.
Press the on/off switch.
Check that power is connected.
Reset the fuse.
Water collects in
the bottom of the
cabinet.
The defrost water pipe is
blocked.
Clean the defrost water channel
and the drain hole on the rear
wall of the cabinet.
Vibration or
bothersome noise.
The appliance is not level.
The appliance is resting against
other kitchen elements.
Containers or bottles inside the
cabinet are rattling against one
another.
Level the appliance using a spirit
level.
Move the appliance away from
the kitchen elements or appli-
ances it is in contact with.
Move containers and/or bottles
apart.
Compressor runs
continuously.
High room temperature. Ensure adequate ventilation.
P1 is shown on the
display.
The upper sensor is
disconnected or short-circuited.
Call for service. The temperature
within the entire cabinet is main-
tained at the higher of the two
setpoints until the fault has been
corrected.
P2 is shown on the
display.
The lower sensor is
disconnected or short-circuited.
Call for service. The temperature
within the entire cabinet is main-
tained at the higher of the two
setpoints until the fault has been
corrected.
14
User Manual

Warranty, spare parts and service
Warranty disclaimer
Faults and damage caused directly or
indirectly by incorrect operation, misuse,
insufcient maintenance, incorrect building,
installation or mains connection. Fire, ac-
cident, lightening, voltage variation or other
electrical interference, including defective
fuses or faults in mains installations.
Repairs performed by others than approved
service centres and any other faults and
damage that the manufacturer can sub-
stantiate are caused by reasons other than
manufacturing or material faults are not
covered by the warranty.
Please note that changes to the construc-
tion of the appliance or changes to the
component equipment of the appliance will
invalidate warranty and product liability, and
the appliance cannot be used lawfully. The
approval stated on rating plate will also be
invalidated.
Transport damage discovered by the buyer
is primarily a matter to be settled between
the buyer and the distributor, i.e. the dis-
tributor must ensure that such complaints
are resolved to the buyer’s satisfaction.
Before calling for technical assistance,
please check whether you are able to
rectify the fault yourself. If your request for
assistance is unwarranted, e.g. if the appli-
ance has failed as a result of a blown fuse
or incorrect operation, you will be charged
the costs incurred by your call for technical
assistance.
Spare parts
When ordering spare parts, please state
the type, serial and product numbers of
your appliance. This information is given on
the rating plate. The rating plate contains
various technical information, including type
and serial numbers.
xxxxxxxxxxx
xxxxxxxxxxx
xxxxx
x.xxx
xxxxxxxxxxxxxxx
g. 10
15
User Manual

Disposal
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the products,
packaging, and/or accompanying
documents mean that used electri-
cal and electronic products and
batteries should not be mixed with
general household waste. For proper
treatment, recovery and recycling
of old products and used batteries,
please take them to applicable collec-
tion points, in accordance with your
national legislation and the Directives
2012/19/EU and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to
save valuable resources and prevent
any potential negative effects on
human health and the environment
which could otherwise arise from
inappropriate waste handling.
For more information about collec-
tion and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for incor-
rect disposal of this waste, in accord-
ance with national legislation.
For business users in the Euro-
pean Union.
If you wish to discard electrical and
electronic equipment, please contact
your dealer or supplier for further
information.
Information on Disposal in other
Countries outside the European
Union
These symbols are only valid in the
European Union. If you wish to dis-
card this product, please contact your
local authorities or dealer and ask for
the correct method of disposal.
Note for the battery symbol:
This symbol might be used in combi-
nation with a chemical symbol. In this
case it complies with the requirement
set by the Directive for the chemical
involved.
Conformed to the stipulation on permissible content limitation of
some hazardous & restricted chemical substances.
(RoHS compliant)
(According to the circular No. 30/2011/TT-BCT, Vietnam, dated 10th August, 2011)
16
User Manual

(See also Warning page 2).
1. There is a name plate inside the cabinet.
The name plate provides various
technical information and a safety notice
with a yellow ame triangle label, name
and chemical symbol of the refrigerant.
2. The refrigerator contains ammable
refrigerant (R600a: iso-butane).
Requirements to ensure gas safety and
safe use of refrigerators:
● The refrigeration system behind
and inside the refrigerator contains
refrigerant. Do not allow any sharp
objects to come into contact with the
refrigeration system.
● Do not use other electric appliances
inside the refrigerator.
● Children should be supervised to ensure
that the refrigerator should be used
properly.
● Do not use the mechanical devices or
other means to accelerate the defrosting
process, unless they are of the type
recommended by the manufacturer.
● Do not block the openings on the
circumstances of the refrigerator.
● In case of having damaged the
refrigerant circuit, do not use electric
items or re equipments nearby, and
open all windows to provide good
ventilation. Please also contact your local
maintenance agent to follow up.
● The warning labels mentioned above
should be kept throughout the life of the
refrigerator. The user manual should be
Safety instructions
handed over to any person who would
use or handle the refrigerator whenever
the refrigerator would be transferred
to another location and delivered to a
recycling plant.
17
User Manual

Intentionally blank page
18
User Manual

Intentionally blank page
19
User Manual

vintec.com
Vintec. We are part of the
Electrolux Family. To add
a touch of professional
inspiration to your home,
visit electrolux.com
© 2019 Electrolux Home Products Pty Ltd. ABN 51 004 762 341
8120182 rev 02_10_Sep19
Stay in touch and share your
user experience by following us:
@vintecclub
Service and support
In the rare event that your Vintec cabinet does not perform
to your satisfaction, contact our dedicated support team:
