ELGA Medica EDI 15 User manual

Medica EDI 15/30
Operator Manual

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page i
Copyright Note
The information contained in this document is the property of VWS (UK)
Ltd, trading as ELGA LabWater, and is supplied without liability for errors
or omissions.
No part of this document may be reproduced or used except as
authorized by contract or other written permission from VWS (UK) Ltd.
The copyright and all restrictions on reproduction and use apply to all
media in which this information may be placed.
VWS (UK) Ltd. pursue a policy of continual product improvement and
reserve the right to alter without notice the specification, design, price or
conditions of supply of any product or service.
© VWS (UK) Ltd. 2016 –All rights reserved.
Publication ref: MANU40748
Version 1 –05/16
ELGA® is the global laboratory water brand name of Veolia Water.
ELGA and MEDICA are registered trademarks.
Effersan™is a trademark of Activon Inc.

MEDICA EDI 15/30 Operator Manual ELGA
Page ii MEDICA EDI 15/30 Version 1 05/16
TABLE OF CONTENTS
1. INTRODUCTION ................................................................... 1
1.1 Use of this Manual........................................................ 1
1.2 Customer Support......................................................... 1
1.3 Product Range.............................................................. 1
2. HEALTH AND SAFETY NOTES............................................ 2
2.1 Electricity...................................................................... 2
2.2 Pressure....................................................................... 2
2.3 Ultra-Violet Light ........................................................... 3
2.4 Sanitization Chemicals.................................................. 3
2.5 Control of Substances Hazardous to Health (COSHH) . 3
2.6 Environment.................................................................. 3
3. CONSUMABLES AND ACCESSORIES................................ 4
4. PRODUCT AND PROCESS DESCRIPTION......................... 5
4.1 Product Description....................................................... 5
4.2 Process Description...................................................... 6
5. CONTROLS........................................................................... 8
6. INSTALLATION INSTRUCTIONS......................................... 9
6.1 Unpacking the MEDICA EDI 15/30 ............................... 9
6.2 Positioning the MEDICA EDI 15/30............................... 9
6.3 Installing the external Pre-treatment Assembly........... 11
6.4 Connecting the MEDICA EDI 15/30 ............................ 13
6.5 Pre-Start Up................................................................ 15
6.6 Initial Controller Set Up............................................... 16
6.7 Setting Display and Consumable Replacement
Reminders .................................................................. 20
6.8 Commissioning........................................................... 22
7. OPERATION........................................................................ 23
7.1 Dispensing.................................................................. 23
7.2 Intermittent Mode........................................................ 23
7.3 Alarm Conditions......................................................... 23
8. MAINTENANCE .................................................................. 24
8.1 Replacing the LC281 Pre-treatment filters................... 25
8.2 Replacing the LC212 dual cartridge pack.................... 26
8.3 Replacing the LC105 Ultraviolet Lamp........................ 28
8.4 Replacing the LC125 0.2m capsule filter................... 29
8.5 Removing and Re-fitting the LC219 EDI Module......... 30
8.6 Cleaning the Inlet Strainer........................................... 30
8.7 Cleaning the Re-Circulation Strainer........................... 31
8.8 Replacement of LC143 Reverse Osmosis Cartridge... 31
9. SANITIZATION PROCEDURES.......................................... 32
9.1 Sanitization of RO Modules......................................... 32
(for use within the United States) ......................................... 32
9.2 Sanitization of RO Modules......................................... 34

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page iii
(for use within Rest of the World)..........................................34
9.3 Sanitization Procedure for the recirculation loop and
docking vessel/reservoir..............................................35
10. EMERGENCY BY-PASS......................................................36
11. TROUBLE SHOOTING........................................................38
12. KEY TO CONTROL PANEL ................................................39
12.1 Icons ...........................................................................39
12.2 User Alarm Codes.......................................................40
13. TECHNICAL SPECIFICATIONS..........................................41
14. WARRANTY/CONDITIONS OF SALE.................................45
15. USEFUL CONTACT DETAILS.............................................47

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 1
1. INTRODUCTION
1.1 Use of this Manual
This manual contains full details on installation, commissioning and
operation of the MEDICA EDI 15/30 system. If this system is used
contrary to the instructions in this document, then the safety of the
user may be compromised.
1.2 Customer Support
Service support and consumable items are available from your local
supplier or distributor. Refer to customer service contact details shown
at the end of this publication.
1.3 Product Range
This Operator Manual has been prepared for the MEDICA EDI 15/30
product models.
MEDICA EDI 15 BP (with boost pump)
MEDICA EDI 30 BP (with boost pump)
MEDICA EDI 15/30

MEDICA EDI 15/30 Operator Manual ELGA
Page 2 MEDICA EDI 15/30 Version 1 05/16
2. HEALTH AND SAFETY NOTES
MEDICA EDI 15/30 products are designed to be safe, however, it is
important that personnel working on these systems understand any
potential dangers. All safety information detailed in this handbook is
highlighted as WARNING and CAUTION instructions. These are used
as follows:
WARNING! WARNINGS ARE GIVEN WHERE FAILING
TO OBSERVE THE INSTRUCTION COULD
RESULT IN INJURY OR DEATH TO
PERSONS.
CAUTION! Cautions are given where failure to
observe the instruction could result in
damage to the equipment, associated
equipment and processes.

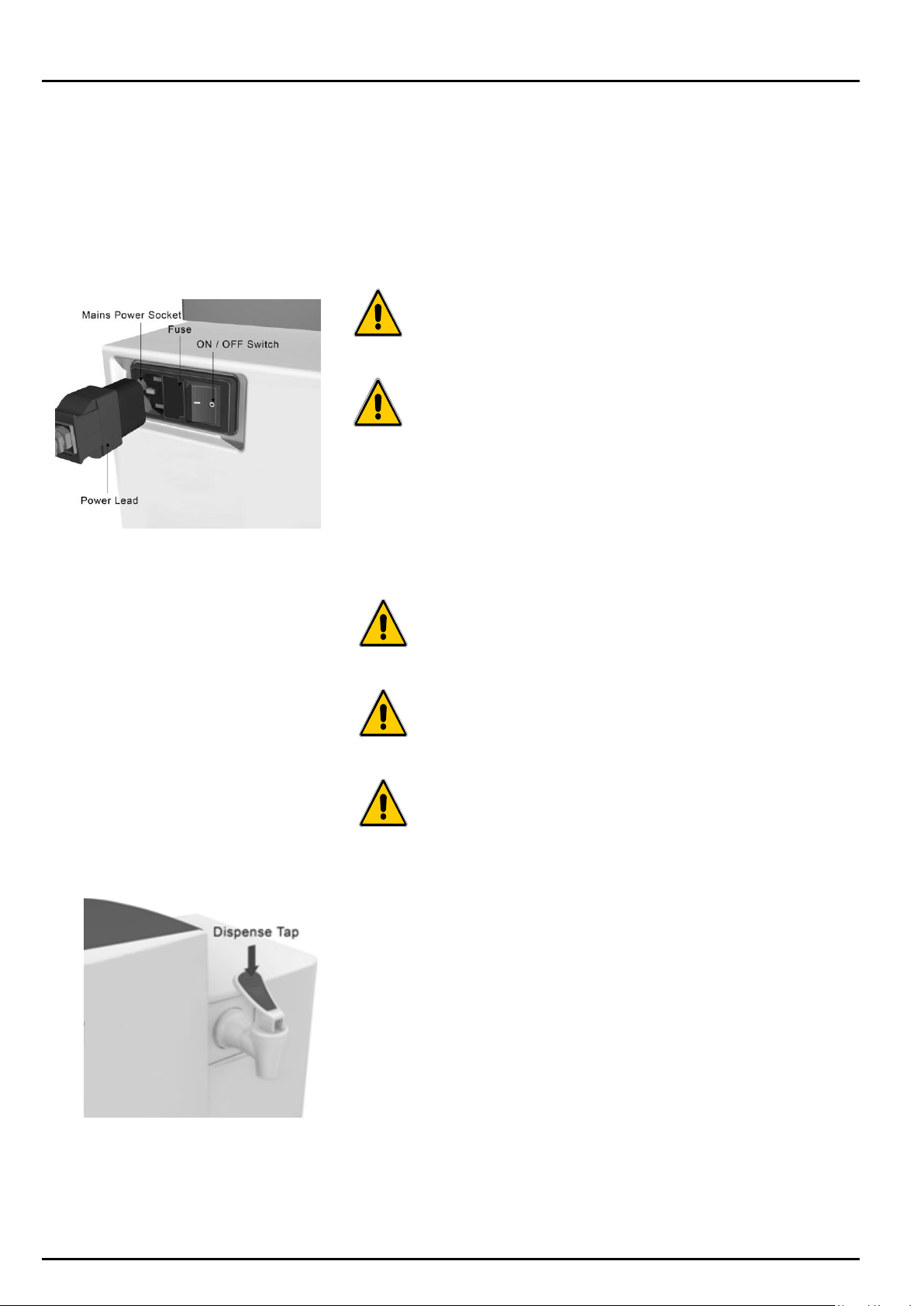

2.1 Electricity
It is essential that the electrical supply to the MEDICA EDI 15/30 is
isolated before any items are changed or maintenance work
performed. The ON/OFF switch is located on the left hand side of the
system. The mains power lead is located just behind the ON/OFF
switch.
WARNING! ONLY USE THE APPLIANCE COUPLER
(MAINS LEAD) SUPPLIED. THE USE OF
THIS WILL ENSURE ADEQUATE EARTH
PROTECTION IS PROVIDED.
WARNING! IF THE EQUIPMENT IS USED IN A
MANNER NOT SPECIFIED BY ELGA, THE
PROTECTION PROVIDED BY THE
EQUIPMENT MAY BE IMPAIRED.
WARNING! ALWAYS ENSURE THAT THE
ELECTRICAL POWER SUPPLY IS
ISOLATED BEFORE WORKING INSIDE
THE PRODUCT.
2.2 Pressure
The mains water supply pressure should be isolated and residual
pressure released prior to removal of any cartridges or carrying out
work on the system.
Switching off the electrical supply will isolate the source of pressure,
but pressure trapped within the system should be released by opening
the dispense tap until water flow stops.
Mains Power Supply

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 3

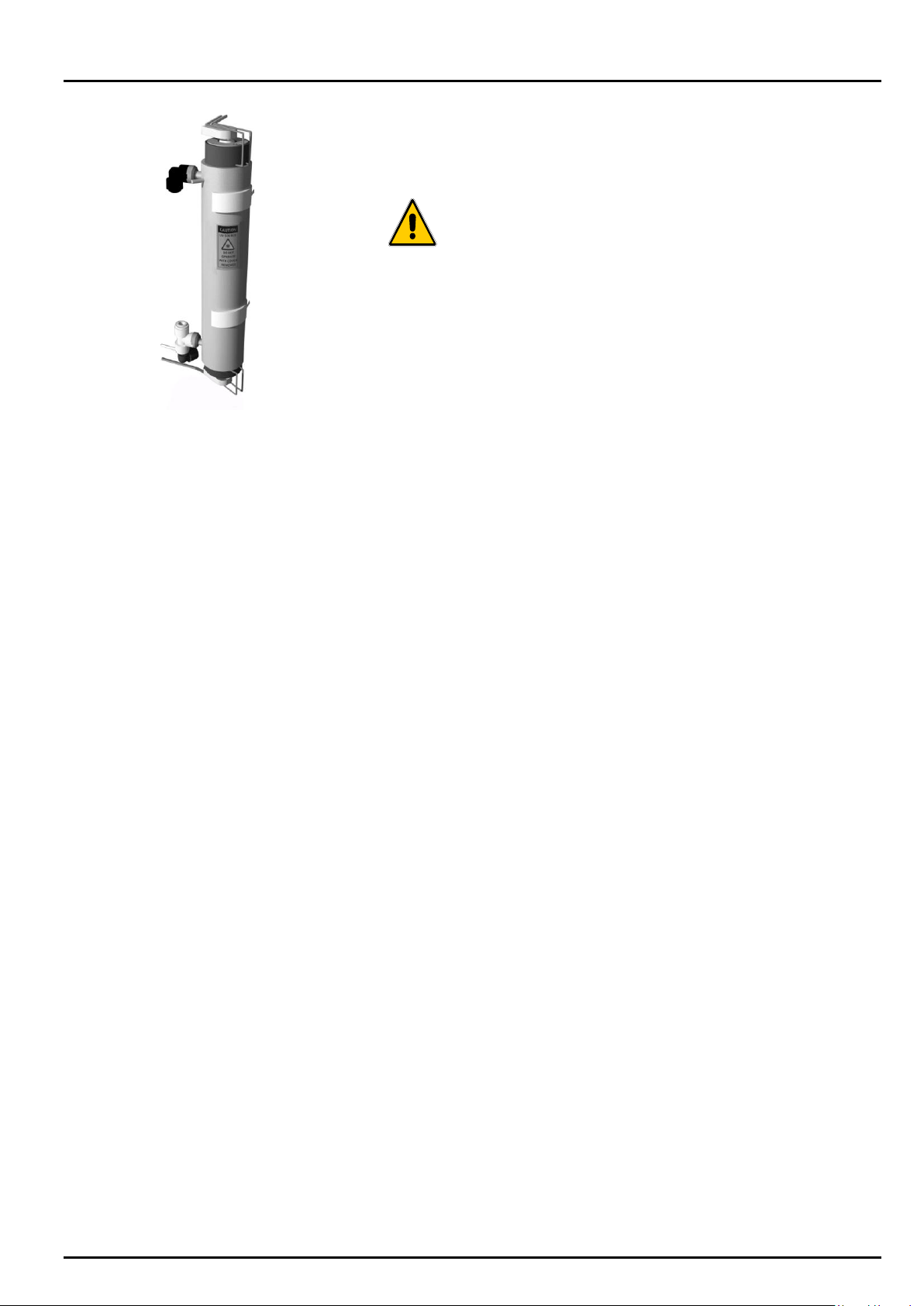

2.3 Ultra-Violet Light
The MEDICA EDI 15/30 system is fitted with an ultra-violet lamp. The
UV lamp is enclosed in a stainless steel chamber ensuring the
operator will not be exposed to UV light.
WARNING! LIGHT FROM THE UV LAMP IS
EXTREMELY HARMFUL TO THE EYES
AND SKIN! UV LAMPS SHOULD ONLY
BE USED IN THE REACTION CHAMBER
WITH SUITABLE PROTECTION CAPS
FITTED. PERSONS SHOULD NEVER BE
EXPOSED TO LIGHT FROM THE LAMP.
2.4 Sanitization Chemicals
No sanitization chemical is supplied with the MEDICA EDI 15/30
products. The relevant recommended chemical can be sourced
through your local supplier or distributor.
2.4.1. Use of MEDICA EDI 15/30 within United States
During the sanitization cycle EfferSan™Multi-purpose
Disinfecting Tablets is used and relevant safety guidance is
included in this document. Please refer to the manufacturer
for safety data sheets.
EfferSan™ is EPA registered as a sterilant, high level
disinfectant, and sanitizer.
EfferSan™is acidic and requires normal neutralization as
specified by your local state and local regulations.
2.4.2. Use of MEDICA EDI 15/30 within Rest of the World
During the sanitization cycle a CT3 sanitization tablet is used
and relevant safety guidance is included in this document. A
safety data sheet conforming to COSHH regulations is
available upon request.
2.5 Control of Substances Hazardous to Health (COSHH)
Material safety data sheets covering various aspects of the product
are available where applicable upon request. Contact your local
supplier or distributor.
2.6 Environment
The MEDICA EDI 15/30 should be installed on a flat, level surface, in
a clean, dry environment. The system can also be wall mounted
against a vertical wall capable of supporting the weight. For this we
recommend the use of the wall mounting kit.
UV assembly

MEDICA EDI 15/30 Operator Manual ELGA
Page 4 MEDICA EDI 15/30 Version 1 05/16
3. CONSUMABLES AND
ACCESSORIES
Consumable
Max.
Service Life*
Max.
Shelf Life
LC281 (Pre-treatment filters pack)
6 months
2 years
LC282 (Low Usage Consumable
bundle)
6 months max **
2 years
LC283 (High Usage Consumable
bundle)
6 months max **
2 years
LC143 (Reverse Osmosis cartridge
module)
Typical life
2-3 years
2 years
LC212*** (Conditioning & DI dual
cartridge pack)
6 months max.**
2 years
LC213 (Sanitization Bypass
cartridge pack)
1 cycle
2 years
LC105 (UV Lamp)
12 months
5 years
LC219 (EDI module)
4-5 years
2 years
LC125 (0.2m Capsule Filter)
6 months
2 years
LC145 (POU Filter)
6 months
5 years
LC136**** (Composite Vent Filter)
6 months
2 years
* Life is an estimate only, and will depend on the
application and feed water quality. Care should be taken
to order the correct consumable items.
** Replacement frequency of the LC212 Dual Conditioning
& DI Cartridge pack is affected by the feed water quality
and water usage.
*** LC212 cartridge pack is not sold separately.
**** Required for reservoirs (LA611, LA612, LA613) and
docking vessel (LA621).
Accessory
Cat No
Installation kit
LA637
Pressure regulator valve (inlet)
LA652
Degassing Kit
LA801
Wall mounting kit –Small Box Products
LA610
Wall mounting kit –Small Box Products (partitioned walls)
LA622
Docking vessel –DV25
LA621
25 liter reservoir
LA611
40 liter reservoir
LA612
75 liter reservoir
LA613
Wall mounting kit (25 & 40 liter reservoir)
LA591
Wall mounting kit (75 liter reservoir)
LA592
RS232 Printer kit
LA618
Remote dispense valve
LA521

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 5
4. PRODUCT AND PROCESS
DESCRIPTION
4.1 Product Description
The MEDICA EDI 15/30 water purification system has been
specifically designed to provide a supply of highly purified water to
clinical analyzers requiring a pressurized feed.
The MEDICA EDI 15/30 can be bench or wall mounted and an
optional wall mounting kit is available. A range of accessories are
available to complement the system. (See Section 3 - Consumables
and Accessories for details).
MEDICA EDI 15/30
Removable
Cover
Door
Removable Cover
Feed water Inlet
Connection
Fuse
Mains Power
Socket
Power Switch
ON / OFF
Sanitization Port
Dispense
Tap
Drain
Drain

MEDICA EDI 15/30 Operator Manual ELGA
Page 6 MEDICA EDI 15/30 Version 1 05/16
4.2 Process Description
The MEDICA EDI 15/30 process links five purification technologies;
Reverse Osmosis, Electro-Deionization, Ion Exchange, Photo
Oxidation, and Sub-micron Filtration. It also incorporates a
recirculation/delivery pump and an RO feed water boost pump.
The system is designed to operate from a potable water supply, pre-
treated for particle and chlorine removal, and produces up to 15 or 30
liters per hour of reverse osmosis grade water which is further purified
and circulated through a treated water reservoir.
An LCD displays the system status and provides control by means of
three function buttons.
The water is processed and treated by the MEDICA EDI 15/30 system
as follows:
Pre-treated feed water enters through a strainer and inlet
solenoid valve and is pumped by means of an RO boost
pump.
The water then passes the disinfection port and through two
or three reverse osmosis cartridges, set up in series, which
split the flow into permeate and concentrate streams. The
permeate water is further purified with the waste concentrate
stream being passed to drain.
The permeate water then passes though a water quality
sensor which measures the conductivity of the water.
The permeate water passes through the conditioning
chamber of the resin cartridge pack which removes traces of
hardness remaining in the water.
The water then passes through the electro-deionization
module which removes inorganic and organic impurities.
Waste water from the EDI module is passed to drain.
The permeate water is collected within the reservoir.
Water from the reservoir is drawn into the main re-circulation
stream by the re-circulation pump and passes through the
re-circulation purification loop.
This water is pumped directly through the UV chamber
where it is exposed to intense UV radiation to provide
continuous bacterial control by photo oxidation and to
promote the cleavage of organic molecules.
The water then passes through the deionization chamber of
the resin cartridge pack which removes the final dissolved
ionic impurities from the water.
Finally the water is passed through a:
Water quality sensor which measures the resistivity of the
water.
Temperature sensor which provides accurate
temperature measurement.
The purified water passes through a 0.2m filter to remove
any remaining bacteria.
The purified water is either delivered to the analyzer or
returns to the reservoir. The delivery of water is controlled by
means of a pressure switch which senses when the analyzer
demands water.
When diverted to the reservoir, purified water can be
delivered through a dispense tap.

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 7
During periods of non-use the system will automatically
operate in intermittent re-circulation mode to maintain water
purity with maximum efficiency.
If the level of water in the reservoir is below 10% (or below
40% on start up) the re-circulation mode will be disabled
until a level of 40% is reached. The re-circulation will restart
automatically.
When the make-up starts, there is an initial 15 minute flush
period prior to water being passed to the recirculation circuit.
After power off or dual cartridge pack exchange this time
period is increased to 30 minutes.
Process Flow - MEDICA EDI 15/30

MEDICA EDI 15/30 Operator Manual ELGA
Page 8 MEDICA EDI 15/30 Version 1 05/16
5. CONTROLS
The MEDICA EDI 15/30 operates with a tactile membrane touch pad
control panel which has a graphics display window and three program
function control buttons.
Details of how to use the controls are provided in the appropriate
sections.
The MEDICA EDI 15/30 control panel has a range of control icons as
follows:
BUTTON
ICON
Function
PROCESS
Turns the system on/off
LEFT
Menu
Scroll
Shift
RIGHT
Replacement dates
✔
Accept
Up
Mute Alarm
Control Panel
Left hand
Control button
Right hand
Control button
Process Button

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 9
6. INSTALLATION INSTRUCTIONS
6.1 Unpacking the MEDICA EDI 15/30
The following items should be supplied with your MEDICA EDI 15/30
MEDICA EDI 15/30
Sanitization by-pass cartridge pack (LC213)
External Pre-treatment Kit
Installation kit (LA637)
Operator manual
Mains lead
6.2 Positioning the MEDICA EDI 15/30
Before commencing with installation and operation of the MEDICA
EDI 15/30 system, please read and observe the following points.
Environment
The system should be installed on a flat, level surface, in a
clean, dry environment. The system can also be wall mounted
against a vertical wall capable of supporting the weight (for this
we recommend the use of the wall mounting kit Part No LA
610).
CAUTION! If system is to be wall mounted, ensure it
is mounted on a substantial brick or
concrete solid wall capable of supporting
the operating weight of the system. If
mounting the system on the wall, use the
wall mounting kit and follow the
instructions included in the kit.
Note: Refer to specifications for system weights.
The system is designed to operate safely under the following
conditions:
Indoor use
Altitude up to 2000m
Temperature Range 5 - 40°C
Maximum Relative Humidity 80% @ 31°C decreasing
linearly to 50% @ 40°C non-condensating
The system is in Installation Category II, Pollution Degree 2, as
per IEC1010-1.
System Rear Mounting Points

MEDICA EDI 15/30 Operator Manual ELGA
Page 10 MEDICA EDI 15/30 Version 1 05/16
Electrical
The systems can be connected to any electrical supply in the
range of 100 - 240V and 50 - 60Hz. The mains lead is supplied
with a molded plug on one end and a molded connector to the
system on the other. The system should be connected to an
earth.
Drain
A semi-rigid flexible connection to a sink or suitable drain
capable of handling at least 2 l/min is required. The drain point
should be within 10 meters (33 ft) and have a gravity fall at a
maximum of 1 meter (3 ft) above the system. Any connections
directly coupled to drain should have an air-break device fitted.
WARNING! IN COMMON WITH OTHER ELECTRO-
DEIONIZATION SYSTEMS THIS SYSTEM
PRODUCES SMALL AMOUNTS OF
HYDROGEN IN THE DRAIN LINE. IF THIS
IS ALLOWED TO BUILD UP IN A
RESTRICTED ENVIRONMENT THIS
COULD BECOME A HAZARD.
Feed Water
The feed water should comply with specifications provided. This
should enter the system via an 8mm (5/16”) O/D semi rigid
tube, and should be in the temperature range 1 to 35°C.
CAUTION! Feedwater temperatures outside the range
1 to 35°C will cause damage to the
MEDICA EDI 15/30 system.
For pressurized feeds, the maximum inlet pressure is 2 bar
(30 psi). Higher feedwater pressures must be reduced using a
pressure reducing valve (Part No. LA 512).
Reservoir feeds to the MEDICA EDI 15/30 system should be
positioned at the same height, or above the system, to provide
a positive flooded inlet pressure.
Electrical Connections

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 11
6.3 Installing the external Pre-treatment Assembly
It is essential for the MEDICA EDI 15/30 system to be fed with pre-
treated water. The external pre-treatment filter housing assembly is
supplied to enable this.
These instructions must be followed to ensure correct installation of
this accessory.
Parts supplied
1 off Pre-treatment housing assembly
1 off Bowl Removal Spanner
1 off Wall-mount bracket
4 off Anchor Bolts
1 off 3/8” Isolation Valve
2 off 3/8” – 5/16” Stem Elbow
2 off 3/8” – 5/16” Stem Reducer
Tools required
Hand Drill
8mm diameter Masonry Drill Bit
10mm Spanner
Step 1 –Secure mounting plate to the wall
1. Select an appropriate location for the assembly to be
mounted.
WARNING! THIS ACCESSORY IS SUITABLE FOR
MOUNTING TO MOST TYPES OF
MASONRY OR CONCRETE TYPE WALLS.
2. Using the wall mount plate as a template, spot drill the four
mounting holes into the wall.
3. Remove the plate and drill each hole to the depth as
illustrated.
4. ENSURE all holes are clean and free from debris.
5. Re-position bracket and INSERT a sleeved anchor bolt
(supplied) within each drilled hole in the wall.
6. TIGHTEN each bolt to secure bracket to wall.
CAUTION! Anchor bolts to be tightened to a
minimum torque of 20Nm.
Step 2 –Install housing assembly to wall-mount plate
1. ALIGN the four off pegs of the mounting plate with the
corresponding keyhole slots of the filter housing assembly
integral brackets.
Step 3 –Install pre-treatment filters
1. Refer to Section 8.1 “Replacing the pre-treatment filters”
External Pre-Treatment Filter
Assembly
Spot drill mounting holes
Drilling & cleaning mounting holes
Inserting anchor bolts
Aligning assembly to bracket

MEDICA EDI 15/30 Operator Manual ELGA
Page 12 MEDICA EDI 15/30 Version 1 05/16

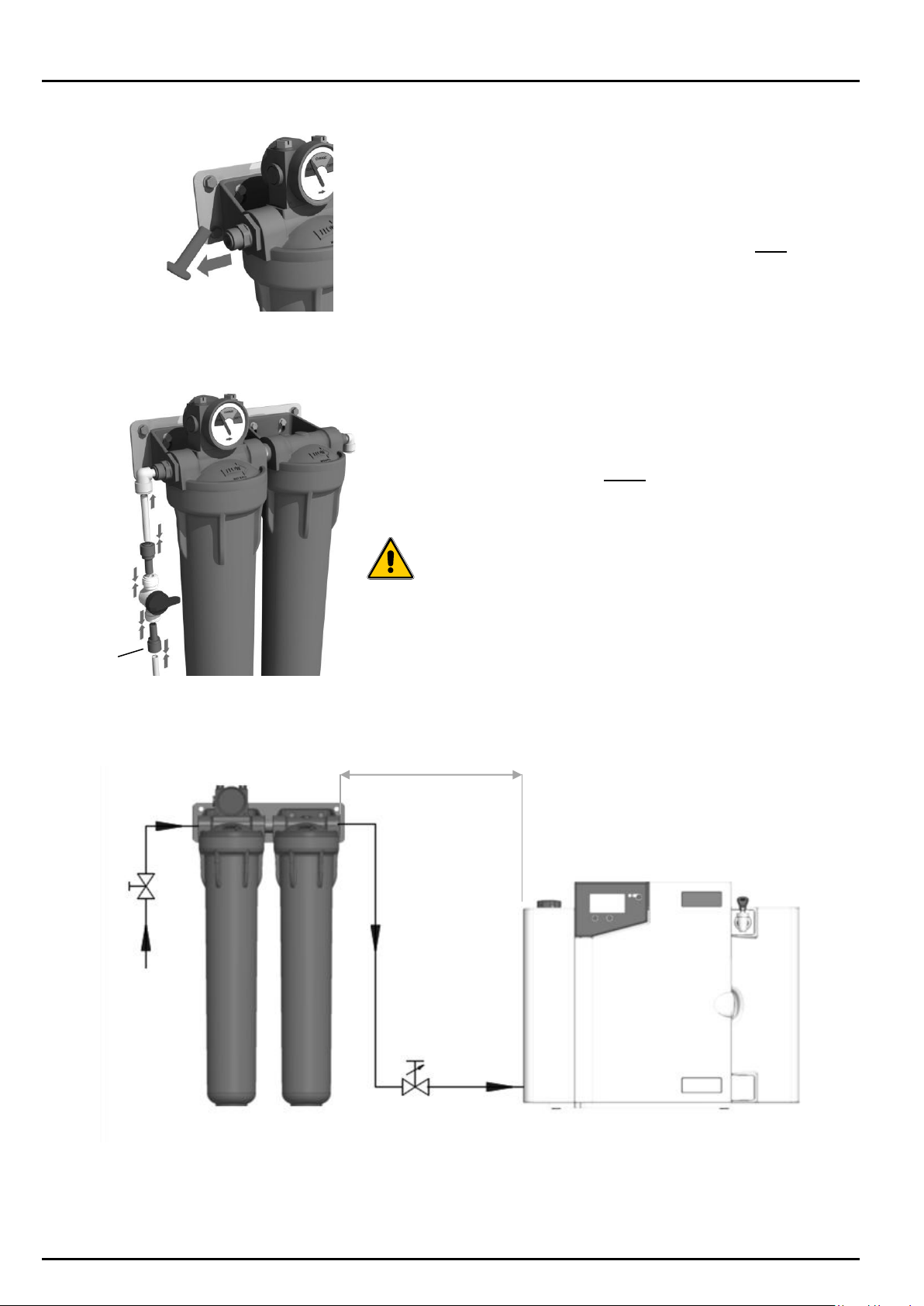

Step 4 –Connection to feed water & system
1. REMOVE 3/8” transit plugs from the housing assembly inlet
& outlet ports.
2. INSTALL 3/8” – 5/16” Stem Elbows into the housing
assembly inlet & outlet ports.
3. CUT a 50mm length of 5/16” (8mm) OD tube, supplied
within LA637 installation kit, and INSTALL to inlet elbow.
4. INSTALL 1 off 3/8” – 5/16” Stem Reducer to outlet port of
Isolation Valve and CONNECT to free end of 5/16” (8mm)
tube.
IMPORTANT! Ensure Isolation Valve is in the CLOSED
position.
5. If feedwater tube is 3/8” OD, CONNECT directly to inlet port
of Isolation Valve.
6. If feedwater tube is 5/16” (8mm) OD, INSTALL 3/8” – 5/16”
Stem Reducer before connecting.
7. CUT appropriate length of 5/16” (8mm) OD tube and
CONNECT one end to outlet elbow.
8. CONNECT free end of tube to MEDICA EDI 15/30 inlet
port.
CAUTION! If the water supply into the system is at a
pressure greater than 2 bar (30 psi) fit a
pressure regulator (LA652).
LA652 required if
supply pressure
> 2 bar
Isolation
Valve
Feed Water
Supply
Installation of external pre-treatment assembly to feed water and MEDICA 15/30 system
Remove transit plugs
Feed water supply connection
For
5/16” (8mm) OD
Feedwater tube
only
< 2 m (6 ft)

ELGA MEDICA EDI 15/30 Operator Manual
MEDICA EDI 15/30 Version 1 05/16 Page 13

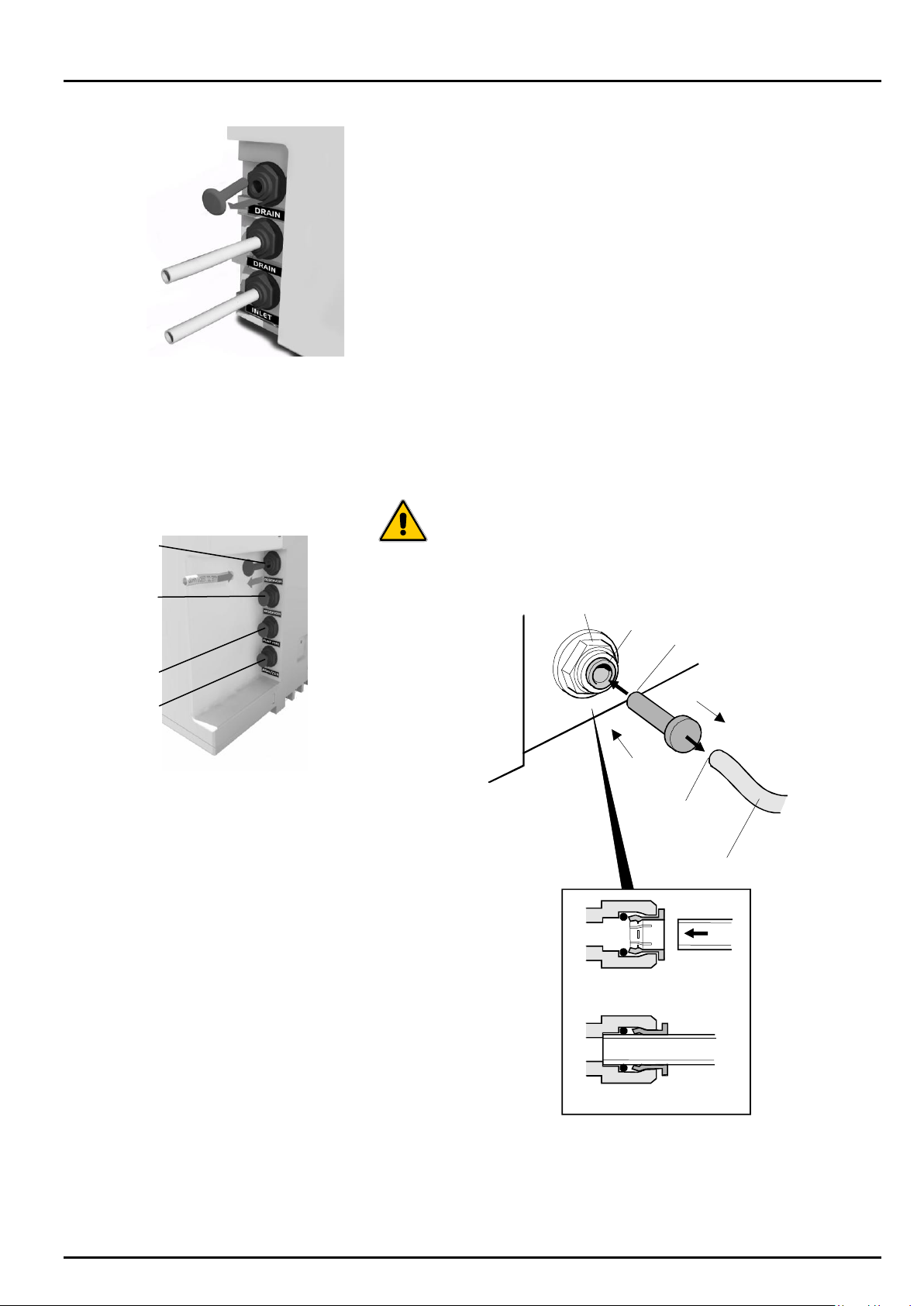

6.4 Connecting the MEDICA EDI 15/30
Once the MEDICA EDI 15/30 system has been positioned either on a
wall or on a bench, it should be connected as follows:
Pre-treated water inlet tube
RO drain
EDI drain
Pump feed
Outlet to analyzer
Outlet to reservoir (RO Permeate)
Outlet to reservoir (Recirculation loop)
Step 1 - Fitting Tubes
1. PUSH in collet on connector.
2. PULL out transit plug.
3. CUT a clean square end on an 8mm (5/16") OD
semi rigid drain tube.
4. PUSH tube into connector.
CAUTION! Do not restrict drain line.
Connector
Collet
Blanking
transit plug
Pull plug
Depress
collet
Clean square
cut end
Tube 8mm OD
Simply push in tube to attach
Tube in secured position
Fitting Tubes
Feed Water Inlet
Connections
Delivery Pump and Drain
Connections
Pre-treated
Supply
Drain (RO)
Drain (EDI)
Pump Feed
Outlet to Reservoir
(Recirculation)
Outlet to Reservoir
(RO Permeate)
Outlet to Analyzer

MEDICA EDI 15/30 Operator Manual ELGA
Page 14 MEDICA EDI 15/30 Version 1 05/16
Step 2 - Connect Electrical Supply
1. PLUG mains lead into the socket on the left hand
side of the MEDICA EDI 15/30 system.
2. PLUG mains lead into mains socket.
Step 3 - Connect Level Switch to Reservoir
1. INSERT jack plugs into the level control socket
located at the rear of system and reservoir.
Note: When installing a MEDICA EDI 15/30 with the reservoir the general scheme is illustrated
below as are the recirculation/delivery pump connections.
Electrical Connections
Reservoir Level Connections
MEDICA EDI 15/30 system installed with Docking Vessel/Reservoir
RESERVOIR/
DOCKING VESSEL
Level control cable
Drain (EDI)
Pre-treated
Supply
All tube connections 8mm (5/16”)
Sanitisation
drain valve
Isolating
valve
Outlet to analyzer
Overflow
Drain (RO)
Pump feed
V2
V1
Outlet to Reservoir
(Recirculation)
Outlet to Reservoir
(RO Permeate)
NB. The system must be positioned at a distance no greater than 10 meters (33 ft) from the analyzer to achieve
specified outlet flow rates (ref: Purified Water Specification –page 43).
