1. INTRODUCTION
1.1 Product range
This Operator Manual has been prepared for the MEDICA-R 7/15
product models:
MEDICA-R 7 US
MEDICA-R 7 BP US (with boost pump)
MEDICA-R 1-US 5 US
MEDICA-R 15 BP US (with boost pump)
These models are normally supplied with a docking vessel (DV-25)
and this manual will describe that system. Where appropriate
reference will be made to differences when an alternative reservoir is
used.
1.2 Use of this manual
This manual contains full details on installation, commissioning and
operation of the MEDICA-R 7/15 US unit. If this unit is used contrary
to the instructions in this handbook, then the safety of the user may be
compromised.
1.3 Customer support
Service support and consumable items are available from your local
supplier or distributor. Refer to customer service contact details shown
at the end of this publication.

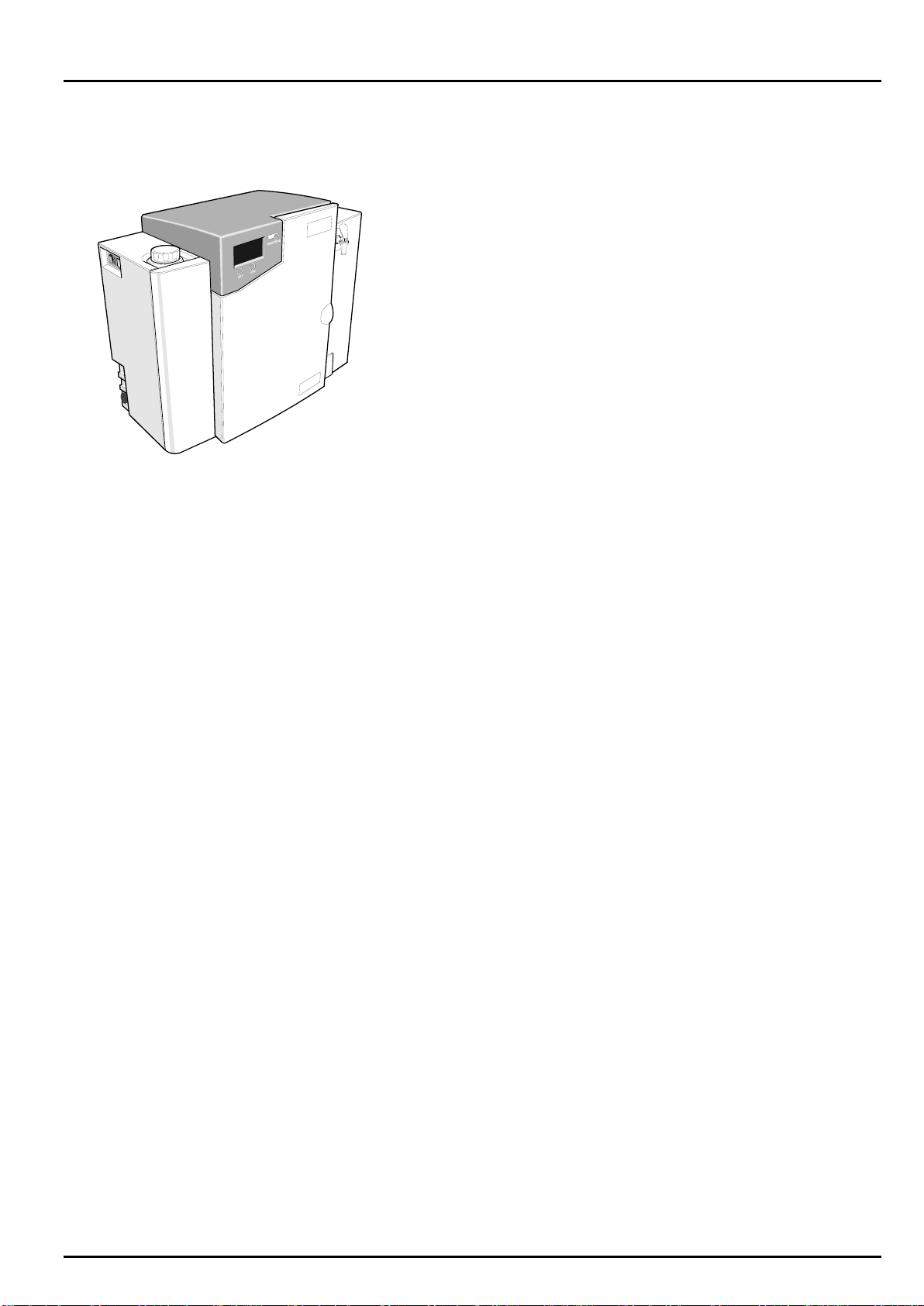

MEDICA-R 7/15 US

MEDICA-R 7/15 US Operator Manual ELGA
Page 2 MEDICA-R 7/15 US Version 2 –10/15
2. HEALTH AND SAFETY NOTES
MEDICA-R 7/15 US products have been designed to be safe,
however, it is important that personnel working on these units
understand any potential dangers. All safety information detailed in
this handbook is highlighted as WARNING and CAUTION instructions.
These are used as follows:
WARNING! WARNINGS ARE GIVEN WHERE FAILING TO
OBSERVE THE INSTRUCTION COULD RESULT
IN INJURY OR DEATH TO PERSONS.
CAUTION! Cautions are given where failure to observe the
instruction could result in damage to the
equipment, associated equipment and
processes.

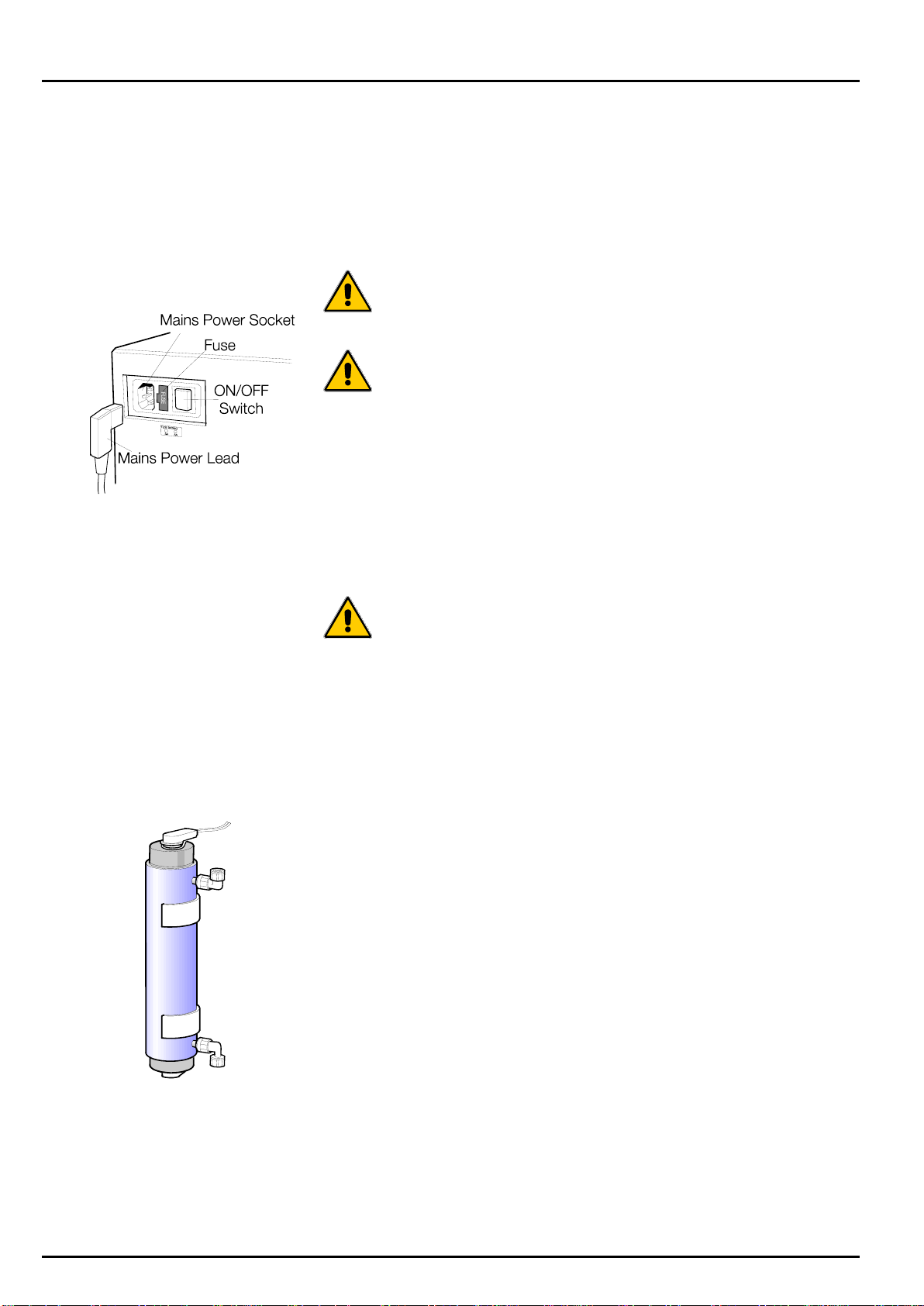

2.1 Electricity
It is essential that the electrical supply to the MEDICA-R 7/15 US is
isolated before any items are changed or maintenance work
performed.

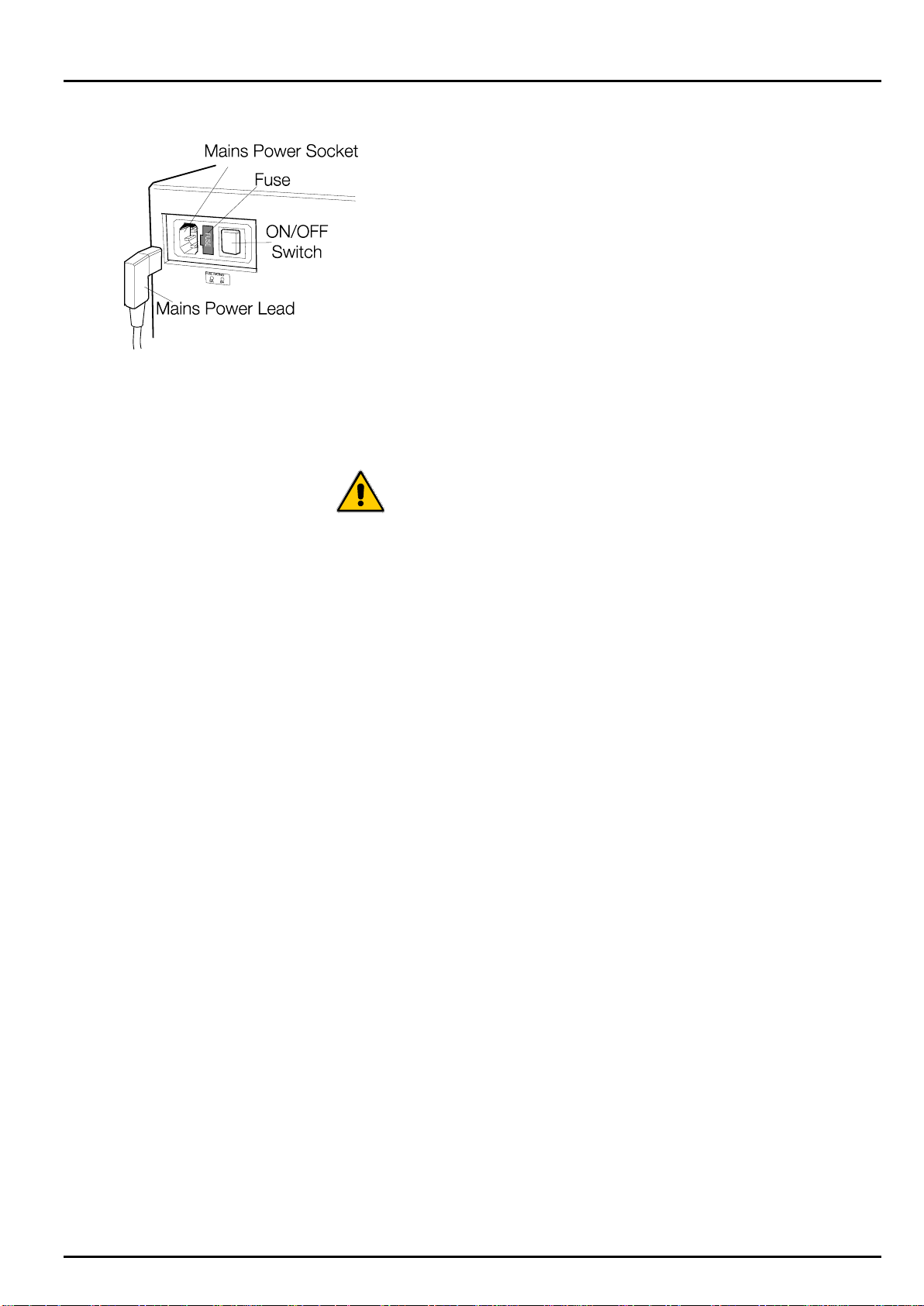

The ON/OFF switch is located at the left-hand side of the unit. The
mains power lead is located just behind the ON /OFF switch.
WARNING! THIS APPLIANCE MUST BE EARTHED.
2.2 Pressure
The main water supply pressure should be isolated and residual
pressure released prior to removal of any cartridges or carrying out
work on the unit.
2.3 Ultra-violet light
The MEDICA-R 7/15 US unit is fitted with an ultra-violet lamp. The UV
lamp is enclosed in a stainless steel chamber ensuring the operator
will not be exposed to UV light.
2.4 Sanitization chemicals
2.4.1 Liquid sainitization
During the sanitization cycle Minncare Cold Sterilant is used and
relevant safety guidance is included in this handbook. Please refer to
the manufacturer for material safety data sheets.
Minncare Cold Sterilant is EPA registered as a sterilant, high level
disinfectant, and sanitizer.
Spent Minncare Cold Sterilant is acidic and requires normal
neutralization as specified by your local state and local regulations.
1% of Minncare Cold Sterilant has a pH of 3.5.
Mains Power Supply
UV Lamp

ELGA MEDICA-R 7/15 US Operator Manual
MEDICA-R 7/15 US Version 2 –10/15 Page 3
2.4.2 Tablet sanitization
During the sanitization cycle ONE EfferSan™ multi-purpose
disinfecting tablet is used and relevant safety information is included
in this handbook. Please refer to the manufacturer for material safety
data sheets.
2.5 Control of Substances Hazardous to Health (COSHH)
Material safety data sheets covering the various replaceable
cartridges are available upon request. Contact your local supplier or
distributor.

MEDICA-R 7/15 US Operator Manual ELGA
Page 4 MEDICA-R 7/15 US Version 2 –10/15
3. PRODUCT AND PROCESS
DESCRIPTION
3.1 Product Description
The MEDICA-R 7/15 US water purification system has been
specifically designed to provide a supply of highly purified water to
clinical analyzers requiring a pressurized feed.
The MEDICA-R 7/15 US can be bench or wall mounted with an
optional wall mounting kit. A range of accessories are available to
complement the unit (see Section 11.1 –Consumables and
Accessories, for detail).

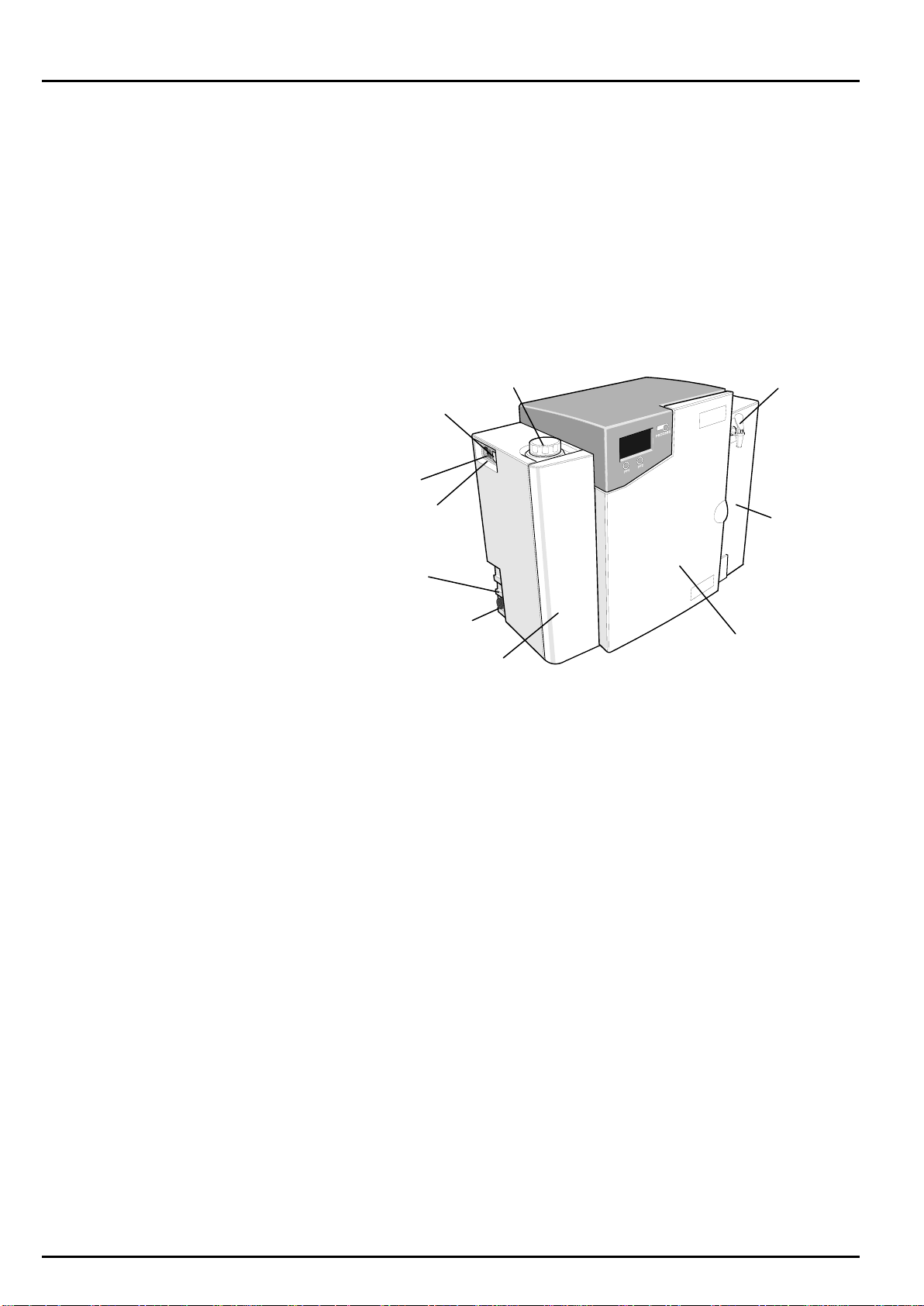

MEDICA-R 7/15 US Unit
Removable
Cover
Door
Removable Cover
Feedwater Inlet
Connection
Fuse
Mains Power
Socket
Power Switch
ON / OFF
Sanitization Port
Dispense
Tap
Drain

ELGA MEDICA-R 7/15 US Operator Manual
MEDICA-R 7/15 US Version 2 –10/15 Page 5

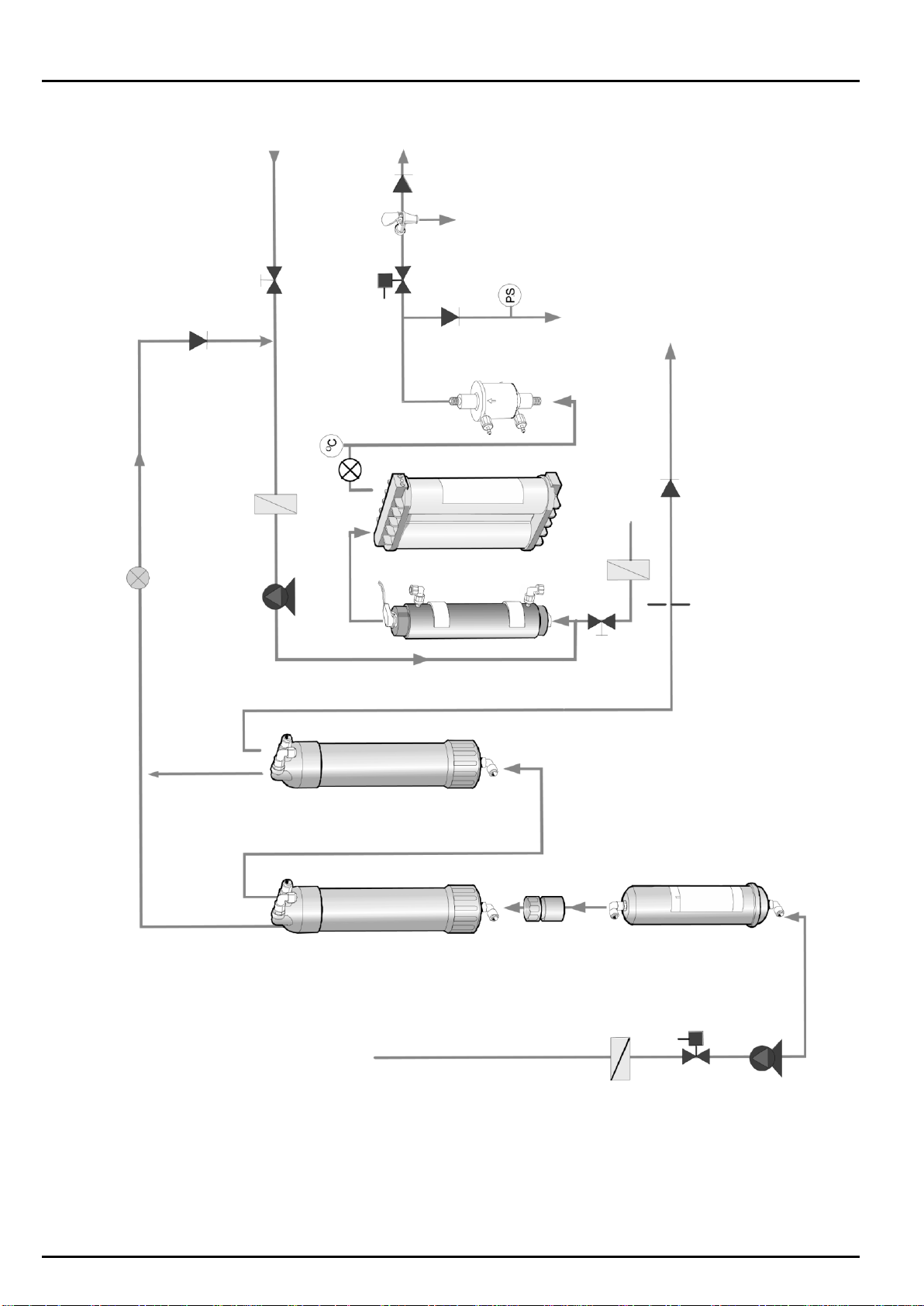

3.2 Process Description
The MEDICA-R 7/15 US process links five purification technologies,
reverse osmosis, adsorption, ion-exchange, photo-oxidation and sub-
micron filtration. It also incorporates a recirculation/delivery pump and
an optional RO feed water boost pump.
The unit is designed to operate from a good quality potable water
supply, and produces either 7 or 15 liters per hour of purified reverse
osmosis grade water which is further purified and circulated through a
treated water reservoir. This water is available on demand by the
analyzer at up to 1.8 l/min.

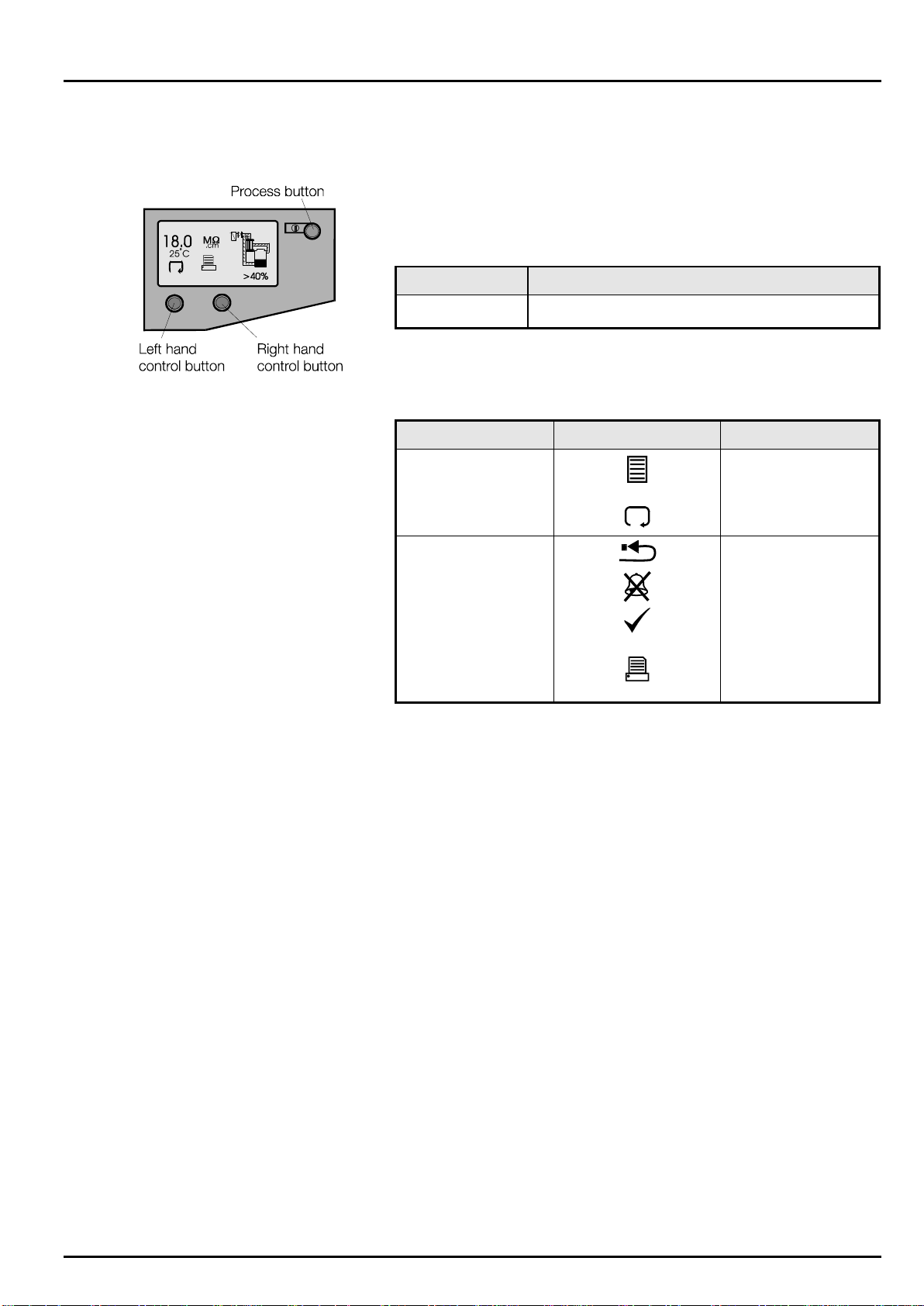

A graphics screen displays the system status and provides control by
means of three function buttons.
The water is processed and treated by the MEDICA-R 7/15 US unit as
follows:
Potable water enters through a strainer and inlet solenoid valve at
either regulated mains water pressure, or is pumped by means of
a feed water pump (optional), and passes through the pre-
treatment cartridge. The pre-treatment cartridge has been
designed to protect the reverse osmosis cartridges from
particulate/colloidal matter and excessive free chlorine, which may
be present in the incoming feedwater.
The water then passes the sanitization port and through one or
two reverse osmosis cartridges, set up in series, which split the
flow into permeate and concentrate streams. The permeate water
is further purified whilst the waste concentrate stream is passed to
drain.
The permeate water passes through a water quality sensor which
measures the conductivity of the water.
The permeate water is drawn into the main recirculation stream by
the recirculation pump together with water from the reservoir and
passes through the recirculation purification loop.
This water is pumped directly through the UV chamber where it is
exposed to intense UV radiation to provide continuous bacterial
control by photo-oxidation and to promote the cleavage of organic
molecules.
The partially purified water then passes through the ion-exchange
cartridge which removes dissolved ionic impurities from the water.
The water is passed through a:
Water quality sensor, which measures the resistivity of the
water.
Temperature sensor which provides accurate temperature
measurement.
The purified water passes through a 0.2 µm filter to remove any
remaining bacteria.
The purified water is either delivered to the analyzer or returns to
the reservoir. The delivery of water is controlled by means of a
pressure switch which senses when the analyzer demands water.
During periods of non-use the unit will automatically operate in
intermittent recirculation mode to maintain water purity with
maximum efficiency.

MEDICA-R 7/15 US Operator Manual ELGA
Page 6 MEDICA-R 7/15 US Version 2 –10/15
Process Flow Diagram –MEDICA-R 7/15 US
From reservoir
Outlet to reservoir
NRV V3
NRV
Solenoid
Purified water
NRV
Temperature sensor
Product outlet To analyser
Concentrate drain
NRV
Emergency by-pass
Flow controller
Strainer
UV LC105
Line cell
Strainer
Pump
Line cell
Permeate
Drain
Outlet
Drain
Outlet
Reverse osmosis LC143
Reverse osmosis LC143
Inlet
Inlet
Pre-treatment LC140
Boost pump (optional)
Solenoid
Strainer
Feed
water
inlet
0.2µm capsule filter LC125

ELGA MEDICA-R 7/15 US Operator Manual
MEDICA-R 7/15 US Version 2 –10/15 Page 7
3.3 Technical Specifications
The specifications for the MEDICA-R 7/15 US system are as follows:
Feedwater
MEDICA-R 7 US
MEDICA-R 15 US
Feedwater
Source Quality
Potable mains water supply
Potable mains water supply
Fouling Index-maximum
10
10
Total Dissolved Solids-maximum
1400S/cm
1400S/cm
Free Chlorine –maximum
0.5ppm
0.5ppm
Heavy Metals –maximum
0.05ppm
0.05ppm
Silica- maximum
30ppm
30ppm
Temperature
1 - 35ºC
1 - 35ºC
Flowrate (Maximum requirement)
78 l/hr
85 l/hr
Feedwater Pressure
Maximum - without internal boost pump
6.0 bar (90psi)
6.0 bar (90psi)
Minimum - without internal boost pump
4.0 bar (60psi)
4.0 bar (60psi)
Maximum - with internal boost pump
2.0 bar (30psi)
2.0 bar (30psi)
Minimum - with internal boost pump
Flooded Suction
Flooded Suction
Drain Requirements (gravity fall with air gap). Maximum during
Service
70 l/hr
70 l/hr
Connections
Inlet - quick connect
8mm (5/16") OD
8mm (5/16") OD
Outlet - quick connect
8mm (5/16") OD
8mm (5/16") OD
Drain RO - quick connect
8mm (5/16") OD
8mm (5/16") OD
Analyzer feed
8mm (5/16") OD
8mm (5/16") OD
Recirculation pump feed - quick connect
8mm (5/16") OD
8mm (5/16") OD
Positioning
Wall, bench or under bench
mounted.
Wall, bench or under bench
mounted.
Environment
Clean dry indoor.
Temperature 5-40°C.
Humidity max 80%
non-condensating.
Clean dry indoor. Temperature
5-40°C.
Humidity max 80%
non-condensating.

MEDICA-R 7/15 US Operator Manual ELGA
Page 8 MEDICA-R 7/15 US Version 2 –10/15
Electrical Requirements
Mains Input
100-240Vac, 50-60Hz all models
System Voltage
24Vdc
Power Consumption with boost pump
83VA
Power Consumption without boost pump
60VA
Fuses
2 xT6.3 Amp
Reservoir level connection
Jack Plug 3.5mm
Noise Level
<45dBA
User Interface
Display
Continuous graphical and numerical reservoir level display.
Graphical flow schematic on screen with mimic display.
Intuitive Icons.
Adjustable settings
Auto restart after power failure
Selectable
Audible Alarm
Selectable
Water purity units
MicroSiemens/cm or Megohms.cm
Water purity
Alarm Setpoints
Indicators
Reverse osmosis permeate water
Conductivity
De-ionized water
Temp compensated resistivity/conductivity
Temperature
Degrees centigrade
Reservoir
% Full
Pre-treatment cartridge
Maximum remaining life indicator
UV lamp
Maximum remaining life indicator
Ion-exchange cartridge
Maximum remaining life indicator
0.2µm filter
Maximum remaining life indicator
Alarms-Audiovisual
Purified water purity
Outside set point alarm
Reservoir
Low level
Reservoir
Level control disconnect alarm
UV failure alarm
Non start or current outside limits
Pre-treatment cartridge
Change reminder
UV lamp
Change reminder
Ion-exchange cartridge
Change reminder
0.2µm filter
Change reminder
Outputs
RS232 Printer connection
RS232 Remote display connection
Volt free contact-internal
Safety Features
Power fail safe
Boost pump protection from particulates
Recirculation pump protection from particulates
Low operating voltage 24V
Audio visual alarms
Adjustable alarm settings
Emergency by-pass

ELGA MEDICA-R 7/15 US Operator Manual
MEDICA-R 7/15 US Version 2 –10/15 Page 9
Special Features
Low noise levels –minimum intrusion
Flow rate upgradable
Intermittent recirculation
Optional internal boost pump for low pressure feed waters
Optional printer kit for record of operating parameters
Optional remote display
Technologies
Purification Methods
Adsorption
Reverse osmosis
Ultraviolet radiation-short wavelength
Ion exchange
In-line 0.2µm filtration
Purified Water Specification
MEDICA-R 7 US
MEDICA-R 15 US
*Make Up Rate
7.5 l/hr
15 l/hr
*Daily Output(nominal max)
180 l/24 hour day
360 l/24 hour day
Purity: (delivered to analyzer)
Inorganic-Typical
1 to 18 M.cm @25°C
Total Organic Carbon(TOC)
<30 ppb
**Bacteria
<1CFU/ml
pH
Effectively neutral
Particles
0.2µm filter
* Standard conditions are 4 bar inlet pressure, 0 bar back
pressure at 15 degrees centigrade, fed with potable water and
a clean pre-treatment cartridge. Refer to flow tables outside
these conditions.
** Subject to correct operating and maintenance procedures.
As part of our policy of continual improvement we reserve the right to
alter the specifications given in this document.

MEDICA-R 7/15 US Operator Manual ELGA
Page 10 MEDICA-R 7/15 US Version 2 –10/15

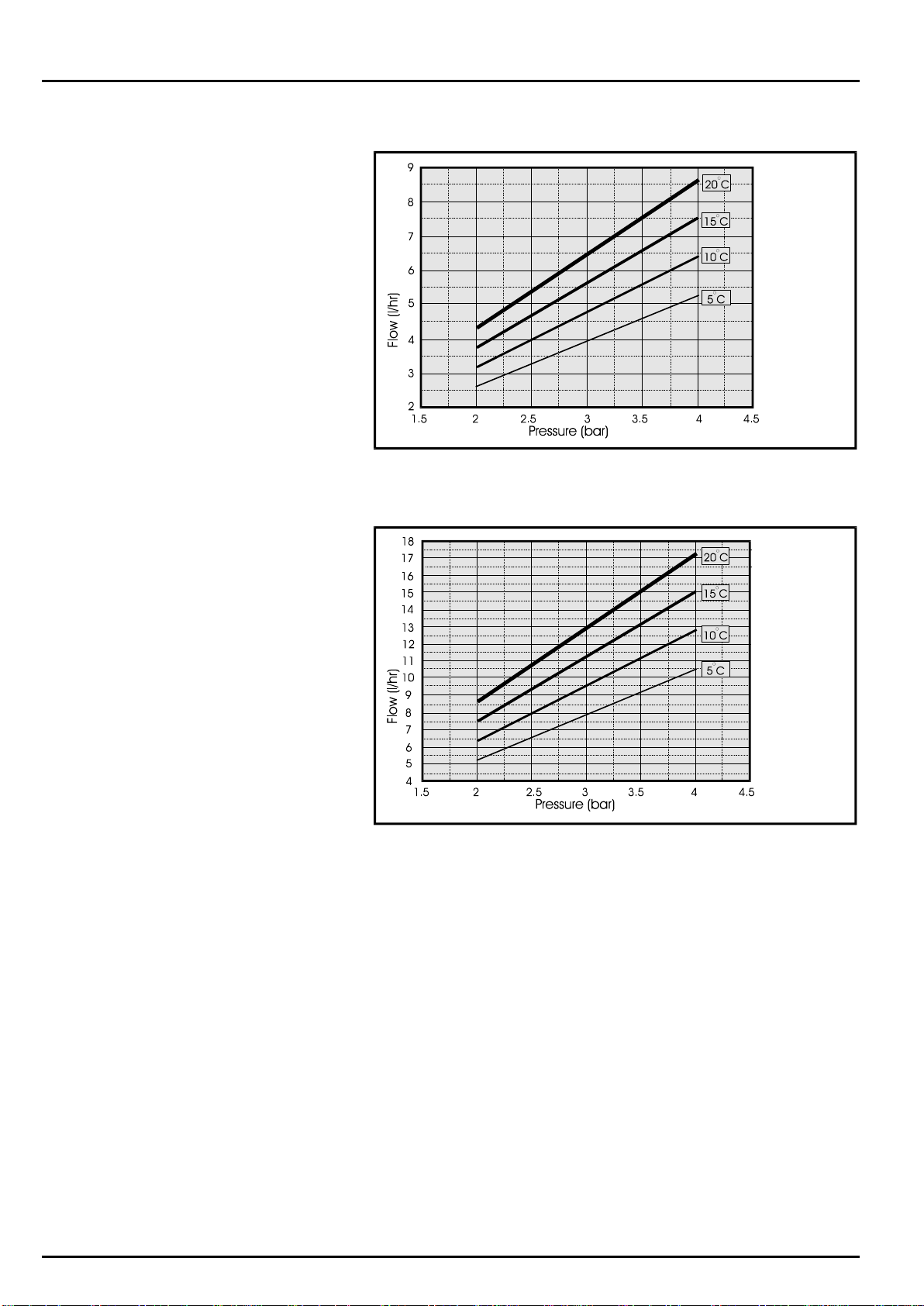

MEDICA-R 7/15 US Reverse Osmosis Capacity Charts
Graph 1 - Nominal Flowrate vs Inlet Pressure for
MEDICA-R 7 US
Graph 2 - Nominal Flowrate vs Inlet Pressure for
MEDICA-R 15 US
Medica-R 7 US
Medica-R 15 US

ELGA MEDICA-R 7/15 US Operator Manual
MEDICA-R 7/15 US Version 2 –10/15 Page 11
4. CONTROLS
The MEDICA-R 7/15 US operates with a tactile membrane touch pad
control panel which has a graphics display window and three program
function control buttons.
Details of how to use the controls will be given in the appropriate
sections.
Control Button
Function
PROCESS
Turns the process ON/OFF.
The MEDICA-R 7/15 US control panel has a range of control icons as
follows:
BUTTON
ICON
DESCRIPTION
LEFT
Menu
Scroll
RIGHT
Reset
Mute Alarm
Accept
Printer
Control Panel

MEDICA-R 7/15 US Operator Manual ELGA
Page 12 MEDICA-R 7/15 US Version 2 –10/15
5. INSTALLATION INSTRUCTIONS
5.1 Unpacking the MEDICA-R 7/15 US
The following items should be supplied with your MEDICA-R 7/15 US:
1. MEDICA-R 7/15 US unit.
2. Cartridge pack LC141
3. By-pass block fitted in the unit
4. Installation kit LA637
5. Operator manual
6. Mains lead
7. CTI Tablets
5.2 Positioning the MEDICA-R 7/15 US
Before commencing with installation and operation of the
MEDICA-R 7/15 US system, please read and observe the following
points.
Environment
The system should be installed on a flat, level surface, in a
clean, dry environment. The system can also be wall mounted
against a vertical wall capable of supporting the weight (for this
we recommend the use of the wall mounting kit Part No.
LA610).
CAUTION!If the system is to be wall mounted, ensure it is
mounted on a substantial brick or concrete
solid wall capable of supporting the operating
weight of the system. If mounting the unit on
the wall, use the wall mounting kit and follow
the instructions included in the kit.
Note: Refer to specifications for unit weights.
The unit is designed to operate safely under the following conditions:
Indoor Use
Altitude up to 2000m
Temperature range 5-40°C
Maximum relative humidity 80% @ 31°C decreasing linearly
to 50% @ 40°C, non-condensating
The unit is in Installation Category II, Pollution Degree 2, as per
IEC1010-1.

ELGA MEDICA-R 7/15 US Operator Manual
MEDICA-R 7/15 US Version 2 –10/15 Page 13
Electrical
The units can be connected universally to any electrical
supply in the range of 100 - 240V and 50 - 60Hz. The mains
lead is supplied with a molded plug on one end and a molded
connector to the unit on the other. The unit should be
connected to an earth.
Drain
A semi rigid flexible connection to a sink or suitable drain
capable of handling at least 1.5 l/min is required. The drain
point should have a gravity fall below the level of the unit and
any connections direct to drain should have an air-break
device fitted.
Feed Water
The feed water should be of good quality and comply with
specifications provided. This should enter the unit via an
8mm (5/16") O/D semi rigid tube, and should be in the
temperature range 1 to 35°C.
CAUTION! Operating temperatures outside the range 1 to
35°C will cause damage to the MEDICA-R 7/15
US unit.
For pressurized feeds, the minimum direct inlet pressure is
4.0 bar (60 psi) and maximum inlet pressure is 6 bar (90 psi).
Higher feed water pressures must be reduced using a
pressure regulator valve (Part No. LA512).
Electrical Connections

MEDICA-R 7/15 US Operator Manual ELGA
Page 14 MEDICA-R 7/15 US Version 2 –10/15

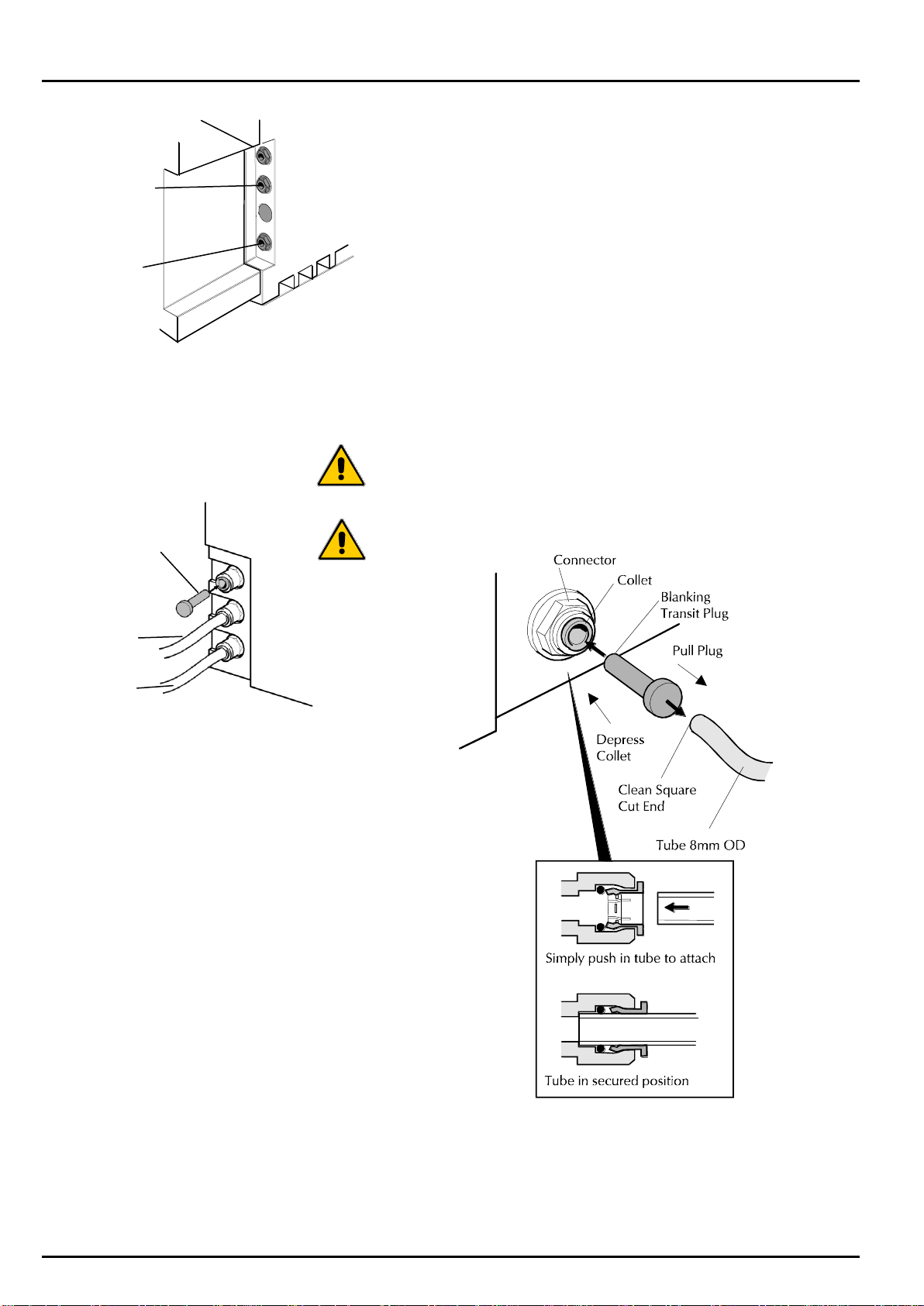

5.3 Connecting up the MEDICA-R 7/15 US
Once the MEDICA-R 7/15 US unit has been positioned either on a
wall or on a bench, it should be connected as follows:
Mains water inlet tube
Drain
Pump feed
Outlet to analyzer
Outlet to reservoir/docking vessel
Step 1 –Fitting Tubes
1. PUSH in collet on connector.
2. PULL out transit plug.
3. CUT a clean square end on a 8mm (5/16") O/D
semi rigid drain tube.
4. PUSH tube into connector.
CAUTION! Do not restrict drain line.
CAUTION! If the water supply is at a pressure greater than
6 bar (90 psi) fit a pressure regulator (LA512).
Fitting Tubes
Delivery Pump and Drain
Connections
Outlet to Docking
Vessel/Reservoir
Outlet to
Analyzer
Pump
Feed
Feed Water Inlet
Connections
Blanking
plug
Drain
Feed
Water
