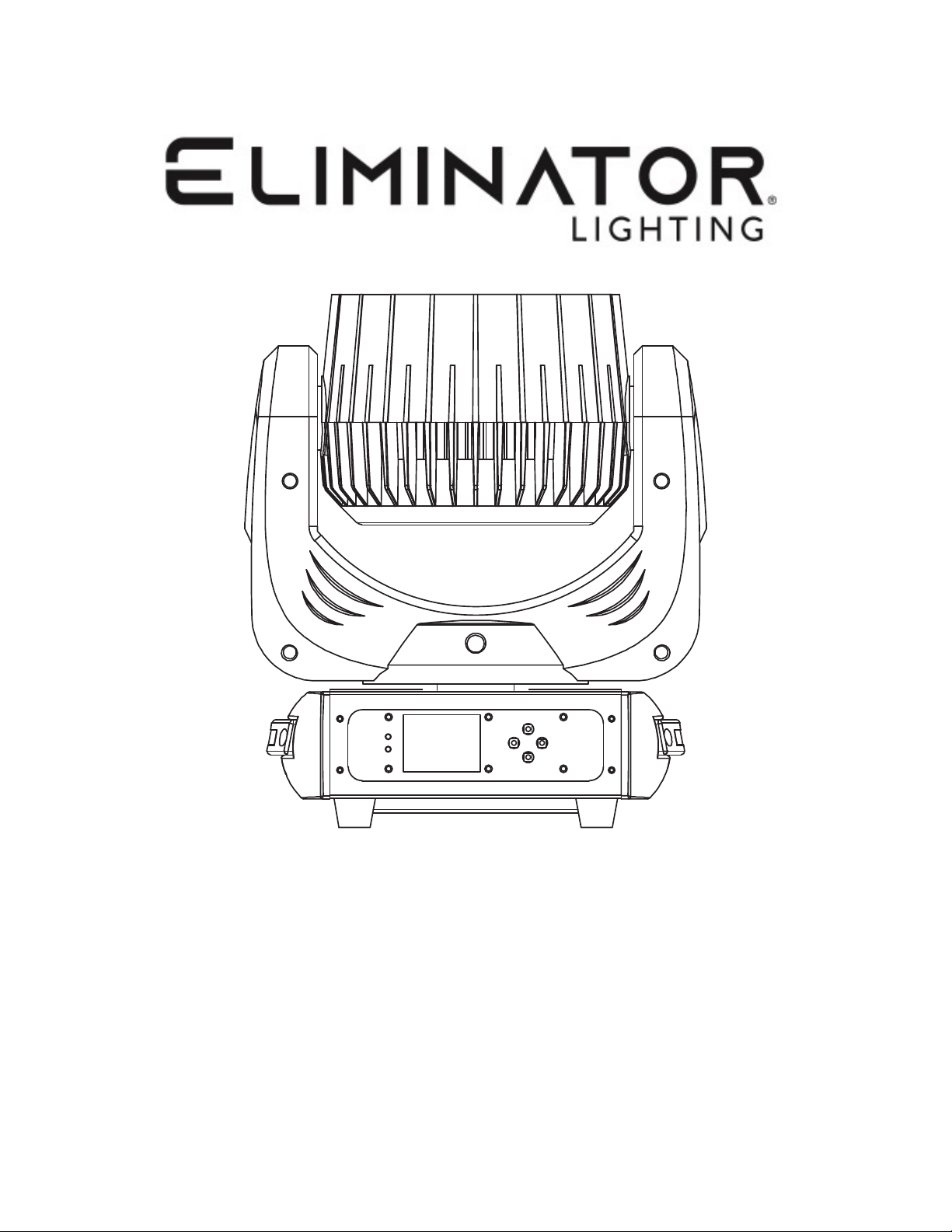

Eliminator Lighting STRYKER WASH User manual

User Manual
STRYKER WASH

2
©2023 Eliminator Lighting all rights reserved. Information, specications, diagrams, images, and
instructions herein are subject to change without notice. Eliminator Lighting logo and identifying prod-
uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed
includes all forms and matters of copyrightable materials and information now allowed by statutory or
judicial law or hereinafter granted. Product names used in this document may be trademarks or reg-
istered trademarks of their respective companies and are hereby acknowledged. All non-Eliminator
brands and product names are trademarks or registered trademarks of their respective companies.
Eliminator Lighting and all afliated companies hereby disclaim any and all liabilities for property,
equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic
loss associated with the use or reliance of any information contained within this document, and/or as
a result of the improper, unsafe, insufcient and negligent assembly, installation, rigging, and opera-
tion of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment. Please turn off all electrical products when
they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power
when not in use. Thank you!
Date Document
Version
Software
Version DMX Channels Notes
01/17/2023 1.0 1.0 13 / 23 Ch. Initial Release
02/14/2023 1.1 N/C No Change Updated Control Panel, System Menu,
DMX Traits, Specifications.
02/24/2023 1.2 N/C No Change Updated Introduction, Features,
Specifications
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version of
this document may be available online.
Please check www.adj.com for the latest revision/update of this manual
before beginning installation and/or programming.

3
TABLE OF CONTENTS
Introduction 4
Limited Warranty (USA Only) | Warranty Registration 5
Features 6
Safety Precautions 7
Overview 8
Installation 9
Control Panel 13
System Menu 14
DMX Set Up 17
DMX Traits 19
Primary-Secondary Set Up | Power Linking 21
Maintenance Guidelines 22
Dimensional Drawings 23
Specifications 24

4
Unpacking: Thank you for purchasing the Stryker Wash. Every device has been thoroughly tested and
has been shipped in perfect operating condition. Carefully check the shipping carton for damage that
may have occurred during shipping. If the carton appears to have been damaged, carefully inspect your
xture for any damage and be sure all accessories necessary to operate the unit have arrived intact.
In the event that damage has been found or parts are missing, please contact our toll free customer
support number for further instructions. Do not return this unit to your dealer without rst contacting
customer support.
Introduction: The Stryker Wash is a DMX-capable, LED-powered moving head xture. It features mul-
tiple selectable DMX channel modes, pan and tilt control, RGBW color, zoom adjustment, and strobe
effects.
Customer Support: Contact Eliminator Service for any product related service and support needs. Also
visit forums.adj.com with questions, comments or suggestions.
Parts: To purchase parts online visit:
http://parts.adj.com (US)
http://www.adjparts.eu (EU)
ELIMINATOR SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
Voice: 800-322-6337 | Fax: [phone] | [email protected]
ELIMINATOR SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
Voice: [phone] | Fax: [phone] | [email protected]
ELIMINATOR LIGHTING USA
6122 S. Eastern Ave. Los Angeles, CA. 90040
323-582-2650 | Fax [phone] | www.adj.com | [e-mail]
ADJ SUPPLY Europe B.V
Junostraat 2 6468 EW Kerkrade, The Netherlands
[phone] | Fax [phone]
www.americandj.eu | [email protected]
ADJ PRODUCTS GROUP Mexico
AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
CAUTION! This device is intended for indoor use only! Do not expose to rain or moisture!
CAUTION! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,
as doing so will void your manufacturer’s warranty. In the unlikely event your unit may require service,
please contact Eliminator Lighting.
Do not discard the shipping cartoon in the trash. Please recycle when ever possible.
INTRODUCTION

5
LIMITED WARRANTY (USA ONLY)
1 Year Limited Warranty: The Eliminator Lighting warranty is valid for 1 year from the date of purchase. Our
1 year limited warranty covers manufacturing defects only. The serial number of your device and the place of
purchase with dated valid receipt must be submitted at time of service. The Eliminator Lighting warranty does
not cover items or parts prone to wear and tear: lamps, fuses, brushes and belts. Eliminator Lighting warranty
is only valid within the United States.
To register your Eliminator Lighting product online, please click here to the ADJ Warranty Registration Page:
https://www.adj.com/portal/user/register/
WARRANTY REGISTRATION
Please fill out the enclosed warranty card to validate your purchase. All returned service items,
whether under warranty or not, must be freight pre-paid and accompanied by a return authorization
(R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief
description of the problem as well as the R.A. number must also be written down on a piece of paper
included in the shipping carton. If the unit is under warranty, you must provide a copy of your proof of
purchase invoice. You may obtain an R.A. number by contacting our customer support team. All pack-
ages returned to the service department not displaying an R.A. number on the outside of the package
will be returned to the shipper.

6
FEATURES
• 19 x 12W high power RGBW 4-in-1 LED
• Fast, precise pan & tilt movements
• Three zone DMX control mode
• Primary / Secondary stand alone mode
• Motorized zoom: 6 ~ 50°
• Linear CT DMX control channel: 3200K - 10000K
• Up to 18 strobe flashes per second
INCLUDED ITEMS
• Power Cable (x1)
• Omega Bracket (x1)

7
SAFETY PRECAUTIONS
• Ambient operating temperature range is 5° F to 104° F (-15° C to 40° C)!
• DO NOT TOUCH the fixture housing during operation. Disconnect the power and allow approximately
15 minutes for the fixture to cool down before servicing.
• DO NOT shake the fixture, and avoid brute force when installing and/or operating the fixture.
• DO NOT operate the fixture if the power cord has become frayed, crimped and/or damaged. If the
power cord is damaged, replace immediately with a new one of the same power rating.
• DO NOT attempt to remove or break off the ground prong from the electrical cord. This prong is used
to reduce the risk of electrical shock and fire in the event of an internal short.
• DO NOT attempt to operate this unit if it has been damaged in any way.
• DO NOT spill water or other liquids into or on to your unit.
• Disconnect from main power before making any type of connection.
• DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked.
Allow approx. 20” (50cm) between fixture and other devices or a wall for proper cooling.
• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 20” (50cm)
between this device and a wall.
• DO NOT remove the cover for any reason.
• When installing fixture in a suspended enviroment, always use mounting hardware that is no less than
M10 x 25mm, and always install fixture with an appropriately rated safety cable.
• Never plug this unit in to a dimmer pack.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to the point where they exit from the unit.
• Cleaning - The fixture should be cleaned only as recommended by the manufacturer.
• Heat - The appliance should be situated away from heat sources such as radiators, heat registers,
stoves, or other appliances (including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug have been damaged.
B. Objects have fallen onto, or liquid has been spilled into, the fixture.
C. The fixture does not appear to operate normally or exhibits a marked change in performance.
D. The fixture has fallen and/or has been subjected to extreme handling.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
INDOOR USE ONLY! DO NOT EXPOSE TO RAIN OR MOISTURE!

8
OVERVIEW
DMX
LED
Display
Screen
Menu
Button
Down
Button
Enter
Button
Up
Button
DMX
Input
DMX
Output
Power
Switch
Power
Input
Power
Output
Fuse

9
INSTALLATION
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!
Fixture MUST be installed following all local, national, and country commercial electrical and construc-
tion codes and regulations.
When installing the unit, the trussing or area of installation must be able to hold at least 10 times the
weight of the unit and any attached accessories without any deformation. The unit must be secured
with a secondary safety attachment, e.g. an appropriately-rated safety cable.
Before rigging/mounting a single fixture to any metal truss/structure or placing the fixture(s) on any
surface, a professional equipment installer MUST be consulted to determine if the metal truss/structure
or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and
accessories.
Ambient operating temperature range is 5°F to 104°F (-15°C to 40°C).
Fixture(s) should be installed away from walking paths, seating areas, or areas where unauthorized
personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment, such as an
appropriately rated safety cable that can hold at least 10 times the weight of the fixture.
Overhead mounting requires extensive experience, including calculating working load limits, knowl-
edge of installation material being used, and perodic safety inspection of all installation material as
well as the unit itself. If you lack these qualifications, do not attempt the installation yourself.
The installation should be checked by a skilled person once a year.

10
INSTALLATION
CLAMP MOUNTING
Use an appropriately rated nut and bolt to attach the mounting clamp (not included) to the Omega
bracket. This fixture features attachment points for an Omega on the bottom surface of the unit.
Insert the Omega bracket into these mounting points, then turn the quick-lock fasteners to secure the
Omega bracket to the fixture. Additionally, a SAFETY CABLE of the appropriate weight rating should
be looped under the fixture’s Omega bracket attachment plate, then over the truss. Refer to the illus-
tration below:
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE
IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL NOT
FALL IF THE CLAMP FAILS.
NOTICE: Ambient operational temperature range for this lighting fixture is 5˚ F to 104˚ F (-15˚ C to
40˚ C). Do not place this lighting fixture in an environment where the temperatures fall outside this
range. This will allow the fixture to run at its best and help prolong the fixture life.
MOUNTING
CLAMP
OMEGA
BRACKET
SAFETY
CABLE
OMEGA
BRACKET
ATTACHMENT
POINTS

11
INSTALLATION
RIGGING ORIENTATIONS
Overhead rigging requires extensive experience, including calculating working load limits, installation
material being used, and periodic safety inspection of all installation material and the fixture, among
other skills. If you lack these qualifications, do not attempt the installation yourself. Improper installation
can result in bodily injury.
The fixture is fully operational in the following positions: hanging from a horizontal truss, suspended
sideways from a vertical truss, or standing upright on a flat, level surface. See the illustration below for
reference.

12
INSTALLATION
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers,
which are focused directly towards the exterior housing and/or penetrate the front lens opening of
Eliminator lighting fixtures, can cause severe internal damage including burning of optics, dichroic color
filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wir-
ing, discharge lamps, and LEDs.
This issue is not specific only to Eliminator lighting fixtures, but rather it is a common issue with lighting
fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happen-
ing, the guidelines below can reduce the risk of potential damage. Contact Eliminator Service for more
details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

13
CONTROL PANEL
The Stryker Wash features a display screen with a 4-button control pad, which can be used to easily
adjust any device settings.
Pressing the UP and DOWN buttons to scroll through options on the screen. Press ENTER to select
the option currently highlighted on the screen, and enter into the Sub-Menu to adjust that setting, if
applicable. Press MENU to exit without making changes.
The panel also includes an LED which illuminates to indicate that the xture is in DMX mode.

14
SYSTEM MENU
DMX
SETTINGS
Address 001 - 512 Set DMX starting ad-
dress
Mode 13 Ch Select DMX channel
mode
23 Ch
No DMX
Hold
Fixture holds last
setup if DMX signal
is lost
Auto
Fixture defaults to
selected Auto mode
if DMX signal is lost
Sound
Fixture defaults to
sound mode if DMX
signal is lost
PERSONALITY
Pan Invert Yes / No Invert pan motion
Tilt Invert Yes / No Invert tilt motion
P/T Correction On / Off
Returns pan/tilt to
intended position
if head is manually
knocked out of posi-
tion
Display Reverse Yes / No Flip display orienta-
tion
Display Intensity 001 - 010 Adjust display bright-
ness
Sound Sensitivity 000 - 100 Default = 080
Adjust sensitivity
to sound in sound
mode
Reset Yes / No
Cycles xture power
off then on, and re-
tains current settings
Factory Restore Yes / No
Restore xture to
factory default set-
tings
Home Position
Password = 018
Pan 000 - 255
Set default (“home”)
value for each pa-
rameter
Tilt 000 - 255
Red 000 - 255
Green 000 - 255
Blue 000 - 255
White 000 - 255
Zoom 000 - 255
CONTINUED ON NEXT PAGE

15
SYSTEM MENU
RUN MODE
Auto
Auto Mode 1
Set xture to run the
selected auto mode
program
Auto Mode 2
Auto Mode 3
Auto Mode 4
Auto Mode 5
Auto Mode 6
Auto Mode 7
Auto Mode 8
Sound Set xture to sound
mode
Primary Auto
Auto Mode 1
Set xture as a pri-
mary unit that runs
the selected auto
mode program
Auto Mode 2
Auto Mode 3
Auto Mode 4
Auto Mode 5
Auto Mode 6
Auto Mode 7
Auto Mode 8
Primary Sound
Set xture as a pri-
mary unit that runs in
sound mode
Secondary Set xture as a sec-
ondary unit
MANUAL MODE
Pan 000 - 255
Manually adjust and
set the value of each
parameter
Tilt 000 - 255
Zoom 000 - 255
Red 000 - 255
Green 000 - 255
Blue 000 - 255
White 000 - 255
Linear Color Temp 000 - 255
Ring Macros 000 - 255
Strobe 000 - 255
Dimmer 000 - 255
Pan/Tilt Speed 000 - 255
Special 000 - 255
CONTINUED ON NEXT PAGE

16
SYSTEM MENU
SYS INFO
On Time xxH xxM H = hours,
M = mins
Time on since last
power cycle
Total Time xxxxxH xxM H = hours,
M = mins Total lifetime hours
Version Vx.xxx Current software ver-
sion
Running Mode DMX xx Ch Displays selected
DMX channel mode
Address xxx Displays current
DMX address
Temperature xxx °F
Displays current x-
ture operating tem-
perature

17
DMX SET UP
DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-
nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions
from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via
the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have
a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different manufacturers to be
linked together and operate from a single controller, as long as all fixtures and the controller are
DMX compliant. To ensure proper DMX data transmission, try to use the shortest cable path possible
when linking several DMX fixtures. The order in which fixtures are connected in a DMX line does not
influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed
anywhere in a DMX line: at the beginning, at the end, or anywhere in the middle. When a fixture is
assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that
unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation): This unit can be controlled via
DMX-512 protocol. The DMX address is set on the rear panel of the unit. Your unit and your DMX
controller require a standard 3-pin XLR connectors for data input and data output. We recommend
Accu-Cable DMX cables. If you are making your own cables, be sure to use standard 110-120 Ohm
shielded cable (This cable may be purchased at almost all pro lighting stores). Your cables should be
made with a male XLR connector at one end and a female XLR connector at the other. Also remem-
ber that DMX cable must be daisy chained and cannot be split.

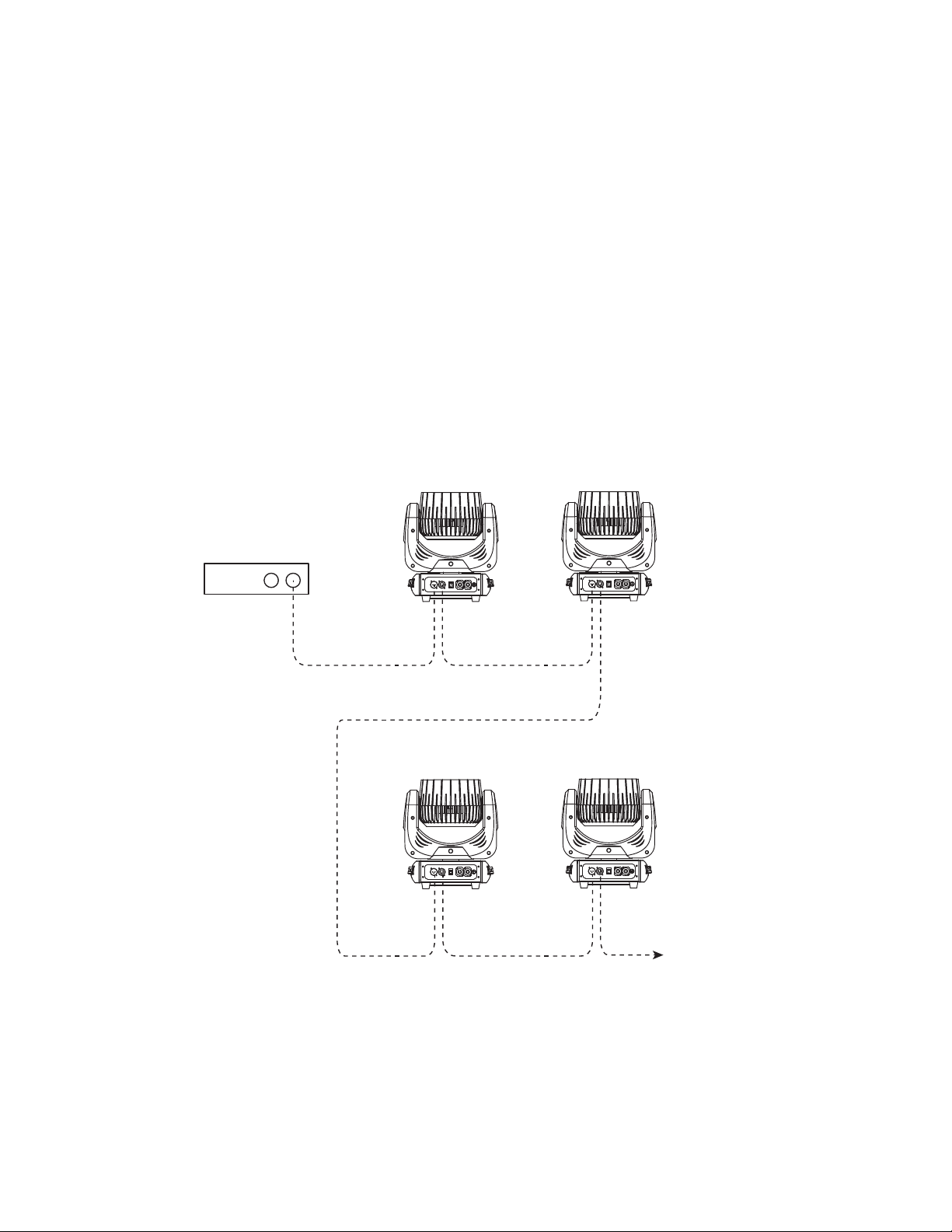

DMX
CONTROLLER
FIXTURE
1
DMX
IN
DMX
OUT
FIXTURE
2
DMX
IN
DMX
OUT
FIXTURE
3
DMX
IN
DMX
OUT
FIXTURE
4
DMX
IN
DMX
OUT
ADDITIONAL
FIXTURES

18
DMX SET UP
DMX ADDRESSING.
All fixtures should be given a DMX starting address when using a DMX controller, so the correct fix-
ture responds to the correct control signal. This digital starting address is the channel number from
which the fixture starts to “listen” to the digital control signal sent out from the DMX controller. The
assignment of this starting DMX address is achieved by setting the correct DMX address on the digi-
tal control display on the fixture.
You can set the same starting address for all fixtures or a group of fixtures, or set different addresses
for each individual fixture. Setting all fixtures to the same DMX address will cause all fixtures to react
in the same way. In other words, changing the settings of one channel will affect all the fixtures simul-
taneously.
If you set each fixture to a different DMX address, each unit will start to “listen” to the channel number
you have set, based on the quantity of DMX channels of each fixture. That means changing the set-
tings of one channel will only affect the selected fixture.
For example, when operating this unit in 13-channel mode, you should set the starting DMX address
of the first unit to 1, the second unit to 14 (1 + 13), the third unit to 27 (1 + 13 + 13), and so on. See
the chart below for more details.
CHANNEL MODE UNIT 1 ADDRESS UNIT 2 ADDRESS UNIT 3 ADDRESS UNIT 4 ADDRESS
13 Ch 1 14 27 40
23 Ch 1 24 47 70
Special Note: Line Termination. When longer runs of cable are used, you may need to use a termi-
nator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is
connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted
in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will reduce the risk of erratic behavior.
Notice: Be sure to follow the illustration below when making your own cables. Do not use the ground
lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the
shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a
short circuit and erratic behavior.

19
DMX TRAITS
CHANNEL DMX
VALUES FUNCTION
13Ch 23Ch
1 1 000 - 255 Pan, 0 to 540
2 000 - 255 Pan Fine
2 3 000 - 255 Tilt, 0 to 210
4 000 - 255 Tilt Fine
3 000 - 255 All Red, 0% to 100%
4 000 - 255 All Green, 0% to 100%
5 000 - 255 All Blue, 0% to 100%
6 000 - 255 All White, 0% to 100%
5 000 - 255 Red 1, 0% to 100%
6 000 - 255 Green 1, 0% to 100%
7 000 - 255 Blue 1, 0% to 100%
8 000 - 255 White 1, 0% to 100%
9 000 - 255 Red 2, 0% to 100%
10 000 - 255 Green 2, 0% to 100%
11 000 - 255 Blue 2, 0% to 100%
12 000 - 255 White 2, 0% to 100%
13 000 - 255 Red 3, 0% to 100%
14 000 - 255 Green 3, 0% to 100%
15 000 - 255 Blue 3, 0% to 100%
16 000 - 255 White 3, 0% to 100%
7 17
Linear CT
000 - 009 No function
010 - 255 Linear 3200K to 10000K
8 18
Ring Macros
000 - 007 No function
008 - 012 Static 1
013 - 017 Static 2
018 - 022 Static 3
023 - 027 Static 4
028 - 032 Static 5
033 - 037 Static 6
038 - 042 Static 7
043 - 047 Static 8
048 - 052 Static 9
053 - 057 Static 10
058 - 062 Static 11
063 - 067 Static 12
CONTINUED ON NEXT PAGE

20
DMX TRAITS
CHANNELS DMX
VALUES FUNCTION
13Ch 23Ch
8 18
Ring Macros (continued)
068 - 072 Static 13
073 - 077 Static 14
078 - 082 Static 15
083 - 087 Static 16
088 - 092 Static 17
093 - 097 Static 18
098 - 102 Static 19
103 - 107 Static 20
108 - 112 Static 21
113 - 117 Static 22
118 - 122 Static 23
123 - 181 Color Jump, slow to fast
182 - 240 Color Fade, slow to fast
241 - 255 Sound Auto Play
9 19
Shutter
000 - 009 Shutter Closed
010 - 250 Strobe Effect, slow to fast
251 - 255 Shutter Open
10 20 000 - 255 Dimmer, 0% to 100%
11 21 000 - 255 Zoom, minimum to maximum
12 22 000 - 255 Pan/Tilt Speed, fast to slow
13 23
Special Functions
000 - 010 No Function
011 - 020 XY Auto Run 1
021 - 030 XY Auto Run 2
031 - 040 XY Auto Run 3
041 - 050 XY Auto Run 4
051 - 060 XY Auto Run 5
061 - 070 XY Auto Run 6
071 - 080 XY Auto Run 7
081 - 090 XY Auto Run 8
091 - 230 Sound XY Auto Run
231 - 240 Reset after 3 seconds
241 - 255 No function
