Front Runner SSDS201 User manual

1
DRAWer
FORD RANGER
SSDS201 / SSFR001
INSTALL TIME: 1 Hour
REV_A02
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR
VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN-
JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER
PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD-
UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTION
S
AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDER-
STAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOR-
OUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSION
-
AL INSTALLER OR OTHER QUALIFIED PERSONNEL.
Thank you for purchasing a Front Runner Storage System.
This Storage System is made up of the following components:
1. A Drawer System - SSDR010
2. ADeck Support System - SSWS001
3. A Vehicle Specific Deck Set - SSDS201
Before you start, take a moment to familiarize yourself with these Fitting Instructions and all the components received.
Depending on the vehicle not all components received will be used. Refer to Pages 2 & 3 for a list of all the components
and quantities of required.

2

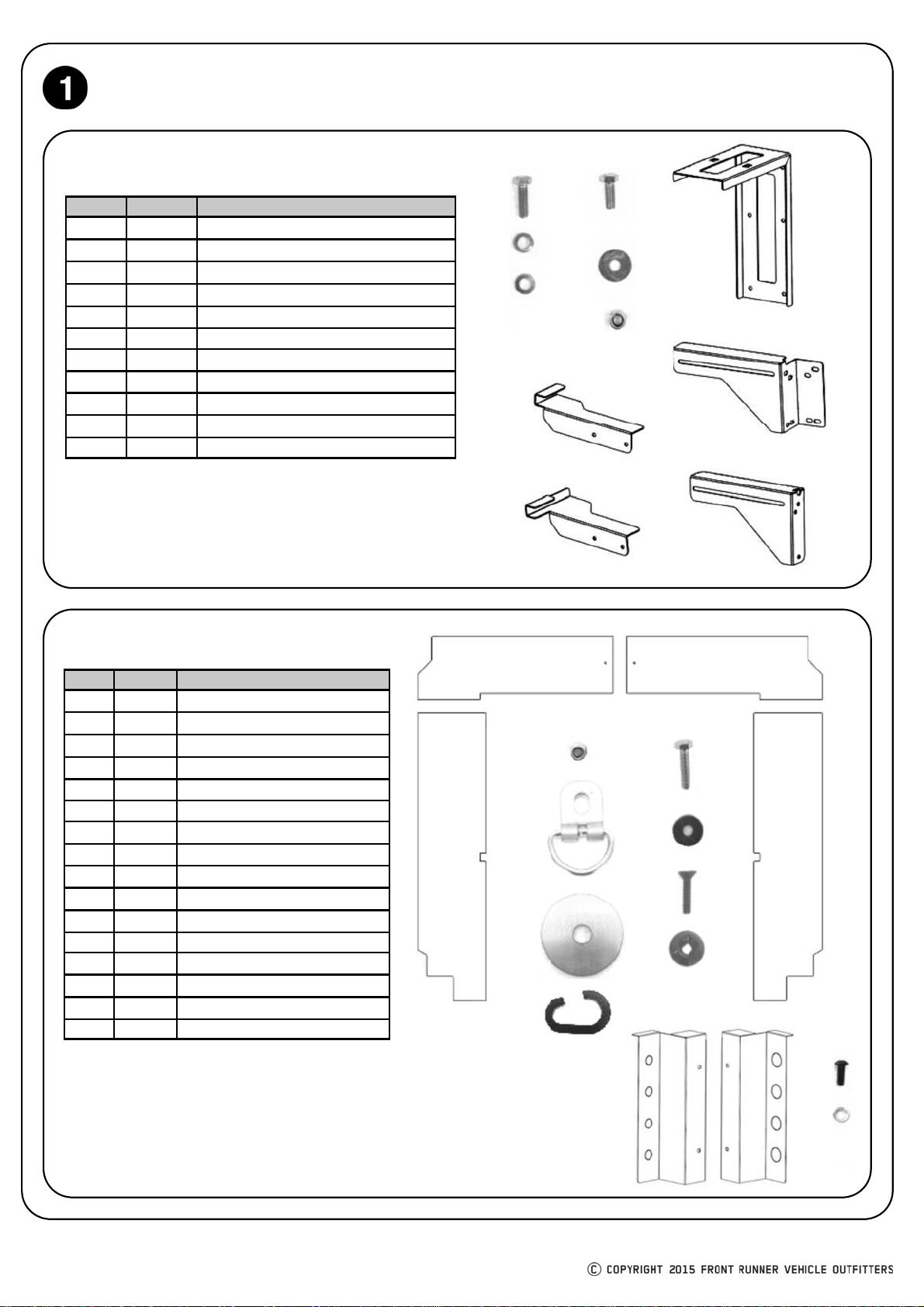

Item # Quantity Description
1 1 TWIN DRAWER SYSTEM
2 4 TURNBUCKLE
3 4 WING NUT
4 4 D-RING
5 4 M6 x 20 HEX BOLT
6 4 M6 SPRING WASHER
7 4 M6 x 19 FLAT WASHER
8 6 EYE NUT
9 6 STUD PLATE
10 6NYLON WASHER
11 460mm C-HOOK
12 2M8 x 16 HEX BOLT
13 1M8 CHANNEL NUT
14 1M8 x 25 FLAT WASHER
15 1M8 SPRING WASHER
16 1TRACK
GET ORGANIZED...
Here is what you are looking at for SSDR010:
You will need:
10 mm Flat & Socket Wrench
4 mm Hex Key
a Friend
Measuring Tape
Suitable Marker Pen
Drill Machine
6.5 mm Drill Bit
REV_A02
2
3
4
5
6
7
8
9
10
16
11
13
12
15
14

3

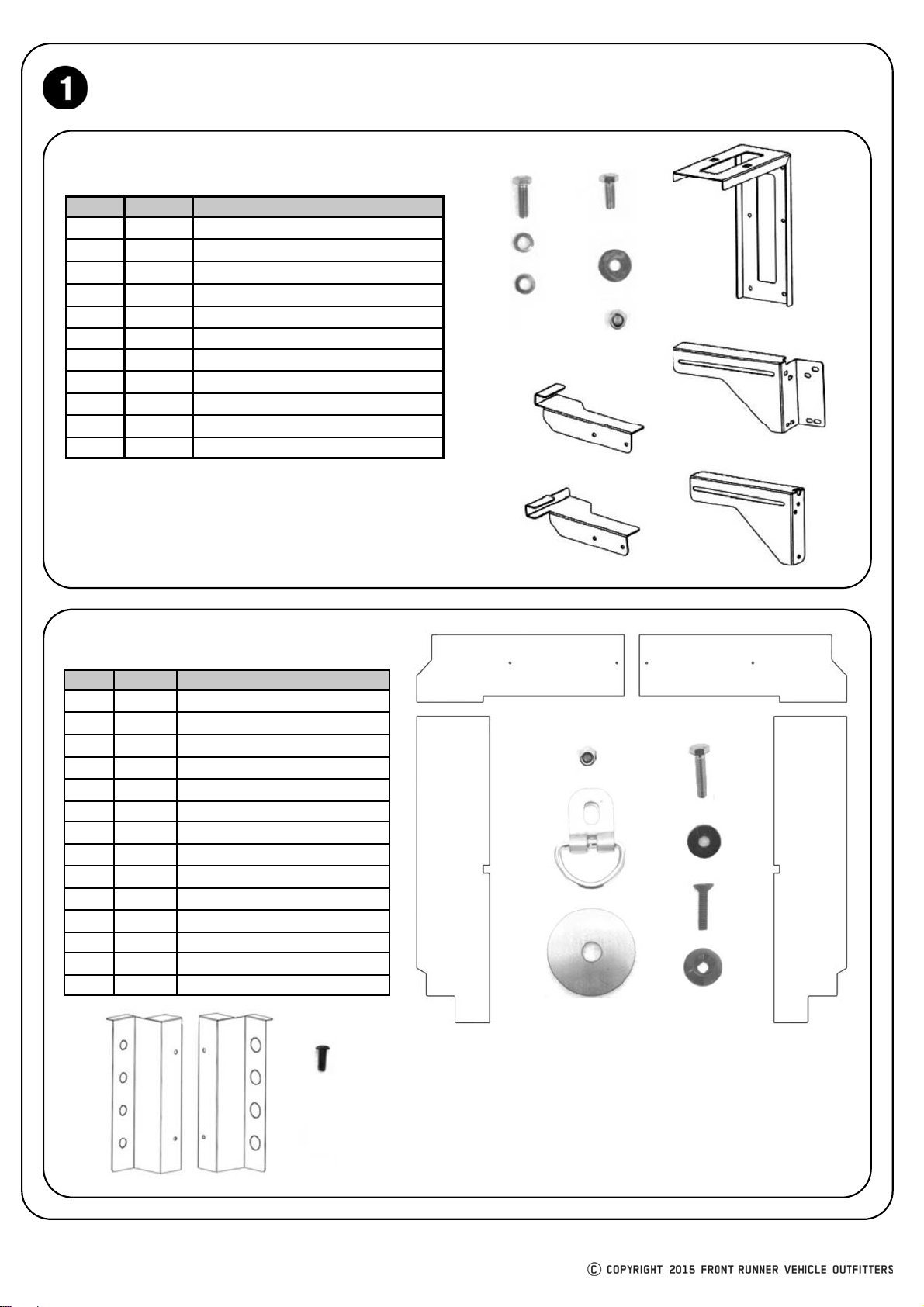

GET ORGANIZED CONT...
Here is what you are looking at for SSWS001:
REV_A02
17
18
19
20
21
22
23
25
26 27
Here is what you are looking at for SSDS201:
24
30
29
28 31
40
41
41
32
33
Item # Quantity Description
28 1FRONT LEFT DECK
29 1REAR LEFT DECK
30 1REAR RIGHT DECK
31 1FRONT RIGHT DECK
32 2M6 NYLOC NUT
33 2D-RING
34 6M10 x 50 FLAT WASHER
35 6M6 x 25 HEX BOLT
36 4M6 x19 FLAT WASHER
37 2M6 x 25 COUNTERSUNK SCREW
38 2M6 FINISHING WASHER
39 1LEFT HAND FRONT FACE
40 1RIGHT HAND FRONT FACE
41 4M6 x 16 BUTTON HEAD BOLT
Item # Quantity Description
17 11 M6 x 20 HEX BOLT
18 11 M6 SPRING WASHER
19 16 M6 FLAT WASHER
20 16 M6 x 16 HEX BOLT
21 27 M6 x 19 FLAT WASHER
22 16 M6 NYLOC NUT
23 1REAR SUPPORT
24 6WING SLIDER TYPE 1 - 3 LEFT, 3 RIGHT
25 4CORNER WING - 2 LEFT, 2 RIGHT
26 2WING SLIDER TYPE 2 - 1 LEFT, 1 RIGHT
27 4SIDE WING - 2 LEFT, 2 RIGHT
34
35
36
37
39
38

4

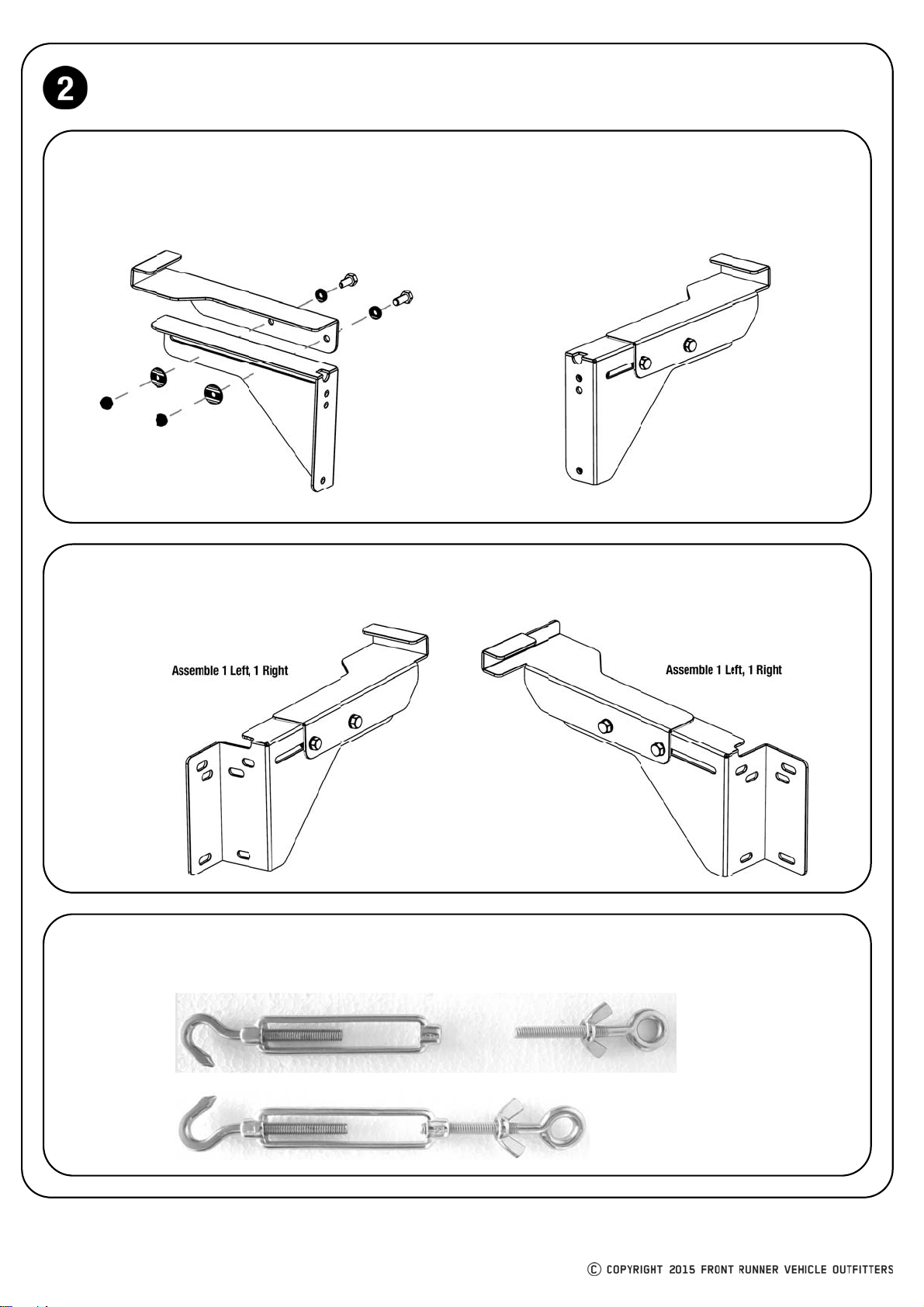

Prepare for installation
Loosely assemble the left and right hand Side Wing Sets (Items 24, 27) as shown below using two M6 x 16
Hex Bolts, two M6 Flat Washers, two M6 x 19 Flat Washers and two M6 Nyloc Nuts as shown (Items 19, 20,
21, 22) received with SSWS001.
()
A
Using Step 2A as a guide, loosely assemble the Corner Wings (Items 24, 25, 26) as shown.
()B
Loosen the round end of the four Turn Buckles (Item 2) supplied with SSDR010. Screw a M6 Wing Nut
(Item 3) onto each round end and reassemble the Turn Buckles as shown.
(
C
)
REV_A02

5
Prepare for installation cont...
REV_A02
Slide a Channel Nut (Item 13) into each end of the Track (Item 16). Place the Track under the front of the
Drawer System and line the Channel Nuts in the Track up with the mounting holes in the front corners of
the Drawer System. Loosely secure the Track to the Drawer System using the two M8 x 16 Hex Bolts, two
M8 x 25 Flat Washers and two M8 Springs Washers (Items 12, 14 15). Center the Track from left to right
and fasten.
()
D
(
F
)
Using six M6 x 20 Hex Hex Bolts, six M6 Spring Washers and six M6 x 19 Flat Washers removed in Step 2E,
secure the Rear Support (Item 23) to the back of the Drawer System as shown.
()E
Looking at the rear of the Drawer System, remove the bolts as indicated by the arrows. Keep the bolts and
washers safe as they will be used at a later stage.

6
Prepare for installation cont...
REV_A02
Looking from the front of the Drawer System, loosely secure a D-ring (Item 4) supplied with SSDR010 to
the top of each first support pillar using a M6 x 20 Hex Bolt, M6 Spring Nut and M6 x 19 Flat Washer
(Items 5, 6 & 7) supplied with SSDR10 as shown below.
()
G
(
H
)

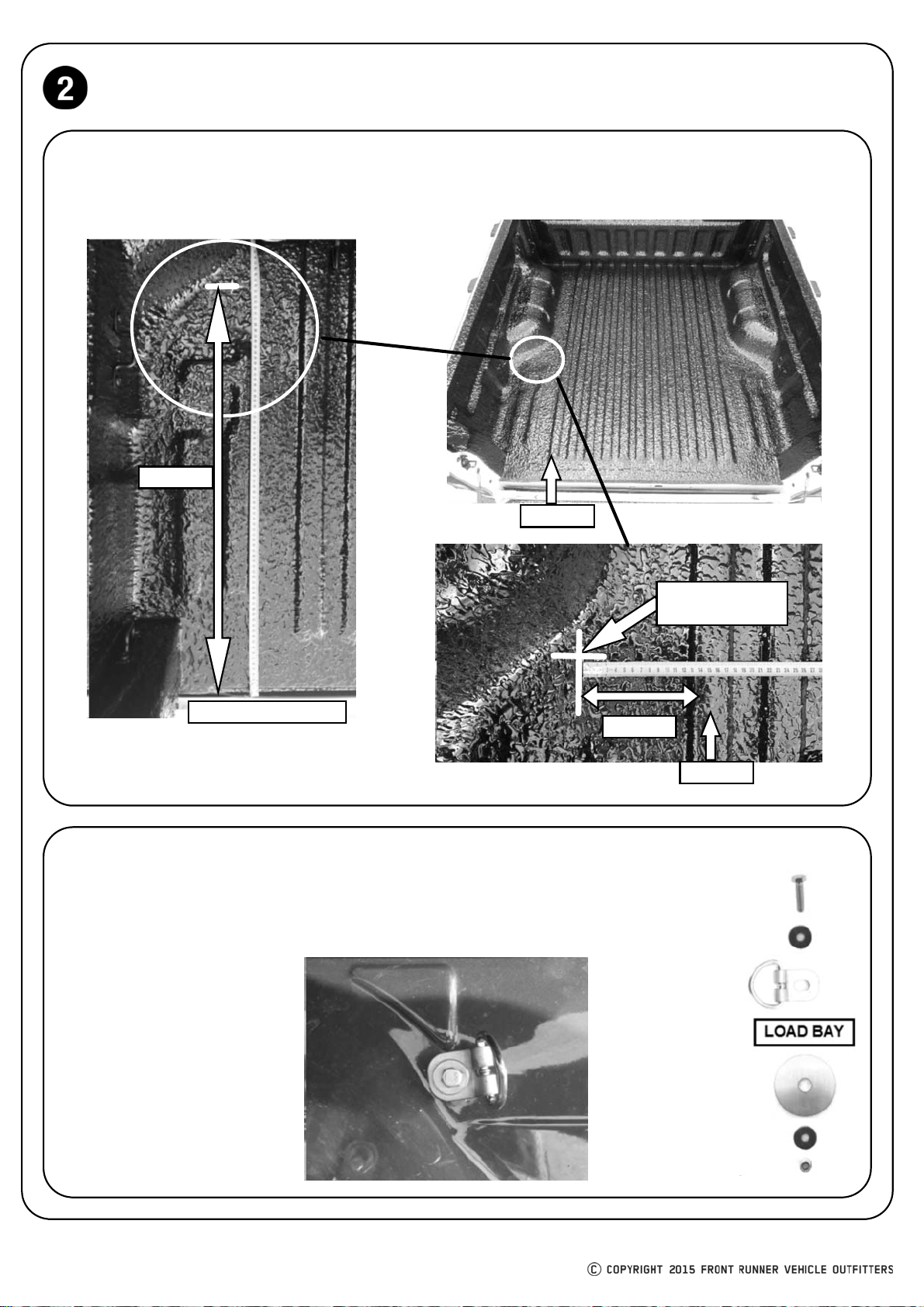

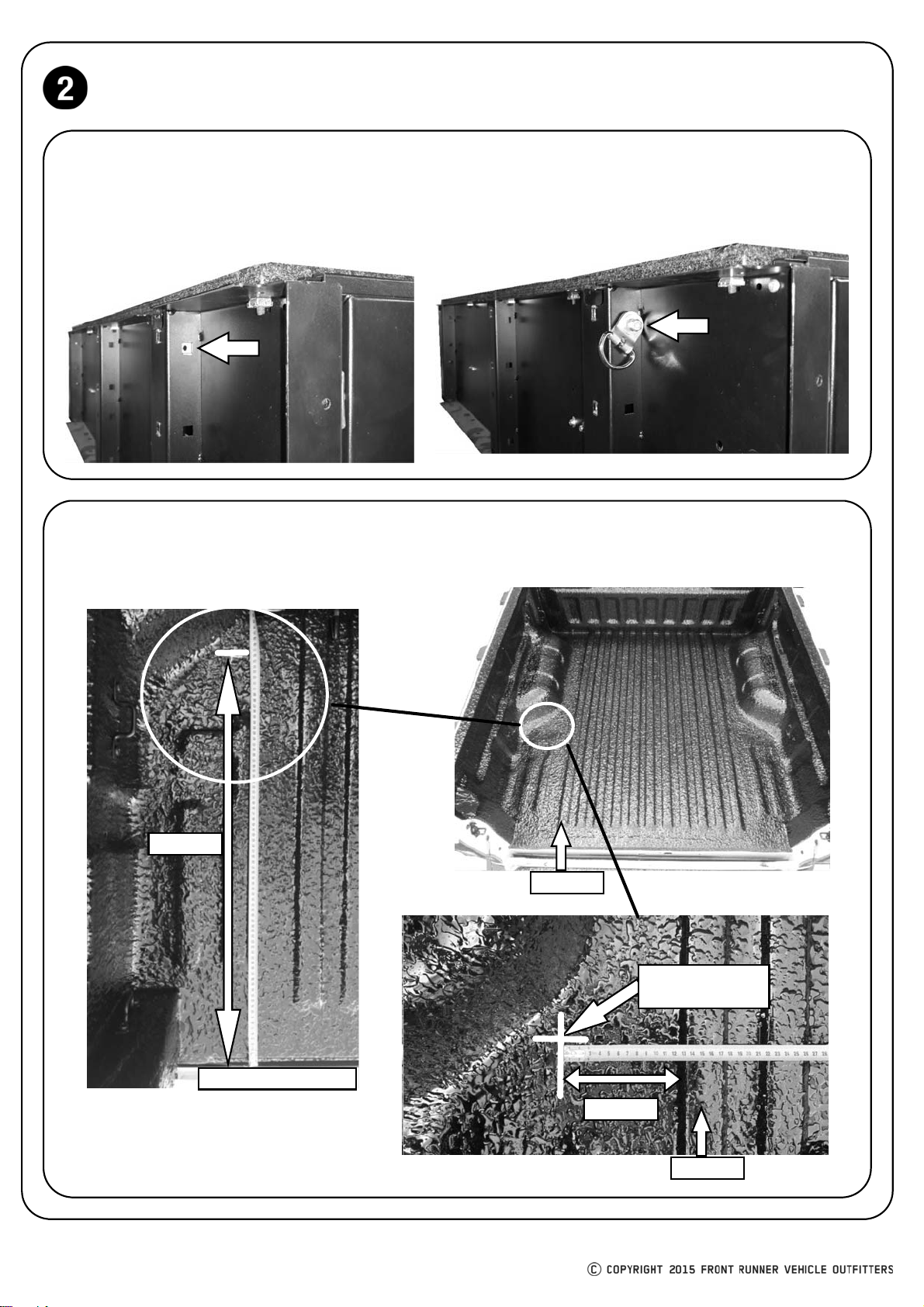

Working inside the loadbay, just below the wheel arches towards the rear of the vehicle, measure and
mark the load bay either side as indicated below. Drill a 6.5mm hole on each of your markings.
Place, Mark & Drill
6.5mm Hole
760 mm
130 mm
Outer Rib
Outer Rib
Edge of Load Bay

7
Prepare for installation cont...
REV_A02
Secure the two D-rings (Item 33 received with SSDS201) to the inside of the vehicle's load bay. You will be
bolting through the two 6.5 mm holes drilled in Step 2H using two M6 x 25 Hex Bolts, four M6 x 19 Flat
Washers, two M10 x 50 Flat Washers and a two M6 Nyloc Nuts (Items 32, 34, 35, 36 received with SSDS201)
as shown.
()
I
Install Drawer System
Lift the Drawer System (Item 1) into the vehicle's load
bay and position it 55 mm in from the front of the load
bay and center it from left to right.
()
A
Tail Gate
55 mm
Load Bay

8
Install Drawer System cont...
REV_A02
Secure the Side Wing Assemblies from Step 2A to the Drawer System using six M6 x 20 Hex Bolts, six M6
Spring Washers and six M6 Flat Washers (Items 17, 18, 21) received with SSWO001.
When securing the TOP of the MIDDLE Wing Assemblies, loosely secure a D-Ring (Item 4) to the Drawer
and Wing Assembly using a M6 x 20 Hex Bolt, M6 Spring Washer and M6 x 19 Flat Washer (Items 5, 6, 7)
recieved with SSWO008 as shown.
()
B
Position the Corner Wing Assemblies from Step 2B over the corners of the Drawer as shown. Secure the
Assemblies to the Drawer using the remaining M6 x 20 Hex Bolts, M6 x 19 Flat Washers and M6 Spring
Washers as shown.
(
C
)

9
Install Drawer System cont...
REV_A02
Secure the middle D-ring mounts on the Drawer System to the D-rings fitted in Step 2I using a C-hook and
Turn Buckle (Items 2, 11) each side. Secure the front D-Ring mounts to the tie down rings found at the
rear of the vehicle using the remaining C-hooks and Turn Buckles. Ensure the Wing Nut goes towards the
top of the Drawer System. When tightening the Turn Buckles ensure that the Drawer System remains cen-
tered left to right and 55 mm from the front. Once the Drawer is secure in position tighten the Wing Nuts
on the Turn Buckles and the Bolts securing the D-rings to the Drawer System and the vehicle's load bay.
()
D
MIDDLE MOUNTINGS
Ensure Wing
Nut at Top
FRONT MOUNTINGS
Ensure Wing
Nut at Top
()
E
Fit the Side and Rear Decks (Items 28, 29, 30, 31) into position, by "clipping" the outer edge of the Decks
into the Wing Sliders (Items 24 & 26) and pushing the Decks towards the outside of the vehicle, thereby
adjusting the Slider to the correct length. Once you are happy with the length of the Slider, carefully re-
move the Decks taking care not to move the Sliders and fasten the two bolts on each Slider, locking it into
position.
Secure the center of the Rear Decks to the Rear Support (Item 23) using the two M6 x 25 Countersunk
Bolts and two M6 Finishing Washers (Items 37 & 38).
(F )
C-Hook
C-Hook

10
Install Drawer System CONT...
REV_A02
()
G

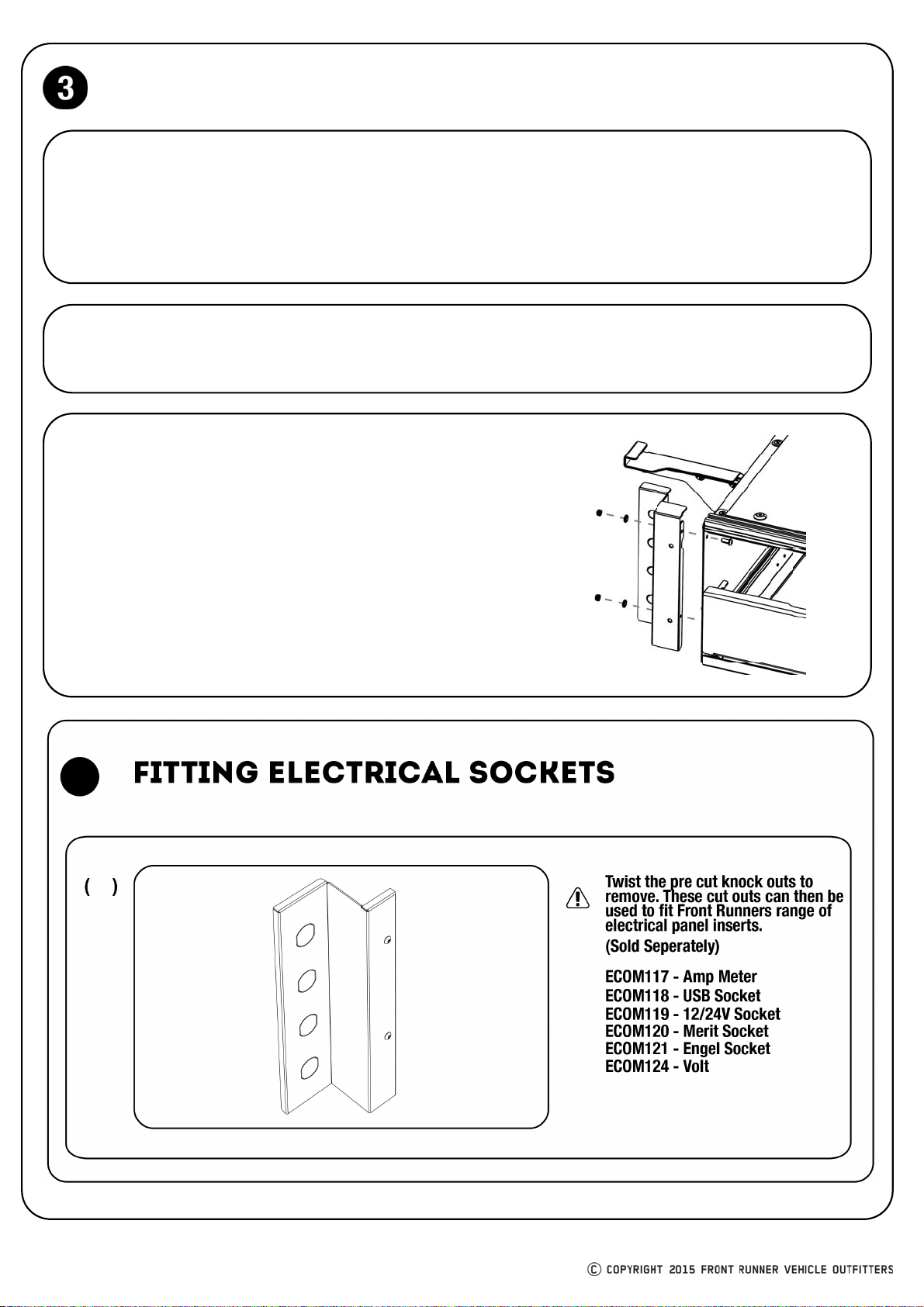

Assemble the two Front Faces (Items 39, 40) to
the front of the Drawer System using the four
M6 x 16 Button Head Bolts (Items 41) supplied.
4
A

11
REV_A02
A
5
6
7

1
DRAWer 6 box large MKII
FORD RANGER
SSDS201 / SWFR001
INSTALL TIME: 1 Hour
REV_A02
IMPORTANT WARNING!
IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR
VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY IN-
JURY OR DEATH TO YOU OR TO OTHERS. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER
PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PROD-
UCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTION
S
AND CAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU DO NOT UNDER-
STAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOR-
OUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSION
-
AL INSTALLER OR OTHER QUALIFIED PERSONNEL.
Thank you for purchasing a Front Runner Storage System.
This Storage System is made up of the following components:
1. A Large Box Drawer System - SSWO008
2. A Deck Support System - SSWS001
3. A Vehicle Specific Deck Set - SSDS201
Before you start, take a moment to familiarize yourself with these Fitting Instructions and all the components received.
Depending on the vehicle not all components received will be used. Refer to Pages 2 & 3 for a list of all the components
and quantities of required.

2

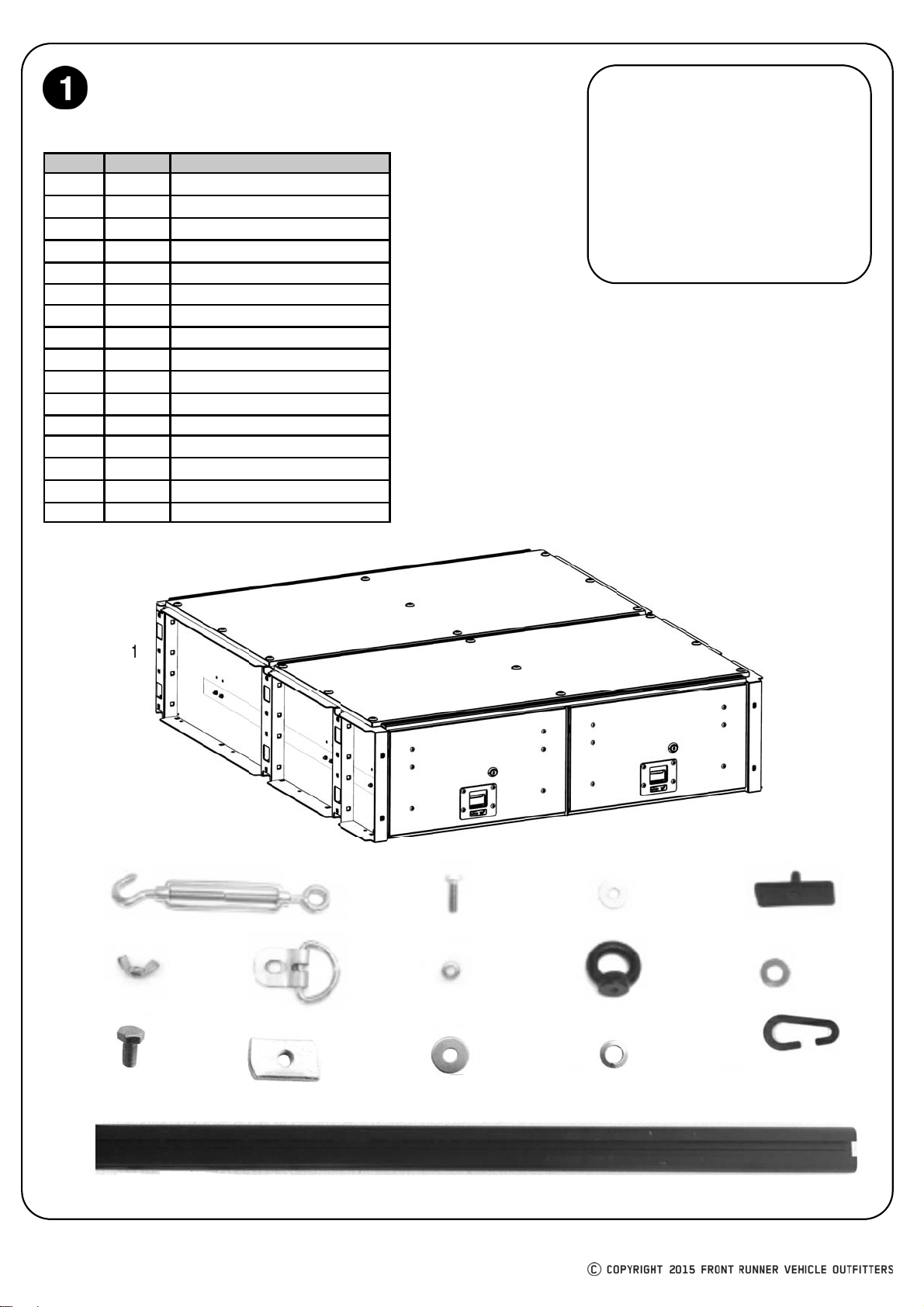

GET ORGANIZED...
Here is what you are looking at for SSWO008:
You will need:
10 mm Flat & Socket Wrench
4 mm Hex Key
a Friend
Measuring Tape
Suitable Marker Pen
Drill Machine
6.5 mm Drill Bit
REV_A02
Item # Quantity Description
1 1 SIX BOX DRAWER
2 4 TURNBUCKLE
3 4 WING NUT
4 4 D-RING
5 4 M6 x 20 HEX BOLT
6 4 M6 SPRING WASHER
7 4 M6 x 19 FLAT WASHER
8 6 EYE NUT
9 6 STUD PLATE
10 6NYLON WASHER
11 460mm C-HOOK
12 3M8 x 16 HEX BOLT
13 3M8 CHANNEL NUT
14 3M8 x 25 FLAT WASHER
15 3M8 SPRING WASHER
16 1TRACK
2
3
4
5
6
7
8
9
10
16
11
13
12
15
14

3
GET ORGANIZED CONT...
Here is what you are looking at for SSWS001:
REV_A02
17
18
19
20
21
22
23
25
26 27
Here is what you are looking at for SSDS201:
24
30
29
28 31
41
42
43
32
33
Item # Quantity Description
28 1FRONT LEFT DECK
29 1REAR LEFT DECK
30 1REAR RIGHT DECK
31 1FRONT RIGHT DECK
32 6M6 NYLOC NUT
33 2D-RING
34 4MM10 x 50 FLAT WASHER
35 237mm C-HOOK
36 2M6 x 25 HEX BOLT
37 4M6 x 19 FLAT WASHER
38 2M6 x 25 COUNTERSUNK BOLT
39 2M6 FINISHING WASHER
40 1RIGHT HAND FRONT FACE
41 1LEFT HAND FRONT FACE
42 4M6 x 16 BUTTON HEAD BOLT
43 4M6 FLAT WASHER
Item # Quantity Description
17 10 M6 x 20 HEX BOLT
18 10 M6 SPRING WASHER
19 16 M6 FLAT WASHER
20 16 M6 x 16 HEX BOLT
21 26 M6 x 19 FLAT WASHER
22 16 M6 NYLOC NUT
23 1REAR SUPPORT
24 6WING SLIDER TYPE 1 - 3 LEFT, 3 RIGHT
25 4CORNER WING - 2 LEFT, 2 RIGHT
26 2WING SLIDER TYPE 2 - 1 LEFT, 1 RIGHT
27 4SIDE WING - 2 LEFT, 2 RIGHT
34
35
36
37
40
38
39

4
Prepare for installation cont...
Loosely assemble the left and right hand Side Wing Sets (Items 24, 27) as shown below using two M6 x 16
Hex Bolts, two M6 Flat Washers, two M6 x 19 Flat Washers and two M6 Nyloc Nuts as shown (Items 19, 20,
21, 22) received with SSWS001.
()
A
Using Step 2A as a guide, loosely assemble the Corner Wing Sets (Items 24, 25, 26) as shown.
()B
Loosen the round end of the four Turn Buckles (Item 2) supplied with SSWO008. Screw a M6 Wing Nut
(Item 3) onto each round end and reassemble the Turn Buckle as shown.
(
C
)
REV_A02

5
Prepare for installation cont...
REV_A02
Slide the three Channel Nuts (Item 13) into the Track (Item 16). Place the Track under the front cross strap
of the Drawer System. Line the three Channel Nuts inside the Track up with the mounting holes in the
cross strap (as indicated by the arrows) and loosely secure the Track in position using the three M8 x 16
Hex Bolts, three M8 x 25 Flat Washers and three M8 Springs Washers (Items 12, 14, 15). Center the Track
from left to right and fasten.
()
D
(
F
)
Using six M6 x 20 Hex Hex Bolts, six M6 Spring Washers and six M6 x 19 Flat Washers removed in Step 2E,
secure the Rear Support (Item 23) to the back of the Drawer System as shown.
()E
Looking at the rear of the Drawer System, remove the bolts as indicated by the arrows. Keep the bolts and
washers safe as they will be used at a later stage.

6
Prepare for installation cont...
REV_A02
Secure the two D-rings (Item 33 received with SSDS201) to the inside of the vehicle's
load bay. You will be bolting through the two 6.5 mm holes drilled in Step 2H using
two M6 x 25 Hex Bolts, four M6 x 19 Flat Washers, two M10 x 50 Flat Washers and a
two M6 Nyloc Nuts (Items 32, 34, 36, 37 received with SSDS201) as shown.
(H )
Place, Mark & Drill
6.5mm Hole
760 mm
130 mm
Outer Rib
Outer Rib
Edge of Load Bay
Working inside the loadbay, just below the wheel arches towards the rear of the vehicle, measure and
mark the load bay either side as indicated below. Drill a 6.5mm hole on each of your markings.
(
G
)

7
Install DrawER System
REV_A02
Secure the bottom of the Side Wing Assemblies from Step 2A to the Drawer System using four M6 x 20
Hex Bolts, four M6 Spring Washers and four M6 Flat Washers (Items 17, 18, 21) received with SSWO001.
When Securing the TOP of the Wing Assemblies, loosely secure a D-ring (Item 4) to the Drawer and Wing
Assembly using a M6 x 20 Hex Bolt, M6 Spring Washer and M6 x 19 Flat Washer (Item 5, 6, 7) received
with SSWO008 as shown.
()B
Lift the Drawer System (Item 1) into the vehicle's load bay and position it 60 mm in from the front of the
load bay and center it from left to right.
()
A
Tail Gate
60 mm
Load Ba
y

8
Install Drawer System cont...
REV_A02
Position the Corner Wing Assemblies from Step 2B over the corners of the Drawer as shown. Secure the
Assemblies to the Drawer using the remaining M6 x 20 Hex Bolts, M6 x 19 Flat Washers and M6 Spring
Washers.
(
C
)
Secure the middle D-ring mounts on the Drawer System to the D-rings fitted in Step 2H using a 60 mm C-
hook and Turn Buckle (Items 2, 11) each side. Secure the front D-Ring mounts to the tie down rings found
at the rear of the vehicle using the remaining Turn Buckles and two 37 mm C-hooks (Item 35) recieved
with SSDS201. Ensure the Wing Nut goes towards the top of the Drawer System. When tightening the Turn
Buckles ensure that the Drawer System remains centered left to right and 60 mm from the front. Once the
Drawer is secure in position tighten the Wing Nuts on the Turn Buckles and the Bolts securing the D-rings
to the Drawer System and the vehicle's load bay.
()
D
MIDDLE MOUNTINGS
Ensure Wing
Nut at Top
37mm C-Hook
FRONT MOUNTINGS
Ensure Wing
Nut at Top
60mm C-Hook

9
Install Drawer System CONT...
REV_A02
()
E
Fit the Side and Rear Decks (Items 28, 29, 30, 31) into position, by "clipping" the outer edge of the Decks
into the Wing Sliders (Item 24 & 26) and pushing the Decks towards the outside of the vehicle, thereby ad-
j
usting the Slider to the correct length. Once you are happy with the length of the Slider, carefully remove
the Decks taking care not to move the Sliders and fasten the two bolts on each Slider, locking it into posi-
tion.
Secure the center of the Rear Decks to the Rear Support (Item 23) using the two M6 x 25 Countersunk
Bolts and two M6 Finishing Washers (Items 38 & 39).
(
F
)
()
G
Assemble the two Front Faces (Items 40, 41) to the
side of the Drawer System using the four M6 x 16 But-
ton Head Bolts, four M6 Flat Washers and four Nyloc
Nuts (Items 32, 42, 43).
44
A
