Elite Fitness Pursuit Air User manual

ASSEMBLY MANUAL
Record serial number
Elite Pursuit Air Bike

2
CONTENTS
Important Safety Instrucons 3
Product Specicaons 4
Assembly Instrucons 6
Seng Up Your Air Bike 11
Console User Instrucons 12
Care and Maintenance 23
Maintenance Log 24
Limited Warranty 25
Warm-Up Exercise 26
Training Stages 27
Parts 28
Exploded Drawing 31
Notes 32
Thank you for purchasing the Elite Pursuit Air Bike.
For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of tness equipment.
Our aim and vision is to provide you Elite™ branded products, tested to the highest standard for
quality and biomechanics at the best possible price.
Please read through this manual to familiarise yourself with the operaon of your new
Elite Pursuit Air Bike. Doing so will help to ensure that you get the most out of your machine,
enjoying safe and eecve workouts ahead.
Even though we go to great eorts to ensure the quality of each product we produce, occasional
errors and or omissions do occur. In any event should you nd this product to have either
a defecve or a missing part, please contact us for a replacement.
SERVICE & WARRANTY
For service and warranty assistance please visit:
www.elitetness.co.nz/service
Online forms are available for Service, Warranty and Parts requests.
[phone]
Elite Fitness HQ
28 Morrin Road
Saint Johns
Auckland, New Zealand
info@elitetness.co.nz
0800 2 438 348
www.elitetness.co.nz

3ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
The following denion applied to the word “WARNING” when used in this manual:
Used to call aenon to POTENTIAL hazards that could result
in personal injury.
READ ALL INSTRUCTIONS BEFORE USING THE MACHINE
This product has been designed for home use only. Product liability and warranty condions will
not be applicable to products being subjected to professional use or products being used in
a commercial environment. e.g Gym Centre, Rerement Centre, Home Based PT Studio and Physio.
This exercise machine is built for opmum safety. However, certain precauons apply whenever
you operate a piece of exercise equipment. Be sure to read the enre manual before you assemble
or operate your machine. In parcular, note the following safety precauons.
— Read all instrucons in this manual before using this equipment.
— Use the machine only for its intended use as described in this Manual.
— Inspect and ghten all the loose parts before this equipment is used.
— Keep hands away from moving parts.
— Keep children and pets away from the machine at all mes. DO NOT leave children unaended
in the same room with the machine.
— Before using the machine to exercise, always do stretching exercises to properly warm up.
— Inspect the machine before each use; make sure all of the connecons are ghtly secured.
— Only one person at a me should use the machine.
— If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP
the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
— Posion the machine on a clear, levelled surface. DO NOT use the machine near water
or outdoors.
— Always wear appropriate workout clothing when exercising. DO NOT wear robes or other
clothing that could become caught in the machine. Sporng shoes are recommended when
using the machine.
— Do not place any sharp object around the machine.
— Disabled persons should not use the machine without a qualied person or physician
in aendance.
— Never operate the machine if the machine is not funconing properly.
— Only carry out training work on the equipment when it is in perfect working order. Only use
original spare parts in the event of a repair.
— Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of
your own, for any repairs that may be required. Please dispose of the packaging and any parts
that have to be replaced subsequently (all parts for the unit) at suitable collecng points or
containers with a view to saving the environment.
— DO NOT extend the seat stem past the warning line “Max” when adjusng the seat height.
— Not for therapeuc use.
IMPORTANT SAFETY INSTRUCTIONS

4
WARNING: Before beginning any exercise programme, consult your physician. This is especially
important for persons with pre-exisng health problems. The seller assumes no responsibility for
personal injury or property damage sustained by or through the use of this product.
SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular
basis, check all screw connecons and moving parts on proper ng. Damaged parts need to be
changed immediately. During the me of repair the product must not be used by anybody.
IMPORTANT HINTS:
A) This product has been tested in accordance with the requirements of EN 957-1/A1, EN 957-5,
standard, Class HA (HOME USE). The maximum load is limited to 125KGS.
B) Parents should be aware of the risk factor of young children playing on tness equipment
unaended. Make sure that children are instructed properly in the use of the product and in
the controlled execuon of the dierent exercises. Misuse of the product could result in
serious injury.
PRODUCT SPECIFICATIONS
User Weight Capacity: 125kg
Dimensions: 1320 x 275 x 890mm
Shipping Weight: 62.5kg
Net Weight: 53kg
Power Requirements N/A

5ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
NOTE:
Most of the listed assembly hardware has been packaged separately, but some hardware items
have been preinstalled in the idened assembly parts. In these instances, simply remove and
reinstall the hardware as assembly is required.
Please reference the individual assembly steps and make note of all preinstalled hardware.
PREPARATION:
Before assembling, make sure that you will have enough space around the item; Use the present
tooling for assembling; before assembling please check whether all needed parts are available.
It is strongly recommended this machine to be assembled by two or more people to avoid
possible injury.

6
ASSEMBLY INSTRUCTIONS
STEP 1
Aach the Front Stabiliser (pt.15) to the Main Frame (pt.16) using two sets of Ø10 Flat Washers
(pt.5) and bolt 1 (3).
Aach the Rear Stabiliser (pt.4) to the Main Frame (pt.16) using two sets of Ø10 Flat Washers
(pt.5) and bolt 1 (3).
:

7ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
STEP 2
Slide the Vercal Seat Post (pt.10) into the seat post housing on the main frame (pt.16). And put
the knob up, then release the round nut (pt.48). Then slide the Seat Post (pt.12) into the Vercal
Seat Post (pt.10). Then xing the bolt8 (pt.48). You will have to slacken the knurled secon of the
Adjustment Knob (pt.9) and pull the knob back and then select the desired height. Release the
knob and reghten the knurled poron.
Now x the Seat (pt.13) to the Seat Post (pt.12) as shown, and ghten the bolts around the screws
under the seat.

8
STEP 3
Aach the le hand assembly (18), right wrench assembly (21) and the outer tooth type gasket
(92) to the main frame assembly (16) using a hex head screw(78), at washer (5), spring washer
(95)and lock nut (79) as pictured below.
Aach the console mast (17) with 2 x hex head screws (27) to the main frame assembly (16).
Aach the Aluminium Bole Cage (72) to the main frame assembly (16) using 2 x cross slot
screws (73).
ATTENTION: ENSURE THE HANDLEBAR IS SECURELY TIGHTENED.
Aach the computer console (83) to the console mast (17) using 2 x cross slot screws (84).
Connect the console plugs (A1 & A2) – Be careful not to crimp the wires.

9ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
STEP 4
The Pedals (pt.1 L & pt.1 R) are marked “L” and “R” - Le and Right. Connect them to their
appropriate crank arms. The right crank arm is on the right- hand side of the cycle as you sit on it.
Note that the Right pedal should be threaded on clockwise and the Le pedal anclockwise.

10
CONGRATULATIONS
Assembly of your Elite Pursuit Air Bike is now complete! Be sure to fully inspect your machine
before using it for the rst me.
WARNING: Failure to visually check and test the assembly of your Air Bike before use can cause
damage to the Air Bike and injury.

11ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
SETTING UP YOUR AIR BIKE
Having your bike seat adjusted to the right
height is essenal for a comfortable ride,
ecient pedalling and avoiding injury. There
are 2 adjustments located on the seat post. The
rst is a vercal height adjustment, the second
is for horizontal seat posion. Although there
are many methods and opinions on the opmal
saddle seng, the following is a quick an easy
method to get started. Further adjustments can
be made aerwards to opmise your posion
and comfort.
Saddle Height Adjustment
— Place your heels on the bike pedals and
pedal backward. Your legs should be fully
extended with your knees straight. If your
hips rock from side to side while pedalling
backward, the seat is too high.
— Place the ball of your foot on the pedal.
There should now be a slight bend in your
knee when the pedal is at its lowest point.
This is a good starng point.
Adjusting the Seat Fore-and-Aft Position
Once you’ve adjusted seat height, it’s me
to nd the correct fore-and-a posion of
the saddle. This determines where you sit
in relaonship to the crank set (where the
pedals are aached), which helps decide how
comfortable and ecient you’ll be when riding.
This also minimises stress to the knee by being
in a more neutral posion.
If you want to try to check the fore-and-a
seng at home, you will need a second person
and a plumb line (a length of string with a nut
or washer ed on the end will work ne).
Whilst sing on the seat saddle bring your right
crank arm around and have your helper stop
the crank when the pedal is at three o’clock
or parallel with the oor. Note that for this
measurement to be accurate, your shoes must
be correctly posioned on the pedals (the balls
of your feet should be over the pedal axles).
Adjusng the Seat Fore-and-A Posion
Saddle Height Adjustment

12
RPM - Display the rotaon per minute with range from 0~ 199.
SPEED - Display current training speed. Maximum speed is 99.9 KM/H or ML/H.
TIME - Count up - No pre-set target, Time will count up from 00:00 to maximum 1:59:59 with
each increment is 1 minute.
- Count down – The console will countdown from pre-set me to 00:00:00 and each
pre-set increment or decrement will be 1 minute between 00:01:00 to 1:59:00.
DISTANCE - Accumulates total distance from 0.0 up to 999.9 KM or ML or count down from
pre-set value. User may preset target distance value with UP/DOWN key. Each increment
is 1.0KM or ML.
CALORIES - Accumulates calories consumpon or count down during training from 0 to maximum
999 calories. User may pre-set target Calories with UP/DOWN key.
WATTS
CONSTANT
- Display the power consumpon during training.
- Display Range: 0~1999.
PULSE - User may set up target pulse value from 0~30 to 230 and the console buzzer will
beep when the actual heart rate is over the target value during workout.
CONSOLE INSTRUCTIONS
DISPLAY FUNCTIONS
START - To start workout quickly or resume workout in Stop mode.
STOP - To stop/pause workout.
- To clear up all sengs.
- Hold on this key for 2 seconds to reboot the console.
DOWN - To adjust Distance, Calories, Heart-rate, Time, Age value down.
UP - To adjust Distance, Calories, Heart-rate, Time, Age value up.
TARGET DISTANCE - Fast access to Target Distance training mode.
TARGET CALORIES - Fast access to Target Calories training mode.
TARGET HEART-RATE - Fast access to Target Heart Rate training mode.
TARGET TIME - Fast access to Target Time training mode.
INTERVAL - There are 3 programs: INTERVAL 10/20, INTERVAL 20/10, Custom.
ENTER - To conrm sengs or enter program.
BUTTON FUNCTION

13ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
OPERATION INSTRUCTION
1. When POWER ON, LCD will full display 2s (Figure 1) with a long beep sound, then display wheel
diameter 1s in DISTANCE area (Figure 2). Then enter into AGE seng mode, the AGE ashing to be
set (Figure 3). Press the UP/ DOWN to set age and press ENTER to conrm then proceed to
Standby mode.
2. The window of INTERVAL 10/20, INTERVAL 10/20, INTERVAL CUSTOM, READY, WORK, REST,
TIME, DISTANCE, CALORIES, WATTS, SPEEED, RPM and HEART RATE will ash in sequence every 1s
(Figure 4 - Figure 16). If no input of key operaon or RPM signal or pulse input for 60s, computer
will go to Sleeping mode.
Figure7

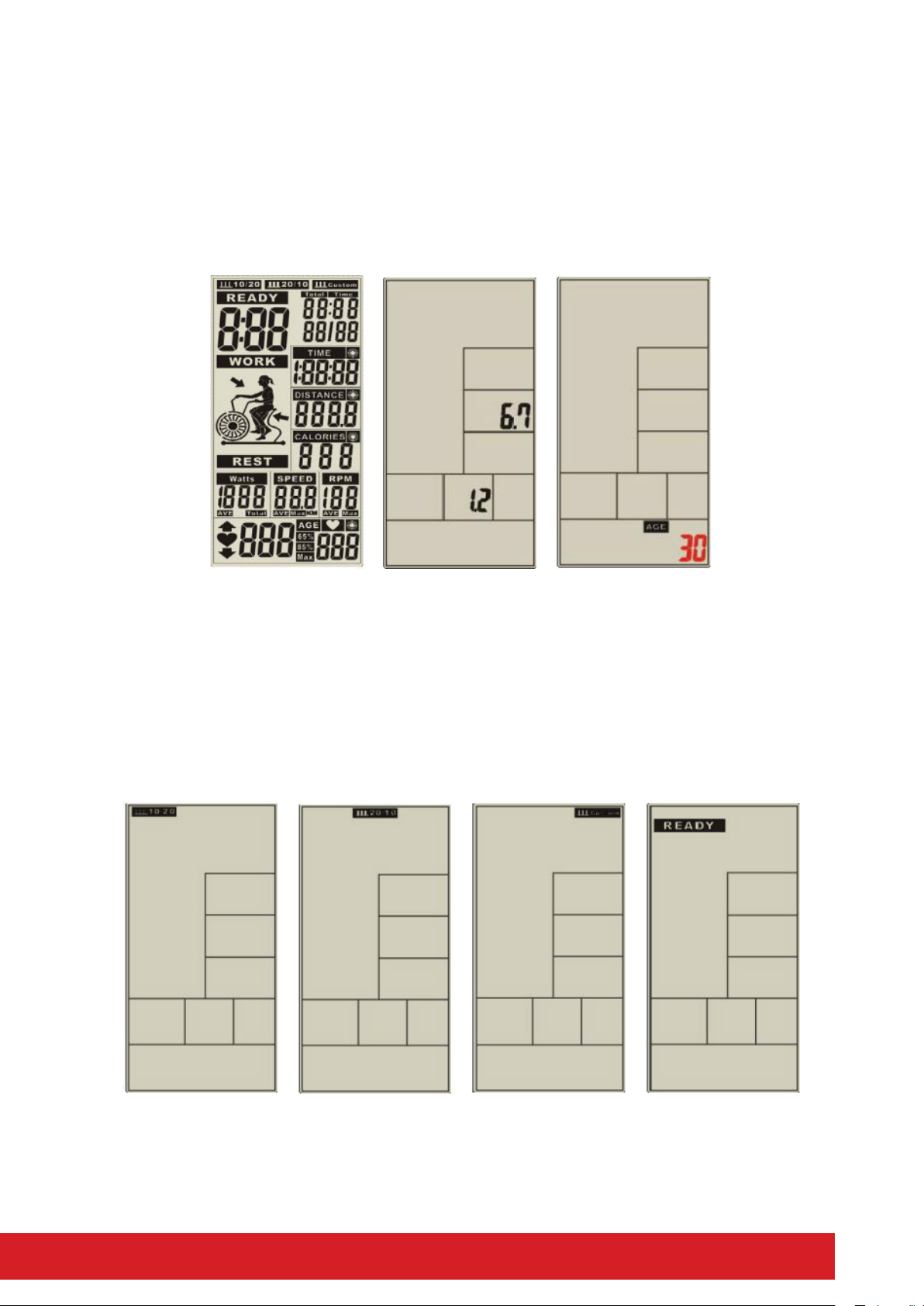

Figure1 Figure 2 Figure 3
Figure4 Figure5 Figure 6

14

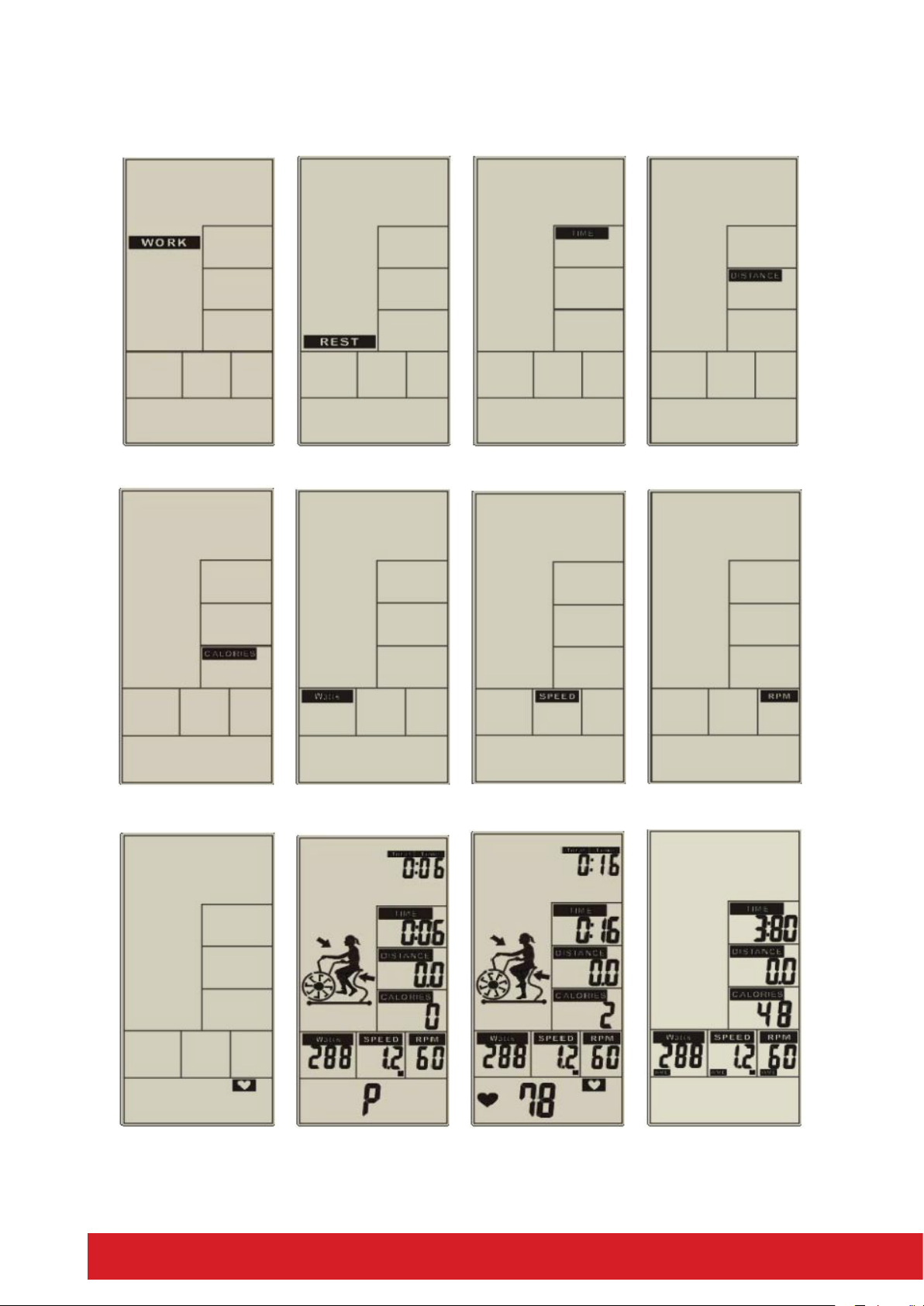

Figure 10 Figure 11
Figure9
Figure 12 Figure 13 Figure 14 Figure 15
Figure 16 Figure 17 Figure 18 Figure 19
Figure8

15ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
Figure 20 Figure 21 Figure 22 Figure 23
3. Select Manual, Interval, Target Distance, Target Calories, Target HR, Target Time program:
3.1 Manual mode:
①In Standby mode, press START to start workout quickly, the buzzer will sound for 1 second.
TOTAL TIME/ TIME/ DISTANCE/ CALORIES/ WATTS/ SPEED/ RPM start to count up (Figure 17).
②Whenever there is Pulse signal input, will light up and symbol will ash and display
pulse value (Figure 18).Without pulse input, it will display “P” (Figure 17).
③No signal input for 30s, buzzer sounds 1 short beep and enter to Wake-up mode. Press any key
to wake up the console.
④Press START key once to pause training, Buzzer will sound for 0.5s aer every 30s. All values are
displaying on LCD and will ash every 4s. If connues, stop training for 5 minutes, buzzer sounds 2s
and enter to Wake-up mode. Press START to resume workout.
⑤Press STOP key, TIME will display total workout me; DISTANCE will display total workout
distance; CALORIES will display total consumpon during workout; WATT, SPEED and RPM will
switch to display AVG. & MAX. every 5s.
⑥With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑦Press any PROGRAM key then perform the program accordingly.
3.2 Interval 20/10 mode:
①Press INTERVAL key to select INTERVAL 20/10, press ENTER then INTERVAL 20/10 will light up,
along with a long sound for 1s.
②Cycle me counts down from 3 to 0 then console start, meanwhile buzzer beeps once per
second and READY ashes once per second, counng displays ‘00/08’(Figure 24).

16
③Cycle me counts down from 20 to 0 and WORK ashes once per second along with 20 beeps.
Meanme windows display rotaon animaon and count down from 4 minutes. Then TOTAL TIME,
DISTANDE, CALORIES,WATTS, SPEED & RPM start calculang, counng displays ‘01/08’
(Figure 25).
④Cycle me counts down from 10 to 0 and REST ashes once per second along with 10
beeps(Figure 26), meanwhile, READY will ash in last 3s (Figure 27).
⑤The above ③&④ connue the cycle counng and add 1 per each cycle, unl displays 08/08
WORK, then go to End page.
⑥In WORK mode, buzzer beeps 1s then enter into wake up mode if no any signal inputs within
30s.
⑦Press START buon once entered into PAUSE mode, Buzzer will sound for 0.5s for every 30s.
All values are displaying on LCD and ashing for every 4s. If connues, stop training for 5 minutes,
buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
⑧Press STOP or end up training, buzzer beeps 1s then displays TOTAL TIME, DISTANCE, CALORIES
for 30s, and WATT, SPEED & RPM will switch to display AVG. & MAX. every 5s.
⑨With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑩Press any PROGRAM key then perform the program accordingly.
Figure 24 Figure 25 Figure 26 Figure 27
3.3 Interval 10-20 mode:
①Press INTERVAL to select INTERVAL 10/20, press ENTER then INTERVAL10/20 will light up along
with buzzer beeps 1s.
②Cycle me counts down from 3 to 0 then console start, meanwhile buzzer beeps once per
second and READY ashes once per second, counng displays ‘00/08’(Figure 28).
③Cycle me counts down from 10 to 0 and WORK ashes once per second along with 20 beeps.
Meanme REMAINING will light up and count down from 4 minutes. Then TOTAL TIME, DISTANDE,
CALORIES,WATTS, SPEED & RPM start calculang, counng displays ‘01/08’(Figure 29).

17ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
④Cycle me counts down from 20 to 0 and REST ashes once per second along with beeps
(Figure 30), meanwhile, READY will ash in last 3s (Figure 31).
⑤The above ③&④ connue cycle counng and add 1 per each cycle, unl displays
08/08WORK, then go to End page.
⑥In WORK mode, buzzer beeps 1s then enter into wake up mode if no any signal inputs within
30s.
⑦Press START buon once enter into PAUSE mode; the Buzzer will sound for 0.5s every 30s. All
values are displaying on LCD and ashing every 4s. If connue to stop training for 5 minutes, buzzer
sounds 2s and enter toWake-up mode. Press START to resume workout.
⑧Press STOP or end up training, buzzer beeps 1s then displays TOTAL TIME, DISTANCE, CALORIES
for 30s, andWATT, SPEED & RPM will switch to display AVG. & MAX. every 5s.
⑨With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑩Press any PROGRAM key then perform the program accordingly.
Figure 28 Figure 29 Figure 30 Figure 31
3.4 Interval CUSTOM:
①Press INTERVAL to select INTERVAL CUSTOM, press ENTER to enter into this mode then
INTERVAL CUSTOM 00/XX ashes to be set along with buzzer beeps 1s. Press UP/DOWN to set
00/XX within 1~99 circularly. Press ENTER to conrm along with buzzer beeps 1s then enter into
next seng.(Figure 32)
②The TIME connues lighng up “WORK” for 0:01, press UP/DOWN to set training me within
0:00~9:59 circularly (Figure 34). Press ENTER to conrm along with buzzer beeps 1s and INTERVAL
CUSTOM connues lighng up.
③Cycle me counts down from 3 to 0 then console start, meanwhile, Buzzer beeps once per
second and READY ashes once per second, counng displays ‘00/XX’(Figure 35).

18
④Cycle me counts down from the pre-set total me and WORK ashes once per second along
with buzzer beeps. Then TOTAL TIME, DISTANDE, CALORIES,WATTS, SPEED & RPM start calculang,
counng 6 displays ‘01/XX’ (Figure 36).
⑤Cycle me counts down from and REST ashes once per second along with buzzer beeps
(Figure 37), meanwhile, READY will ash in last 3s(Figure 38).
⑥The above ③&④ connue cycle counng and add 1 per each cycle, unl the WORK seng
value nished then go to End page.
⑦In WORK mode, buzzer beeps 1s then enter into wake up mode if no any signal inputs within
30s.
⑧Press START buon once enter into PAUSE mode; Buzzer will sound for 0.5s every 30s. All values
are displaying on LCD and ashing in every 4s. If connue to stop training for 5 minutes, buzzer
sounds 2s and enter to Wake-up mode. Press START to resume workout.
⑨Press STOP or end training, buzzer beeps 1s then displays TOTAL TIME, DISTANCE, CALORIES for
30s, and WATT, SPEED & RPM will switch to display AVG. & MAX. every 5s.
⑩With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑪Press any PROGRAM key then perform the program accordingly.
Figure 32 Figure 33 Figure 34 Figure 35
Figure 36 Figure 37 Figure 38

19ELITE PURSUIT AIR BIKE ASSEMBLY MANUAL
3.5 Target TIME mode:
①In Standby mode, press Target Time key then go to mode. TIME will light up, along with a
long sound for 1s.
②TIME value is ashing, press UP and DOWN to adjust value (Figure 39) and press ENTER to
conrm 7, meanwhile, buzzer beeps 1s and TARGET TIME lasng lighng up.
③Pre-set value & workout me switch to display in every 5s unl counts down to 0, then
DISTANCE, CALORIES,WATTS, SPEEED, RPM start to count up. (Figure 40)
④Press START buon once enter into PAUSE mode; buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and ashing in every 2s. If connue to stop training for 5
minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
⑤No signal inputs for 30s, buzzer sounds 1 short beep and enter to Wake-up mode.
⑥Press STOP or end up training, TIME will display total workout me; DISTANCE will display total
workout distance; CALORIES will display total consumpon during workout; WATT, SPEED and RPM
will switch to display AVG. & MAX. every 5s.
⑦With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑧Press any PROGRAM key then perform the program accordingly.
Figure 39 Figure 40 Figure 41 Figure 42
3.6 Target Distance mode:
①In Standby mode, press Target Distance key and TARGET DISTANCE will light up, along with
a long sound for 1s.
②DISTANCE value is ashing; press UP and DOWN to adjust (Figure 41). Press ENTER to conrm,
meanwhile buzzer beeps 1s and TARGET DISTANCE lasng lighng up.
③Preset value & workout distance switch to display in every 5s unl counts down to 0, then TIME,
CALORIES,WATTS, SPEEED, RPM start to count up. (Figure 42)

20
④Press START buon once enter into PAUSE mode; buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and ashing in every 2s. If connue to stop training for
5 minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
⑤No signal input for 30s, buzzer sounds 1s and enter to Wake-up mode.
⑥Press STOP key or end training, TIME will display total workout me; DISTANCE will display total
workout distance; CALORIES will display total consumpon during workout; WATT, SPEED and RPM
will switch to display AVG. & MAX. in every 5s.
⑦With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑧Press any PROGRAM key then perform the program accordingly.
3.7 Target Calories mode:
①In Standby mode, press Target Calories key and TARGET CALORIE will light up, along with a long
sound for 1s.
②CALORIES value is ashing; press UP and DOWN to adjust (Figure 43). Press ENTER to conrm,
meanwhile buzzer beeps 1s and TARGET CALORIE lasng lighng up
③Pre-set value & workout calorie switch to display in every 5s unl counts down to 0, then TIME,
DISTANCE, WATTS, SPEEED & RPM start to count up.(Figure 44)
④Press START buon once enter into PAUSE mode; buzzer will sound for 0.5s per second within
30s. All values are displaying on LCD and ashing in every 2s. If connue to stop training for 5
minutes, buzzer sounds 2s and enter to Wake-up mode. Press START to resume workout.
⑤No signal input for 30s, buzzer sounds 1s and enter to Wake-up mode.
⑥Press STOP key or end up training, TIME will display total workout me; DISTANCE will display
total workout distance; CALORIES will display total consumpon during workout; WATT, SPEED and
RPM will switch to display AVG. & MAX. every 5s.
⑦With pulse signal input, PULSE window will display user actual pulse and 65%, 85% MAX
(Figure 21~23). Pulse window displays nothing if no pulse signal input (Figure 19~20).
⑧Press any PROGRAM key then perform the program accordingly.
