Elite Fitness VO5 User manual

ASSEMBLY MANUAL
Record serial number
Elite VO5 Recumbent Exercycle

32 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
CONTENTS
Important Safety Instrucons 3
Product Specicaons 4
Check List 5
Hardware List 6
Assembly Instrucons 8
Seat adjustment 18
Display Console 19
Care and Maintenance 21
Maintenance Log 22
Limited Warranty 23
Warm up Exercises 24
Training Stages 25

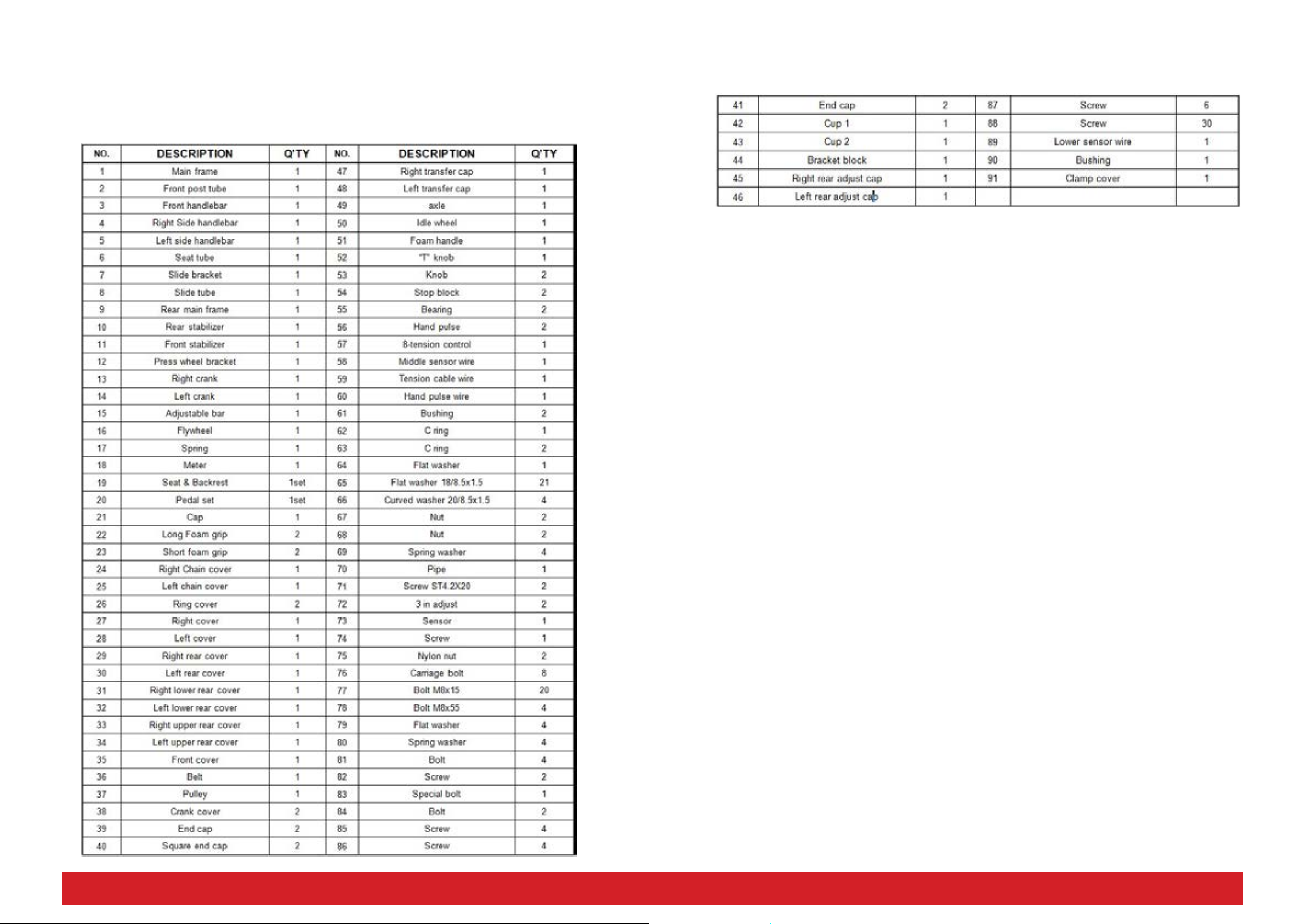

Parts 26
Exploded Drawing 27
Notes 28
Thank you for purchasing the Elite VO5 Recumbent Exercycle.
For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of tness equipment. Our
aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality
and biomechanics at the best possible price.
Please read through this manual to familiarise yourself with the operaon of your new Elite VO5
Recumbent Exercycle. Doing so will help to ensure that you get the most out of your machine,
enjoying safe and eecve workouts ahead.
Even though we go to great eorts to ensure the quality of each product we produce, occasional
errors and or omissions do occur. In any event should you nd this product to have either a
defecve or a missing part, please contact us for a replacement.
SERVICE & WARRANTY
For service and warranty assistance please visit:
www.elitetness.co.nz/service
Online forms are available for Service, Warranty and Parts requests.
[phone]
Elite Fitness HQ
28 Morrin Road
Saint Johns
Auckland, New Zealand
info@elitetness.co.nz
0800 2 438 348
www.elitetness.co.nz
IMPORTANT SAFETY INSTRUCTIONS
The following denion applied to the word “WARNING” when used in this manual:
Used to call aenon to POTENTIAL hazards that could result in
personal injury.
READ ALL INSTRUCTIONS BEFORE USING THE MACHINE
This product has been designed for home use only. Product liability and warranty condions will
not be applicable to products being subjected to professional use or products being used in a
commercial environment. e.g Gym Centre, Rerement Centre, Home Based PT Studio and Physio.
This exercise machine is built for opmum safety. However, certain precauons apply whenever
you operate a piece of exercise equipment. Be sure to read the enre manual before you assemble
or operate your machine. In parcular, note the following safety precauons.
— Read all instrucons in this manual before using this equipment.
— Use the machine only for its intended use as described in this Manual.
— Inspect and ghten all the loose parts before this equipment is used.
— Keep hands away from moving parts.
— Keep children and pets away from the machine at all mes. DO NOT leave children unaended
in the same room with the machine.
— Before using the machine to exercise, always do stretching exercises to properly warm up.
— Inspect the machine before each use; make sure all of the connecons are ghtly secured.
— Only one person at a me should use the machine.
— If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP
the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
— Posion the machine on a clear, levelled surface. DO NOT use the machine near water
or outdoors.
— Always wear appropriate workout clothing when exercising. DO NOT wear robes or other
clothing that could become caught in the machine. Sporng shoes are recommended when
using the machine.
— Do not place any sharp object around the machine.
— Disabled persons should not use the machine without a qualied person or physician
in aendance.
— Never operate the machine if the machine is not funconing properly.
— Only carry out training work on the equipment when it is in perfect working order. Only use
original spare parts in the event of a repair.
— Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of
your own, for any repairs that may be required. Please dispose of the packaging and any parts
that have to be replaced subsequently (all parts for the unit) at suitable collecng points or
containers with a view to saving the environment.
— DO NOT extend the seat stem past the warning line “Max” when adjusng the seat height.
— For therapeuc use.

54 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
CHECK LIST
WARNING: Before beginning any exercise programme, consult your physician. This is especially
important for persons with pre-exisng health problems. The seller assumes no responsibility for
personal injury or property damage sustained by or through the use of this product.
SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular
basis, check all screw connecons and moving parts on proper ng. Damaged parts need to be
changed immediately. During the me of repair the product must not be used by anybody.
IMPORTANT HINTS:
A) This product has been tested in accordance with the requirements of EN 957-1/A1, EN 957-5,
standard, Class HA (HOME USE). The maximum load is limited to 120KG.
B) Parents should be aware of the risk factor of young children playing on tness equipment
unaended. Make sure that children are instructed properly in the use of the product and in
the controlled execuon of the dierent exercises. Misuse of the product could result in
serious injury.
PRODUCT SPECIFICATIONS
User Weight Capacity: 120 kg
Dimensions: 95x66x30cm
Shipping Weight: 40KGS
Net Weight: 36KGS
Power Requirements 2pcs of SIZE –AAA or UM –4

76 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
CHECK LIST ASSEMBLY INSTRUCTIONS
GENERAL:
Remove all the parts of your cycle from the carton and place them on the oor carefully.

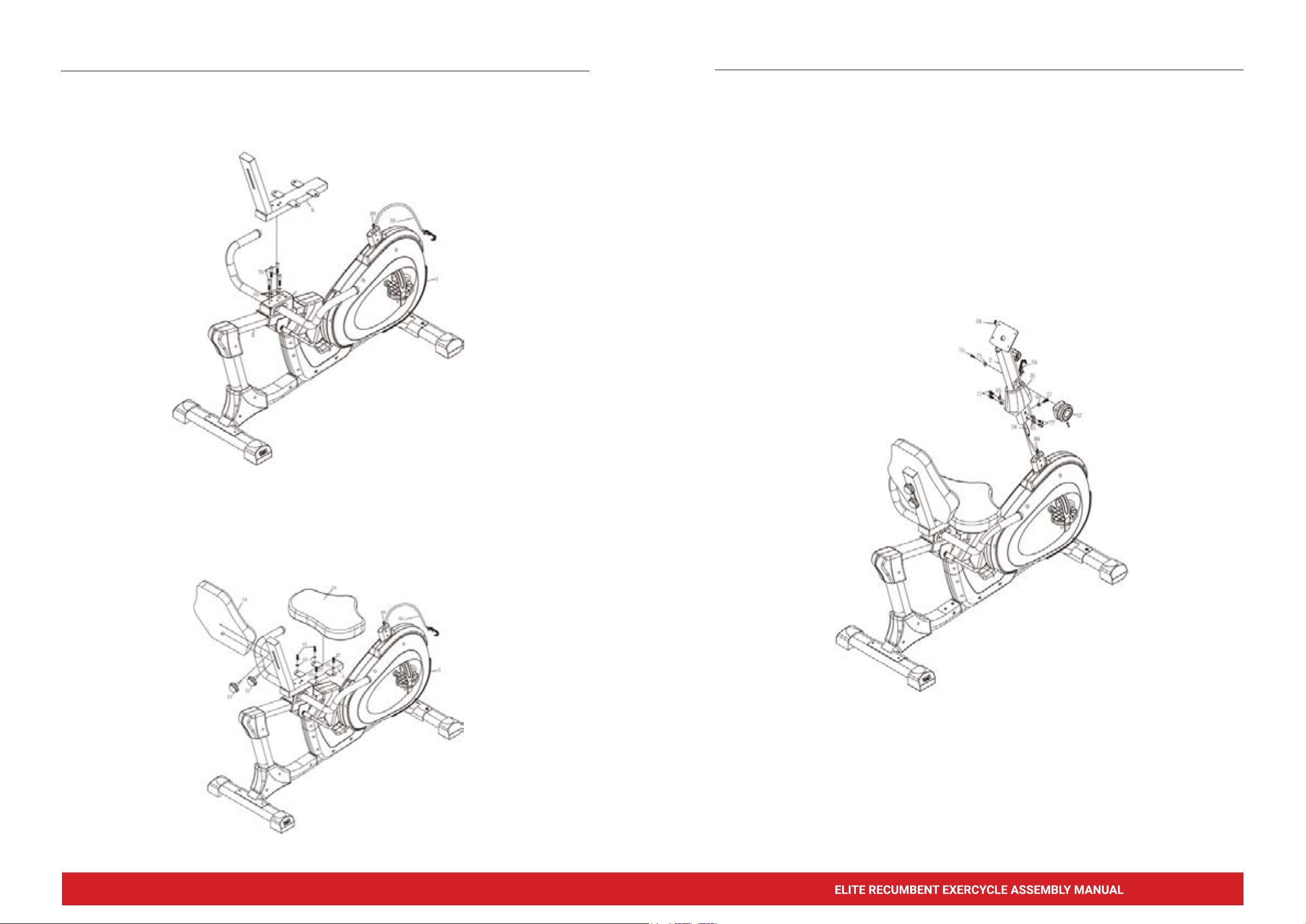

STEP 1: ATTACH THE MAIN FRAME
- Remove the pre-assembled 4 Allen head bolts (77), 2 curve washers (66) and 2 at washers (65)
from the rear main frame (1).
- Aach the rear main frame (9) to the hole of main frame (1) and fasten with 2 at washers (65), 2
curve washers (66) and 4 Allen head bolts (77).
STEP 2:
Aach the rear stabiliser (10) with 2 adjustment end caps to the welded cross bar bracket of Rear
main frame (9) and fasten with 2 at washers(65), 2 spring washers (69) and carriages bolts (78).
Aach front stabiliser (11) with 2 transportaon wheels to the welded cross bar bracket of main
frame (1) and fasten with 2 at washers (65), 2 spring washers (69) and 2 carriage bolts (1).

98 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
STEP 3:
Assemble each pedal (20R&20L) to the crank. Pedal ”R” assemble with crank right side , Pedal ”L”
assemble with crank le side : See the mark “R” & “L”(right and le) on the pedals (20R&20L) and
crank .
NOTE: The right pedal “R” should be threaded on clockwise. The le pedal “L” should be threaded
on counter-clockwise.
Aach the pedal straps to the pedals (20R&20L).
NOTE: Adjust the pedal straps to meet your foot/shoes size by 4 adjustable holes.
ASSEMBLY INSTRUCTIONS
STEP 5:
Place the upper rear cover (33&34) into the rear main frame (9) and slide tube (11), fasten with 5
screws (88).
Place the lower rear cover (31&32) into the rear main frame (9) and fasten with 5 screws (88).
Place the rear cover (29&30) into the main frame (1) and slide tube (11), fasten with 6 screws (88).
ASSEMBLY INSTRUCTIONS
STEP 4:
Put the slide tube with slide bracket (7) into the main frame (1) and rear main frame (9), fasten
with 4 at washers (65) and 4 carriage bolts (76).
Remove the pre-assembled 2 Allen head bolts (76) from slide bracket (7). Put the adjustable bar
(15) to the side of the slide bracket (7) and fasten with head bolts (76)
STEP 6:
Remove the pre-assembled 4 carriage bolts (77) and 4 at washers (65) from slide bracket (7).
Put the right handlebar (4) with grip (23) to the side of the slide bracket (7) and fasten with
carriage bolts (77), at washers (65).
Put the le handlebar (5) with grip (23) to the side of the slide bracket (7) and fasten with carriage
bolts (77), at washers (65).

1110 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
STEP 7:
Aach the seat post (6) into the slide bracket (7) and secure with 4 carriage bolts (76).
ASSEMBLY INSTRUCTIONS
STEP 9: ATTACH THE FRONT POST
Remove the pre-assembled 6 Allen head bolts (77), 2 curve washers (66) and at washers (65)
from the main frame (1).
Connect the middle secon sensor wire (58) of the front post with the lower secon sensor wire
(89) securely.
Put the front post (2) and front cover (35) into the boom post of main frame (1) and fasten with 6
Allen head bolts (77), 4 at washers (65) and 2 curved washers (66).
NOTE: do not ghten Allen head bolts (77) too much at the beginning. When all parts are xed
already, and then fasten each one piece ghtly.
ASSEMBLY INSTRUCTIONS
STEP 8:
Remove the pre-assembled 4 Allen head bolts (77) and 4 at washers (65) from seat (19).
Fix the seat (19) with the back seat tube (6) and fasten with 4 bolts (77) and 4 at washers
(65). Fix the backrest (19) with the back seat tube (6) and fasten with knobs(53).
Connect the tension cable (59) and tension (57). Fasten tension into post tube (2) with bolt (70)
and at washers (71).

12
STEP 10 :
Put the hand pulse wire with handlebar (3) through the hole of the front post (2) to top of front
post.
Put the handlebar (3)with the foam grip (22) and hand pulse (56) to the front post bracket and
fasten with “T” knob (52), champ cover (91), at washer (92) and bushing (90).
ASSEMBLY INSTRUCTIONS
STEP 11:

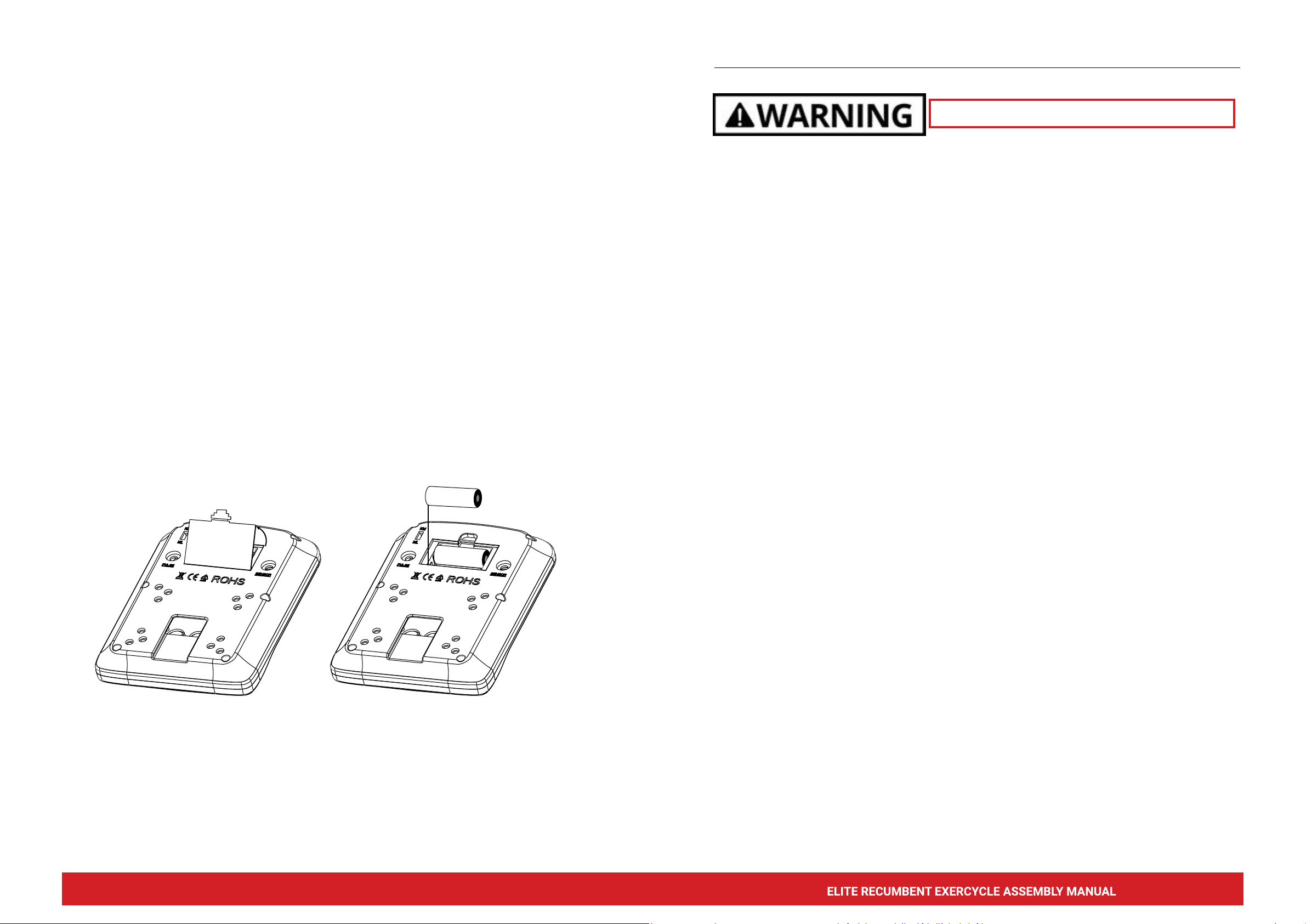

Remove the pre-assembled 4 Allen head bolts (82) from the meter (18).
Connect the middle secon sensor wire (58) of the front post with meter (18) securely. Connect
the pulse wire (60) with meter (18).
Fix the meter (18) with the top of front post (2) and fasten with bolts (82).
CONGRATULATIONS
Assembly of your Elite V05 Recumbent Exercycle is now complete! Be sure to fully inspect your
machine before using it for the rst me.
WARNING: Failure to visually check and test the assembly of your exercycle before use can cause
damage to the exercycle and injury.

1514 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
SEAT ADJUSTMENT
Seat Adjustment
Ensuring you have the most comfortable riding position whilst minimising joint strain is
important. Adjusting your seat is simple and can normally be done without needing to get
off the bike.
Place your heel on one of the bike pedals and rotate to the furthest point on the pedal
stroke (as shown) You may need to remove the toe strap to do this. If the leg is still in the
bent position, unlock the seat mechanism and adjust to the fully extended position (Pic.1) –
Lock the seat adjustment mechanism in to place.
Moving your foot backwards, place your forefoot on to the pedal in the correct riding
position (Pic 2). This should allow for a natural bend in the knee, whilst providing a full 360
degree rotation. If you experience the feeling of reaching for the pedal or sliding down the
seat, you may need to make a minor adjustment to the position. Before commencing your
workout please reattach and adjust the toe strap correctly to secure your foot rmly on the
pedal.
Note: - If you are using the exercycle for injury rehabilitation purposes i.e. Knee
Replacements you may need to extend the seat position further than normal to allow for
any reduced joint mobility due to swelling and inflammation.
Picture 1 – Leg extended fully with heel on pedal Picture 2 – Knee bent, forefoot on pedal
DISPLAY CONSOLE
The things you should know before exercise:
SLEEP MODE:
The monitor will enter SLEEP mode (LCD off) when there is no signal or key input within 4
minutes.
Functions and Features:
1) SCAN: At the exercise mode, press the MODE key until SCAN appears on the LCD.
Monitor will then display the following functions, and each function will pause for 6
seconds on the
main screen, TIME- SPEED- DISTANCE- CALORIE- RPM- PULSE
2) TIME: Shows your elapsed workout time in minutes and seconds. Your computer
will automatically count up from 0:00 to 99:59 in one second intervals. You many also
program your computer to count down from a set value by using the UP and DOWN keys
from 0:00 to 99:00.
If you continue exercising once the time has reached 0:00. The computer will begin
beeping,
and counts up from 0:00.
3) SPEED: Displays your workout speed value in KM per hour from 0.0 to 168.0, or MILE
per hour from 0.0 to 99.9.
4) DISTANCE: Displays the accumulative distance travelled during each workout, up to a
maximum of 168.0KM or 99.9 MILES.
5) CALORIES: Your computer will estimate the cumulative calories burned at any given
time during your workout.
6) PULSE*: Your computer displays your pulse rate in beats per minute during your
workout.
If no pulse signal input then the computer will display 0 on the window.
* Hand Pulse Sensors can provide inaccurate heart rate readings and are indicative only.
7) RPM: Your pedal cadence.

1716 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
Key Functions:
There are 3 button keys and the function description as follows:
1) SCAN Key: During the STOP Mode, press the key to increase the value of Time,
Distance and Calories.
2) REST Key: During the STOP Mode, press the key to clear the exercising value or setting
value
to zero.
3) MODE Key:
a: Press the key to accept these setting values of Time, Distance and Calories.
b: During the STOP Mode, by hold this key for more than 2 seconds then the computer will
re-power on.
c: During the exercise mode, press the key to check the function from SCAN- TIME-
SPEED- DISTANCE- CALORIES- RPM- PULSE for a circle.
HOW TO REPLACE THE BATTERIES
Remove the baery cover from the boom housing then replace the baeries as shown below.
PLEASE NOTE: If the machine is put in storage or not intended to be used for any period longer
than 4 weeks, please remove the baeries from the console to avoid any corroding and potenal
damage to the console.
Before cleaning or carrying out any maintenance on your exercycle, ensure the power is
turned off and the power cord removed from the plug socket.
Prolong the life of your exercycle by performing periodic maintenance checks. Not only
does this ensure your machine is in full working order to ensure they continue to run
smoothly and reliably, but it will save you service costs in the long run.
Cleaning
General cleaning of the unit after use will protect the bike’s powder-coated framework
and prevent unnecessary corrosion stains and damage to the structural components
from sweat and perspiration.
Please ensure all sweat residue is wiped from any contact points or framework with a
damp cloth using a suitable PH neutral detergent in water to avoid salt and corrosion
deposits on your equipment. Failure or neglect to maintain and clean sweat residue from
the bike frame may affect any frame warranty implied.
Frame and Pedals
Check all nuts and bolts securing the framework, seat and handlebar assemblies are
tight.
Ensure the pedals are securely attached to the crank arms. When tightening pay attention
to the reverse thread (tightening anti-clockwise) on the left hand pedal assembly, when
sitting on the bike. Be careful not to strip or force the pedal thread when tightening.
CARE AND MAINTENANCE
IMPORTANT INFORMATION

1918 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
eg:
MAINTENANCE LOG
Prolong the life of your exercycle by performing periodic maintenance checks. Not only
does this ensure your machine is in full working order, but it will save you service costs in
the long run.
Every time you perform maintenance, record the date and if you can, the distance and
hours operated.
DATE HOURS DISTANCE FRAME SERVICE
COMMENTS
Cleaned Seat / Pedals
01/06 15 16.5km √ √ none
Warranty Range
Damage in correct maintenance and normal operations (not factitious factors). Warranty
card
to the original purchaser, shall not be transferred.
Warranty Time
HOME USE ONLY. This bike is not designed for commerical use.
—10 Year Frame
—1 Year Parts and Labour
The following conditions are not under warranty range:
A) As a result of abuse, neglect, accident, or unauthorized modication;
B) The damage due to incorrect adjustment of the machine;
Repair and Maintenance Service
Please contact our Elite Fitness Service Department at eliteservice@elitetness.co.nz or
visit
www.elitetness.co.nz for any service related issues or advice on preventative
maintenance servicing procedures.
LIMITED WARRANTY

2120 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
Warm up exercise is important in preparing the muscles for activity whilst minimising the
risk
of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes
before stopping and performing some simple stretches. (As shown in the pictures below)
—Hamstring Stretch (Standing)
Keep your knees slightly bent and slowly lean forward,
back and shoulders relaxed, reaching towards your toes.
You should feel the tension and slight discomfort in your
hamstring muscles. Hold for 15-20 seconds. Repeat 2-3
times.
—Hamstrings Stretches (Seated)
Sitting on the floor preferably on a mat, put one leg
straight, the other inward and close to the inside of
the straight leg. Lean forward from the hips, reaching
towards your toes.
Hold for 10-15 seconds, and relax. Repeat 3 times for
each leg (See picture 2).
—Crus and Feet Tendon Stretches
Standing with two hands on the wall or tree, one leg
behind. Keeping your legs straight and the heel on the
ground, lean forward towards the wall or tree. Hold for
10-15 seconds,
and relax. Repeat 3 times for each leg (See picture 3).
—Quadriceps Stretches
Keeping your balance with your left hand holding onto
a wall or stationery xture, grasp your right foot with
your right hand and stretch your right heel toward your
buttocks slowly, until you feel the stretch in the front of
your thigh. Hold for 10-15 seconds, and relax. Repeat 3
times for each leg (See picture 4).
—Sartorius (Inner Muscles of the Thigh) Muscle Stretches
Sitting down with the soles of your feet or shoes together
and your knees positioned outward. Pull your feet
towards your groin until you can feel the stretch. Hold for
10-15 seconds, and relax. Repeat 3 times (See picture 5).
WARM-UP EXERCISE
Cardiovascular training plays an important part in maintaining a healthy heart and lung
function,
so it’s no surprise we should be paying attention to how quickly our heart beats during
exercise. The chart above outlines a range of heart rate training zones determined by the
individual’s age and workout goals to ensure you train safely and effectively.
Heart Rate can be measured by using the radial (wrist) or carotid (neck) pulse using your
index
and middle ngers, counting the beats for 10 seconds and multiplying by 6. Alternatively,
the use of a Wireless Telemetry Heart Rate strap and watch will give you an accurate
Beats Per Minute (BPM) reading.
220 – AGE = TMHR (Theoretical Maximum Heart Rate)
TMHR x 85% = (Upper Training Limit) BPM
TMHR x 65% = (Lower Training Limit) BPM
Note: Contact heart rate may provide inaccurate readings and is designed only as a guide
Example: 220 – 39 = 181 BPM
181 x 85% (0.85) = 154 BPM (Upper Training Limit)
181 x 65% (0.65) = 118 BPM (Lower Training Limit)
TRAINING STAGES

2322 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
PARTS
We recommend 2 people assist in assembling this unit. Place all parts of the exercycle in a cleared area and remove
the packing materials. Do not dispose of the packing materials unl assembly is completed. Before you start the
installaon, inspect and prepare all parts and screws featured in this manual. When you open the carton, you will nd
the following parts:

2524 ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
EXPLODED DRAWING NOTES

For more informaon about our Elite exercise equipment or other
brands that we stock for your home, visit www.elitetness.co.nz
Copyright © 2021 Elite Fitness
Elite Fitness, 28 Morrin Road, Saint Johns, Auckland, New Zealand.
0800 243 834, www.elitetness.co.nz
Keep up to date with the latest products, compeons and
equipment, follow us on our social media sites.
@EliteFitnessNZ @EliteFitnessTV
