Elite Fitness VO2 User manual

ASSEMBLY MANUAL
Record serial number
Elite VO2 Exercycle

2
CONTENTS
Important Safety Instrucons 3
Product Specicaons 4
Check List 5
Hardware List 6
Assembly Instrucons 7
Seat Adjustment 14
Display Console 15
Care and Maintenance 17
Maintenance Log 18
Limited Warranty 19
Warm-Up Exercise 20
Training Stages 21
Parts 22
Exploded Drawing 23
Notes 24
Thank you for purchasing the Elite VO2 Exercycle.
For over 20 years, Elite Fitness™ has been New Zealand’s largest supplier of tness equipment. Our
aim and vision is to provide you Elite™ branded products, tested to the highest standard for quality
and biomechanics at the best possible price.
Please read through this manual to familiarise yourself with the operaon of your new Elite VO2.
Doing so will help to ensure that you get the most out of your machine, enjoying safe and eecve
workouts ahead.
Even though we go to great eorts to ensure the quality of each product we produce, occasional
errors and or omissions do occur. In any event should you nd this product to have either a
defecve or a missing part, please contact us for a replacement.
SERVICE & WARRANTY
For service and warranty assistance please visit:
www.elitetness.co.nz/service
Online forms are available for Service, Warranty and Parts requests.
[phone]
Elite Fitness HQ
28 Morrin Road
Saint Johns
Auckland, New Zealand
info@elitetness.co.nz
0800 2 438 348

3ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
The following denion applied to the word “WARNING” when used in this manual:
Used to call aenon to POTENTIAL hazards that could result in
personal injury.
READ ALL INSTRUCTIONS BEFORE USING THE MACHINE
This product has been designed for home use only. Product liability and warranty condions will
not be applicable to products being subjected to professional use or products being used in a
commercial environment. e.g Gym Centre, Rerement Centre, Home Based PT Studio and Physio.
This exercise machine is built for opmum safety. However, certain precauons apply whenever
you operate a piece of exercise equipment. Be sure to read the enre manual before you assemble
or operate your machine. In parcular, note the following safety precauons.
— Read all instrucons in this manual before using this equipment.
— Use the machine only for its intended use as described in this Manual.
— Inspect and ghten all the loose parts before this equipment is used.
— Keep hands away from moving parts.
— Keep children and pets away from the machine at all mes. DO NOT leave children unaended
in the same room with the machine.
— Before using the machine to exercise, always do stretching exercises to properly warm up.
— Inspect the machine before each use; make sure all of the connecons are ghtly secured.
— Only one person at a me should use the machine.
— If the user experiences dizziness, nausea, chest pain, or any other abnormal symptoms, STOP
the workout at once. CONSULT A PHYSICIAN IMMEDIATELY.
— Posion the machine on a clear, levelled surface. DO NOT use the machine near water
or outdoors.
— Always wear appropriate workout clothing when exercising. DO NOT wear robes or other
clothing that could become caught in the machine. Sporng shoes are recommended when
using the machine.
— Do not place any sharp object around the machine.
— Disabled persons should not use the machine without a qualied person or physician
in aendance.
— Never operate the machine if the machine is not funconing properly.
— Only carry out training work on the equipment when it is in perfect working order. Only use
original spare parts in the event of a repair.
— Do not use strong solvents for cleaning, and only use the tools supplied, or suitable ones of
your own, for any repairs that may be required. Please dispose of the packaging and any parts
that have to be replaced subsequently (all parts for the unit) at suitable collecng points or
containers with a view to saving the environment.
— DO NOT extend the seat stem past the warning line “Max” when adjusng the seat height.
— Not for therapeuc use.
IMPORTANT SAFETY INSTRUCTIONS

4
WARNING: Before beginning any exercise programme, consult your physician. This is especially
important for persons with pre-exisng health problems. The seller assumes no responsibility for
personal injury or property damage sustained by or through the use of this product.
SERVICE HINTS: The high quality standard of this product only will be kept if you, on a regular
basis, check all screw connecons and moving parts on proper ng. Damaged parts need to be
changed immediately. During the me of repair the product must not be used by anybody.
IMPORTANT HINTS:
A) This product has been tested in accordance with the requirements of EN 957-1/A1, EN 957-5,
standard, Class HA (HOME USE). The maximum load is limited to 135KGS.
B) Parents should be aware of the risk factor of young children playing on tness equipment
unaended. Make sure that children are instructed properly in the use of the product and in
the controlled execuon of the dierent exercises. Misuse of the product could result in
serious injury.
PRODUCT SPECIFICATIONS
User Weight Capacity: 135kg
Dimensions: 820 x 285 x 585mm
Shipping Weight: 29kg
Net Weight: 26kg
Power Requirements 2pcs of SIZE –AAA or UM –4

5ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
CHECK LIST
PART DESCRIPTION Q’TY
1/10/21 Main frame/ chain
cover/ crank
1 set
3/60/34 Handlebar w/foam
grip/ handle pulse
1 set
6/77/29 SEAT TUBE/ slide
bracket/ knob
1 set
2/59/33 Front post/ middle
sensor wire/ 8 secon
control
1 set
8/41 Meter/ SCREW 1 set
9/51/47 Seat/ Flat washer/
Nylon nut
1 set
12 Front cover 1
15 Rear cover 1
5/19/20 Rear stabiliser w/
adjustable end cap
1 set
4/18 Front stabiliser w/
transport wheels
1 set
11 Pedal 1 set
16 Release knob 1
SKETCH

6
HARDWARE LIST
PART DESCRIPTION Q’TY
45 Carriage Bolt M8x75 4
50 Curved washer
18/8.5x1.5
4
49 Spring washer 4
38 Screw 2
32 Bushing 1
51 Flat washer 1
31 “T” knob 1
14 Rear clamp cover/
front clamp cover
1 set
38 Screw M4x20 2
52 Flat washer 10/5 2
Tool 1 1
Tool 2 1
SKETCH

7ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
ASSEMBLY INSTRUCTIONS
55
40
38
14
31 32
14
40
51
41
9
47
51 51
51
47 47
7
15
16
11
11
44
44
51
51
50
45
45
48
48
48
48
49
49
49
49
50
50
50
50
51
29
12
55
56
57
58
59
8
58
57 56
55

8
STEP 1
Aach the stabilisers.
— Aach rear stabiliser (5) with 2 adjustment end caps (19)(20) to the welded cross bar bracket
of main frame (1) and fasten with 2 curved washers (50), spring washer(49), nut (48) and
2 carriage bolts(45).
— Aach front stabiliser (4) with 2 transportaon wheels (18) to the welded cross bar bracket
of main frame (1) and fasten with 2 curved washers (50), spring washer (49), nut (48) and
2 carriage bolts (45).
ASSEMBLY INSTRUCTIONS

9ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
STEP 2
Aach the Seat and Seat Post.
— Remove the pre-assembled nylon nuts (47) and at washer (51) from back of the seat (9).
Fix the seat (9) with the top seat sliding bracket (7) and fasten with nylon nut(47) and
at washer (51).
— Remove the pre-assembled M10 knob (29) and at washer (51) from back of the seat sliding
bracket (7). Fix the seat sliding bracket (7) with the top bracket of seat tube (6) and fasten with
M10 knob (29) and at washer (51).
— Aach seat tube (6) and rear cover (15) into the main frame (1) and secure in right posion
with the seat post quick release knob (16). Adjust the height of seat by choosing the hole
of seat tube.
NOTE: DO NOT extend the seat stem past the warning line “MAX” when adjusng the seat height.

10

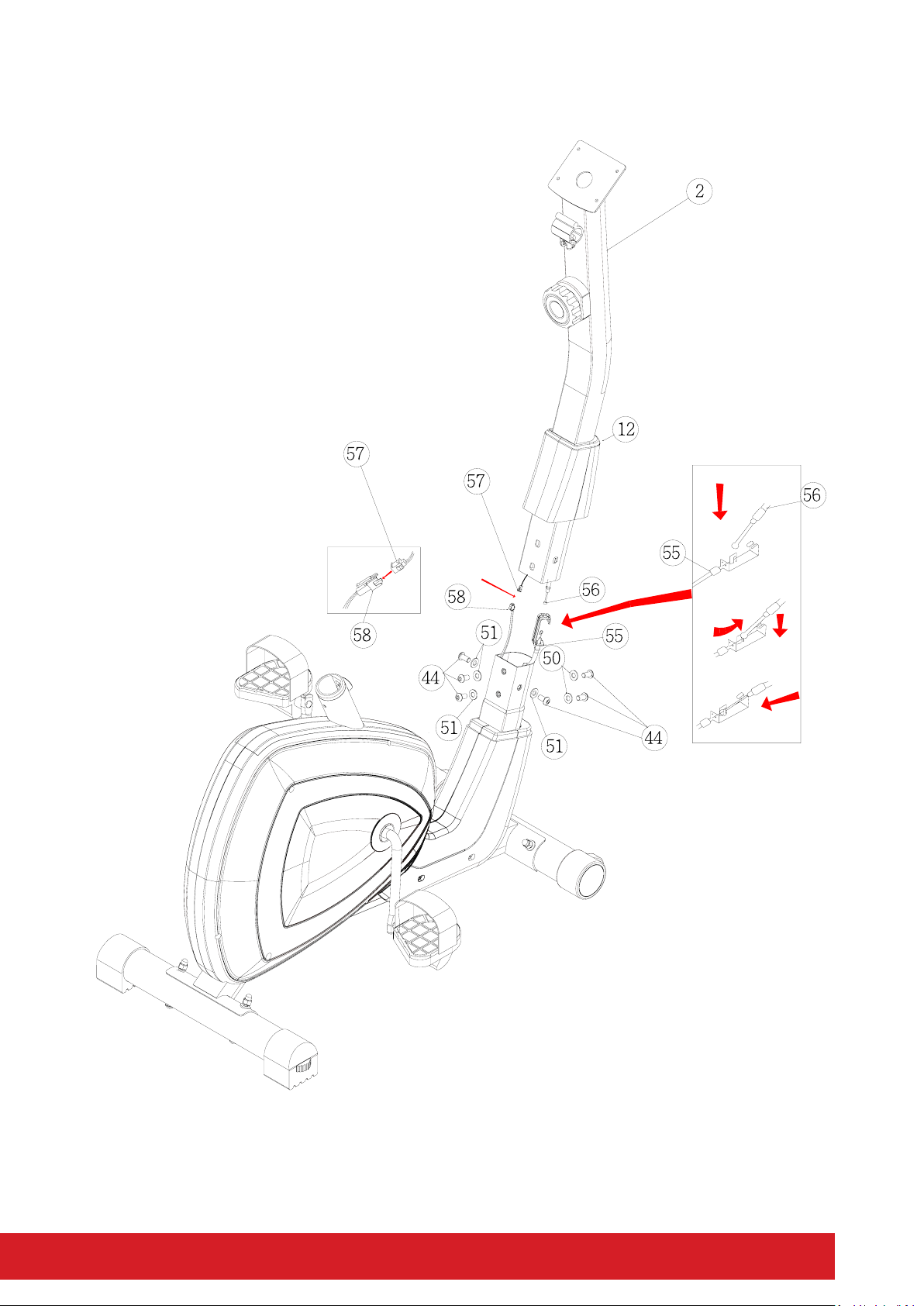

STEP 3
Aach the Front Post.
— Remove the pre-assembled 6 Allen head bolts (44) and 2 curve washers (50) and
4 at washer (51) from the main frame (1).
— Connect the middle secon sensor wire (57) of the front post(2) and front cover(12)
with the lower secon sensor wire (58) securely.
— Connect the tension cable (56) with lower tension cable (55). (See gure). Ensure the tension
dial is set to ‘8’ to allow for greater cable extension. The upper cable sheath end must be
securely inserted into the lower tension cable bracket.
— Put the front post (2) and front cover(12) into the boom post of main frame (1) and fasten
with 6 Allen head bolts (44) , 2 curve washers (50) and at washer(51).Please note don’t
ghten all head bolts (44) too much at the beginning. When all parts are xed already,
and then fasten each one piece ghtly.
— Assemble each pedal (11R&11L) to the crank . Pedal ”R” assemble with crank right side ,
Pedal ”L” assemble with crank le side : See the mark “R” & “L”(right and le) on the
pedals (11R&11L) and crank .
NOTE: The right pedal “R” should be threaded on clockwise. The le pedal “L” should be threaded
on counter-clockwise.
— Aach the pedal straps to the pedals (11R&11L).
NOTE: Adjust the pedal straps to suit your foot/shoes size. There are 4 adjustable posions.

11ELITE VO2 EXERCYCLE ASSEMBLY MANUAL

12
STEP 4
Aach the Handlebar and Meter.
— Put handlebar (3) with 2 hand pulse (34), grip (60) to the top welded shape handlebar bracket
of the front post (2).
— Fasten rear clamp cover (14) to the post tube with at washer (55) and screw (40).
— Fasten rear clamp cover (14) with BUSHING (32), at washer (51) and T-knob (31).
— Aach front clamp cover (14) to the front post (2) and fasten rear clamp cover (14)
with at washer (55), screw (44) and 2 screw (38).
— Remove the pre-assembled screw (41) from the console meter (8). Connect the plug of the
middle secon sensor wire (59) to the sensor socket of console meter (8). Insert the console
meter (8) into front post (2) and fasten with 4 screw (41). Insert the plug of hand pulse wire
to the back of console meter (8).

13ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
CONGRATULATIONS
Assembly of your Elite VO2 Exercycle is now complete! Be sure to fully inspect your machine
before using it for the rst me.
WARNING: Failure to visually check and test the assembly of your exercycle before use can cause
damage to the exercycle and injury.

14
SEAT ADJUSTMENT
Having your bike seat adjusted to the right
height is essenal for a comfortable ride,
ecient pedalling and avoiding injury. There
are 2 adjustments located on the seat post. The
rst is a vercal height adjustment, the second
is for horizontal seat posion. Although there
are many methods and opinions on the opmal
saddle seng, the following is a quick an easy
method to get started. Further adjustments can
be made aerwards to opmise your posion
and comfort.

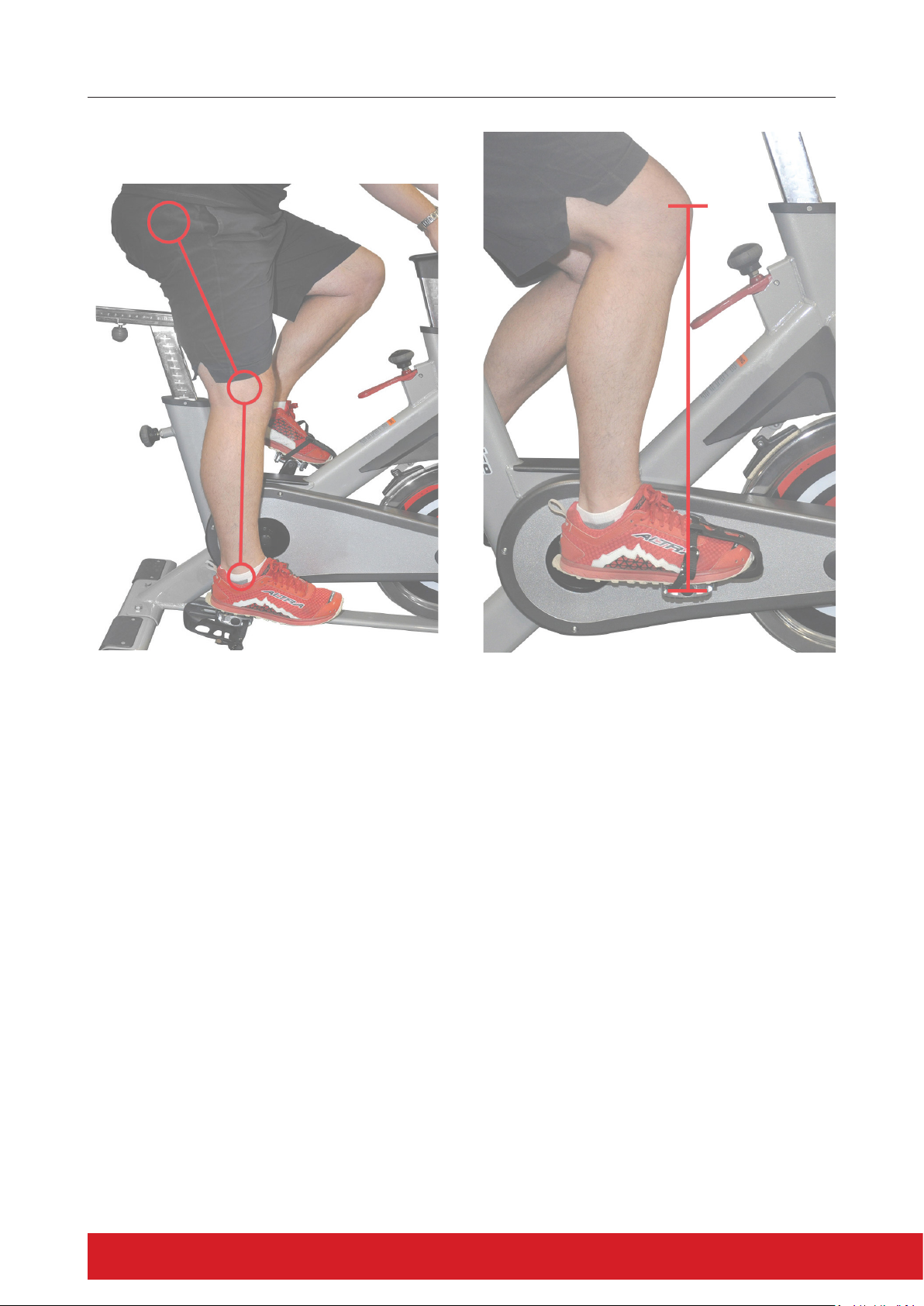

Saddle Height Adjustment
— Place your heels on the bike pedals and
pedal backward. Your legs should be fully
extended with your knees straight. If your
hips rock from side to side while pedalling
backward, the seat is too high.
— Place the ball of your foot on the pedal.
There should now be a slight bend in your
knee when the pedal is at its lowest point.
This is a good starng point.
Adjusting the Seat Fore-and-Aft Position
Once you’ve adjusted seat height, it’s me
to nd the correct fore-and-a posion of
the saddle. This determines where you sit
in relaonship to the crank set (where the
pedals are aached), which helps decide how
comfortable and ecient you’ll be when riding.
This also minimises stress to the knee by being
in a more neutral posion.
If you want to try to check the fore-and-a
seng at home, you will need a second person
and a plumb line (a length of string with a nut
or washer ed on the end will work ne).
Whilst sing on the seat saddle bring your right
crank arm around and have your helper stop
the crank when the pedal is at three o’clock
or parallel with the oor. Note that for this
measurement to be accurate, your shoes must
be correctly posioned on the pedals (the balls
of your feet should be over the pedal axles).
Adjusng the Seat Fore-and-A Posion
Saddle Height Adjustment

15ELITE VO2 EXERCYCLE ASSEMBLY MANUAL

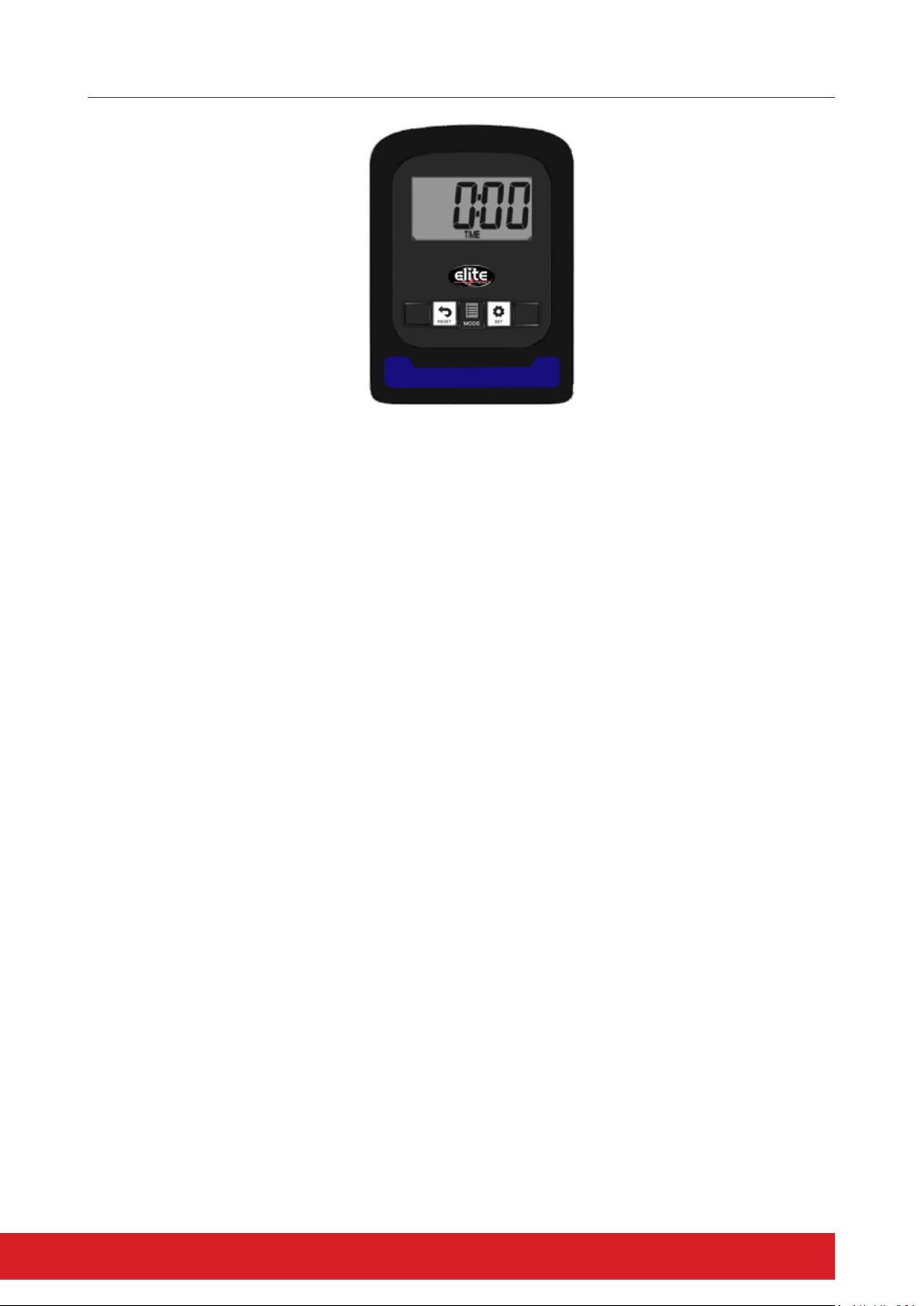

DISPLAY CONSOLE
The things you should know before exercise:
SLEEP MODE:
The monitor will enter SLEEP mode (LCD o) when there is no signal or key input within 4 minutes.
Funcons and Features:
1) SCAN: At the exercise mode, press the MODE key unl SCAN appears on the LCD. Monitor will
then display the following funcons, and each funcon will pause for 6 seconds on the
main screen, TIME- SPEED- DISTANCE- CALORIE- RPM- PULSE
2) TIME: Shows your elapsed workout me in minutes and seconds. Your computer will
automacally count up from 0:00 to 99:59 in one second intervals. You many also program your
computer to count down from a set value by using the UP and DOWN keys from 0:00 to 99:00.
If you connue exercising once the me has reached 0:00. The computer will begin beeping,
and counts up from 0:00.
3) SPEED: Displays your workout speed value in KM per hour from 0.0 to 168.0, or MILE per hour
from 0.0 to 99.9.
4) DISTANCE: Displays the accumulave distance travelled during each workout, up to a maximum
of 168.0KM or 99.9 MILES.
5) CALORIES: Your computer will esmate the cumulave calories burned at any given me during
your workout.
6) PULSE*: Your computer displays your pulse rate in beats per minute during your workout.
If no pulse signal input then the computer will display 0 on the window.
* Hand Pulse Sensors can provide inaccurate heart rate readings and are indicave only.
7) RPM: Your pedal cadence.

16
Key Funcons:
There are 3 buon keys and the funcon descripon as follows:
1) SCAN Key: During the STOP Mode, press the key to increase the value of Time, Distance and
Calories.
2) REST Key: During the STOP Mode, press the key to clear the exercising value or seng value
to zero.
3) MODE Key:
a: Press the key to accept these seng values of Time, Distance and Calories.
b: During the STOP Mode, by hold this key for more than 2 seconds then the computer will
re-power on.
c: During the exercise mode, press the key to check the funcon from SCAN- TIME- SPEED-
DISTANCE- CALORIES- RPM- PULSE for a circle.
HOW TO REPLACE THE BATTERIES
Remove the baery cover from the boom housing then replace the baeries as shown below.
PLEASE NOTE: If the machine is put in storage or not intended to be used for any period longer
than 4 weeks, please remove the baeries from the console to avoid any corroding and potenal
damage to the console.

17ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
Before cleaning or carrying out any maintenance on your exercycle, ensure the power is turned o
and the power cord removed from the plug socket.
Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this
ensure your machine is in full working order to ensure they connue to run smoothly and reliably,
but it will save you service costs in the long run.
Cleaning
General cleaning of the unit aer use will protect the bike’s powder-coated framework
and prevent unnecessary corrosion stains and damage to the structural components from sweat
and perspiraon.
Please ensure all sweat residue is wiped from any contact points or framework with a damp
cloth using a suitable PH neutral detergent in water to avoid salt and corrosion deposits on your
equipment. Failure or neglect to maintain and clean sweat residue from the bike frame may aect
any frame warranty implied.
Frame and Pedals
Check all nuts and bolts securing the framework, seat and handlebar assemblies are ght.
Ensure the pedals are securely aached to the crank arms. When ghtening pay aenon to the
reverse thread (ghtening an-clockwise) on the le hand pedal assembly, when sing on the
bike. Be careful not to strip or force the pedal thread when ghtening.
CARE AND MAINTENANCE
IMPORTANT INFORMATION

18
eg:
MAINTENANCE LOG
Prolong the life of your exercycle by performing periodic maintenance checks. Not only does this
ensure your machine is in full working order, but it will save you service costs in the long run.
Every me you perform maintenance, record the date and if you can, the distance and
hours operated.
DATE HOURS DISTANCE FRAME SERVICE
COMMENTS
Cleaned Seat / Pedals
01/06 15 16.5km √ √ none

19ELITE VO2 EXERCYCLE ASSEMBLY MANUAL
Warranty Range
Damage in correct maintenance and normal operaons (not facous factors). Warranty card
to the original purchaser, shall not be transferred.
Warranty Time
HOME USE ONLY. This bike is not designed for commerical use.
— 10 Year Frame
— 1 Year Parts and Labour
The following conditions are not under warranty range:
A) As a result of abuse, neglect, accident, or unauthorized modicaon;
B) The damage due to incorrect adjustment of the machine;
Repair and Maintenance Service
Please contact our Elite Fitness Service Department at eliteservice@elitetness.co.nz or visit
www.elitetness.co.nz for any service related issues or advice on preventave maintenance
servicing procedures.
LIMITED WARRANTY

20
Warm up exercise is important in preparing the muscles for acvity whilst minimising the risk
of injury. You may choose to warm up with a light/brisk walking pace for 5-10 minutes before
stopping and performing some simple stretches. (As shown in the pictures below)
—Hamstring Stretch (Standing)
Keep your knees slightly bent and slowly lean forward, back and shoulders relaxed, reaching
towards your toes. You should feel the tension and slight
discomfort in your hamstring muscles. Hold for 15-20 seconds.
Repeat 2-3 mes.
—Hamstrings Stretches (Seated)
Sing on the oor preferably on a mat, put one leg straight,
the other inward and close to the inside of the straight leg.
Lean forward from the hips, reaching towards your toes.
Hold for 10-15 seconds, and relax. Repeat 3 mes for each leg
(See picture 2).
—Crus and Feet Tendon Stretches
Standing with two hands on the wall or tree, one leg behind.
Keeping your legs straight and the heel on the ground, lean
forward towards the wall or tree. Hold for 10-15 seconds,
and relax. Repeat 3 mes for each leg (See picture 3).
—Quadriceps Stretches
Keeping your balance with your le hand holding onto a wall
or staonery xture, grasp your right foot with your right hand
and stretch your right heel toward your buocks slowly, unl
you feel the stretch in the front of your thigh. Hold for 10-15
seconds, and relax. Repeat 3 mes for each leg (See picture 4).
—Sartorius (Inner Muscles of the Thigh) Muscle Stretches
Sing down with the soles of your feet or shoes together
and your knees posioned outward. Pull your feet towards
your groin unl you can feel the stretch. Hold for 10-15
seconds, and relax. Repeat 3 mes (See picture 5).
WARM-UP EXERCISE
