Elkay EHW214FP Series Installation manual

PAGE1 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW214FP EHWM214FP EHW217FP EHWM217FP
EHW217FPRA EHWM217FPRA
Freeze Resistant Fountain
Installation/Care/Use Manual
IMPORTANT! INSTALLER PLEASE NOTE.
THEGROUNDINGOFELECTRICALEQUIPMENTSUCHASTELEPHONE,COMPUTERS,ETC.TO
WATER LINES ISACOMMONPROCEDURE.THISGROUNDING MAYBEINTHEBUILDINGOR MAY
OCCURAWAYFROMTHE BUILDING.THISGROUNDINGCANCAUSEELECTRICALFEEDBACK
INTOAFOUNTAIN,CREATINGAN ELECTROLYSIS WHICH CAUSESAMETALLICTASTE ORAN
INCREASEINTHEMETALCONTENTOFTHE WATER.THISCONDITIONISAVOIDABLEBYUSING
THEPROPERMATERIALSAS INDICATED.ANYDRAINFITTINGSPROVIDED BYTHEINSTALLER
SHOULDBEMADEOFPLASTICTOELECTRICALLYISOLATETHE FOUNTAINFROMTHE BUILDING
PLUMBINGSYSTEM.
IMPORTANT
ALLSERVICETO BE PERFORMEDBY AN AUTHORIZEDSERVICE PERSON
Toassureyouinstallthismodeleasilyandcorrectly,PLEASEREADTHESESIMPLE
INSTRUCTIONSBEFORESTARTINGTHEINSTALLATION.CHECKYOURINSTALLA-
TIONFORCOMPLIANCEWITHPLUMBING,ELECTRICALANDOTHERAPPLICABLE
CODES.Afterinstallation,leavetheseinstructionsinsidethefountainforfuturereference.
ThisFreezeResistantFountainisshippedintwoseparatecartons.Thesecondcarton(s)
containstheFreezeResistantPackage(s)LKFRB1 thatareinstalledonaninterior
heatedwall.Theinteriorspacemustmaintainaminimumtemperatureof50°F(10°C).
RefertotheFreezeResistantPackagefortherough-indimensionsforinstallation.
Installer
EHW214FP EHW217FP EHW217FPRA

PAGE298420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
FIG. 1 EHWM214FP WITH WALL PLATE ASSEMBLY
MOUNTING BOLT AND ACCESS HOLE LAYOUT
7 1/4" 185mm
12 1/8" 308mm
12" 305mm
MAX. WALL
THICKNESS 7 1/4"
184mm
26 13/16" 681mm
29 7/8" 759mm
28 9/16" 725mm
43 5/8" 1108mm
24 9/16" 625mm
16" 406mm
8" 203mm
8" 203mm
3" 76mm
5 1/4" 133mm
5 1/4" 133mm
"A"
"B"
FINISHED FLOOR
WALL PLATE ASSEMBLY
"D"
"E"
30 1/4" 768mm
"C"
LEGEND A = 1-3/4" DIA.(44 mm) HOLE FOR WASTE LINE B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1/4" DIA. (6 mm ) HOLE FOR MOUNTING PLATE TO WALL E = 3/8" DIA. (6mm) HOLE FOR MOUNTING PLATE TO WALL

PAGE3 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
FIG. 2
1. Wall should already be framed for the fountain using dimensions shown in Fig. 1. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
EHWM214FP WITH WALL PLATE ASSEMBLY
ROUGH-IN DRAWINGS
FINISHED FLOOR
12 1/8" 309mm 19 3/4" 502mm
20 3/8" 518mm
6 1/2" 167mm
27" 686mm
ADA
REQUIREMENT
18" 457mm 5/8"
16mm
12" 305mm MAX. WALL THICKNESS
3 5/8" 91mm
2 5/8" 66mm
14 7/16" 366mm
17 15/16" 455mm
13 3/8" 339mm
28 13/16" 732mm

PAGE498420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW214FP WITH MPW101 MOUNTING PLATE
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 3
7 1/4" 184mm
12 1/8" 307mm
12" 305mm MAX. WALL THICKNESS
43 1/2" 1105mm
28 9/16" 725mm
30 1/4" 768mm
1 5/16" 33mm
1 7/8" 48mm
8" 203mm
16" 406mm
8" 203mm
3 1/8" 79mm
A
B
C
D
HANGER BRACKET
BACK PANEL
MPW101
MTG. PLT.
FINISHED FLOOR
LEGEND A = 1-3/4" DIA.(44 mm) HOLE FOR WASTE LINE B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1/4" DIA. (6 mm ) HOLE FOR MOUNTING PLATE TO WALL

PAGE5 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW214FP WITH MPW101 MOUNTING PLATE
ROUGH-IN DRAWINGS
FIG. 4
1. Wall should already be framed for the fountain using dimensions shown in Fig. 1. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
13" 330mm
28 9/16" 725mm
27" 686mm
ADA
REQUIREMENT
6 1/2" 165mm
3 13/16" 97mm
12 1/8" 308mm 19 3/4" 502mm
20 3/8" 518mm
5/8" 16mm
18" 457mm
14" 355mm
17 1/2" 444mm
2 5/8" 66mm 3 5/8"
91mm
12" 305mm MAX. WALL THICKNESS
FINISHED FLOOR
FINISHED WALL
MPW101 MTG. PLT. REF. SEPARATE INSTALLATION INSTRUCTIONS FOR DETAILS

PAGE698420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

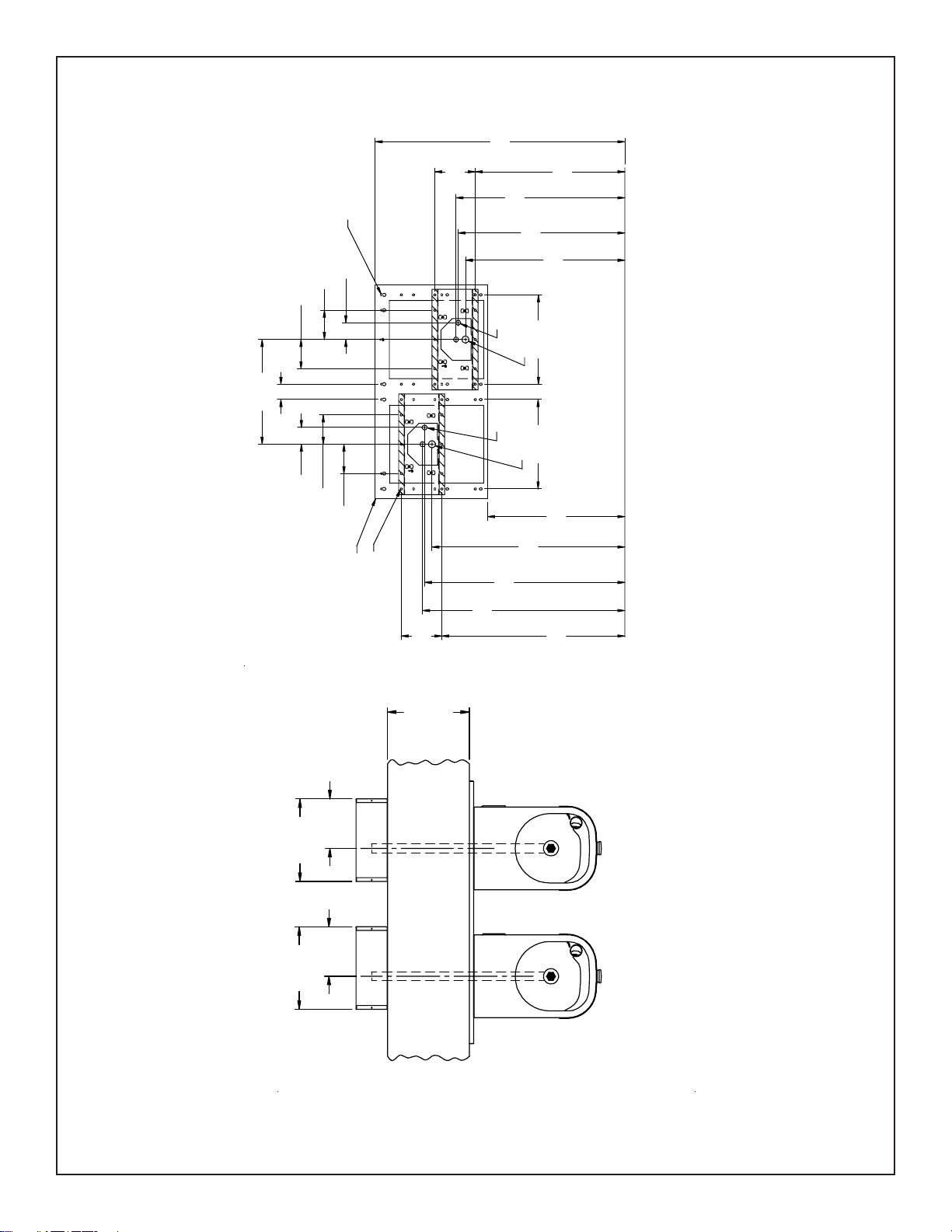

EHWM217FP WITH WALL PLATE ASSEMBLY
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 5
LEGEND A = 1-3/4" DIA.(44 mm) HOLE FOR WASTE LINE B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1/4" DIA. (6 mm ) HOLE FOR MOUNTING PLATE TO WALL E = 3/8" DIA. (6mm) HOLE FOR MOUNTING PLATE TO WALL
12 1/8" 308mm
7 1/4" 185mm
12 1/8" 308mm
7 1/4" 185mm
12" 305mm
MAX. WALL
THICKNESS
16" 406mm 16"
406mm
32 13/16" 833mm
7 1/4" 184mm
35 7/8" 911mm
34 9/16" 878mm
24 9/16" 625mm 26 13/16"
681mm
29 7/8" 759mm
28 9/16" 725mm
7 1/4" 184mm
44 3/4" 1136mm
"B" "B"
"A" "A"
WALL PLATE ASSEMBLY
E
D
FINISHED FLOOR
18 3/4" 476mm
5 1/4" 133mm
5 1/4" 133mm
3" 76mm
5 1/4" 133mm
5 1/4" 133mm
3" 76mm
2 3/4" 70mm
30 1/4" 768mm
36 1/4" 921mm

PAGE7 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHWM217FP WITH WALL PLATE ASSEMBLY
ROUGH-IN DRAWINGS
FIG. 6
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (not provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
FINISHED FLOOR
33" 836mm
ADA
REQUIREMENT
20 3/8" 518mm
38 1/2" 978mm
6 11/16" 170mm 12 1/8"
309mm 3 11/16"
94mm
18" 457mm 5/8"
16mm
12" 305mm MAX. WALL THICKNESS
34 9/16" 878mm
28 9/16" 726mm
23 11/16" 601mm
20 3/16" 512mm
17 11/16" 449mm
14 3/16" 360mm
2 5/8" 66mm
3 5/8" 91mm
6 1/2" 165mm
27" 686mm
ADA
REQUIREMENT

PAGE898420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

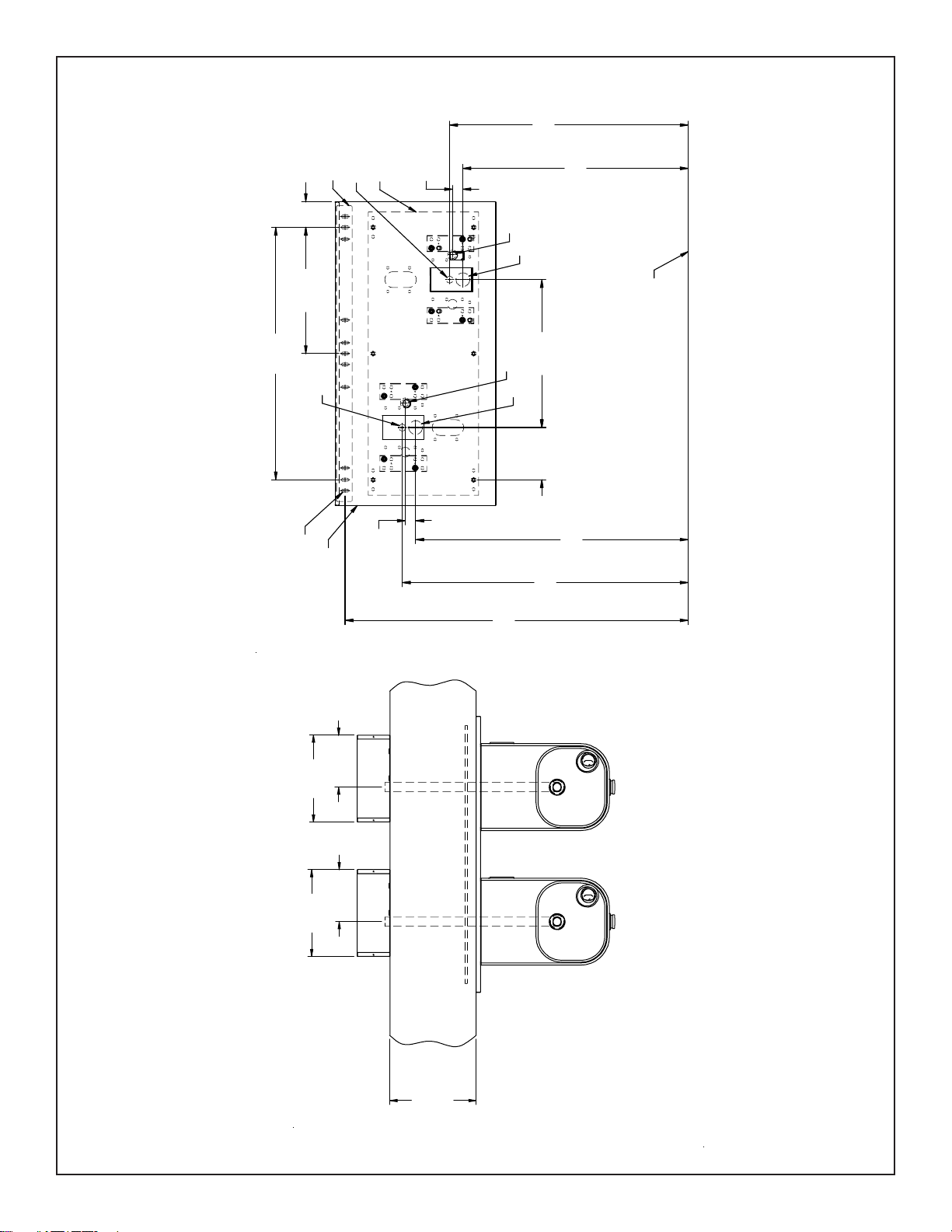

EHW217FP WITH MPW200 MOUNTING PLATE
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 7
LEGEND A = 1-3/4" DIA.(44 mm) HOLE FOR WASTE LINE B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1/4" DIA. (6 mm ) HOLE FOR MOUNTING PLATE TO WALL
12" 305mm MAX. WALL THICKNESS
7 1/4" 184mm 7 1/4"
184mm
12 1/8" 307mm
12 1/8" 307mm
34 9/16" 878mm
43 1/2" 1105mm
36 1/4" 921mm
28 9/16" 725mm
30 1/4" 768mm
1 5/16" 33mm
1 5/16" 33mm
3 1/4" 82mm
16" 406mm
32" 813mm
6 5/8" 168mm 18 3/4"
476mm
MPW200 MTG. PLT.
BACK PANEL HANGER BRACKET
A
A
B
B
CC
D
FINISHED FLOOR

PAGE9 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW217FP WITH MPW200 MOUNTING PLATE
ROUGH-IN DRAWINGS
FIG. 8
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (not provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
3 13/16" 97mm
12 1/8" 308mm
6 5/8" 168mm
38 1/2" 978mm
12" 305mm MAX. WALL THICKNESS
2 5/8" 66mm
3 5/8" 91mm
28 9/16" 725mm HRFEFR
34 9/16" 878mm HRFSFR
27" 686mm
ADA
REQUIREMENT
6 1/2" 165mm
33" 838mm HRFSFR
13" 330mm HRFEFR
14" 355mm HRFEFR
17 1/2" 444mm HRFEFR
20" 508mm HRFSFR
23 1/2" 597mm HRFSFR
FINISHED WALL
5/8" 16mm
18" 457mm HRFEFR
FINISHED FLOOR
MPW200 MTG. PLT. REF. SEPARATE INSTALLATION INSTRUCTIONS FOR DETAILS

PAGE1098420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

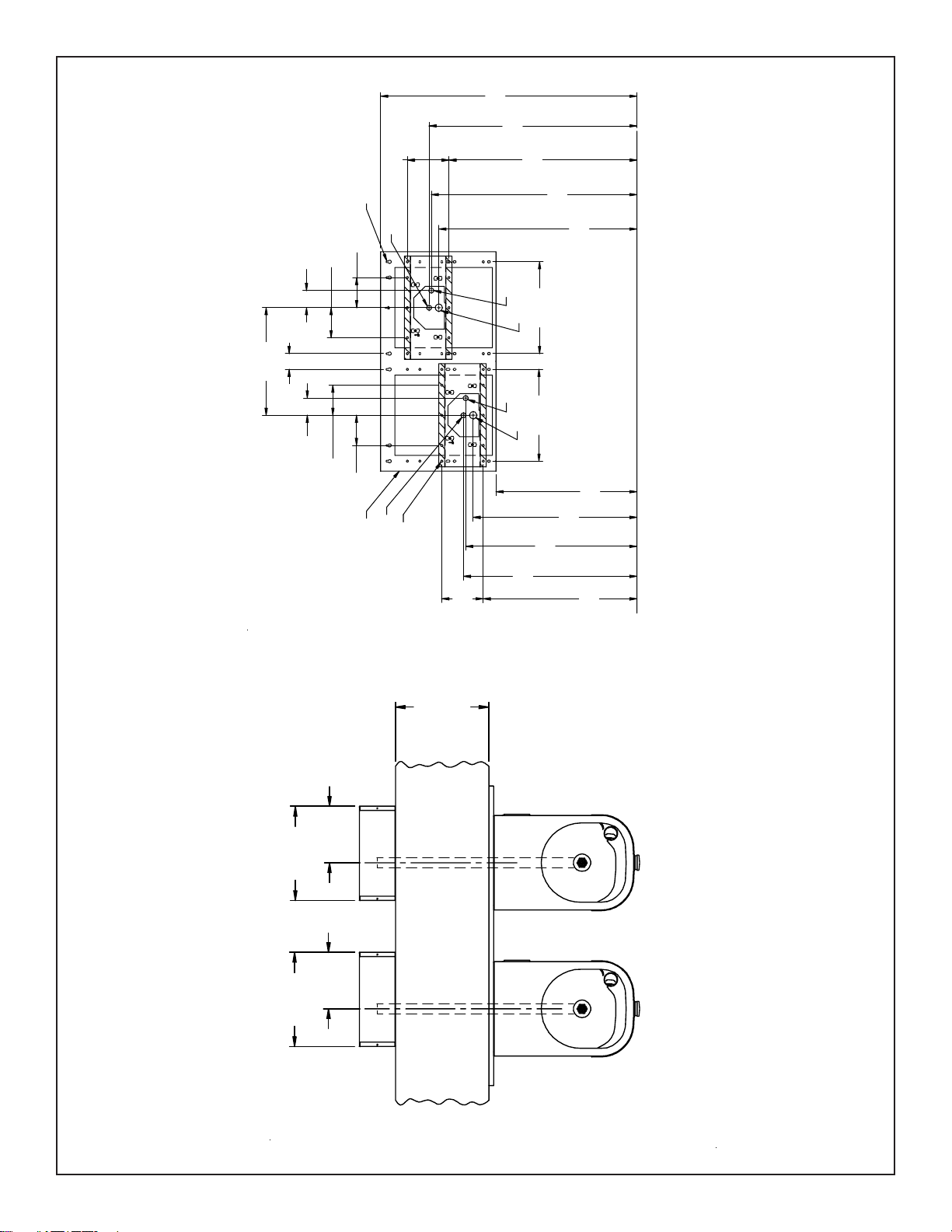

EHWM217FPRA WITH WALL PLATE ASSEMBLY
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 9
LEGEND A = 1-3/4" DIA.(44 mm) HOLE FOR WASTE LINE B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1/4" DIA. (6 mm ) HOLE FOR MOUNTING PLATE TO WALL E = 3/8" DIA. (6mm) HOLE FOR MOUNTING PLATE TO WALL
12 1/8" 308mm
7 1/4" 185mm
12 1/8" 308mm
7 1/4" 185mm
12" 305mm
MAX. WALL
THICKNESS
16" 406mm 16"
406mm
FINISHED FLOOR
26 13/16" 681mm 24 9/16"
625mm
7 1/4" 184mm
29 7/8" 759mm
28 9/16" 725mm
32 13/16" 833mm
7 1/4" 184mm
35 7/8" 911mm
34 9/16" 878mm
18 3/4" 476mm
2 3/4" 70mm
3" 76mm 3"
76mm
5 1/4" 133mm 5 1/4"
133mm
5 1/4" 133mm
5 1/4" 133mm
"A" "A"
"B" "B"
WALL PLATE ASSEMBLY
"E"
"D"
44 11/16" 1136mm
30 1/4" 768mm
36 1/4" 921mm
"C" "C"

PAGE11 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

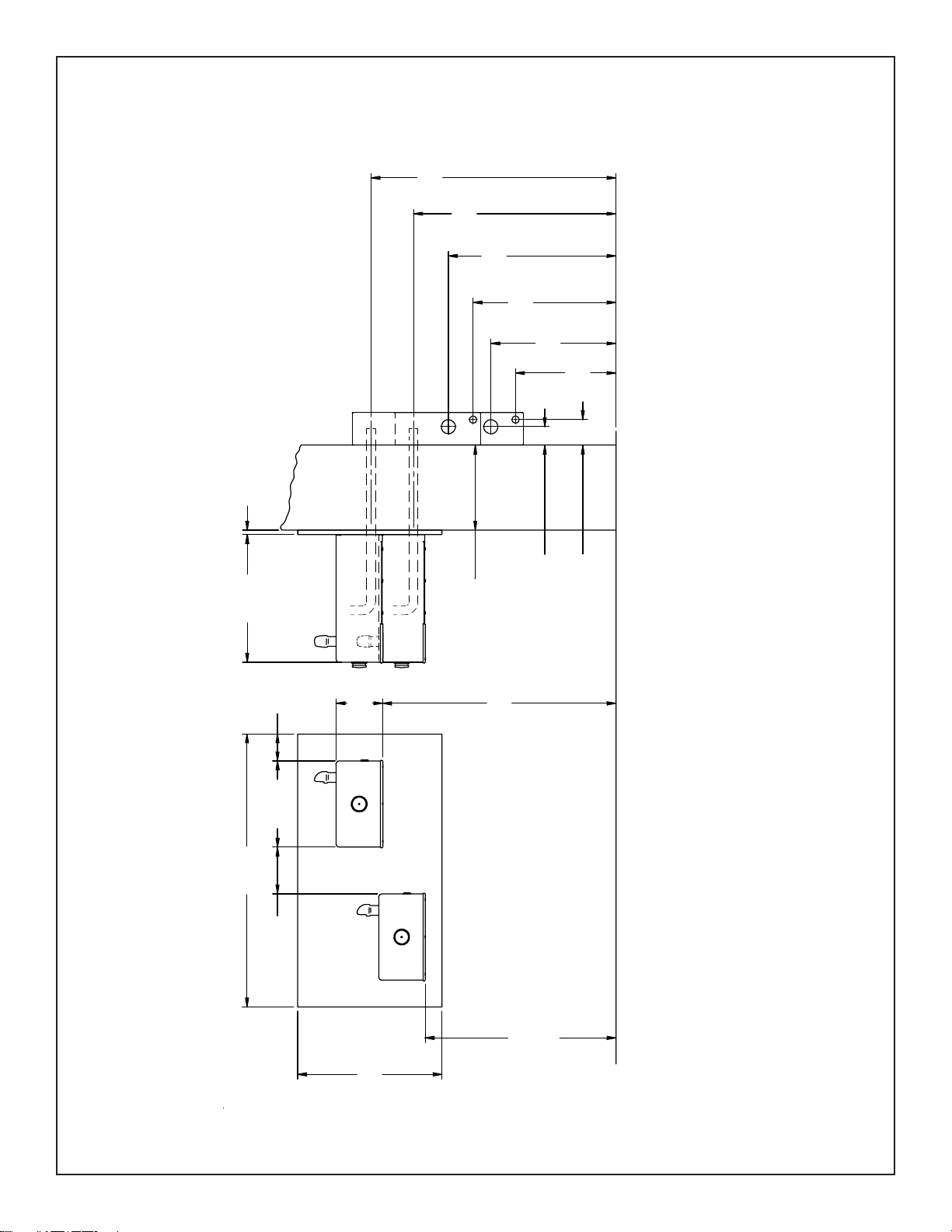

EHWM217FPRA WITH WALL PLATE ASSEMBLY
ROUGH-IN DRAWINGS
FIG. 10
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (not provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
FINISHED FLOOR
27" 684mm
ADA
REQUIREMENT
20 3/8" 518mm
38 1/2" 978mm
6 5/8" 168mm 12 1/8"
309mm 3 13/16"
96mm
6 1/2" 167mm
33" 836mm
18" 457mm 5/8"
16mm
12" 305mm MAX. WALL THICKNESS
34 9/16
"
878mm
28 9/16" 726mm
23 11/16" 601mm
20 3/16" 512mm
17 11/16" 449mm
14 3/16" 360mm
2 5/8" 66mm
3 5/8" 91mm

PAGE1298420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
EHW217FPRA WITH MPW200 MOUNTING PLATE
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 11
LEGEND A = 1-3/4" DIA.(44 mm) HOLE FOR WASTE LINE B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1/4" DIA. (6 mm ) HOLE FOR MOUNTING PLATE TO WALL
12 1/8" 308mm
7 1/4" 185mm
12 1/8" 308mm
7 1/4" 185mm
12" 305mm
MAX. WALL
THICKNESS
28 9/16" 725mm
30 1/4" 768mm
43 1/2" 1105mm
3 1/4" 82mm
16" 406mm
32" 813mm
6 5/8" 168mm 18 3/4"
476mm
1 5/16" 33mm
1 5/16" 33mm
34 9/16" 878mm
36 1/4" 921mm
FINISHED FLOOR
HANGER BRACKET
BACK PANEL
MPW200 MTG. PLT.
AA
B
B
C
C
D

PAGE13 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

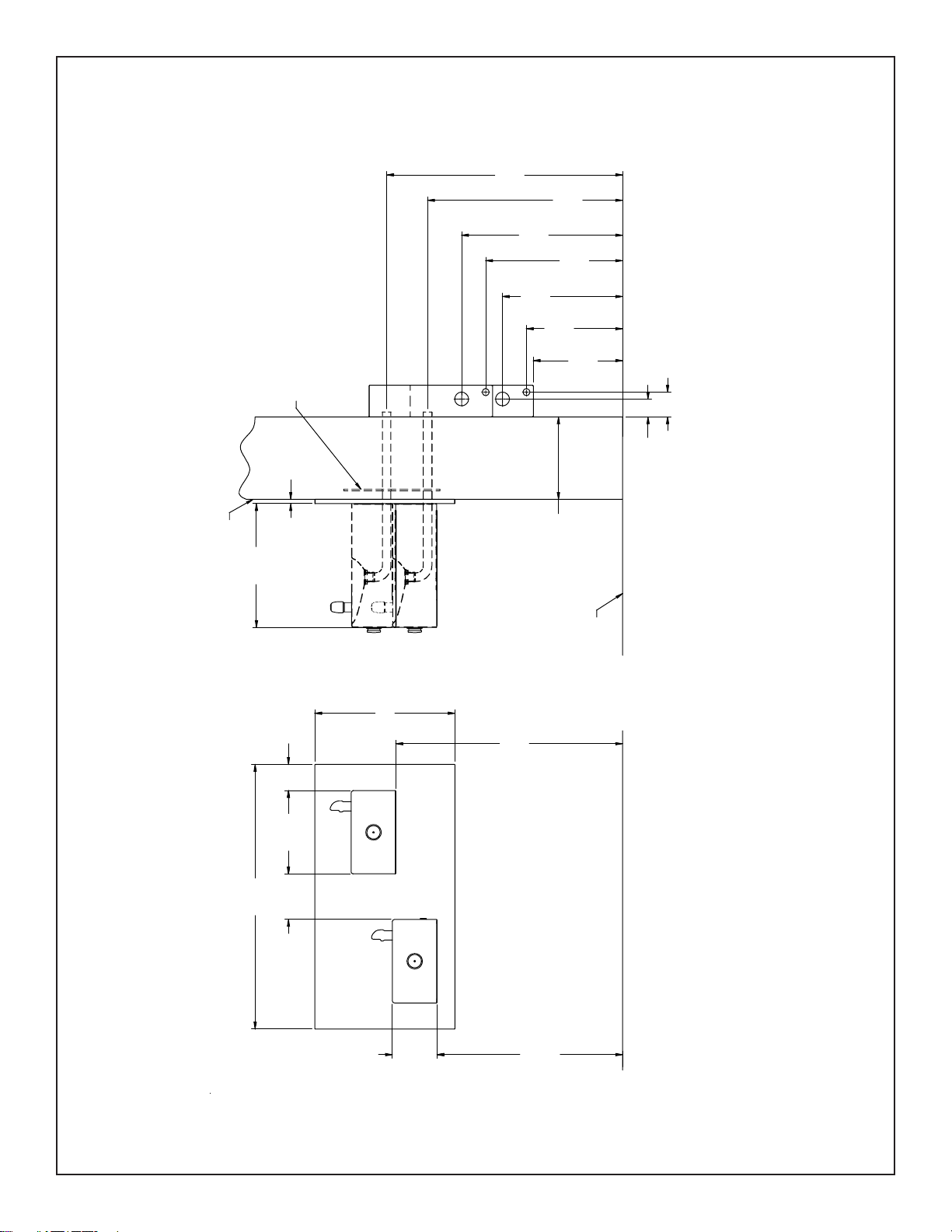

EHW217FPRA WITH MPW200 MOUNTING PLATE
ROUGH-IN DRAWINGS
FIG. 12
1. Wall should already be framed for the fountain using dimensions shown in Fig. 3. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (not provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
13" 330mm HRFEFR
14" 355mm HRFEFR
17 1/2" 444mm HRFEFR
20" 508mm HRFSFR
23 1/2" 597mm HRFSFR
28 9/16" 725mm HRFEFR
34 9/16" 878mm HRFSFR
FINISHED FLOOR
FINISHED WALL
33" 838mm
HRFSFR
27" 686mm
ADA
REQUIREMENT
6 1/2" 165mm
3 13/16" 97mm
12 1/8" 308mm
6 5/8" 168mm
38 1/2" 978mm
20 3/8" 518mm
12" 305mm MAX. WALL THICKNESS
5/8" 16mm
18" 457mm HRFEFR
2 5/8" 66mm
3 5/8" 91mm
MPW200 MTG. PLT. REF. SEPARATE INSTALLATION INSTRUCTIONS FOR DETAILS

PAGE1498420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
FIG. 16
FIG.
13 FIG.
14
See Fig. 16
See Fig. 13 FIG.
15
CABLESHEATHADJUSTMENT
To IncreaseFree Play
To ReduceFree Play
FIG. 17
SEE FIG. 21
7, 26
20
SEE FIG. 22
22 15 18

PAGE15 98420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A

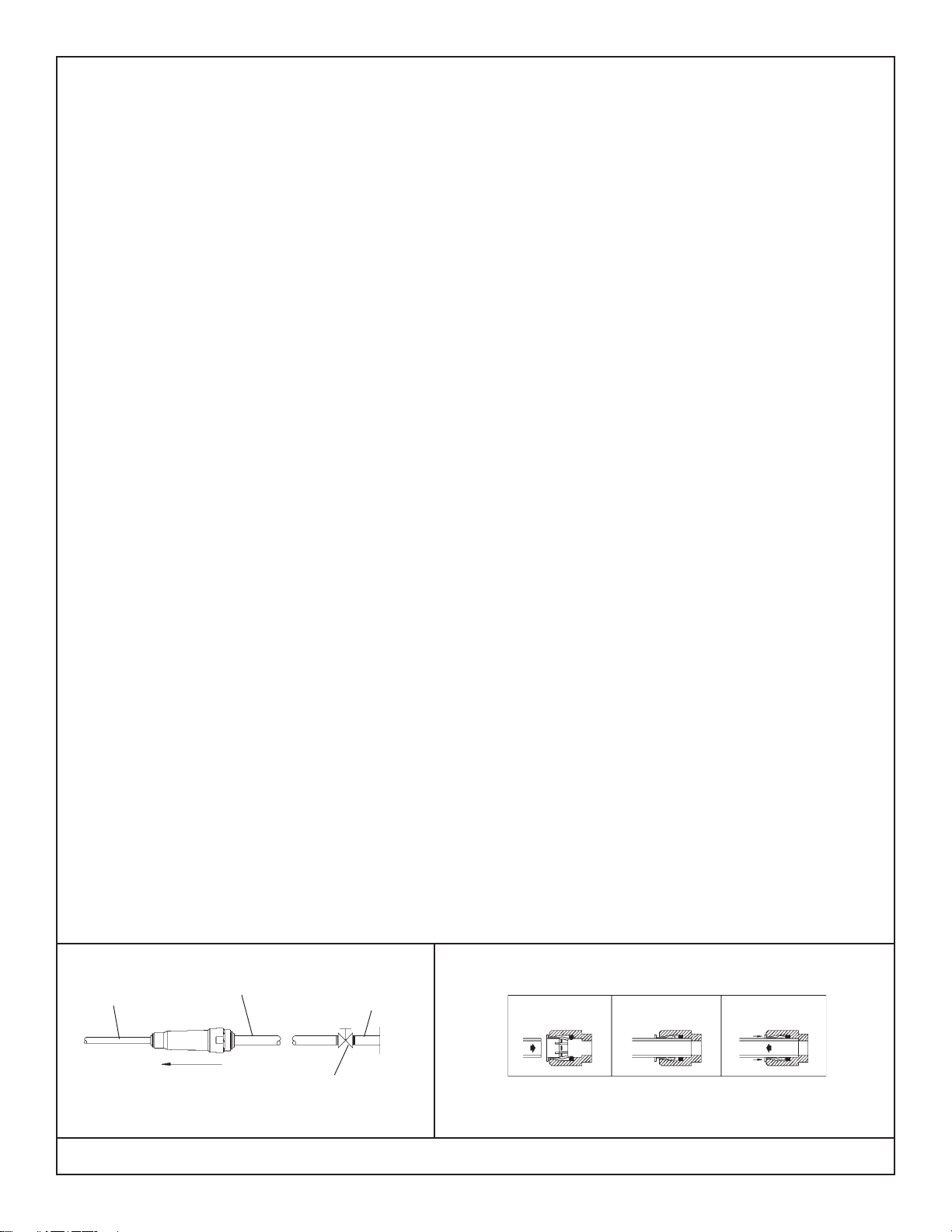

Thefreeze resistant package must be mounted on an interiorwall ina heatedarea. The room temperature of the interior
heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed mounted. If
recess mounted the surface of the cover must be flush with the interior wall surface. The package is furnished with
screws for mounting the cover to the box. If the box is recess mounted, do not fasten the top and bottom of the cover to
the box. Use the holes on the front only.
1. Assemble the operating cable to the fountain bracket. (Fountain should be mounted to exterior wall) Create a loop in
the cable and thread the free end of the cable through the wall into the freeze resistant box. The adjustment nuts
should be in the middle of threaded area on the operating cable. See Figure 16
2. Connectfree end of operating cable to thevalve-operating bracket. Theend of the cables mustbe recessedinto the
indents on the pivot brackets.
3. Remove cable free play by adjusting the jam nuts on the ends of the operating cable. See Figure 14
4. Connect water line from fountain bubbler into freeze resistant box. The connection to the box uses a quick connect
water fitting. Position the water line, in the fountain, to drain back into interior mounted box. Any water left standing,
in the exterior line, can freeze.
To insert tubing, push tube straight into fitting until it reaches a positive stop. To remove tubing from the fittings,
relieve water pressure, push in on dark gray collar while pulling out on the tubing. See Figure 19
5. Connect drain and water supply lines to the freeze resistant fountain. Refer to Figure 18 for component positions.
Inline strainer must be used on the inlet water line.
Start-up
1. Turn on building water supply and check all connections for leaks. Repair as required.
2. Stream height is factory set at 35 PSI. If stream height needs to be changed adjust the regulator in the freeze
resistant package. Clockwise adjustment raises stream height, counter clockwise adjustment will lower stream.
3. Adjustoperating cable as required. Cable systemshould have a minimal amountof free play to allowfor proper valve
operation. If the system is too tight the valve will stay in the on position creating constant water flow. Too much free
playwill result innon-operation of thevalve with thepush-buttons.
4. Note: Water from the drain back tube in the freeze resistant package, will continue to run while the valve is actuated.
5. After cable system is adjusted properly stuff flexible insulation into any openings between the outside wall and the
interiorbox.
6. Recheckall connections. If all connections are leak free replace cover(s) on the freeze resistant box(es) and
fountain(s).
FIG. 18
NOTE:WATER FLOWDIRECTION
BUILDINGWATER
INLET
SERVICESTOP
(NOT FURNISHED)
1/4"O.D.TUBE
WATERINLET
3/8"O.D.UNPLATED
COPPERTUBE CONNECT
COLDWATERSUPPLY
TUBE IS
SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH PUSH IN COLLET TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
FIG. 19
OPERATIONOFQUICKCONNECTFITTINGS

PAGE1698420C (Rev. C - 7/09)
EHW214FP*A EHWM214FP*A EHW217FP*A EHWM217FP*A EHW217FPRA*A EHWM217FPRA*A
100322740560
15009C
27945C
27946C
28630C
28170C
28159C
27171C
28625C
28626C
28659C
28824C
40045C
40206000
98118C
45662C
45727C
45678C
45769C
50198C
51667C
28623C
55919C
56092C
56163C
56280C
70425C
75570C
75672C
28840C
28841C
28842C
111577243890
66744C
75520C
75541C

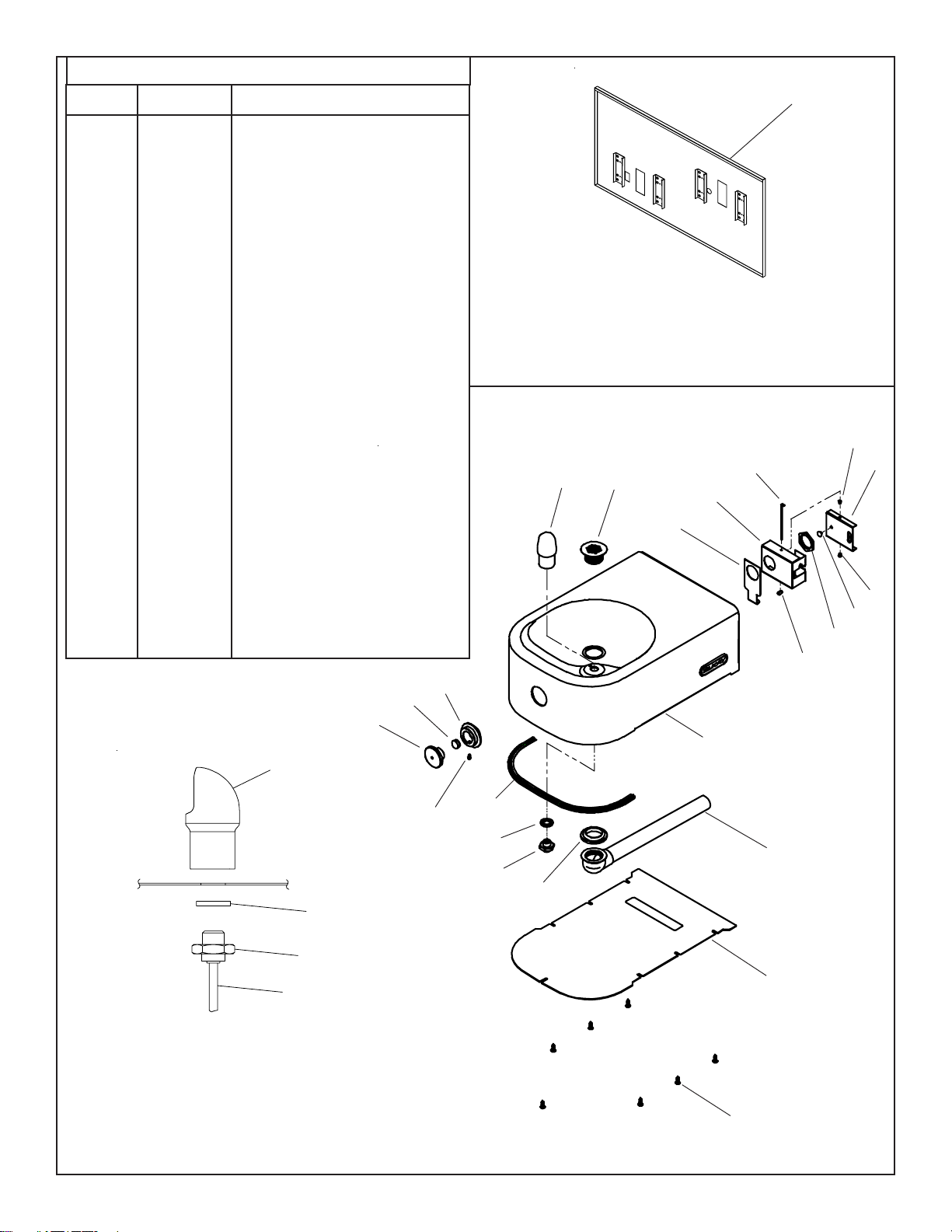

PARTNO.
ITEMNO.
PARTSLIST
GASKET
NIPPLEASSY
BRACKET-BASIN
BRACKET-BASINPIVOT
BOTTOMCOVERPLATE
MTG. PLATEASSY.(HDF-EBPFR)
MTG. PLATEASSY.(HDF-BLEBP-FR)
MTG.PLATEASSY. (HDF-BLEBPR-FR)
BACKPANEL(HDF-EBPFR)
BACKPANEL(HDF-BLEBPFR)
BACKPANEL(HDF-BLEBPRFR)
BRACKET-REGULATORMOUNTING
HEXNUT1-5/16
RETAINER
BUBBLERASSEMBLY
PUSHBUTTON
SLEEVE-PUSHBUTTONGUIDE
DRAINPLUG1-1/2"
DRAIN/TAILPIPE ASSEMBLY
SNAPBUSHING
BUMPER-REG. VALVEASSY
HDFFBASINASSEMBLY
PUSHBUTTON(EXTENSION)
POLYTUBING(CUTTOLENGTH)
DRAINGASKET
EDGETRIM
PIVOTROD
SCREW-#10x.50PINNEDTORX
CAPSCREW-#6-32
WALLPLATE ASY(HDFF-EBP-FR)
WALLPLATEASY(HDFF-BLEBP-FR)
WALLPLATEASY(HDFF-BLREBP-FR)
SCREW-MACH. 5/16-18 x 3/4
TAILPIECEASSEMBLY1-1/4 x12"
PINNEDTORXBITT-25
FLATWASHER
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
NS
NS
NS
NS
DESCRIPTION
PRINTEDINU.S.A.
10
3
13
12
8
23
16
917
4
16
14
FIG. 22
19
18
25
21
24
(QTY7)
5
15
FIG. 21
11
2
20
1
11
1
2
22
Installing Back Panel: When installing back panel
assy. (Item 24) with MPW (Mounting Plate), attach
channel braces as shown above. Remove the
protective backing from the tape installed on the
braces. Line up the corresponding holes in the
braces and back panel and press firmly in place.
FIG. 20 26
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
