Elmdene 2405ST Series User manual

1
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
24.0V dc 5 Amp Switch Mode Power Supply
for Fire Detection, Fire Alarm, Smoke and Heat Control Systems (AOV)
EN54-4:1997 +A1 +A2, EN12101-10:2005,
and VdS2541:1996-12 (pending)
2405ST-x
‘x’ denotes enclosure size
Thank you for choosing this 2405ST Power Supply. Please read this manual carefully as it provides
information on how to safely install, commission and maintain this equipment.
Page
2 - PSU Specification
3 - Installation (Mains feed, Cable sizing, Mounting enclosures)
4 - Installation cont. (Mains Connection, remote fault signalling, Load connection)
5 - Installation cont. (Battery Charger settings)
6 - Installation cont. (Battery installation, Battery compatibility)
7 - Installation cont. (Battery installation, Final commissioning)
8 - Operating Instructions and Maintenance
9 - Trouble shooting
10 - Developer Section (DUAL-PATH, RS485 communication link)
11 - Disposal and Product Compliance
Elmdene International Ltd Tel: [phone]
3 Keel Close, Interchange Park, Fax: [phone]
Portsmouth,
Hampshire
,
PO3 5QD
, UK

Web:
www.elmdene.co.uk
0333
OUTPUT MONITORING
2x INDIVIDUAL OUTPUT (DEFAULT)
DUAL-PATH
MAINS
SUPPLY
++ - - + -
2x LOAD
OUTPUTS
T T
12V
BATTERY
+ -
12V
BATTERY
+ -
MAINS FUSE
GEN EPS
FAULT OUTPUTS
FAULT OUTPUTS
COM / NO / NC
FUSE #1 FUSE #2
TEMPERATURE SENSOR
-
LOAD OUTPUT
+
LO AD 1
-
+
LO AD 2
CHARGER MODE
2
1
365Ah
24Ah / 38Ah
7Ah / 12Ah / 18Ah
(DEFAULT)
ImaxA
5.0A Total
4.0A Total
3.0A Total
SERIES BATTERY LINK
LED
1
2
3
4
5
6

2
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
SPECIFICATION
Mains Input
Rated Voltage / Power
(Operationa
l voltage)
230V ac / 60W @ In = 5A nominal output current
Un = 24V nominal output voltage
(
195V ac
–
265V ac
)
Frequency
Input
Switching frequency range
50 Hz nominal
20kHZ
–
125KHz a
pproxim
at
el
y
, dependent on load.
Input current < 2.0 Amps at full load
Inrush current 25A Max at 25 °C 230V ac for 10ms
Fuse T3.15 A 20mm, 250V ac HRC (IEC 60127-2 type)
Earth / neutral system TN & TT
PSU = Power Supply Unit (2405ST), PSE = Power Supply Equipment (the PSU in metal enclosure complete with batteries – 2405ST-x),
CIE = Control and Indicating Equipment (e.g. a Fire Alarm System Control Panel).
PSU Output
V
oltage
on
Mains power
(at full load)
2
1.
6
V dc (Umin)
*
–
28.8V dc (Umax)
*
/
**
Un
*
= 24.0 V dc +/
-
3% at
25
°
C
Voltag
e
on
Battery standby
(at
full load)
21.6V dc – 26.0V dc
Continuous Output Current
No charging (Imax B)
With Charging
EN54
-
4
(
Imax A
)
5.7A
Varies – see Section 20
Ripple <100 mV pk – pk max @ Rated Voltage (HF)
Current Li
mitation
S
hort circuit protecti
on
From In* to In+15% for an output voltage < 50% Un*
Fuse
Load
(OP
1
and
OP2)
F5.0 A (IEC 60127-2 type)
Battery Charging Constant current (bulk) charging to 80% capacity within 24 hours
Float charging to 100% within 48 hours with monitored ECO charging
Battery Voltage
Low battery threshold voltage
Deep discharge pr
o
t
ec
tio
n
23.2 V (measured at the battery)
21.6 V (
m
inimum
, measured at PSU output
)
Quiescent current
At no load
At b
att
ery
cut off
< 60 mA
< 180 µA
* Umin / Umax / Un = maximum / minimum
** Umax elevated by approximately +1% of Un when connecting the battery. Umax = 28.8V at all other times.
Mechanical
Product Reference 2405ST-C 2405ST-K 2405ST-E 2405ST-H BATT-BOX-65
Enclosure Dimensions
w x h x d (mm)
275 x 330
x 80
350 x 325
x 105
400 x 420
x 80
420 x 420
x 180
450 x 535
x 245
Weight (kg) excluding
battery
Including
battery
3.3 Kg
~5 Kg / 9 Kg
4.8 Kg
~13 Kg
5.8 Kg
~18 Kg
9.7 Kg
~28 Kg / 40
Kg
12.9Kg
~55 Kg
Battery Capacity (x2 12V
VRLA) 7Ah 12Ah 17Ah 24Ah / 38Ah 65Ah
Material 1.2 mm steel white powder coated
Environmental
Temperature
–
Operating
-
10 to +40°C (operating) 75% RH non
-
condensing
Temper
a
t
ur
e
-
Storage
-
20 to +80°C (storage)
Enclosure rating
IP30
This Power Supply Unit (PSU) is only suitable for installation as permanently connected equipment (Power Supply Equipment / PSE).
The PSE is NOT SUITABLE for external installation

3
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
INSTALLATION
This product is designed for the use in automatic fire detection and fire alarm systems. If the PSE is used as a power
supply for Control and Indicating Equipment (CIE), the PSE shall be installed no further than 10cm from the CIE, and
close coupled by conduit. Where this is not possible, see ‘DUAL PATH’ section 43 for EN54-4 compatible equipment.
Mains Feed
1. This unit must be fed from a mains power source via a separate (approved) disconnect device and fitted
with a fuse or other over-current protection device rated at 5A maximum.
Ensure that the disconnect device used has appropriate earth fault protection to the applicable
standard.
2. Where the PSE is used to provide power to a fire alarm circuit, the mains isolation and disconnect device
should be provided solely for this purpose and be suitably marked “FIRE ALARM – DO NOT TURN OFF”.
All cabling should meet national and local fire system installation regulations, e.g. FP200 type cable for
high integrity installations.
3. Where the PSE is used for other applications, it should be installed according to all relevant safety
regulations applicable to that application.
Cable Sizing
4. Mains input cable must be to the applicable standard with a 5A, or greater, current capacity, i.e. 0.75
mm2 nominal conductor area, having a minimum operating voltage of 300/500V ac.
5. The low voltage output cable must be sized to carry the rated load current to the devices connected to
the PSE.
6. Mains input and low voltage output cables should be routed to use different entry / exit holes in the
case. Cable glands should be used to protect cable sheaths from chafing. Ensure that the glands are
correctly sized (i.e. close fitting with respect to cable sizing). Note that the glands should meet a
minimum flammability specification of UL94 HB.
7. All cabling should be securely fastened in position using a cable tie linked to the fixing points provided.
Mounting PSE enclosures
8. Using the appropriate fixing points, fix enclosure to a suitable surface, ensuring that wall fixings are
appropriate to support its fully loaded weight.
9. Knock-outs are provided in the case for mating with external trunking or conduit
10. Ensure that all unused holes (on the rear of the case) are sealed to prevent the ingress of dust and
moisture
C and K enclosure
H enclosure
E enclosure

4
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
COMMISSIONING
Connecting the mains supply
11. With no external connections made to the PSE, connect the mains input
wires to the terminal block, ensuring that the mains isolator (disconnect
device) is open. Fasten wiring in place with cable tie to the fixing points
provided.
Note: This equipment MUST be earthed.
12. Apply mains input. Confirm that all LED indicators flash on briefly proving
integrity of indicators. After the power-on LED sequence confirm that the
following conditions are met:
LED
# Symbol LED Colour Function
1 Mains Constant Green Indication: Mains supply = OK
2 Batt Constant Yellow Indication: Battery Fault = missing battery indicated
3 Fault Yellow FLASH x1
(repeating) Indication: Fault with PSU = due to missing battery
4 Diagnostic Red FLASH x2
(repeating) Indication: Fault = missing battery indicated
5 OP1* Constant Green Indication: Output 1 = OK
6 OP2* Constant Green Indication: Output 2 = OK
(See also ‘Status and Fault-Diagnostic LED Indication’ table for full details of LED indications.)
13. Disconnect the mains
power using the
disconnect device.
Connecting the Remote Signalling
14. Connect the EPS and
GEN PSU Fault outputs
to the appropriate inputs
of CIE
EPS Fault GEN Fault Condition Possible Cause Action
(COM TO N/C)
CLOSED
(COM TO N/C)
CLOSED
Normal
operation.
Mains present.
Battery healthy. None.
(COM TO N/C)
OPEN
(COM TO N/C)
CLOSED Standby Mode. Mains lost (> 8 seconds) Battery driving load. Investigate loss of mains.
(COM TO N/C)
CLOSED
(COM TO N/C)
OPEN Fault Present.
Blown fuses.
Battery fault
Internal fault.
Investigate fault source using
diagnostic LED #4.
Rectify fault where possible.
(COM TO N/C)
OPEN
(COM TO N/C)
OPEN
PSU
Shutdown.
Mains lost (> 8 seconds)
Standby battery exhausted. Restore mains as soon as possible.
Connecting the Load (with OUTPUT MONITOR jumper fitted)
15. When monitoring the PSU outputs, the STV can either consider
the outputs as 2 individual, unrelated loads or will monitor the
two outputs as a single dual-power transmission path (see
section 43 for DUAL-PATH monitoring). With the OUTPUT
MONITOR jumper fitted, the outputs are considered as two
individual loads.
Mains
I
nput
FAULT RELAY STATES
COM / NO / NC
HEALTHY
COM / NO / NC
FAULT
GEN EPS
COM / NO/ NC COM / NO/ NC
Relay Rating: 1A @ 30V dc (60V dc max), Volt-free, change-over (SPDT) form C
++ - - +
2x LOAD
OUTPUTS
M A INS FUSE
FUSE #1
-
LOAD OUTPUT
+
LO AD 1
-
+
LO AD 2

5
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
16. Connect the load (output) wiring as shown here. Cable tie to fixing point provided (adjacent to exit
hole).
17. If only one load is connected, the PSU will continue to monitor both outputs
Warning: do not overload the PSU, the ImaxA and ImaxB value is shared between both outputs
18. Re-apply mains. Verify the following
LED # Symbol LED Colour Function
1 Mains Constant Green Indication: Mains supply = OK
2 Batt Constant Yellow Indication: Battery Fault = missing battery indicated
3 Fault Yellow FLASH x1
(repeating)
Indication: Fault with PSU = due to missing battery
4 Diagnostic Red FLASH x2 (repeating) Indication: Fault = missing battery indicated
5 OP1* Constant Green Indication: Output 1 = OK
6 OP2* Constant Green Indication: Output 2 = OK
19. If connected, verify that the EPS Fault monitor shows a (com to n/c) CLOSED contact and the GEN PSU
Fault monitor shows an (com to n/c) OPEN contact.
20. Perform a full functional test of the connected system (load) including full alarm condition, then
disconnect the mains supply.
Battery Charger Setting
21. Set the correct charger mode by fitting the jumper to the appropriate charger mode header.
Use the table below to select the appropriate charger mode
Battery mode selected
Mode 1
(DEFAULT)
Mode 2
Mode 3
Battery Capacity (2x 12V)
7 Ah 12 Ah 17 Ah 24 Ah 38 Ah 65Ah
EN54
-
4
Continuous Output Current
No charging (Imax B)
With Charging (Imax A)
5.7 A
(c) 5.0 A
5.7 A
(b) 4.0 A
5.7 A
3.0 A
Constant current charg
e
0.
70
A
1.50 A
2.60A
EN12101
-
10 (ImaxB)
For 180s at end of standby period
5.7A
EN12101-10 Max
Standby current
(Imax Standby)
4hr standby
1.10 A
1.90 A
2.66 A
3.70
A
5.
0
0 A
5.0
0 A
24hr standby
0.25 A
0.43 A
0.60 A
0.83A
1.30 A
(a)
2.25
A
72hr standby
0.10 A
0.17 A
0.25
A
0.33 A
0.52 A
0.90
A
a. EXAMPLE (a): for EN12101 AOV
systems, an 2405ST set to MODE 3, with
2x 65Ah batteries, can maintain 2.25A
load for 24hrs and will be able to deliver
5.7A (ImaxB) for 180s at the end of that
period
b. EXAMPLE (b): for EN54 Fire systems, an
2405ST, set to MODE 2 with 2x 24Ah
batteries, can support a maximum of 4.0A (ImaxA) load whilst charging the batteries
c. EXAMPLE (c): for EN54 Fire systems, an 2405ST set to MODE 1, with 2x 18Ah batteries can
support a maximum of 5.0A (ImaxA) load whilst charging the batteries
Installing the Standby Battery
CHARGER MODE
2
1
324Ah / 38Ah
12Ah / 18Ah
7Ah (DEFAULT)
ImaxA
2.0A Total
1.75A Total
1.0A Total

6
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
Compatible Batteries
Battery Capacity (2x 12V)
Type (closed) VRLA.:
PowerSonic model
Yuasa model
Interlogix model
Europa model
7 Ah
PS-1270
NP7-12
BS127N
EB12-7.2
12 Ah
PS-12120
NP12-12
BS130N
EB12-12
17/18 Ah
PS-12180S
NP17-12I
BS131N
EB12-18
24 Ah
PS-12260S
NP24-12I
BS129N
EB12-26
38 Ah
PS-12380
NP38-12I
BS132N
EB12-44
65Ah
PS-12650
NP65-12l
BS133N
Battery Location
22. Mount two 12V batteries in lower part of enclosure, see below for correct orientation.
23. Note position of ‘H’ box brackets for each battery option.
24. Ensure all battery terminals are sufficiently insulated to prevent accidental shorting to each other or the
enclosure metalwork.
Warning: Always use two 12V batteries connected in series. This product will not work with one 12V battery.
25. The Battery box is used for 65 Ah batteries and designed to be floor mounted. DO NOT suspend from
wall.
26. It is important that the battery box and the PSU are co-located as shown, and connected using the 3m
battery-cable (provided). A fixing bracket is provided to secure the Battery Box to the wall to prevent it
moving away from the wall.
2405ST in C box with 7Ah
batteries
2405ST in E box with 17Ah
batteries
2405ST in K box with 12Ah
batteries
2405ST in H box with 24Ah batteries
(battery omitted for clarity)
2405ST in H box with 38Ah batteries
Fit retaining
brackets
Fit spacers

7
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
Figure 3 – Use of BATT-BOX-65
27. Where a dual box solution (PSE and CIE in separate enclosures) is used all cabling between the two
boxes should be routed to use separate case entry/exit holes from other cabling using suitable cable
glands to protect the cables.
28. Connect the two 12 V standby batteries in series using the single link cable provided. Connect the
negative of one battery to the positive of the other battery.
CAUTION – DO NOT CONNECT the two remaining (free) battery terminals to each other
29. Using the battery lead provided, connect the two white wires to the “Temp” terminals on the PSU
(polarity is not important) and the RED lead to “Bat+” and
the BLACK lead to “Bat–“.
CAUTION: Connect battery leads to PSU terminals FIRST - THEN
connect to the battery LAST.
30. Connect the red battery lead to the free positive battery
terminal and the black battery lead to the free negative
battery terminal.
CAUTION – significant energy can be released from an SLA
battery. When connecting the last battery lead, take extreme
care to attach the cable ONLY to the correct terminal. Avoid
shorting it to any other terminal or conducting surface.
CAUTION – the supplied battery lead contains a temperature sensor – DO NOT attempt to modify this
lead in any way and do not use an alternative method of connecting the batteries.
31. Reconnect the mains supply and verify that Fault LED #3 is off and Battery LED #2 indicates flashing or
constant Green. 2405ST only accepts batteries >= 22V.
Note: Batteries as low as 19V may be connected, but this is NOT ADVISED as this could indicate damaged
batteries. To connect batteries as low as 19V, carefully disconnect one white temperature sensor wire from
the “TEMP” terminal block). This will induce a thermistor fault. Then wire the batteries to the terminals
-
+ -
T T
12V
BATTERY
+ -
12V
BATTERY
+ -
FAULT OUTPUTS
TEMPER ATURE SENSOR
SER IES BATTERY LINK
20mm > Spacing < 300mm
Floor
Fit conduit
between
boxes

8
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
(follow steps 29-30). Once the batteries are charging, clear the thermistor fault by reconnecting the
thermistor wire.
32. Verify GEN Fault relay n/c contact is closed, (com to n/c terminals = short circuit)
33. Disconnect the mains power. Verify that the green Mains LED #1 extinguishes, and the Yellow Fault LED
#3 starts to flash (indicating that the PSE is running from its standby batteries).
34. If connected, verify that the EPS Fault output shows an open contact (com and n/c terminals = open
circuit) and the GEN PSU Fault output shows a closed contact (com and n/c terminals = short circuit).
35. Verify that the standby batteries are now supporting the system load. Perform a full functional test of
system including full alarm condition Note: ensure batteries have sufficient charge to support the
system under full load.

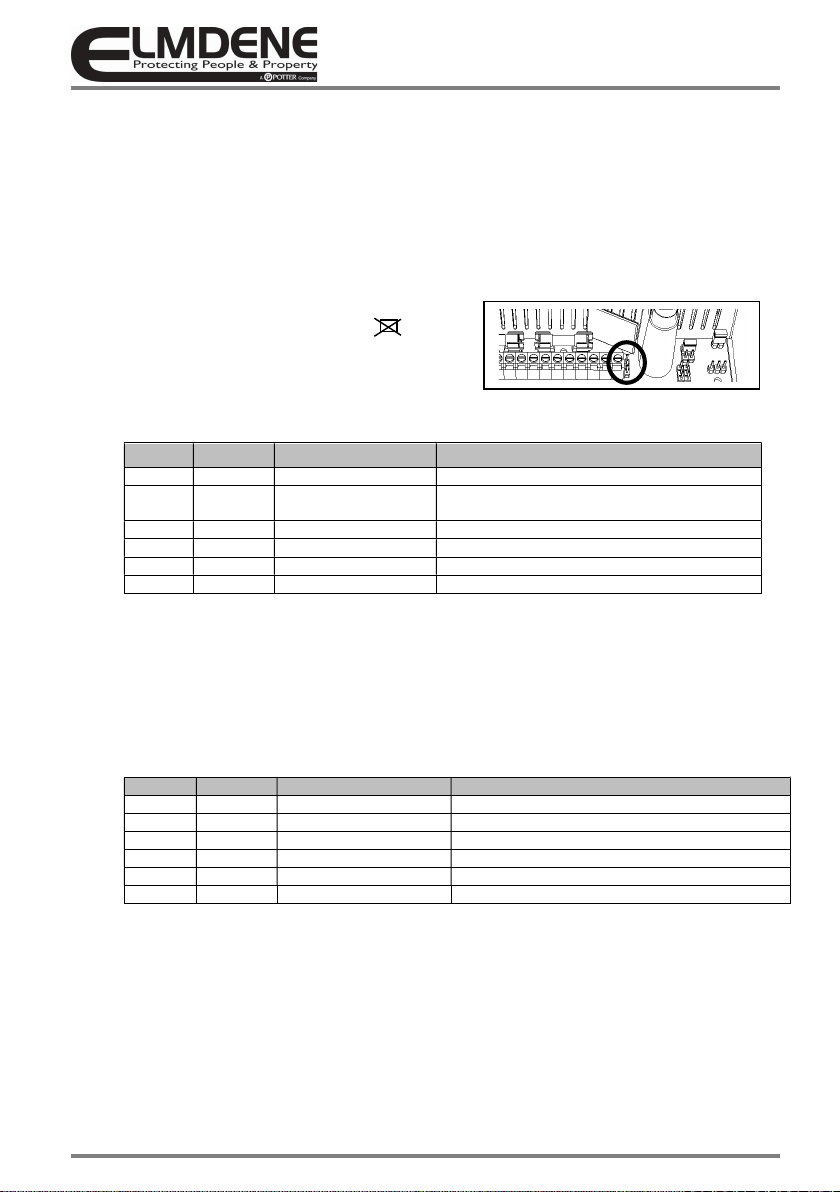

36. To prevent battery fault indication when no battery
is required, fit the “No Battery” link ( ).
Please note; fitting of this link invalidates EN54-4,
EN12101-10 and NF S 61-940 compliance.
Final Commission
37. Reconnect the mains. Verify that
LED # Symbol LED Colour Function
1 Mains Constant Green Indication: Mains supply = OK
2 Batt Green flash x1
(repeating)
Indication: Battery Charging (bulk phase)
3 Fault OFF Indication: No Fault
4 Diagnostic OFF Indication: No Fault
5 OP1 Constant Green Indication: Output 1 = OK
6 OP2 Constant Green Indication: Output 2 = OK
(See also ‘Status and Fault-Diagnostic LED Indication‘ table for full details of LED indications.)
38. If connected, verify that EPS Fault output shows a (com to n/c) closed contact and the GEN PSU Fault
output also shows a (com to n/c) closed contact.
39. Disconnect one of the battery leads, ensuring that no exposed section of conductor or connector is
allowed to contact exposed metal-work, other PSE terminals, or other battery terminals.
40. Verify that, in less than 1 minute the following conditions are met:
LED # Symbol Green ON Function
1 Batt Constant Yellow Indication: Battery Fault = missing battery indicated
2 Fault Yellow flash x1 (repeating Indication: Fault with PSU = due to missing battery
3 Diagnostic Red flash x2 (repeating) Indication: Fault = missing battery indicated
4 OP1 Constant Green Indication: Output 1 = OK
5 OP2 Constant Green Indication: Output 2 = OK
6 Batt Constant Yellow Indication: Battery Fault = missing battery indicated
(See also ‘Status and Fault-Diagnostic LED Indication’ table for full details of LED indications.)
41. Reconnect the battery lead and, after approximately 3s, verify that that the Fault LED #3 does not flash.
(Audible click can be heard as the battery relay closes, then a second click while the charger is tested.)
Note: If it is necessary to obtain confirmation of charging current; between steps 28 and 29, an ammeter
can be placed in series with the battery leads. Continue to observe caution with all exposed conductors
when inserting or removing the meter and when restoring normal battery wiring
42. Close cover and secure using fastening screws provided.
-
+ -
T T
FAULT O UTPUTS
FUSE #1
FUSE #2

9
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
OPERATING INSTRUCTIONS
In the event of loss of mains, a battery fault or a GEN fault, the corresponding Fault relay (signal) contacts
will open, and the LED indicators will display the fault condition and overall status of PSE.
If the output of the PSE fails, the cause of the failure should be investigated, also by referring to the ’Status
and Fault-Diagnostic LED Indication‘ table, e.g. short circuit on load terminals or connection of a deeply
discharged battery. The fault should be rectified before restoring power to the PSE.
If any of the fuses require replacing, ensure the correct fuse rating and type is used – see page 2
MAINTENANCE
This unit is intended for use by Service Personnel only. There are NO USER SERVICEABLE parts inside.
There is no regular maintenance required of the PSE other than periodic testing, and replacement of the
standby battery. Reference should be made to the battery manufacturer's documentation to determine
typical/expected battery life with a view to periodic replacement of the battery.
TROUBLE SHOOTING
Front Panel Legend
The PSU will identify a fault the PSU (LED3)
Further information can be obtained by observing the flash sequence of LED 4 and using the tables below
LED KEY ON OFF FLASHING ON/OFF FLASHING GREEN/YELLOW
Mains
LED #1 Condition Possible Cause Action
GREEN
Mains OK
YELLOW
Mains lost
(Battery supporting load)
Mains lost /
Battery supporting load. Investigate loss of mains.
OFF
PSU off – No power
(Battery depleted)
Mains lost /
Battery not supporting load.
Restore mains, confirm batteries are in
working condition
# Indicator Functional states
1 Mains status Fault / Standby (support) operation / OK
2 Battery status Battery Fault / Bulk Charging / Battery OK
(charged)
3 Fault status No Fault(s) / GEN (PSU) Fault
4 Diagnostic
status
See ‘Status and Fault-Diagnostic LED
(Indication’ table, below)
5 OP1 status Fault / OK
6 OP2 status Fault / OK

10
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
Batt
LED #2 Condition Possible Cause Action
GREEN/YELLOW
Fast Flash
Battery
in process of connecting Battery connecting
No action –
Wait for battery connection to complete
GREEN Flash x1
Normal operation
(Battery connected) Battery in bulk charge No action – Battery charging normally
GREEN
Normal operation
(Battery connected) Battery healthy.
No action –
System healthy.
(Battery in good state of charge)
YELLOW
Battery fault
Battery disconnected
Low Battery Volts
High impedance in battery
connection.
Battery internal fault (detected
during load test).
Note LED #4 Flash sequence and refer to
table
Fault
LED #3 Condition Possible Cause Action
OFF
Normal Conditions No faults No action
YELLOW
Flash x1
PSU Fault
See LED #4 Flash sequence table Note LED #4 Flash sequence and refer to table
Diagnostic
LED #4 Condition Possible Cause Action
RED
Flash x1
No Output
Output fuse fail
Output overload or
short circuit.
Check and replace output fuse.
Disconnect and test output load.
RED
Flash x2
No Battery
Low Battery Volts.
Battery disconnected
Battery heavily discharged
Low Battery Volts
Check battery connections
Check battery fuse.
Check battery condition / replace battery.
RED
Flash x3
Battery Fault.
High impedance in battery
connection.
Battery internal fault (detected
during load test).
Check battery connections for corrosion.
Replace battery if aged.
RED
Flash x4
Charger Fault. Internal failure of battery charger. Return to manufacturer.
RED
Flash x5
Battery Temperature Probe
Fault.
Battery temperature monitor
disconnected or damaged.
PSU running in Safe Mode.
Check temperature sensor connections
and condition of sensor.
Replace if suspect
RED
Flash x6
Dual Path Fault.
Fault in output connections to the
load
(DUAL-PATH mode active only).
Check all cables between PSU and load.

11
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
OP1 & OP2
LEDs #5 or #6 Condition Possible Cause Action
GREEN
Normal operation No faults. No action
YELLOW No Output
Output fuse fail
Output overload or
short circuit.
Check and replace output fuse.
Disconnect and test output load.
NOTE: after applying mains power – if red LED is ON (not flashing), this indicates a failed calibration check, although a calibration fault
is not indicated via the GEN fault relay. This fault should never be seen, but in the extremely rare event that it does, the PSU will
operate using default values, but some functions may be compromised, and you are strongly advised to contact Elmdene Technical
Support to return the product. Indication of a calibration fault will be suppressed (but not cleared) when the battery is connected.
DEVELOPER SECTION
Figure 4 – Terminal layout and mode selection
Dual-Path power transmission monitoring feature
43. The 2405ST PSU has an optional mode designed to
work with systems that require dual-power
transmission paths. When enabled, the PSU compares
the outputs and reports a load imbalance of more than
10% as an OUTPUT FAULT (LED 4 x6 Flashes) and is
enabled by removing the header marked OP1 ≠ OP2
This mode meets the requirements of EN54-13 Section
5.3.3.1 SFAULT and Section 5.3.4.2 PFAULT warning
conditions, for loads above 200mA.
It is still necessary for the connected equipment to be
designed to accept two separate power inputs, such
that a short to ground of either power transmission
path, will not inhibit the equipment performance.
PSU Addressable Data link communication protocol
44. The 2405ST PSU has an addressable RS485 communication port, that can be enabled to provide the
internal PSU data, and includes; Mains Voltage; Output1 Voltage/Current; Output2 Voltage/Current;
Battery Voltage; Charger Current; Charger setting; GEN Fault condition; EPS Fault condition; Diagnostics
fault status (condition 1-6), Battery temperature, Charger status, unit address
45. To enable this feature and obtain the protocol guide, please contact Elmdene Technical Support
Mains
I
nput
Load
Outputs
B
attery
Connection
GEN & EPS
Relay Outputs
‘No battery’
Select
Unit Ad
d
Select
RS485
Link
Temp P
robe
Inputs
O
P2
Fuse PTC Battery
Fuse
OP1 ≠ OP2
S
elect
LED Status
Indicators
Charger
S
etting
OP1
Fuse
Mains
F
use
OP1≠OP2
DUAL- PATH ACTIVE
DUAL-PATH MODE FAULT SIGNALLING
-
PSU LOAD OUTPUT
1 & 2
+
DU AL PATH LO A D I NPUT
-
+
-
+
•FA ULT S IGNA LLED WHEN
M O RE T HAN 1 0%
I M BA LA NCE BETWEEN
P A THS
RE F : E N 54-13 5 .3 .4.1 S
FAULT
& 5 .3.4 .2 P
FAULT
V ALUES
+
-
* E quipment mus t be have 2 separate power inputs c a pable of
withs ta nding a s hort to ground on one path

12
Technical Support: [phone] (option 3) PAK200789_02A July 2019 ©2019 ELMDENE INTERNATIONAL LTD
DISPOSAL OF PRODUCT AT END OF LIFE
This product falls within the scope of EU Directives 2012/19/EU Waste Electrical and Electronic Equipment (WEEE) and 2013/56/EU (Battery). At
the end of life, the product must be separated from the domestic waste stream and disposed via an appropriate approved WEEE disposal route
in accordance with all national and local regulations.
Before disposal of the product, any batteries must be removed, and disposed separately via an appropriate approved battery disposal route in
accordance with all national and local regulations. Package used batteries safely for onward transport to your supplier, collection point or
disposal facility.
Caution: Risk of fire or explosion if bare battery wires are allowed to touch.
See Specification for battery type information. The battery is marked with the crossed-out wheelie bin symbol, which may include lettering to
indicate cadmium (Cd), lead (Pb), or mercury (Hg).
For more information see: www.recyclethis.info
The packaging supplied with this product may be recycled. Please dispose of packaging accordingly.
COMPLIANCE
This power supply unit meets the essential requirements of the following EU Directives:
CPR: 305/2011/EU EMC: 2014/30/EU Low Voltage: 2014/35/EU WEEE: 2012/19/EU RoHS2: 2011/65/EU
Functional Standards: EN54-4:1997 +A1 +A2
EN12101-10:2005
Environmental Class I
Equipment Class A
(* Suitable for all systems)
VdS 2541:1996-12
Environmental Class III
Certification Bodies: AFNOR / CNPP / VdS
Declaration of Performance: DOP2018-026 DOP2018-027
DOP2018-028 DOP2018-029
0333
Elmdene International Ltd
3 Keel Close Portsmouth PO35QD
19
0333-CPR-075602
EN54-4:1997 +A1 +A2
EN12101-10:2005
Power Supplies intended for use in fire
detection and fire alarm systems.
Approval Certificates and the
Declaration of Performance can be
downloaded from the Elmdene website:
https://www.elmdene.co.uk
