Elo TouchSystems 15A2 for wireless card User manual

Revision B
P/N E815320

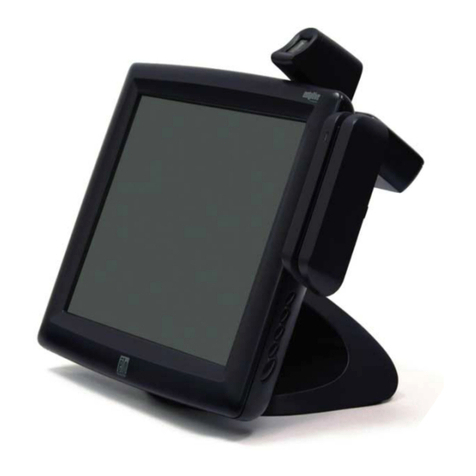

Installing the Biometric FPR for 1729/17A2/15A2
Caution:
Before attaching the Biometric FPR to your monitor, make sure that power to the monitor and computer is off.
Make sure a USB cable
is connected to the USB
connector on monitor.
Connect the other end of
the USB cable to a USB
port in your computer.
821107900402
*For necessary drivers please refer to:
D:\Touch Monitor Peripherals\Fingerprint Reader\Fingerprint Reader 1729 17A2\
Drivers\
Note: “D” refers to the drive in which the TouchTools CD is located.
2008 Tyco Electronics.
Note: For ESY17A2 and ESY15A2 touchcomputers, the software for the peripheral
is already installed on the touchcomputer. For the ET1729L touchmonitor, refer to
the following:
North America
Elo TouchSystem
301 Constitution Drive,
Menlo Park, CA 94025
www.elotouch.com
Europe
Tel [phone]
Fax [phone]
[email protected]
Asia-Pacific
Tel [phone]
Fax [phone]
www.tps.co.jp
Latin America
Tel [phone]
Fax [phone]
www.elotouch.com.ar
Elo Technical Support
:
www.elotouch.com/go/websupport
www.elotouch.com/go/contactsupport
Online self-help
Technical Support contacts in your region:

Insert the connector of the cable
accompanying the Biometric FPR
into the mating connector on the
accessory hub in the rear of the
unit.
Turn off power to the unit and
computer.
Place the unit upright then turn on.
Turn unit upside down and take
off the back cover insert
Place the Biometric FPR onto the rear
of the unit, along the unit’s top side.
Unsecure the Biometric FPR door
from the unit’s top side.
Secure the Biometric FPR to the
unit using two screws from the
Biometric FPR Kit.
3
4
5
6
Replace the back cover insert.
8
1
7
2
