Installation Manual
20002298, Rev CH
April 2020

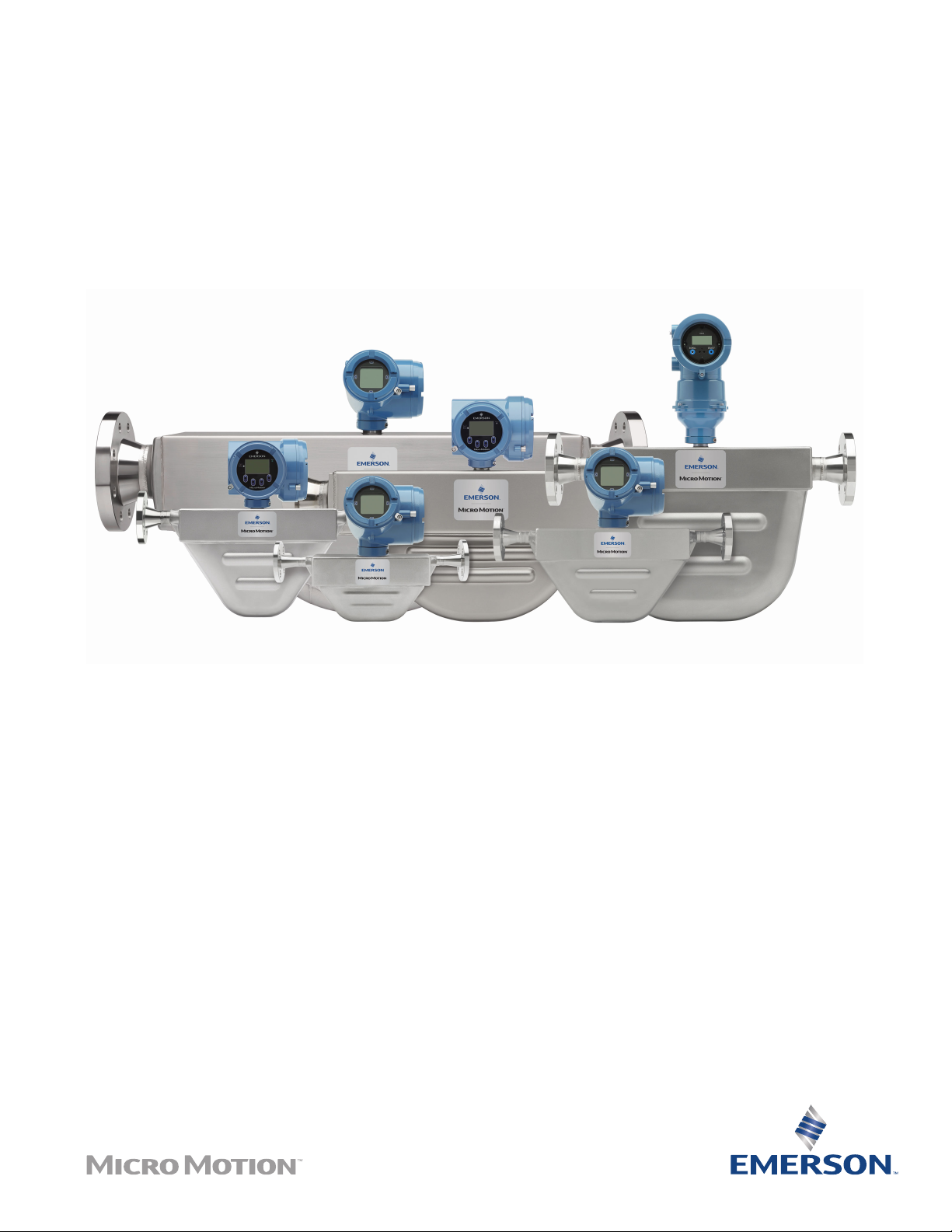

Micro Motion™ F-Series Coriolis Flow and
Density Sensors

Safety messages
Safety messages are provided throughout this manual to protect personnel and equipment. Read each safety message carefully
before proceeding to the next step.
Safety and approval information
This Micro Motion product complies with all applicable European directives when properly installed in accordance with the
instructions in this manual. Refer to the EU declaration of conformity for directives that apply to this product. The EU declaration
of conformity, with all applicable European directives, and the complete ATEX Installation Drawings and Instructions are available
on the internet at www.emerson.com or through your local Micro Motion support center.
Information affixed to equipment that complies with the Pressure Equipment Directive, can be found on the internet at
www.emerson.com.
For hazardous installations in Europe, refer to standard EN 60079-14 if national standards do not apply.
Other information
Full product specifications can be found in the product data sheet. Troubleshooting information can be found in the configuration
manual. Product data sheets and manuals are available from the Micro Motion web site at www.emerson.com.
Return policy
Follow Micro Motion procedures when returning equipment. These procedures ensure legal compliance with government
transportation agencies and help provide a safe working environment for Micro Motion employees. Micro Motion will not accept
your returned equipment if you fail to follow Micro Motion procedures.
Return procedures and forms are available on our web support site at www.emerson.com, or by phoning the Micro Motion
Customer Service department.
Emerson Flow customer service
Email:
•Worldwide: [email protected]
•Asia-Pacific: [email protected]
Telephone:
North and South America Europe and Middle East Asia Pacific
United States 800-522-6277 U.K. and Ireland 0870 240 1978 Australia 800 158 727
Canada [phone] The Netherlands [phone]
6666
New Zealand 099 128 804
Mexico [phone] France [phone]
901
India 800 440 1468
Argentina [phone] Germany 0800 182 5347 Pakistan 888 550 2682
Brazil [phone] Italy [phone] China [phone]
Chile [phone] Central & Eastern [phone]
111
Japan [phone]
Peru [phone] Russia/CIS [phone] South Korea [phone]
Egypt 0800 000 0015 Singapore [phone]
Oman 800 70101 Thailand 001 800 441 6426
Qatar 431 0044 Malaysia 800 814 008
Kuwait 663 299 01
South Africa 800 991 390
Saudi Arabia 800 844 9564
UAE 800 0444 0684
2

Contents
Chapter 1 Before you begin........................................................................................................5
1.1 About this document...................................................................................................................5
1.2 Hazard messages.........................................................................................................................5
1.3 Related documentation............................................................................................................... 5
Chapter 2 Planning.................................................................................................................... 7
2.1 Installation checklist.................................................................................................................... 7
2.2 Best practices.............................................................................................................................. 8
2.3 Temperature limits...................................................................................................................... 8
Chapter 3 Mounting.................................................................................................................11
3.1 Mount the sensor.......................................................................................................................11
3.2 Attach extended electronics...................................................................................................... 11
Chapter 4 Wiring..................................................................................................................... 13
4.1 Options for wiring......................................................................................................................13
4.2 Connect 4-wire cable................................................................................................................. 14
4.3 Connect the 9-wire cable .......................................................................................................... 18
Chapter 5 Grounding................................................................................................................19
Chapter 6 Supplementary information.....................................................................................21
6.1 Purge the sensor case ................................................................................................................21
6.2 Pressure relief............................................................................................................................ 22
Installation Manual Contents
20002298 April 2020
Installation Manual 3

Contents Installation Manual
April 2020 20002298
4 Micro Motion F-Series

1 Before you begin
1.1 About this document
This document provides information on planning, mounting, wiring, and grounding the F-
Series sensor.
The information in this document assumes that users understand basic transmitter and
sensor installation, configuration, and maintenance concepts and procedures.
1.2 Hazard messages
This document uses the following criteria for hazard messages based on ANSI standards
Z535.6-2011 (R2017).
DANGER
Serious injury or death will occur if a hazardous situation is not avoided.
WARNING
Serious injury or death could occur if a hazardous situation is not avoided.
CAUTION
Minor or moderate injury will or could occur if a hazardous situation is not avoided.
NOTICE
Data loss, property damage, hardware damage, or software damage can occur if a
situation is not avoided. There is no credible risk of physical injury.
Physical access
NOTICE
Unauthorized personnel can potentially cause significant damage and/or misconfiguration
of end users' equipment. Protect against all intentional or unintentional unauthorized use.
Physical security is an important part of any security program and fundamental to
protecting your system. Restrict physical access to protect users' assets. This is true for all
systems used within the facility.
1.3 Related documentation
You can find all product documentation on the product documentation DVD shipped with
the product or at www.emerson.com.
See any of the following documents for more information:
•The hazardous area approvals documentation shipped with the sensor or available at
www.emerson.com/flowmeasurement.
•Micro Motion F-Series Flow and Density Meters Product Data Sheet
Installation Manual Before you begin
20002298 April 2020
Installation Manual 5

•Micro Motion 9-Wire Flowmeter Cable Preparation and Installation Guide
•The transmitter installation and configuration and use guides
Before you begin Installation Manual
April 2020 20002298
6 Micro Motion F-Series

2 Planning
2.1 Installation checklist
□Make sure that the hazardous area specified on the approval tag is suitable for the
environment in which the meter will be installed.
WARNING
Failure to abide by approvals can cause an explosion resulting in injury or death.
□Verify that the local ambient and process temperatures are within the limits of the
meter.
□If your sensor has an integral transmitter, no wiring is required between the sensor and
transmitter. Follow the wiring instructions in the transmitter installation manual for
signal and power wiring.
□If your transmitter has remote-mounted electronics, follow the instructions in this
manual for wiring between the sensor and the transmitter, and then follow the
instructions in the transmitter installation manual for power and signal wiring.
Table 2-1: Maximum cable lengths
Cable type To transmitter Maximum length
Micro Motion
9-wire
9739 MVD and 5700
transmitter
1,000 ft (305 m)
All other MVD transmitters 60 ft (18 m)
Micro Motion
4-wire
All 4-wire MVD transmitters 1,000 ft (305 m) without Ex-approval
500 ft (152 m) with IIC-rated sensors
1,000 ft (305 m) with IIB-rated sensors
Table 2-2: Maximum lengths for user-supplied 4-wire cable
Wire function Wire size Maximum length
Power (VDC) 22 AWG (0.326 mm²) 300 ft (91 m)
20 AWG (0.518 mm²) 500 ft (152 m)
18 AWG (0.823 mm²) 1,000 ft (305 m)
Signal (RS-485) 22 AWG (0.326 mm²) or larger 1,000 ft (305 m)
□For optimal performance, install the sensor in the preferred orientation. The sensor will
work in any orientation as long as the flow tubes remain full of process fluid.
Installation Manual Planning
20002298 April 2020
Installation Manual 7

Table 2-3: Preferred sensor orientation
Liquids
Gases
Slurries and self-draining
applications
□Install the meter so that the flow direction arrow on the sensor case matches the actual
forward flow of the process. (Flow direction is also software-selectable.)
2.2 Best practices
The following information can help you get the most from your sensor.
•There are no pipe run requirements for Micro Motion sensors. Straight runs of pipe
upstream or downstream are unnecessary.
•If the sensor is installed in a vertical pipeline, liquids and slurries should flow upward
through the sensor. Gases should flow downward.
•Keep the sensor tubes full of process fluid.
•For halting flow through the sensor with a single valve, install the valve downstream
from the sensor.
•Minimize bending and torsional stress on the meter. Do not use the meter to align
misaligned piping.
•The sensor does not require external supports. The flanges will support the sensor in
any orientation.
2.3 Temperature limits
Sensors can be used in the process and ambient temperature ranges shown in the
temperature limit graphs. For the purposes of selecting electronics options, temperature
limit graphs should be used only as a general guide. If your process conditions are close to
the gray area, consult technical support.
Notes
•In all cases, the electronics cannot be operated where the ambient temperature is
below -40 °F (-40.0 °C) or above 140 °F (60.0 °C). If a sensor is to be used where the
Planning Installation Manual
April 2020 20002298
8 Micro Motion F-Series

ambient temperature is outside of the range permissible for the electronics, the
electronics must be remotely located where the ambient temperature is within the
permissible range, as indicated by the shaded areas of the temperature limit graphs.
•Temperature limits may be further restricted by hazardous area approvals. Refer to the
hazardous area approvals documentation shipped with the sensor or at
www.emerson.com/flowmeasurement.
•The extended-mount electronics option allows the sensor case to be insulated without
covering the transmitter, core processor, or junction box, but does not affect
temperature ratings. When insulating the sensor case at elevated process
temperatures above 140 °F (60.0 °C), ensure electronics are not enclosed in insulation
as this may lead to electronics failure.

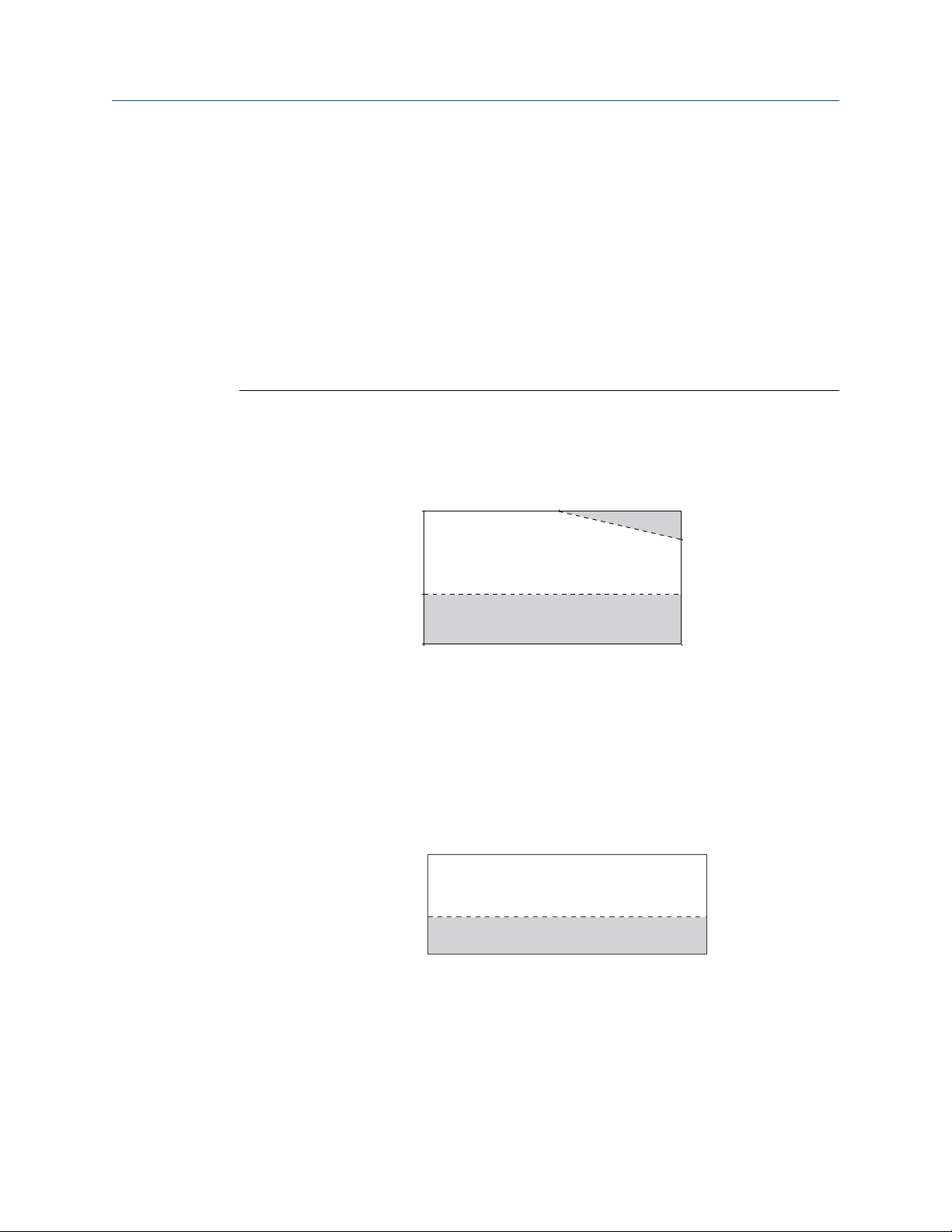

Ambient and process temperature limits for standard-temperature models
The following chart shows ambient and process temperature limits for standard
temperature models using 316L stainless steel (S), nickel alloy C22 (H), and high pressure
(P).
140 (60)
–40 (–40)
81
(27)
–148 (–100)
–148
(–100)
400
(204)
140 (60)
A
B
B
Tamb
Tproc
Tamb = Ambient temperature °F (°C)
Tproc = Process temperature °F (°C)
A = All available electronic options
B = Remote mount electronics only
Ambient and process temperature limits for high-temperature models
The following chart shows ambient and process temperature limits for high temperature
models using 316L stainless steel (A) and nickel alloy C22 (B).
-40 (-40)
-148 (-100)
T
amb
T
proc
A
B
140 (60)
-40
(-40)
662
(350)
Tamb = Ambient temperature °F (°C)
Tproc = Process temperature °F (°C)
A = All available electronic options
B = Remote mount electronics only
Installation Manual Planning
20002298 April 2020
Installation Manual 9

Planning Installation Manual
April 2020 20002298
10 Micro Motion F-Series

3 Mounting
3.1 Mount the sensor
Use common practices to minimize torque and bending load on process connections.
NOTICE
•Lifting the sensor by the electronics or purge connections can damage the device.
•To reduce the risk of collecting liquid in the electronics housing, do not orient
transmitters or sensor junction boxes with their conduit openings pointing upward.
Procedure
Mount the sensor.
Notes
•Do not use the sensor to support the piping.
•The sensor does not require external supports. The flanges will support the sensor in
any orientation.
3.2 Attach extended electronics
If your installation has a sensor with extended electronics, you will need to install the
extender onto the sensor case.
Extended core processors are matched at the factory to specific sensors. Keep each core
processor together with the sensor with which it was shipped.
Installation Manual Mounting
20002298 April 2020
Installation Manual 11

NOTICE
Keep the extender and feedthrough clean and dry. Moisture or debris in the extender or
feedthrough can damage electronics and result in measurement error or flowmeter
failure.
Procedure
1. Remove and recycle the plastic cap from the feedthrough on the sensor.
Figure 3-1: Feedthrough and extender components
G
H
E
D
C
A
B
F
A. Transmitter or core processor
B. Extender
C. O-ring
D. Feedthrough
E. Clamping ring
F. Clamping screw
G. Plastic plug
H. Plastic cap
2. Loosen the clamping screw and remove the clamping ring. Leave the O-ring in place
on the feedthrough.
3. Remove and recycle the plastic plug from the extender.
4. Fit the extender onto the feedthrough by carefully aligning the notches on the
bottom of the extender with the notches on the feedthrough.
5. Close the clamping ring and tighten the clamping screw to 13 in lbf (1.47 N m) to
18 in lbf (2.03 N m).
Mounting Installation Manual
April 2020 20002298
12 Micro Motion F-Series

4 Wiring
4.1 Options for wiring
The wiring procedure you follow depends on which electronics option you have.
Table 4-1: Wiring procedures by electronics option
Electronics option Wiring procedure
Integral transmitter The transmitter is already connected to the sensor. No wiring is
required between sensor and transmitter. See the transmitter
installation manual for wiring the power and signal cable to the
transmitter.
Extended electronics The electronics are separated from the sensor by an extender and
must be attached as described in Attach extended electronics.
There is no wiring required because the physical connection
includes the electrical connection.
MVD™ Direct Connect ™There is no transmitter to wire. See the Micro Motion MVD Direct
Connect Meters manual for wiring the power and signal cable
between the sensor and the direct host.
Integral core processor with
remote transmitter
The core processor is already connected to the sensor. Connect a
4-wire cable between the core processor and transmitter. Refer
to Connect 4-wire cable.
Remote core processor
attached to transmitter
Connect a 9-wire cable between the sensor and the transmitter/
core processor. Refer to Connect the 9-wire cable , as well as the
Micro Motion Micro Motion 9-Wire Flowmeter Cable Preparation
and Installation Guide.
Remote core processor
separate from transmitter –
double-hop
•Connect a 4-wire cable between the core processor and
transmitter. Refer to Connect 4-wire cable.
•Connect a 9-wire cable between the sensor and the core
processor. Refer to Connect the 9-wire cable , as well as the
Micro Motion Micro Motion 9-Wire Flowmeter Cable Preparation
and Installation Guide
WARNING
Make sure the hazardous area specified on the sensor approval tag is suitable for the
environment in which the sensor will be installed. Failure to comply with the
requirements for intrinsic safety in a hazardous area could result in an explosion
resulting in injury or death.
NOTICE
Fully close and tighten all housing covers and conduit openings. Improperly sealed
housings can expose electronics to moisture, which can cause measurement error or
flowmeter failure. Inspect and grease all gaskets and O-rings.
Installation Manual Wiring
20002298 April 2020
Installation Manual 13

4.2 Connect 4-wire cable
4.2.1 4-wire cable types and usage
Micro Motion offers two types of 4-wire cable: shielded and armored. Both types contain
shield drain wires.
The cable supplied by Micro Motion consists of one pair of red and black 18 AWG
(0.823 mm²) wires for the VDC connection, and one pair of white and green 22 AWG
(0.326 mm²) wires for the RS-485 connection.
User-supplied cable must meet the following requirements:
•Twisted pair construction.
•Applicable hazardous area requirements, if the core processor is installed in a
hazardous area.
•Wire gauge appropriate for the cable length between the core processor and the
transmitter, or the host.
Wire gauge Maximum cable length
VDC 22 AWG (0.326 mm²) 300 ft (91 m)
VDC 20 AWG (0.518 mm²) 500 ft (152 m)
VDC 18 AWG (0.823 mm²) 1,000 ft (305 m)
RS-485 22 AWG (0.326 mm²) or larger 1,000 ft (305 m)
4.2.2 Prepare a cable with a metal conduit
Procedure
1. Remove the core processor cover using a flat-blade screw driver.
2. Run the conduit to the sensor.
3. Pull the cable through the conduit.
4. Cut the drain wires and let them float at both ends of the conduit.
4.2.3 Prepare a cable with user-supplied cable glands
Procedure
1. Remove the core processor cover using a flat-blade screw driver.
2. Pass the wires through the gland nut and gland body.
Wiring Installation Manual
April 2020 20002298
14 Micro Motion F-Series

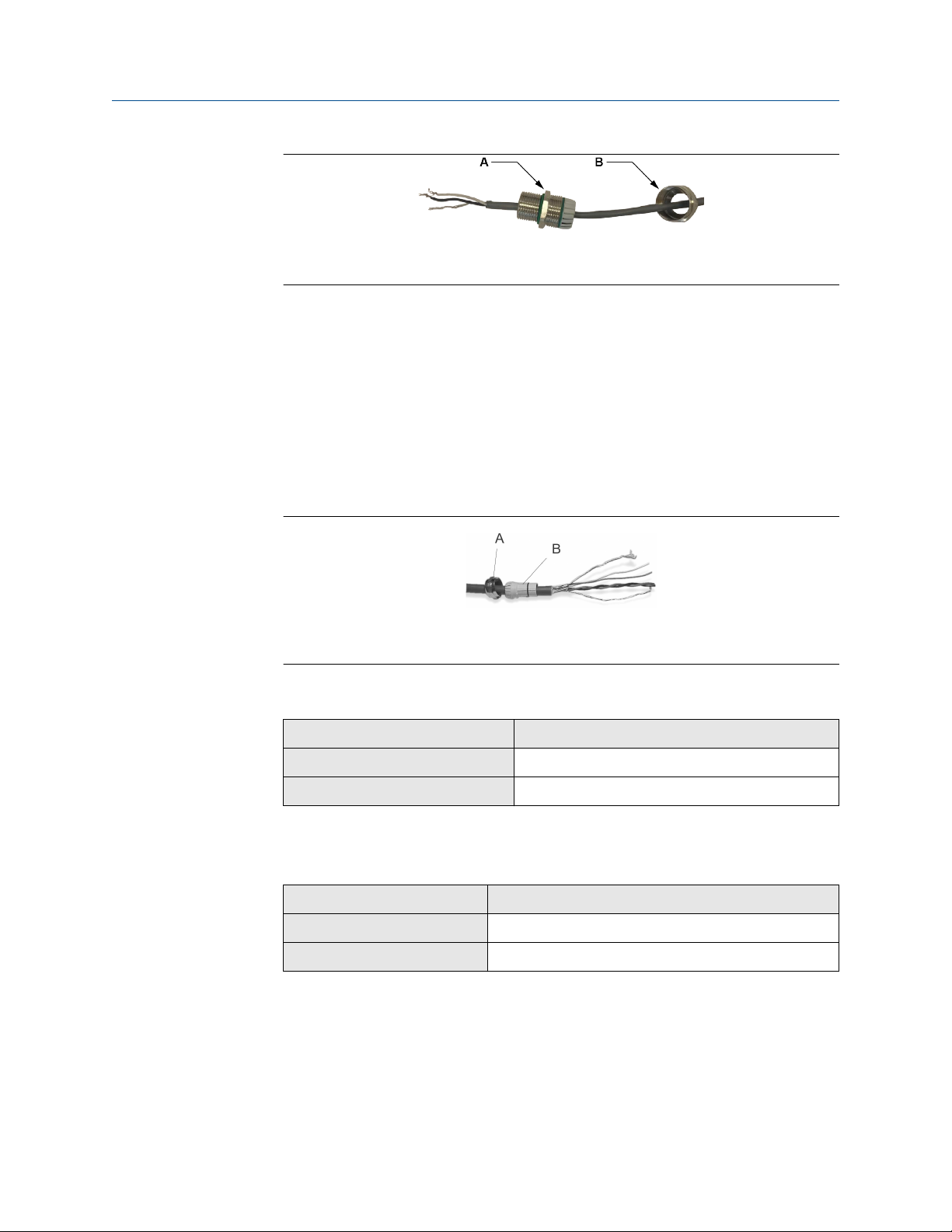

A. Gland body
B. Gland nut
3. Terminate the RS-485 shield and drain wires to the housing internal grounding
screw.
4. Assemble the gland according to vendor instructions.
4.2.4 Prepare a cable with Micro Motion-supplied cable glands
Procedure
1. Remove the core processor cover using a flat-blade screw driver.
2. Pass the wires through the gland nut and clamping insert.
A. Gland nut
B. Clamping insert
3. Strip the cable jacket.
Option Description
NPT gland type Strip 4.5 in (114 mm)
M20 gland type Strip 4.25 in (108 mm)
4. Remove the clear wrap and filler material.
5. Strip most of the shielding.
Option Description
NPT gland type Strip all but 0.75 in (19 mm)
M20 gland type Strip all but 0.5 in (13 mm)
Installation Manual Wiring
20002298 April 2020
Installation Manual 15

6. Wrap the drain wires twice around the shield and cut off the excess drain wires.
A. Drain wires wrapped around shield
7. For foil (shielded cable) only:
Note
For braided (armored cable) skip this step and contine to the next step.
Option Description
NPT
gland
type
a. Slide the shielded heat shrink over the drain wires. Ensure that the
wires are completely covered.
b. Apply 250 °F (121.1 °C) heat to shrink the tubing. Do not burn the
cable.
c. Position the clamping insert so the interior end is flush with the
braid of the heat shrink.
A. Shielded heat shrink
B. After heat is applied
M20
gland
type
Trim 0.3 in (8 mm).
A. Trim
8. Assemble the gland by folding the shield or braid back over the clamping insert and
0.125 in (3 mm) past the O-ring.
A. Shield folded back
Wiring Installation Manual
April 2020 20002298
16 Micro Motion F-Series

9. Install the gland body into the conduit opening on the core processor housing.
10. Insert the wires through the gland body and tighten the gland nut onto the gland
body.
A. Shield folded back
B. Gland body
4.2.5 Connect the wires to the core processor terminals
After the 4-wire cable has been prepared and shielded (if required), connect the individual
wires of the 4-wire cable to the terminals on the core processor.
Procedure
1. Connect the wires to the core processor terminals.
•If you are connecting to a standard core processor, use the following image and
connections:
A
B
D
C
AA
A. Terminal 1 (Power supply +): Red wire
B. Terminal 2 (Power supply -): Black wire
C. Terminal 3 (RS-485/A): White wire
D. Terminal 4 (RS-485/B): Green wire

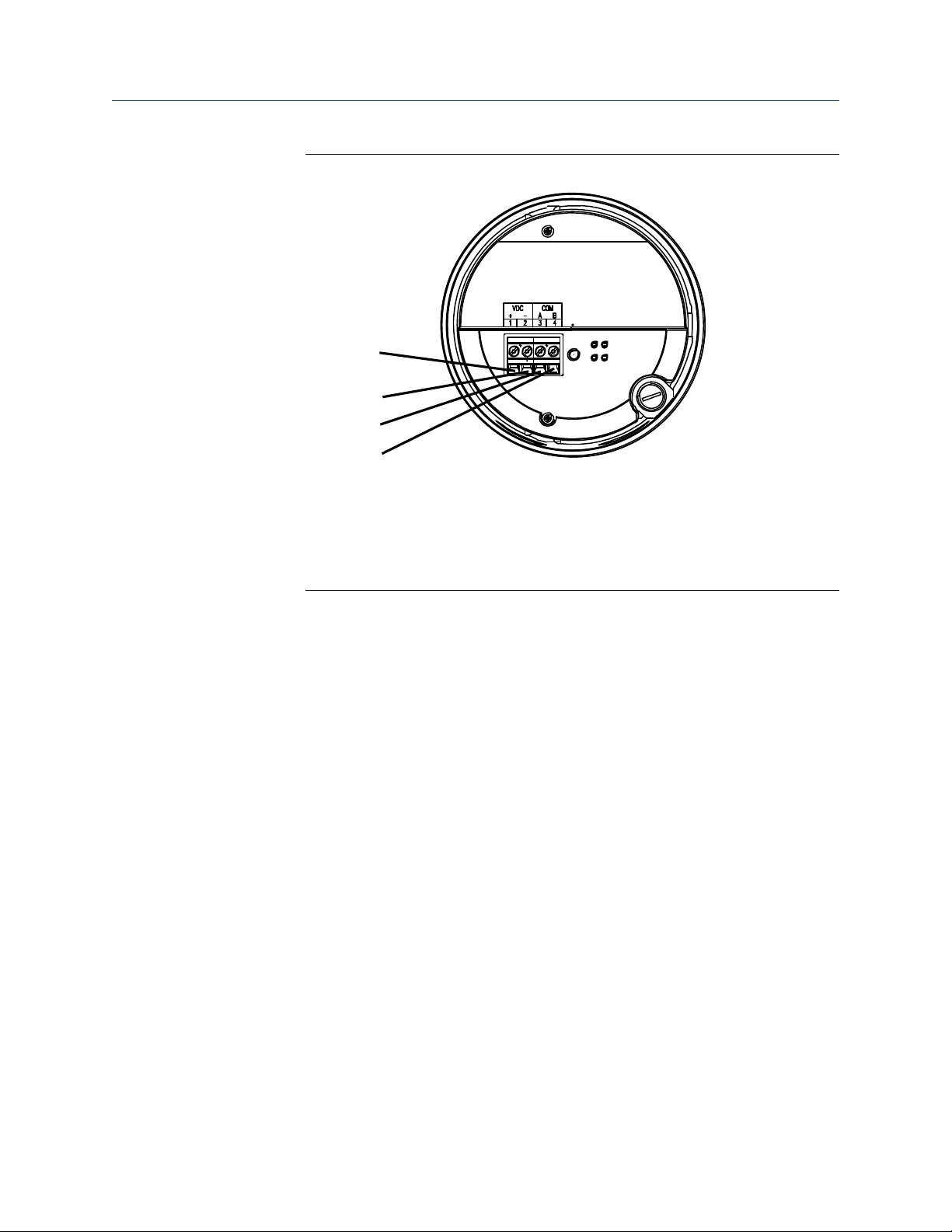

•If you are connecting to an enhanced core processor, use the following image
and connections:
Installation Manual Wiring
20002298 April 2020
Installation Manual 17

D
A
B
C
A. Terminal 1 (Power supply +): Red wire
B. Terminal 2 (Power supply -): Black wire
C. Terminal 3 (RS-485/A): White wire
D. Terminal 4 (RS-485/B): Green wire
2. Reinstall the core processor cover.
3. Torque the cover screws to:
•For aluminum housing: 10 in lbf (1.13 N m) to 13 in lbf (1.47 N m)
•For stainless steel housing: minimum 19 in lbf (2.15 N m)
If properly seated, there will be no gap between cover and base.
4. Connect the wires to the transmitter terminals using the transmitter installation
manual.
4.3 Connect the 9-wire cable
Procedure
1. Prepare and install the cable according to the instructions in the Micro Motion 9-Wire
Flowmeter Cable Preparation and Installation Guide.
2. Insert the stripped ends of the individual wires into the terminal blocks of the
junction box. Ensure that no bare wires remain exposed.
3. Match the wires color for color. For wiring at the transmitter or remote core
processor, refer to the transmitter documentation.
4. Tighten the screws to hold the wires in place.
5. Ensure integrity of gaskets, then tightly close and seal the junction box cover and all
housing covers.
6. Refer to the transmitter installation manual for signal and power wiring
instructions.
Wiring Installation Manual
April 2020 20002298
18 Micro Motion F-Series

5 Grounding
The meter must be grounded according to the standards that are applicable at the site.
The customer is responsible for knowing and complying with all applicable standards.
Prerequisites
Use the following guides for grounding practices:
•In Europe, IEC 60079-14 is applicable to most installations, in particular sections
16.2.2.3 and 16.2.2.4.
•In the U.S.A. and Canada, ISA 12.06.01 Part 1 provides examples with associated
applications and requirements.
If no external standards are applicable, follow these guidelines to ground the sensor:
•Use copper wire, 14 AWG (2.08 mm²) or larger wire size.
•Keep all ground leads as short as possible, less than 1 Ω impedance.
•Connect ground leads directly to earth, or follow plant standards.
NOTICE
Ground the flowmeter to earth, or follow ground network requirements for the facility.
Improper grounding can cause measurement error.
Procedure
•Check the joints in the pipeline.
•If the joints in the pipeline are ground-bonded, the sensor is automatically
grounded and no further action is necessary (unless required by local code).
•If the joints in the pipeline are not grounded, connect a ground wire to the
grounding screw located on the sensor electronics.
Tip
The sensor electronics may be a transmitter, core processor, or junction box. The
grounding screw may be internal or external.
Installation Manual Grounding
20002298 April 2020
Installation Manual 19

Grounding Installation Manual
April 2020 20002298
20 Micro Motion F-Series
