Emerson Rosemount 499ADO User manual

Quick Start Guide
00825-0100-3491, Rev AA
May 2019
Rosemount™ 499ADO
Dissolved Oxygen Sensor

Safety information
CAUTION
Sensor/process application compatibility
The wetted sensor materials may not be compatible with process composition and operating
conditions.
Application compatibility is entirely the operator's responsibility.
CAUTION
Equipment damage
Do not exceed pressure and temperature specifications
Pressure: 65 psig (549 kPa abs) max.
Temperature: 32 to 122 °F (0 to 50 °C)
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of
end users’ equipment. This could be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your
system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true
for all systems used within the facility.
Notice
ROSEMOUNT™ (“SELLER”) SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS IN THIS
MANUAL OR OMISSIONS FROM THIS MANUAL. SELLER MAKES NO WARRANTIES, EXPRESSED OR
IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, WITH RESPECT TO THIS MANUAL AND, IN NO EVENT, SHALL SELLER BE LIABLE
FOR ANY SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF
PRODUCTION, LOSS OF PROFITS, ETC.
PRODUCT NAMES USED HEREIN ARE FOR MANUFACTURER OR SUPPLIER IDENTIFICATION ONLY AND
MAY BE TRADEMARKS/REGISTERED TRADEMARKS OF THESE COMPANIES.
THE CONTENTS OF THIS PUBLICATION ARE PRESENTED FOR INFORMATIONAL PURPOSES ONLY, AND
WHILE EVERY EFFORT HAS BEEN MADE TO ENSURE THEIR ACCURACY, THEY ARE NOT TO BE
CONSTRUED AS WARRANTIES OR GUARANTEES, EXPRESSED OR IMPLIED, REGARDING THE PRODUCTS
OR SERVICES DESCRIBED HEREIN OR THEIR USE OR APPLICABILITY. WE RESERVE THE RIGHT TO
MODIFY OR IMPROVE THE DESIGNS OR SPECIFICATIONS OF SUCH PRODUCTS AT ANY TIME.
SELLER DOES NOT ASSUME RESPONSIBILITY FOR THE SELECTION, USE, OR MAINTENANCE OF ANY
PRODUCT. RESPONSIBILITY FOR PROPER SELECTION, USE, AND MAINTENANCE OF ANY SELLER
PRODUCT REMAINS SOLELY WITH THE PURCHASER AND END-USER.
Warranty
1. LIMITED WARRANTY: Subject to the limitations contained in Section 2 herein and except as
otherwise expressly provided herein, Rosemount™ (“Seller”) warrants that the firmware will
execute the programming instructions provided by Seller and that the Goods manufactured
or Services provided by Seller will be free from defects in materials or workmanship under
normal use and care until the expiration of the applicable warranty period. Goods are
warranted for twelve (12) months from the date of initial installation or eighteen (18) months
from the date of shipment by Seller, whichever period expires first. Consumables and
Quick Start Guide May 2019
2 Emerson.com/Rosemount

Services are warranted for a period of 90 days from the date of shipment or completion of the
Services. Products purchased by Seller from a third party for resale to Buyer (“Resale
Products”) shall carry only the warranty extended by the original manufacturer. Buyer agrees
that Seller has no liability for Resale Products beyond making a reasonable commercial effort
to arrange for procurement and shipping of the Resale Products. If Buyer discovers any
warranty defects and notifies Seller thereof in writing during the applicable warranty period,
Seller shall, at its option, promptly correct any errors that are found by Seller in the firmware
or Services, or repair or replace F.O.B. point of manufacture that portion of the Goods or
firmware found by Seller to be defective, or refund the purchase price of the defective
portion of the Goods/Services. All replacements or repairs necessitated by inadequate
maintenance, normal wear and usage, unsuitable power sources, unsuitable environmental
conditions, accident, misuse, improper installation, modification, repair, storage or handling,
or any other cause not the fault of Seller are not covered by this limited warranty, and shall be
at Buyer's expense. Seller shall not be obligated to pay any costs or charges incurred by Buyer
or any other party except as may be agreed upon in writing in advance by an authorized Seller
representative. All costs of dismantling, reinstallation and freight, and the time and expenses
of Seller's personnel for site travel and diagnosis under this warranty clause shall be borne by
Buyer unless accepted in writing by Seller. Goods repaired and parts replaced during the
warranty period shall be in warranty for the remainder of the original warranty period or
ninety (90) days, whichever is longer. This limited warranty is the only warranty made by
Seller and can be amended only in a writing signed by an authorized representative of Seller.
Except as otherwise expressly provided in the Agreement, THERE ARE NO REPRESENTATIONS
OR WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, AS TO MERCHANTABILITY, FITNESS
FOR PARTICULAR PURPOSE, OR ANY OTHER MATTER WITH RESPECT TO ANY OF THE GOODS
OR SERVICES. It is understood that corrosion or erosion of materials is not covered by our
guarantee.
2. LIMITATION OF REMEDY AND LIABILITY: SELLER SHALL NOT BE LIABLE FOR DAMAGES CAUSED
BY DELAY IN PERFORMANCE. THE SOLE AND EXCLUSIVE REMEDY FOR BREACH OF
WARRANTY HEREUNDER SHALL BE LIMITED TO REPAIR, CORRECTION, REPLACEMENT, OR
REFUND OF PURCHASE PRICE UNDER THE LIMITED WARRANTY CLAUSE IN SECTION 1
HEREIN. IN NO EVENT, REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION
(WHETHER BASED IN CONTRACT, INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY, OTHER
TORT, OR OTHERWISE), SHALL SELLER'S LIABILITY TO BUYER AND/OR ITS CUSTOMERS
EXCEED THE PRICE TO BUYER OF THE SPECIFIC GOODS MANUFACTURED OR SERVICES
PROVIDED BY SELLER GIVING RISE TO THE CLAIM OR CAUSE OF ACTION. BUYER AGREES
THAT IN NO EVENT SHALL SELLER'S LIABILITY TO BUYER AND/OR ITS CUSTOMERS EXTEND TO
INCLUDE INCIDENTAL, CONSEQUENTIAL OR PUNITIVE DAMAGES. THE TERM
“CONSEQUENTIAL DAMAGES” SHALL INCLUDE, BUT NOT BE LIMITED TO, LOSS OF
ANTICIPATED PROFITS, LOSS OF USE, LOSS OF REVENUE, AND COST OF CAPITAL.
Contents
First steps.....................................................................................................................................5
Install........................................................................................................................................... 7
Wire........................................................................................................................................... 12
Calibrate.................................................................................................................................... 20
Maintenance.............................................................................................................................. 22
Accessories................................................................................................................................ 25
May 2019 Quick Start Guide
Quick Start Guide 3

Quick Start Guide May 2019
4 Emerson.com/Rosemount

1 First steps
1.1 Unpack and inspect
Procedure
1. Inspect the shipping container. If it is damaged, contact the shipper
immediately for instructions.
2. If there is no apparent damage, unpack the container. Be sure all
items shown on the packing list are present. If items are missing,
notify Emerson immediately.
1.2 Product description
Figure 1-1: Rosemount™ 499ADOSensor Parts
A. Membrane retainer
B. Membrane assembly
C. O-ring
D. Cathode
E. Electrolyte fill plug (wrap with pipe tape)
F. Pressure equalizing port
G. Sensor cable (integral cable shown)
1.3 Specifications
Table 1-1: Sensor Specifications
Physical characteristics Specifications
Range 0 to 20 ppm (mg/L) as O2. For measurements at the ppb level,
choose 499ATrDO.
Pressure 0 to 65 psig (101 to 549 kPa abs)
Temperature (operating) 0 to 50 °C (32 to 122 °F)
Process connection 1 in. MNPT
May 2019 Quick Start Guide
Quick Start Guide 5

Table 1-1: Sensor Specifications (continued)
Physical characteristics Specifications
Wetted parts Noryl®, Viton, EPDM, Teflon® (TFE), and silicone
Cathode Gold (not normally wetted)
Accuracy ±0.2 ppm at 77 °F (25 °C)
Linearity 2% (typ.)
Repeatability ±0.05 ppm at 77 °F (25 °C)
Response time < 30 sec to 90% of final reading (0 to 2 ppm) at 25 °C (77 °F)
Electrolyte volume 25 mL (approx.)
Electrolyte life 4 to 6 months (approx.)
Cable length (standard
integral cable)
25 ft (7.6 m)
Cable length (maximum) 300 ft (91 m)
Sample flow Flow through: 1 to 5 gpm (3.8 to 19 L/min)
Open channel: 1 ft/sec (0.3 m/sec)
Low flow cell: 2 to 5 gph (7.6 to 19 L/hr)
Agitation produced by bubbles in aeration basins usually provides
adequate flow.
Weight/shipping weight 0.5 kg / 1.5 kg (1 lb / 3 lb)
Quick Start Guide May 2019
6 Emerson.com/Rosemount

2 Install
Install the sensor in a flowing sample. Keep the sample flow as constant as
possible at a value within the following limits:
Sample flow unit Flow limits
Flow through 1 to 5 gpm (3.8 to 19 L/min)
Open channel 1 ft/sec (0.3 m/sec)
Low flow cell 2 to 5 gph (7.6 to 19 L/hr)
The Rosemount 499ADO sensor can be installed in ponds or basins. Use a
pipe screwed into the back-facing threads to protect the cable and keep
liquid away from the back end of the sensor. The cable end of the sensor is
not intended for submersion under liquid. See Figure 2-5. For additional
mounting hardware, see product data sheet 71-HRMS.
Figure 2-1: Sensor Orientation
May 2019 Quick Start Guide
Quick Start Guide 7

Figure 2-2: Flow Through 1-1/2 in. Tee
A. Union coupler
B. 1 in. NPT (2 places)
C. Sensor body: Rosemount 499A
D. 1 in. NPT flow cell adapter
E. O-ring 2-222
F. 1 1/2 in. sched 80 CPVC tee body
Quick Start Guide May 2019
8 Emerson.com/Rosemount

Figure 2-3: Flow Through 2 in. Tee
A. Union coupler
B. Adapter
C. 1 in. NPT (2 places)
D. Sensor body: Rosemount 499A
E. O-ring 2-222
F. 2 in. sched 80 PVC tee body
May 2019 Quick Start Guide
Quick Start Guide 9

Figure 2-4: Low Flow Cell (PN 24091-00)
Quick Start Guide May 2019
10 Emerson.com/Rosemount

Figure 2-5: Sensor Installed in a Stand Pipe for Submersion Applications
May 2019 Quick Start Guide
Quick Start Guide 11

3 Wire
NOTICE
For additional wiring information on this product, including sensor
combinations not shown here, please refer to the Liquid Transmitter Wiring
Diagrams.
Figure 3-1: Rosemount™ 499ADO-54 Sensor Wiring to Rosemount 1056
and 56 Transmitters
Quick Start Guide May 2019
12 Emerson.com/Rosemount

Figure 3-2: Rosemount 499ADO-54-60 and Rosemount 499ADO-54-VP
Sensor Wiring to Rosemount 1056 and 56 Transmitters
May 2019 Quick Start Guide
Quick Start Guide 13

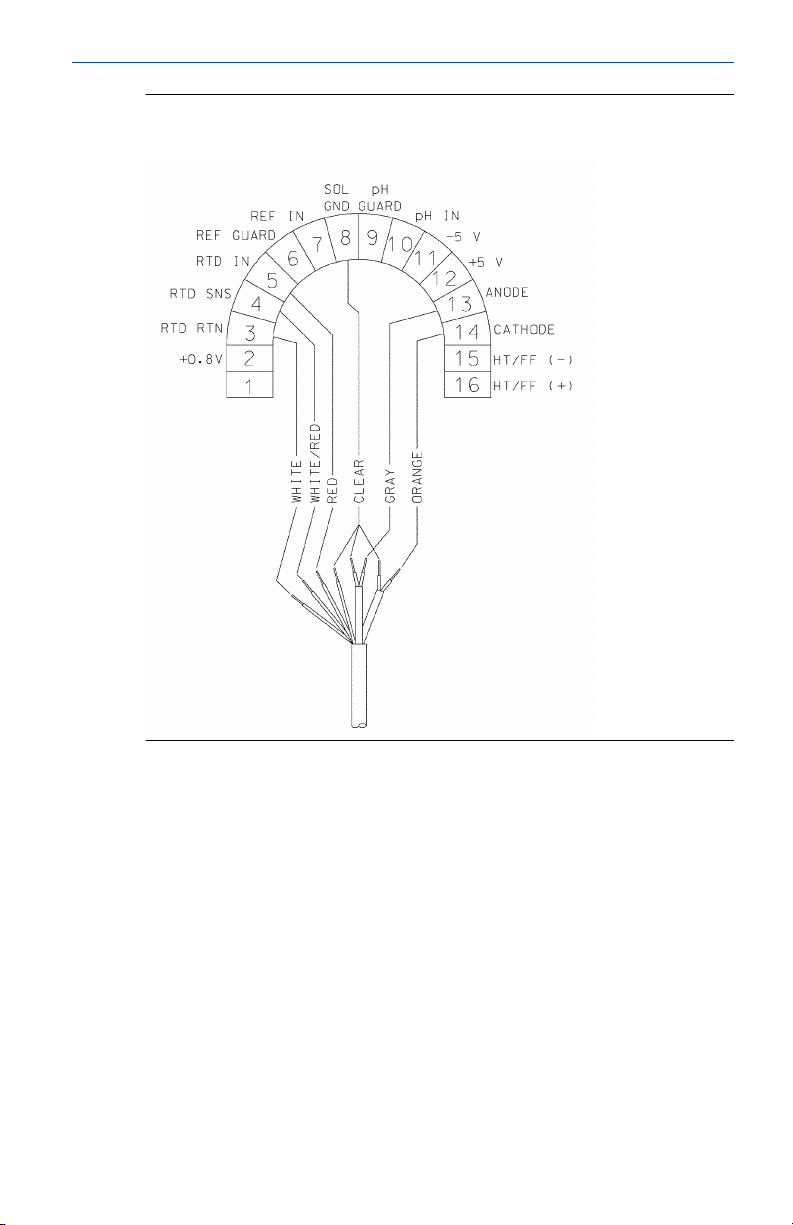

Figure 3-3: Rosemount 499ADO-54 Sensor Wiring to Rosemount 5081
Transmitter
Quick Start Guide May 2019
14 Emerson.com/Rosemount

Figure 3-4: Rosemount 499ADO-60 and 499ADO-VP Sensor Wiring to
Rosemount 5081 Transmitter
May 2019 Quick Start Guide
Quick Start Guide 15

Figure 3-5: Rosemount 499ADO-54-VP Sensor Wiring to Rosemount
5081 Transmitter
Quick Start Guide May 2019
16 Emerson.com/Rosemount

Figure 3-6: Rosemount 499ADO-54 Sensor Wiring to Rosemount 1066
Transmitter
Note
Connect clear shield wires to sol gnd terminal on TB 2. Use wire nut and
pigtail if necessary.
May 2019 Quick Start Guide
Quick Start Guide 17

Figure 3-7: Rosemount 499ADO-60 and 499ADO-54-VP Sensor Wiring to
Rosemount 1066 Transmitter
Note
Connect clear shield wires to solution ground terminal on TB 2. Use wire nut
and pigtail if necessary.
Quick Start Guide May 2019
18 Emerson.com/Rosemount

Figure 3-8: Rosemount 499ADO-54-VP Sensor Wiring to Rosemount
1066 Transmitter
Figure 3-9: Rosemount 499ADO Sensor Pin-out Diagram
When making a connection through a junction box (PN 23550-00), wire
point-to-point.
NOTICE
Use a wire nut and pigtail (included) when connecting several wires to the
same terminal.
May 2019 Quick Start Guide
Quick Start Guide 19

4 Calibrate
4.1 Zero point calibration
Even in the absence of oxygen, the Rosemount 499ADO sensor generates a
small signal called the zero current. Failing to correct for the zero current can
introduce a bias, particularly if the oxygen concentration is small (<1 ppm).
Zero the sensor when it is first placed in service and every time the fill
solution is changed.
To zero the sensor:
Procedure
1. Pour a cup of deionized or bottled water.
2. Add a teaspoon of sodium sulfite to the water.
3. Place the sensor in the water.
4. Wait until the sensor current has reached a stable low value (at least
two hours).
5. Follow the transmitter prompts for zeroing the sensor.
Note
Refer to the manual for the transmitter you are using (Rosemount
56, 1056, 5081, or 1066).
The zero current should be <200 nA.
4.2 Full scale
The Rosemount 499ADO sensor is best calibrated by exposing the sensor to
water-saturated air.
Procedure
1. Pour a small amount of water into a cup.
2. Suspend the sensor, keeping the membrane dry, about 1/4 in. (6
mm) above the surface of the water.
3. Once readings are stable, follow the analyzer prompts to complete
the calibration.
The analyzer automatically calculates the equilibrium solubility of
atmospheric oxygen in water under the prevailing temperature and
barometric pressure.
4. After calibration, go to the Diagnostics menu and check the
sensitivity.
The sensitivity should be between 1,800 and 3,000 nA/ppm.
Quick Start Guide May 2019
20 Emerson.com/Rosemount
