Emerson SUMMER NIGHT CF652AW00 User manual

Part No. F40BP72350001 Form No. BP7235-1
READ AND SAVE THESE INSTRUCTIONS
Model No.
CF652WW00 CF652V00
CF652BQ00 CF652W00
CF652DB00 CF652OB00
CF652AW00 CF652WB00
SUMMER NIGHT®
52” Damp Location
Ceiling Fan
Owner's Manual
®
Net Weight: 14.4 Lbs.
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in workmanship and materials.
You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for ten years from the date you purchased your ceiling fan. All other components and accessories are
covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Company Do To Correct Problems:
Emerson Company will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at no charge to you. If repair of the
motor or blades is not practical or possible within a reasonable time and no replacement can be provided, Emerson will refund the actual purchase price of
your fan. We will ship the repaired product or replacement to you at no charge, but you are responsible for all costs or removal, reinstallation and shipping of
the product to Emerson Company.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF
OF PURCHASE. You can return the product to our factory or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort Products, Division of
Emerson Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service center. Your Emerson Air Comfort
Ceiling Fan should be properly packed to avoid damage in transit since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any defects, malfunctions or failures
caused by:
• Repairs by persons not authorized by Emerson Company,
• Use of parts or accessories not authorized by Emerson Company,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral warranties apply, and no employee,
agent, dealer or other person is authorized to give any warranties on behalf of Emerson Company.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND EMERSON IS NOT RESPONSIBLE
FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages
as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if
this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or limitation may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

2
WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a warning device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off the power to
the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not operate fan
without blades.
2. All wiring must satisfy National and Local Electrical Codes. Use the National Electrical Code if Local Codes do
not exist. The ceiling fan must be grounded as a precaution against possible electrical shock. Electrical
installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably supporting at least 50 pounds. Use
only U.L. outlet boxes listed as acceptable for fan support, and use the mounting screws provided with the
outlet box. Most outlet boxes commonly used for support of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified electrician if in doubt.
4. The downrod furnished with the fan proves the minimum recommended floor to fan blade clearance for an
8 foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental contact with the
fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do not know
enough about electrical wiring, have your fan installed by a licensed electrician.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not specifically
approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any accessories
designated specifically for use this product by Emerson Company could result in personal injury or property
damage.
WARNING: To Reduce the risk of personal injury, do not bend the blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
WARNING
!
DATE CODE:
The date code of this fan may be found on
the box, stamped in ink on a white label.
You should record this data above and keep
it in a safe place for future use.

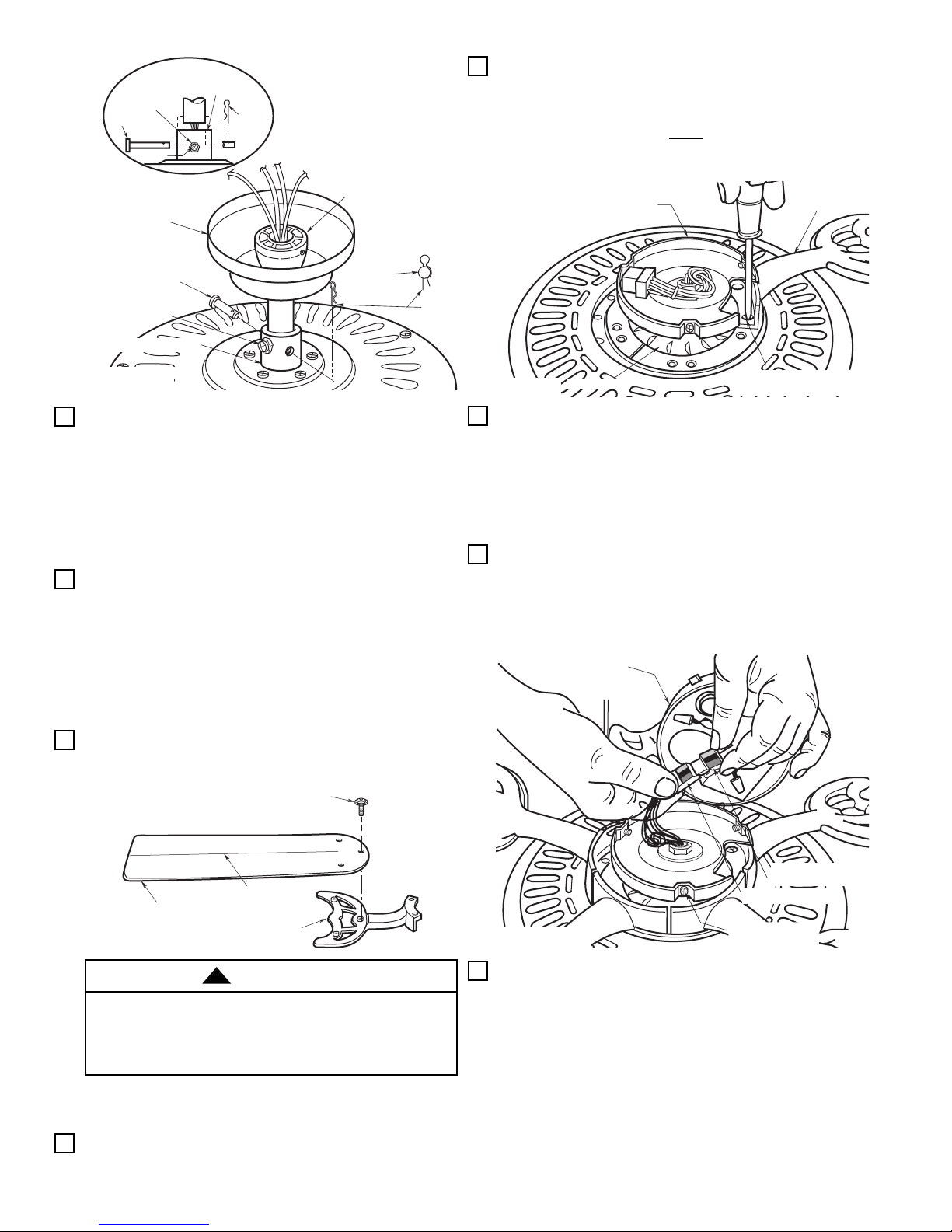

1. Pass the 80" motor leads through the opening in
the ceiling cover. Be sure the cover is oriented
correctly (Figure 1).
2. Separate, untwist and unkink the three motor leads.
Route the motor leads through the hanger
ball/downrod assembly.
3. Align the clevis pin holes in the downrod with the
holes in the motor coupling. Install the clevis pin
and secure with the hairpin clip (Figure 1). The
clevis pin must go through the holes in the motor
coupling and the holes in the downrod. Be sure to
push the straight leg of the hairpin clip through the
hole near the end of the clevis pin until the curved
portion of the hairpin clip snaps around the clevis
pin. The hairpin clip must be properly installed to
prevent the clevis pin from working loose. Pull on
the hanger ball to make sure the clevis pin is
properly installed.
Tools Needed for Assembly
One Phillips head screwdriver
One stepladder
One wire stripper
Three wire connectors (supplied).
MATERIALS
Wiring, electrical box and box connectors must be of
type required by the local code. The minimum wiring
would be a 3-conductor (2-wire with ground) of
following sizes:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50 - 100 ft. 12
THIS FAN IS SUITABLE FOR DAMP LOCATIONS SUCH AS
COVERED PORCHES, COVERED PATIOS, AND COVERED DECKS.
ANYWHERE THERE IS A ROOF OVERHEAD.
This Manual is Designed to Make it as Easy as Possible for You
to Assemble, Install, Operate and Maintain Your Ceiling Fan
3
Check to see that you have received the following parts:
a. Fan motor assembly
b. Five fan blades
c. One ceiling cover
d. Five blade flanges
e. One hanger ball/downrod assembly
f. One hanger bracket.
g. One switch housing assembly
h. One loose parts bag containing:
1. Sixteen 3/16-24 x 5/16" screws
2. Eleven 1/4-20 x 7/16" blade flange screws
3. One wood ball
4. Three wire connectors
5. One clevis pin
6. One hairpin clip
7. Two threaded studs
8. Two lockwashers
9. Two knurled knobs
10. One chain coupling
NOTE: Place the parts from the loose parts bag in
a small container to keep them from being lost.
Unpacking Instructions
For your convenience, check-off boxes are provided next to each assembly step. As each step is
completed, place a check mark in the box. This will insure that all steps have been completed and will be
helpful in finding your place should you be interrupted.
How to Put Your Ceiling Fan Together
Before assembly your ceiling fan, refer to section on
proper method of wiring your fan (page 5). If you feel
you do not have enough wiring knowledge or
experience, have your fan installed by a licensed
electrician.
It is critical that the clevis pin in the motor coupling
is properly installed and the setscrews securely
tightened. Failure to verify that the pin and setscrews
are properly installed could result in the fan falling.
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Company. Substitution of parts or
accessories not designated for use with this product
by Emerson Company could result in personal injury
or property damage.
WARNING
WARNING
WARNING
!
!
!
WARNING
!

8. Rotate the motor hub until the flange screw hole is
next to the cutout in the switch housing plate. Attach
one blade assembly to the motor hub using two 1/4-
20 x 1/2” Phillips oval head flange screws. Make
sure the screws are NOT tightened. (Figure 3.)
Repeat this procedure for the other four blade
assemblies.
9. The blade flanges have an interlocking feature
that must be fully engaged before tightening the
screws. Make sure all the flanges are properly
engaged and then tighten the flange screws. If
one of the flanges does not seat properly on the
motor hub, loosen the adjacent flange screws, re-
engage and reseat the flanges, then tighten the
screws again.
10. Engage the connector of the switch housing
assembly with the motor connector (Figure 4).
The two connectors are keyed and color-coded
and must be mated correctly (color-to-color)
before they can be engaged. Make sure the
connector latch closes properly.
11.Remove the three switch housing mounting
screws (Figure 4) from the switch housing plate.
Position the switch housing assembly on the
switch housing plate and align the holes in the
switch housing assembly with the holes in the
plate. Secure the switch housing assembly by
installing the three mounting screws (Figure 5).
NOTE: Do not pinch wires between the switch
housing assembly and the switch housing plate.
SWITCH HOUSING
PLATE
MOTOR HUB 1/4-20 X 1/2" PHILLIPS OVAL
HEAD FLANGE SCREWS (2)
BLADE FLANGE
4. Back off the jam nut until it rests loosely against the
setscrew head (supplied). Install the setscrew in
the motor coupling (Figure 1) and tighten securely
while pulling up on the downrod. Using a 5/16-inch
open end wrench or pliers, tighten the jam nut
securely against the motor coupling.
NOTE: The setscrew and jam nut must be properly
installed as described above, or fan wobble could
result.
5. The fan comes with blue, black and white leads
that are 80-inches long. Before installing the fan,
measure up approximately 6 to 9-inches above top
of hanger ball/downrod assembly. Cut off excess
leads and strip back insulation 1/2-inch from end of
leads.
IMPORTANT: THE SIDE OF THE FAN BLADE
HAVING THE RIB LINE MUST BE FACING
UPWARDS AS SHOWN IN FIGURE 2.
6.Mount blade flanges to fan blades using three
3/16-24 x 5/16" slotted phillips washer head screws
per blade (Figure 2).
NOTE: Remove and discard the four shipping
spacers and screws from the motor hub.
7. Turn the fan assembly upside down in preparation
for mounting the fan blade assemblies.
FAN BLADE
BLADE FLANGE
3/16-24 x 5/16" SLOTTED PHILLIPS
WASHER HEAD SCREW (3)
RIB LINE
(THIS SIDE UP)
Figure 2
Figure 3
4
CEILING
COVER
CLEVIS
PIN
HAIRPI
N
CLIP
CLEVIS
PIN
HANGER BALL/
DOWNROD ASSEMBLY
3/16-24 x 1/2" SCREW
WITH JAM NUT
MOTOR COUPLING
MOTOR
COUPLING
HAIRPIN
CLIP
3/16-24 x 1/2"
SETSCREW
CLEVIS PIN
JAMNUT
Figure 1
To reduce the risk of personal injury, do not bend the
blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not
insert foreign objects in between rotating fan blades.
WARNING
!
SWITCH
HOUSING
ASSEMBLY
SWITCH HOUSING
CONNECTOR
MOTOR CONNECTOR
SWITCH HOUSING
MOUNTING SCREW
Figure 4

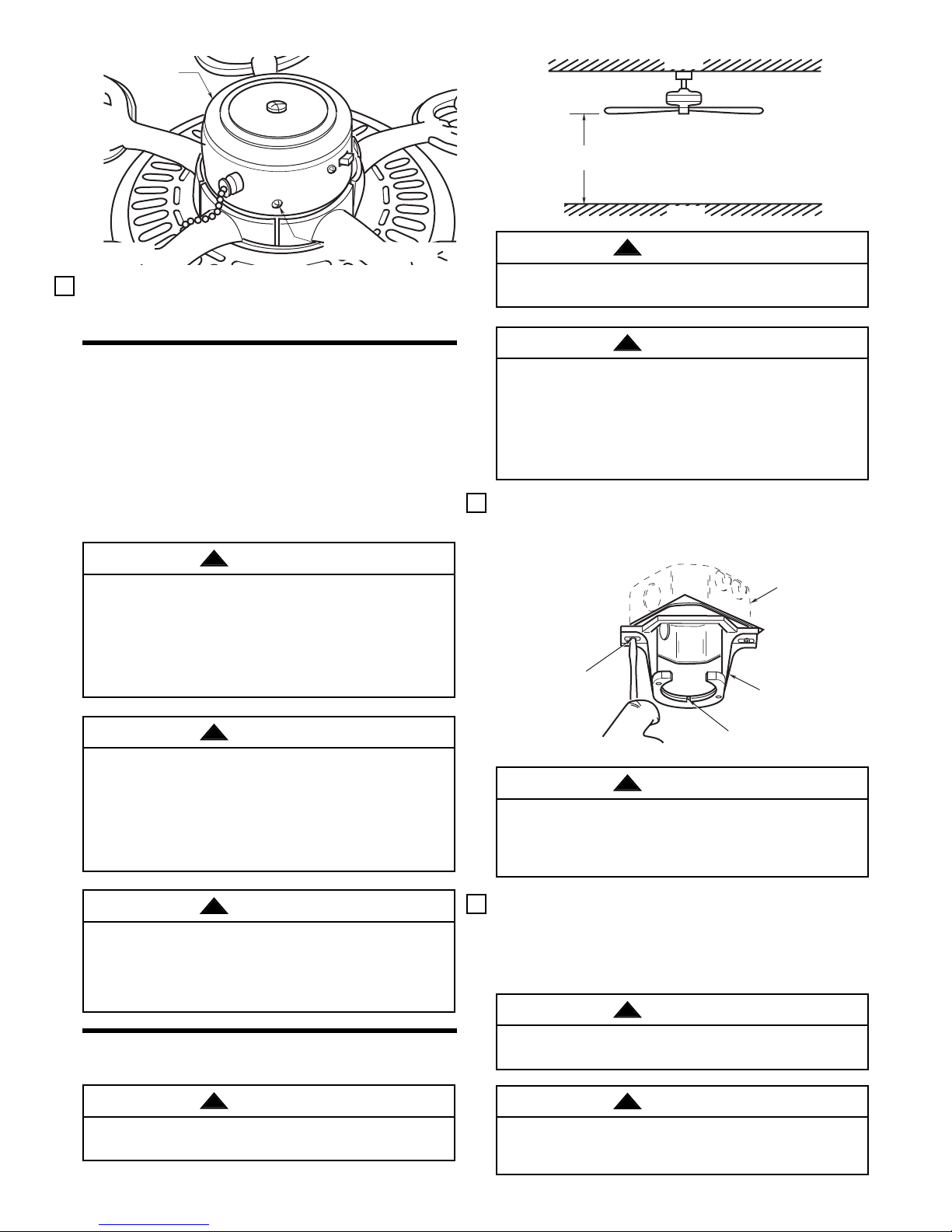

12. You have now completed the assembly of your
new ceiling fan. You can now proceed with
hanging and wiring your fan.
MOUNTING SCREWS (3)
SWITCH
HOUSING
ASSEMBLY
Figure 5
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored and
capable of withstanding a load of at least 50 pounds.
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time
and remove the existing light fixture.
Electrical Requirements
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked acceptable for
fan support, and use screws supplied with outlet
box. Most outlet boxes commonly used for support
of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified
electrician if in doubt.
WARNING
!
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
To avoid fire or shock, follow all wiring instructions
carefully.
Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
WARNING
!
How to Hang Your Ceiling Fan
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 6).
WARNING
!
1.Securely attach the hanger bracket to the outlet box
using the two screws supplied with the outlet box
(Figure 7).
AT LEAST
7'
CEILING
FLOOR
Figure 6
TWO SCREWS
SUPPLIED WITH
OUTLET BOX HANGER
BRACKET
TAB
OUTLET
BOX
Figure 7
2.Carefully lift the fan from the foam pad and seat the
hanger ball/downrod assembly on the hanger
bracket that was just attached to the outlet box
(Figure 8). Be sure the groove in the ball engages
with the tab on the hanger bracket (Figure 7).
To reduce the risk of fire, electric shock, or personal
injury, mount fan to outlet box marked acceptable for
fan support, and use screws supplied with outlet
box. Most outlet boxes commonly used for support
of light fixtures are not acceptable for fan support
and may need to be replaced. Consult a qualified
electrician in in doubt.
The outlet box must be securely anchored and capable
of withstanding a load of at least 50 lbs.
WARNING
!
WARNING
!
Hanger bracket must seat firmly against outlet box. If
the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!
To avoid possible fire or shock, do not pinch wires
between the hanger ball/downrod assembly and
hanger bracket.
WARNING
!
5

OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD ASSEMBLY
Figure 8
NOTE: CEILING COVER,
SUPPLY WIRES AND FAN
WIRES OMITTED FOR
CLARITY.
How to Wire Your Ceiling Fan
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
1.Connect the green grounding lead from the hanger
ball and the green grounding lead from the hanger
bracket to the grounding conductor of supply (this may
be a bare wire or wire with green colored insulation).
GROUND
WIRE
WIRE
CONNECTORS (3)
GREEN WIRE
(GROUND)
FROM FAN
WHITE SUPPLY
(NEUTRAL)
WHITE FAN
WIRE
BLACK SUPPLY
(HOT)
BLACK AND BLUE
FAN WIRES
Figure 9
NOTE: CEILING COVER
OMITTED FOR CLARITY.
6
To avoid possible electrical shock, be sure electricity
is turned off at the main fuse box before wiring.
NOTE: If you are not sure if the outlet box is
grounded, contact a licensed electrician for advice,
as it must be grounded for safe operation.
WARNING
!
NOTE: If you are using an Emerson light fixture
with your fan, remove the three screws securing
the switch housing cover to the switch housing
and remove the cover. Remove the screw plug
from the bottom of the switch housing cover and
install the light in accordance with the light kit
Owner's Manual.
2.Connect the fan motor white wire to the supply
white (neutral) wire using a wire connector
(supplied) (Figure 7). Connect the fan motor black
wire and blue wire to the supply black (hot) wire
using a wire connector (supplied) (Figure 7). Your
fan is now wired to be turned on and off from the
fan switch. After connections have been made, turn
leads upward and carefully push leads into the
outlet box, with the white and green leads on one
side of the outlet box and the black and blue leads
on the other side of the outlet box.
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
3. Screw the two threaded studs (supplied) into the
tapped holes in the hanger bracket.
4. Lift the ceiling cover up to the threaded studs and
turn until studs protrude through the holes in the
ceiling cover (Figure 10).
5. Secure the ceiling cover in place by sliding
lockwashers over the threaded studs and installing the
two knurled knobs (supplied). (Figure 10). Tighten the
knurled knobs securely until the ceiling cover fits
snugly against the ceiling and the hole in the ceiling
cover is clear of the downrod. Your fan is now wired to
be turned on and off from the fan switch.
6.Cut the 3-speed switch pull chain to a desired length
(optional). Connect the wood pendant (supplied) to
the 3-speed switch pull chain by sliding the wooden
pendant (small hole first) onto the pull chain. Attach
the chain coupler to the end of the chain and allow the
wooden pendant to fall down over the coupling.
CEILING COVER
THREADED STUD
KNURLED KNOB
LOCKWASHERS (2)
Figure 10
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
Using Your Ceiling Fan
1.Restore electrical power to the outlet box by turning
the electricity on at the main fuse box.
2.Check the operation of the fan by gently pulling on
the pull chain switch.
3.All fans are shipped from the factory with the
reversing switch positioned to circulate air
downward. If airflow is desired in opposite direction,
To reduce the risk of fire or electrical shock, do not
use this fan with any solid-state speed control
device.
WARNING
!

turn your fan off and wait for the blades to stop turning,
then slide the reversing switch to opposite position, and
turn fan on again. The fan blades will turn the opposite
direction and reverse the airflow.
Your fan model is equipped with a 4-position, 3-speed
pull chain switch. The operating sequence is as follows:
7
Trouble Shooting
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR CIRCUIT
BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1.Reversing switch in neutral position. 1. Make sure reversing switch position is all the way to one
side.
2.Fuse or circuit breaker blown. 2. Check main and branch circuit fuses or circuit breakers.
3.Loose power line connections to the fan, or loose 3. Check line wire connections to fan and switch wire
switch wire connections in the switch housing. connections in switch housing.
2. Fan sounds 1.Blades not attached to fan. 1. Attach blades to fan before operating.
noisy. 2.Screws securing fan blade flanges to motor 2. Check to make sure the screws which attach the fan blade
are loose. flanges to the motor are tight.
3.Wire connectors inside switch housing rattling. 3. Check to make sure wire connectors in switch housing
are not rattling against each other or against the interior
wall of the switch housing.
4.Screws holding flanges to blades are loose. 4. Tighten screws securely.
3. Fan wobbles 1.Setscrews in motor coupling is loose. 1. Tighten the setscrews securely in the motor coupling.
or shakes 2.Setscrew in hanger ball/downrod assembly is 2. Tighten the setscrew in the hanger ball/downrod
excessively. loose. assembly.
3.Screws securing fan blade flanges to motor 3. Check to be sure screws which attach the fan blade
are loose. flanges to the motor are tight.
4.Fan blade flanges not seated properly. 4. Check to be sure the fan blade flanges seat firmly and
uniformly to the surface of the motor. If flanges are
seated incorrectly, loosen the flange screws and retighten
according to the procedure in the section on "How to Put
Your Ceiling Fan Together".
5.Hanger bracket and/or ceiling outlet box is not 5. Tighten the hanger bracket screws to the outlet box,
securely fastened. and/or secure outlet box.
6.Fan blades out of balance. 6. Interchanging an adjacent (side-by-side) blade pair can
redistribute the weight and result in smoother operation.
Accessories
1. Ceiling Fan Light Kits (see store or catalog).
2. Ceiling Fan/Light Controls (see store or catalog).
3. Downrod Extension Kits (see store or catalog). This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Company. Substitution of parts or
accessories not designated for use with this product
by Emerson Company could result in personal injury
or property damage.
The use of any other control not specifically
approved for this fan could result in fire, shock and
personal injury.
WARNING
!
WARNING
!
To reduce the risk of fire or electrical shock, do not
use this fan with any solid-state speed control
device.
WARNING
!
SPEED
CONTROL
SWITCH
REVERSIBLE
SWITCH
THREE-SPEED
1st Pull — High
2nd Pull — Medium
3rd Pull — Low
4th Pull — Off
!

IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan
is the only maintenance that is needed.
When cleaning, use only a soft brush or
lint free cloth to avoid scratching the
finish.
Abrasive cleaning agents are not
required and should be avoided to
prevent damage to finish.
Repair Parts Listing
Service Part No.
Key 52” Model
No. Description CF652WW00 CF652BQ00 CF652DB00 CF652V00 CF652W00 CF652OB00 CF652AW00 CF652WB00
1 Hanger Assembly 760750-3 760750-40 760750-30 760750-15 760750-2 760750-36 760750-41 760750-39
2 Ceiling Canopy 760169 760169-31 760169-14 760169-16 760169-3 760169-24 760169-32 760169-30
3 Wiring Harness 762013 762013-1 762013-1 762013-1 762013 762013-1 762013 762013-1
4 Blade Set (5) 762004 762004-2 762004-2 762004-1 762004-3 762004-1 762004-4 762004-2
5 Flange Set (5) 761933 761933-10 761933-11 761933-12 761933-3 761933-4 761933-13 761933-14
7 Housing Switch Cup 761935 761935-10 761935-11 761935-12 761935-3 761935-4 761935-13 761935-14
6 Loose Parts Bag 760986-4 760986-4 760986-4 760986-4 760986-4 760986-4 760986-4 760986-4
Containing:
Blade Hardware, — — — — — — — —
Hanging Hardware, — — — — — — — —
Threaded Stud (2), — — — — — — — —
Lockwasher (2), — — — — — — — —
Knurled Knob (2), — — — — — — — —
Pull Chain Ball — — — — — — — —
Chain Coupling — — — — — — — —
– Owners Manual BP7235-1 BP7235-1 BP7235-1 BP7235-1 BP7235-1 BP7235-1 BP7235-1 BP7235-1
11
1
2
6
6
6
6
4
5
6
3
7
6
6
6
6
6
Part No. F40BP72350001
Printed in Taiwan 08/00 Form No. BP7235-1
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING
INFORMATION:
• PART NUMBER • NAME OF ITEM
• PART DESCRIPTION • MODEL NUMBER
The model number of your Fan will be found on a label attached to the top
housing.
For repair parts, phone [phone].
EMERSON
Air Comfort Products
DIVISION OF EMERSON COMPANY
8100 W. Florissant, St. Louis, MO 63136
Maintenance
Do not use water when cleaning your
ceiling fan. It could damage the motor
or the blades and create the possibility
of an electrical shock.
WARNING
!
