Emerson VELOCE CF230ORB00 User manual

Part No. F40BP74340001 Form No. BP7434-1
U.L. Model No.: CF230
READ AND SAVE THESE INSTRUCTIONS
Ceiling Fan Owner's Manual
CF230BS00
CF230ORB00
CF230WW00
Model Numbers
VELOCE
Net Weight: 17.0 Lbs.

WARNING: To avoid fire, shock, and serious personal injury, follow these instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service panel
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a warning device, such as a tag, to the
service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan. Always turn off
the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before wiring, and do not
operate fan without blades.
2. All wiring must be in accordance with the National Electrical Codes “ANSI/NFPA 70-2008” and
Local Electrical Codes. Use the National Electrical Code if Local Codes do not exist. The ceiling
fan must be grounded as a precaution against possible electrical shock. Electrical installation
should be made or approved by a licensed electrician.
3. The ceiling structure must be capable of reliably supporting at least 50 pounds.
4. Use only U.L. outlet boxes listed as “Acceptable for Fan Support of 15.9 kg (35 lbs) or less”, and
use the mounting screws provided with the outlet box. Most outlet boxes commonly used for
support of light fixtures are not acceptable for fan support and may need to be replaced. Consult
a qualified electrician if in doubt.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent accidental
contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling fan. If you do
not know enough about electrical wiring, have your fan installed by a licensed electrician.
CAUTION: To reduce the risk of electric shock, disconnect the electrical supply circuit to the fan
before light kit.
7. Use only with light kits marked suitable for use in damp locations” to the Additional Safety
Instructions for Installation.
NOTE: All set screws must be checked and re-tightened where necessary before installation.
WARNING: To reduce the risk of fire or electrical shock, do not use this fan with any solid-state
speed control device.
WARNING: To avoid fire, shock or injury, do not use on Emerson or any other brand of control not
specifically approved fro this fan.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used with fan speed
control, Model No. SR401/U.L. Model No. UC7067RAL manufactured by Rhine Electric Co., Ltd.
WARNING: To avoid fire, shock or injury, do not use an Emerson or any other brand of control not
specifically approved for this fan.
WARNING: This product is designed to use only those parts supplied with this product and/or any
accessories designated specifically for use with this product by Emerson Electric Co. Substitution
of parts or accessories not designated for use with this product by Emerson Electric Co. could
result in personal injury or property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when installing the
blade flanges, balancing the blades or cleaning the fan. Do not insert foreign objects in between
rotating fan blades.
WARNING: To reduce the risk of electric shock, this fan must be installed with an isolating wall
control/switch.
WARNING
2
!
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
U.L. Model No.: CF230

3

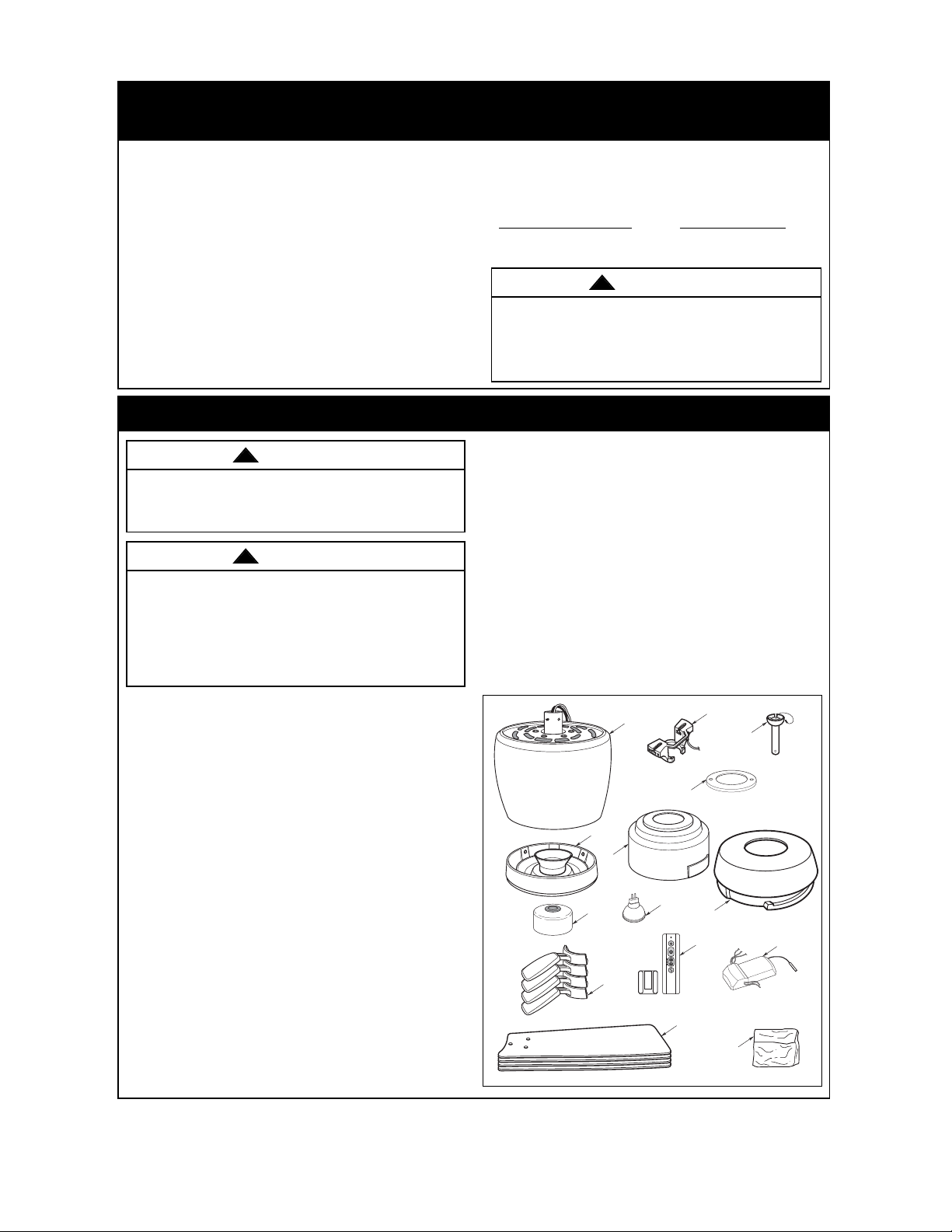

Unpacking Instructions
1. Open carton containing fan. Remove top half of
styrofoam unit. Remove parts and check to see
that you have received the following parts:
NOTE: If you are uncertain of part description,
refer to exploded view illustration.
This Manual Is Designed to Make it as Easy as Possible for You to Assemble,
Install, Operate and Maintain Your Ceiling Fan
Tools Needed for Assembly
One Phillips head screwdriver One stepladder
One 1/4” blade screwdriver One wire stripper
MATERIALS
Wiring outlet box and box connectors must be of
type required by the local code. The minimum wire
would be a 3-conductor (2-wire with ground) of the
following size:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Before assembly your ceiling fan, refer to section
on proper method of wiring your fan (page 9 or 12).
If you feel you do not have enough wiring
knowledge or experience, have your fan installed
by a licensed electrician.
Do not install or use fan if any part is damaged or
missing. Call Toll-Free:
1-800-654-3545
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal
injury or property damage.
j.
g.
h.
i.
k.
m.
l. l.
f.
a. b.
c.
d.
e.
WARNING
!
WARNING
!
WARNING
!NOTE: Place the parts from the loose parts bags
in a small container to keep them from being lost.
If any parts are missing, contact your local
retailer or catalog outlet for replacement before
proceeding.
2. Remove the fan assembly from the protective
plastic bag. Place the fan assembly into the upper
foam pad with the lead wires up.
a. Fan motor assembly
b. One hanger bracket
c. One 4.5” downrod assembly
d. One ceiling cover trim ring
e. One ceiling cover with trim plugs
f. One lower cover
g. One light kit plate assembly
h. One coupler cover
i. Four fan blade flanges
j. Four fan blades
k. One 50 watt GU10 base light bulb
l. RCFP-190 receiver & SR400 transmitter
m. One loose parts bag containing:
1. Three 12 ga. wire connectors
2. Thirteen #10-24 x 5/16" flange head blade screws
3. Four #10-24 x 3/16" pan head screws
4. Four #10 external tooth lockwasher
5. One rubber gasket
6. One #8-32 x 5/16” light switch screw (spare)
THIS FAN IS SUITABLE FOR DAMP LOCATIONS SUCH AS COVERED PORCHES, COVERED PATIOS,
AND COVERED DECKS...ANYWHERE THERE IS A ROOF OVERHEAD.
USE ONLY WITH LIGHT KITS MARKED SUITABLE FOR USE IN DAMP LOCATIONS.
7. One 1/4-20 x 9/16” flange screw with lockwasher (spare)
8. Two threaded stud, #8-32 x 1-1/4”
9. Two external tooth lockwashers
10. Two knurled knobs, #8-32
11. One clevis pin
12. One hairpin clip
13. One balancing kit
U.L. Model No.: CF230

4U.L. Model No.: CF230
Electrical Requirements
If your fan is to replace an existing ceiling light fixture,
turn electricity off at the main fuse box at this time and
remove the existing light fixture.
IMPORTANT: Your ceiling fan will not function
properly, and may be damaged, if used with any wall
dimmer switch or control other than the Emerson
Electric Fan/Light Remote Control supplied with the
fan.
Your new ceiling fan will require a grounded electrical
supply line of 120 volts AC, 60 Hz, 15 amp circuit.
The ceiling structure must be capable of reliably
supporting at least 50 pounds.
To avoid fire or shock, follow all wiring instructions
carefully. Any electrical work not described in these
instructions should be done or approved by a
licensed electrician.
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
WARNING
!
To reduce the risk of fire, electrical shock, or
personal injury, mount fan to outlet box marked
“Acceptable for Fan Support of 15.9 kg (35 lbs) or
less", and use screws supplied with outlet box. Most
outlet boxes commonly used for support of light
fixtures are not acceptable for fan support and may
need to be replaced. Consult a qualified electrician if
in doubt.
WARNING
!
Your Emerson ceiling fan comes supplied with a Fan
Remote Control which consists of a wall mounted
switch which allows you to regulate your ceiling fan
speed.
Installation of Hanger Bracket
The fan must be hung with at least 7' of clearance
from floor to blades (Figure 1).
CLOSE-TO-THE-CEILING
INSTALLTION
STANDARD
INSTALLTION
CEILING
FLOOR
AT
LEAST
7'
AT
LEAST
7'
WARNING
!
To reduce the risk of fire, electrical shock, or personal
injury, mount fan to outlet box marked “Acceptable for
Fan Support of 15.9 kg (35 lbs) or less", and use screws
supplied with outlet box. Most outlet boxes commonly
used for support of light fixtures are not acceptable for
fan support and may need to be replaced. Consult a
qualified electrician if in doubt.
WARNING
!
Your Emerson Ceiling is designed to be installed either in the standard manner, or in the close-to-the-
ceiling manner. Using the standard method, the hanger ball/downrod assembly will suspend the fan several
inches below the ceiling cover. Using the close-to-the-ceiling method, the ceiling cover installs directly on
the fan motor housing, thus mounting the fan 3-1/2 inches closer to the ceiling than the standard methond.
In no case should the fan blades be lower than seven feet above the floor. Depending on your desire

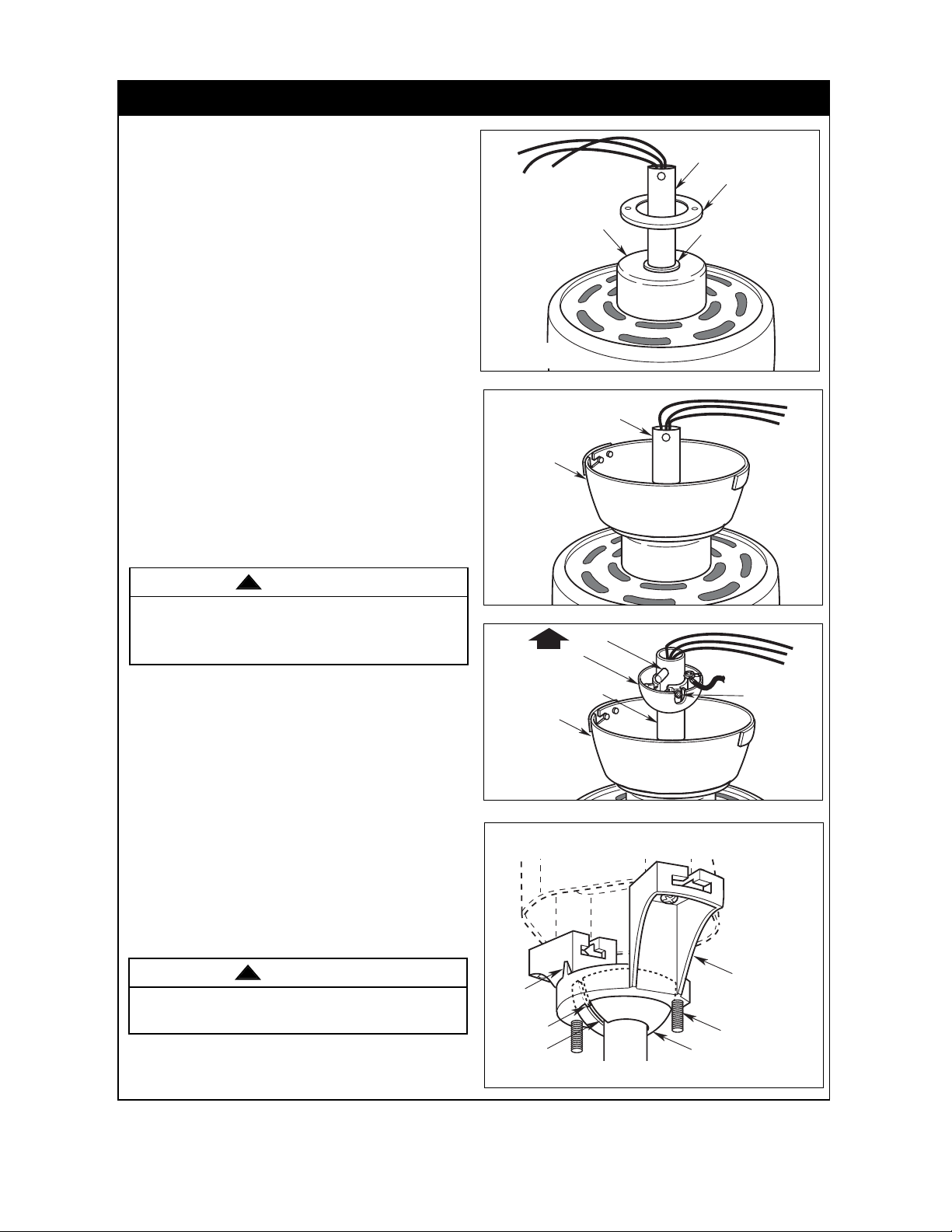

mounting method, proceed to ‘INSTALLING HANGER BALL/DOWNROD ASSEMBLY” for standard

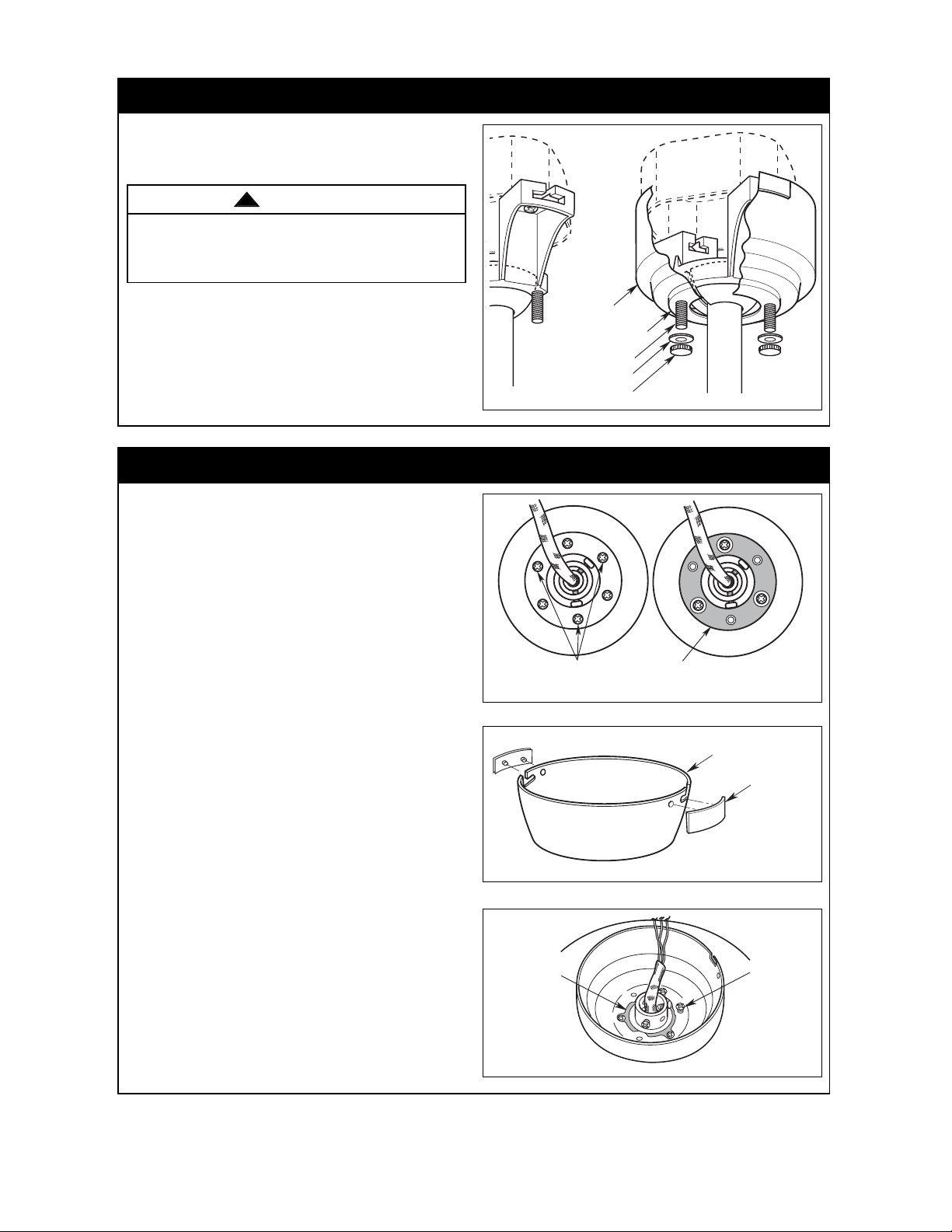

mounting, or to “INSTALLING CEILING COVER ON FAN MOTOR HOUSING” for close-to-the-ceiling
mounting.
IMPORTANT
Figure 1

5U.L. Model No.: CF230
HANGER BRACKET
HOOK
SECURELY TIGHTEN
SCREWS
Figure 3
Installation of Hanger Bracket (continued)
Hanger bracket must seat firmly against outlet box. If
the outlet box is recessed, remove wall board until
bracket contacts box. If bracket and/or outlet box are
not securely attached, the fan could wobble or fall.
WARNING
!
NOTE: The hanger bracket must be mounted
flush with the ceiling in order for the ceiling cover
to install properly. If necessary, use leveling
washers (not supplied) between the outlet box
and the hanger bracket.
3. Slide the hanger bracket onto the outlet box
screws. Center the bracket over the outlet box and
then securely tighten the screws (Figure 3).
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!

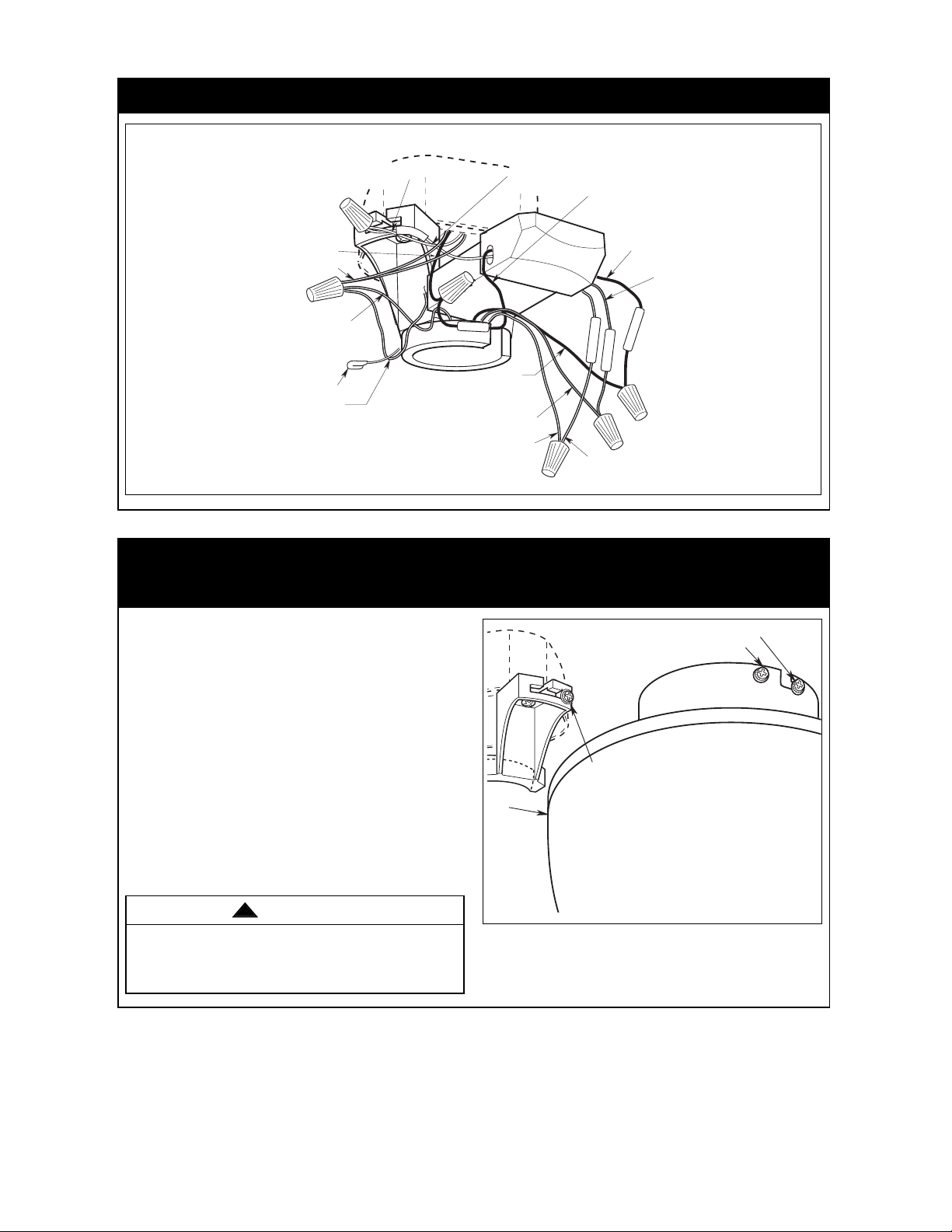

1. Disconnect electrical power to the branch circuit at
the circuit breaker or fuse box before attempting to
install the ceiling fan mounting plate on the outlet
box.
2. Loosen (but do not remove) the two mounting
screws in the outlet box (Figure 2). Position the
hanger bracket on the outlet box so that the T-slots
in the hanger bracket are aligned with the outlet
box screws.
HANGER
BRACKET
LOOSEN TWO
SCREWS (SUPPLIED
WITH OUTLET BOX)
OUTLET BOX
SLIDE THE HANGER
BRACKET ONTO
THE OUTLET BOX
SCREWS, THROUGH
THE T-SLOT
T-SLOT
Figure 2

6U.L. Model No.: CF230
Installation of Blades & Light Assembly
10-24 x 5/16" FLANGE
HEAD BLADE SCREW
(3 Per Blade)
FAN BLADE
FAN BLADE
FLANGE
Figure 4
1. Mount the blade flanges to the fan blades using
three #10-24 x 5/16” Phillips blade screws per
blade (supplied) (Figure 4). Repeat for the three
remaining blades.
To reduce the risk of personal injury, do not bend the
blade flange when installing the blade flanges,
balancing the blades or cleaning the fan. Do not
insert foreign objects in between rotating fan blades.
WARNING
!
LIGHT KIT PLATE
ASSEMBLY
LIGHT SWITCH
BLACK WIRE
LIGHT SWITCH
WHITE WIRE
FAN MOTOR
WHITE WIRE
FAN MOTOR
BLUE WIRE
REINSTALL WIRE
CONNECTORS
Figure 7
4. Remove and retain the wire connectors from the
white and blue wires (Figure 6).
5. Connect the white wire from the ceiling fan to the
white wire of the light kit plate (Figure 7). Connect
the blue wire from the ceiling fan to the black wire
of the light kit plate. Use wire connectors
(previously removed) to make connections.
NOTE: Carefully tuck all wires and connectors
into the fan motor assembly.
To avoid possible fire or shock, make sure that
electrical wires are not pinched between the light kit
plate assembly and the fan motor assembly.
WARNING
!
2. Attach one blade assembly to the motor using the
captive screw provided for each flange (Figure 5).
Make sure the screws are tightened securely.
Repeat this procedure for the other three blade
assemblies.
NOTE: Take care not to scratch the fan housing
when installing the blade assemblies.
3. Remove one of the fan motor assembly screw (and
retain for later use) and loosen the two other
screws for installation of the light kit plate assembly
(Figure 6).
CAPTIVE SCREW
MOTOR
HOUSING
BLADE FLANGE
ASSEMBLY
Figure 5
LOOSEN TWO FAN
MOTOR SCREWS
REMOVE AND RETAIN
FAN MOTOR SCREW
REMOVE AND RETAIN
WIRE CONNECTORS (2)
Figure 6

7U.L. Model No.: CF230
Installation of Blades & Light Assembly (continued)
REINSTALL FAN
MOTOR SCREW
RETIGHTEN TWO FAN
MOTOR SCREWS
Figure 8
5. Position the light kit plate assembly onto the fan
motor assembly, careful to not pinch any wires
during installation.
6. Rotate the light kit plate assembly counter-
clockwise to engage the two key slots with the two
screws in the fan motor assembly.
7. Reattached the screw (removed in Step 3) into the
light kit plate assembly and securely tighten the
three screws (Figure 8).
NOTE: Do not engage the light bulb at this time.
NOTE: Continue to Close-to-the-Ceiling instal-
lation if needed.

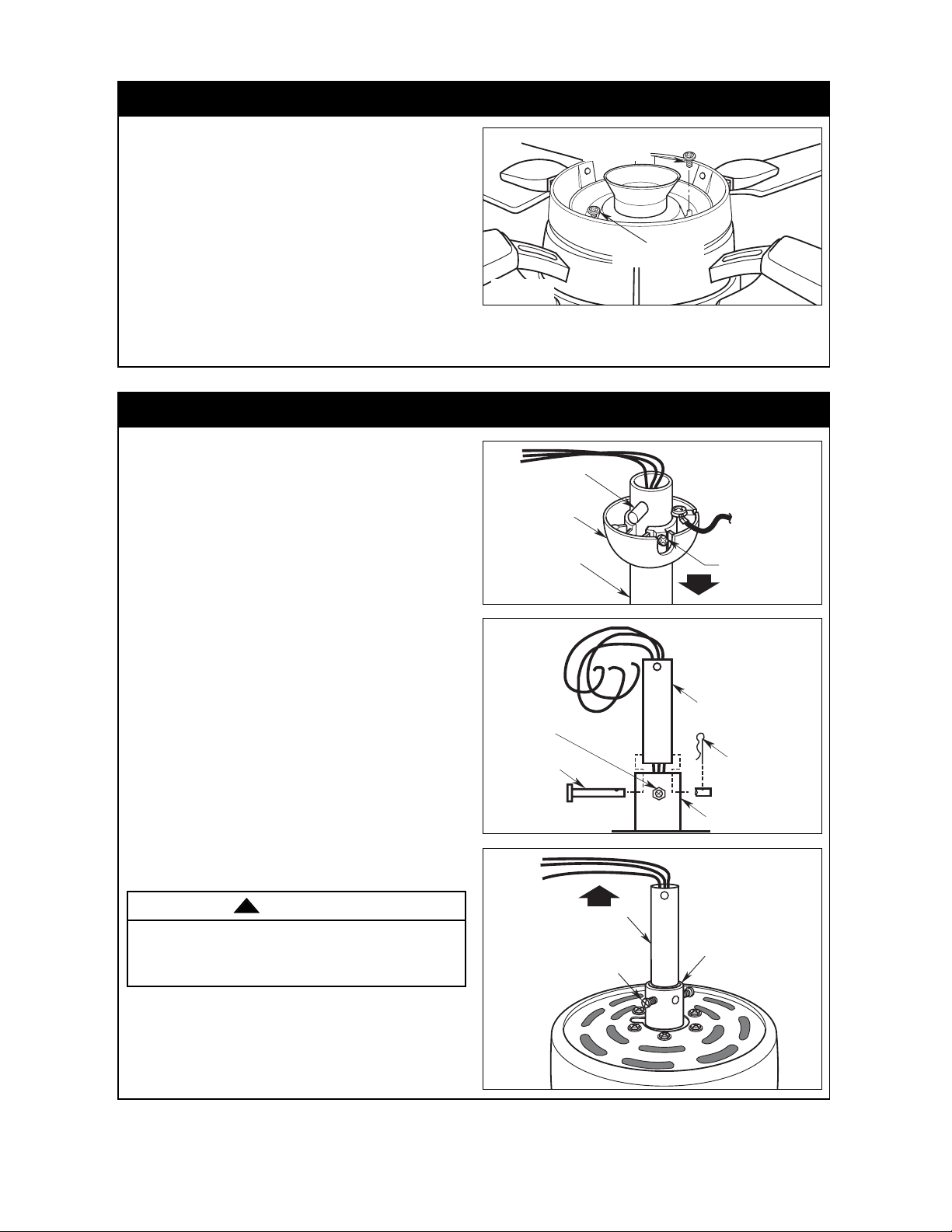

How to Assemble Your Ceiling Fan (Standard)
DOWNROD
SETSCREW (2)
MOTOR COUPLING
Figure 11
Proceed to "Close-To-The-Ceiling" section on page
11 if you are not using the downrod to hang your
ceiling fan.
NOTE: Carefully turn partially assembled ceiling fan
over and place into the packing styrofoam to
complete the assembly of your ceiling fan. Be extra
careful with the blades while turning the fan over.
1. Remove the hanger ball by loosening the setscrew in
the hanger ball until the ball falls freely down the
downrod (Figure 9). Remove the pin from the
downrod, then remove the hanger ball. Retain the pin
and hanger ball for reinstallation in Step 7.
2. Loosen setscrew in motor coupler if necessary.
Separate, untwist and unkink the three 80” motor
leads. Route the motor lead wires through the
downrod. Align the clevis pin holes in the downrod with
the holes in the motor coupler. Install the clevis pin and
secure with the hairpin clip (Figure 10). The clevis pin
must go through the holes in the motor coupler and the
holes in the downrod. Be sure to push the straight leg
of the hairpin clip through the hole near the end of the
clevis pin until the curved portion of the hairpin clip
snaps around the clevis pin. The hairpin clip must be
properly installed to prevent the clevis pin from working
loose. Pull on the downrod to make sure the clevis pin
is properly installed.
It is critical that the clevis pin in the motor coupler is
properly installed and the setscrew securely
tightened. Failure to verify that the pin and setscrew
are properly installed could result in the fan falling.
WARNING
!
PIN
HANGER BALL
SETSCREW
DOWNROD
Figure 9
MOTOR COUPLING
SETSCREW (2)
CLEVIS PIN
HAIRPIN
CLIP
DOWNROD
Figure 10
3. While pulling up on the downrod, securely tighten
the two setscrews in the motor coupling
(Figure 11).
NOTE: The setscrews must be properly installed
as described above, or fan wobble could result.

8U.L. Model No.: CF230
How to Assemble Your Ceiling Fan (Standard) (cont.)
6. Place the ceiling cover over the downrod. Be sure it
is oriented correctly (Figure 13).
7. Reinstall the hanger ball (Figure 14) on the
downrod as follows. Route the motor leads through
the downrod. Position the pin through the two holes
in the downrod and align the ball so the pin is
captured in the groove in the top of the hanger ball.
Pull the hanger ball up tight against the pin and
securely tighten the setscrew in the hanger ball.
A loose setscrew could create fan wobble.
8. The fan comes with blue, black and white leads
that are 80” long. Before installing fan, measure up
approximately 6 to 9-inches above top of hanger
ball/downrod assembly. Cut off excess leads and
strip back insulation 1/2-inch from end of leads.
It is critical that the pin in the hanger ball is properly
installed and the setscrew securely tightened.
Failure to verify that the pin and setscrew are
properly installed could result in the fan falling.
WARNING
!
CEILING
COVER
DOWNROD
Figure 13
CEILING
COVER
DOWNROD
HANGER BALL
PIN
SETSCREW
Figure 14
4. Make sure the grommet is properly installed in the
coupling cover then slide the coupler cover on
the downrod until it rests on the motor housing
(Figure 12).
5. Place the ceiling cover trim ring and ceiling cover
over the downrod. Be sure both pieces are oriented
correctly (Figure 12).
DOWNROD
GROMMET
COUPLING
COVER
CEILING COVER
TRIM RING
Figure 12
HANGER
BRACKET
HOOK
TAB
GROOVE HANGER
BALL
#8-32 x 1-1/2"
THREADED STUD (2)
NOTE: CEILING COVER, SUPPLY WIRES AND FAN WIRES
OMITTED FOR CLARITY.
9. Screw the two 1-1/4” threaded studs (supplied) into
the tapped holes in the hanger bracket (Figure
15).
10. Carefully lift the fan assembly and seat the
hanger ball in the hanger bracket (Figure 15). The
tab on the hanger bracket must seat in the groove
in the hanger ball.
Figure 15
Failure to seat tab in groove could cause damage to
electrical wires and possible shock or fire hazard.
WARNING
!

1. Disconnect electrical power to the branch circuit at
the circuit breaker or fuse box before attempting to
wire the ceiling fan.
2. Position the supply wires to the left side of the
outlet box (Figure 16); position the fan wires to the
right side.
3. Partially insert the remote control receiver (flat side
up) until one end rests on the hanger ball as shown
in Figure 16. Be sure to insert the antenna wire
first, making certain that it passes completely
through the mounting bracket.
9U.L. Model No.: CF230
How to Wire Your Ceiling Fan (Standard)
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
NOTE: Make all wiring connections using wire
connectors (supplied). Make sure that all
connections are tight, including ground, and
that no bare wire is visible at the wire
connectors, except for the ground wire.

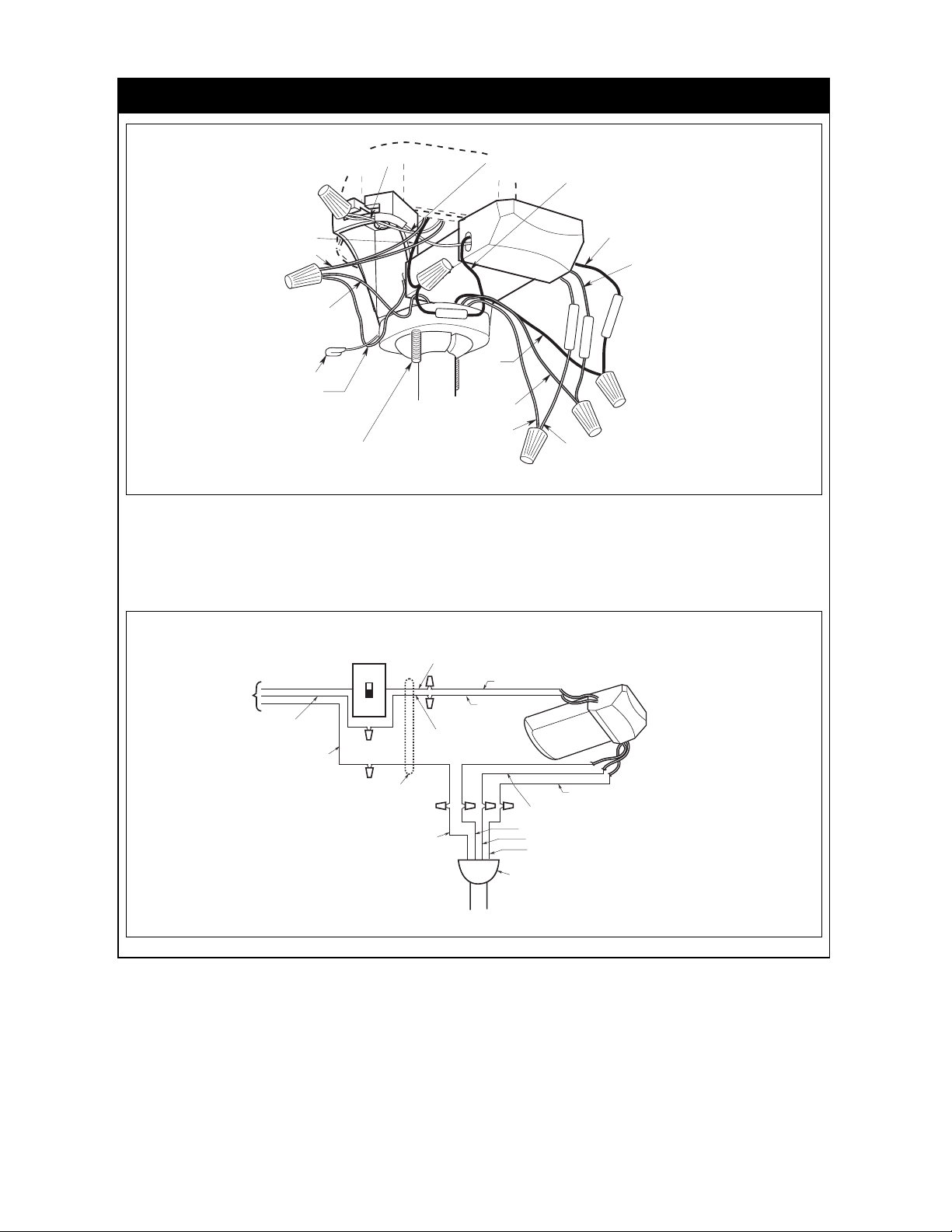

4. Refer to Figure 16 and 17 and connect the receiver
wires to the supply wires and the fan motor wires
as follows:
a. Securely connect the green grounding wires from
the hanger ball and the hanger bracket to the
supply grounding conductor (this may be a bare
wire or a wire with green insulation).
b. Securely connect the supply white (neutral) wire to
the receiver white (AC IN N) wire.
c. Securely connect the supply black wire (hot) wire to
the receiver black (AC IN L) wire.
d. Securely connect the fan motor white wire to the
receiver white (TO MOTOR N) wire.
e. Securely connect the fan motor black wire to the
receiver black (TO MOTOR L) wire.
f. Securely connect the fan motor blue wire to the
receiver blue (FOR LIGHT) wire.
NOTE: Failure to properly connect the receiver
wires will damage the device and render it non-
operable.

10 U.L. Model No.: CF230
How to Wire Your Ceiling Fan (Standard) (cont.)
AC
I
N
N
AC IN L
FOR LIGHT
TO MOTOR N
RECEIVER
BLUE WIRE
RECEIVER
BLACK WIRE
RECEIVER WHITE
WIRE
SUPPLY BLACK
WIRE (HOT)
GROUND WIRE
GREEN GROUND
WIRE FROM
HANGER BALL
FAN BLUE WIRE
1-1/4" THREADED
STUD (2)
TO MOTOR L
SUPPLY WHITE WIRE
(NEUTRAL)
GREEN GROUND
WIRE FROM
HANGER
BRACKET
RECEIVER BLACK
WIRE
RECEIVER WHITE WIRE
FAN WHITE WIRE
FAN
BLACK
WIRE
ANTENNA
Figure 16
STANDARD ON-OFF
WALL SWITCH
BLACK
BLACK (AC IN L)
BLACK (TO
MOTOR L)
BLACK
WHITE
HANGER BALL
GREEN WIRE (GROUND)
FROM HANGER BALL AND
HANGER BRACKET
TWO-CONDUCTOR
CABLE (WITH
GROUND)
BLACK
(HOT)
WHITE
(NEUTRAL)
GROUND
TO
120-
VOLT
SUPPLY
WHITE
BLUE
WHITE (TO MOTOR N)
BLUE (FOR LIGHT)
WHITE
(AC IN)
6. Carefully turn the wire connectors upward and
insert them up through the open side of the hanger
bracket and into the outlet box. Push the grounded
green and white wires into one side of the outlet
box; push the ungrounded black and blue wires
into the other side of the outlet box.
Figure 17
5. After wire connections have been made, separate
the grounded white neutral and green wires on
one side of the outlet box from the ungrounded
black and blue wires on the other side of the outlet
box (Figure 17).

11 U.L. Model No.: CF230
Installation of Ceiling Cover (Standard)
1. Lift the ceiling cover up to the threaded studs and
turn until the studs protrude through the holes in
the ceiling cover (Figure 18).
2. Position the lower ceiling cover trim ring onto the
threaded studs and secure both the ceiling cover
and ring in place by sliding lockwashers (supplied)
over the threaded studs and installing the two
knurled knobs (supplied). (Figure 18). Tighten the
knurled knobs securely until the ceiling cover fits
snugly against the ceiling.
CEILING
COVER
CEILING COVER
TRIM RING
THREADED STUD (2)
LOCKWASHER (2)
KNURLED KNOB (2)
Figure 18
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
Close-to-the-Ceiling Installation
REMOVE SCREWS (3) INSTALL RUBBER GASKET
Installing The Ceiling Cover On The
Fan Motor Housing
1. Remove and retain three screws from the top of
the motor housing (Figure 19A).
2. Position the rubber gasket (supplied in parts bag)
on the motor housing (small holes in gasket
centered over the screw holes in the housing)
(Figure 19B).
3. Remove the ceiling cover trim plugs pre-installed
to the ceiling cover (Figure 20).
4. Align the holes in the ceiling cover with the holes in
the motor housing and secure using the three
screws (Figure 21).
5. The fan comes with blue, black and white leads
that are 80” long. Measure up approximately 6 to
9-inches above the motor coupling. Cut off excess
leads and strip back insulation 1/2-inch from ends
of leads.
Figure 19A
SCREW (3)
RUBBER
GASKET
Figure 21
Figure 19B
CEILING COVER
TRIM PLUG (2)
CEILING COVER
Figure 20

12 U.L. Model No.: CF230
1. Disconnect electrical power to the branch circuit at
the circuit breaker or fuse box before attempting to
wire the ceiling fan.
2. Position the supply wires to the left side of the
outlet box (Figure 23); position the fan wires to the
right side.
3. Partially insert the remote control receiver (flat side
up) until one end rests on the hanger bracket as
shown in Figure 23. Be sure to insert the antenna
wire first, making certain that it passes completely
through the mounting bracket.
How to Wire Your Ceiling Fan (Close-to-the-Ceiling)
Turning off wall switch is not sufficient. To avoid
possible electrical shock, be sure electricity is
turned off at the main fuse box before wiring. All
wiring must be in accordance with National and
Local codes and the ceiling fan must be properly
grounded as a precaution against possible electrical
shock.
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.
WARNING
!
If you feel that you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!
NOTE: Make all wiring connections using wire
connectors (supplied). Make sure that all
connections are tight, including ground, and
that no bare wire is visible at the wire
connectors, except for the ground wire.
4. Refer to Figure 23 and connect the receiver wires
to the supply wires and the fan motor wires as
follows:
a. Securely connect the green grounding wires from
the hanger ball and the hanger bracket to the
supply grounding conductor (this may be a bare
wire or a wire with green insulation).
b. Securely connect the supply white (neutral) wire to
the receiver white (AC IN N) wire.
c. Securely connect the supply black wire (hot) wire to
the receiver black (AC IN L) wire.
d. Securely connect the fan motor white wire to the
receiver white (TO MOTOR N) wire.
e. Securely connect the fan motor black wire to the
receiver black (TO MOTOR L) wire.
f. Securely connect the fan motor blue wire to the
receiver blue (FOR LIGHT) wire.
NOTE: Failure to properly connect the receiver
wires will damage the device and render it non-
operable.
Close-to-the-Ceiling Installation (cont.)
HOOK
CEILING COVER
HANGER
BRACKET
HOOK ON HANGER BRACKET MUST PASS
THROUGH SCREW HOLE IN CEILING
COVER, INSIDE OF BRACKET TO OUTSIDE
OF BRACKET
The hook must pass through the screw hole in the
ceiling cover from the inside to the outside. Any
other hanging method may cause the hook to break
and the fan to fall.
WARNING
!
Figure 22
6. Carefully lift the fan assembly up to the hanger
bracket. Pass the hook on the hanger bracket
(Figure 22) through one of the screw holes (not the
slots) in the ceiling cover (Figure 22). The hook
must pass from the inside of the ceiling cover to
the outside. The hook will hold the fan assembly
while connecting the wiring.

13 U.L. Model No.: CF230
How to Wire Your Ceiling Fan (Close-to-the-Ceiling) (cont.)
AC
I
N
N
AC IN L
FOR LIGHT
TO MOTOR N
RECEIVER
BLUE WIRE
RECEIVER
BLACK WIRE
RECEIVER WHITE
WIRE
SUPPLY BLACK
WIRE (HOT)
GROUND WIRE
GREEN GROUND
WIRE FROM
HANGER BALL
FAN BLUE WIRE
TO MOTOR L
SUPPLY WHITE WIRE
(NEUTRAL)
GREEN GROUND
WIRE FROM
HANGER
BRACKET
RECEIVER BLACK
WIRE
RECEIVER WHITE WIRE
FAN WHITE WIRE
FAN
BLACK
WIRE
ANTENNA
Figure 23
Installation of Fan Assembly onto
Hanger Bracket (Close-to-the-Ceiling)
1. Partially install two #10-24x3/16 pan head screws
and lock washers (supplied) into the hanger
bracket as shown (Figure 24). Observe the ceiling
cover to determine exact installation location of
both screws. The protruding screws will be used to
engage the ceiling cover.
2. Lift the fan assembly up to the hanger bracket.
Engage the slots in the ceiling cover with the
loosened screws in the bracket and turn the cover
counterclockwise (Figure 24). Be sure that the
lockwashers are between the screw heads and the
ceiling cover. Immediately tighten both screws to
lock the fan onto the hanger bracket.
3. Install the two #10-24x3/16 screws and
lockwashers (supplied) into the hanger bracket ;
tighten all screws securely.
INSTALL TWO #10-24 x 3/16
PAN HEAD SCREWS AND
LOCKWASHERS
TIGHTEN SCREW
INSTALL SCREW AND WASHER
FAN
ASSEMBLY
Figure 24
To avoid possible fire or shock, make sure that the
electrical wires are completely inside the outlet box
and not pinched between the ceiling cover and the
ceiling.
WARNING
!

14 U.L. Model No.: CF230
Remote Control Procedures
General
Your Emerson Ceiling Fan/Light Remote Control
consists of hand-held transmitter and a receiver which
is mounted under the fan ceiling cover. The remote
control is designed to separately control your ceiling
fan speed and light intensity.
The remote control transmitter is powered by two AAA
alkaline batteries (included). To prevent possible
damage if the batteries should leak, be sure to
remove the batteries when the control is not to be
used for an extended period of time.
Code switches in the transmitter and receiver may be
set in 32 different positions. If your fan and light go on
and off without using your control, you may be getting
interference from other remote units such as garage
door openers, car alarms or security systems. To
remedy this situations, simply change the combination
code in your transmitter and receiver.
Preset Memory Feature
Your Emerson receiver is equipped with a preset
memory feature. If the AC supply to the receiver is
powered through a wall switch, when the switch is
turned OFF, the control will remember the light
intensity and fan speed. When the switch is turned
back ON the light and fan will resume operation as
they were prior to the switch being turned OFF.

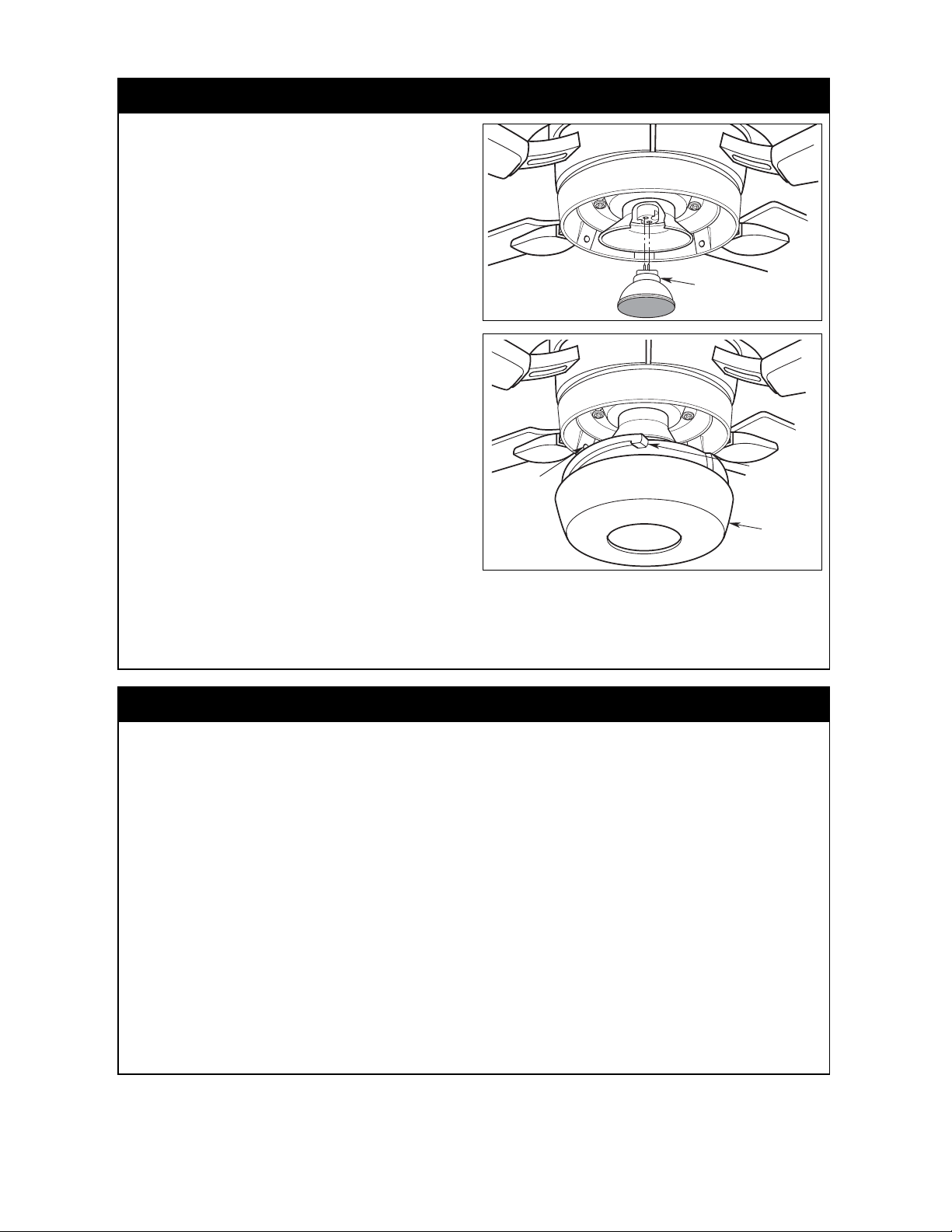

Installation of Light Bulb & Lower Cover (All Fans)
1. Install the 50-watt (maximum) GU10 base light bulb
(supplied) into the light socket (Figure 25). Turn
bulb clockwise to engage into the socket for secure
fit.
NOTE: Do not touch the new 50-watt (maximum)
MR-16, GU-10 bulb with your bare fingers; using a
cloth or soft gloves to hold the bulb, gently push
it into the socket and twist to lock the lamp into
the socket (Figure 25). If there is any doubt that
the bulb may have been contaminated by your
touch, you should clean the bulb before its first
use. Take a clean cloth dipped in a small amount
of rubbing/isopropyl alcohol and gently brush off
the bulb surface. If the lamp is hot, wait 30
minutes before cleaning.
CAUTION: To reduce the risk of electric shock,
burns or other injury, disconnect the electric
supply circuit to the fan before attempting to
install or replace the halogen bulb.
CAUTION: To not touch halogen bulbs with bare
hands. Fingerprints may result in shorter bulb life.
Remove fingerprints with alcohol.
2. Place the lower cover into the opening in the light
kit plate assembly. Place the three pins on the light
kit plate assembly into the three mounting holes
located on the underside of the lower cover. Turn
the lower cover clockwise until it stops and locks
into place (Figure 26).
NOTE: Periodically check that the cover is seated
fully clockwise in the light kit plate assembly.
50-WATT GU10
BASE LIGHT BULB
Figure 25
LOWER
COVER
LOWER COVER
PIN (3)
LIGHT SWITCH
PIN (3)
Figure 26
3. You have now completed the assembly of your
new ceiling fan. Proceed to the next section to
program your remote controls.

15 U.L. Model No.: CF230
Remote Control Procedures (cont.)
CODE
SWITCHES
REMOTE CONTROL
BATTERY
COMPARTMENT
COVER
TWO AAA
BATTERIES
REMOTE CONTROL
LEVERS
1234
5
Figure 27
TO INSTALL BRACKET TO WALL:
SLIDE THE COVER UP TO EXPOSE THE SCREW
HOLES FOR INSTALLATION
COVER
WALL
BRACKET
SCREW
HOLES (2)
Figure 28

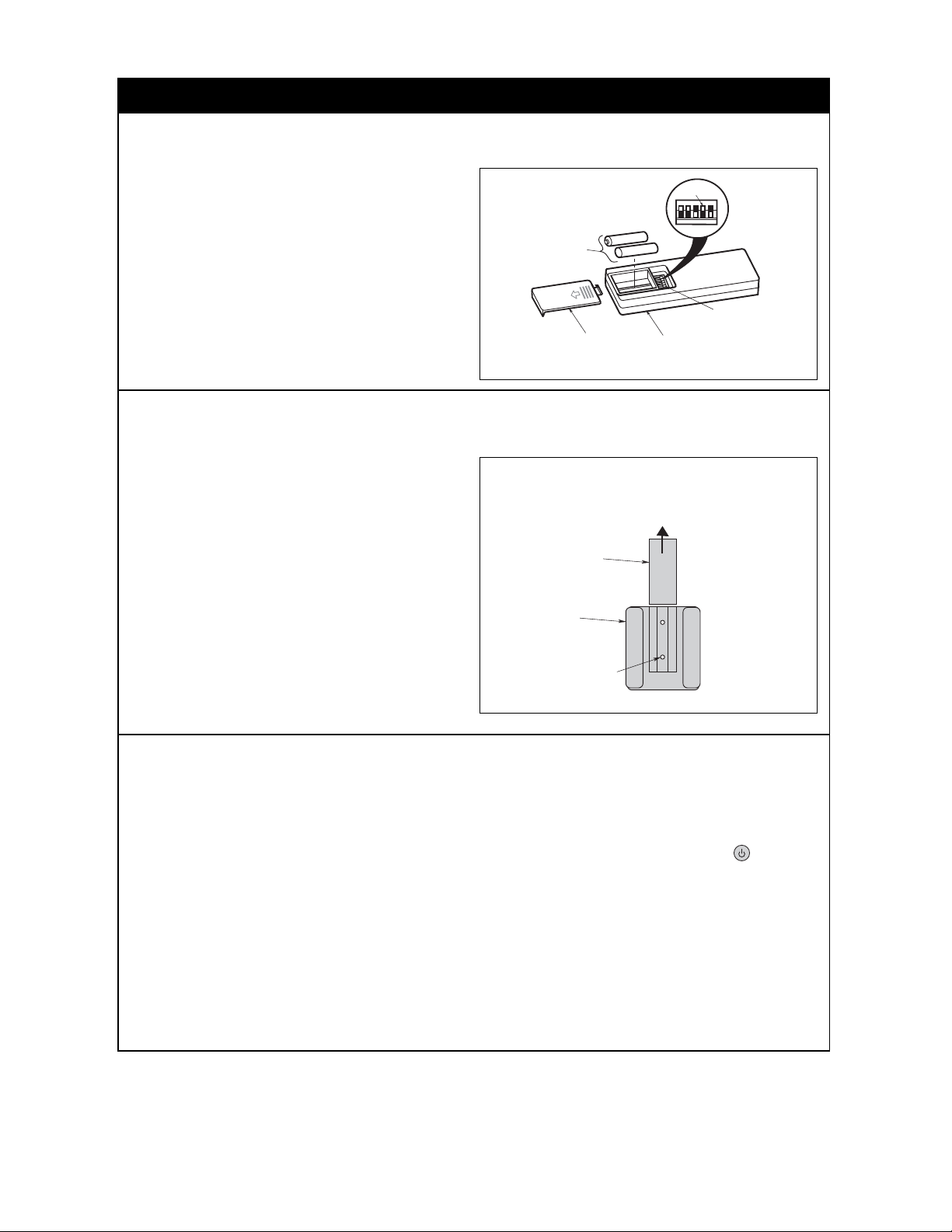

1. Remove the battery cover by pressing firmly below
the arrow and sliding the cover off the control
(Figure 27).
2. Install two AAA alkaline batteries and reinstall the
battery cover.
A storage bracket is provided for holding your remote
control when not in use. If you desire to use the
bracket, install it on a wall that is away from excess
heat or humidity (Figure 28).
Installation of Storage Bracket for Remote Control
Installation of Battery
Setting Operating Frequency of Remote Control
Your remote control has code switches which must be
set in one of 32 possible code combinations
(Figure 29). The five levers (numbered 1, 2, 3, 4,
and 5) on the switches are factory-set in the ON (up)
position. Change the switch settings as follows
(Figure 29):
1. Slide the five switch levers in the remote control to
your choice of ON (up) or down positions. Use a
ball-point pen or small screwdriver and slide the
levers firmly up or down.
2. Restore electrical power to the ceiling fan at the
circuit breaker panel or fuse box.
3. Within 1 minute of restoring electricity, push and
hold the remote control OFF button ( ) for 3 to 5
seconds to set the code in the receiver. The fan's
lights will blink several times to confirm the fan is
programmed.
NOTE: The ceiling fan receiver will not respond to
transmitter commands if the transmitter’s
frequency switch settings are changed without
reprogramming the receiver. Program the receiver
to the new frequency by repeating the “Setting
Operating Frequency of Remote Control” and
“High Speed Conditioning” instructions.

16 U.L. Model No.: CF230
Energy Efficient Use of Ceiling Fans
Ceiling fan performance and energy savings rely
heavily on the proper installation and use of the
ceiling fan. Here are a few tips to ensure quality and
product performance.
Choosing the Appropriate Mounting Location.
Ceiling fans should be installed, or mounted, in the
middle of the room and at least 7 feet above the floor
and 18 inches from the walls. If ceiling height allows,
install the fan 8 - 9 feet above the floor for optimal
airflow. Consult your Emerson Retailer for optional
mounting accessories.
Using the Ceiling Fan Year Round. In the summer,
use the ceiling fan in the counter-clockwise direction.
The airflow produced by the ceiling fan creates a
wind-chill effect, making you "feel" cooler. Select a
fan speed that provides a comfortable breeze, lower
speeds consume less energy. In the winter, reverse
the motor and operate the ceiling fan at low speed in
the clockwise direction. This produces a gentle
updraft, which forces warm air near the ceiling down
into the occupied space. Remember to adjust your
thermostat when using your ceiling fan - additional
energy and dollar savings could be realized with this
simple step!
Turn Off When Not in the Room. Ceiling fans cool
people, not rooms. If the room is unoccupied, turn off
the ceiling fan to save energy.
Remote Control Procedures (cont.)
1. To turn on or shut off the ceiling fan, press and
release the ( ) button.
2. To set the desired fan speed, press the ( )
button to decrease the speed and the ( ) to
increase the speed. The LED display will light up
to indicate the new speed selected.
3. To turn the downlight on or off, press and release
the ( ) button.
4. To vary the intensity of the light, hold the ( )
button down until the desired light intensity is
reached, then release the button. The remote
dimmer code must be set to “D” to use the
dimming features (Figure 29).
Operating Your Ceiling Fan
Reversing Air Circulation
Figure 29
1.All fans are shipped from the factory with the
reversing switch positioned to circulate air
downward. If airflow is desired in opposite
direction, turn your fan off and wait for the blades to
stop turning, then slide the reversing switch to the
opposite position, and turn fan on again
(Figure 30).
2. The fan blades will turn in the opposite direction
and reverse the airflow.
REVERSING
SWITCH
Figure 30
Reverse Switch Information
Season Rotation Switch
Direction Position
Summer Counter-Clockwise Right
Winter Clockwise Left

17 U.L. Model No.: CF230
Trouble Shooting
WARNING: For your own safety, turn off power at fuse box or circuit breaker before trouble shooting your fan.
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not start. 1. Fuse or circuit breaker blown. 1.Check main and branch circuit fuses or circuit
breakers.
2. Loose electrical connections to the fan. 2.Check line wire connections to fan .
WARNING: Make sure main power is
turned OFF.
3. Reversing switch in neutral position. 3.Make sure reversing switch position is all the
way to one side.
4. Fan wall switch is OFF. 4.Turn the switch ON.
5. Fan/Light remote control is OFF. 5.Turn ON fan/light remote control.
6. Remote control battery is weak. 6.Replace the remote control batteries.
2. Fan sounds noisy. 1. Blades not attached to fan. 1.Attach blades to fan before operating.
2. Loose screws in motor housing. 2.Check to make sure all screws in motor
housing are snug (not over-tight).
3. Screws securing fan blade flanges to 3.Check to make sure the screws which attach
motor hub are loose. the fan flanges to the motor hub are tight.
WARNING: Make sure main power is
turned OFF.
4. Screws holding blades to flanges 4.Tighten screws securely.
are loose.
3. Fan wobbles 1. Setcrews in motor coupling are not 1.Raise coupling cover and tighten setscrews
excessively. tightened securely. securely.
2. Setscrew in hanger ball/downrod 2.Tighten the setscrew in the hanger ball/
assembly is loose. downrod assembly.
3. Screws securing fan blades to motor are 3.Check to be sure screws which attach the fan
loose. blade to the motor are tight.
4. Fan blades are not seated properly. 4.Check to be sure that the screws securing the
fan blades seat firmly.
5. Hanger bracket and/or ceiling outlet box 5.Tighten the hanger bracket screws to the
is not securely fastened. outlet box, and /or secure outlet box.
6. Fan blades out of balance. 6.Interchanging an adjacent (side-by-side)
blade pair can redistribute the weight and
result in smoother operation.
Or use supplied balancing kit to balance
blades.
!
!
!

18
Repair Parts
1
17
12 11
19
23
25
3
2
13
10
18
9
20
5
67
8
21
22
24
15
14
27
28
26
16 4
U.L. Model No.: CF230
Maintenance
Accessories
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is the only
maintenance that is needed.
When cleaning, use only a soft brush or lint free cloth
to avoid scratching the finish.
Abrasive cleaning agents are not required and should
be avoided to prevent damage to finish.
Do not use water when cleaning your ceiling fan. It
could damage the motor or the blades and create the
possibility of an electrical shock.
WARNING
!
This product is designed to use only those parts
supplied with this product and/or any accessories
designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or
accessories not designated for use with this product
by Emerson Electric Co. could result in personal
injury or property damage.
The use of any other control not specifically
approved for this fan could result in fire, shock and
personal injury.
1. Ceiling Fan/Light Controls (see store or catalog).
2. Ceiling Fan Blades (see store or catalog). WARNING
!
WARNING
!

19 U.L. Model No.: CF230
Repair Parts Listing
Key Model Numbers
No. Description CF230BS00 CF230ORB00 CF230WW00
* Hanger Pack,
Consisting of: 762231-4 762231-8 762231-1
1 Hanger Bracket (1) — — —
2 Hanger Ball (1) — — —
3 Downrod 4.5” (1) — — —
* Parts Bag Containing: 764149 764149-1 764149
4 12 ga. Wire Connectors (3) — — —
5 Stud, Threaded #8-32 x 1-1/4” (2) — — —
6 Lockwasher, External Tooth #8-32 x 1-1/4” (2) — — —
7 Knob, Knurled #8-32 (2) — — —
8 #10-24 x 5/16” Flange Head Blade Screws (13) — — —
9 #10-24 x 3/16” Pan Head Screws (4) — — —
10 #10 External Tooth Lock Washer (4) — — —
11 Clevis Pin (1) — — —
12 Hairpin Clip (1) — — —
13 Rubber Gasket (1) — — —
14 #8-32 x 5/16” Light Switch Screw (1 Spare) — — —
15 1/4-20 x 9/16” Flange Screw w/Lockwasher (1 Spare) — — —
16 Balancing Kit (1) — — —
17 Cover, Ceiling (1) 764138-BS 764138-ORB 764138-WW
18 Ceiling Cover Trim Plug (2) 764030-BS 764030-ORB 764030-WW
19 Ceiling Cover Trim Ring (1) 764031-BS 764031-ORB 764031-WW
20 Cover, Coupler (1) 764139-BS 764139-ORB 764139-WW
21 Fan Blades (4) 764144-BS/CH 764144-ORB/DC 764144-BS/WW
22 Fan Blade Flanges (4) 764142-BS 764142-ORB 764142-WW
23 Light Kit Plate Assembly (1) 764146-BS 764146-ORB 764146-WW
24 Cover, Lower (1) 764147-BS 764147-ORB 764147-WW
25 Wiring Harness (1) 764148 764148 764148-1
26 Light Bulb, 50-Watt GU10 (1) 763494 763494 763494
27 Receiver RCFP RCFP RCFP
28 Transmitter SR401 764090 764090 764090
—Owner's Manual BP7434-1 BP7434-1 BP7434-1
Before discarding packaging material, be certain all
parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• PART NUMBER
• PART DESCRIPTION
• NAME OF ITEM
• MODEL NUMBER
For repair parts, phone [phone].

U.L. Model No.: CF230
Part No. F40BP74340001 Printed in China 05/12 Form No. BP7434-1
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant • St. Louis, MO 63136
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against all defects in
workmanship and materials. You must be the original purchaser or user of the product to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for the lifetime of your ceiling fan. All other components and accessories are
covered by this warranty for one year from the date you purchased your ceiling fan. ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH RESPECT TO COMPONENTS AND
ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other accessory at
no charge to you. If repair of the motor or blades is not practical or possible within a reasonable time and no replacement can
be provided, Emerson will refund the actual purchase price of your fan. WE WILL SHIP THE REPAIRED PRODUCT OR
REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE FOR ALL COSTS OR REMOVAL, REINSTALLATION
AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC CO.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY SERVICE. KEEP YOUR
RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory or to your nearest authorized service
center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to Air Comfort
Products, Division of Emerson Electric Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136. Include all model numbers
shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest authorized service
center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized service
center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit since we will not be
responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does not cover any
defects, malfunctions or failures caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other written or oral
warranties apply, and no employee, agent, dealer or other person is authorized to give any warranties on behalf of Emerson
Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS WARRANTY AND
EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES.
Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages
include but are not limited to the cost of repairing or replacing other property which was damaged if this product does not work
properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
