Emerson VININGS CF240ATB00 User manual

Part No. F40BP73590001 Form No. BP7359-1
U.L. Model No.: CF240
READ AND SAVE THESE INSTRUCTIONS
Net Weight: 27.0 Lbs.
VININGS™
Ceiling Fan
Owner's Manual
CF240ATB00
Antique Bronze with
Dark Cherry/Walnut Blades
Model Number
BP7359 VININGS CF240 9/19/07 11:13 AM Page 1

WARNING: To avoid fire, shock, and serious personal injury, follow these
instructions. Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a
warning device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan.
Always turn off the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
5. Do not operate reversing switch until fan blades have come to a complete stop.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before
wiring, and do not operate fan without blades.
2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA
70-1999 and Local Codes. Use the National Electrical Code if Local Codes do not
exist. The ceiling fan must be grounded as a precaution against possible electrical
shock. Electrical installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably
supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for
Fan Support”, and use the mounting screws provided with the outlet box. Most
outlet boxes commonly used for support of light fixtures are not
acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
4. The longer downrod furnished with the fan provides the minimum
recommended floor to fan blade clearance for a 9 foot ceiling. The 8” downrod
(supplied) must be used for an 8 foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent
accidental contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling
fan. If you do not know enough about electrical wiring, have your fan installed by a
licensed electrician.
NOTE: This fan is suitable for use with solid-state speed controls.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used
with fan speed control Model No. UC7067RC, manufactured by Rhine Electric Co., Ltd.
WARNING: This product is designed to use only those parts supplied with this
product and/or any accessories designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or accessories not designated for use with
this product by Emerson Electric Co. could result in personal injury or
property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when
installing the blade flanges, balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING: To reduce the risk of electrical shock, this fan must be installed with an
isolating wall control/switch.
!WARNING
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
2U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 2

3
This Manual Is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
Do not install or use fan if any part is
damaged or missing. Call Toll-Free:
1-800-654-3545
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Tools Needed for Assembly
One Phillips head screwdriver
One wire stripper
One pair of pliers
One stepladder
Seven wire connectors (supplied)
Three 40-watt (maximum) Candelabra
bulbs
Materials
Wiring, outlet box and box connectors
must be of type required by the local code.
The minimum wire would be a 3-conductor
(2-wire with ground) of the following sizes:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Before assembling your ceiling fan, refer
to section on proper method of wiring
your fan (page 11). If you feel you do not
have enough wiring knowledge or
experience, have your fan installed by a
licensed electrician.
!WARNING
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each
step is completed, place a check mark in the box. This will insure that all steps
have been completed and will be helpful in finding your place should you be
interrupted.
NOTE: If you are uncertain of part
description, refer to exploded view
illustration.

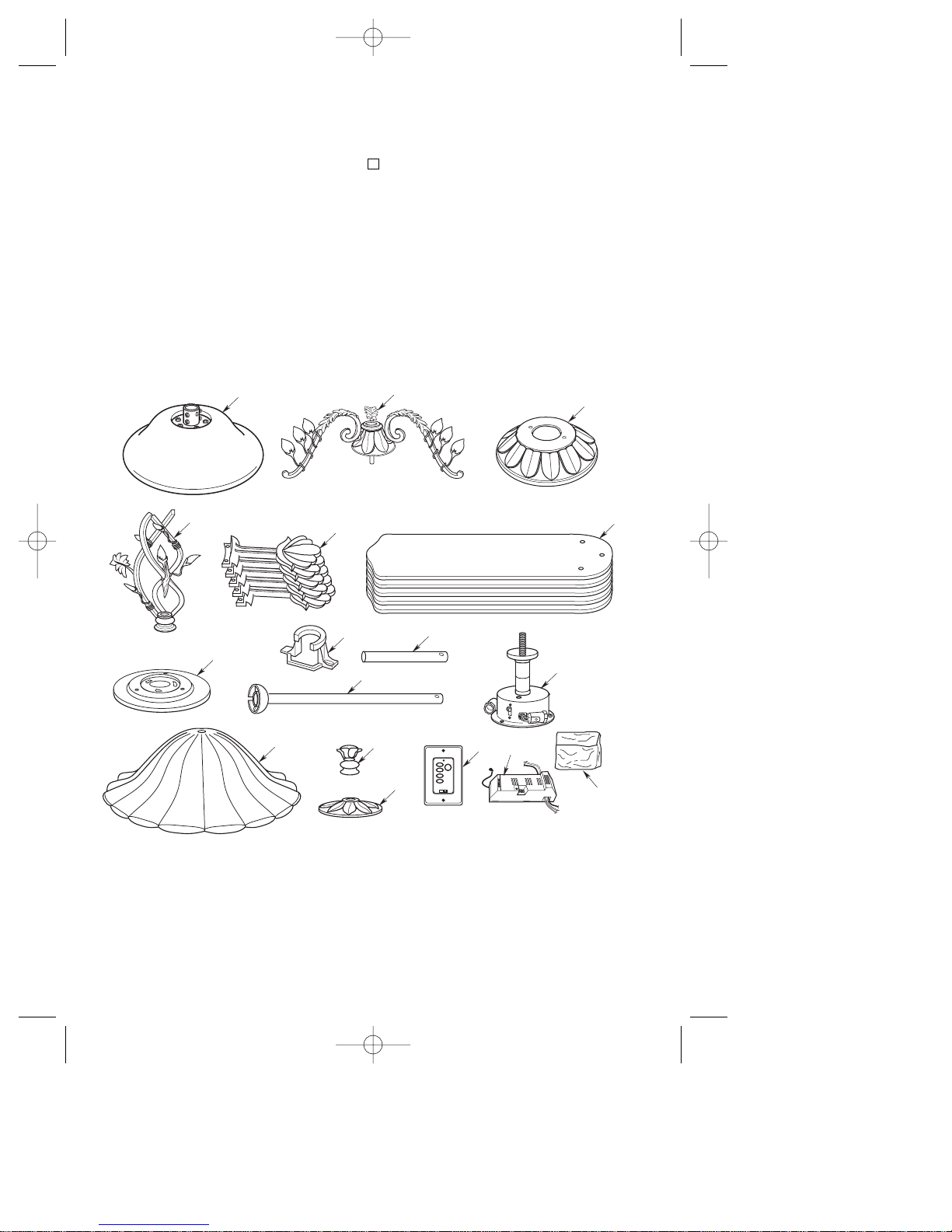

a. Fan motor and housing assembly
b. One decorative coupling cover
assembly
c. One ceiling cover
d. One decorative downrod scroll
e. Five blade flanges
f. Five fan blades
g. One light fitter adapter
h. One hanger bracket
i. One hanger ball/downrod (16”)
assembly
j. One 8” downrod
k. One lower glass
l. One light fitter assembly
m. One decorative cap
n. One finial nut
o. One Fan/Light Wall Control
(transmitter and receiver)
1. Open styrofoam unit containing fan.
Remove top half of styrofoam unit.
Remove parts and check to see that
you have received the following parts:
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 3

4
p. One loose parts bag containing:
1. Two 8-32 x 1-1/4” threaded studs
2. Two knurled knobs
3. Two lockwashers
4. Seven wire connectors
5. One clevis pin/hairpin clip
assembly
6. Eleven 1/4-20 x 13mm oval head
screws
7. Sixteen 10-24 x 8mm truss head
screws
8. Sixteen flat washers
9. One 1/8-27 nut
10. One metal washer
11. One rubber washer
12. One hex wrench
NOTE: Place the parts from the loose
parts bags in a small container to keep
them from being lost.
2. Remove the fan motor and housing
assembly from the protective plastic
bag. Place the fan assembly into the
lower foam pad with the bottom of the
motor facing up.
The lower foam pad serves as a holder
for the fan during the first stages of
assembly.
AC
F
E
J
H
G
KN
M
L
O
P
D
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
EMERSON
O
1 2 3 4
ON
B
I
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 4

5
Your new ceiling fan will require a
grounded electrical supply line of 120 volts
AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored
and capable of withstanding a load of at
least 50 pounds.
General
Your Emerson ceiling fan comes supplied
with a Fan/Light Wall Control which
consists of a wall control (transmitter) and
a remote control receiver mounted under
the ceiling cover. This system allows you
to regulate your ceiling fan speed and light
intensity.
NOTE: An optional Emerson Electric
SR100 Remote Control may also be
used to control your ceiling fan.
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
If your fan is to replace an existing ceiling
light fixture, turn electricity off at the main
fuse or circuit breaker box at this time and
remove the existing light fixture.
IMPORTANT: Your ceiling fan will not
function properly, and may be
damaged, if used with any wall dimmer
switch or control other than the
Emerson Electric Fan/Light Wall
Control supplied with the fan, or an
optional Emerson Electric SR100
Remote Control.
Electrical Requirements Ceiling Fan Procedures
IMPORTANT: Before assembling your
ceiling fan, refer to sections “Setting
Operating Frequency of Wall Control
and Receiver” and “Installation of Wall
Control”, page 13. These sections
instruct you how to: a) Set the
operating frequency of the fan/light
wall control and the remote control
receiver; and b) Install the fan/light wall
control in the wall box. You will then be
ready to proceed with the assembly
and installation of your ceiling fan, as
follows:
1. Mount the fan blades to the blade
flanges using three 10-24 x 8mm truss
head screws and three flat washers
(screws and washers supplied)
(Figure 1).
How to Assemble Your
Ceiling Fan
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
Turning off wall switch is not sufficient.
To avoid possible electrical shock, be
sure electricity is turned off at the main
fuse or circuit breaker box before wiring.
All wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
To reduce the risk of personal injury, do
not bend the blade flange when installing
the blade flanges, balancing the blades or
cleaning the fan. Do not insert foreign
objects in between rotating fan blades.
!WARNING
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 5

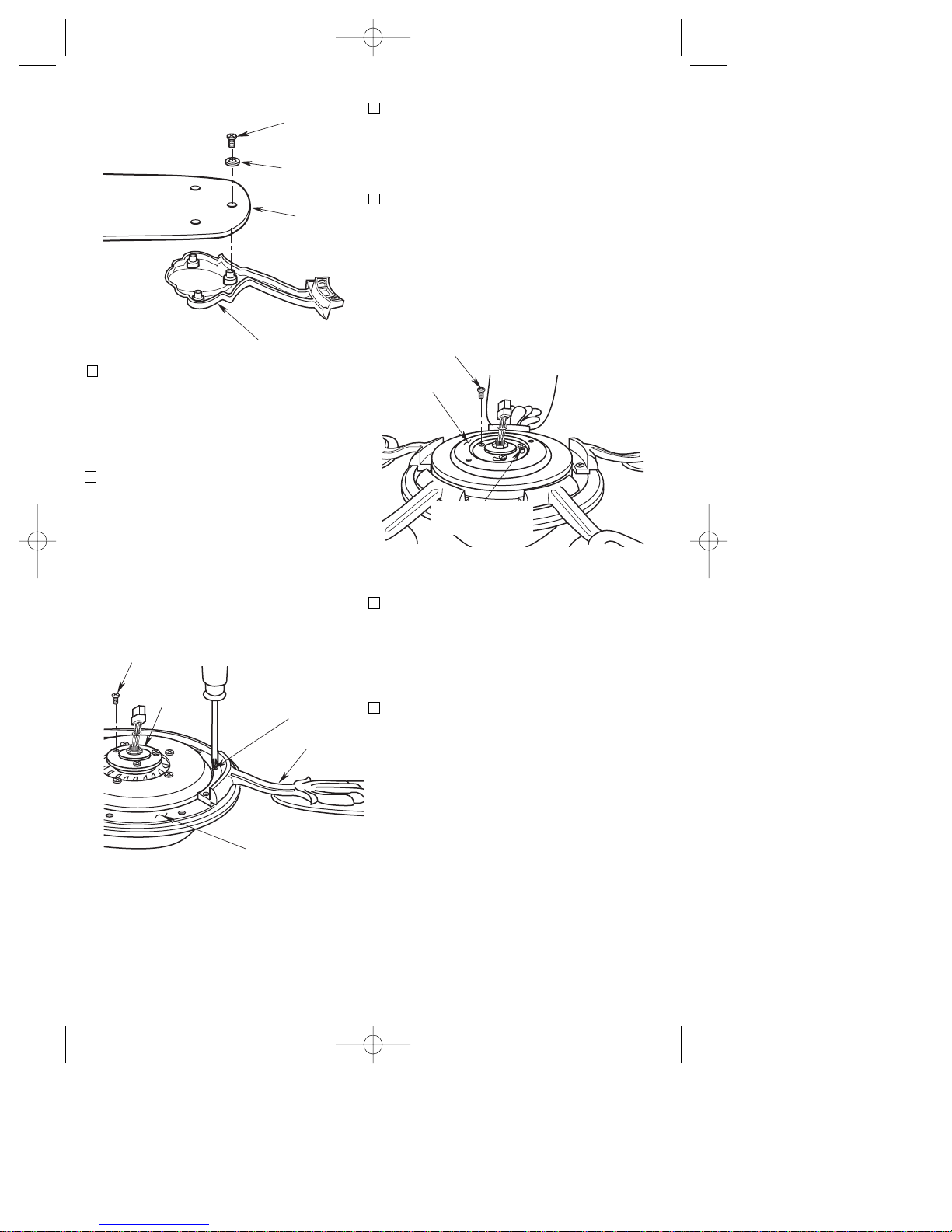

4. Remove and retain one of the three
pan head screw/lockwashers from the
motor flange (Figure 2); loosen the
other two pan head screws three or
four turns.
5. Position the light fitter adapter on the
motor flange so that the two screws
mate with the two keyhole slots in the
light fitter adapter (Figure 3).
NOTE: Make sure that the lockwashers
are positioned between the screw head
and the light fitter adapter.
6. Turn the light fitter adapter clockwise
and tighten both screws (Figure 3).
Reinstall the other pan head
screw/lockwasher (previously remov-
ed) in the remaining hole in the light
fitter adapter.
7. Carefully rest the light fitter assembly
on the adapter, then engage the light
fitter connector with the motor
connector (Figure 4). The two
connectors are keyed and color-coded
and must be mated correctly (color-to-
color) before they can be engaged.
Make sure the connectors are engaged
properly.
6
10-24 x 8mm
TRUSS HEAD
SCREWS (3)
FLAT
WASHERS (3)
FAN BLADE
BLADE FLANGE
Figure 1
1/4-20 x 13mm OVAL
HEAD SCREWS (2)
MOTOR
FLANGE
BLADE
FLANGE
MOTOR HUB
REMOVE AND RETAIN ONE PAN HEAD
SCREW/LOCKWASHER; LOOSEN TWO PAN
HEAD SCREWS
Figure 2
REINSTALL ONE PAN HEAD
SCREW/LOCKWASHER
LIGHT FITTER
ADAPTER
TIGHTEN TWO PAN
HEAD SCREWS
Figure 3
2. Remove and discard the four shipping
retainers securing the motor hub in the
motor housing.
NOTE: Take care not to scratch the fan
housing when installing the blade
assemblies.
3. Position the blade flange on the motor
hub so that the mounting holes in the
blades flange align with the two
threaded holes in the motor hub (Figure
2). Securely install two 1/4-20 x 13mm
oval head screws (supplied). Repeat
this procedure for the remaining four
blade assemblies.
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 6

8. Remove and retain the three outer
screw/lockwashers from the light fitter
adapter (Figure 4).
9. Position the light fitter assembly on the
light fitter adapter. Line up the three
holes on the light fitter with the
threaded holes in the adapter and
reinstall three screw/lockwashers
(previously removed) (Figure 5).
CAUTION: Before installing and
tightening the screws, be sure there are
no wires pinched between the light
fitter and the light fitter adapter.
7
10. Position the top and bottom halves of
the styrofoam packaging side-by-side
on the floor with a six to eight inch gap
between the halves (Figure 6).
Carefully place the partially assembl-
ed ceiling fan on the styrofoam
halves, with the light fitter assembly
positioned in the gap and the fan
assembly resting on the fan blade
assemblies.
PARTIALLY
ASSEMBLED FAN
STYROFOAM PACKAGING
6 TO
8-INCH
GAP
Figure 6
REMOVE AND RETAIN
THREE PAN HEAD
SCREW/LOCKWASHERS
LIGHT FITTER
CONNECTOR
MOTOR
CONNECTOR
LIGHT FITTER
ASSEMBLY
Figure 4
REINSTALL THREE
PAN HEAD SCREW/
LOCKWASHERS LIGHT FITTER
ASSEMBLY
LIGHT FITTER
ADAPTER
Figure 5
PIN
HANGER
BALL
SETSCREW
DOWNROD
Figure 7
11. Remove the hanger ball by loosening
the setscrew in the hanger ball until
the ball falls freely down the downrod
(Figure 7). Remove the pin from the
downrod, then remove the hanger
ball. Retain the pin and hanger ball for
reinstallation in step 16.
NOTE: If you have an eight-foot ceiling,
you will have to use the 8” downrod
(supplied) in order to maintain the
necessary blade-to-floor clearance of
seven feet.
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 7

8

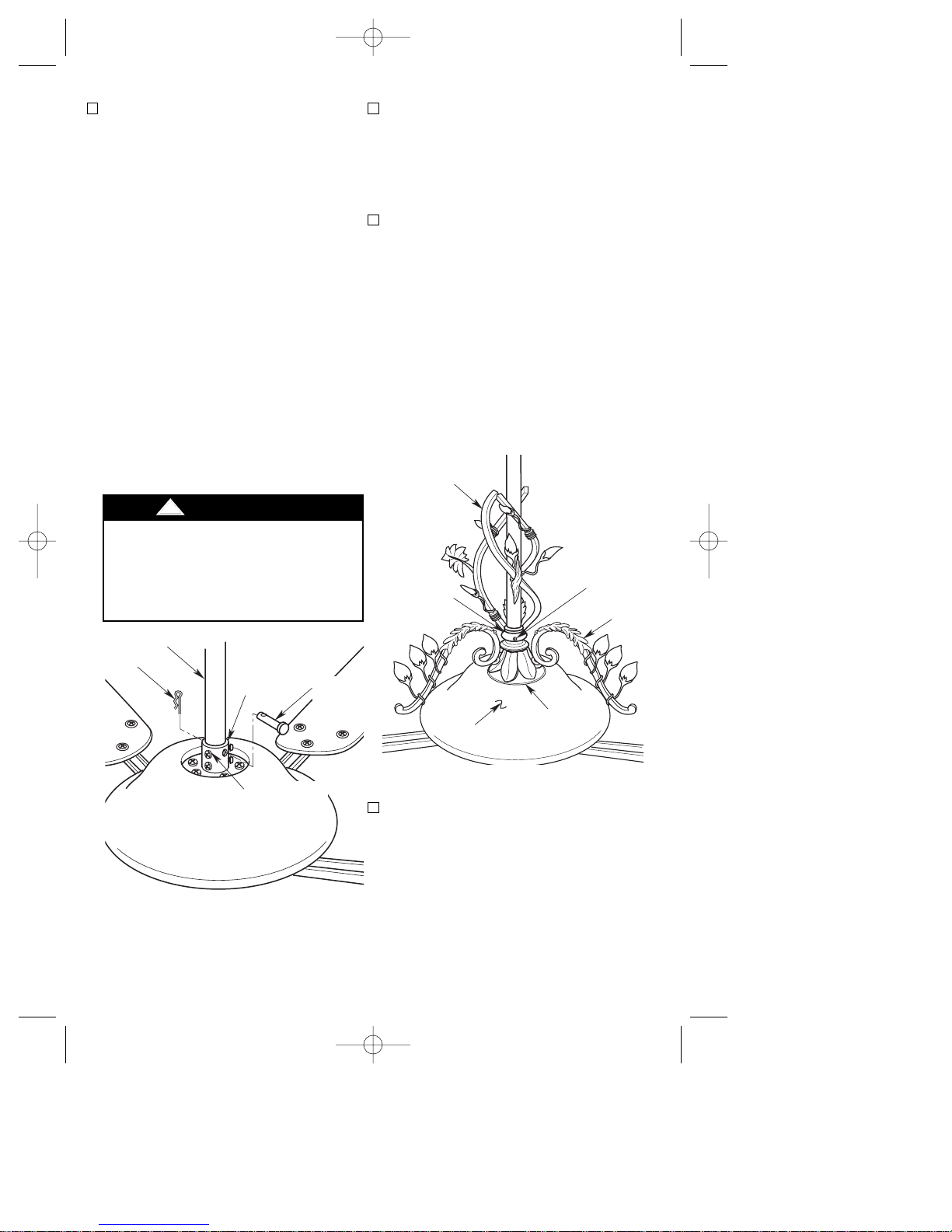

12. Unscrew the two upper setscrews
(Figure 8) until they clear the inside of
the motor coupling. Then separate,
untwist and unkink the three 80”
motor leads. Route the motor lead
wires through the downrod. Align the
clevis pin holes in the downrod with
the holes in the motor coupling. Install
the clevis pin and secure with the
hairpin clip (Figure 8). The clevis pin
must go through the holes in the
motor coupling and the holes in the
downrod. Be sure to push the straight
leg of the hairpin clip through the hole
near the end of the clevis pin until the
curved portion of the hairpin clip
snaps around the clevis pin. The
hairpin clip must be properly installed
to prevent the clevis pin from working
loose. Pull up on the downrod to
make sure the clevis pin is properly
installed.
!WARNING
It is critical that the clevis pin in the motor
coupling is properly installed and the
setscrew securely tightened. Failure to
verify that the pin and setscrew are
properly installed (as shown in Figure 8)
could result in the fan falling.
13. Tighten the two upper setscrews
(Figure 8) securely while pulling up on
the downrod.
NOTE: The setscrews must be properly
installed as described above, or fan
wobble could result.
14. Position the three scrolls on the
decorative coupling cover so that they
are vertical, then tighten the nuts on
the inside of the coupling cover. Make
sure the grommet is properly installed
in the decorative coupling cover, then
slide the coupling cover over the
downrod until it rests on the motor
housing (Figure 9).
NOTE: If you installed the 8” downrod,
the decorative downrod scroll will not
be installed. Disregard step 15 and
proceed to step 16.
DOWNROD
HAIRPIN
CLIP MOTOR
COUPLING CLEVIS
PIN
SETSCREW (2)
Figure 8
15. Using the hex wrench (supplied),
unscrew the setscrew in the
decorative downrod scroll collar until
it clears the inside of the collar. Slide
the collar over the downrod (Figure
9), until it rests on the coupling cover,
then tighten the setscrew.
COLLAR SETSCREW
SCROLL (3)
DECORATIVE
COUPLING
COVER
MOTOR
HOUSING
DECORATIVE
DOWNROD
SCROLL
Figure 9
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 8

9
16. Place the ceiling cover over the
downrod. Then reinstall the hanger
ball (Figure 10) on the downrod as
follows. Route the three 80” motor
leads through the hanger ball and
slide the hanger ball over the
downrod. Position the pin through the
two holes in the downrod and align
the hanger ball so the pin is captured
in the groove in the top of the hanger
ball. Pull the hanger ball up tight
against the pin and securely tighten
the setscrew in the hanger ball. A
loose setscrew could create fan
wobble.
SETSCREW
DOWNROD
PIN
CEILING
COVER
HANGER
BALL
!WARNING
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
Figure 10
17. The fan comes with blue, black and
white leads that are 80” long. Before
installing the fan, measure up
approximately 6 to 9-inches above top
of hanger ball/downrod assembly. Cut
off excess leads and strip back
insulation 1/2” from end of leads.
18. You have now completed the initial
assembly of your new ceiling fan. You
can now proceed with hanging and
wiring your fan.

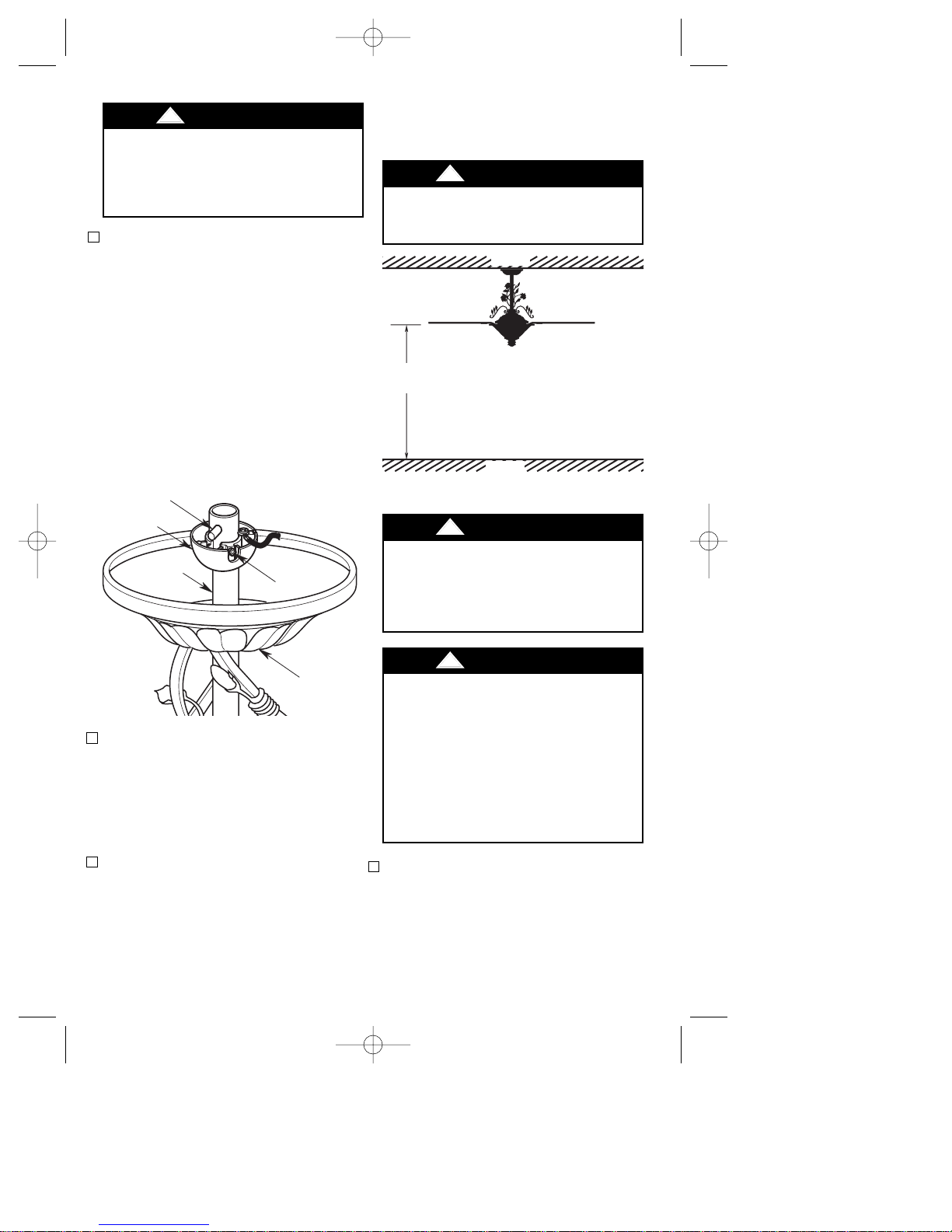

1. Securely attach the hanger bracket to
the outlet box using the two screws
supplied with the outlet box (Figure 12).
How to Hang
Your Ceiling Fan
The fan must be hung with at least 7'
of clearance from floor to blades
(Figure 11).
!WARNING
The outlet box and joist must be
securely mounted and capable of
supporting at least 50 lbs. Use only a
U.L. outlet box listed as “Acceptable
for Fan Support”.
!WARNING
To reduce the risk of fire, electric
shock, or personal injury, mount fan
to outlet box marked “Acceptable for
Fan Support”, and use screws
supplied with outlet box. Most outlet
boxes commonly used for support of
light fixtures are not acceptable for
fan support and may need to be
replaced. Consult a qualified
electrician if in doubt.
!WARNING
AT LEAST
7'
CEILING
FLOOR
Figure 11
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 9

10

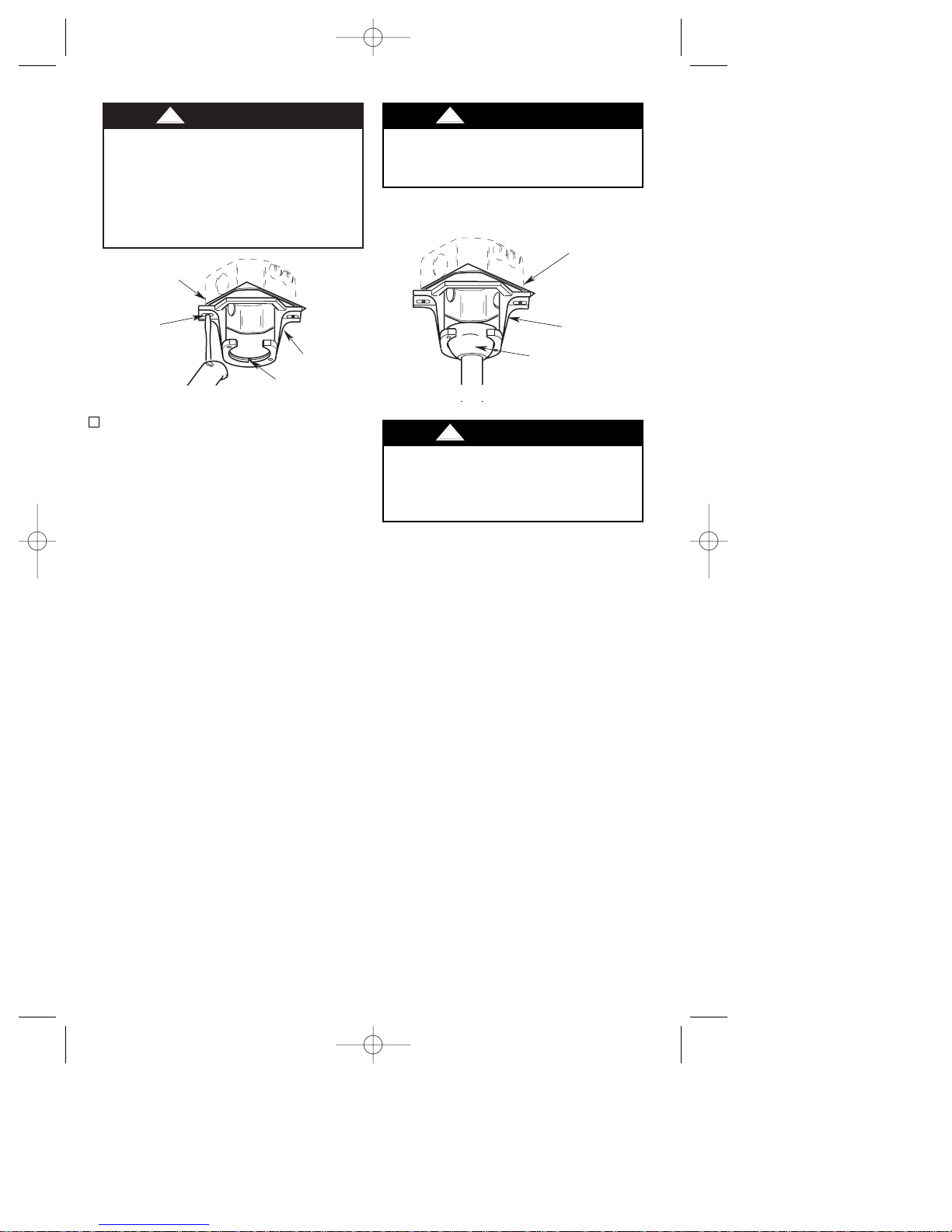

2. Carefully lift the fan and seat the hanger
ball/downrod assembly on the hanger
bracket that was just attached to the
outlet box (Figure 13). Be sure the
groove in the ball is lined up with the tab
on the hanger bracket (Figure 12).
Hanger bracket must seat firmly
against outlet box. If the outlet box is
recessed, remove wall board until
bracket contacts box. If bracket
and/or outlet box are not securely
attached, the fan could wobble or
fall.
!WARNING
Failure to seat tab in groove could
cause damage to electrical wires and
possible shock or fire hazard.
!WARNING
To avoid possible fire or shock, do
not pinch wires between the hanger
ball/downrod assembly and hanger
bracket.
!WARNING
TWO SCREWS
SUPPLIED
WITH
OUTLET BOX HANGER
BRACKET
TAB
OUTLET
BOX
NOTE: CEILING COVER, SUPPLY WIRES AND FAN
WIRES OMITTED FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD
ASSEMBLY
Figure 12 Figure 13
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 10

1. Position the supply wires to the left side
of the outlet box (Figure 14); position
the fan wires to the right side. Partially
insert the remote control receiver (flat
side up) until one end rests on the
hanger ball as shown in Figure 14.
NOTE: Make all wiring connections
using wire connectors (supplied). Make
sure that all connections are tight,
How to Wire
Your Ceiling Fan
Turning off wall switch is not
sufficient. To avoid possible
electrical shock, be sure electricity is
turned off at the main fuse box
before wiring. All wiring must be in
accordance with National and Local
codes and the ceiling fan must be
properly grounded as a precaution
against possible electrical shock.
!WARNING
Check to see that all connections are
tight, including ground, and that no
bare wire is visible at the wire
connectors, except for the ground
wire. Do not operate fan until blades
are in place. Noise and fan damage
could result.
!WARNING
If you feel that you do not have enough
electrical wiring knowledge or
experience, have your fan installed by a
licensed electrician.
including ground, and that no bare wire
is visible at the wire connectors, except
for the ground wire.

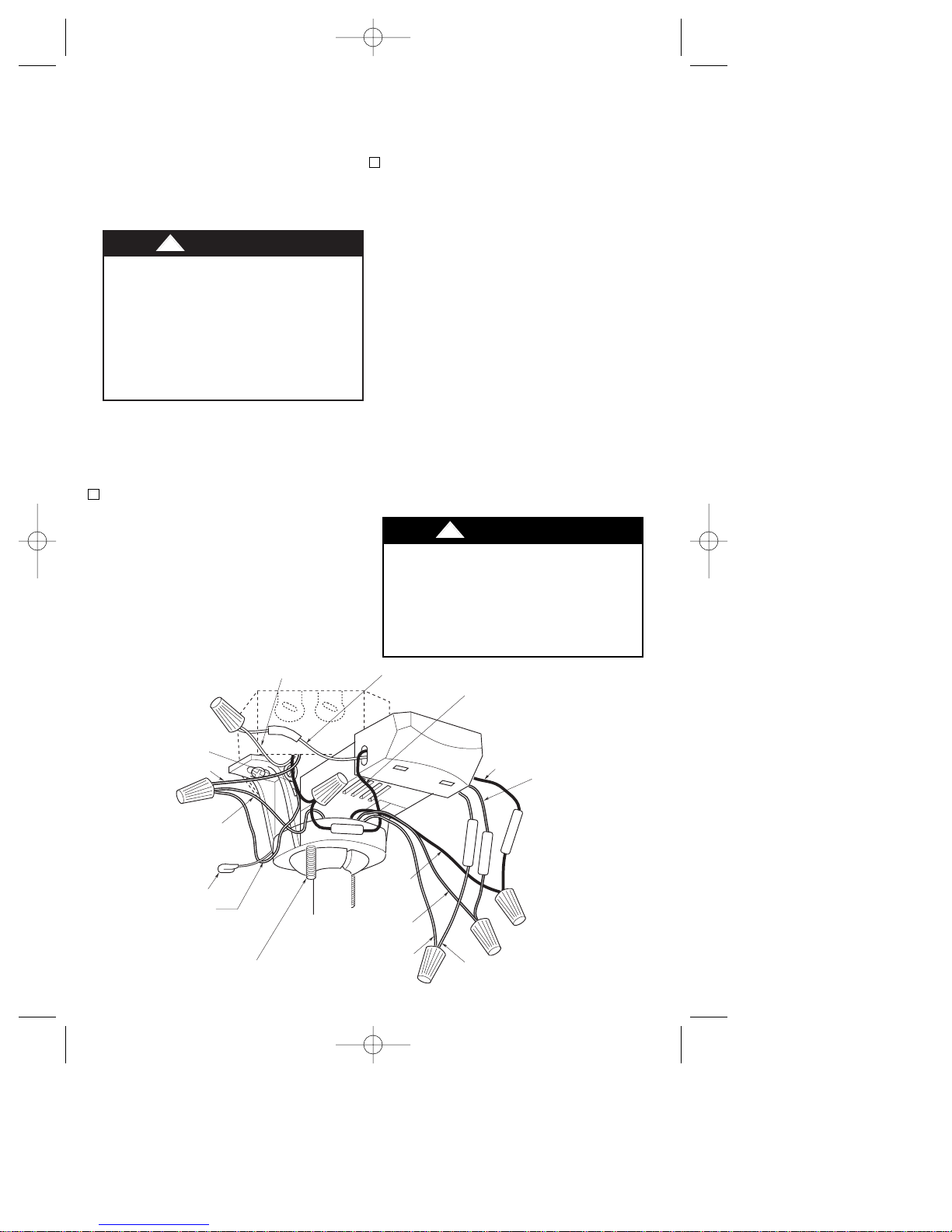

2. Refer to Figures 14 and 15 and connect
the receiver wires to the supply wires
and the fan motor wires as follows:
a. Securely connect the green grounding
wires from the hanger ball and the
hanger bracket to the supply grounding
conductor (this may be a bare wire or a
wire with green insulation).
b. Securely connect the supply white
(neutral) wire to the receiver white
(AC IN N) wire.
c. Securely connect the supply black wire
(hot) wire to the receiver black (AC IN
L) wire.
d. Securely connect the fan motor white
wire to the receiver white (TO MOTOR
N) wire.
e. Securely connect the fan motor black
wire to the receiver red (TO MOTOR L)
wire.
f. Securely connect the fan motor blue
wire to the receiver blue (FOR
LIGHT) wire.
GREEN GROUND
WIRE FROM
HANGER BRACKET
RECEIVER RED WIRE
RECEIVER WHITE WIRE
FAN WHITE WIRE
FAN
BLACK
WIRE
ANTENNA
AC
I
N
N
AC IN L
FOR LIGHT
TO MOTOR N
RECEIVER BLUE
WIRE
RECEIVER
BLACK WIRE
RECEIVER WHITE
WIRE
SUPPLY WHITE WIRE
(NEUTRAL)
SUPPLY BLACK
WIRE (HOT)
GROUND WIRE
GREEN GROUND
WIRE FROM
HANGER BALL
FAN BLUE WIRE
1-1/4" THREADED
STUD (2)
TO MOTOR L
Figure 14 11
CAUTION: To reduce the risk of
electrical shock, disconnect the
electrical supply circuit before
installing the fan, light kit or receiver.
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 11

12
7. Screw in three 40-watt (maximum)
candelabra bulbs in the light fitter
sockets (Figure 17). Carefully place the
lower glass over the light fitter threaded
nipple. Be sure the glass is firmly
seated on the fitter, then secure in
place using a rubber washer, metal
washer, and 1/8-27 nut (washers and
nut are supplied).
8. Place the decorative cap over the
threaded nipple and then screw on the
finial nut (Figure 17).
9. Your ceiling fan is now installed and
wired to be controlled by your fan/light
wall control.
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and
not pinched between the ceiling
cover and the ceiling.
!WARNING

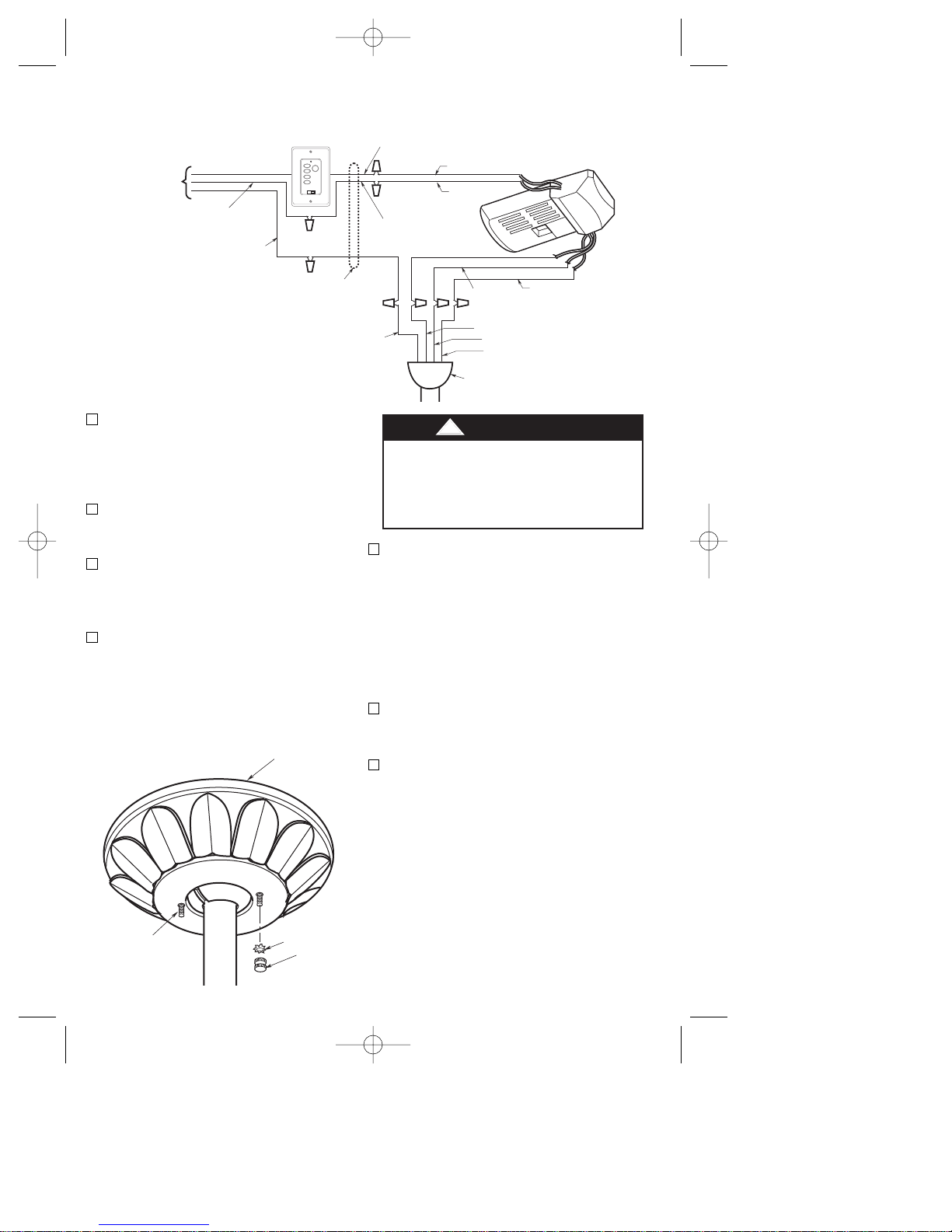

SW101 FAN/LIGHT WALL
CONTROL (SUPPLIED) BLACK BLACK
WHITE
RED
BLACK
WHITE
HANGER BALL
GREEN WIRE (GROUND)
FROM HANGER BALL AND
HANGER BRACKET
TWO-CONDUCTOR
CABLE (WITH
GROUND)
BLACK
(HOT)
WHITE
GROUND
TO
120-
VOLT
SUPPLY WHITE
BLUE
WHITE
BLUE
EMERSON®
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
Figure 15
3. Push the wires and connectors up into
the outlet box while inserting the
receiver fully into the hanger bracket.
Position the antenna wire on top of the
receiver.
4. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 14).
5. Lift the ceiling cover up to the threaded
studs and turn until the studs protrude
through the holes in the ceiling cover
(Figure 16).
6. Secure the ceiling cover in place by
sliding lockwashers (supplied) over the
threaded studs and installing the two
knurled knobs (supplied). (Figure 16).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling.
CEILING COVER
LOCKWASHER (2)
KNURLED
KNOB (2)
1-1/4" THREADED
STUD (2)
Figure 16 U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 12

Installation of Wall
Control
SINGLE-POLE INSTALLATION
(Figure 19)
1. Disconnect power at circuit breaker or
remove fuse.
2. Remove faceplate and screws from
existing wall control. Pull control out
from the wall box. Determine the “hot”
wire and the “load” wire and disconnect
these wires from control. Do not
attempt to disconnect any wires not
already connected to existing control.
3. Before installing wall control, place wall
control in “OFF” mode by pushing
“ON/OFF” switch to the “OFF” position.
13
FINIAL NUT
DECORATIVE
CAP
1/8 x 24 NUT
RUBBER
WASHER
METAL
WASHER
LOWER
GLASS
THREADED
NIPPLE
LIGHT
FITTER
REVERSING
SWITCH
40-WATT (MAX.)
CANDELABRA
BULBS (3)
Figure 17
Figure 18
Setting Operating
Frequency of Wall
Control and Receiver
(Figure 18)
Your wall control and receiver have code
switches which must be set in one of 16
possible code combinations. The four
levers (numbered 1, 2, 3, and 4) on the
switches are factory-set in the ON (up)
position. Change the switch settings as
follows:
1. Slide the four switch levers in the wall
control to your choice of ON (up) or
down positions. Use a ball-point pen or
small screwdriver and slide the levers
firmly up or down.
2. In the receiver, slide the four switch
levers to the same positions as set in
the wall control. Make sure the levers
on both switches are in the same
positions, otherwise the fan will not
operate.
WALL CONTROL
LEVERS
ON
1234
RECEIVER
SWITCH LEVERS
ON
1234
CODE
SWITCH
ANTENNA WIRE
1 2 3 4
ON
RECEIVER
CODE
SWITCH
WALL
CONTROL
EMERSON
®
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
FAN/LIGHT
WALL CONTROL
HOT BLK
NEUTRAL
BLACK
GROUND
LOAD BLACK
REMOTE CONTROL
RECEIVER LOCATED
WITHIN THE CEILING
COVER
Figure 19
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 13

3. Before installing wall control, place wall
control in “OFF” mode by pushing
“ON/OFF” switch to the “OFF” position.
4. Install a wall control in the wall box
containing the “hot” wire first. Connect
the black wire of the wall control to the
“hot” wire. Securely connect wires with
wire connectors supplied.
5. Connect one black wire of the wall
control to both remaining traveler wires
in the wall box and secure with wire
connector supplied.
NOTE: Retrofit 3-way installations are
likely to include two traveler wires
between the two wall boxes. In new
construction, only one traveler wire Is
required.
3-WAY WIRlNG DIAGRAM:
NEW CONSTRUCTION
6. Place wall control into wall box. Screw
in place and install decorator style
faceplate (included).
7. Next, install the other wall control into
the wall box containing the load wire.
Connect the black wire of the wall
control to the traveler wire(s) already
connected to the black wire (in the
other wall box). Secure with wire
connectors supplied.
8. Connect one black wire of the wall
control to the “load” (black) wire and
secure with wire connector supplied.
4. Connect one black wire of wall control
to the “hot” wire. Securely connect
wires with wire connectors supplied
(Figure 20).
5. Connect one black wire of wall switch
to the “load” (black) wire in wall box.
Securely connect wires with wire
connector supplied.
6. Screw wall control into wall box and
install decorator style faceplate
(included). Leave wall control in “OFF”
mode until fan installation is completed.
7. Refer to page 5 and complete the
ceiling fan installation.
Do not connect any neutral (white)
wire to this control. Incorrect wiring
will damage this control.
!WARNING
Do not connect any neutral (white)
wire to this control. Incorrect wiring
will damage this control.
!WARNING
EMERSON
®
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
BLACK
BLK
HOT
FAN/LIGHT
WALL
CONTROL WALL
BOX
T
O
L
O
A
D
T
O
1
2
0
V
A
C
S
O
U
R
C
E
G
R
O
U
N
D
Figure 20
3-WAY INSTALLATION
(On fan controlled by two different wall
controls) (See Figures 21 and 22.)
1. Disconnect power at circuit breaker or
remove fuse.
2. At all wall box locations remove
faceplates and screws from existing
controls. Pull controls out from wall
boxes and determine which wall box
contains the “hot” lead and which wall
box contains the “load” wire. Also,
identify traveler wires which are
common to both wall boxes.
Disconnect wires from existing controls
only. Do not attempt to disconnect any
wires not already connected to existing
controls.
HOT
BLACK
FAN/LIGHT
WALL
CONTROL
TRAVELER
WIRE
BLK
BLK
LOAD
BLACK GROUND
NEUTRAL
REMOTE CONTROL
RECEIVER LOCATED
WITHIN THE CEILING
COVER
EMERSON
®
EMERSON
®
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
14
Figure 21
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 14

9. Place the second wall control into the
wall box. Screw in place and install
decorator style faceplate (included).
Leave switch in “OFF” mode until fan
installation is completed.
10. Refer to page 5 and complete the
ceiling fan installation .
STANDARD WIRING FOR EXISTING
3-WAY CONTROL
15
HOT BLK
FAN/LIGHT
WALL CONTROL
BLK
TRAVELER WIRES
BLK
BLK
BLACK
LOAD
BLACK
LOAD
TRAVELER WIRES
HOT BLK
EXISTING
WALL CONTROL
EMERSON
®
EMERSON
®
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
Figure 22
Operating Your
Ceiling Fan
IMPORTANT
Fan installation must be completed,
including the installation of the fan
blades, before testing of the remote
control.
Your Fan/Light Wall Control (Figure 23)
has full control of your fan and light.
However, airflow direction is controlled by
a slide switch on the light fitter.
1. Restore electrical power to the outlet
box by turning the electricity on at the
service panel.
NOTE: Make sure that the ON/OFF slide
switch on the Fan/Light Wall Control is
in the ON position.
2. To set the desired fan speed, press the
HI, MED, or LOW buttons to operate
your fan on high, medium, or low speed
(Figure 23).
EMERSON®
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
Figure 23
3. To turn your fan off, press the OFF
button.
4. To set the level of light brightness,
press and hold the LIGHT button. The
light brightness will continue to
increase then decrease while the
button is held down. When the light is
at the desired brightness, release the
button.
5. To turn the light on and off, press and
release the LIGHT button. The light will
turn on at the light level previously set
(see step 4).
6. If airflow is desired in the opposite
direction, turn the fan off and wait for
the blades to stop turning. Remove the
lower glass (Figure 17), then slide the
reversing switch (located on the light
fitter) to the opposite position and turn
the fan on again. The blades will turn in
the opposite direction and reverse the
airflow.
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 15

16
Do not use water when cleaning your
ceiling fan. It could damage the
motor or the blades and create the
possibility of an electrical shock.
!WARNING
The use of any other control not
specifically approved for this fan
could result in fire, shock and
personal injury.
!WARNING
This product is designed to use only
those parts supplied with this
product and/or any accessories
designated specifically for use with
this product by Emerson Electric Co.
Substitution of parts or accessories
not designated for use with this
product by Emerson Electric Co.
could result in personal injury or
property damage.
!WARNING
Maintenance
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is
the only maintenance that is needed.
When cleaning, use only a soft brush or
lint free cloth to avoid scratching the finish.
Abrasive cleaning agents are not required
and should be avoided to prevent damage
to finish.
Accessories
1. Downrod Extension Kits (see store or
catalog).
2. Ceiling Fan Controls (see store or
catalog).
INSTRUCTION TO THE USER
(if device contains a digital device)
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a Class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded
cables must be used with this equipment. Operation with non-approved equipment or
unshielded cables is likely to result in interference to radio and TV reception. The user is
cautioned that changes and modifications made to the equipment without the approval of
manufacturer could void the user’s authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 16

17
Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1.Fan will not 1.Fuse or circuit breaker 1. Check main and branch
start. blown. circuit fuses or circuit breakers.
WARNING: Make sure
main power is turned off.
2.Loose power line 2. Check line power connections
connections to the fan. to fan.
3.Fan/Light Wall Control is OFF. 3. Turn ON Fan/Light Wall Control.
4.Code switches in remote 4. Check that both code switches
control receiver and Fan/Light are set in the same positions.
Wall Control are not set in the
same position.
2.Fan sounds 1.Blades not attached to fan. 1. Attach blades to fan before
noisy. operating.
2.Screws securing fan blade 2. Check to make sure the screws
flanges to motor are loose. which attach the blade flanges
to the motor are tight.
3.Screws holding blades to 3. Tighten screws securely.
flanges are loose.
3.Fan wobbles 1.Setscrews in motor coupling are 1. Raise decorative downrod cover
excessively. not tightened securely. and coupling cover and tighten
setscrews securely.
2.Setscrew in the hanger ball/ 2. Tighten the setscrew in the
downrod assembly is loose. hanger ball/downrod assembly.
3.Screws securing fan blade 3. Check to be sure screws which
flanges to motor are loose. attach the fan blade flanges
to the motor are tight.
4.Fan blade flanges not seated 4. Check to be sure that the
properly. screws securing the fan
blade flanges seat firmly.
5.Hanger bracket and/or ceiling 5. Tighten the hanger bracket
outlet box is not securely screws to the outlet box, and/or
fastened. secure outlet box.
6.Fan blades out of balance. 6. Interchanging an adjacent (side
by-side) blade pair can
redistribute the weight and result
in smoother operation.
Or use supplied balancing kit to
balance blades.
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX
OR CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.
!
!
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 17

Repair Parts
1
17
18
22
29
30
20
9
8
21 12
11
10
15
14 1326
27
19
23
28
24
25
31
HI
MED
LOW
FAN OFF
LIGHT
ONOFF
EMERSON
1 2 3 4
ON
2
3
5
4
16
6
7
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS,ALWAYS GIVE THE FOLLOWING INFORMATION:
• PART NUMBER
• NAME OF ITEM
• PART DESCRIPTION
• MODEL NUMBER
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
18 U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 18

Part Numbers
Key Model No.
No. Description CF240ATB00
* Hanger Pack, Consisting of: 761655-53
1 Hanger Bracket —
2 Hanger Ball —
3 Downrod (16”) —
* Parts Bag, Containing: 763046
4 Wire Connector (7) —
5 Threaded Stud,
8-32 x 1-1/4” (2) —
6 Knurled Knob (2) —
7 Lockwasher (2) —
8 Hairpin Clip —
9 Clevis Pin —
10 Screw, Truss Head,
10-24 x 8mm (16) —
11 Washer, Flat (16) —
12 Screw, Oval Head,
1/4-20 x 13mm (11) —
13 Nut, 1/8-27 —
14 Washer, Flat —
15 Washer, Rubber —
16 Wrench, Hex —
17 Cover, Ceiling 763004-ATB
18 Downrod Scroll, Decorative 763007-ATB
19 Coupling Cover, Decorative 763005-ATB
20 Lower Scroll, Decorative (3) 763006-ATB
21 Flange Set (full set for one fan) 763010-ATB
22 Blade Set (full set for one fan) 762635-16
23 Adapter, Light Fitter 763013-ATB
24 Fitter Assembly, Light 763014
25 Glass, Lower 763016
26 Cap, Decorative 763019-ATB
27 Nut, Finial 763020-ATB
28 Harness Assembly, Wiring 763023
29 Downrod, 8” 761631-63
30 Wall Control, Fan/Light 762348-1
31 Receiver, Remote Control 762670-4
— Owner's Manual BP7359-1
Repair Parts Listing
19 U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 19

LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson Electric Co. ceiling
fan against all defects in workmanship and materials. You must be the original purchaser or user of the product
to be covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for a lifetime of your ceiling fan. All other components and
accessories are covered by this warranty for one year from the date you purchased your ceiling fan. ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH
RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other
accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable
time and no replacement can be provided, Emerson Electric Co. will refund the actual purchase price of your fan.
We will ship the repaired product or replacement to you at no charge, but you are responsible for all costs or
removal, reinstallation and shipping of the product to Emerson Electric Co.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY
SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory
or to your nearest authorized service center.
• To return the product to the factory, obtain a return authorization and service identification tag by writing to
Air Comfort Products, Division of Emerson Electric Co., 8100 W. Florissant Ave., St. Louis, MO 63136.
Include all model numbers shown on the product with your request.
• To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest
authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized
service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit
since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does
not cover any defects, malfunctions or failures caused by:
• Repairs by persons not authorized by Emerson Electric Co.,
• Use of parts or accessories not authorized by Emerson Electric Co.,
• Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
• Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal
wear and tear.
• Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are
voided when:
• The original purchaser or user ceases to own the product, or
• The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other
written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any
warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS
WARRANTY AND EMERSON ELECTRIC CO. IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING
INCIDENTAL AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such
damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of
repairing or replacing other property which was damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
Part No. F40BP73590001 Printed in China 09/07 Form No. BP7359-1
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant ¥ St. Louis, MO 63136
U.L. Model No.: CF240
BP7359 VININGS CF240 9/19/07 11:13 AM Page 20
