General Information 1
Section 1: General Information
Section 1: General Information
The Standardized PROFIBUS DP system is available for all Bettis RTS Series of actuators.
This interface is a hardware option and should already be known when ordering the actuator.
Retrotting is possible but should only be performed by a skilled Emerson technician or by
specially trained personnel.
PROFIBUS-DP denes the technical and functional characteristics of a serial eldbus
system, with which a set of distributed, digital automation devices can be networked with
one another. PROFIBUS-DP distinguishes between master and slave devices and is designed
to exchange data at the eld level.
This is where central control devices, such as PLCs and PCs, communicate with distributed
eld devices via a fast serial connection.
Data exchange with these decentralised devices is carried out cyclically. The communication
functions necessary to do this are dened by the PROFIBUS-DP basic functions according
to EN 50170.
Master devices control the data trafc on the bus. A master can send messages without an
external request. In the PROFIBUS protocol, masters are also called active participants.
Slave devices such as BETTIS RTS actuators are peripheral devices. Typical slave devices are
input/output devices, valves, actuators and transmitters. They are not given active bus
access authorisation, i.e. they are only allowed to acknowledge received messages, or, at
the request of a master, transmit messages to it. Slaves are also called passive participants.
The master cyclically reads the input information from the slaves and cyclically writes the
output informa- tion to the slaves. In addition to this cyclic data transmission of the process
image, PROFIBUS-DP also offers powerful functions for diagnostics and commissioning
purposes. Monitoring functions on the master and slave sides monitor the data trafc.
The transmission technology is based on an RS-485 connection via a shielded twisted-pair
cable. Bettis RTS series support baud rates up to 1.5 Mbit/s.
Only cables in accordance with standard DIN 19245 and/or EN 50170-2, cable type A, may
be used for PROFIBUS-DP cabling.
Depending on the transmission speed, the following segment lengths are permitted:
Table 1.
Transmission Speed Segment Length
9.6 / 19.2 / 93.75 kBd 1,200 m
187.5 kBd 1000 m
500 kBd 400 m
1.5 MBd 200 m
A maximum of 32 PROFIBUS devices can be connected in one segment. If more devices are to
be connected to a PROFIBUS line, then multiple segments have to be connected by repeaters.
The bus cable has to be installed at a distance of at least 20 cm from other cables and
should be installed in a separate, conductive and earthed cable tray.
It is important to ensure that there are no potential differences between the individual
devices on the PROFIBUS.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0
Connection
2
Section 2: Connection
Section 2: Connection
Depending on the order, there are the following connection options:
• Standard design: via terminal board
• Explosion-proof design: via terminals
2.1 Standard Design
PROFIBUS cables connect via the input/output board in the terminal compartment for
the customer’s plug connector for the actuator. The PROFIBUS connection is thus, like
the other electrical connections, plug- connectable both for power and signals. When
the connecting plug is unplugged, the connection within the line for the PROFIBUS
is maintained, i.e., the connecting plug can be unplugged during operation without
interrupting the communication to other bus subscribers.
NOTE
The PROFIBUS has to be terminated at the end of the line. This active bus termination can
be made on the input/output board. The supply for the terminating resistors, however, is
carried out from the actuator, i.e., with the plug connector unplugged, the bus termination
is not supplied. To avoid such problems, we recommend terminating the bus separately
with an active bus termination.
If the PROFIBUS is a single-channel design, the PROFIBUS cables connect on Channel I, and
with a dual- channel design (option: redundant), Channel I and Channel II are used.
2.1.1 Terminal Board (Provided by customer)
The terminal board is located in the terminal compartment for the customer’s plug
connector beneath the top cover.
Figure 1 Terminal Board

Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0 November 2021
Connection 3
Section 2: Connection
2.1.2 Connecting the PROFIBUS Cables
Recommended cable assembly
Before connecting the bus cable, it has to be assembled as follows:
The terminals on the terminal board are designed for a max. cross-section of up to 1.5 mm2.
The shield outside diameter has to be in the range of 5 - 8 mm.
Customer connection within the line

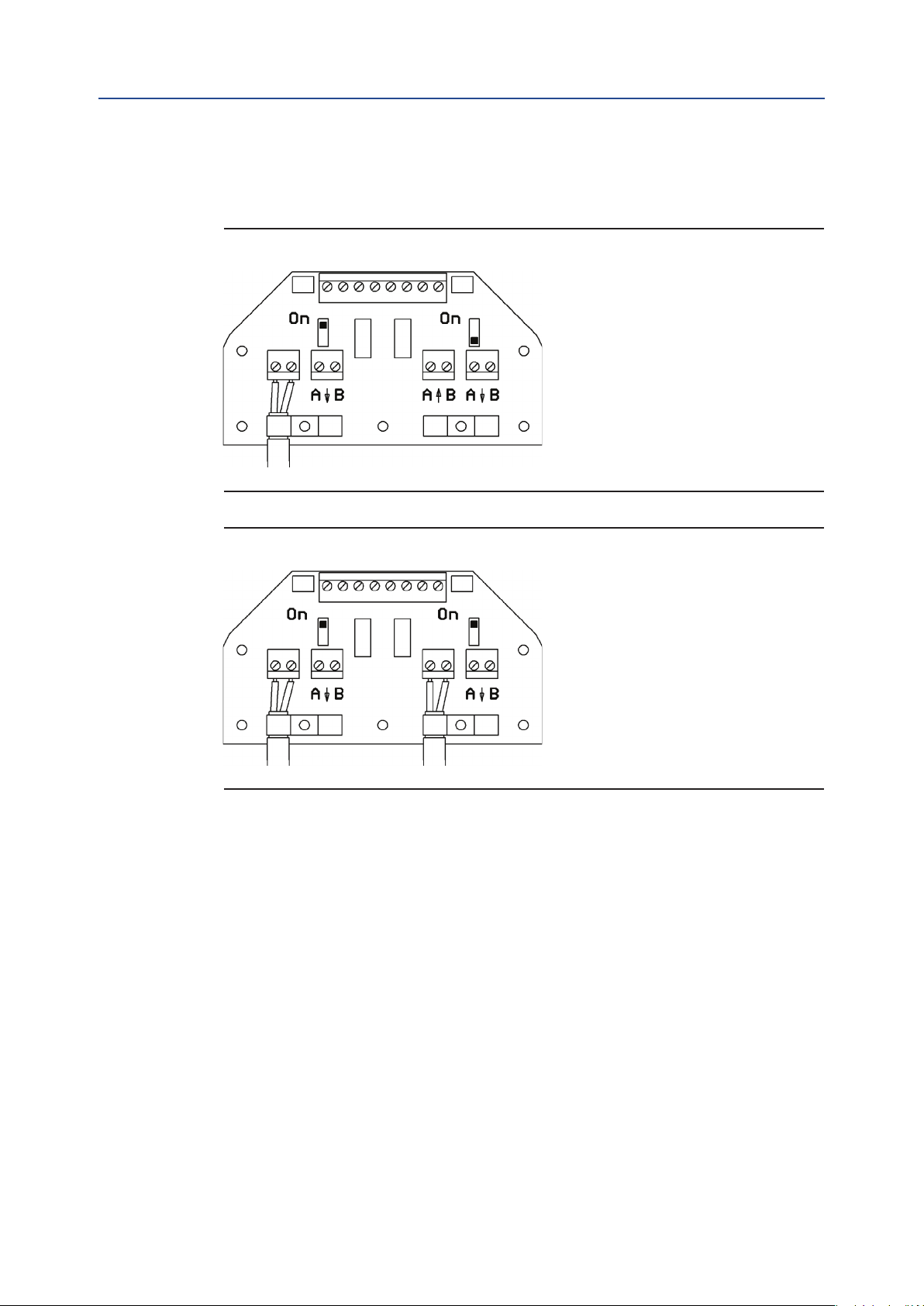

There are other PROFIBUS subscribers before and after the slave. Connection for the cables:
Figure 2 Single Channel
Figure 3 Dual Channel

November 2021
Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0
Connection
4
Section 2: Connection
Customer connection at the end of the line, bus termination
There are no further PROFIBUS subscribers before or after the slave. Connection for the cables:
Figure 4 Single Channel
Figure 5 Dual Channel
Bus termination:
The bus has to be terminated on both ends of the PROFIBUS line. This termination can be
made via the built-in terminating resistors, which are actively supplied by the actuator. The
terminating resistors are enabled when the switch on the terminal board is switched to “ON”.

Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0 November 2021
Connection 5
Section 2: Connection

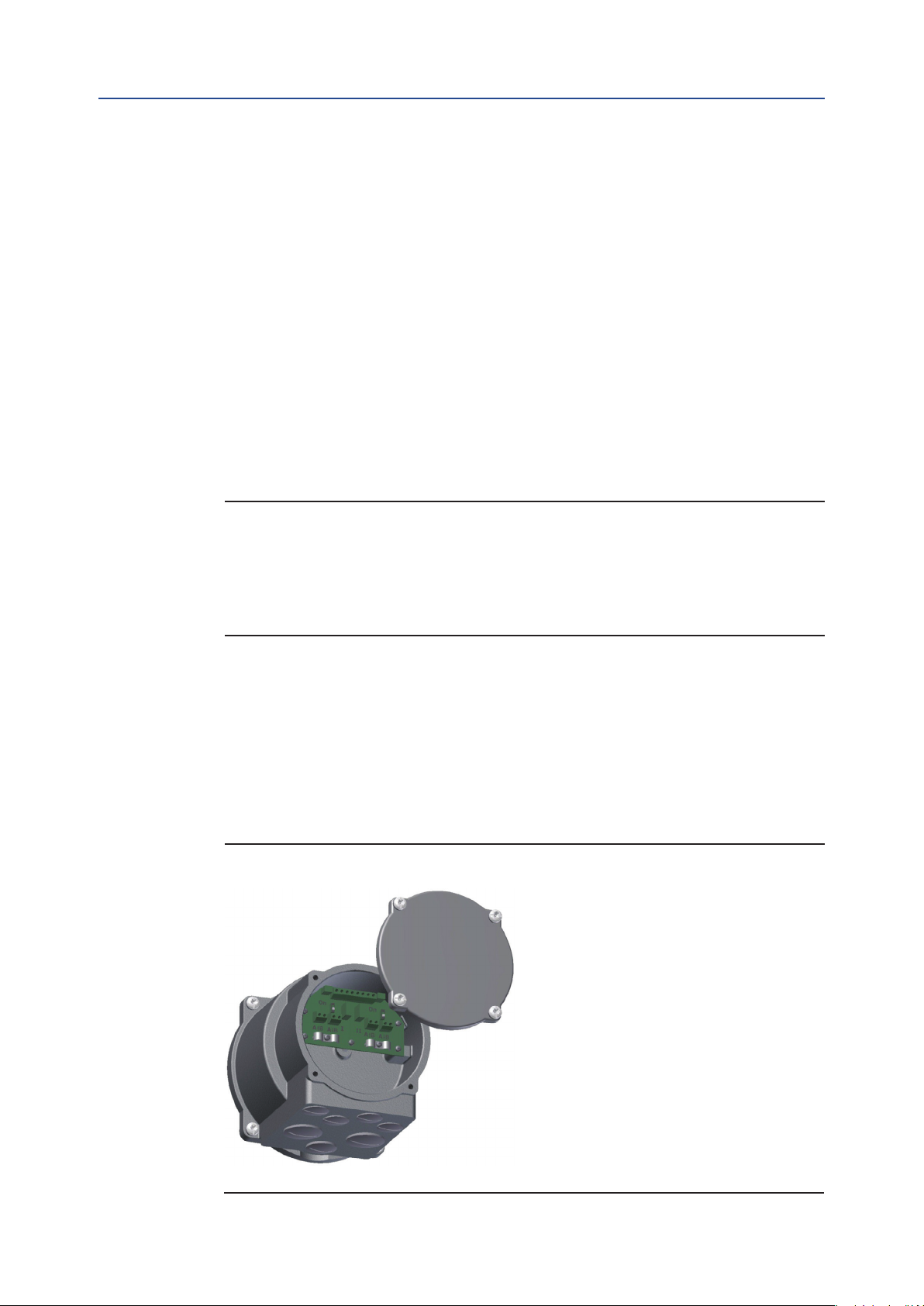

2.2 Explosion-proof Design
Generally, no bus termination is provided in the BETTIS RTS in the explosion-proof design,
i.e., the bus has to be implemented on both ends on the system side.
As an option, however, the bus connection can also be implemented in BETTIS RTS. This
has to be specied when ordering.
In such case, the bus connection can be enabled by bridging the terminals:
• A to AT
• B to BT (single channel version)
• A1 to A1T
• B1 to B1T
• A2 to A2T
• B2 to B2T (dual channel version).
! WARNING
The shield has to be put on the clamping brackets (cross-section). See Figure 6 or Figure 7.
2.2.1 Design with Additional Binary I/Os
Figure 6
2.2.2 Design without Additional Binary I/Os
Figure 7
Shielding
connection
clamp
Additional frame
Terminal
strip
Terminal
strip
Metallic cable glands
(closed with blind screw connections at delivery) 4 x M20 x 1,5
As an option, 4 x M20 drilled holes can be provided for additional cable entries.
Shielding
connection
clamp

November 2021
Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0
Commissioning6
Section 3: Commissioning
Section 3: Commissioning
When commissioning a PROFIBUS-DP network, the devices on the PROFIBUS-DP have to
be parameterised and congured with the project conguration software of the control
system used (PROFIBUS congurator).
In this step, each subscriber connected to the PROFIBUS also has to be given a unique address.
The project conguration software rst reads in the GSD le (General Station Description) of
the various actuators. The GSD le contains information about the device’s properties needed
by the master. The current GSD le can be downloaded at Emerson Global Sales Portal.
After that, the user can congure and parameterise each device on the PROFIBUS-DP.
This information is stored in the control system (DP master) and sent to the actuators
(DP slaves) each time communication starts up.
The following additional parameters become visible in the control unit for the Bettis RTS
actuator with the PROFIBUS option enabled.
Table 2.
Menu
Item Subitem Options Explanation/Comments
P15.1 PROFIBUS PROFIBUS
0: disabled PROFIBUS disabled
1: allow paramet. Parameterisation by the master is allowed.
(2): ignore paramet.
Parameterisation by the master is ignored.
Only parameters set in the actuator control system are
effective (recommended setting).
3: deny paramet. Parameterisation by the master is not allowed.
P15.2 PROFIBUS Address
Channel A 0 bis 125 Setting of the bus address for the rst, primary channel.
P15.3 PROFIBUS Address
Channel B 0 bis 125 Setting the bus address of the second, secondary channel (only with the option “PROFIBUS redundant”).
P15.4 PROFIBUS Watchdog
time
0.0 – 10.0 s
(0.0 s)
Monitoring of the toggle bit transmitted from the master
(bit 7 in the command). With a bus watchdog time set,
this bit has to toggle within that time; otherwise there
is a bus watchdog error. At 0.0 s the watchdog function
is disabled, in which case toggling of the toggle bit may
be omitted.
P15.5 PROFIBUS Setpoint
Source
(0): Standard The set point is specied via PROFIBUS
(only relevant when the positioner is enabled)
1: Analog The set point is specied by the analogue signal
(only relevant when the positioner is enabled).
2: Bus/Analog
With a fault-free bus, the set point is specied via the
PROFIBUS. With a bus error, the analogue value is
switched to (only relevant when the positioner is enabled).
P15.6 PROFIBUS Status 2 (0) Standard assignment for Status 2.
1 - 2 Reserved for future use.
P15.7 PROFIBUS Status 3 (0) Standard assignment for Status 3 (current event).
1 - 2 Reserved for future use.
P15.8 PROFIBUS Status 4 (0) Standard assignment for Status 4.
1-2 Reserved for future use.
NOTE
After changing an address, the control unit has to be briey switched off and back on again
in order to apply the change.

Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0 November 2021
Input and Output Data 7
Section 4: Input and Output Data
Section 4: Description of the Input
and Output Data
General information: Depending on the master, it is possible that the low byte (bit 0 - 7)
and the high byte (bit 8 - 15) might have to be swapped. The transmission mode
(big endian/little endian) always has to be adjusted such that the analogue values are
transmitted correctly. Only then can the binary data be swapped.
4.1 Modules for the Input Data
(Data from Master to Slave)
4.1.1 Command
Module number: 23Hex
ID-byte: 60Hex (1 word AA / consistency 1 word)
Data format: 16 bit (bit eld)
Structure:
Table 3.
Bit no. Function Description
Bit = 0 Bit = 1
0OPEN - OPEN command in REMOTE mode.
1 CLOSE - CLOSE command in REMOTE mode.
2STOP - STOP command in REMOTE mode.
3 EMERGENCY - OPEN - EMERGENCY - OPEN command in REMOTE & LOCAL modes.
4EMERGENCY - CLOSE -EMERGENCY - CLOSE command in REMOTE & LOCAL modes.
5 BLOCK -
BLOCK actuator in LOCAL & REMOTE modes
The actuator is not operable either via the selector switch locally
nor via commands by REMOTE nor PROFIBUS.
6 POSITIONER OFF - Deactivating the positioner in REMOTE mode.
7 WATCHDOG Toggle bit from the master for bus watchdog monitoring With bus watchdog
time set, the bit has to toggle within this time; otherwise there is a bus error.
8 OPEN SH - OPEN command with self-retention in REMOTE mode,
jettison with STOP.
9 CLOSE SH - CLOSE command with self-retention in REMOTE mode,
jettison with STOP.
10 LOCK - OPEN -
Trigger locking OPEN (in LOCAL and REMOTE modes)
The actuator runs OPEN with highest priority, the command
continues to queue internally even after reaching the OPEN end
position. Jettison only with LOCKING OFF, supply off or OFF mode.
11 LOCK - CLOSE -
Trigger locking CLOSED (in LOCAL and REMOTE modes)
The actuator runs CLOSED with highest priority, the command
continues to queue internally even after reaching the CLOSED end
position. Jettison only with LOCKING OFF, supply off or OFF mode.
12 LOCK - OFF - Jettison locking
13 BLOCK LOCAL - BLOCK actuator in LOCAL mode
The actuator is not operable via the selector switch locally.
14 FAILSAFE - Trigger the failsafe unit (provided there is one).
15 OVERRIDE - Binary inputs are not processed.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0
Input and Output Data8
Section 4: Input and Output Data
4.1.2 Setpoint
Module number: 22Hex
ID-byte: 60Hex (1 word AA / consistency 1 word)
Data format: 16-bit, the lower 10 bits (0 - 1023) are used.
The other bits are reserved for future use and have to be set to zero!
Structure:
Table 4.
Value Function Description
0 (0Hex ) 0 %
512 (200Hex ) 50%
1023 (3ffHex ) 100%
4.1.3 Command 2
Module number: 24Hex
ID-byte: 60Hex (1 word AA / consistency 1 word)
Data format: 16 bit (bit eld)
Structure:
Table 5.
Bit no. Function Description
Bit = 0 Bit = 1
0 Bus Bit 1 -
The binary outputs can be assigned to the bus bits. The
assignment can be done however wished, i.e. multiple outputs
can also be assigned to the same bit.
(Available from rmware 1.323)
1 Bus Bit 2 -
2 Bus Bit 3 -
3 Bus Bit 4 -
4Bus Bit 5 -
5 Bus Bit 6 -
6 Bus Bit 7 -
7 Bus Bit 8 -
8 Intermediate Position - Intermediate position, dened by Bit9, Bit10 and Bit11
9Denition intermediate
position - Bit-setting for intermediate position see table 2, page 8.
10 Denition intermediate
position - Bit-setting for intermediate position see table 2, page 8.
11 Denition intermediate
position - Bit-setting for intermediate position see table 2, page 8.
12 PVST-Start - start PVST
13 Reserved -
14 Reserved -
15 Reserved -

Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0 November 2021
Input and Output Data 9
Section 4: Input and Output Data
Bit11 Bit10 Bit9 Function
0 0 0 move to intermediate position: Position 1
0 0 1 move to intermediate position: Position 2
0 1 0 move to intermediate position: Position 3
0 1 1 move to intermediate position: Position 4
1 0 0 move to intermediate position: Position 5
1 0 1 move to intermediate position: Position 6
1 1 0 move to intermediate position: Position 7
1 1 1 move to intermediate position: Position 8
Table 6. Bit-setting for intermediate position (Bit8)
4.1.4 Set-point speed
Module number: 25Hex
ID-byte: 60Hex (1 word AA / consistency 1 word)
Data format: 16-bit, only the lower 8 bits are used (bit 7: direction OPEN; bit 6 - 0: 0 - 100
corresponding to 0 - 100%)
The other bits are reserved for future use and have to be set to zero!
4.2 Modules for the Output Data (Slave to Master)
4.2.1 Actual value
Module number: 12Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit, the lower 10 bits (0 - 1023) are used.
The other bits are reserved for future use and have to be hidden!
Structure:
Table 7.
Value Function Description
0 (0Hex ) 0 %
512 (200Hex ) 50%
1023 (3ffHex ) 100%

November 2021
Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0
Input and Output Data10
Section 4: Input and Output Data
4.2.2 Status
Module number: 13Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit (bit eld)
Structure:
Table 8.
Bit no. Function Description
Bit = 0 Bit = 1
0 READY - Actuator is ready.
1END POSITION
OPEN -End position OPEN reached (taking into account the type of command termination (torque- or travel-dependent)).
2END POSITION
CLOSE -End position CLOSED reached (taking into account the type of command termination (torque- or travel-dependent)).
3 TRAVEL OPEN -
Travel end position OPEN reached (not taking into account
the type of command termination (only straightforward
travel information)).
4TRAVEL CLOSE -
Travel end position CLOSED reached (not taking into
account the type of command termination (only
straightforward travel information)).
5 TORQUE OPEN - Cut-out torque in OPEN direction has been exceeded.
6 TORQUE CLOSE - Cut-out torque in CLOSE direction has been exceeded.
7 MOTOR TEMP. - Motor temperature sensor has responded (overtemp.).
8 OPENING - The actuator is operating by motor OPEN.
9 CLOSING - The actuator is operating by motor CLOSED.
10 LOCAL - Selector switch in position LOCAL.
11 REMOTE - Selector switch in position REMOTE.
12 LOCK OPEN -
Locking OPEN is active. OPEN command is queued with the
highest priority and will not be jettisoned even in the end
position (see command for bits 10 and 12).
13 LOCK CLOSE -
Locking CLOSED is active. CLOSE command is queued with
the highest priority and will not be jettisoned even in the
end position (see command for bits 11 and 12).
14 LIVEBIT 1 Livebit 1 toggles every second.
15 LIVEBIT 2 Livebit 2 is the copy from the watchdog toggle bit
(see command bit 7).
4.2.3 Actual Torque
Module number: 14Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit, only the lower 8 bits are used (bit 7: direction OPEN; bit 6 - 0: 0 - 100
corresponding to 0 - 100%)
The other bits are reserved for future use and have to be hidden!

Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0 November 2021
Input and Output Data 11
Section 4: Input and Output Data
4.2.4 Actual Speed
Module numbe: 15Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit, only the lower 8 bits are used (bit 7: direction OPEN; bit 6 - 0: 0 - 100
corresponding to 0 - 100%)
The other bits are reserved for future use and have to be hidden!
4.2.5 External Actual Value
Only with PID controller option!
Module number: 16Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit, the lower 10 bits (0 - 1,023) are used.
The other bits are reserved for future use and have to be hidden!
4.2.6 Status 2
Module number: 17Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Datenformat: 16 bit (bit eld)
Structure:
Table 9.
Bit no. Function Description
Bit = 0 Bit = 1
0 Dig. Output 1 -
Corresponding binary output is set.
1 Dig. Output 2 -
2 Dig. Output 3 -
3 Dig. Output 4 -
4Dig. Output 5 -
5 Dig. Output 6 -
6 Dig. Output 7 -
7 Dig. Output 8 -
8 Dig. Input 1 -
Corresponding binary input is set.
9 Dig. Input 2 -
10 Dig. Input 3 -
11 Dig. Input 4 -
12 Dig. Input 5 -
13 PHASE SEQUENCE - Phase sequence error: error in supply voltage (incorrect
phase sequence, phase loss, total loss, asymmetry)
14 FC ERROR - FC ERROR: error in the power supply unit and/or the
frequency converter (if there is one)
15 FAIL-SAFE ERROR - Fail-safe unit not ready (if there is one)
Parameter P15.6 can be used to set alternative output functions for Status 2.

November 2021
Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0
Input and Output Data12
Section 4: Input and Output Data
4.2.7 Status 3
Module number: 18Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit, error number
Table 10.
Error Code Meaning
3 Motor temperature warning
4 Motor temperature cut-out
5 Phase sequence error or phase loss
9 Error in the power supply or the frequency converter
11 Error in the failsafe unit (provided there is one)
17 Fault, displacement potentiometer
22 Fault, torque potentiometer
Parameter P15.7 can be used to set alternative output functions for Status 3.
4.2.8 Status 4
Module number: 19Hex
ID-byte: 50Hex (1 word AA / consistency 1 word)
Data format: 16-bit (bit eld)
Reserved for future use.
Structure:
Table 11.
Bit no. Function Description
0 and 1 Channel Activity
Bit1 Bit0 Signal
0 0 Bus: Channel A active.
0 1 Bus: Channel B active.
1 0 Bus: Channel A and B active, main channel for inputs is channel A.
1 1 Bus: Channel A and B active, main channel for inputs is channel B.
2Reserved
3Reserved
4Reserved
5Reserved
6Reserved
7Reserved
8 and 9 PVST Status
Bit9 Bit8 Signal
0 0 PVST functionality not activated or no PVST realised yet.
0 1 PVST active: There is a PVST active currently.
1 0 PVST OK: The last PVST was successful.
1 1 PVST Error: The last PVST was not successful.
10 reserved
11 reserved
12 reserved
13 reserved
14 reserved
15 reserved
Parameter P15.6 can be used to set alternative output functions for Status 2.

Installation, Operation and Maintenance Manual
VCIOM-15590-EN Rev. 0 November 2021
Input and Output Data 13
Section 4: Input and Output Data
4.3 Bi-directional Data
(Master to Slave and Slave to Master)
4.3.1 Parameter Channel In/Out
Not currently supported!
Module number: 30Hex
ID-byte: F1Hex (2 word AE / AA / complete consistency)
Data format: 32-bit, parameter number, parameter value

World Area Conguration Centers (WACC) offer sales support, service,
inventory and commissioning to our global customers.
Choose the WACC or sales ofce nearest you:
www.emerson.com/bettis
VCIOM-15590-EN ©2021 Emerson. All rights reserved.
The Emerson logo is a trademark and service mark of Emerson Electric Co.
BettisTM is a mark of one of the Emerson family of companies.
All other marks are property of their respective owners.
The contents of this publication are presented for information purposes
only, and while effort has been made to ensure their accuracy, they are not
to be construed as warranties or guarantees, express or implied, regarding
the products or services described herein or their use or applicability.
All sales are governed by our terms and conditions, which are available
on request. We reserve the right to modify or improve the designs or
specifications of our products at any time without notice.
For complete list of sales and manufacturing sites, please visit
www.emerson.com/actuationtechnologieslocations or contact us at
info.actuationtechnologi[email protected]om
NORTH & SOUTH AMERICA
19200 Northwest Freeway
Houston TX 77065
USA
T [phone]
Av. Hollingsworth
325 Iporanga Sorocaba
SP 18087-105
Brazil
T [phone]
ASIA PACIFIC
No. 9 Gul Road
#01-02 Singapore 629361
T [phone]
No. 1 Lai Yuan Road
Wuqing Development Area
Tianjin 301700
P. R. China
T [phone]
MIDDLE EAST & AFRICA
P. O. Box 17033
Jebel Ali Free Zone
Dubai
T [phone]
P. O. Box 10305
Jubail 31961
Saudi Arabia
T [phone]
24 Angus Crescent
Longmeadow Business Estate East
P.O. Box 6908 Greenstone
1616 Modderfontein Extension 5
South Africa
T [phone]
EUROPE
Holland Fasor 6
Székesfehérvár 8000
Hungary
T [phone]
Strada Biffi 165
29017 Fiorenzuola d’Arda (PC)
Italy
T [phone]
