Fisher™ENVIRO-SEAL™Packing System for
Sliding-Stem Valves
Contents
Introduction 1.................................
Scope of Manual 1.............................
Description 2.................................
Installation 3..................................
Tightening Procedures 7.......................
Other Considerations 7..........................
Parts Ordering 7................................
Retrofit Kits 8..................................
easy-e™, A, EH, HP, YD, YS Retrofit Kits 8..........
Repair Kits 8...................................
easy-e, A, EH, HP, YD, YS Repair Kits 8............

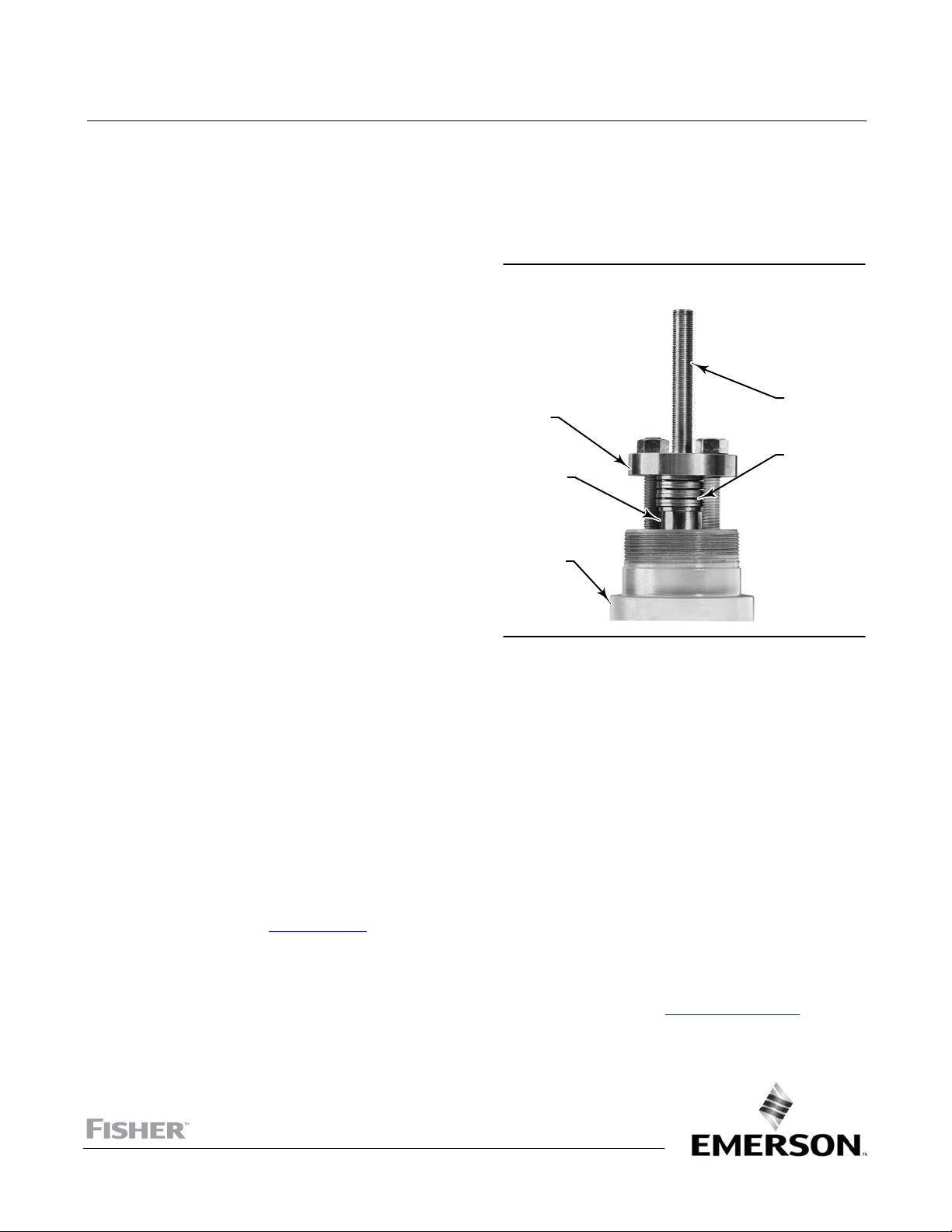

Figure 1. Fisher easy-e Valve Bonnet with
ENVIRO-SEAL Packing
VALVE
BONNET
BELLEVILLE
SPRINGS
VALVE
STEM
PACKING
FLANGE
PACKING
FOLLOWER
W5814-1*
Introduction
Scope of Manual
This instruction manual includes installation and parts information for Fisher ENVIRO-SEAL live-loaded packing systems
(see figure 1). These systems are available for Fisher sliding-stem valves with 9.5, 12.7, 19.1, 25.4, 31.8, and 50.8 mm
(3/8, 1/2, 3/4, 1, 1-1/4, and 2 inch) diameter stems. The system can be used with many sliding-stem valves as shown in
the Applications section of the Specifications. Refer to appropriate valve and actuator instruction manuals for
necessary information relating to the disassembly and assembly of the valve and actuator. ENVIRO-SEAL packing
systems for sliding-stem valves utilize a Belleville (coned-disk) spring system in the pressure/temperature ranges
shown in the specifications. For higher pressure/temperature ratings, refer to the HIGH-SEAL ULF Live-Loaded Packing
System instruction manual, D101453X012.
Do not install, operate, or maintain ENVIRO-SEAL live-loaded packing systems without being fully trained and qualified
in valve, actuator, and accessory installation, operation, and maintenance. To avoid personal injury or property
damage, it is important to carefully read, understand, and follow all the contents of this manual, including all safety
cautions and warnings. If you have any questions about these instructions, contact your Emerson sales office or Local
Business Partner before proceeding.
Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
2
Table 1. Specifications
Applicable Product Types and Stem Diameters
See tables 2 and 3

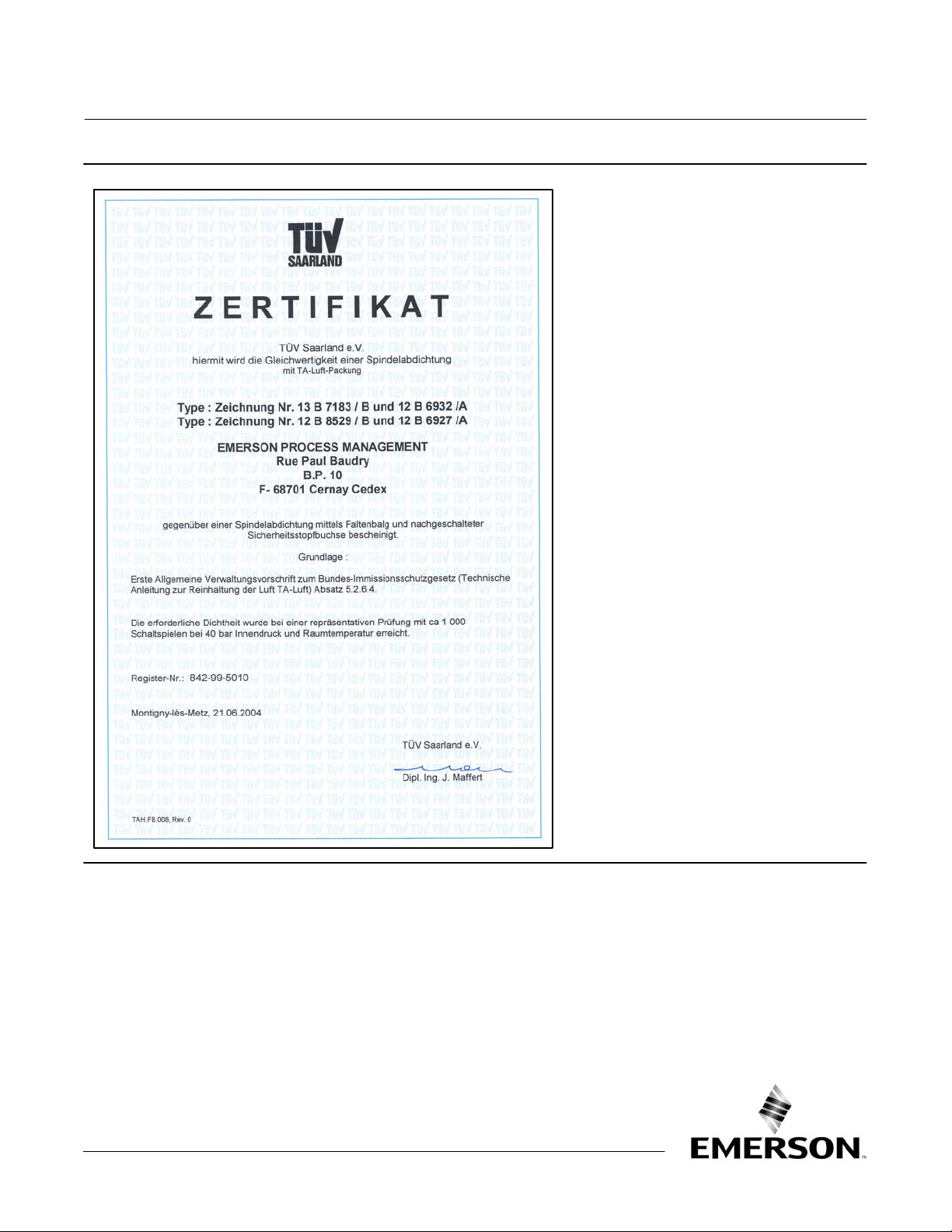

TÜV Certification
TÜV has certified the stem sealing capabilities of
ENVIRO-SEAL PTFE and Graphite ULF packing systems
for sliding-stem valves with TA Luft emission control
requirements. See figures 8 and 9 for copies of these
certificates
Pressures and Temperatures(2)
See figure 2. Figure 2 applies only to ENVIRO-SEAL
packing for 100 ppm service. Pressure and
temperature ratings for non-environmental service
are in the packing bulletins. See the appropriate valve
instruction manual for additional pressure and
temperature ratings.
1. For availability of ENVIRO-SEAL packing system with a specific valve, please contact your Emerson sales office or Local Business Partner.
2. The pressure/temperature limits in this manual, in the valve literature, and any applicable code or standard limitation, should not be exceeded.

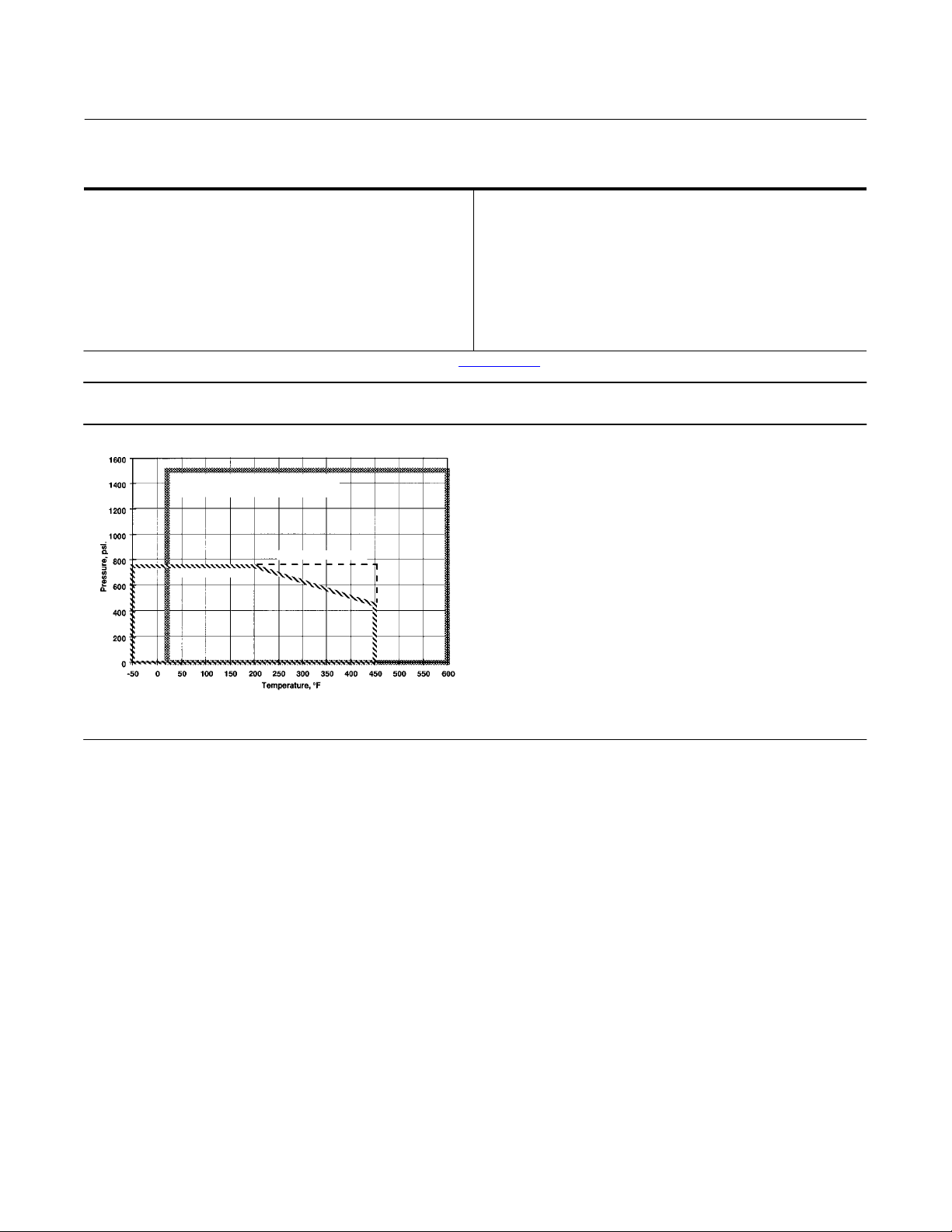

Figure 2. Applications Guidelines for 100 ppm Service
A6142-1
NOTE:
FOR MAXIMUM CYCLE LIFE, GRAPHITE ULF PACKING SHOULD BE USED IN SERVICES WHERE THE VAST MAJORITY OF THE VALVE CYCLES OCCUR AT TEMPERATURES
OF 150_C (300_F) OR GREATER.
ENVIRO-SEAL GRAPHITE ULF AND
HIGH-SEAL GRAPHITE ULF
ENVIRO-SEAL DUPLEX
ENVIRO-SEAL PTFE
Description
ENVIRO-SEAL packing systems, with exceptional sealing capabilities, can be easily installed into your existing valves or
can be purchased with new valves. These systems help seal your process to conserve valuable fluids, and protect the
environment against the emission of hazardous or polluting liquids and gases. The external live-loading provides a
constant load over the life of the packing material, which reduces your need for packing box adjustment and
maintenance.
If the piping and valve are insulated, do not allow insulation to extend above the yoke boss surface, covering the
ENVIRO-SEAL packing arrangement. Keep the ENVIRO-SEAL packing arrangement exposed to ambient air conditions.

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
3
Installation
ENVIRO-SEAL packing systems are designed for quality performance over extended periods. This longevity allows for
packing maintenance to be performed as it should be, at regularly scheduled plant outages or turn-arounds.
Use these instructions to install ENVIRO-SEAL packing in valves that have standard packing or when inspecting or
replacing ENVIRO-SEAL packing.
If you are changing the packing system material to a different material, such as PTFE to Graphite ULF, it is good
practice to review actuator sizing, as packing friction will change. See tables 4, 5, and 6 for information on packing
friction.
WARNING
Avoid personal injury from sudden release of process pressure or uncontrolled movement of parts. Before performing any
maintenance operations:
D Do not remove the actuator from the valve while the valve is still pressurized.
D Always wear protective gloves, clothing, and eyewear when performing any maintenance operations to avoid personal
injury.
D Disconnect any operating lines providing air pressure, electric power, or a control signal to the actuator. Be sure the
actuator cannot suddenly open or close the valve.
D Use bypass valves or completely shut off the process to isolate the valve from process pressure. Relieve process pressure
from both sides of the valve. Drain the process media from both sides of the valve.
D Vent the power actuator loading pressure and relieve any actuator spring precompression.
D Use lock-out procedures to be sure that the above measures stay in effect while you work on the equipment.
D The valve packing box may contain process fluids that are pressurized, even when the valve has been removed from the
pipeline. Process fluids may spray out under pressure when removing the packing hardware or packing rings, or when
loosening the packing box pipe plug.
D Check with your process or safety engineer for any other hazards that may be present from exposure to process media.
Figure 3. ENVIRO-SEAL Packing Assembly Procedure
A6143
HEX NUT
PACKING
FLANGE
STUD
ALTERNATE FROM ONE HEX NUT TO
THE OTHER AS YOU TIGHTEN
THESE TWO SURFACES MUST REMAIN PARALLEL
AS YOU TIGHTEN THE HEX NUTS
BONNET

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
4
Table 2. Fisher Sliding-Stem Product Availability for ENVIRO-SEAL Duplex Packing
VALVE
(1)
STEM DIAMETER, mm (INCHES)
9.5
(3/8)
12.7
(1/2)
15.9
(5/8)
19.1
(3/4)
25.4
(1)
31.8
(1-1/4)
50.8
(2)
A X X ---X X X ---
DBQ ---X---X X X ---
easy-e (ED, ES,
ET, EW, EZ) X X ---X X X ---
EH ---X---X X X X
FB --- - -- - -- - --X X X
HP ---X---X X X ---
HS ---X---X X --- - --
SS-83 --- - -- - --X X X ---
YD X X ---X X X ---
YS X X ---X X X ---
1. Contact your Emerson sales office for valves not listed.
Table 3. Fisher Sliding-Stem Product Availability for ENVIRO-SEAL PTFE and Graphite ULF Packing Systems
VALVE
(1)
STEM DIAMETER, mm (INCHES) STEM DIAMETER,
mm
9.5
(3/8)
12.7
(1/2)
15.9
(5/8)
19.1
(3/4)
25.4
(1)
31.8
(1-1/4)
50.8
(2) 12 mm 16 mm
A X X ---X X X --- - -- - --
CAV4 --- - -- - --X X X X --- - --
D---X--- - -- - -- - -- - -- - -- - --
DA ---X--- - -- - -- - -- - -- - -- - --
DBQ ---X---X X X --- - -- - --
DBQ-NS ---X--- - -- - -- - -- - -- - -- - --
easy-e (ED,
ES, ET, EW,
EZ)
X X ---X X X --- - -- - --
E-NS ---X--- - -- - -- - -- - -- - -- - --
EH ---X---X X X X --- - --
ENA --- - -- - -- - -- - --X X --- - --
ET-C---X---X X --- - -- - -- - --
EWT-C---X---X X --- - -- - -- - --
EZ-C X X ---X--- - -- - -- - -- - --
FB --- - -- - -- - --X X X --- - --
HP ---X---X X X --- - -- - --
HS ---X---X X --- - -- - -- - --
SS-79 --- - -- - --X--- - -- - -- - -- - --
SS-83 --- - -- - --X X X X --- - --
SS-85 ---X--- - -- - -- - -- - -- - -- - --
SS-95 ---X--- - -- - -- - -- - -- - -- - --
SS-98 --- - -- - -- - --X--- - -- - -- - --
YD X X ---X X X --- - -- - --
YS X X ---X X X --- - -- - --
1. Contact your Emerson sales office for valves not listed.
If you are installing the system in a valve that is still connected to an actuator, remove the actuator from the valve to
provide sufficient space to install the packing assembly. If a spring-return actuator is used, it is possible that
disconnecting the stem connector will allow the spring to force the actuator to the end of its travel. Be sure the
actuator spring is resting on its travel stop. Refer to the appropriate valve and actuator instruction manuals to remove
the actuator.

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
5
Remove old packing parts from the packing box by using the valve instruction manual procedures. Both the valve stem
surface condition and the packing bore are critical in obtaining a good seal. If the valve stem surface is scratched,
nicked, or worn, replace the valve stem before installing the ENVIRO-SEAL Packing System. Check the condition of the
packing bore and clean or hone it out, as necessary. Refer to the appropriate valve instruction manual to replace the
valve stem.
Figure 4. Belleville Spring Stacking Order
7 SPRINGS
PACKING
FOLLOWER
9 SPRINGS
PACKING
FOLLOWER
easy-e PTFE & DUPLEX
PACKING easy-e GRAPHITE ULF PACKING
A6144
Table 4. Packing Friction with ENVIRO-SEAL PTFE Packing
VALVE STEM DIAMETER PTFE PACKING
mm Inches Newtons Pounds (Force)
9.5
12.7
19.1
25.4
31.8
50.8
3/8
1/2
3/4
1
1-1/4
2
555
755
1110
1515
1890
3220
125
170
250
340
425
725
Table 5. Packing Friction with ENVIRO-SEAL Duplex Packing
VALVE STEM DIAMETER DUPLEX PACKING
mm Inches Newtons Pounds (Force)
9.5
12.7
19.1
25.4
31.8
50.8
3/8
1/2
3/4
1
1-1/4
2
555
755
1110
1515
1890
3220
125
170
250
340
425
725
Table 6. Packing Friction with ENVIRO-SEAL Graphite ULF Packing
VALVE STEM DIAMETER GRAPHITE ULF PACKING
mm Inches Newtons Pounds (Force)
9.5
12.7
19.1
25.4
31.8
50.8
3/8
1/2
3/4
1
1-1/4
2
935
1250
2350
3740
4800
6000
210
280
530
840
1100
1350
For key number locations refer to figures 5, 6, or 7. Then proceed as follows:
1. The original packing flange studs used for standard packing arrangements should be long enough to accommodate
the retrofit kit parts. If you determine that the existing studs and nuts should be replaced however, due to their
condition, replace them with the studs and nuts (keys 200 and 212) supplied in the retrofit kit.

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
6
Table 7. Graphite ULF Packing Torque(1)
STEM SIZE TORQUE
mm Inch NSm lbfSin lbfSft
9.5 3/8 4.3 38 3.2
12.7 1/2 8.5 76 6.3
19.1 3/4 21 187 16
25.4 1 47 420 35
31.8 1-1/4 56 495 41
1. For A, DBQ, easy-e, EH, FB, HP, YD, and YS valves.
CAUTION
To prevent product damage caused by scratching or damaging the packing box wall, take care when removing the old
packing parts from the packing box.
2. Carefully remove the old packing parts from the packing box. If the valve stem or packing box wall is scratched or
damaged, it can cause excessive leakage. If the valve stem needs to be replaced, or any other valve part, refer to the
appropriate valve instruction manual for replacement procedures. Complete all valve maintenance before installing
the ENVIRO-SEAL packing system into the bonnet.
Note
ENVIRO-SEAL PTFE packing systems can be used in either vacuum or positive pressure service. It is not necessary to reverse
ENVIRO-SEAL packing components in vacuum service.
Note
Ensure that the Belleville springs are stacked properly (see figure 4) and packing box parts are assembled in the correct order (see
figures 5, 6, or 7). Packing parts cannot function properly if the Belleville springs or other packing parts are not stacked correctly.
3. Use figures 5, 6, or 7 to ensure that the packing parts and spring pack are assembled in the correct order. Install the
ENVIRO-SEAL packing parts into the packing box.
4. Install the spring pack assembly (key 217), with the attached springs, onto the stem.
5. Install the packing flange (key 201) and packing box nuts (key 212). Hand tighten them.
Note
In general, the following tightening procedure applies to all ENVIRO-SEAL packing systems--both sliding-stem and rotary.
Note
Lubrication is required for the packing studs and nuts.
Although it is important to properly lubricate the stud threads and internal nut threads, it is also important to properly lubricate
the contacting face of the nut. See figures 5, 6, or 7 for lubrication locations.

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
7
Tightening Procedures
1. You will obtain maximum benefit from your ENVIRO-SEAL packing system when you tighten the packing flange nuts
and compress the Belleville springs to their “target load”. The target load is the point where the Belleville springs
are designed for optimum performance, when they are compressed to 85% of their maximum deflection, or nearly
flat. (Maximum deflection is when the springs are 100% compressed, or completely flat.)
To obtain the target load of 85% compression of maximum deflection, perform the following:
D Tighten the packing flange nuts alternately and evenly, keeping the packing flange parallel with the valve flange
(see figure 3), until the Belleville springs are compressed 100% (or completely flat), as detected by a rapid increase
in nut torque.
D For PTFE or Duplex packing, loosen each packing flange nut 1/2 turn (180_of rotation).
D For Graphite ULF packing, loosen each packing flange nut 1/4 turn (90_of rotation).
The “target load” of 85% compression has now been reached.
2. Refer to the appropriate valve and actuator instruction manuals when connecting the valve to the actuator. Under
normal conditions, the packing nuts should not require retightening.
However, when servicing, if the springs do not remain at the target load of 85% compression, retighten the packing
box nuts according to step 1 above.
3. The “springs flat” procedure described above in steps 1 and 2 of Tightening Procedures is the preferred method of
adjusting ENVIRO-SEAL packing. However, for Graphite ULF packing, the torque values in table 7 can also be used as
a guideline for 85% spring compression. These values are based on generous lubrication of the packing studs and
nuts with anti-seize lubricant. Loosening of the packing flange nuts is not required when these torques are used.
Other Considerations
When retrofitting an existing packing system or repacking a valve with ENVIRO-SEAL packing that has been in service,
check the condition of the packing bore after you have removed the packing. An easy method for cleaning debris and
minor imperfections from the bore is to use a brake cylinder hone attached to an electric drill. This method will do a
good job of cleaning the packing bore without changing the dimension of the bore.
When you have completed this exercise, a good guideline to use in checking the condition of the packing bore is the
20/20 rule. If less than 20% of the surface area of the bore is pitted and if there are no pits deeper than 0.020 inch, then
your packing should work as designed. This does not need to be an exact measurement; visual inspection is adequate.
If the packing bore does not meet this criteria, however, you should replace the bonnet.
Note
This check is only valid for rotary ENVIRO-SEAL packing systems and sliding-stem ENVIRO-SEAL or HIGH-SEAL packing systems.
Parts Ordering
Each valve assembly is assigned a serial number that can be found on the valve body. Refer to this serial number when
contacting your Emerson sales office or Local Business Partner for technical assistance. When ordering replacement

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
8
parts, refer to this serial number and to the part description and part number from the following parts list. When
ordering replacement parts, refer to the serial number and to the 11-character part number for each part required
from the following parts list.
WARNING
Use only genuine Fisher replacement parts. Components that are not supplied by Emerson Automation Solutions should
not, under any circumstances, be used in any Fisher valve, because they may void your warranty, might adversely affect the
performance of the valve, and could cause personal injury and property damage.
Retrofit Kits
Stems and packing box constructions that do not meet Emerson stem finish specifications, dimensional tolerances,
and design specifications, may adversely alter the performance of this packing kit.
easy-e, A, EH, HP, YD, and YS Retrofit Kits
Retrofit kits include parts to convert existing easy-e, A, EH, HP, YD, and YS valves to the ENVIRO-SEAL packing box
construction. See table 3 for a complete listing of ENVIRO-SEAL packing systems for sliding-stem valves. PTFE kits
include keys 200, 201, 211, 212, 214, 215, 217, 218, tag, and tie cable. Graphite ULF kits include keys 200, 201, 207,
208, 209, 210, 211, 212, 214, 216, 217, tag, and tie cable. Duplex kits include keys 200, 201, 207, 209, 211, 212, 214,
215, 216, 217, tag, and tie cable.
Fisher easy-e, A, EH, HP, YD, and YS Retrofit Kits
STEM DIAMETER YOKE BOSS DIAMETER KITS
PACKING MATERIAL
mm (Inch) mm (Inch) Double PTFE (carbon-filled) Single Graphite ULF Duplex
9.5 (3/8)
12.7 (1/2)
19.1 (3/4)
25.4 (1)
31.8 (1-1/4)
54 (2-1/8)
71 (2-13/16)
90 (3-9/16)
127 (5)
127 (5, 5H)
RPACKXRT012
RPACKXRT022
RPACKXRT032
RPACKXRT042
RPACKXRT052
RPACKXRT262
RPACKXRT272
RPACKXRT282
RPACKXRT292
RPACKXRT302
RPACKXRT212
RPACKXRT222
RPACKXRT232
RPACKXRT242
RPACKXRT252
Repair Kits
Stems and packing box constructions that do not meet Emerson stem finish specifications, dimensional tolerances,
and design specifications, may adversely alter the performance of this packing kit.
easy-e, A, EH, HP, YD, and YS Repair Kits
Repair kits include parts to replace the “soft” packing materials in valves that already have ENVIRO-SEAL packing
arrangements installed or in valves that have been upgraded with ENVIRO-SEAL retrofit kits. PTFE repair kits include
keys 214, 215, and 218. Graphite ULF repair kits include keys 207, 208, 209, 210, and 214. Duplex repair kits include
keys 207, 209, 214, and 215.
Fisher easy-e, A, EH, HP, YD, and YS Repair Kits
STEM DIAMETER YOKE BOSS DIAMETER KITS
PACKING MATERIAL
mm (Inch) mm (Inches) Double PTFE (carbon-filled) Single Graphite ULF Duplex
9.5 (3/8)
12.7 (1/2)
19.1 (3/4)
25.4 (1)
31.8 (1-1/4)
54 (2-1/8)
71 (2-13/16)
90 (3-9/16)
127 (5)
127 (5, 5H)
RPACKX00192
RPACKX00202
RPACKX00212
RPACKX00222
RPACKX00232
RPACKX00592
RPACKX00602
RPACKX00612
RPACKX00622
RPACKX00632
RPACKX00292
RPACKX00302
RPACKX00312
RPACKX00322
RPACKX00332

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
9
Figure 5. PTFE Sliding-Stem ENVIRO-SEAL Packing for Fisher easy-e Valves
A6146-1
ANTI-SEIZE LUBRICANT
STUD
LANTERN RING
PACKING SET
PACKING BOX RING
PACKING NUT
PACKING FLANGE
ANTI-EXTRUSION WASHERS
LOWER WIPER
SPRING PACK ASSEMBLY
(KEY 217) 217
Figure 6. ENVIRO-SEAL Duplex Packing for Fisher easy-e Valves
200
212
201
215
216
207
209
211
217
207
207
207
214
213
PACKING NUT
PACKING FLANGE
PACKING WASHER
SPRING PACK ASSEMBLY
ANTI-SEIZE LUBRICANT
STUD
LANTERN RING
PACKING SET
PACKING BOX RING
GUIDE BUSHING
PACKING RING
GUIDE BUSHING
GUIDE BUSHING
GUIDE BUSHING
24B9310
A6722

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
10
Figure 7. ENVIRO-SEAL Graphite ULF Packing for Fisher easy-e Valves
39B4612-A
PACKING FLANGE
STUD
PACKING NUT
PACKING RING
PACKING RING
PACKING BOX RING
ANTI-SEIZE LUBRICANT
SPRING PACK ASSEMBLY
GUIDE BUSHING
PACKING WASHER
GUIDE BUSHING

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
11
Figure 8. Copy of TÜV Certificate

Instruction Manual
D101642X012
ENVIRO-SEAL Sliding-Stem Valves
July 2017
12
Figure 9. Copy of TÜV Certificate
Emerson Automation Solutions
Marshalltown, Iowa 50158 USA
Sorocaba, 18087 Brazil
Cernay 68700 France
Dubai, United Arab Emirates
Singapore 128461 Singapore
www.Fisher.com
The contents of this publication are presented for informational purposes only, and while every effort has been made to ensure their accuracy, they are not
to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicability. All sales are
governed by our terms and conditions, which are available upon request. We reserve the right to modify or improve the designs or specifications of such
products at any time without notice.
E1991, 2017 Fisher Controls International LLC. All rights reserved.
Fisher, ENVIRO-SEAL, and easy-e are marks owned by one of the companies in the Emerson Automation Solutions business unit of Emerson Electric Co.
Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property
of their respective owners.
Neither Emerson, Emerson Automation Solutions, nor any of their affiliated entities assumes responsibility for the selection, use or maintenance
of any product. Responsibility for proper selection, use, and maintenance of any product remains solely with the purchaser and end user.
