OWNER'SMANUAL
ES128
Visitourweb siteatwww.emersonradio.com
MicroAudioSystem
withCD-R/RWPlayer,
AM/FMTuner
and RemoteControl
ES128_042806.p65 28/4/2006, 11:3930

1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.
IMPORTANTSAFETYINSTRUCTIONS
1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2.) Do not use this apparatus near water.
3.) Clean only with dry cloth.
4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8.) Only use attachments / accessories specified by the manufacturer.
9.) Unplug this apparatus during lightning storms or when unused for long periods of time.
10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on the apparatus.
12.) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13.) Do not overload wall outlet. Use only power source as indicated.
14.) Use replacement parts as specified by the manufacturer.
15.) The product may be mounted to a wall only if recommended by the manufacturer.
16.) Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.
!
CAUTION
RISK OFELECTRICSHOCK
DONOTOPEN
The lightning flashwitharrow-
head symbol,withinan equi-
lateraltriangleisintended to
alertthe usertothe presence
ofuninsulated‘dangerousvoltage’
withinthe product’s enclosure
thatmaybe ofsufficient
magnitude toconstitutearisk
ofelectricshock topersons.
The exclamation pointwithin
an equilateraltriangleisin-
tended toalertthe userto
the presenceofimportant
operating and maintenance
(servicing)instructionsin
the literatureaccompany-
ing the appliance.
WARNING:TOREDUCETHE
RISK OFELECTRICSHOCK
DONOTREMOVE COVER
(ORBACK),NOUSER
SERVICEABLEPARTSINSIDE
REFERSERVICINGTO
QUALIFIEDSERVICE
PERSONNEL.
CAUTION
The Caution Marking maybe located at the bottom enclosure of the apparatus.
ES128_042806.p65 28/4/2006, 11:391

2
Thank you for purchasing this Micro Audio System with programmable
CD-R/RW Player from Emerson. This system includes an AM/FM digital
tuner with 20 preset station memories, a digital clock, a full-function remote
control, and a pair of matching speakers.
Please review this manual completely and carefully to make sure that you
are getting the maximum benefit from all features we have included in this
system. If after reading this manual you experience any problems with the
set-up or operation of this system, please do not return it to the retail store.
Please call the Emerson Customer Service Hotline, toll free, at:
1-800-898-9020.
One of our customer service technicians will try to solve your problem for
you. If that is not possible you will be advised of the proper procedure to
obtain service for your system or to obtain a replacement system. The
Customer Service Hotline hours are 9:00 AM to 5:00 PM, Central Time,
Monday through Friday.
The serial number of your system can be found on a label on the back
panel of the main unit. Please take a moment to locate the serial number
and write the number in the space provided on the warranty page of this
manual. You may be asked for the serial number when calling to request
customer service
ES128_042806.p65 28/4/2006, 11:392

3
•Operatecontrolsand switchesas
described inthe manual.
•Beforeturning on the power,make
certainthatthe powercordisproperly
installed.
•When moving the set, be suretofirst
disconnectthepowercordandremove
cordsconnected tootherequipment.
•Avoidinstalling thisunitinplaces
exposed todirectsunlightorcloseto
heatradiating appliancessuchas
electricheaters,on top ofotherstereo
equipmentthatradiatestoo much
heat,placeslackingventilationordusty
areas,placessubjecttoconstant
vibration and/orhumidormoistareas.
FCC Information
Thisequipmenthasbeen tested and found tocomplywiththe limitsforaclass B
digitalDevice,pursuanttopart15 ofthe FCC Rules.Theselimitsaredesigned to
provide reasonableprotection againstharmfulinterferenceinaresidential
installation.Thisequipmentgenerates,uses,andcan radiateradiofrequencyenergy
and,ifnotinstalledand usedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisno guarantee that
interferencewill notoccurinaparticularinstallation.If thisequipmentdoescause
harmfulinterferencetoradioortelevision reception,whichcan be determined by
turning the equipmentoff and on,the userisencouraged totrytocorrectthe
interferencebyone ormoreofthe following measures:
•Reorientorrelocatethe receiving antenna.
•Increasethe separation between the equipmentand receiver.
•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe
receiverisconnected.
•Consultthe dealeroran experienced radio/TVtechnician forhelp.
Thisdevicecomplieswithpart15 ofthe FCC Rules.Operation issubjecttothe
following twoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,including interference
thatmaycauseundesired operation.
CLASS 1LASERPRODUCT
ThisproductcontainsalowpowerLaserDevice.
CAUTION
INVISIBLELASERRADIATION
WHENOPENANDINTERLOCKS
DEFEATED.
AVOIDEXPOSURETOBEAM
CLASS 1LASERPRODUCT
APPAREILÁLASERDECLASSE 1
PRODUCTOLASERDECLASE 1
IMPORTANTNOTES
Changesormodificationsnotexpresslyapproved bythe partyresponsiblefor
compliancecouldvoidthe user’s authoritytooperatethe equipment.
ES128_042806.p65 28/4/2006, 11:393

4
PREPARATIONFORUSE
Unpacking And SetUp
• Remove the main unit, the speakers, and the remote control unit from the
display carton. Remove all packing materials from the components. We
recommend that you save the original carton and packing material if possible,
in the event that your system even needs to be returned for service. Using the
original carton and packing materials is the only way to protect your system
from shipping damage.
• Press on the CD door in the area marked OPEN/CLOSE to open the door.
Remove the “dummy CD” transit protection card from the CD player and discard
it.

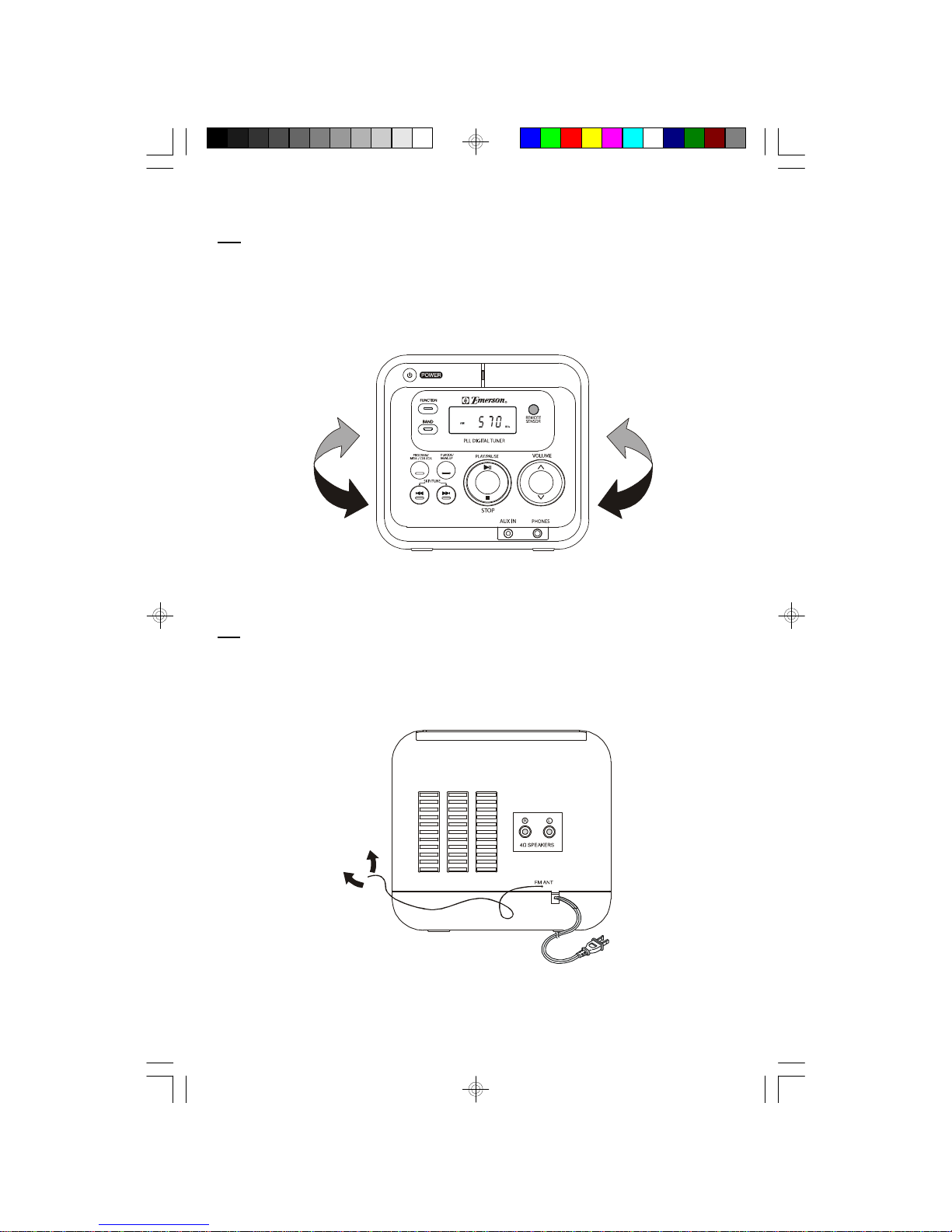

• Unwind the AC power cord and extend it to its full length.
• Unwind the external FM wire antenna and extend it to its full length.
• Remove the twist-ties from the speaker wires.
Placement of the System
The system should be placed on a stable, level surface such as a table, desk, or
shelf, convenient to anAC outlet, away from direct sunlight, and sources of excess
heat, dust, moisture, humidity, vibration, or strong magnetic fields.
The speakers may be placed next to the main unit or as far apart as the speaker
wires allow. We recommend that you leave a gap of approximately 1/2 inch between
the main unit and the speakers so that any vibration from the speakers will not
interfere with the CD player in the main unit.
ES128_042806.p65 28/4/2006, 11:394

5
Connecting the Speakers
Placethe speakerson eitherside ofthe mainunit.
Connectthe speakeron the left side ofthe mainunittothe “L”speakerjack on the
back panel.
Connectthe speakeron the rightside ofthe mainunittothe “R”speakerjack on
the back panel.
Makesurethatthe plugson the speakerwiresarefullyinserted intothe speaker
jacks on the back panelofthe mainunit.
Right Side Speaker Left Side Speaker
ES128_042806.p65 28/4/2006, 11:395

6
Remote Control Battery
The remote control operates on one 3-volt lithium battery, type CR2025 or
equivalent, included.
To insure that the battery is fresh the first time you use your system we have
placedplasticspacerbetweenthebatteryandthebatteryterminal.You must remove
this spacer before using the remote for the first time.
To remove the spacer, pull on the small tab that is
extending outside the battery compartment as shown.
Remote Control Operation

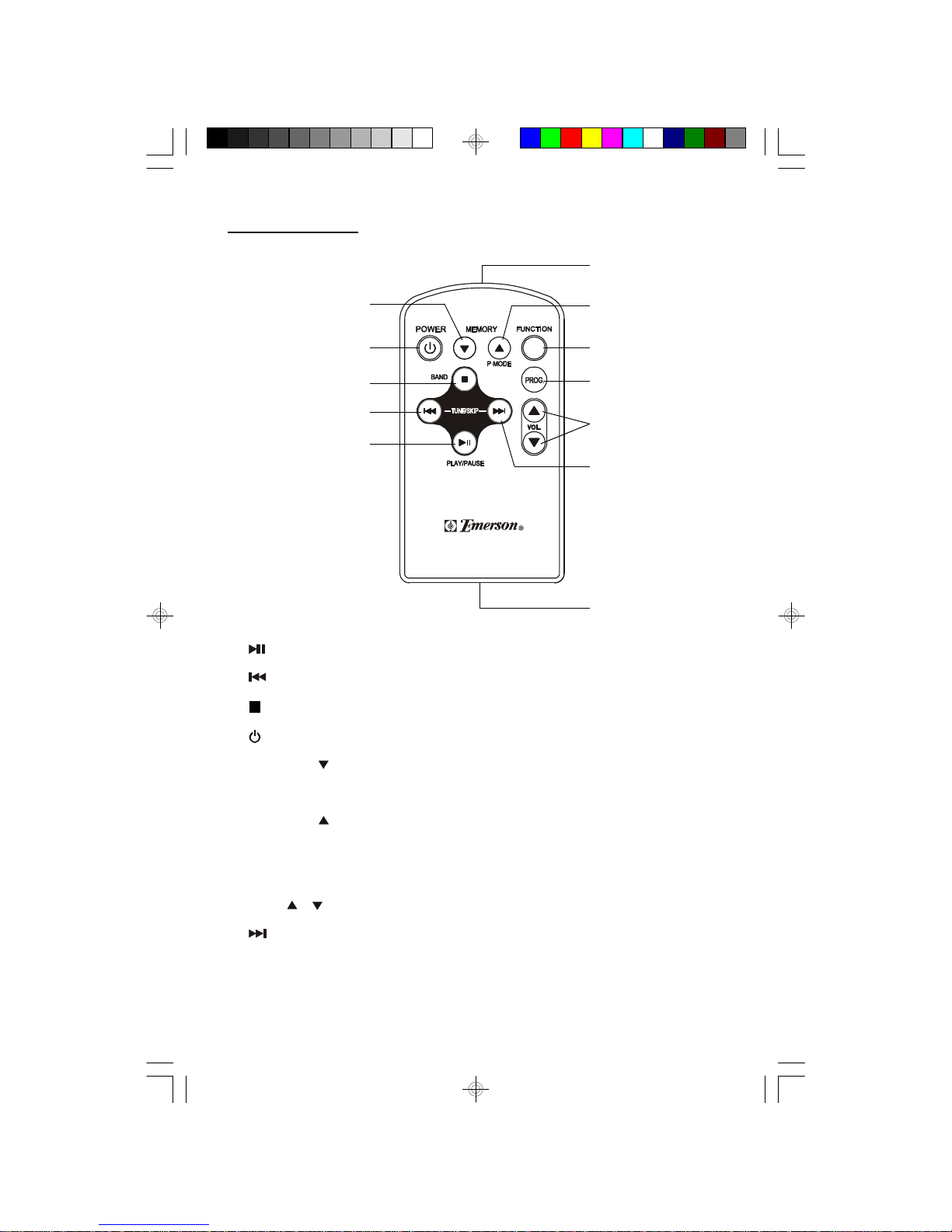

The main functions of this system can be operated by pressing the controls on the
front panel of the main unit, or by pressing the corresponding buttons on the remote
control.
You should point the remote control at the remote sensor on the front panel. The
effective operating range of the remote control is approximately 15 feet.
Please note that bright sunlight can interfere with the operation of the remote
control. If the remote operation is unsatisfactory, try darkening the room before
changing the remote battery. The battery should last at least 12 months or longer
under normal operating conditions.
ES128_042806.p65 28/4/2006, 11:396

7
Changing The Lithium Battery
When the operation of the remote becomes intermittent or the main unit no longer
responds to the remote commands, it is probably time to change the remote battery.
Open the battery compartment by squeezing the battery compartment locking tab
as shown and slide the battery holder out of the battery compartment.
Remove the exhausted battery and install a fresh CR2025 battery in the battery
holder with the “ + ” facing up as shown, then slide the battery holder back into the
battery compartment.
ES128_042806.p65 28/4/2006, 11:397

8
Power Source
This system is designed to operate on 120V AC 60Hz house current only.
Connecting this system to any other power source may cause damage to the
system and such damage is not covered by your warranty.
NOTE: The system has polarized AC plug with one wide blade and one narrow
blade. The plug will only fit into matching polarized AC outlets.
This is a safety feature to reduce the possibility of electric shock. If the plug will not
fit in yourAC outlet, you probably have an outdated non-polarized outlet. You should
have your outdated outlet changed by a qualified, licensed electrician. Do not file
the wide blade on the plug, or use an adapter to make the plug fit into your outlet.
This defeats the safety feature and could expose you to electric shock.
AC Plug
AC Outlet
Protect Your Furniture
Thismodelisequipped withnon-skidrubber'feet'topreventthe productfrom
moving when you operatethe controls.These'feet'aremade fromnon-migrating
rubbermaterialspeciallyformulated toavoidleaving anymarks orstainson your
furniture.Howevercertaintypesofoil based furniturepolishes,wood preservatives,
orcleaning sprays maycausethe rubber'feet'tosoften,and leavemarks ora
rubberresidue on the furniture.Topreventanydamage toyourfurniturewestrongly
recommend thatyou purchasesmall self-adhesivefeltpads,availableathardware
storesand homeimprovementcenterseverywhere,and applythesepadstothe
bottomofthe rubber'feet'beforeyou placethe producton fine wooden furniture.
ES128_042806.p65 28/4/2006, 11:398

9

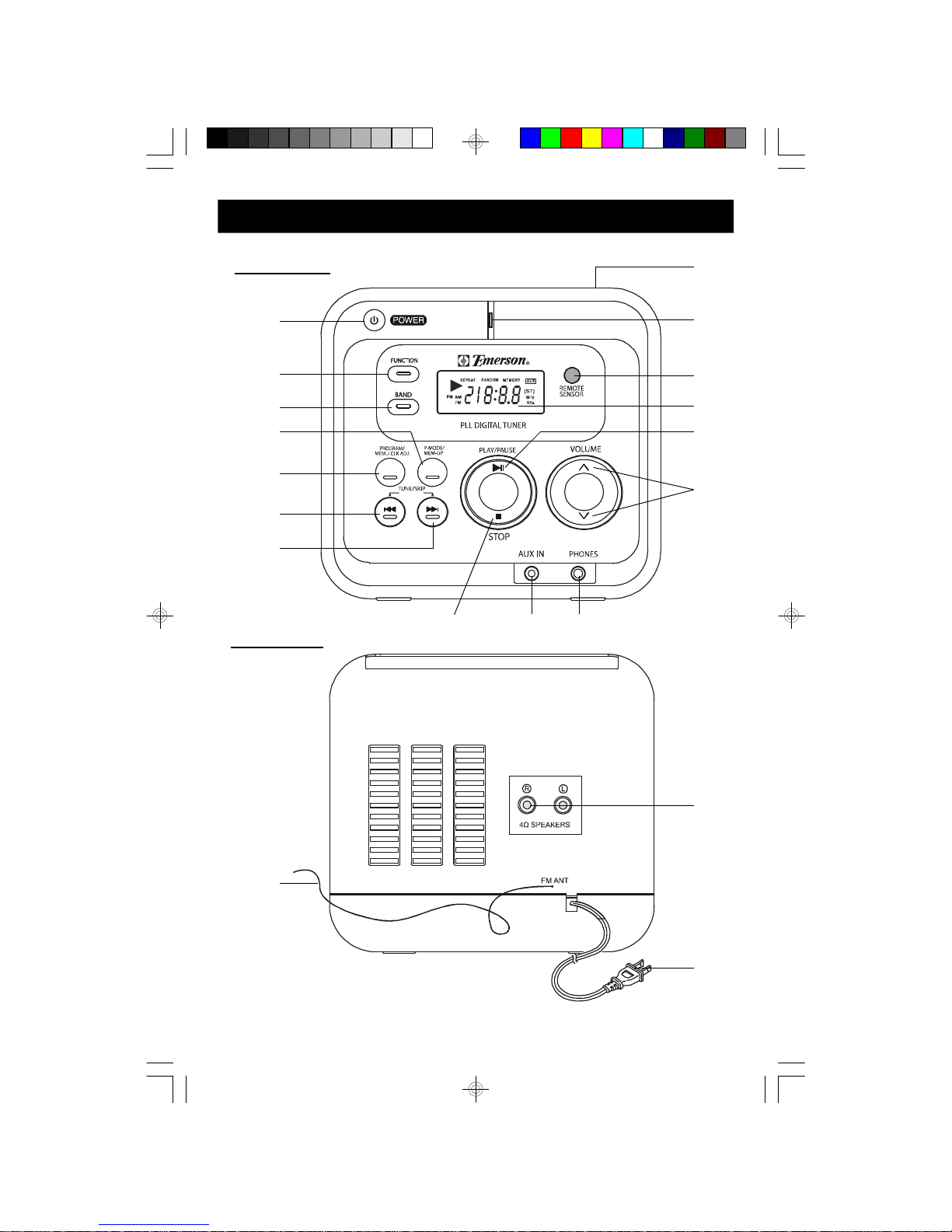

LOCATIONOFCONTROLSAND INDICATORS
Front Panel
Back Panel
18
1
2
3
4
5
6
7
8
9
10
11
12
13
16 15 14
17
19
ES128_042806.p65 28/4/2006, 11:399

10
1.) TUNE/SKIP Forward Button.
2.) TUNE/SKIP Reverse Button.
3.) PROGRAM/MEM./CLK.ADJ. Button.
4.) P-MODE/MEM-UP Button.
5.) BAND Button.
6.) FUNCTION Button.
7.) POWER button.
8.) CD Door OPEN/CLOSE Position.
9.) Standby LED Indicator.
10.) REMOTE SENSOR.
11.) Multi-Function LCD Display.
12.) PLAY/PAUSE Button.
13.) VOLUME / Buttons.
14.) PHONES Jack.
15.) AUX IN Jack.
16.) STOP Button.
17.) FM WireAntenna.
18.) SPEAKER R/L Jacks.
19.) AC Power Cord.
ES128_042806.p65 28/4/2006, 11:3910

11
Remote Control
1.) PLAY/PAUSE Button.
2.) TUNE/SKIP Button.
3.) (Stop) /BAND Button.
4.) POWER Button.
5.) MEMORY Button.
6.) Infrared Transmitter.
7.) MEMORY /P-MODE Button.
8.) FUNCTION Button.
9.) PROG. Button.
10.) VOL. / Buttons.
11.) TUNE/SKIP Button.
12.) Battery Compartment.
1
2
3
4
5
6
7
8
9
10
11
12
ES128_042806.p65 28/4/2006, 11:3911

12
OPERATINGINSTRUCTIONS
• Make sure that you have unwound the AC power cord and the FM
wire antenna and extended them to their full length.
• Make sure that you have connected the speakers.
• Make sure that you have removed the plastic battery spacer tab from
the remote control.
Setting The Clock
When you connect the system to theAC outlet for the
first time, the Standby indicator lights, the main display
turns ‘On’ and shows “AM 12:00”.
Do not press the POWER button. The system must be in the Standby mode to
set the clock.
You have the option of displaying the time in 12-Hour or 24-Hour modes.
12-Hour Mode - The time is displayed in 12-hour cycles with AM /PM indicators.
This is the factory default setting.
24-Hour Mode - The time is displayed in 24-hour cycles with noAM / PM indicators.
This is sometimes referred to as “Military Time”.
For example, “PM 6:00” would be displayed as “18:00”.

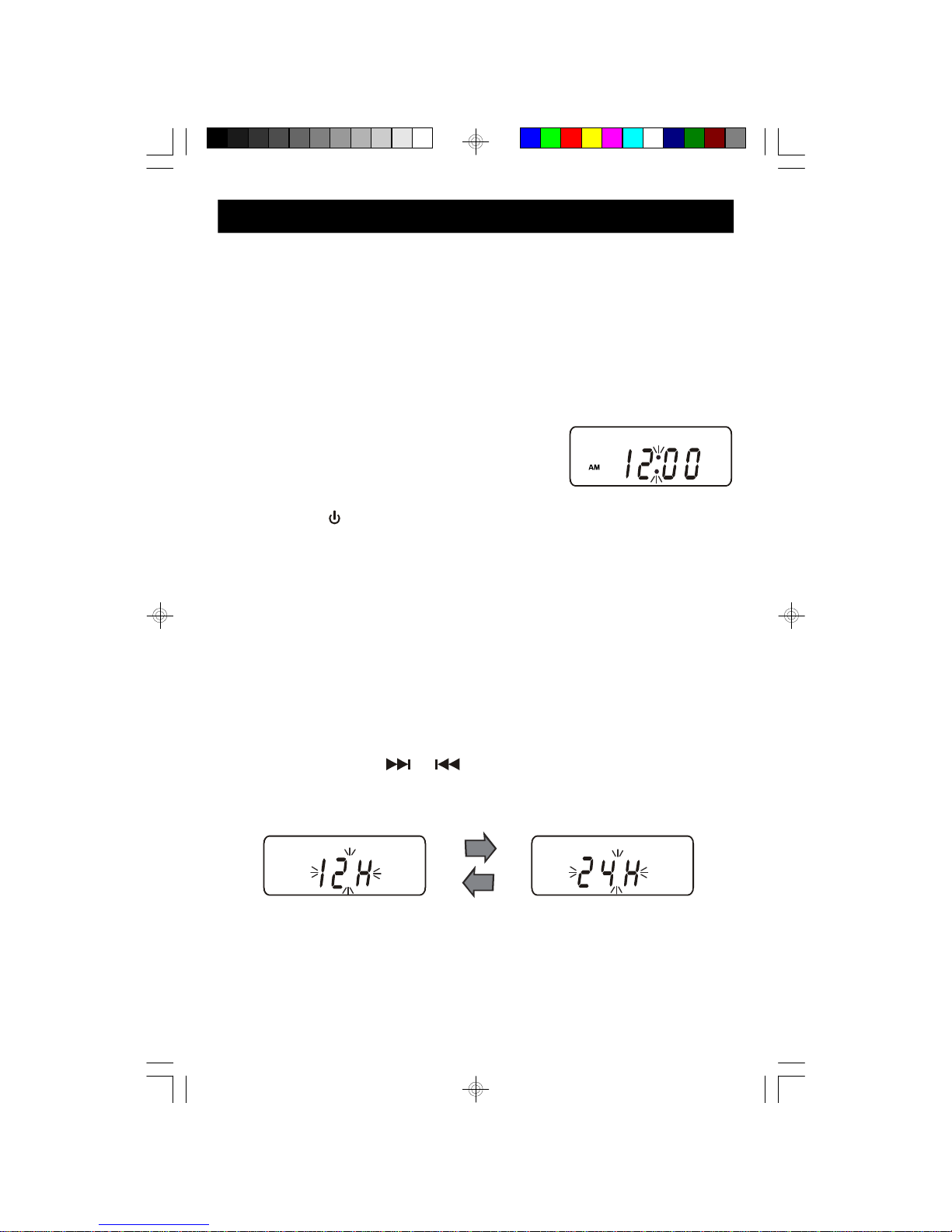

1.) Depress the PROGRAM/MEM./CLK.ADJ button, “12H” flashes in the display.
Then press either the or buttons to alternatively to switch between
the 12-hour and 24-hour display modes.
ES128_042806.p65 28/4/2006, 11:3912

13
2.) Press the PROGRAM/MEM./CLK. ADJ button
again. The Hour digits begin flashing.
3.) Press the or buttons to set the display to
the correct hour.
Be sure to observe theAM/PM indicators to make
sure you are setting the Hour correctly.
4.) Press the PROGRAM/MEM./CLK. ADJ button
again. The Minute digits begin flashing.
5.) Press the or buttons to set the display to
the correct Minute.
6.) Press the PROGRAM/MEM./CLK. ADJ once
more. The display stops flashing and the clock
begins to run.
The correct time will appear on the display when the system is in the Standby/
Power Off mode or the AUX mode.
ES128_042806.p65 28/4/2006, 11:3913

14
Listening To The Radio
1.) Press the POWER button on the main unit or remote control to turn the
system ‘On’. The Standby indicator goes off.
If necessary, press the FUNCTION button to
select the Radio mode and the display shows:
FM 87.5 MHz.
To switch between FM and AM bands press the
BAND button on the front panel or remote.
2.) Tune to the desired station as follows:
• Automatic Tuning - Depress and hold the or buttons until the display
begins to move, then release the buttons. The tuner will scan up or down the
band until it finds the first strong station, and then stop on that station. Repeat
this process until the tuner stops on your desired station.
If you tune to an FM Stereo station the “(ST)”
indicator appears in the display.
• Manual Tuning - Press the or buttons repeatedly until the display is
showing the frequency of your desired station. Use the manual tuning method
to tune to weaker stations that are bypassed duringAutomatic Tuning.
3.) Press the VOLUME or buttons to adjust the volume to the desired level.
4.) When you are finished listening press the POWER button to shut the system
‘Off’. The main display lighting goes off, the Standby indicator comes on, and
the display returns to the correct time.
Last Station Memory
The system remembers the last station you were listening to before the power is
switched off and automatically returns to that same station when the power is
switched on again.
ES128_042806.p65 28/4/2006, 11:3914

15
AntennaInformation
AM
The AMferritebarantenna isinside the cabinet. If AMreception isunsatisfactory
tryturning the entireunitslightlyuntil you find the direction thatprovidesthe best
reception forthe desired station.
FM
Makesurethe FMlead wireantenna isextended toitsfull length.You mayhaveto
varythe direction ofthe wireantenna tofind the position thatprovidesthe best
reception.
ES128_042806.p65 3/5/2006, 9:5615

16
Presetting Stations In The Tuner Memory
The tuner in this system has a total of 20 preset station memories that allow you to
store up to 10 AM and 10 FM stations for easy recall at any time.
1.) Tune to the first station that you wish to store by either theAutomatic or Manual
Tuning method described on page 14.
Example: FM 93.5 MHz.
2.) When the desired station appears on the display, press thePROGRAM/MEM./
CLK. ADJ button once.
The MEMORY indicator begins flashing and the
“P1.” indicator appears in the display, indicating
that you can save the desired station in Preset
Memory Number 1.
3.) Press the PROGRAM/MEM./CLK. ADJ button again. The MEMORY indicator
stops flashing and the frequency of your station returns. This indicates that
your station is now stored in preset memory number 1.
4.) Tune to the next station you wish to memorize.
Whenthedesiredfrequencyappears in the display
press the PROGRAM/MEM./CLK. ADJ button.
When the MEMORY indicator begins flashing
press the P-MODE/MEM-UP button to advance
the display to preset memory number 2 (“P 2.”).
Then press the PROGRAM/MEM./CLK.ADJ button again to enter your station
in preset memory number 2.
5.) Repeat Step 4, selecting a different preset memory number each time until
you have stored up to 10 stations in one band, then press the BAND button to
select the other band and repeat steps 1 through 4 to store up to 10 stations on
that band.
ES128_042806.p65 28/4/2006, 11:3916

17
Auto Preset Function
This model includes an Auto-Preset feature which you can use to automatically
enter 10 strong FM and AM stations in the tuner preset memory.
NOTE: This feature is useful if you live in a rural area with a limited number
of stations. However if you live in a major metropolitan area with many
strong stations, do not use the Auto-Preset feature. It will memorize the
first 10 strong stations it encounters and these will probably not be the
same 10 stations that you would select if you were memorizing stations
manually.
To use the Auto-Preset feature, turn the unit ‘On’, select the Tuner function and the
desired band.
Depress and hold the “PROGRAM/MEM./CLK. ADJ” button until the Tuner display
begins to move, then release the button.
The Tuner will start searching up the band and it will automatically enter the first 10
strong stations on the selected band in the 10 preset memories. The display will
indicate which station is being entered in each of the 10 memories.
After the Auto-Preset feature memorizes 10 stations, the tuner returns to preset
memory number 1.
Recalling Preset Stations
Turn the unit ‘On’ and select the desired band.
Press the P-MODE/MEM-UP button on the front panel or MEMORY /buttons
on the remote control repeatedly to scroll through the preset memories until the
display shows the desired station.
Changing Preset Stations
To change any preset station memory:
1.) Select the desired band and tune to the new station you wish to memorize.
2.) Press the PROGRAM/MEM./CLK. ADJ button and then press the P-MODE/
MEM-UP button on the front panel or MEMORY /buttons on the remote
control to display the channel number you wish to change.
3.) Press the PROGRAM/MEM./CLK. ADJ button again to enter the new station
in the memory. The new station is memorized and the previous station is deleted
from the memory.
ES128_042806.p65 28/4/2006, 11:3917

18
Playing CompactDiscs
NOTE:Although the CD playercan read CD-Rand CD-RWdiscs,inaddition
tonormalCDs,howeverthe playabilityofCD-R/RWdiscs maybe affected by
the type ofsoftwarethatwasused tocreatethe discs,aswell asthe quality
and condition ofthe blankmediayou areusing.100%playabilitycannotbe
guaranteed.Thisisnotan indication ofaproblemwiththe player.
NormalPlayback
1.) Press the POWER button to turn the system ‘On’. The Standby indicator
goes off.
2.) Press the FUNCTION button to select the CD
function. Two dashes (“– –”) flash in the display.
3.) Press on the CD door in the area marked OPEN/CLOSE to open the door. If
you haven't already done so remove the “dummy CD” transit protection card
from the CD player and discard it.
4.) Place your CD on the center spindle with the printed label side facing up and
close the CD door.
Two dashes (“– –”) flash in the display while the
player reads the disc and then the display shows
the total number of tracks on the disc.
NOTE: If the disc is inserted upside down, or if
the disc is badly scratched and unreadable, the
display will continue to show two dashes.
5.) Press the PLAY/PAUSE button to begin playback on track 01.
The play indicator appears.
6.) Adjust the VOLUME or control to the desired level.
7.) To skip to higher or lower numbered tracks press the or until the desired
track number appears in the display, then release the buttons. Playback will
begin on the desired track.
ES128_042806.p65 28/4/2006, 11:3918

19
8.) To search within a track to locate a specific musical passage depress and
hold the or buttons. The player will move forward or backward at high
speed as long as the buttons are depressed. When you hear the desired
passage release the buttons and normal speed playback will resume at that
point.
9.) To pause playback temporarily press the PLAY/PAUSE button again.
The sound stops and the play indicator flashes
but the disc continues to spin.
Press the PLAY/PAUSE button once more to cancel pause mode and
resume playback. The play indicator stops flashing.
10.) When the last track has played the disc stops and the display again shows
the total number of tracks on the disc.
To stop playback before the disc ends press the STOP button at any time.
The disc stops and the display shows the total number of tracks on the disc.
Press on the CD door in the area marked OPEN/CLOSE to open the door
and remove your CD.
11.) Press the POWER button to shut the system ‘Off’.
ES128_042806.p65 28/4/2006, 11:3919
