OWNER'SMANUAL
NR101TT
Home Stereo System
with AM/FM Stereo Radio,
and Full Size Stereo Phonograph
Visitourweb siteatwww.emersonradio.com
NR101TT_072507.p65 25/7/2007, 9:5316

1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.
IMPORTANTSAFETYINSTRUCTIONS
1.) Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings.
2.) Do not use this apparatus near water.
3.) Clean only with dry cloth.
4.) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
5.) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
6.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two blades and a third grounding
prong. The wide blade or the third prong is provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for replacement of the obsolete outlet.
7.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
8.) Only use attachments / accessories specified by the manufacturer.
9.) Unplug this apparatus during lightning storms or when unused for long periods of time.
10.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
11.) This appliance shall not be exposed to dripping or splashing water and no object filled with liquids
such as vases shall be placed on the apparatus.
12.) Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13.) Do not overload wall outlet. Use only power source as indicated.
14.) Use replacement parts as specified by the manufacturer.
15.) The product may be mounted to a wall only if recommended by the manufacturer.
16.) Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks.
!
CAUTION
RISK OFELECTRICSHOCK
DONOTOPEN
The lightning flashwitharrow-
head symbol,withinan equi-
lateraltriangleisintended to
alertthe usertothe presence
ofuninsulated‘dangerousvoltage’
withinthe product’s enclosure
thatmaybe ofsufficient
magnitude toconstitutearisk
ofelectricshock topersons.
The exclamation pointwithin
an equilateraltriangleisin-
tended toalertthe userto
the presenceofimportant
operating and maintenance
(servicing)instructionsin
the literatureaccompany-
ing the appliance.
WARNING:TOREDUCETHE
RISK OFELECTRICSHOCK
DONOTREMOVE COVER
(ORBACK),NOUSER
SERVICEABLEPARTSINSIDE
REFERSERVICINGTO
QUALIFIEDSERVICE
PERSONNEL.
CAUTION
The Caution Marking maybe located at the bottom enclosure of the apparatus.
NR101TT_072507.p65 25/7/2007, 10:181

2
Thankyou… … … … forpurchasing thisEmerson Heritage Serieshome
stereo system.
Inside thisbeautifulrealwood veneercabinetyou will find astateofthe art
audiosystemthatincludesastereo radio,and afull-size,3-speed stereo
phonograph,and matching wide range stereo speakers.
Thissystemhasbeen designed toprovide you withmanyyearsof
enjoymentand trouble-free operation withan absoluteminimumofcare
and maintenance.
Everycomponentinthissystemwasinperfectworking orderwhen itleft
ourfactory.If you experienceanyproblemswiththe setup oroperation of
thissystem,PLEASE DONOTRETURN ITTOTHERETAILSTORE.
Pleasecall theEmersonCustomerServiceHotline,toll-free,at800-898-9020.
One ofourrepresentativeswill attempttoresolvethe problemforyou.If
the problemcannotbe resolved byphone you will be instructed on howto
receiveareplacementunit.
Pleaseread all ofthe instructionsinthismanualtomakesureyou are
getting the maximumbenefitoutofall the featuresincluded inthissystem.
And pleasesavethismanualforfuturereference.It includesyourwarranty
and importantserviceinformation
Onceagain,thankyou forpurchasing thisEmerson Heritage SeriesStereo
System.
NR101TT_072507.p65 25/7/2007, 10:182

3
IMPORTANTNOTES
•Avoidinstalling thisunitinplaces
exposedtodirectsunlightorclosetoheat
radiating appliancessuchaselectric
heaters,on top ofotherstereo
equipmentthatradiatestoo muchheat,
placeslacking ventilation ordustyareas,
placessubjecttoconstantvibration and/
orhumidormoistareas.
•Donotattempttoclean thisunitwith
chemicalsolventsasthismightdamage
the finish.Useaclean drycloth.
FCC Information
Thisequipmenthasbeen tested and found tocomplywiththe limitsforaClass B
digitaldevice,pursuanttoPart15 ofthe FCC Rules.Theselimitsaredesigned to
provide reasonableprotection againstharmfulinterferenceinaresidential
installation.Thisequipmentgenerates,uses,andcan radiateradiofrequencyenergy
and,ifnotinstalledand usedinaccordancewiththeinstructions,maycauseharmful
interferencetoradiocommunications.However,thereisno guarantee that
interferencewill notoccurinaparticularinstallation.If thisequipmentdoescause
harmfulinterferencetoradioortelevision reception,whichcan be determined by
turning the equipmentoff and on,the userisencouraged totrytocorrectthe
interferencebyone ormoreofthe following measures:
•Reorientorrelocatethe receiving antenna.
•Increasethe separation between the equipmentand receiver.
•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe
receiverisconnected.
•Consultthe dealeroran experienced radio/TVtechnician forhelp.
ThisdevicecomplieswithPart15 ofthe FCC Rules.Operation issubjecttothe
following twoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,including interference
thatmaycauseundesired operation.
•Operatecontrolsand switchesas
described inthe manual.
•Beforeturning ‘On’the power,make
certainthatACpowercordisproperly
installed.
•Storeyourphono-recordsinacoolarea
toavoiddamage fromheat.
•When moving the set, be suretofirst
disconnectthe ACpowercord.
Changesormodificationsnotexpresslyapproved bythe partyresponsiblefor
compliancecouldvoidthe user’s authoritytooperatethe equipment.
NR101TT_072507.p65 25/7/2007, 10:183

4
Unpacking And Set Up
• Carefully remove the unit from the display carton and remove all packing
material from the unit.
• The FMAntenna is built in theAC power cord. Unwind theAC power cord and
extend it to its full length for best FM reception.
• Note the Serial Number on the back panel of your system and write this Number
in the space provided on the Warranty page of this manual.
• Place the unit on a stable, level surface, convenient to an AC outlet, out of
direct sunlight, and away from sources of excess heat, dust, moisture, humidity,
or strong magnetic fields.

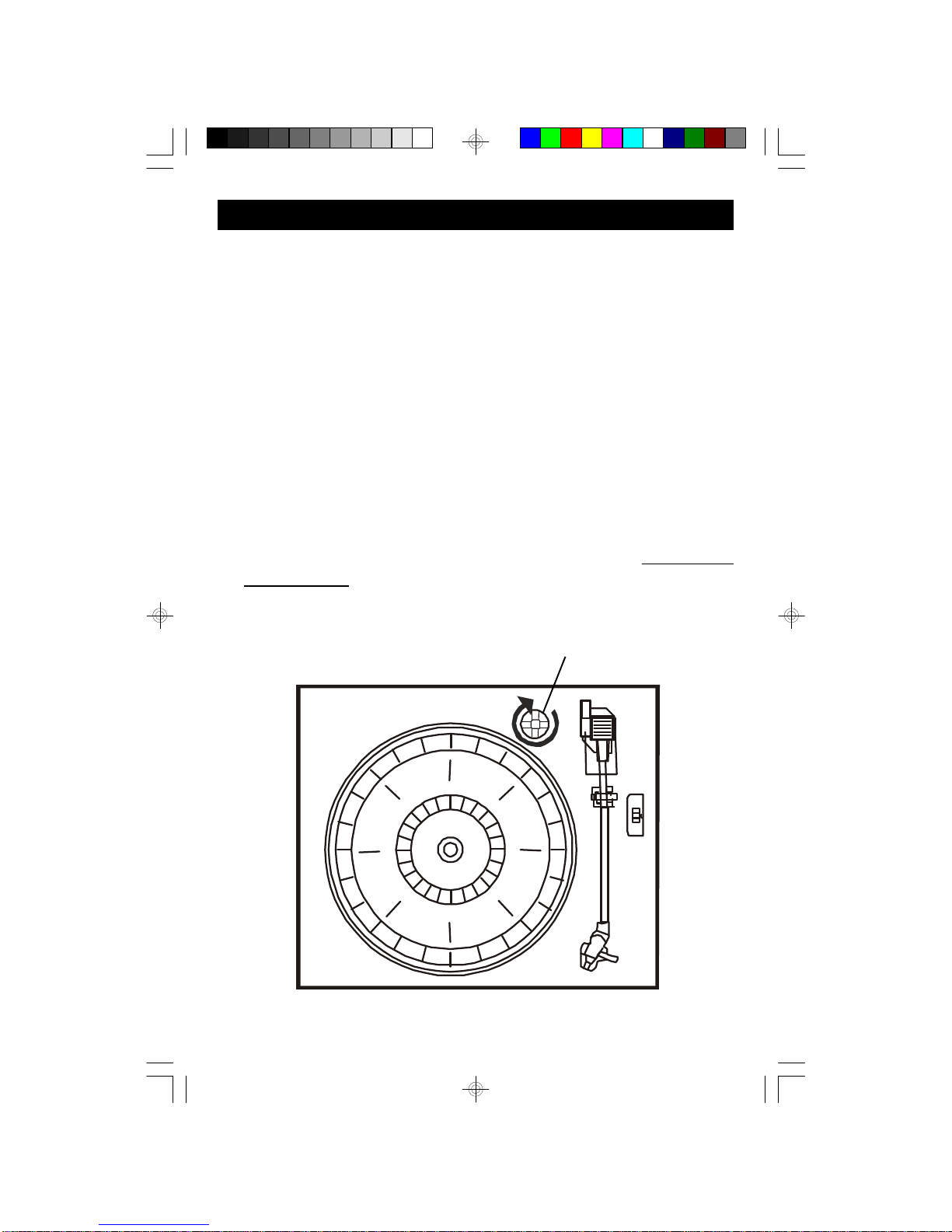

• Raise the lid to expose the phonograph. The phonograph has been secured
for shipment with a transit screw. Use a coin or screwdriver to turn the transit
screw clockwise. This will allow the turntable to “float”.
PREPARATIONFORUSE
TRANSIT SCREW
NR101TT_072507.p65 25/7/2007, 10:184

5
• Remove the opaque white plastic stylus cover from the phonograph stylus by
sliding it in the direction of the arrow.
Discard the stylus cover.
• Remove the twist-tie that was used to secure the tone arm during shipment.
• Release the tone arm lock lever.
• Connect the plug to yourAC outlet.
STYLUS COVER
TONE ARM LOCK LEVER
NR101TT_072507.p65 25/7/2007, 10:185

6
PowerSource
Thisproductisdesigned tooperateon normal120V60HzAConly.Attempting to
operatethissystemfromanyotherpowersourcemaycausedamagetothesystem,
and suchdamage isnotcovered byyourwarranty.
Note:You will notethatthissystemis
equipped withapolarized ACpowerplug
having one blade widerthan the other.This
isasafetyfeature.If thisplug doesnotfit
intoyourexisting ACoutlet, do nottryto
defeatthissafetyfeaturebyfiling the wide
blade tomakeitfitintoyouroutlet. If this
plug will notfitintoyouroutlet, you probably
havean out-dated non-polarizedACoutlet.
You shouldhaveyouroutletchanged bya
qualified licensed electrician.
Protect Your Furniture
This model is equipped with non-skid rubber 'feet' to prevent the product from
moving when you operate the controls. These 'feet' are made from non-migrating
rubber material specially formulated to avoid leaving any marks or stains on your
furniture. However certain types of oil based furniture polishes, wood preservatives,
or cleaning sprays may cause the rubber 'feet' to soften, and leave marks or a
rubber residue on the furniture. To prevent any damage to your furniture we strongly
recommend that you purchase small self-adhesive felt pads, available at hardware
stores and home improvement centers everywhere, and apply these pads to the
bottom of the rubber 'feet' before you place the product on fine wooden furniture.
IMPORTANT: Raising And Lowering The Lid
To open the lid, raise it as far as it will go until the lid support bracket ‘locks’ in the
open position.
To close the lid, lift it upward slightly until the lid support bracket ‘unlocks’, and then
gently lower the lid.
TO AVOID DAMAGING THE CABINET OR THE LID, NEVER FORCE THE LID
CLOSED.ALWAYS RAISE THE LID TO RELEASE THE LID SUPPORT BRACKET.
AC Plug
AC Outlet
NR101TT_072507.p65 25/7/2007, 10:186

7
LOCATIONOFCONTROLSAND INDICATORS
FrontPanel
1.)AM/FMRadioDialScale.
2.)Speakers.
3.)Turntable.
4.)Phonograph LidSupportBracket.
5.)Phonograph Lid.
6.)Tone Arm.
7.)FMST.Indicator.
8.)PowerOn/OFF-VOLUMEControl.
9.)TUNINGControl.
10.)AM/FM/PHONOSelectorSwitch.
1
5
6
2
8
9
10
2
3
4
7
NR101TT_072507.p65 25/7/2007, 10:187

8
PHONES
Phonograph
1
2 3
4
5
6
7
1.)Turntable.
2.)45 rpmAdapter.
3.)TransitScrew.
4.)Cue Lever.
5.)Speed Selector(33/45/78 rpm)
6.)Tone ArmLock.
7.)Tone ArmwithStylus.

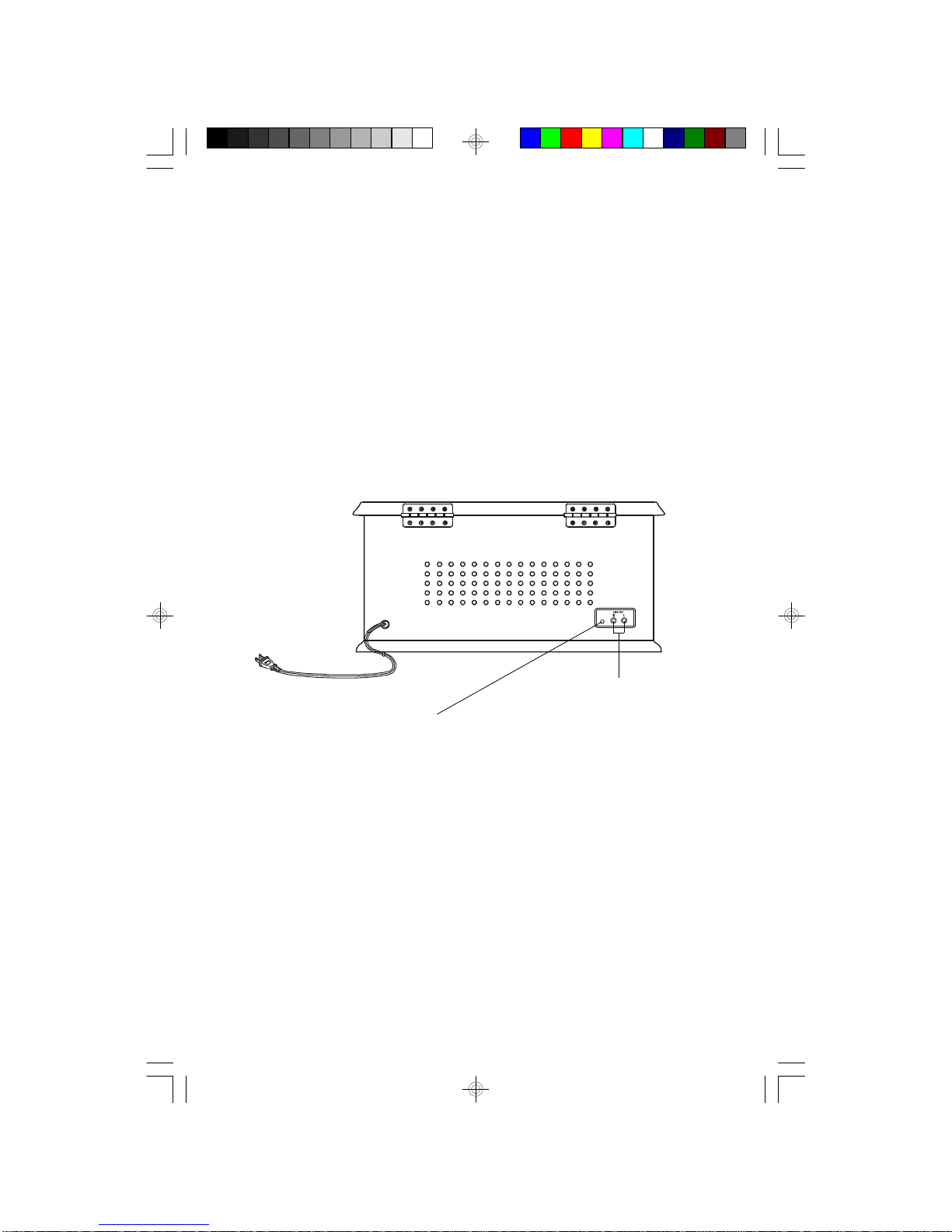

Back Panel
11.)ACPowerCord.
12.)LINEOUTR/LJacks.
13.)PHONES (Headphone)Jack.
12
13
11
NR101TT_072507.p65 25/7/2007, 10:188

9
OPERATINGINSTRUCTIONS
Listening To TheRadio
1.)Toturnthe system‘On’,rotatethe OFF-VOLUMEcontrolclockwiseuntil a
‘click’isheard,and setthe Volumetoalowlevel.
2.)Setthe function selector(AM/FM/PHONO)tothe AMorFMband asdesired.
The dialscalelightcomes‘On’.
3.)Rotatethe TUNINGcontroltotune tothe desired radiostation.If you tune toa
strong FMStereo station the FMST.indicatorwill lightand reception will be in
stereo.If you tune toaweakerFMstation,the reception will automatically
switchtomono.
4.)Adjustthe OFF-VOLUMEcontroltothe desired level.
5.)When you arefinished listening turnthe OFF-VOLUMEcontrolcounter
clockwiseuntil a‘click’isheard.The tuning diallightgo ‘Off’.

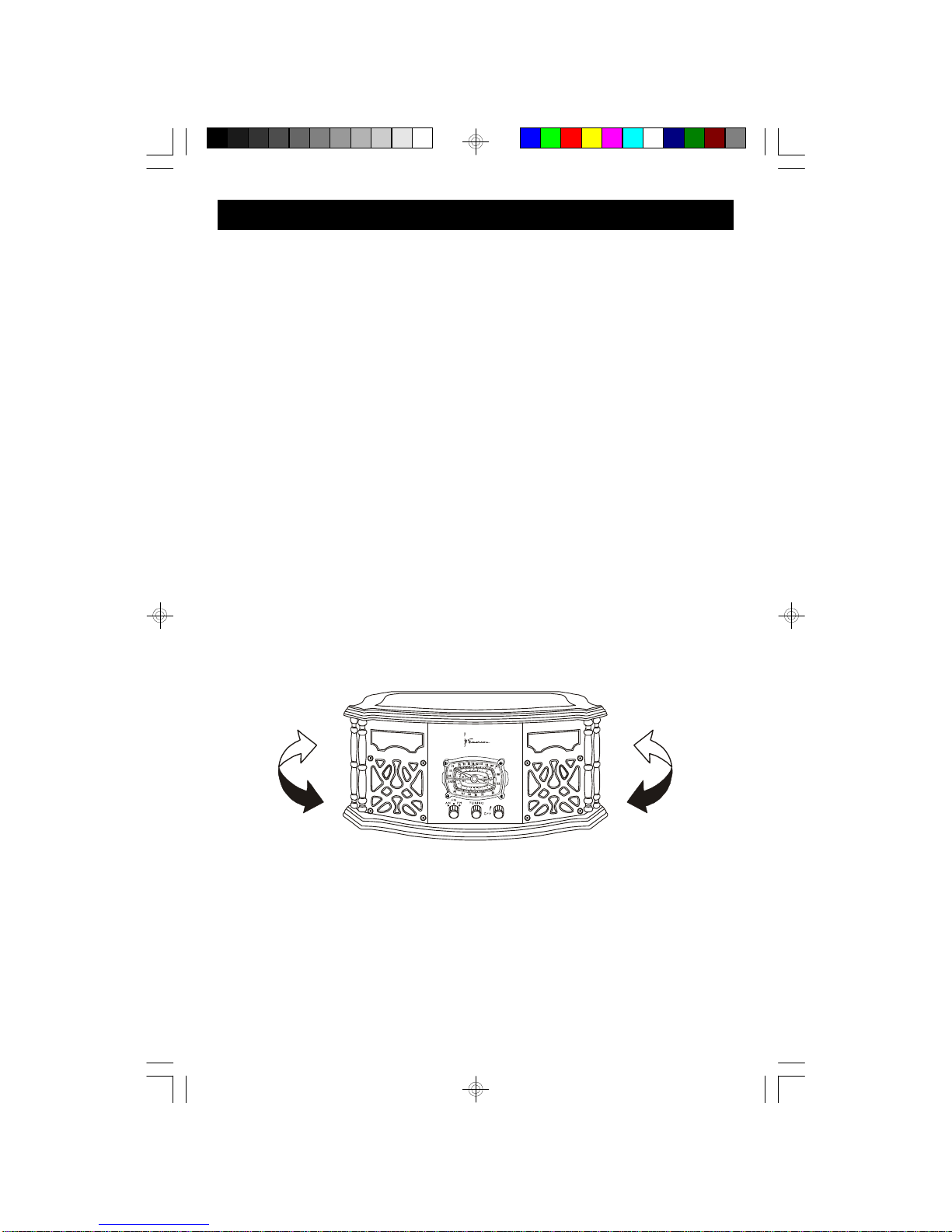

AntennaInformation
The AMbarantenna isinside the cabinet. If AMreception isunsatisfactorytry
repositioningthe cabinetslightlyuntiltheinternalantenna ispicking upthe strongest
signal.
The FMantenna isbuiltintheACpowercord.If necessaryadjustthe position and
direction ofthe ACpowercorduntil you find the position thatprovidesthe best
reception.
V
O
L
U
M
E
NR101TT_072507.p65 25/7/2007, 10:189

10
IMPORTANT!!
• TO PROTECT THE TURNTABLE FROM DAMAGE DURING
TRANSPORTATION, A SILVER TRANSIT SCREW IS LOCATED AT THE
UPPER RIGHT CORNER OF THE TURNTABLE PLATFORM.
• BEFORE PLAYING, PLEASE USE A
SCREWDRIVERTOTURNTHETRANSITSCREW
IN CLOCKWISE DIRECTION (SCREW GOING
DOWN) COMPLETELY TO UNLOCK THE
TURNTABLE.
• TO LOCK THE TURNTABLE AGAIN FOR
TRANSPORTATION,PLEASETURN THESCREW
IN COUNTER-CLOCKWISE DIRECTION.
Playing Records
NR101TT_072507.p65 25/7/2007, 10:1810

11
Playing Records
Thissystemincludesafull-size,3-speed,belt-driveturntable.You can play33,45,
and 78 rpmrecords.
1.)Turnthe OFF-VOLUMEcontrolclockwiseuntil a‘click’isheard,and setthe
Volumetoalowlevel.
2.)Setthe function (AM/FM/PHONO)selectortothe PHONOposition.
3.)Makesurethatyou haveremoved the styluscoverfromthe stylusand have
released the Tone ArmLock thatsecured the tone armtothe tone armrest.
4.)Setthe turntableSpeed Selectortothe appropriatespeed,33,45,or78 rpm.If
you areplaying 45 rpm‘singles’,placethe 45 rpmadapteron the centerspindle.
5.)Placeyourrecordon the centerspindle.
6.)Raisethe Cue levertolift the Tone Armoff itsrest. Movethe Tone Armtothe
edge ofthe record.The turntablestartsautomatically.Usethe Cue leverto
gentlylowerthe ToneArmontothe record.
7.)Adjustthe OFF-VOLUMEcontroltothe desired level.
8.)When the Tone Armreachesthe end ofthe recorditautomaticallyreturnsto
the tone armrestand the recordplayerstops.
9.)Toturnthe system‘Off’,rotatethe OFF-VOLUMEcontrolcounterclockwise
until a‘click’isheard.
Note:Donotturnorstop the turntablemanually.Moving orjarring the Turntable
withoutsecuring the tone armclampcouldresultindamage tothe Tone Arm.
NR101TT_072507.p65 25/7/2007, 10:1811

12
LINE OUT R/L Jacks
This system includes a set of LINE OUT R/L jacks which allow you to record from
the Radio or Phonograph of this system to an external recording device such as a
cassette recorder, Mini-Disc, etc.
Connect the LINE OUT R/L jacks of this system to the Record Input jacks of your
external recording device. Connection cables are not included.
Refer to the instructions supplied with your external recording device for proper
connection and operation. Operate the Radio or Phonograph of this system as
described in this manual. The Radio or Phonograph of this system will be recorded
directly onto your external recording device.
Using StereoHeadphones (NotIncluded)
Connectasetofstereo headphoneswitha3.5mm mini-plug tothe PHONES jack
on the back panel.
Beforeputting on the headphonesalways setthe OFF-VOLUMEcontroltoalow
level.Then putthe headphoneson and graduallyincreasethe Volumetoa
comfortablelistening level.The built-inspeakersautomaticallyshutoff when
headphonesareconnected tothe PHONES jack.
PHONES
LINE OUT R/L Jacks
PHONES Jack
NR101TT_072507.p65 25/7/2007, 10:1812

13
CareoftheCabinet
You shouldcareforthe cabinetasyou wouldcareforanypieceoffine
furniture.When the cabinetbecomesdustywipe itwithasoft, non-abrasive
dustcloth.If the cabinetbecomessmudged withfingerprintsyou mayuse
anygood qualitycommercialdusting and polishing spraycleaner,however
avoidspraying the plasticormetalpartsofthissystem.Werecommend
thatyou spraythe cleaneron yourdustcloth,notdirectlyon the cabinet, to
avoidgetting anyofthe sprayon the plasticormetalparts.
CAREAND MAINTENANCE
TOFIND THELOCATIONAND PHONE
NUMBEROFYOUR NEARESTSERVICE
CENTERPERMITTEDTOPERFORM
WARRANTY...
CALL TOLL FREE:1-800-695-0098
FORCUSTOMERSERVICE,PLEASE WRITETO:
Emerson RadioCorp.,
ConsumerAffairsDept.,
5101 Statesman Drive,
Irving,TX75063.
FORADDITIONALSET-UPOROPERATINGASSISTANCE
PLEASE CALL:
1-800-898-9020
NR101TT_072507.p65 25/7/2007, 10:1813

14
LIMITEDWARRANTY
Emerson RadioCorp.warrantsmanufacturing defectsinoriginalmaterial,including
originalpartsand workmanship,undernormaluseand conditions,foraperiod of
ninety(90)daysfromthedateoforiginalpurchaseintheU.S.Withyourdatedproof
ofpurchase,wewill providerepairservice atno chargeforlaborand partsatan
authorizedDepotRepairFacility,orreplace theproductinourdiscretion.If your
systemfailstooperateproperlyduring thewarrantyperiod duetoamanufacturing
defect,donotreturnthesystemtotheretail store.Pleasecall theEmerson Customer
Service Hotlinetoll free at1-800-898-9020.Wewill diagnosetheproblemand instruct
you howtohaveyoursystemrepairedorreplaced,atourdiscretion.
Thiswarrantydoesnotcoverdamagefromnegligence,misuse,abuse,accident,failure
tofollowoperating instructions,commercialuse,rental,repairsby anunauthorized
facility,orproductspurchased,used,servicedordamagedoutsideoftheUnitedStates.
THISWARRANTYGIVESYOU SPECIFICLEGALRIGHTS,AND YOU MAY
ALSOHAVEOTHERRIGHTSWHICHVARYFROMSTATE TOSTATE.
AU898R
The SerialNumberofyoursystemislocated on alabelon the back panel.Please
takeamomentnowtolocatethe SerialNumberand writethe numberinthe space
provided below.
You maybe asked toprovide thisnumberwhen calling forproductservice.
ModelNumber:NR101TT
SerialNumber:
NR101TT_072507.p65 25/7/2007, 10:1814

EMERSON
PartNo.16-2995
707-02 Printed inChina
NR101TT_072507.p65 25/7/2007, 10:1815
