OWNER'SMANUAL
ES299
Visitourweb siteatwww.emersonradio.com
Multi-Media Audio System
with Digital Tuner,
CD-R/RW MP3 Player,
SD/MMC Flash Memory Card
Reader and USB Port
ES299_062905.p65 29/6/2005, 15:0748

1
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN
EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE
ORSHOCKHAZARD,DONOTEXPOSETHISAPPLIANCETORAINORMOISTURE.
IMPORTANTSAFETYINSTRUCTIONS
1.) Read these instructions.
2.) Keep these instructions.
3.) Heed all warnings.
4.) Follow all instructions.
5.) Do not use this apparatus near water.
6.) Clean only with dry cloth.
7.) Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8.) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9.) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.) Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11.) Only use attachments / accessories specified by the manufacturer.
12.) Unplug this apparatus during lightning storms or when unused for long periods of time.
13.) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
14.) This appliance shall not be exposed to dripping or splashing water and no object filled with
liquids such as vases shall be placed on the apparatus.
15.) Do not overload wall outlet. Use only power source as indicated.
16.) Use replacement parts as specified by the manufacturer.
17.) The product may be mounted to a wall only if recommended by the manufacturer.
18.) Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks.
!
CAUTION
RISK OFELECTRICSHOCK
DONOTOPEN
The lightning flashwitharrow-
head symbol,withinan equi-
lateraltriangleisintended to
alertthe usertothe presence
ofuninsulated‘dangerousvoltage’
withinthe product’s enclosure
thatmaybe ofsufficient
magnitude toconstitutearisk
ofelectricshock topersons.
The exclamation pointwithin
an equilateraltriangleisin-
tended toalertthe userto
the presenceofimportant
operating and maintenance
(servicing)instructionsin
the literatureaccompany-
ing the appliance.
WARNING:TOREDUCETHE
RISK OFELECTRICSHOCK
DONOTREMOVE COVER
(ORBACK),NOUSER
SERVICEABLEPARTSINSIDE
REFERSERVICINGTO
QUALIFIEDSERVICE
PERSONNEL.
CAUTION
ES299_062905.p65 29/6/2005, 15:071

2
Thank You………………
for purchasing the Emerson Research Multi-MediaAudio System. This is the world’s
first compact audio system to include a card slot for SD/MMC flash memory cards.
This allows you to play the MP3 music files which you have stored on SD or MMC
flash memory cards. Simply remove the card from your solid state MP3 player and
insert it into the convenient front panel card reader slot. Now you can enjoy your
MP3 files through the speakers of this system instead of using headphones, which
means you can share the music with all your friends.
We’ve also included a convenient USB port on the front panel as well. This allows
you to connect and play MP3 music files stored on portable USB storage devices.
Of course the built in CD player also plays CD-R, CD-RW, and MP3 encoded CDs
in addition to normal pre-recorded CDs.And the digital tuner will store up to 40 of
your favorite stations (30 FM / 10 AM) for easy and immediate recall.
Finally, all functions of this system can be operated from the comfort of your favorite
chair with the ultra-slim 22-key remote control.
Please be sure to read this manual carefully and completely to make sure you
understand all of the exciting features and functions included in your new system.
We have taken great care to make sure that this system was in perfect working
order when it left our factory. If you experience any problem with the set-up or
operationof this system please do not return itto the dealer. Please call the Emerson
Customer Service Hotline. toll-free, at 800-898-9020. One of our representatives
will try to diagnose and correct the problem for you. If that is not possible you will
be advised how to obtain a replacement.
Once again, all of us at Emerson Research thank you for your purchase.
ES299_062905.p65 29/6/2005, 15:072

3
•Operatecontrolsand switchesas
described inthe manual.
•Beforeturning ‘On’the power,make
certainthatpowercordisproperly
installed.
•StoreyourCDs,MemoryCardsinacool
area toavoiddamage fromheat.
•When moving the set, be suretofirst
disconnectthe powercord.
•Avoidinstalling thisunitinplaces
exposed todirectsunlightorcloseto
heatradiating appliancessuchas
electricheaters,on top ofotherstereo
equipmentthatradiatestoo muchheat,
placeslackingventilationordustyareas,
placessubjecttoconstantvibrationand/
orhumidormoistareas.
•Donotattempttoclean thisunitwith
chemicalsolventsasthismightdamage
the finish.Useaclean drycloth.
CLASS 1LASERPRODUCT
CLASS 1LASERPRODUCT
APPAREILÁLASERDECLASSE 1
PRODUCTOLASERDECLASE 1
CAUTION
INVISIBLELASERRADIATION
WHENOPENAND INTERLOCKS
DEFEATED.
AVOIDEXPOSURETOBEAM
ThisproductcontainsalowpowerLaserDevice.
FCC Information
Thisequipmenthasbeen tested and found tocomplywiththe limitsforaClass Bdigital
device,pursuanttoPart15 ofthe FCC Rules.Theselimitsaredesigned toprovide
reasonableprotection againstharmfulinterferenceinaresidentialinstallation.This
equipmentgenerates,uses,and can radiateradiofrequency energyand,ifnotinstalled
and used inaccordancewiththe instructions,maycauseharmfulinterferencetoradio
communications.However,thereisno guarantee thatinterferencewill notoccurina
particularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision
reception,whichcan be determined byturning the equipmentoff and on,the useris
encouraged totrytocorrectthe interferencebyone ormoreofthe following measures:
•Reorientorrelocatethe receiving antenna.
•Increasethe separation between the equipmentand receiver.
•Connectthe equipmentintoan outleton acircuitdifferentfromthattowhichthe receiver
isconnected.
•Consultthe dealeroran experienced radio/TVtechnician forhelp.
ThisdevicecomplieswithPart15 ofthe FCC Rules.Operation issubjecttothe following
twoconditions:
(1)Thisdevicemaynotcauseharmfulinterference,and
(2)Thisdevicemustacceptanyinterferencereceived,including interferencethat
maycauseundesired operation.
IMPORTANTNOTES
ES299_062905.p65 29/6/2005, 15:073

4
PREPARATIONFORUSE
Unpacking and Set Up
• This carton contains the main unit, two speakers with removable front panels,
and the remote control handset.
Carefully remove all the components from the carton and remove all packing
materials form the components. Make sure nothing is accidentally discarded
with the packing materials.
• Save the carton and packing materials, if possible, in the unlikely event that
this unit ever needs to be returned for service. Using the original carton and
packing material is the only way to properly protect the unit from shipping
damage.
• Remove any descriptive stickers or labels from the front panel of the main unit.
Do not remove any labels or stickers that may be affixed to the back panel of
the main unit or the speakers.
• Unwind the AC power cord on the back of the main unit and extend it to its full
length.
• Unwind the FM lead wire antenna on the back of the main unit and extend it to
its full length.
• Unwind the speaker cables on the backs of the speakers and extend them to
their full length.
ES299_062905.p65 29/6/2005, 15:074

5
Connecting The Speakers
Note: Always connect the speakers before switching the power ‘On’, and
never operate the system without the speakers properly connected.
The speaker cables and the speaker terminals are color-coded.
Connect the Red wires to the Red terminals.
Connect the Black wires to the Black terminals.
If the wires are connected incorrectly the sound will be “muddy” or distorted.
Tomake the connection, completely depress the plasticlevers to open the terminals,
insert the bare end of the speaker wire into the terminal openings, and release the
plastic levers to lock the wires in place.
+
R
L
+
RED
BLACK
ES299_062905.p65 29/6/2005, 15:075

6
LINE OUT (R/L) Jacks
This system includes a pair ofLINE OUT (R/L) jacks for the connection to optional
external amplifier.
To External Amplifier
LINE-IN Jacks
ES299_062905.p65 29/6/2005, 15:076

7
Auxiliary Input Jacks
This system includesAUX IN R/L Jacks. These jacks allow you to connect external
audio equipment to this system and listen to the sound from the external equipment
through the speakers of this system.
Examples of the types of external equipment that may be connected are:
A cassette deck; the audio outputs from a VCR or DVD player; a personal cassette
player, MP3 player, MD player, or a personal hard-disc audio jukebox device such
as an iPod®.
Connect the audio output jack(s) or headphone jack of the external audio equipment
to the AUX IN R/L jacks on the back panel of this system.
CONNECTION CABLESARE NOT INCLUDED.
You may leave your external device permanently connected to this system if you
wish. It is not necessary to disconnect the external device in order to listen to the
Tuner or CD player in this system.
Instructions for listening to your external device will be found at the end of this
Owner’s Manual.
From External
Audio Source
ES299_062905.p65 29/6/2005, 15:077

8
Power Source
This system is designed to operate on 120V AC 60Hz house current only.
Connecting this system to any other power source may cause damage to the
system and such damage is not covered by your warranty.
Note:The systemhaspolarized ACplug withone wide blade and one narrow
blade.The plug will onlyfitintomatching polarizedACoutlets.
Thisisasafetyfeaturetoreducethe possibilityofelectricshock.If the plug will not
fitinyourACoutlets,you probablyhavean outdated non-polarized outlet. You
shouldhaveyouroutdated outletchanged byaqualified,licensed electrician.Do
notfilethe wide blade on the plug,orusean adaptertomakethe plug fitintoyour
outlet. Thisdefeatsthe safetyfeatureand couldexposeyou toelectricshock.
AC Plug
AC Outlet
Placement Of The System
The system should be placed on a stable, level surface such as a table, shelf, or
stand, convenient to a 120V 60HzAC outlet, out of direct sunlight, and away from
sources of excess heat, dust, moisture, or vibration.
The speakers may be separated from the main as far the wires allow for maximum
stereo separation, or the may be placed to the immediate left and right of the main
unit.
ES299_062905.p65 29/6/2005, 15:078

9
Protect Your Furniture
Thismodelisequipped withnon-skidrubber'feet'topreventthe productfrom
moving when you operatethe controls.These'feet'aremade fromnon-migrating
rubbermaterialspeciallyformulated toavoidleaving anymarks orstainson your
furniture.Howevercertaintypesofoil based furniturepolishes,wood preservatives,
orcleaning sprays maycausethe rubber'feet'tosoften,and leavemarks ora
rubberresidue on the furniture.Topreventanydamage toyourfurniturewestrongly
recommend thatyou purchasesmall self-adhesivefeltpads,availableathardware
storesand homeimprovementcenterseverywhere,and applythesepadstothe
bottomofthe rubber'feet'beforeyou placethe producton fine wooden furniture.
Stereo Headphone Jack
This system includes a stereo PHONES jack on the front panel of the main unit.
You may connect a set of stereo headphones, not included, to this jack for private
listening without disturbing others.
The main speakers are automatically shut off when headphones are connected to
the PHONES jack. Make sure that the plug from your headphones is fully inserted
intotheheadphonejack.Iftheplugisnotfullyinsertedthesoundmaybeintermittent,
or you may only hear sound from one side of the headphones.
IMPORTANT: To prevent hearing damage always set the volume control to a
low level before you connect the headphones. Then connect the headphones,
put them on, and very gradually increase the volume to a comfortable listening
level. Remember that CDs may contain both very soft and very loud passages.
Adjust the volume to a comfortable level using a louder passage, so that you
always know what the maximum level will be.
ES299_062905.p65 29/6/2005, 15:079

10
LOCATIONOFCONTROLSAND INDICATORS
FrontPanel
22
20
19
1
2
3
4
5
6
18
17
16
15
14
13
12
11
10
8
7
21
9
ES299_062905.p65 29/6/2005, 15:0710

11
Back Panel
26
25
24
23
27
ES299_062905.p65 29/6/2005, 15:0711

12
Front Panel
1.)PHONES Jack.
2.)CD Tray.
3.)ALBUM/MEMORY CH. – Button.
4.)ALBUM/MEMORY CH. + Button.
5.)FUNCTION Button.
6.)TUNER/BAND Button.
7.)SD/MMC FLASH MEMORY Card Slot.
8.)Remote Sensor.
9.)EQ Button.
10.) STANDBY LED Indicator.
11.) STANDBY ON/Off Button.
12.) CD Tray OPEN / CLOSE Button.
13.) Multi Function Display.
14.) DBBS Button.
15.) VOLUME + Button.
16.) VOLUME –Button.
17.) USB Port.
18.) SD/MMC Memory Card /USB LED Indicator.
19.) PLAY/PAUSE Button.
20.) STOP Button.
21.) SKIP/TUNING + Button.
22.) SKIP/TUNING – Button.
Back Panel
23.) AUX IN R/L Jacks.
24.) FM Lead Wire ANTENNA.
25.) LINE OUT R/L Jacks.
26.) SPEAKER Terminals.
27.) AC Power Cord.
ES299_062905.p65 29/6/2005, 15:0712

13

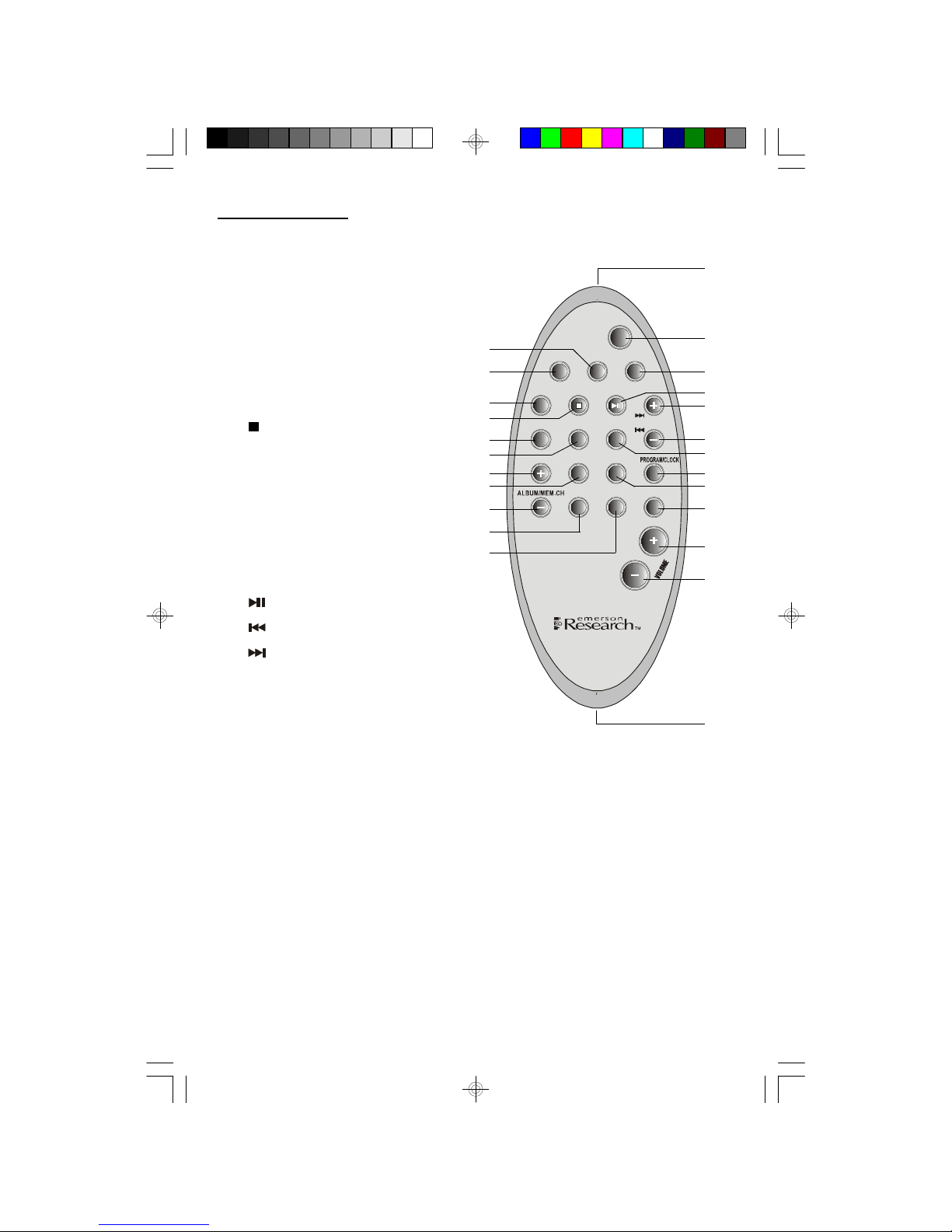

RemoteControl
1.) DBBS Button.
2.) EQ Button.
3.) ALBUM/MEM CH. – Button.
4.) MODE Button.
5.) ALBUM/MEM CH. + Button.
6.) INTRO Button.
7.) REPEAT Button.
8.) STOP Button.
9.) FUNCTION Button.
10.) AUX Button.
11.) TIMER Button.
12.) IR (Infrared) Transmitter.
13.) STANDBY ON/Off Button.
14.) SLEEP Button.
15.) PLAY/PAUSE Button.
16.) SKIP/TUNING + Button.
17.) SKIP/TUNING – Button.
18.) RANDOM Button.
19.) PROGRAM/CLOCK Button.
20.) TUNER/BAND Button.
21.) MUTE Button.
22.) VOLUME + Button.
23.) VOLUME – Button.
24.) Battery Compartment.
24
1
2
3
4
5
6
8
9
10
11 14
15
16
18
20
21
22
23
12
19
13
717
INTRO
SKIP/TUNING
MODE TUNER/BAND
DBBS
MUTE
AUX
RANDOM
REPEAT
STANDBY/ON
TIMER SLEEP
FUNCTION STOP
PLAY/PAUSE
EQ
ES299_062905.p65 29/6/2005, 15:0713

14
RemoteControlBattery
The remotecontrolrequiresone “button-type”3-voltLithium
battery,included.Toextend the lifeofthe originalbattery
wehaveinserted asmall clearplasticspacertab between
the Lithiumbatteryand the batteryterminal.
You mustremovethisbatteryspacertab beforeyou can
usethe remotecontrol.
Toremovethe tab,pull itinthe direction ofthe arrowinthe
illustration asshown.
When the operation ofthe remotecontrolbecomes
intermittentorunsatisfactory,replacethe originalbatterywith
anew3-voltLithiumbattery.
The batterynumberisCR2025 orequivalent.
1.)Toreplacethe battery,slide the batteryholderoutofthe
remotecontrolinthe direction of“arrow”.
2.)Removethe originalbatteryfromthe holderand install a
newCR2025 batterywiththe “+”side facing up asshown
inthe illustration.Then slide the batteryholderback into
the remotecontrol.
Dispose oftheoriginalbatteryproperly.Itshouldnotbethrownintoa
fireas thebatterymay explodeifincinerated.Itshouldnotbeleft around
wheresmall childrenorpetsmightplay with,orswallowit.Ifthebattery
isaccidentallyswallowed,contactaphysicianimmediately.
Remove
before use
Remueva
antes de
usar
INTRO
SKIP/TUNING
MODE TUNER/BAND
DBBS
MUTE
AUX
RANDOM
REPEAT
STANDBY/ON
TIMER SLEEP
FUNCTION STOP
PLAY/PAUSE
EQ
INTRO
SKIP/TUNING
MODE TUNER/BAND
DBBS
MUTE
AUX
RANDOM
REPEAT
STANDBY/ON
TIMER SLEEP
FUNCTION STOP
PLAY/PAUSE
EQ
CR2025
1
2
3V
ES299_062905.p65 29/6/2005, 15:0714

15
OPERATINGINSTRUCTIONS
• Make sure that you have fully extended the FM antenna wire.
• Make sure that you have removed the battery spacer from the remote
control handset.
• Make sure that the system is connected to an AC outlet that is always
“live”.
• Do not connect the system to an AC outlet controlled by a wall switch.
Remove The Dummy CD Transit Protection Card
This system was shipped with a “dummy CD” transit protection card in the CD
player. The card was inserted to prevent the CD player mechanism from moving
during shipping and handling. It must be removed and discarded before you can
load your own CD. After connecting the system to your AC outlet, press the
STANDBY/ON button to turn the system ‘On’. Then press the OPEN/CLOSE
button to open the CD tray. Remove the “dummy CD” and discard it.
Press the OPEN/CLOSE button to close the CD tray.
General Controls
Most of the main functions of this system can be operated by the controls on the
front panel of the main unit, or by the buttons on the remote control handset. If a
specific function can only be operated by the remote handset, or by the front panel
controls, this will be clearly indicated in the instructions.
When operating this system with the remote control handset make sure that the
IR (Infrared) transmitter on the front of the remote handset is pointed at the remote
sensor on the front panel of the main unit.
The effective operating range of the remote control is approximately 15 feet. Please
note that bright sunlight or room lighting may interfere with the remote control
operation. If the remote is not operating properly try reducing the brightness of the
room or moving closer to the main unit. If this does not solve the problem, it may
be time to change the remote control battery.
ES299_062905.p65 29/6/2005, 15:0715

16
Volume Controls
To increase or decrease the system volume press the VOLUME +or VOLUME –
buttons on the front panel or the remote control.

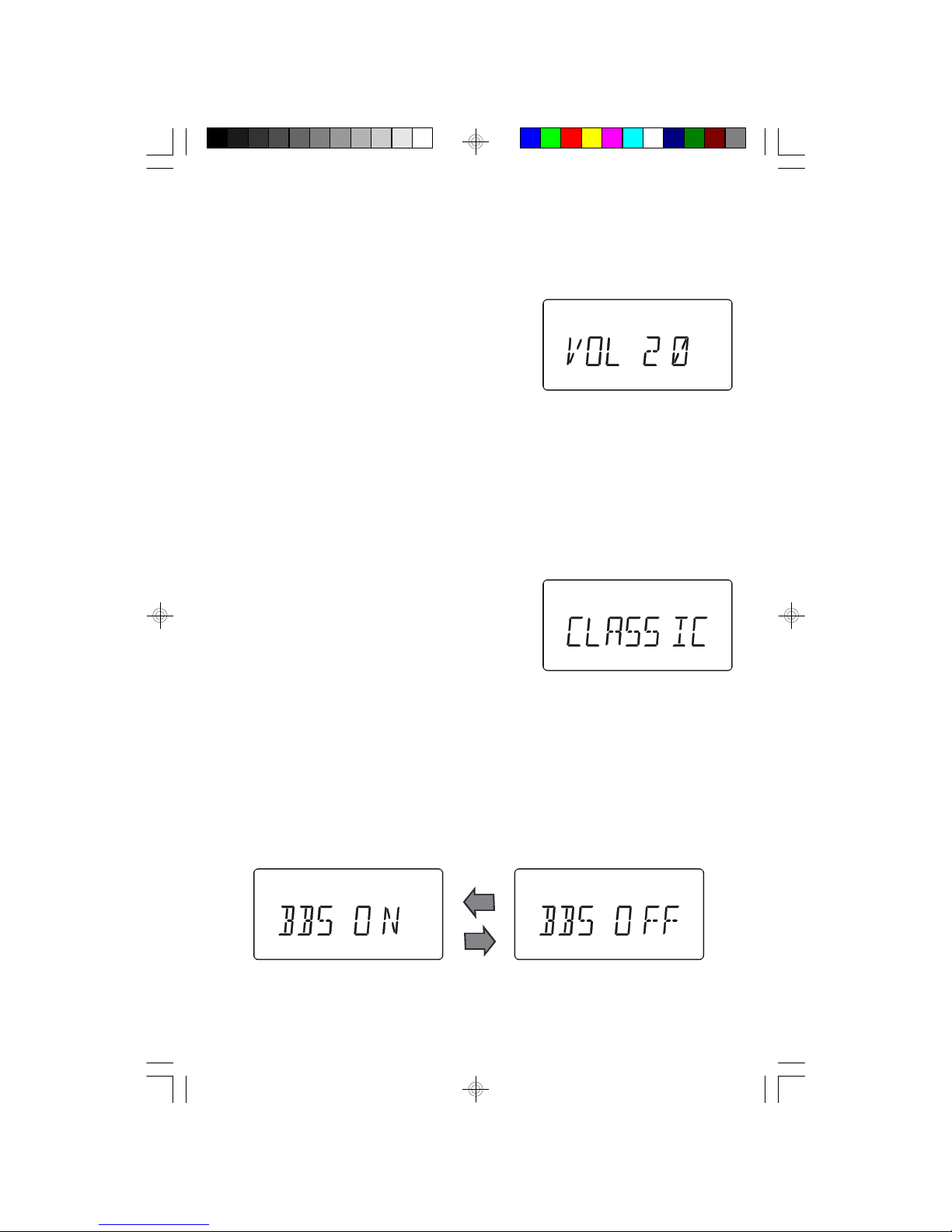

The Volume Level Indicator will appear on the
display when you change the volume level.
The level indicator ranges
from “00” (Minimum)
to “30” (Maximum).
The system remembers the volume level when the power is switched ‘Off’ and
automatically returns to the same level when the power is switched ‘On’ again.
EQ (Electronic Preset Equalizer)
The preset equalizer allows you to adjust the sound characteristic for the most
popular types of music.
Press the EQ button on the front panel or the remote control to cycle through the
following equalizer settings:
PASS (EQ ‘Off’), CLASSIC,ROCK, POP,JAZZ.
The appropriate EQ indicator briefly appears in the display to confirm your selection.
The system remembers the EQ setting when the power is switched ‘Off’ and returns
to the same setting when the power is switched ‘On’ again.
DBBS (Dynamic Bass Boost) Control
Press the DBBS button on the front panel or the remote control to increase the
bass response. Press again to cancel the Bass Boost function.
ES299_062905.p65 29/6/2005, 15:0716

17
MUTE Button (On Remote Control Only)
Press the MUTE button on the remote control to shut off the speakers temporarily,
for example, to answer the telephone.

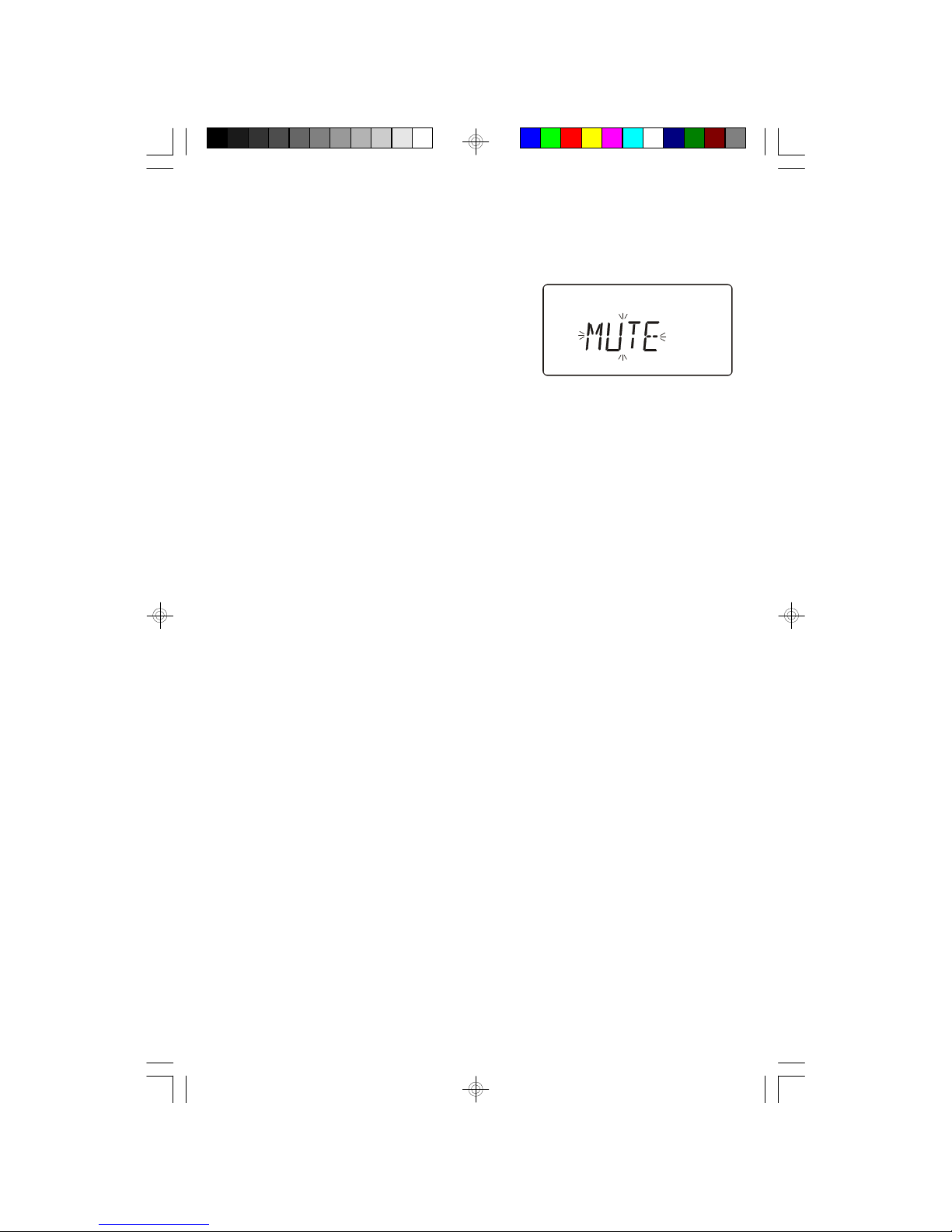

The sound stops and the “MUTE” indicator
flashes in the display.
Press the MUTE button again to cancel the mute function and restore the sound.
The “MUTE” indicator disappears.
The mute function will also be canceled automatically by pressing the VOLUME +
or VOLUME – buttons.
ES299_062905.p65 29/6/2005, 15:0717

18
Setting The Clock
When the unit is connected to the AC outlet for
the first time the “– –:– –” flashes on the display.
Note: Do not turn the main unit power ‘On’. The clock can only be set while
the main unit power is ‘Off’. The clock can only be set with the Remote Control.
1.) Press and hold the PROGRAM/CLOCK button on the remote control.
“12 HOUR” flashes on display. Press the SKIP/TUNING + or –buttons to
select between “24 HOUR” or “12 HOUR” modes if necessary.
2.) Press the PROGRAM/CLOCK button again.
Just the Hour digits will continue flashing.
3.) Press the SKIP/TUNING + or –buttons to
set the display to the correct hour, AM or PM.
4.) Press the PROGRAM/CLOCK button again.
The Minute digits will begin flashing.
5.) Press the SKIP/TUNING + or –buttons to
set the display to the correct minutes.
6.) Press the PROGRAM/CLOCK button once
more.
Only the “:” flashing and the clock begins to
run.
ES299_062905.p65 29/6/2005, 15:0718

19
Listening To The Radio
1.) Press the STANDBY/ON button to turn the system ‘On’.
The display lighting comes on and the display
briefly shows “HELLO”.
2.) Press the FUNCTION button to select the Tuner function.
An AM or FM frequency will appear on the
display.
Press the TUNER/BAND button again to
switch between the AM and FM bands if
necessary.
3.) Tune to the desired station as follows:
• Manual Tuning
Repeatedly press the SKIP/TUNING + or –buttons until the display shows the
exact frequency of the desired station. Use the Manual Tuning method to tune
to weak or distant stations that are not strong enough to be recognized by the
Automatic Tuning system.
• Automatic Tuning
Depress and hold the SKIP/TUNING + or –buttons until the display begins to
move, then release the buttons. The Tuner will search up or down the band for
the next strong signal and stop on that station. Repeat this procedure until the
tuner stops on your desired station.
4.) If you tuned to an FM Stereo station the ST
indicator will appear in the display. If the FM
Stereo reception is noisy or weak, press the
MODE button on the remote control to select
the FM Mono mode.
5.) Adjust the VOLUME,DBBS and EQ controls to the desired settings.
6.) When you are finished listening press the STANDBY/ON button to return the
system to the Standby (Off) mode. The display lighting goes off and the display
changes from radio frequency to correct time.
ES299_062905.p65 29/6/2005, 15:0719
