Quick Start Guide
MS-00825-0100-4224, Rev AA
September 2022

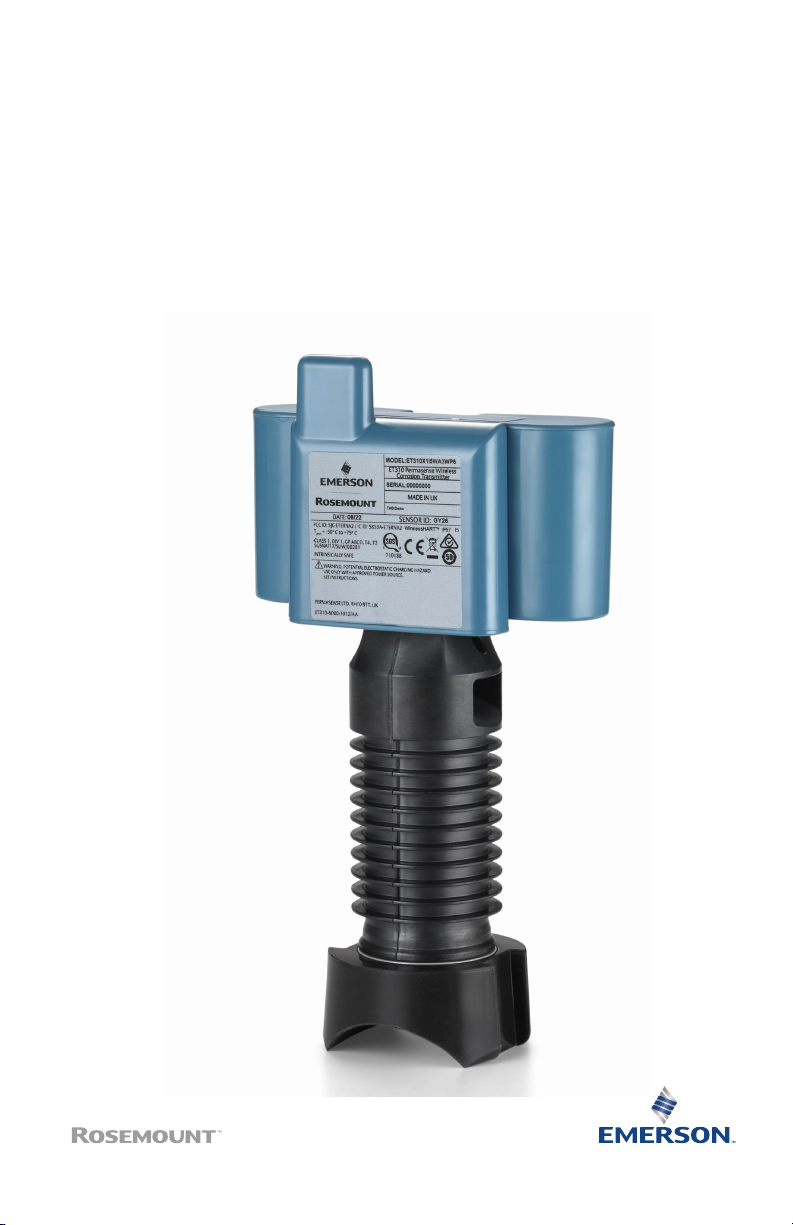

Rosemount Wireless Permasense
ET310C Corrosion Transmitter ™

SafetyMessages
Failure to follow these installation guidelines could result in death or serious injury. Only qualified
personnel should perform the installation.
WARNING
Explosion hazard that could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the appropriate
local, national, and international standards, codes, and practices. Review the approvals section of this
manual for any restrictions associated with a safe installation.
Verify that the operating atmosphere of the transmitter is consistent with the appropriate hazardous
locations certifications.
Before connecting a CC21 to a sensor, ensure the correct low voltage permits have been obtained.
Heart failure hazard
The sensor contains magnets which can be harmful to pacemaker wearers.
Electrostatic hazard that can result in death or serious injury
The power module may be replaced in a hazardous area. The power module has surface resistivity
greater than one gigaohm. Care must be taken during transportation to and from the point of
installation to prevent electrostatic charge build-up.
The polymer enclosure has surface resistivity greater than one gigaohm. Care must be taken during
transportation to and from the point of installation to prevent electrostatic charge build-up.
NOTICE
Shipping considerations for wireless products.
The unit was shipped to you without the power module installed. Remove the power module prior to
any re-shipping.
Each device contains two “D” size primary lithium-thionyl chloride battery cells. Primary lithium
batteries are regulated in transportation by the U. S. Department of Transportation, and are also
covered by IATA (International Air Transport Association), ICAO (International Civil Aviation
Organization), and ARD (European Ground Transportation of Dangerous Goods). It is the responsibility
of the shipper to ensure compliance with these or any other local requirements. Consult current
regulations and requirements before shipping.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end
users’ equipment. This could be intentional or unintentional and needs to be protected against.
Physical security is an important part of any security program and fundamental to protecting your
system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for
all systems used within the facility.
Quick Start Guide September 2022
2 Emerson.com/Rosemount

Contents
Product overview......................................................................................................................... 5
Wireless considerations................................................................................................................8
Physical installation...................................................................................................................... 9
Commissioning the sensor......................................................................................................... 14
Maintenance.............................................................................................................................. 18
Product certification...................................................................................................................19
September 2022 Quick Start Guide
Quick Start Guide 3

Quick Start Guide September 2022
4 Emerson.com/Rosemount

1 Product overview
Figure 1-1: E310C Sensor
A. Antenna
B. Power Module
C. Head
D. Lanyard Hole
E. Strap Slot
F. Foot
G. Shoe
September 2022 Quick Start Guide
Quick Start Guide 5

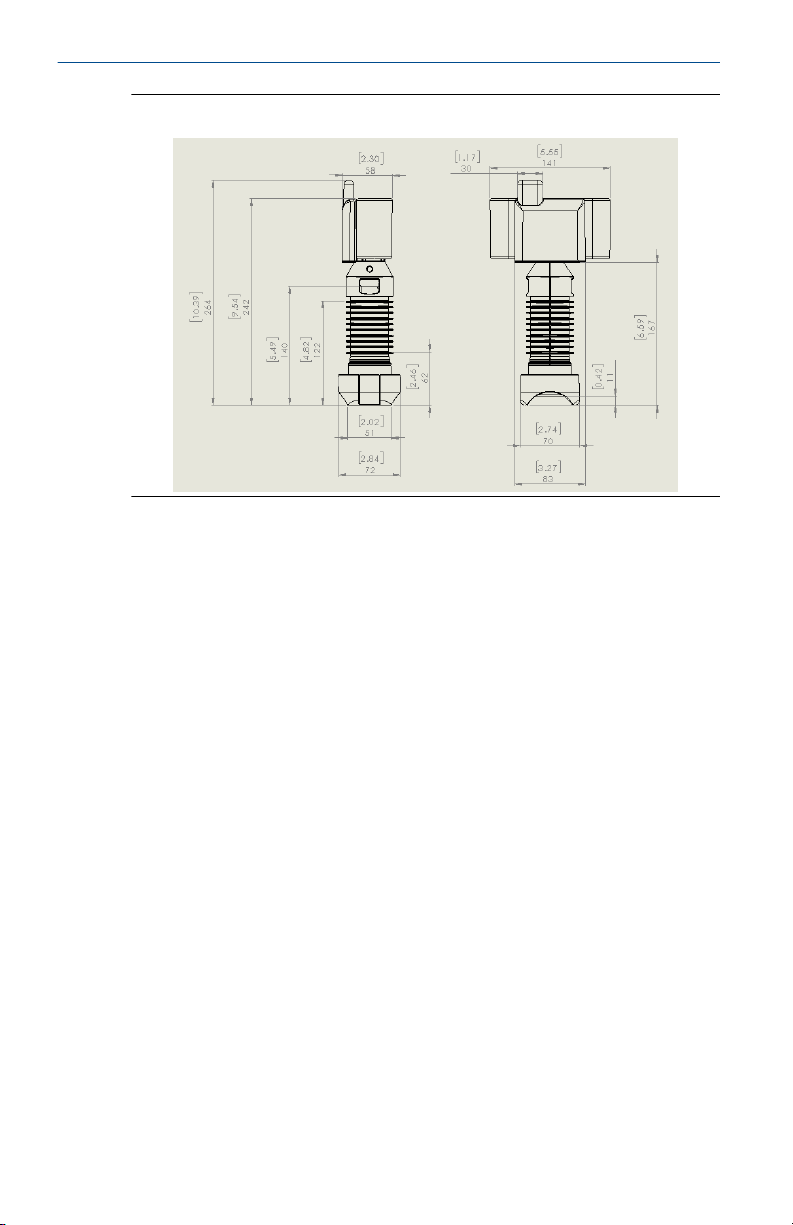

Figure 1-2: Dimension Drawing
Dimensions are in inches (mm).
1.1 What's in the box?
•Permasense ET310C Sensor (with protective cap)
•Lanyard kit 6.6 ft (2 m) 316 stainless steel lanyard with looped end and
cable lock
•3.3 ft (1 m) strap for pipes up to 8 in diameter
•BP20E power module
•A silicone rubber shoe for installations on pipes size NPS 2 or 3
•A silicone rubber shoe for installations on pipes size 4 in to 8 in
Quick Start Guide September 2022
6 Emerson.com/Rosemount

1.2 Required equipment
In order to install a sensor, you need the following equipment from an IK220
installation kit:

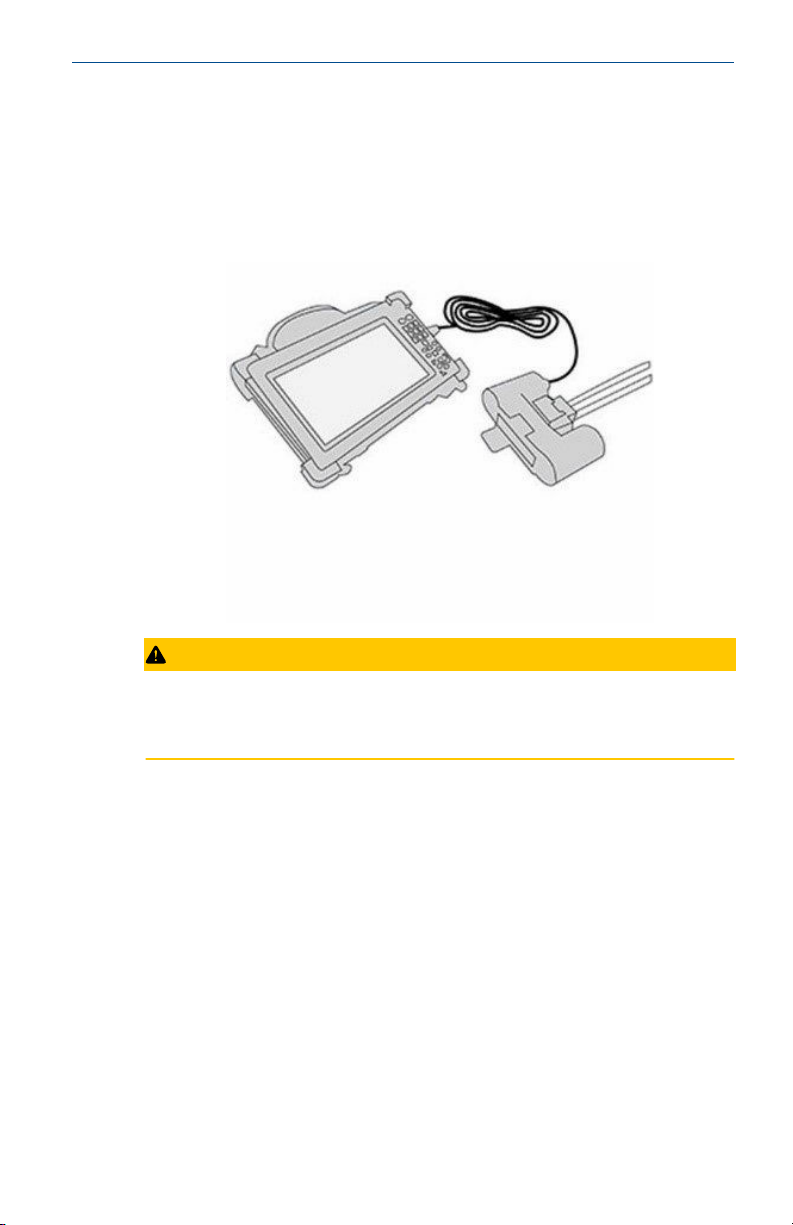

•Tablet PC with installation application software
•CC21 interface
CAUTION
The tablet PC is not intrinsically safe
A site specific permit may be required for its use.
1.3 Required tooling
Tooling is supplied in the IK220 installation kit.
•Strap tightening tool – HCL SM-FT-2000
•2.5 mm hex key (for power module retaining bolts)
September 2022 Quick Start Guide
Quick Start Guide 7

2 Wireless considerations
Power up sequence
The Emerson Wireless Gateway should be installed and functioning properly
before commissioning the Rosemount ET310C and powering it with a BP20E
power module.
Note
Wireless devices should be powered up in order of proximity from the
Gateway, beginning with the closest device, then working outward from the
Gateway. This results in a simpler and faster network formation. Enable
Active Advertising on the Gateway to ensure new devices are able to join the
network faster. For more information, see the Emerson Wireless 1410S
Gateway.
Quick Start Guide September 2022
8 Emerson.com/Rosemount

3 Physical installation
The sensor is mounted onto the pipe in the location of desired
measurement.
3.1 Preparation
Procedure
1. Identify the location where the sensor is to be installed.
2. Ensure all cladding and insulation is removed around the
circumference of the pipe at the sensor location.
Note
Cladding or insulation can be replaced after the sensor installation is
completed, provided that the head of the sensor remains outside of
the insulation. Insulation materials can be installed around the sensor
as desired and according to local procedures.
3. Clean the area where the sensor will touch the pipe to remove any
particles that might keep the transducer away from the pipe surface
or damage the face of the transducer. A permanent marker may be
used to show exactly where each sensor is to be placed on the pipe.
4. A key pipe diameter consideration is determining the required shoe.
A. Ring
B. Standard (4-to 8-in) Shoe
C. Alternative (2-to 3-in) Shoe
For installation on pipes with diameter 4-to 8-in, shoe B should be
selected.
September 2022 Quick Start Guide
Quick Start Guide 9

For installation on pipes with a diameter less than 4 inches (e.g. NPS
2 or NPS 3 pipes) then shoe C should be selected.
3.2 Mounting the sensor
Procedure
1. Remove the strap from the packaging.
2. Remove the protective cap from the sensor.
CAUTION
Once the protective cap is removed, the strong magnetic field at the
end of the sensor can suddenly attract other objects, such as tools.
Figure 3-1: Sensor with Protective Cap
Quick Start Guide September 2022
10 Emerson.com/Rosemount

CAUTION
This can cause injury as well as damage to the sensor.
Only remove the protective cap when necessary and then take great
care. Ensure tools and fastenings are kept away from the sensor
when the cap is removed.
3. If the rubber shoe needs to be refitted, ensure the ring is still in place,
then fit the shoe onto the sensor by pushing the two pegs protruding
from the foot of the sensor into the holes in the shoe.
If the ring is missing, do not use the sensor.
4. Carefully place the sensor in the required location on the pipe.
NOTICE
The magnets used in the sensors have a high pull force. To avoid
damage, and to get the precise location for each sensor, initially
place the sensor at an angle to the pipe and then gently lower the
shoe onto the pipe.
Tip
One person should hold the sensor until the strap is installed.
5. Slide the strap through the sensor, pass the strap through the buckle
as in Figure 3-2. Where possible, position the buckle opposite the
middle sensor to ensure both sides of the strap are tightened evenly.
September 2022 Quick Start Guide
Quick Start Guide 11

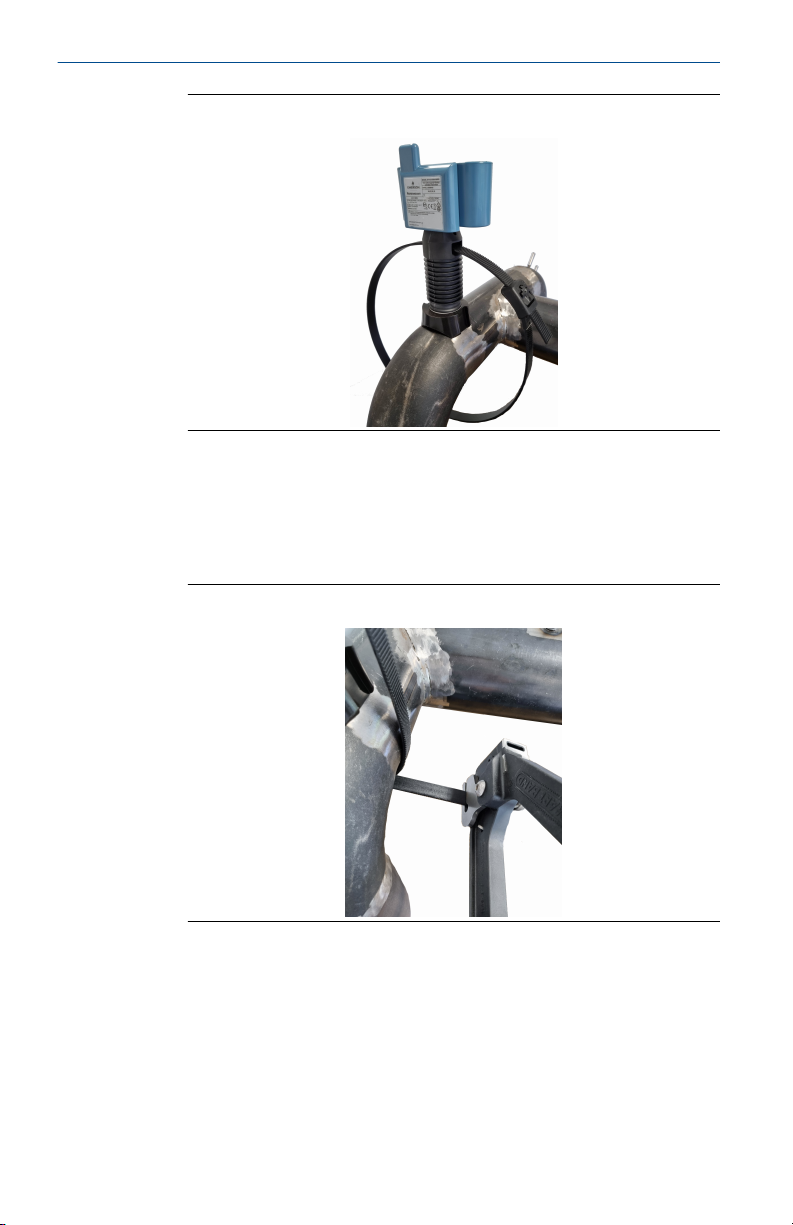

Figure 3-2: Loose Strap on the Sensor
6. Tighten the strap by hand to gently hold the sensor in place. If
necessary, adjust the position of the sensor to ensure correct
alignment around the circumference of the pipe.
7. If there is an excessive length of spare strap, the excess may be cut
off by using the cutter on the strap tightening tool.
Figure 3-3: Cutting away excess strap
8. Prepare the lanyard kit and decide how it will be positioned.
Wrap the lanyard around the circumference of the pipe. The 7 ft (2
m) length will accommodate a maximum diameter of 24 in (610
mm). When it is not possible to wrap the lanyard around a pipe, find
an alternative attachment point for the lanyard.
9. Thread the bare end of the wire through the loop in the lanyard to
secure it to the pipe.
Quick Start Guide September 2022
12 Emerson.com/Rosemount

10. Feed the bare end of the lanyard into the gripple and push the gripple
6 in (15 cm) up from the bare end.

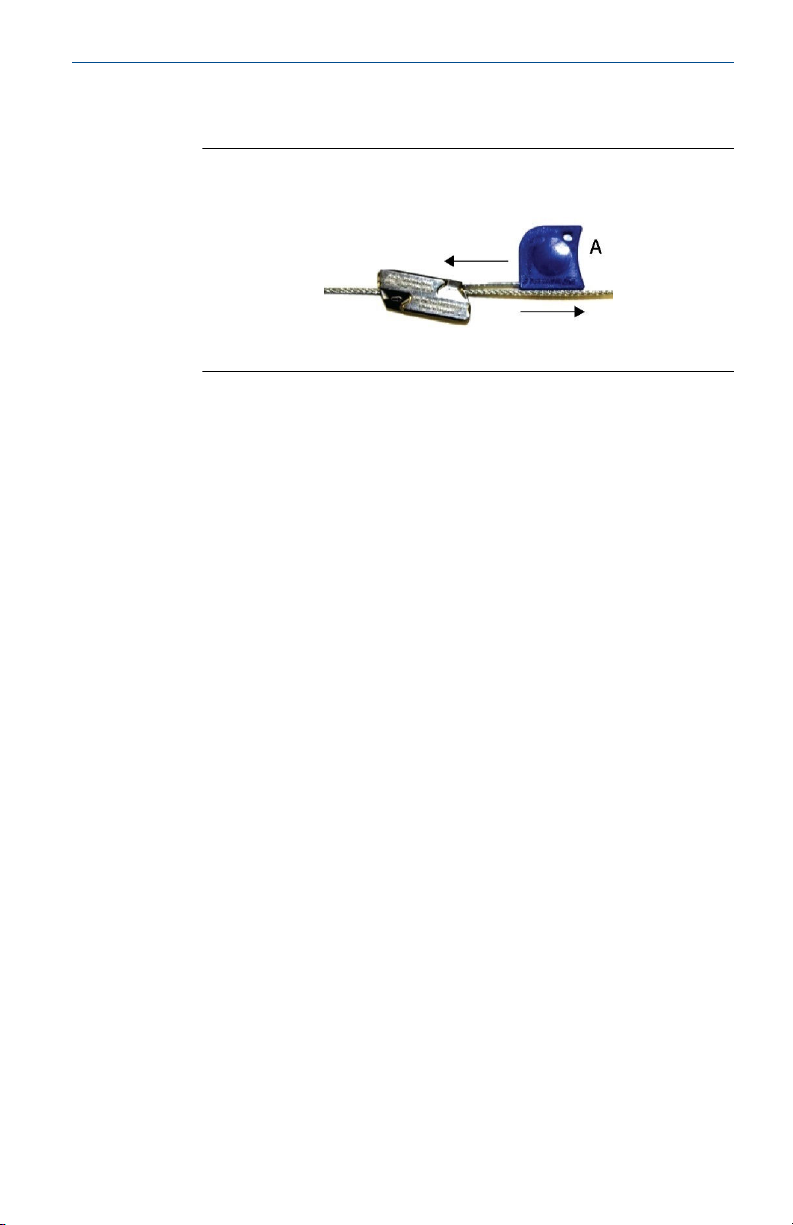

Need help?
The lanyard wire can be released from the cable lock using the
release key.
A. Release key
11. Feed the bare end through the lanyard hole in each sensor and then
into the return hole of the gripple.
12. To complete sensor installation, first complete the commissioning
task and then go to Completing sensor installation.
September 2022 Quick Start Guide
Quick Start Guide 13

4 Commissioning the sensor
Commissioning allows the sensor to securely join a designated network and
communicate with a gateway. The IK220 installation kit comes with a
commissioning interface (CC21) and a tablet PC with the Permasense
installation application installed. The CC21 provides an electronic interface
between the ET310C sensor and the tablet PC during commissioning.
The CC21 commissioning cable is connected and removed from the
transmitter in the same way as BP20E power module. The CC21 USB
connector is plugged in to the tablet PC (see ).
Note
All the sensors connected to the network and Gateway must have the same
network ID and Join Key.
Procedure
1. Power up the rugged tablet PC and connect the CC21 commissioning
interface to the tablet PC USB port.

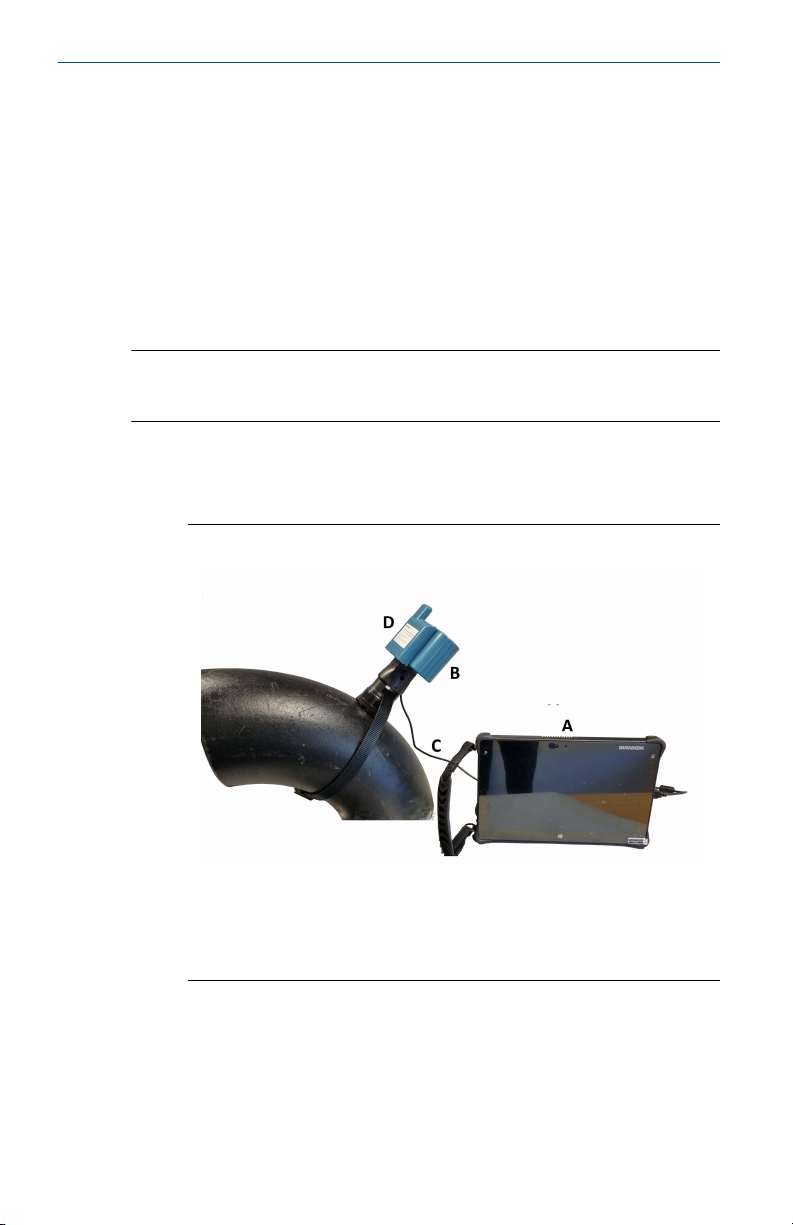

Figure 4-1: Commissioning Kit
A. Tablet PC
B. CC21 interface
C. USB cable
D. Rosemount Wireless Permasense Sensor
2. Double-click the Permasense installation application desktop icon.
Within approximately 10 seconds, the Permasense installation tool
software should open.
3. Attach the CC21 to the sensor.
4. In the installation application software:
Quick Start Guide September 2022
14 Emerson.com/Rosemount

a) Verify that the sensor ID is displayed at the top of the screen
within 10 seconds.
b) Select the Provision tab.
c) Enter the 5-digit network ID and the 32-hexadecimal
(numbers 0-9 and letters A -F) join key.
d) Click the Provision button.
The system provides confirmation once provisioning is
complete.
e) Ensure the network ID of the gateway is visible in the Network
Discovery panel.
Note
Joining the device to the network could take several minutes.

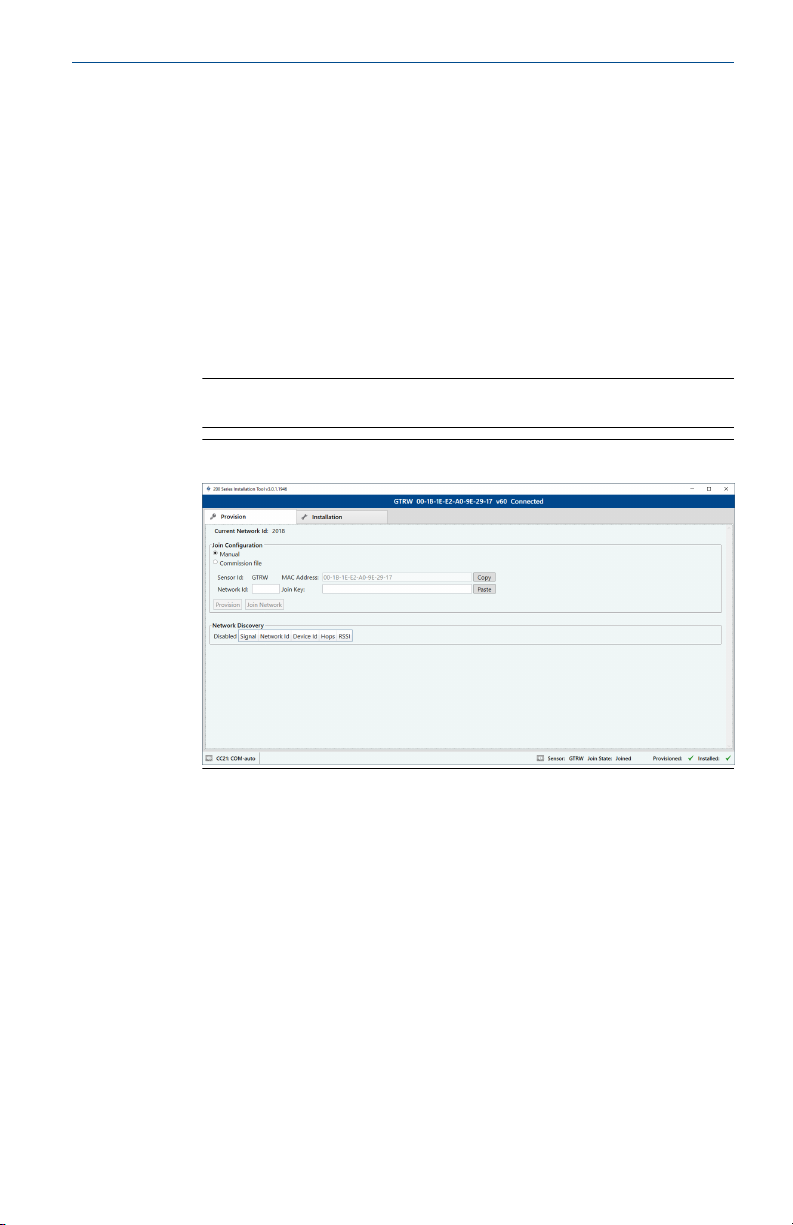

Figure 4-2: Install Tool
4.1 Completing sensor installation
Complete the following steps in the installation application software on the
installation tab.
Procedure
1. Press the Start button and wait for an ultrasonic waveform to
download from the sensor.
Waveforms are automatically downloaded every 10 seconds. When a
new waveform arrives, the lines briefly become thicker.
September 2022 Quick Start Guide
Quick Start Guide 15

Note
The waveform for ET310C will not fill the entire screen due to the
measurable thickness capability.
Good waveform Bad waveform
2. Check the quality of the waveform. The first one or two reflections
must be well defined above the noise in the signal. Only one
reflection is needed to calculate a thickness.
If the signal is poor, move the sensor to a slightly different position.
3. Verify that the measured thickness displayed is in line with
expectations.
4. Tighten the strap using the tensioning tool provided so that the
rubber shoe is compressed slightly and the sensor is held in place
securely.
Note
Overtightening the strap will deform the shoe and could damage the
sensor.
5. Wait for a new waveform to display and check the ultrasonic
waveform quality is still good after tightening the strap
6. Cut off any unnecessary strap.
Quick Start Guide September 2022
16 Emerson.com/Rosemount

7. Press the Complete button. Verify that the Install State is Off and
Installed is ticked in the footer on the right side of the application.
Figure 4-3: Installation Tool Screen: Fully Provisioned
8. Remove the CC21 and fit the power module, tightening the two
power module retaining bolts.
When the power module is fitted, the sensor restarts and tries to join
the WirelessHART® gateway. In a large network of 100 sensors, this
join can often take 2 hours, and sometimes up to 6 hours.
9. Sensor installation is complete.
September 2022 Quick Start Guide
Quick Start Guide 17

5 Maintenance
5.1 Service and maintenance
The sensor is a sealed unit with no user-serviceable parts.
Reference the Rosemount BP20E Power Module for Wireless Corrosion
Transmitter Quick Start Guide if the power module requires changing.
Quick Start Guide September 2022
18 Emerson.com/Rosemount

6 Product certification
Rev 0.1
6.1 European Directive information
A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.
6.2 Telecommunication compliance
All wireless devices require certification to ensure that they adhere to
regulations regarding the use of the RF spectrum. Nearly every country
requires this type of product certification. Emerson is working with
governmental agencies around the world to supply fully compliant products
and remove the risk of violating country directives or laws governing
wireless device usage.
6.3 FCC and ISED
FCC notice
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received, including
interference that may cause undesired operation.
•This device must be installed to ensure a minimum antenna separation
distance of 20 cm from all persons.
ISED notice
"This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licence-
exempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Cet appareil est conforme à la norme RSS-247 Industrie Canada exempt de
licence. Son fonctionnement est soumis aux deux conditions suivantes:
1. Cet appareil ne doit pas provoquer d'interférences et
September 2022 Quick Start Guide
Quick Start Guide 19

2. Cet appareil doit accepter toute interférence, y compris les
interférences pouvant causer un mauvais fonctionnement du
dispositif.
6.4 Ordinary location certification
As standard, the transmitter has been examined and tested to determine
that the design meets the basic electrical, mechanical, and fire protection
requirements by a Nationally Recognized Test Laboratory (NRTL), as
accredited by the Federal Occupational Safety and Health Administration
(OSHA).
6.5 Installing equipment in North America
The US National Electrical Code® (NEC) and the Canadian Electrical Code
(CEC) permit the use of Division marked equipment in Zones and Zone
marked equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined
in the respective codes.
6.6 Dangerous goods regulation
The magnets in the sensor and magnetic fixture are shielded for
transportation and meet the IATA Dangerous Goods Regulations for
magnetic fields. The sensors are safe for air transportation.
6.7 USA
6.7.1 I5 USA Intrinsic Safety (IS)
Certificate: SGSNA/17/SUW/00281
Standards: UL 913 — 8th Edition, Revision Dec 6 2013
Markings: CLASS I, DIV 1, GP ABCD, T4…T2, Tamb = –50 °C to +75 °C,
IP67
6.8 Canada
6.8.1 I6 Canada Intrinsically Safe (IS)
Certificate: SGSNA/17/SUW/00281
Standards: CAN/CSA C22.2 No. 157-92 (R2012) +Upd1 +Upd2
Markings: CLASS I, DIV 1, GP ABCD, T4…T2, Tamb = –50 °C to +75 °C,
IP67
Quick Start Guide September 2022
20 Emerson.com/Rosemount
