Emerson Rosemount 2088 User manual

Reference Manual
00809-0100-4108, Rev CC
April 2021
Rosemount™ 2088, 2090P, and 2090F
Pressure Transmitters
with HART® and 1-5Vdc Low Power Protocol

Safety messages
This guide provides basic guidelines for this product. It does not provide instructions for configuration, diagnostics, maintenance,
service, troubleshooting, Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations.
CAUTION
The products described in this document are NOT designed for nuclear-qualified applications. Using non-nuclear qualified
products in applications that require nuclear-qualified hardware or products may cause inaccurate readings. For information on
Rosemount nuclear-qualified products, contact your local Emerson Sales Representative.
NOTICE
Read this manual before working with the product. For personal and system safety, and for optimum product
performance, make sure you thoroughly understand the contents before installing, using, or maintaining this product.
See listed technical assistance contacts.
Customer Central
Technical support, quoting, and order-related questions.
United States - 1-800-999-9307 (7:00 am to 7:00 pm CST)
Asia Pacific- 65 777 211
Europe/ Middle East/Africa - 49 (8153) 9390
North American Response Center
Equipment service needs.
1-800-654-7768 (24 hours—includes Canada)
Outside of these areas, contact your local Emerson representative.
2

WARNING
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the appropriate local, national, and
international standards, codes, and practices. Review the approvals section of this manual for any restrictions associated with a
safe
•Before connecting a Field Communicator in an explosive atmosphere, ensure the instruments in the loop are installed in
accordance with intrinsically safe or non-incendive field wiring practices.
•In an explosion-proof/flameproof installation, do not remove the transmitter covers when power is applied to the unit.
Process leaks may cause harm or result in death.
•Install and tighten process connectors before applying pressure.
•Do not attempt to loosen or remove flange bolts while the transmitter is in service.
Electrical shock can result in death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical shock.
•Before connecting a handheld communicator in an explosive atmosphere, ensure the instruments in the loop are installed in
accordance with intrinsically safe or non-incendive field wiring practices.
•In an Explosion-Proof/Flameproof installation, do not remove the transmitter covers when power is applied to the unit.
Physical access
•Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This
could be intentional or unintentional and needs to be protected against.
•Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical
access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.
Replacement equipment or spare parts not approved by Emerson for use as spare parts could reduce the pressure retaining
capabilities of the transmitter and may render the instrument dangerous.
•Use only bolts supplied or sold by Emerson as spare parts.
WARNING
Replacement equipment or spare parts not approved by Emerson for use as spare parts could reduce the pressure retaining
capabilities of the transmitter and may render the instrument dangerous.
•Use only bolts supplied or sold by Emerson as spare parts.
Improper assembly of manifolds to traditional flange can damage sensor module.
For safe assembly of manifold to traditional flange, bolts must break back plane of flange web (i.e., bolt hole) but must not contact
sensor module housing.
Physical access
•Unauthorized personnel may potentially cause significant damage to and/or misconfiguration of end users’ equipment. This
could be intentional or unintentional and needs to be protected against.
•Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical
access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility.
3

4

Contents
Chapter 1 Introduction.............................................................................................................. 7
1.1 Using this manual........................................................................................................................ 7
1.2 Models covered........................................................................................................................... 7
1.3 Product recycling/disposal...........................................................................................................8
Chapter 2 Configuration............................................................................................................ 9
2.1 Safety messages.......................................................................................................................... 9
2.2 System readiness.......................................................................................................................10
2.3 HART installation flowchart........................................................................................................13
2.4 Transmitter overview.................................................................................................................14
2.5 Configuration overview............................................................................................................. 15
2.6 Configuration basics.................................................................................................................. 15
2.7 Verify configuration...................................................................................................................19
2.8 Basic setup of the transmitter.................................................................................................... 20
2.9 Configuring the LCD display.......................................................................................................25
2.10 Detailed transmitter setup.......................................................................................................26
2.11 Performing transmitter tests................................................................................................... 30
2.12 Configuring burst mode...........................................................................................................32
2.13 Establishing multidrop communication................................................................................... 34
Chapter 3 Hardware Installation.............................................................................................. 37
3.1 Overview................................................................................................................................... 37
3.2 Safety messages........................................................................................................................ 37
3.3 Considerations...........................................................................................................................38
3.4 Installation procedures.............................................................................................................. 39
3.5 Process connections.................................................................................................................. 47
3.6 Rosemount 306 Manifold.......................................................................................................... 49
Chapter 4 Electrical Installation................................................................................................51
4.1 Overview................................................................................................................................... 51
4.2 Safety messages........................................................................................................................ 51
4.3 LCD display................................................................................................................................ 52
4.4 Configuring transmitter security................................................................................................54
4.5 Setting transmitter alarm.......................................................................................................... 57
4.6 Electrical considerations............................................................................................................ 57
Chapter 5 Operation and Maintenance.....................................................................................65
5.1 Overview................................................................................................................................... 65
5.2 Safety messages........................................................................................................................ 65
5.3 Recommended calibration tasks................................................................................................66
Reference Manual Contents
00809-0100-4108 April 2021
Reference Manual 5

5.4 Calibration overview.................................................................................................................. 66
5.5 Determining calibration frequency............................................................................................ 68
5.6 Trim the pressure signal.............................................................................................................69
5.7 Trim the analog output..............................................................................................................72
5.8 Switching HART revision............................................................................................................ 75
Chapter 6 Troubleshooting...................................................................................................... 77
6.1 Overview................................................................................................................................... 77
6.2 Safety messages........................................................................................................................ 77
6.3 Troubleshooting tables..............................................................................................................78
6.4 Diagnostic messages................................................................................................................. 81
6.5 Disassembly procedures............................................................................................................ 83
6.6 Reassembly procedures............................................................................................................. 85
6.7 Service support..........................................................................................................................86
Appendix A Specifications and Reference Data............................................................................87
A.1 Rosemount™ 2088 Product Certifications.................................................................................. 87
A.2 Rosemount 2090P Product Certifications.................................................................................. 87
A.3 Rosemount 2090F Product Certifications.................................................................................. 87
A.4 Ordering Information, Specifications, and Drawings..................................................................87
Appendix B Field Communicator Menu Trees and Fast Keys........................................................ 89
B.1 Field Communicator menu trees................................................................................................89
B.2 Field communicator Fast Keys....................................................................................................93
Appendix C Local Operator Interface (LOI) Menu.........................................................................95
C.1 LOI menu tree............................................................................................................................95
C.2 LOI menu tree - extended menu................................................................................................ 96
C.3 Number entry............................................................................................................................ 97
C.4 Text entry.................................................................................................................................. 98
Contents Reference Manual
April 2021 00809-0100-4108
6 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

1 Introduction
1.1 Using this manual
The sections in this manual provide information on installing, operating, and maintaining
the Rosemount™ 2088, 2090F, and 2090P. The sections are organized as follows:
Configuration provides instruction on commissioning and operating Rosemount 2088
Transmitters. Information on software functions, configuration parameters, and online
variables is also included.
Hardware Installation contains mechanical installation instructions, and field upgrade
options.
Electrical Installation contains electrical installation instructions, and field upgrade
options.
Operation and Maintenance provides detailed information on calibrating and changing
HART® Revisions.
Troubleshooting provides troubleshooting techniques for the most common operating
problems.
Specifications and Reference Data supplies reference and specification data, as well as
ordering information.
Field Communicator Menu Trees and Fast Keys
Local Operator Interface (LOI) Menu
1.2 Models covered
The following Rosemount Pressure Transmitters are covered by this manual:
Rosemount 2088G Gage Pressure Transmitter
•Measures gage pressure up to 4000 psi (275,8 bar)
Rosemount 2088A Absolute Pressure Transmitter
•Measures absolute pressure up to 4000 psi (275,8 bar)
Rosemount 2090F Hygienic Pressure Transmitter
Rosemount 2090FG - Gage Pressure Transmitter
•Measures gage pressure up to 300 psi (20,7 bar)
Rosemount 2090FA - Absolute Pressure Transmitter
•Measures absolute pressure up to 300 psi (20,7 bar)
Reference Manual Introduction
00809-0100-4108 April 2021
Reference Manual 7

Rosemount 2090P Pulp and Paper Pressure Transmitter
Rosemount 2090PG - Gage Pressure Transmitter
•Measures gage pressure up to 300 psi (20,7 bar)
Rosemount 2090PA - Absolute Pressure Transmitter
•Measures gage pressure up to 300 psi (20,7 bar)
1.3 Product recycling/disposal
Recycling of equipment and packaging should be taken into consideration and disposed of
in accordance with local and national legislation/regulations.
Introduction Reference Manual
April 2021 00809-0100-4108
8 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

2 Configuration
2.1 Safety messages
This guide provides basic guidelines for this product. It does not provide instructions for
configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof,
Flameproof, or intrinsically safe (I.S.) installations.
CAUTION
The products described in this document are NOT designed for nuclear-qualified
applications. Using non-nuclear qualified products in applications that require nuclear-
qualified hardware or products may cause inaccurate readings. For information on
Rosemount nuclear-qualified products, contact your local Emerson Sales Representative.
Reference Manual Configuration
00809-0100-4108 April 2021
Reference Manual 9

WARNING
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the
appropriate local, national, and international standards, codes, and practices. Review the
approvals section of this manual for any restrictions associated with a safe
•Before connecting a Field Communicator in an explosive atmosphere, ensure the
instruments in the loop are installed in accordance with intrinsically safe or non-
incendive field wiring practices.
•In an explosion-proof/flameproof installation, do not remove the transmitter covers
when power is applied to the unit.
Process leaks may cause harm or result in death.
•Install and tighten process connectors before applying pressure.
•Do not attempt to loosen or remove flange bolts while the transmitter is in service.
Electrical shock can result in death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be present on leads
can cause electrical shock.
•Before connecting a handheld communicator in an explosive atmosphere, ensure the
instruments in the loop are installed in accordance with intrinsically safe or non-
incendive field wiring practices.
•In an Explosion-Proof/Flameproof installation, do not remove the transmitter covers
when power is applied to the unit.
Physical access
•Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or unintentional
and needs to be protected against.
•Physical security is an important part of any security program and fundamental to
protecting your system. Restrict physical access by unauthorized personnel to protect
end users’ assets. This is true for all systems used within the facility.
Replacement equipment or spare parts not approved by Emerson for use as spare
parts could reduce the pressure retaining capabilities of the transmitter and may
render the instrument dangerous.
•Use only bolts supplied or sold by Emerson as spare parts.
2.2 System readiness
•If using HART®-based control or asset management systems, confirm the HART
capability of such systems prior to commissioning and installation. Not all systems are
capable of communicating with HART revision 7 devices.
•For instructions on how to change the HART revision of your transmitter, see Switching
HART revision.
Configuration Reference Manual
April 2021 00809-0100-4108
10 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

2.2.1 Confirm correct device driver
Verify the latest Device Driver (DD/DTM™) is loaded on your systems to ensure proper
communications.
Procedure
1. Download the latest DD at Emerson.com or FieldCommGroup.org.
2. In the Browse by Member dropdown menu, select Rosemount business unit of
Emerson™.
3. Select desired product.
a) Within Table 2-1, use the HART Universal Revision and Device Revision
numbers to find the correct DD
Example
Table 2-1: Rosemount 2088 and 2090 with 4–20 mA HART Protocol Device Revisions
and Files
Release
date
Device identification Device driver
identification
Review
instructions
Review
function
NAMUR
hardware
revision(1)
NAMUR
software
revision
(1)
HART
software
revision(2)
HART
universal
revision
Device
revision (3)
Manual
document
number
Change
desc.
Aug-16 1.1.xx 1.0.xx 3 7 00809-0100-4
108 (2088)
00809-0100-4
690 (2090)
(4)
5 9 (5)
Jan-13 N/A 1.0.xx 1 7 10 N/A
5 9
Jan-98 N/A N/A 178 5 3
(1) NAMUR revision is located on the hardware tag of the device. Differences in level 3 changes,
signified above by xx, represent minor product changes as defined per NE53. Compatibility and
functionality are preserved and product can be used interchangeability.
(2) HART software revision can be read using a HART capable configuration tool. Value shown is
minimum revision that could correspond to NAMUR revisions.
(3) Device driver file names use Device and DD revision, e.g. 10_01. HAR protocol is designed to
enable legacy device driver revisions to continue to communicate with new HART devices. To
access new functionality, the new DD must be downloaded. It is recommended to download new
DD files to ensure full functionality.
(4) Updated electronics hardware design. Intrinsic Safety temperature classification change.
(5) HART revision 5 and 7 selectable, LOI, configurable alarms, expanded engineering units.
Reference Manual Configuration
00809-0100-4108 April 2021
Reference Manual 11

Table 2-2: Rosemount 2088 with 1–5 Vdc Low Power HART Protocol Device Revisions
and Files
Release
date
Device identification Device driver
identification
Review
instructions
Review
function
NAMUR
hardware
revision(1)
NAMUR
software
revision
(1)
HART
software
revision(2)
HART
universal
revision
Device
revision (3)
Manual
document
number
Change
desc.
Jan-13 N/A 1.0.2 3 7 00809-0100-4
108 (2088)
00809-0100-4
690 (2090)
(4)
5 9
Jan-98 N/A N/A 178 5 3 N/A
(1) NAMUR revision is located on the hardware tag of the device. Differences in level 3 changes,
signified above by xx, represent minor product changes as defined per NE53. Compatibility and
functionality are preserved and product can be used interchangeability.
(2) HART software revision can be read using a HART capable configuration tool. Value shown is
minimum revision that could correspond to NAMUR revisions.
(3) Device driver file names use Device and DD revision, e.g. 10_01. HART protocol is designed to
enable legacy device driver revisions to continue to communicate with new HART devices. To
access new functionality, the new DD must be downloaded. It is recommended to download new
DDfiles to ensure full functionality.
(4) HART revision 5 and 7 selectable, LOI, configurable alarms, expanded engineering units.
Configuration Reference Manual
April 2021 00809-0100-4108
12 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

2.3 HART installation flowchart
Figure 2-1: HART® Installation Flowchart
Reference Manual Configuration
00809-0100-4108 April 2021
Reference Manual 13

2.4 Transmitter overview
The Rosemount 2051C Coplanar™ design is offered for Differential Pressure (DP) and
Gauge Pressure (GP) measurements. The Rosemount 2051C utilizes capacitance sensor
technology for DP and GP measurements. The Rosemount 2051T utilizes piezoresistive
sensor technology for AP and GP measurements.
The major components of the transmitter are the sensor module and the electronics
housing. The sensor module contains the oil filled sensor system (isolating diaphragm, oil
fill system, and sensor) and the sensor electronics. The sensor electronics are installed
within the sensor module and include a temperature sensor, a memory module, and the
analog-to-digital signal converter (A/D converter). The electrical signals from the sensor
module are transmitted to the output electronics in the electronics housing. The
electronics housing contains the output electronics board, the optional external
configuration buttons, and the terminal block. The basic block diagram of the transmitter
is illustrated in Figure 2-3.
When pressure is applied to the isolating diaphragm, the oil deflects the sensor which then
changes its capacitance or voltage signal. This signal is then changed to a digital signal by
the Signal Processing. The microprocessor then takes the signals from the Signal
Processing and calculates the correct output of the transmitter. This signal is then sent to
the D/A converter, which converts the signal back to the analog signal, then superimposes
the HART® signal on the 4–20 mA output.
An optional LCD display can be ordered that connects directly to the interface board which
maintains direct access to the signal terminals. The display indicates output and
abbreviated diagnostic messages. A glass display cover is provided. For 4-20 mA HART
output, the LCD display features a two-line display. The first line displays the actual
measured value, the second line of six characters displays the engineering units. The LCD
display can also display diagnostic messages.
Note
LCD display utilizes a 5 × 6 character display and can display output and diagnostic
messages. The LOI display uses an 8 × 6 character display and can display output,
diagnostic messages, and LOI menu screens. The LOI display comes with two buttons
mounted on the front of the display board. See Figure 2-2.

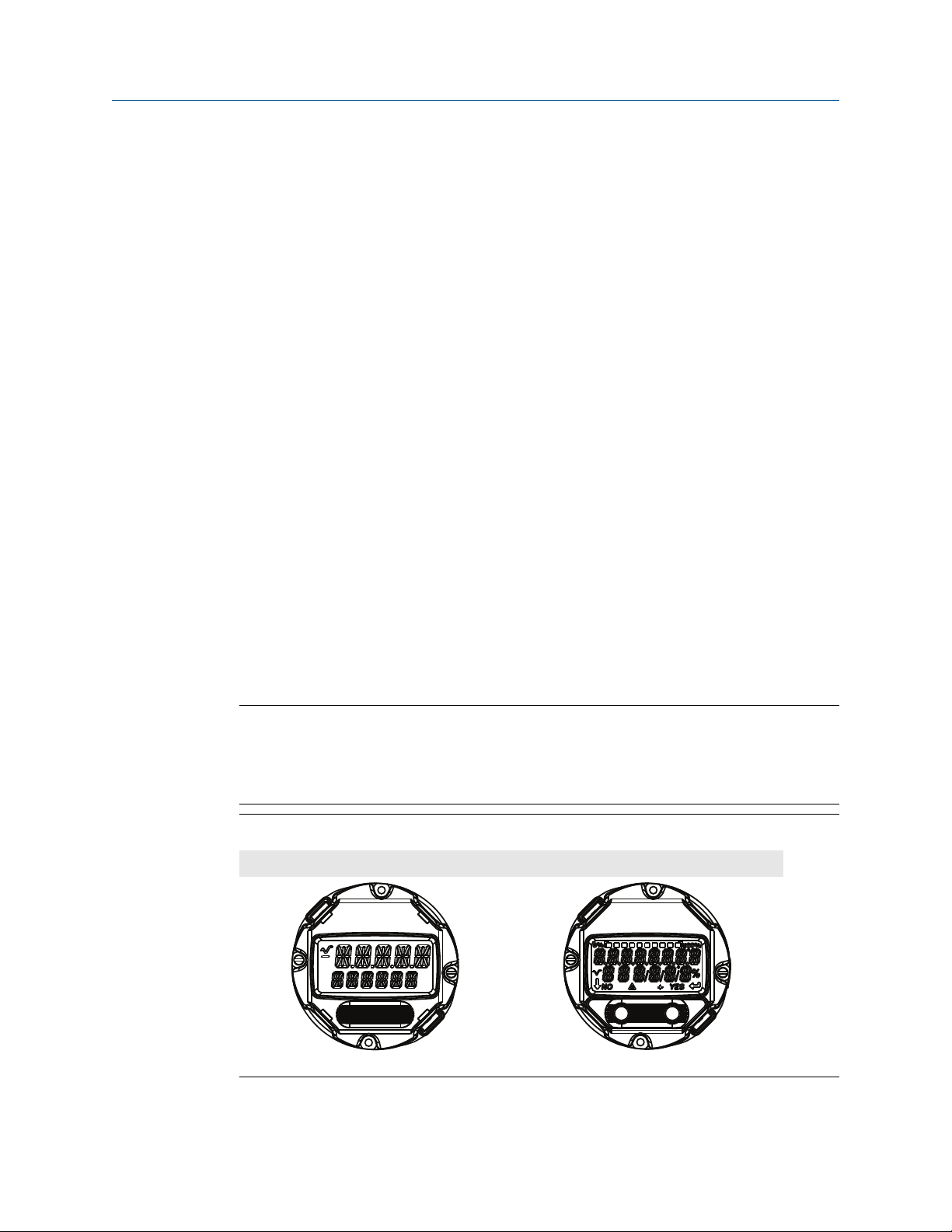

Figure 2-2: LCD/LOI display
LCD display LOI display
Configuration Reference Manual
April 2021 00809-0100-4108
14 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

Figure 2-3: Block Diagram Of Operation
A. Sensor Module
B. Electronics Board
C. 4-20 mA Signal to Control System
D. Field Communicator
2.5 Configuration overview
This section contains information on commissioning and tasks that should be performed
on the bench prior to installation, as well as tasks performed after installation as described
in Performing transmitter tests.
Field Communicator, AMSDevice Manager, and Local Operator Interface (LOI) instructions
are given to perform configuration functions. For convenience, Field Communicator Fast
Key sequences are labeled “Fast Keys,” and abbreviated LOI menus are provided for each
function below.
Full Field Communicator menu trees and Fast Key sequences are available in Field
Communicator Menu Trees and Fast Keys. LOI menu trees are available in Local Operator
Interface (LOI) Menu.
2.6 Configuration basics
CAUTION
Set all transmitter hardware adjustments during commissioning to avoid exposing the
transmitter electronics to the plant environment after installation.
The transmitter can be configured either before or after installation. Configuring the
transmitter on the bench using either a Field Communicator, AMS Device Manager, or LOI
Reference Manual Configuration
00809-0100-4108 April 2021
Reference Manual 15

ensures all transmitter components are in working order prior to installation. Verify that
the security switch is set in the unlock ( ) position in order to proceed with configuration.
Refer to Figure 4-2 for switch location.
Note
LOI is available with the Rosemount 2088 (option M4) but is not available with the
Rosemount 2090F or 2090P.
2.6.1 Configuring on the bench
To configure on the bench, required equipment includes a power supply, and a Field
Communicator, AMS Device Manager, or an LOI (option M4). Wire equipment as shown in
Figure 2-4. To ensure successful HART® communication, a resistance of at least 250 Ωs
must be present between the transmitter and the power supply, see Power supply for
details. Connect the Field Communicator leads to the terminals labeled “COMM” on the
terminal block or 1–5 V configuration, wire as shown in Figure 2-4. The Field
Communicator is connected to the terminals labeled VOUT/COMM.
Figure 2-4: Wiring the Transmitter (4–20 mA HART)
A. Vdc supply
B. R L ≥ 250 (necessary for HART communication only)
Configuration Reference Manual
April 2021 00809-0100-4108
16 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

2.6.2 Configuration tools
Figure 2-5: Wiring the Transmitter (1–5 Vdc Low Power)
A. DC power supply
B. Voltmeter
Configuring with a Field Communicator
There are two interfaces available with the Field Communicator: Traditional and
Dashboard interfaces. All steps using a Field Communicator will be described using
Dashboard interfaces. HART® shows the Device Dashboard interface. As stated in System
readiness, it is critical that the latest DD’s are loaded into the Field Communicator. Refer to
either Emerson.com or FieldCommGroup.org to download latest DD library.
Field Communicator menu trees and Fast Keys are available in Field Communicator Menu
Trees and Fast Keys.
Figure 2-6: Device Dashboard
SAVE
1. Overview
2. Configure
3. Service Tools
2088 FT 45B
Online
Reference Manual Configuration
00809-0100-4108 April 2021
Reference Manual 17

Configuring with AMS Device Manager
Full configuration capability with AMS Device Manager requires loading the most current
Device Descriptor (DD) for this device. Download the latest DD at Emerson.com or
FieldCommGroup.org.
Note
All steps using AMS Device Manager will be described using version 11.5.
Configuring with a LOI
The LOI requires option code M4 to be ordered. To activate the LOI push either
configuration button. Configuration buttons are located on the LCD display (must remove
housing cover to access), or underneath the top tag of the transmitter. See Table 2-3 for
configuration button functionality and Figure 2-7 for configuration button location. When
using the LOI for configuration, several features require multiple screens for a successful
configuration. Data entered will be saved on a screen-by-screen basis; the LOI will indicate
this by flashing “SAVED” on the LCD display each time.
LOI menu trees are available in Local Operator Interface (LOI) Menu.
Figure 2-7: LOI Configuration Buttons
A. Internal configuration buttons
B. External configuration buttons
Table 2-3: LOI Button Operation
Button
Left No SCROLL
Configuration Reference Manual
April 2021 00809-0100-4108
18 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual

Table 2-3: LOI Button Operation (continued)
Button
Right Yes ENTER
2.6.3 Setting the loop to manual
Whenever sending or requesting data that would disrupt the loop or change the output of
the transmitter, set the process application loop to manual control. The Field
Communicator, AMS Device Manager, or the LOI will prompt you to set the loop to manual
when necessary. The prompt is only a reminder; acknowledging this prompt does not set
the loop to manual. It is necessary to set the loop to manual control as a separate
operation.
2.7 Verify configuration
It is recommended that various configuration parameters are verified prior to installation
into the process. The various parameters are detailed out for each configuration tool.
Depending on what configuration tool(s) are available follow the steps listed relevant to
each tool.
2.7.1 Verifying configuration with Field Communicator
Configuration parameters listed in Table 2-4 are to be reviewed prior to transmitter
installation. A Full list of configuration parameters that can be reviewed and configured
using a Field Communicator are located in Field Communicator Menu Trees and Fast Keys.
Fast key sequences for the latest DD are shown in Table 2-4. For Fast Key sequences for
legacy DD's contact your local Emerson Representative.
Table 2-4: Device Dashboard Fast Key sequence
From the HOME screen, enter the Fast Key sequences listed
Function Fast Key sequence
HART 7 HART 5
Alarm and Saturation Levels 2, 2, 2, 5 2, 2, 2, 5
Damping 2, 2, 1, 1, 5 2, 2, 1, 1, 5
Primary Variable 2, 1, 1, 4, 1 2, 1, 1, 4, 1
Range Values 2, 1, 1, 4 2, 1, 1, 4
Tag 2, 2, 7, 1, 1 2, 2, 7, 1, 1
Transfer Function 2, 2, 1, 1, 6 2, 2, 1, 1, 6
Units 2, 2, 1, 1, 4 2, 2, 1, 1, 4
Reference Manual Configuration
00809-0100-4108 April 2021
Reference Manual 19

2.7.2 Verifying configuration with AMS Device Manager
Right select on the device and select Configuration Properties from the menu. Navigate
the tabs to review the transmitter configuration data.
2.7.3 Verifying configuration with LOI
Press any configuration button to activate the LOI. Select VIEW CONFIG to review the
below parameters. Use the configuration buttons to navigate through the menu. The
parameters to be reviewed prior to installation include:
•Tag
•Units
•Transfer function
•Alarm and saturation levels
•Primary variable
•Range values
•Damping
2.7.4 Verifying process variables configuration
This section describes how to verify that the correct process variables are selected.
Verifying process variables with a Field Communicator
From the HOME screen, enter the Fast Key sequence.
Device Dashboard Fast Keys 3, 2, 1
Verifying process variables with AMS Device Manager
Procedure
1. Right click the device and select Overview from the menu.
2. Select the All Variables button to display the primary, secondary, tertiary and
quaternary variables.
2.8 Basic setup of the transmitter
This section goes through the necessary steps for basic setup of a pressure transmitter.
2.8.1 Setting pressure units
The pressure unit command sets the unit of measure for the reported pressure.
Configuration Reference Manual
April 2021 00809-0100-4108
20 Rosemount 2088, 2090P, and 2090F Pressure Transmitter Reference Manual
