Quick Start Guide
00825-0100-4445, Rev AB
November 2017
Rosemount® 8712EM Transmitter with
HART Protocol

1 Safety
WARNING!
•Failure to follow these installation guidelines could result in serious injury
or death.
•Installation and servicing instructions are for use by qualified personnel
only. Do not perform any servicing other than that contained in the
operating instructions, unless qualified.
•Rosemount Magnetic Flowmeters ordered with non-standard paint
options or non-metallic labels may be subject to electrostatic discharge.
To avoid electrostatic charge build-up, do not rub the flowmeter with a
dry cloth or clean with solvents.
•Verify that the operating environment of the sensor and transmitter is
consistent with the appropriate Agency Approval.
•If installed in an explosive atmosphere, verify that the device certification
and installation techniques are suitable for that particular environment.
•To prevent ignition of flammable or combustible atmosphere, disconnect
power before servicing circuits.
•Explosion hazard—Do not disconnect equipment when a flammable or
combustible atmosphere is present.
•Do not connect a Rosemount Transmitter to a non-Rosemount sensor
when installed in an “Ex” environment, explosive atmosphere, hazardous
area, or classified area.
•Follow national, local, and plant standards to properly earth ground the
transmitter and sensor. The earth ground must be separate from the
process reference ground.
CAUTION!
•In cases where high voltage/high current are present near the meter
installation, ensure proper protection methods are followed to prevent
stray voltage/current from passing through the meter. Failure to
adequately protect the meter could result in damage to the transmitter
and lead to meter failure.
•Completely remove all electrical connections from both sensor and
transmitter prior to welding on the pipe. For maximum protection of the
sensor, consider removing it from the pipeline.
Quick Start Guide November 2017
2Rosemount 8712EM Transmitter with HART Protocol

2 Introduction
This document provides basic installation guidelines for the Rosemount
8712EM wall-mount transmitter.
•For sensor installation refer to the Rosemount® 8700 Magnetic Flowmeter
Sensor Quick Installation Guide
•For additional installation information, configuration, maintenance, and
troubleshooting, refer to the Rosemount® 8712EM Transmitter with HART
Protocol Reference Manual
All user documentation can be found at www.emerson.com. For more contact
information see Section 2.2.
2.1 Return policy
Emerson procedures must be followed when returning equipment. These
procedures ensure legal compliance with government transportation
agencies and help provide a safe working environment for Emerson
employees. Failure to follow Emerson procedures will result in your
equipment being refused delivery.
November 2017 Quick Start Guide
Quick Start Guide 3

2.2 Emerson Flow customer service
Email:
•Worldwide: [email protected]
•Asia-Pacific: [email protected]
Telephone:
North and South America Europe and Middle East Asia Pacific
United States 800 522 6277 U.K. 0870 240 1978 Australia 800 158 727
Canada +1 303 527
5200
The Nether-
lands
[phone]
666
New Zealand 099 128 804
Mexico [phone]
111
France 0800 917 901 India 800 440 1468
Argentina [phone]
7000
Germany 0800 182 5347 Pakistan 888 550 2682
Brazil [phone]
8000
Italy 8008 77334 China [phone]
9000
Venezuela [phone]
3446
Central & East-
ern
[phone]
111
Japan +81 3 5769
6803
Russia/CIS +7 495 981
9811
South Korea +82 2 3438
4600
Egypt 0800 000 0015 Singapore [phone]
Oman 800 70101 Thailand 001 800 441
6426
Qatar 431 0044 Malaysia 800 814 008
Kuwait 663 299 01
South Africa 800 991 390
Saudi Arabia 800 844 9564
UAE 800 0444 0684
Quick Start Guide November 2017
4Rosemount 8712EM Transmitter with HART Protocol

3 Pre-installation
Before installing the transmitter, there are several pre-installation steps that
should be completed to make the installation process easier:
•Identify options and configurations that apply to your application
•Set the hardware switches if necessary
•Consider mechanical, electrical, and environmental requirements
Note
Refer to the product reference manual for more detailed requirements.
Identify options and configurations
The typical transmitter installation includes a device power connection, a
4-20mA output connection, and sensor coil and electrode connections.
Other applications may require one or more of the following configurations
or options:
•Pulse output
•Discrete input/discrete output
•HART multidrop configuration
Hardware switches
The transmitter may have up to four user-selectable hardware switches.
These switches set the alarm mode, internal/external analog power, internal/
external pulse power, and transmitter security. The standard configuration
for these switches when shipped from the factory is as follows:
Hardware switch default settingsTable 3-1:
Setting Factory configuration
Alarm mode High
Internal/external analog power Internal
Internal/external pulse power External
Transmitter security Off
The analog power switch and pulse power switches are not available when
ordered with intrinsically safe output, ordering code B.
In most cases, it is not necessary to change the setting of the hardware
switches. If the switch settings need to be changed, refer to the product
reference manual.
November 2017 Quick Start Guide
Quick Start Guide 5

Be sure to identify any additional options and configurations that apply to the
installation. Keep a list of these options for consideration during the
installation and configuration procedures.
Mechanical considerations
The mounting site for the transmitter should provide enough room for
secure mounting, easy access to conduit entries, full opening of the
transmitter covers, and easy readability of the Local Operator Interface (LOI)
screen (if equipped).
Quick Start Guide November 2017
6Rosemount 8712EM Transmitter with HART Protocol

Rosemount 8712EM Dimensional DrawingFigure 3-1:
A
B
9.0
[229] 3.12
[79] 3.51
[89]
12.03
[306]
11.15
[283]
17.68
[449]
11.36
[289]
1.59
[40]
1.94
[49]
1.94
[49]
1.70
[43]
7.80
[198]
3.90
[99]
2.81
[71]
D
C
A. Conduit entry, 1/2-14 NPT (4 places)
B. Ground lug
C. LOI keypad cover
D. Lower cover opens for electrical connections
Note
Dimensions are in inches [Millimeters]
Electrical considerations
Before making any electrical connections to the transmitter, consider
national, local, and plant electrical installation requirements. Be sure to have
November 2017 Quick Start Guide
Quick Start Guide 7

the proper power supply, conduit, and other accessories necessary to comply
with these standards.
The transmitter requires external power. Ensure access to a suitable power
source.
Electrical DataTable 3-2:
Rosemount 8712EM Flow Transmitter
Power input AC power:
90–250VAC, 0.45A, 40VA
Standard DC power:
12–42VDC, 1.2A, 15W
Low power DC:
12–30VDC, 0.25A, 3W
Pulsed circuit Internally powered (Active): Outputs up to
12VDC, 12.1mA, 73mW
Externally powered (Passive): Input up to
28VDC, 100mA, 1W
4-20mA output circuit Internally Powered (Active): Outputs up to
25mA, 24VDC, 600mW
Externally Powered (Passive): Input up to
25mA, 30VDC, 750mW
Um 250V
Coil excitation output 500mA, 40V max, 9W max
Environmental considerations
To ensure maximum transmitter life, avoid extreme temperatures and
excessive vibration. Typical problem areas include the following:
•Tropical or desert installations in direct sunlight
•Outdoor installations in arctic climates
Remote mounted transmitters may be installed in the control room to
protect the electronics from the harsh environment and to provide easy
access for configuration or service.
Quick Start Guide November 2017
8Rosemount 8712EM Transmitter with HART Protocol

4 Mounting
Wall mount transmitters are shipped with mounting hardware for use on a 2-
in. pipe or flat surface.

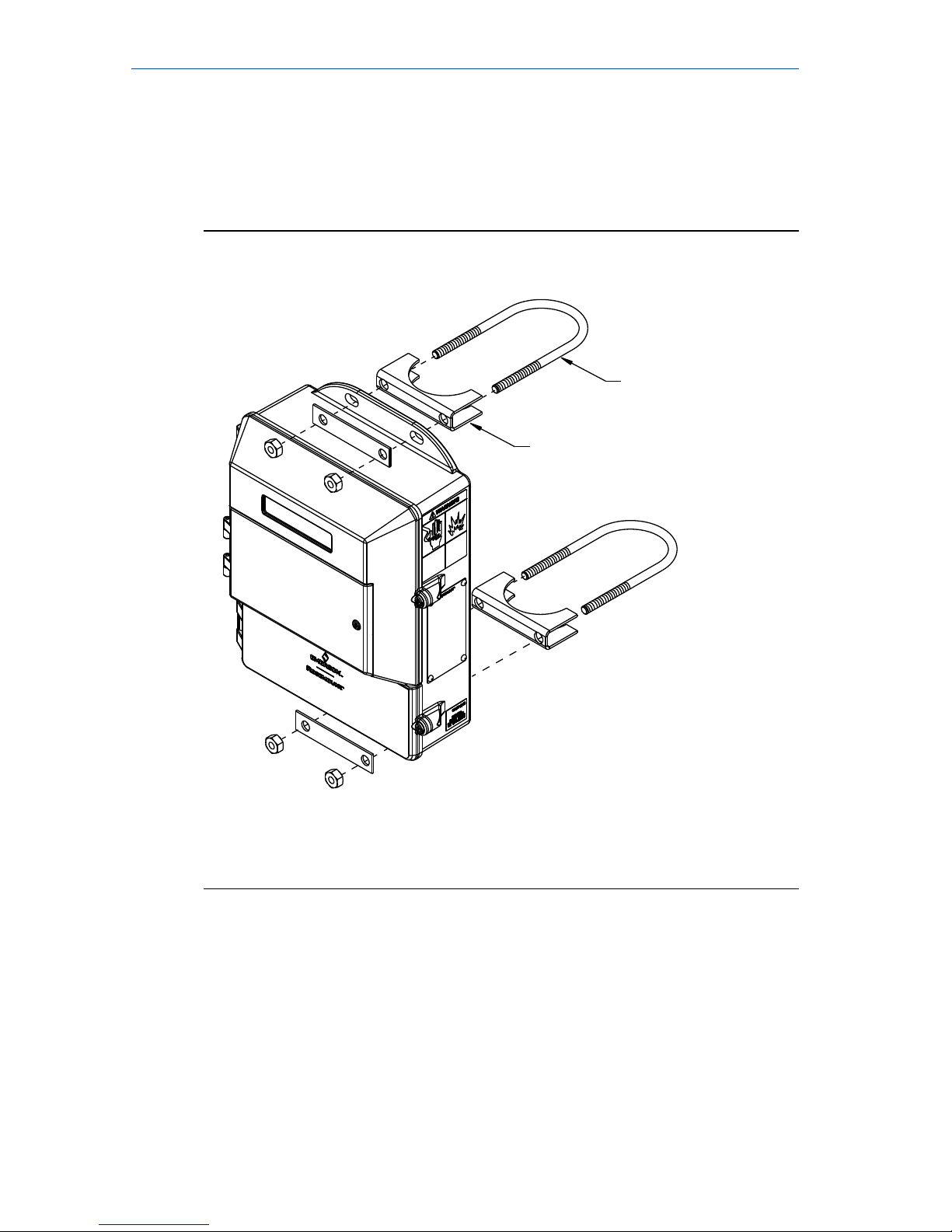

Mounting bracketFigure 4-1:
A
B
C
A. U-bolt
B. Saddle clamp
C. Fasteners
4.1 Pipe mounting
1. Attach the saddle clamp to the pipe using the U-bolt mounting hardware.
2. Attach the transmitter to the saddle clamp assembly with appropriate
fasteners.
November 2017 Quick Start Guide
Quick Start Guide 9

4.2 Surface mounting
Attach the transmitter to the mounting location using customer supplied
mounting screws. The installation of the transmitter shall be rated for four (4)
times the weight of the transmitter or 44lbs ( 20kgs).
Quick Start Guide November 2017
10 Rosemount 8712EM Transmitter with HART Protocol

5 Wiring
5.1 Conduit entries and connections
Transmitter conduit entries ports are ½"-14NPT as standard, M20 conduit
connections will use an adapter. Conduit connections should be made in
accordance with national, local, and plant electrical codes. Unused conduit
entries should be sealed with the appropriate certified plugs. The plastic
shipping plugs do not provide ingress protection.
5.2 Conduit requirements
•For installations with an intrinsically safe electrode circuit, a separate
conduit for the coil cable and the electrode cable may be required. Refer
to the product reference manual.
•For installations with non-intrinsically safe electrode circuit, or when
using the combination cable, a single dedicated conduit run for the coil
drive and electrode cable between the sensor and the remote transmitter
may be acceptable. Removal of the barriers for intrinsic safety isolation is
permitted for non-intrinsically safe electrode installations.
•Bundled cables from other equipment in a single conduit are likely to
create interference and noise in the system. See Figure 5-1.
•Electrode cables should not be run together in the same cable tray with
power cables.
•Output cables should not be run together with power cables.
•Select conduit size appropriate to feed cables through to the flowmeter.
November 2017 Quick Start Guide
Quick Start Guide 11

Best practice conduit preparationFigure 5-1:
AA
A
B
C D E
A. Safety ground
B. Power
C. Coil
D. Output
E. Electrode

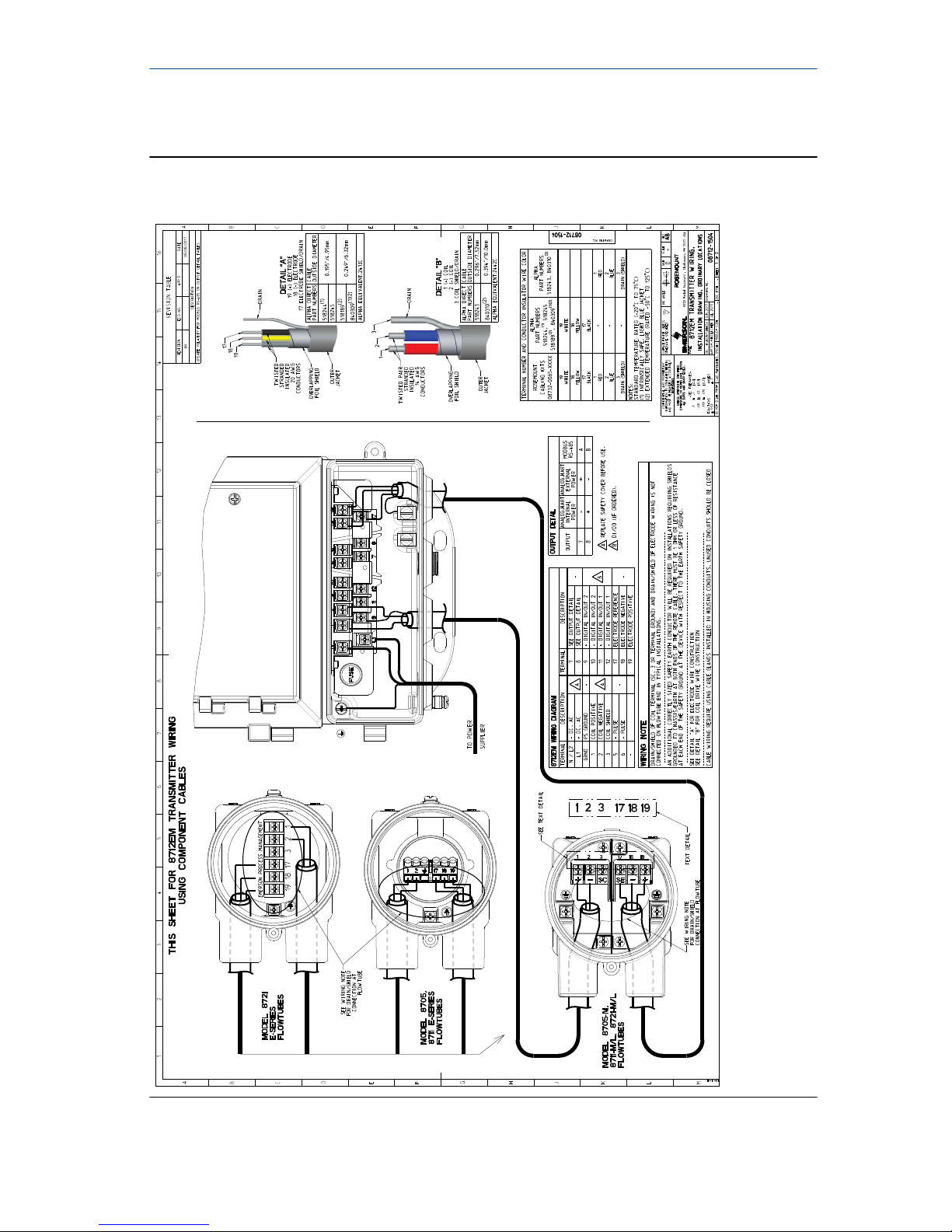

5.3 Sensor to transmitter wiring
Wiring details

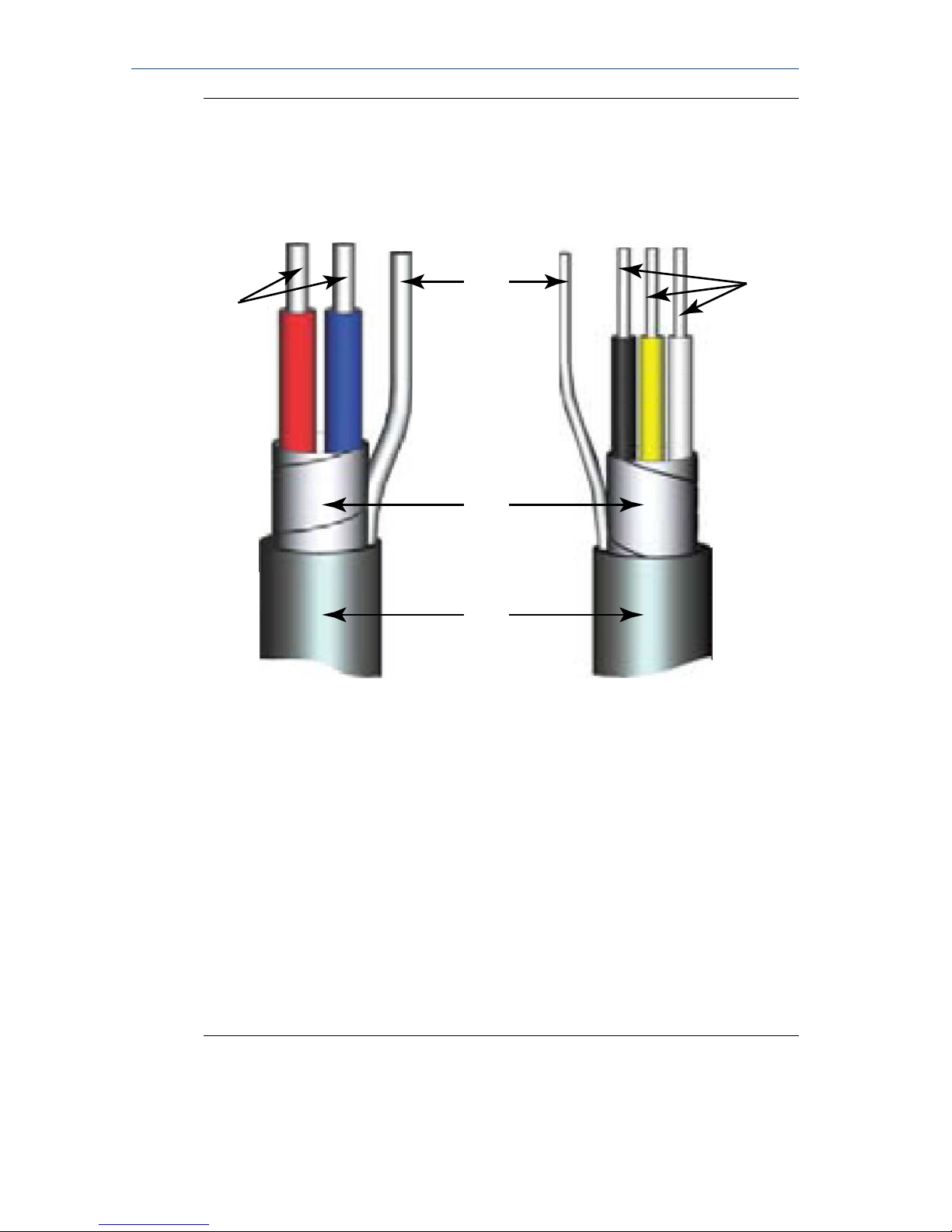

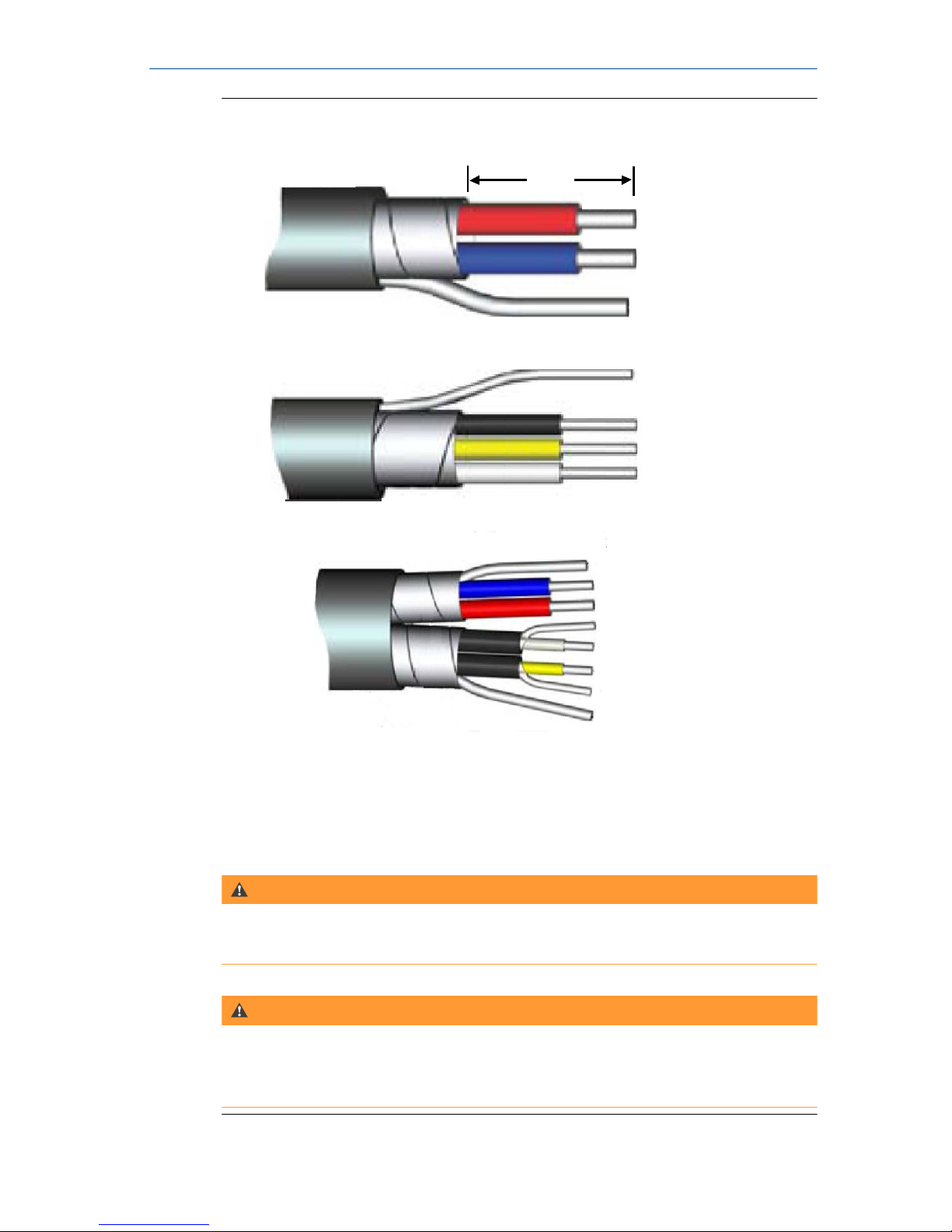

Cables kits are available as individual component cables or as a combination
coil/electrode cable. Remote cables can be ordered directly using the kit
numbers shown in Table 5-1, Table 5-2, and Table 5-3. Equivalent Alpha cable
part numbers are also provided as an alternative. To order cable, specify
length as quantity desired. Equal length of component cables is required.
Examples:
•25 feet = Qty (25) 08732-0065-0001
•25 meters = Qty (25) 08732-0065-0002
Quick Start Guide November 2017
12 Rosemount 8712EM Transmitter with HART Protocol

Component cable kits - standard temperature (-20°C to 75°C)Table 5-1:
Cable kit # Description Individual cable Alpha p/n
08732-0065-0001
(feet)
Kit, component ca-
bles, Std temp (in-
cludes Coil and Elec-
trode)
Coil
Electrode
2442C
2413C
08732-0065-0002
(meters)
Kit, component ca-
bles, Std temp (in-
cludes Coil and Elec-
trode)
Coil
Electrode
2442C
2413C
08732-0065-0003
(feet)
Kit, component ca-
bles, Std temp (in-
cludes Coil and I.S.
Electrode)
Coil
Instrinsically Safe Blue
Electrode
2442C
Not available
08732-0065-0004
(meters)
Kit, component ca-
bles, Std temp (in-
cludes Coil and I.S.
Electrode)
Coil
Instrinsically Safe Blue
Electrode
2442C
Not available
Component cable kits - extended temperature (-50°C to
125°C)
Table 5-2:
Cable kit # Description Individual cable Alpha p/n
08732-0065-1001
(feet)
Kit, Component Ca-
bles, Ext Temp. (in-
cludes Coil and Elec-
trode)
Coil
Electrode
Not available
Not available
08732-0065-1002
(meters)
Kit, Component Ca-
bles, Ext Temp. (in-
cludes Coil and Elec-
trode)
Coil
Electrode
Not available
Not available
08732-0065-1003
(feet)
Kit, Component Ca-
bles, Ext Temp. (in-
cludes Coil and I.S.
Electrode)
Coil
Intrinsically Safe Blue
Electrode
Not available
Not available
08732-0065-1004
(meters)
Kit, Component Ca-
bles, Ext Temp. (in-
cludes Coil and I.S.
Electrode)
Coil
Intrinsically Safe Blue
Electrode
Not available
Not available
Combination cable kits - coil and electrode cable (-20°C to
80°C)
Table 5-3:
Cable kit # Description
08732-0065-2001 (feet) Kit, Combination Cable, Standard
08732-0065-2002 (meters)
08732-0065-3001 (feet) Kit, Combination Cable, Submersible
(80°C dry/60°C Wet)
(33ft Continuous)
08732-0065-3002 (meters)
November 2017 Quick Start Guide
Quick Start Guide 13

Cable requirements
Shielded twisted pairs or triads must be used. For installations using the
individual coil drive and electrode cable, see Figure 5-2. Cable lengths should
be limited to less than 500 feet (152 m). Consult factory for length between
500–1000 feet (152–304 m). Equal length cable is required for each. For
installations using the combination coil drive/electrode cable, see Figure 5-3.
Combination cable lengths should be limited to less than 330 feet (100 m).
Quick Start Guide November 2017
14 Rosemount 8712EM Transmitter with HART Protocol

Individual component cablesFigure 5-2:
1 2 3317 18 19
DG
C
E
F
A B
A. Coil drive
B. Electrode
C. Twisted, stranded, insulated 14 AWG conductors
D. Drain
E. Overlapping foil shield
F. Outer jacket
G. Twisted, stranded, insulated 20 AWG conductors
•1 = Red
•2 = Blue
•3 = Drain
•17 = Black
•18 = Yellow
•19 = White
November 2017 Quick Start Guide
Quick Start Guide 15

Combination coil and electrode cableFigure 5-3:
1
2
319 18
17 17 A
B
C
A. Electrode shield drain
B. Overlapping foil shield
C. Outer jacket
•1 = Red
•2 = Blue
•3 = Drain
•17 = Reference
•18 = Yellow
•19 = White
Cable preparation
Prepare the ends of the coil drive and electrode cables as shown in Figure 5-4.
Remove only enough insulation so that the exposed conductor fits
completely under the terminal connection. Best practice is to limit the
unshielded length (D) of each conductor to less than one inch. Excessive
Quick Start Guide November 2017
16 Rosemount 8712EM Transmitter with HART Protocol

removal of insulation may result in an unwanted electrical short to the
transmitter housing or other terminal connections. Excessive unshielded
length, or failure to connect cable shields properly, may also expose the unit
to electrical noise, resulting in an unstable meter reading.
November 2017 Quick Start Guide
Quick Start Guide 17

Cable endsFigure 5-4:
A
B
C
D
A. Coil
B. Electrode
C. Combination
D. Unshielded length
WARNING!
Shock hazard! Potential shock hazard across remote junction box terminals 1 and
2 (40V).
WARNING!
Explosion hazard! Electrodes exposed to process. Use only compatible transmitter
and approved installation practices. For process temperatures greater than 284°F
(140°C), use a wire rated for 257°F (125°C).
Quick Start Guide November 2017
18 Rosemount 8712EM Transmitter with HART Protocol

Remote junction box terminal blocks
Remote junction box viewsFigure 5-5:
A
B
A. Sensor
B. Transmitter
Sensor/transmitter wiringTable 5-4:
Wire color Sensor terminal Transmitter terminal
Red 1 1
Blue 2 2
Shield 3 or Float 3
Black 17 17
Yellow 18 18
White 19 19
Note
For hazardous locations, refer to the product reference manual.
November 2017 Quick Start Guide
Quick Start Guide 19

5.4 Wiring diagrams
Wiring 8712EM using component cableFigure 5-6:
Quick Start Guide November 2017
20 Rosemount 8712EM Transmitter with HART Protocol
