Quick Start Guide
00825-0400-4702, Rev GE
April 2018
Rosemount™ 702 Wireless Discrete
Transmitter

About this guide
This manual supplement provides information on installing, operating, and maintaining the
Rosemount 702 Wireless Discrete Transmitter for plunger arrival detection. The table below lists
the variants of the Rosemount 702 transmitter; refer to the table if looking for documentation on
variants. Refer to the Rosemount 702 Reference Manual for more instruction. This guide and the
manual are available electronically on Emerson.com/Rosemount
Model
number Functionality Manual
702DX22
/32/42 Two channel discrete I/O Rosemount 702 Wireless Discrete Transmitter Refer‐ ence Manual
702DX61 One channel for Tyco TraceTek
liquid hydrocarbon leak detec-
tion
Rosemount 702 Wireless Discrete Transmitter Refer‐
ence Manual
702DX52 Discrete Transmitter for Plung-
er Arrival Detection Rosemount 702 Wireless Desicrete Transmitter Reference Manual Supplement
Product description
The Roseount 702 for plunger arrival detection is designe dto work with the ETC Cyclops plunger
arrival sensor (ET-11000). The transmitter provides power to the plunger arrival sensor, reads and
communication the sensor state via wirelessHART. Features of the Rosemount 702 Transmitter
include:
•Simple and easy installations proctices currently being used for robust installations
•Flexibility to meet your most demanding applications
•Sensor state latching for host system compatibility
•Provides poiwer to external plunger arrival sensor
•The integral LCD display conveniently displays the latched plunger sensor state,
power output state, and diagnostics of the transmitter
Quick Start Guide April 2018
2Rosemount 702 Wireless Discrete Transmitter

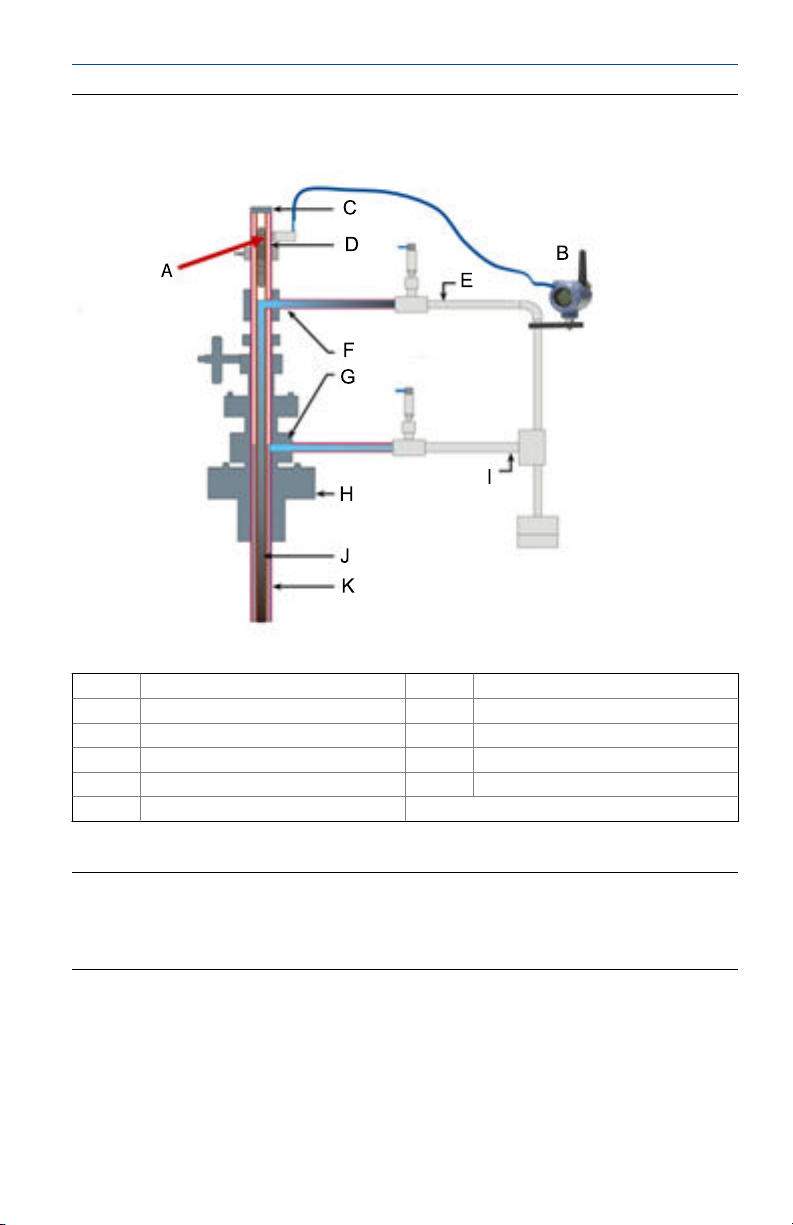

Rosemount 702 Transmitter for Plunger ArrivalFigure A-:
A Plunger Arrival Sensor (ETC Cyclops) G Lower Lubricator Outlet
B 702 Plunger Arrival H Well Casing
C Lubricator I Production gas
D Plunger J Well casing/production tube
E Wastewater K Well casing
F Upper Lubricator Outlet
Contents
Wireless considerations ................................ 4
Physical installation ...................................... 7
Device network configuration .....................14
Verify operation ..........................................16
Reference information: wiring switch inputs,
output circuits, and leak sensors .................20
Safety shower and eye wash
monitoring ................................................. 39
Product Certifications ................................. 42
Quick Start Guide April 2018
3Rosemount 702 Wireless Discrete Transmitter

1 Wireless considerations
1.1 Power up sequence
The Smart Wireless Gateway should be installed and functioning properly
before any wireless field devices are powered. Install the Black Power Module,
SmartPower™ Solutions model number 701PBKKF (part number
00753-9220-0001) into the Rosemount 702 Transmitter to power the
device. Wireless devices should be powered up in order of proximity from the
Gateway, beginning with the closest device, then working outward from the
Gateway. This results in a simpler and faster network installation. Enable
Active Advertising on the Gateway to ensure new devices are able to join the
network faster. For more information see the Emerson™ Wireless 1420
Gateway Reference Manual.

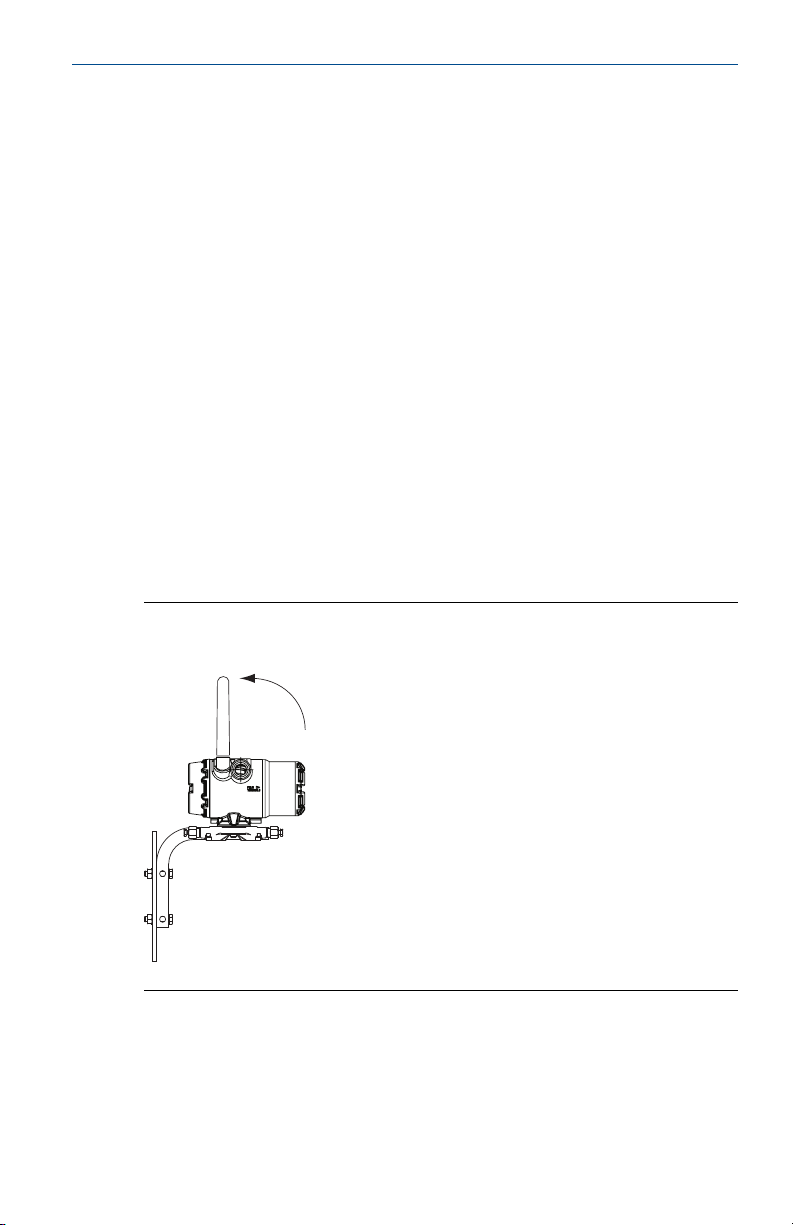

1.2 Antenna position
The antenna should be positioned vertically, either straight up or straight
down, and it should be approximately 3 ft. (1 m) from any large structure,
building, or conductive surface to allow for clear communication to other
devices.
Antenna PositionFigure 1-1:
Quick Start Guide April 2018
4Rosemount 702 Wireless Discrete Transmitter

1.3 Conduit entry
Upon installation, ensure each conduit entry is either sealed with a conduit
plug using approved thread sealant, or has an installed conduit fitting or
cable gland with appropriate threaded sealant. Note the conduit entries on
the Rosemount 702 Transmitter are threaded ½–14 NPT.
Conduit EntryFigure 1-2:
$$
A. Conduit entry

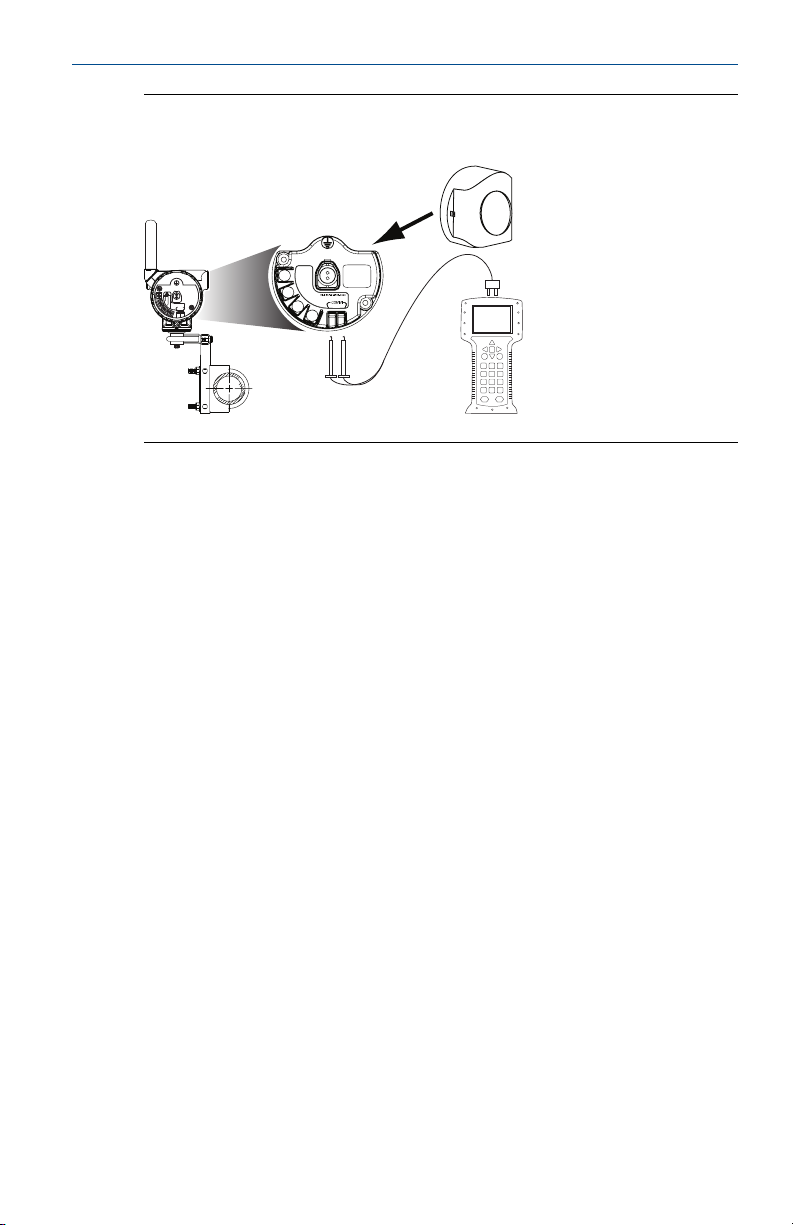

1.4 Field Communicator connections
The power module needs to be installed before the Field Communicator can
interface with the Rosemount 702 Transmitter. This transmitter uses the
Black Power Module; Order model number 701PBKKF or part number
00753-9220-0001.
April 2018 Quick Start Guide
Quick Start Guide 5

Connection DiagramFigure 1-3:
COMM
P/N00753-9200-0020
1
2
3
4
CH1 +
CMN
CH2 +
CMN
CH Input Mode:
Dry Contact Only
CH Output Mode:
26VDC Max
100mA Max
The Rosemount 702 Transmitter and all other wireless devices should not be
set up until after the Smart Wireless Gateway has been installed and is
functioning properly.
Quick Start Guide April 2018
6Rosemount 702 Wireless Discrete Transmitter

2 Physical installation
The Rosemount 702 Transmitter can be installed in one of two
configurations:
•Direct mount, where the switch is connected directly to the Rosemount
702 Transmitter housing’s conduit entry.
•Remote mount, where the switch is mounted separate from the
Rosemount 702 Transmitter housing, then connected to the Rosemount
702 Transmitter via conduit.
Select the installation sequence that corresponds to the mounting
configuration.

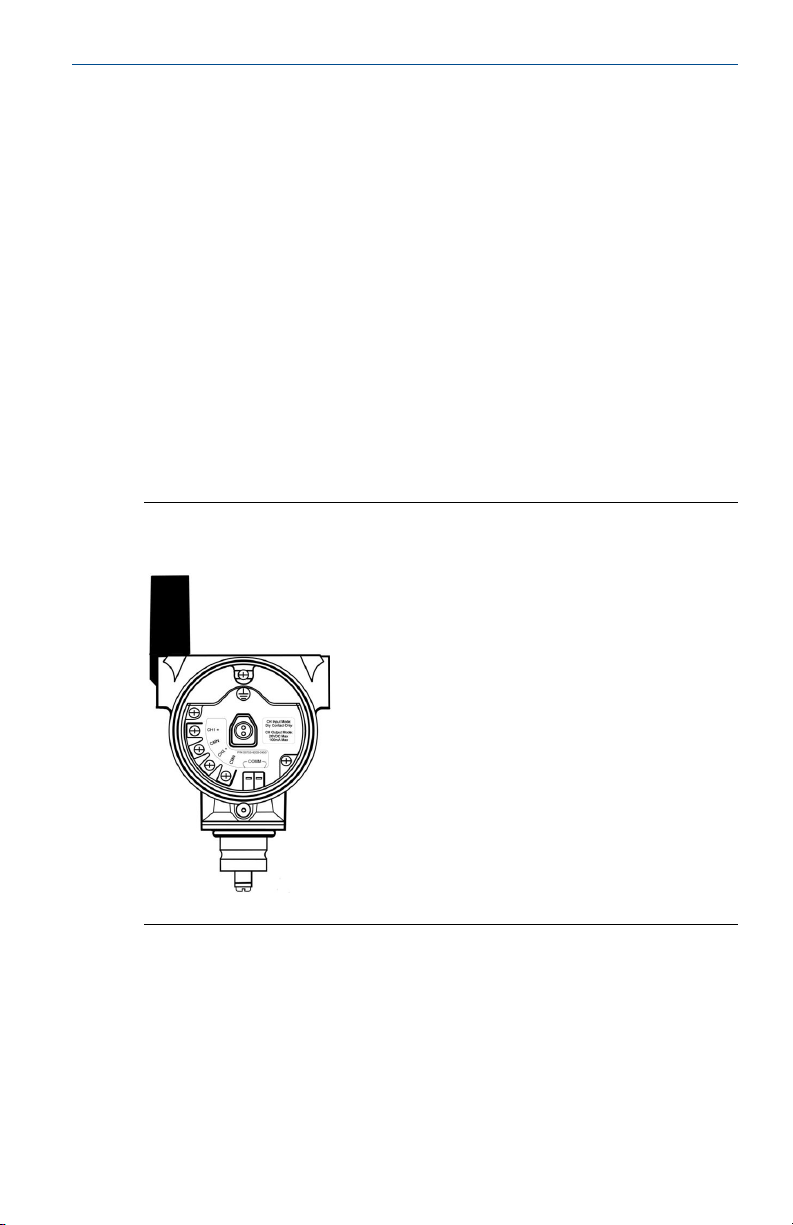

2.1 Direct mount
Note
Direct mount installation should not be employed when using tubing and
connectors such as Swagelok® fittings.
Direct MountFigure 2-1:
A. Rosemount 702 Transmitter
B. Float switch
April 2018 Quick Start Guide
Quick Start Guide 7

Procedure
1. Install the switch according to standard installation practices making sure
to use thread sealant on all connections.
2. Attach the Rosemount 702 Transmitter housing to the switch using the
threaded conduit entry.
3. Attach the switch wiring to the terminals as indicated on the wiring
diagram (see Chapter 5).
4. Connect the Black Power Module.
Note
Wireless devices should be powered up in order of proximity from the
Smart Wireless Gateway, beginning with the closest device to the
Gateway. This will result in a simpler and faster network installation.
5. Close the housing cover and tighten to safety specification. Always
ensure a proper seal so the metal touches metal, but do not over tighten.
6. Position antenna vertically, either straight up or straight down. The
antenna should be approximately 3 ft. (0.91 m) from any large structures
or buildings, to allow clear communication to other devices.
Quick Start Guide April 2018
8Rosemount 702 Wireless Discrete Transmitter

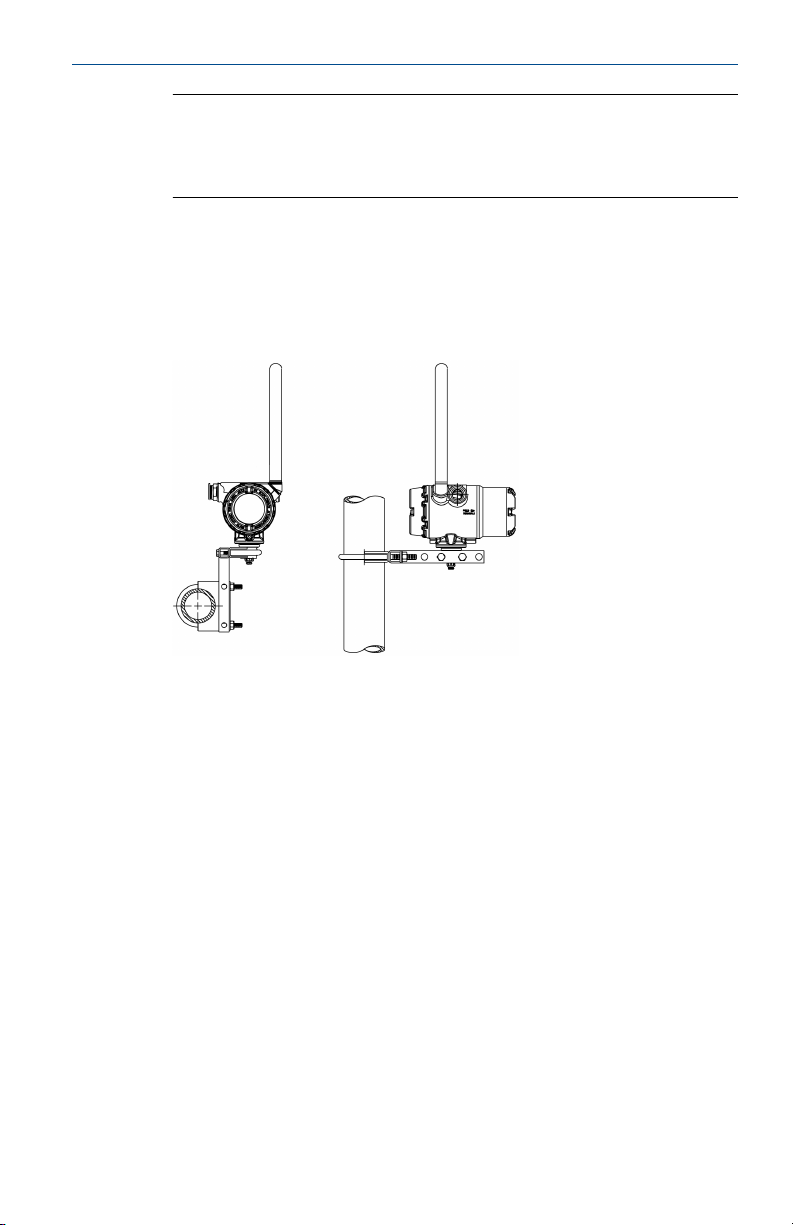

2.2 Remote mount
Remote MountFigure 2-2:
A. Rosemount 702 Transmitter
B. Float switch
Procedure
1. Install the switch according to standard installation practices making sure
to use thread sealant on all connections.
2. Run wiring (and conduit if necessary) from the switch to the Rosemount
702 Transmitter.
3. Pull the wiring through the threaded conduit entry of the Rosemount 702
Transmitter.
4. Attach the switch wiring to the terminals as indicated on the wiring
diagram (see Chapter 5).
5. Connect the black power module.
April 2018 Quick Start Guide
Quick Start Guide 9

Note
Wireless devices should be powered up in order of proximity from the
Smart Wireless Gateway, beginning with the closest device to the
gateway. This will result in a simpler and faster network installation.
6. Close the housing cover and tighten to safety specification. Always
ensure a proper seal so the metal touches metal, but do not over tighten.
7. Position antenna vertically, either straight up or straight down. The
antenna should be approximately 3 ft. (0.91 m) from any large structures
or buildings, to allow clear communication to other devices.
2.3 High gain, remote antenna (optional)
The high gain, remote antenna options provide flexibility for mounting the
Rosemount 702 Transmitter based on wireless connectivity, lightning
protection, and current work practices.
Quick Start Guide April 2018
10 Rosemount 702 Wireless Discrete Transmitter

Rosemount 702 Transmitter with High Gain, Remote
Antenna
Figure 2-3:
2.3.1 Install the high gain, remote antenna (WN option)
Prerequisites
Find a location where the remote antenna has optimal wireless performance.
Ideally this will be 15–25 ft. (4.6–7.6 m) above the ground or 6 ft. (2 m)
above obstructions or major infrastructure.
April 2018 Quick Start Guide
Quick Start Guide 11

WARNING!
When installing remote mount antennas for the Rosemount 702 Transmitter,
always use established safety procedures to avoid falling or contact with
high-power electrical lines.
Install remote antenna components for the Rosemount 702 Transmitter in
compliance with local and national electrical codes and use best practices for
lightning protection.
Before installing, consult with the local area electrical inspector, electrical
officer, and work area supervisor.
The Rosemount 702 Transmitter remote antenna option is specifically
engineered to provide installation flexibility while optimizing wireless
performance and local spectrum approvals. To maintain wireless
performance and avoid non-compliance with spectrum regulations, do not
change the length of cable or the antenna type.
If the supplied remote mount antenna kit is not installed per these
instructions, Emerson is not responsible for wireless performance or non-
compliance with spectrum regulations.
Procedure
1. Mount the antenna on a 1.5 to 2-in. pipe mast using the supplied
mounting equipment.
2. Connect the lightning arrestor directly to the top of the Rosemount 702
Transmitter.
3. Install the grounding lug, lock washer, and nut on top of lightning
arrestor.
4. Connect the antenna to the lightning arrestor using the supplied
LMR-400 coaxial cable ensuring the drip loop is not closer than 1 ft. (0.3
m) from the lightning arrestor.
5. Use the coaxial sealant to seal each connection between the wireless field
device, lightning arrestor, cable, and antenna.
Note
The remote mount antenna kit includes coaxial sealant for
weatherproofing the cable connections for the lightning arrestor,
antenna, and Rosemount 702 Transmitter. Coaxial sealant must be
applied to guarantee performance of the wireless field network. See
Figure 2‐4 for details on how to apply coaxial sealant.
Quick Start Guide April 2018
12 Rosemount 702 Wireless Discrete Transmitter

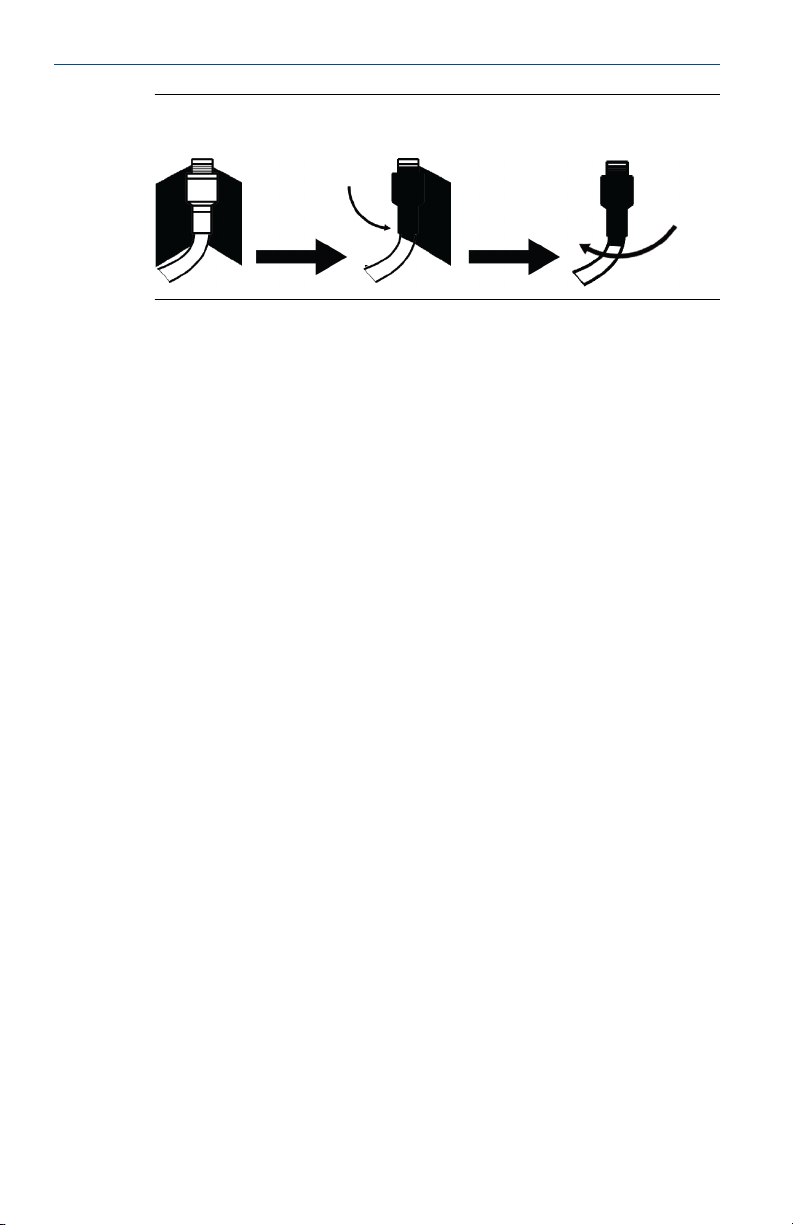

Applying Coaxial Sealant to Cable ConnectionsFigure 2-4:
6. Ensure the mounting mast and lightning arrestor are grounded according
to local/national electrical code.
Any spare lengths of coaxial cable should be placed in 12-in. (0.3 m) coils.
April 2018 Quick Start Guide
Quick Start Guide 13

3 Device network configuration
In order to communicate with the Smart Wireless Gateway, and ultimately
the host system, the transmitter must be configured to communicate with
the wireless network. This step is the wireless equivalent of connecting wires
from a transmitter to the information system. Using a Field Communicator or
AMS Wireless Configurator, enter the Network ID and Join Key so they match
the Network ID and Join Key of the Gateway and other devices in the
network. If the Network ID and Join Key do not match that of the Gateway,
the Rosemount 702 Transmitter will not communicate with the network. The
Network ID and Join Key may be obtained from the Smart Wireless Gateway
on the Setup Network Settings page on the web interface, shown in
Figure 3‐1.

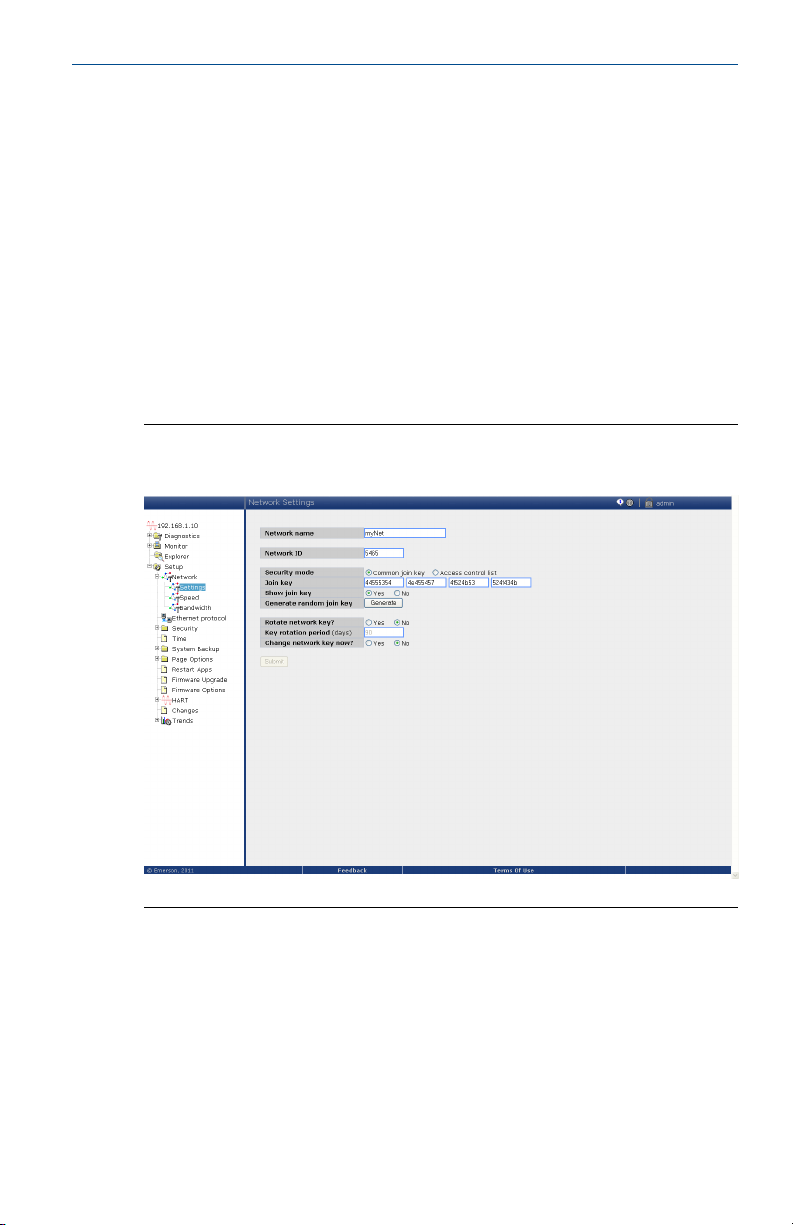

Gateway Network SettingsFigure 3-1:
3.1 AMS Wireless Configurator
1. Right click on the Rosemount 702 Transmitter.
2. Select Configure.
3. When the menu opens, select Join Device to Network.
4. Follow the method to enter the Network ID and Join Key.
Quick Start Guide April 2018
14 Rosemount 702 Wireless Discrete Transmitter

3.2 Field Communicator
The Network ID and Join Key may be changed in the wireless device by using
the following Fast Key sequence. Set both Network ID and Join Key.
Function Fast Key sequence Menu items
Wireless setup 2,2,1 Network ID, Join Device to Network
April 2018 Quick Start Guide
Quick Start Guide 15

4 Verify operation
There are four ways to verify operation: using the optional local display (LCD),
using the Field Communicator, using the Smart Wireless Gateway’s
integrated web interface, or by using AMS Suite Wireless Configurator. If the
Rosemount 702 Transmitter was configured with the Network ID and Join
Key, and sufficient time has passed, the transmitter will be connected to the
network.
4.1 Local display
4.1.1 Start-up sequence
When the Rosemount 702 Transmitter is first powered up, the LCD display
will display a sequence of screens: All Segments On, Device Identification,
Device Tag, and then the user chosen variables of the periodic display.
During steady state operation, the LCD display gives a periodic display of user
chosen variables at the configured wireless update rate. These variables can
be selected from a list of six:
•Channel 1 State
•Channel 1 Count
•Channel 2 State
•Channel 2 Count
•Electronics Temperature
•Supply Voltage
Refer to the Rosemount 702 Reference Manual for error codes and other LCD

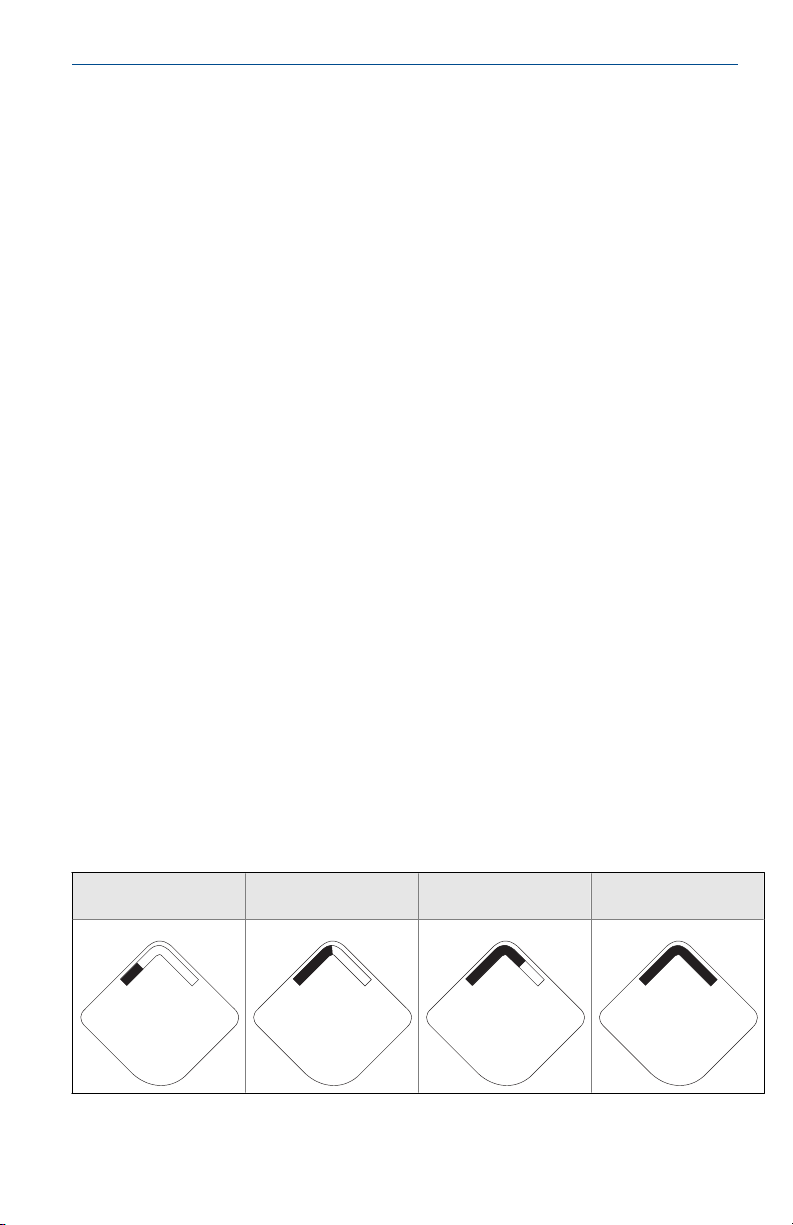

display messages. The chevron-shaped status bar at the top of the screen
indicates the progress of the network join process. When the status bar is
filled, the device is successfully connected to the wireless network.
Searching for network Joining network
Connected with limited
bandwidth Connected
N E T w K
S R C H N G
n e t w k
N E G O T
n e t w k
L I M -O P
n e t w k
O K
Quick Start Guide April 2018
16 Rosemount 702 Wireless Discrete Transmitter

4.2 Field Communicator
For HART® Wireless transmitter communication, a Rosemount 702
Transmitter DD is required.To obtain the latest DD, visit the Emerson Easy
Upgrade site at: Emerson.com/Device‐Install‐Kits.
Function Key sequence Menu items
Communications 3, 3 Join Status, Wireless Mode, Join Mode, Number of Available
Neighbors, Number of Advertisements Heard, Number of
Join Attempts
4.3 Smart Wireless Gateway
In the Gateway’s integrated web server, navigate to the Explorer page. This
page shows whether the device has joined the network and is
communicating properly.
Note
It may take several minutes for the device to join the network.
Note
If the device joins the network and immediately has an alarm present, it is
likely caused by the sensor configuration. Check the sensor wiring (see
Figure 5‐1) and the sensor configuration (see Table 5‐6).
April 2018 Quick Start Guide
Quick Start Guide 17

Smart Wireless Gateway Explorer PageFigure 4-1:
4.4 AMS Wireless Configurator
When the device has joined the network, it will appear in AMS Wireless
Configurator as illustrated below.
AMS Wireless Configurator, Device Explorer ScreenFigure 4-2:
Quick Start Guide April 2018
18 Rosemount 702 Wireless Discrete Transmitter

4.5 Troubleshooting
If the device is not joined to the network after power up, verify the correct
configuration of the Network ID and Join Key, and that Active Advertising has
been enabled on the Smart Wireless Gateway. The Network ID and Join Key in
the device must match the Network ID and Join Key of the Gateway.
Procedure
1. From the Gateway's integrated web interface, select Setup Network
Settings to obtain the Network ID and Join Key (see Figure 4‐3).
Gateway Network SettingsFigure 4-3:
2. To change the Network ID and Join Key in the wireless device, use a Field
Communicator and enter the following Fast Key sequence.
Function Fast Key sequence Menu items
Wireless 2, 1, 1 Join Device to Network
3. Follow the on screen prompts.
April 2018 Quick Start Guide
Quick Start Guide 19

5 Reference information: wiring switch inputs,
output circuits, and leak sensors
5.1 Dry contact switch inputs
The Rosemount 702 Transmitter has a pair of screw terminals for each of two
channels, and a pair of communication terminals. These terminals are labeled
as follows:
CH1+: Channel one positive
CMN: Common
CH2+: Channel two positive
CMN: Common
COMM: Communication
Rosemount 702 Transmitter TerminalFigure 5-1:
5.2 Wireless output specifications
5.2.1 Dual input
The Rosemount 702 Transmitter will accept the input from one or two single
pole single throw switches on inputs CH1 and CH2. The wireless output of
the transmitter will be both a primary variable (PV) and a secondary variable
Quick Start Guide April 2018
20 Rosemount 702 Wireless Discrete Transmitter
