EMG EXG Service manual

0.025 LOG FREQ (kHz) 10
Dimensions:
.800
1.050
EXG
SPECIFICATIONS
Input Impedance (Ohms) 250K
Input Referred Noise -130dbV
Output Impedance (Ohms) 2K
Current @ 9V (Microamps) 750
Battery Life (Hours) 200
Maximum Supply (Volts DC) 18
INSTALLATION INFORMATION
EMG MODEL: EXG
(ACTIVE/PASSIVE PICKUP INPUTS)
Warranty
All EMG Pickups and accessories are warranted for a period of two years. This warranty does not cover failure due to improper installation, abuse or damage. If
upon examination the pickup is determined to be defective, a replacement will be made. Warranty replacement products are covered by this same warranty. This
© 2014 Copyright EMG INC. All Rights Reserved.
PO BOX 4394
SANTA ROSA, CA
95402 USA
P [phone]
F [phone]
EMGPICKUPS.COM
0230-0164rB
Frequency Response:
EMG-EXG
1.325
.400 .309 (8mm P .75)
GENERAL OPERATION:
The EXG is an active EQ circuit for guitar that simultaneously increases both low and high frequencies while decreasing mid-range.
The graph below illustrates the effect of the EXG. The thick black line displays the effect with the control all the way up (clockwise).
The flat black line illustrates the effect with the control all the way down (counter-clockwise) in the bypass mode. The EXG is continuously
variable from flat to maximum effect. The EXG is wired in series with the signal path, so there is an input and output.
The EXG has buffered inputs and can be used with passive pickups.
Connector for EMG Active Tone controls
and accessories.
Pin 1 Input
Pin 2 Ground for Input
Pin 3 Ground for Output
Pin 4 Output
Pin 5 V+ Supply
1 2 3 4 5
INCLUDED:
1 EXG Control
1 Battery Clip with Buss Connector
1 Stereo Output Jack (Battery Switching)
2 Interconnect cables
10 dB/div
1
2
3
4
5

- 9V +
NECK
VOLUME
OUTPUT
T
R
S
OUTPUT CABLE
BRIDGE
VOLUME
NOTE REVERSED
CONNECTOR!
BATTERY
BUSS
BRIDGE PICKUP
NECK PICKUP
EXG
CONTROL
Diagram #4
Volume / Volume
EXB Control
VOLUME
B122rH
TONE
B124rH
VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
MASTER
TONE
Like all EMG Accessory products the EXG uses the 5-pin header as a standard.
Diagram #1 to the right shows how the plug-in connectors are installed.
Be sure to reverse the input connector as shown.
Since there are a variety of installations in which the EXG can be installed it
is impossible to show every installation in this data sheet. Some of the simpler
installations have been chosen. More diagrams are available at our website
http://www.emgpickups.com.
Diagrams #2 and #3 illustrate installations that have a single pickup and
do not use a selection switch.
Page 3 has diagrams that have 2 pickups and a selection switch.
Page 4 has diagrams that have 3 Pickups and use the B161 five-position
selection switch/buss. If you have the B161, refer to that data sheet where
more options regarding 3-pickup instruments are available.
Keep in mind that all of the EMG Accessory controls can be substituted for one
another since they all have buffered inputs and utilize the same 5-pin connnector.
So, if you decide you would rather use the SPC instead of the EXG, simply unplug
the EXG and replace it with the SPC.
Installation Instructions:
EMG Model: EXG
EXG Page 2
Diagram #1
Note: Reversed connector! Pins 1 and 2 are reversed.
Make sure the connectors are plugged on as shown.
All of the EMG Active controls use the same 5-pin connector
shown below.
Diagram #2
One Pickup
One Volume
One EXB
OUTPUT
T
R
S
FROM PICKUP
BATTERY
NEG (-)
RED
RED
BATTERY
BUSS
OUTPUT CABLE
MASTER
VOLUME
- 9V +
EXG Control
RED
MASTER TONE
(PASSIVE)
Diagram #3
One Pickup
One Volume
One Master Tone (Passive)
One EXB
OUTPUT
T
R
S
FROM PICKUP
BATTERY
NEG (-)
RED
RED
BATTERY
BUSS
OUTPUT CABLE
- 9V +
EXG Control
RED
NOTE:
REVERSED CONNECTOR
NOTE:
REVERSED CONNECTOR
MASTER
VOLUME

VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
VOLUME
B122rH
TONE
B124rH
RED
RED
RED
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
RED
GROUND
BRIDGE P/U
NECK P/U
OUTPUT
EXG Page 3
2 Pickup Guitars using a selection switch:
Diagrams #4 and #5 show the pickups connected to the B245 Pickup Buss.
To learn more about the B245 Pickup Buss, be sure to go to the EMG Website:
http://www.emgpickups.com. More diagrams are available at the EMG website.
The EXG or any EMG Active Tone Control is shown following the pickup buss
and then to the output jack. A master volume could easily follow the SPC
before the output jack.
MASTER
TONE
Diagram #5
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
EXG Control
OUTPUT
T
R
S
NK VOLUME
NECK PICKUP
BRIDGE PICKUP
BR VOLUME
BATTERY
NEG (-)
OUTPUT CABLE
NOTE:
REVERSED CONNECTOR
- 9V +
EXG
CONTROL
Diagram #6
2 Pickups
Toggle Style Switch
Volume each Pickup (Volumes are independent)
Passive Tone
EXG Control
OUTPUT
T
R
S
NK VOLUME
NECK PICKUP
BRIDGE PICKUP
BR VOLUME
BATTERY
NEG (-)
OUTPUT CABLE
NOTE:
REVERSED CONNECTOR
- 9V +
EXG
CONTROL

VOLUME CONTROL
Diagram #7
Volume Control
EXG Control
Tone (Passive)
TONE CONTROL
(PASSIVE)
EXG CONTROL
OUTPUT TO JACK
VOLUME CONTROL
Diagram #9
Volume Control
EXG Control
Tone (Active VLPF)
TONE CONTROL
(ACTIVE VLPF)
EXG CONTROL
OUTPUT TO JACK
NOTE:
REVERSED CONNECTOR
NOTE:
REVERSED CONNECTORS
VOLUME CONTROL
Diagram #8
Tone Control (Passive)
EXG Control
Volume Control
TONE CONTROL
(PASSIVE)
EXG CONTROL
OUTPUT TO JACK
NOTE:
REVERSED CONNECTOR

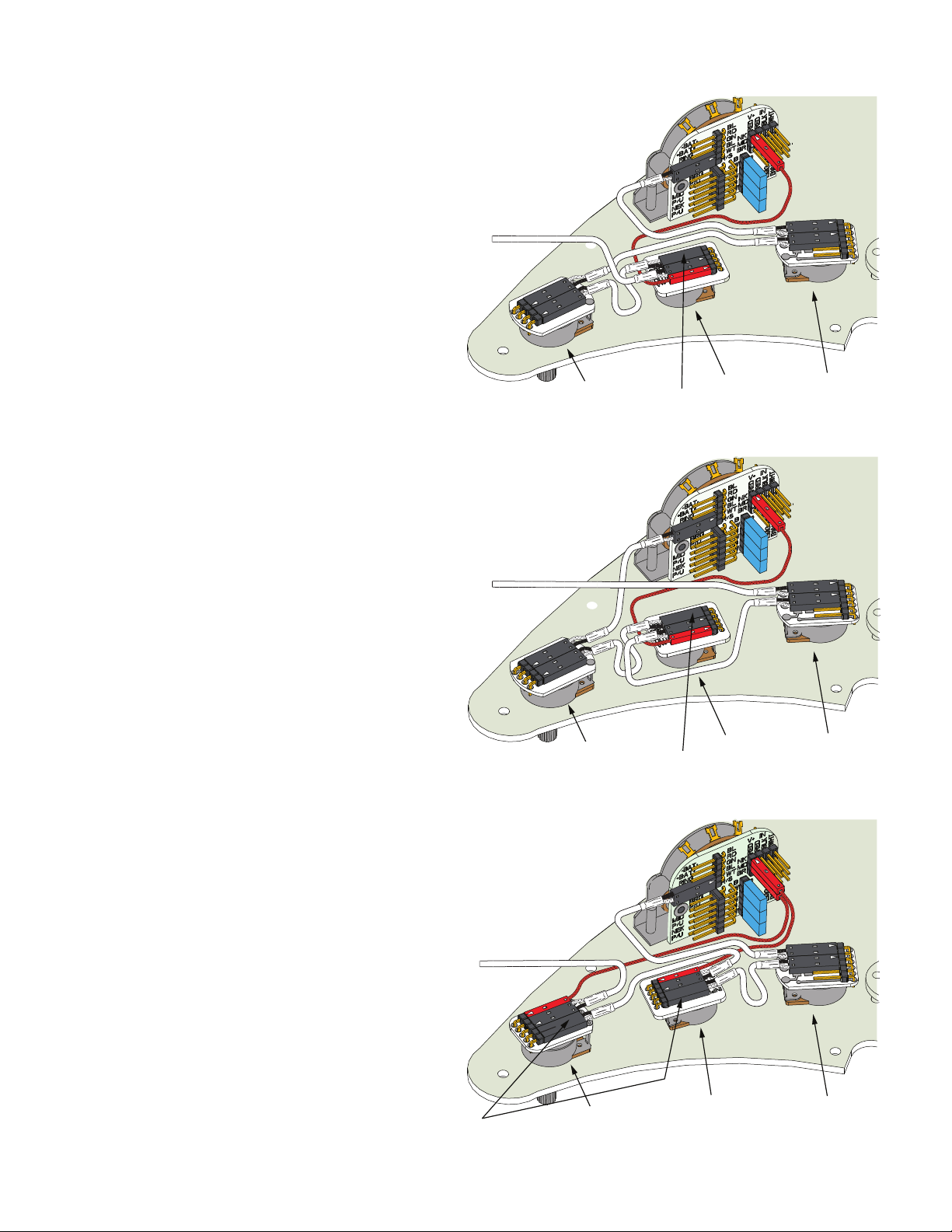

3 Pickup Guitars using a selection switch:
The EXG Control is larger than EMG’s other accessories, so it is shown
installed in Strat* installations in the middle control position with the tone
control shown in the last control position.
Diagrams #7, #8, and #9 show a typical installation with a Volume/Tone/EXG in a
“daisy-chain” series wiring. The only difference between the the diagrams
is the order in which the controls are wired. All diagrams yield the same
results. The diagrams have been edited to show the EXG input, output,
and power (9V+). The pickup inputs, battery, and “ring”contact to the jack
have been omitted for clarity.
All diagrams also show the B161 5-Position switch buss. To learn more
about the B161 5-Position switch Buss, go to the EMG Website:
http://www.emgpickups.com.
Refer to Diagram #6
Start by installing the EXG as shown in Diagram #7.
1) Plug a coax cable from the switch output to the Volume control.
2) Plug a coax cable from the Volume control to the Tone control.
3) Plug a coax cable from the Tone control to the input of the EXG.
Be sure to reverse the connector on the input of the EXG as shown.
4) Plug the output cable from the EXG to the output jack.
5) Plug the Red wire from the EXG to one of the supply pins on the
B161 Switch Buss.
Be sure the 3 shunts are installed on the bypass header of the
B161 switch or you won’t get any output from the guitar.
Refer to Diagram #7
Start by installing the EXG as shown in Diagram #8.
1) Plug a coax cable from the switch output to the Tone control.
2) Plug a coax cable from the Tone control to the input of the EXG.
Be sure to reverse the connector on the input of the EXG as shown.
3) Plug a coax cable from the output of the EXG to the Volume control.
4) Plug the output cable from the Volume control to the output jack.
5) Plug the Red wire from the EXG to one of the supply pins on the
B161 Switch Buss.
Be sure the 3 shunts are installed on the bypass header of the
B161 switch or you won’t get any output from the guitar.
Refer to Diagram #8
Diagram #8 shows 2 active controls installed. This would be
similar to the X Series Pickups that use an active tone (VLPF)
and adding the EXG Control.
Start by installing the EXG as shown in Diagram #9.
1) Plug a coax cable from the switch output to the Volume control.
2) Plug a coax cable from the Volume control to the input of the EXG.
Be sure to reverse the connector on the input of the EXG as shown.
3) Plug a coax cable from the output of the EXG to the input of the VLPF.
Be sure to reverse the connector on the input of the VLPF as shown.
4) Plug the output cable from the VLPF to the output jack.
5) Plug the Red wires from both the VLPF and EXG to the extra 9V+
supply pins on the B161 Switch Buss.
Be sure the 3 shunts are installed on the bypass header of the
B161 switch or you won’t get any output from the guitar.
EXG Page 4 *Strat is a registered trademark of FMIC
