Empire Comfort Systems DVLXB55BP90N-1 Assembly instructions

INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
HOT GLASS WILL CAUSE
BURNS.
DO NOT TOUCH GLASS UNTIL
COOLED.
NEVER ALLOW CHILDREN TO
TOUCH GLASS.
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could
result in serious injury, death, or property
damage.
-Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any other
appliance.
-What to do if you smell gas:
• Do not try to light the appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the
fire department.
-Installation and service must be performed by a
qualified installer, service agency, or the gas supplier.
This appliance may be installed in an
aftermarket, permanently located,
manufactured home (USA only) or
mobile home, where not prohibited by
local codes.
This appliance is only for use with the
type of gas indicated on the rating plate.
This appliance is not convertible for use
with other gases, unless a certified kit is
used.
www.nficertified.org
We suggest that our gas hearth
products be installed and serviced
by professionals who are certified
in the U.S. by the National
Fireplace Institute (NFI) as NFI
Gas Specialists.
DIRECT VENT ZERO CLEARANCE
GAS FIREPLACE HEATER MODELS:
DVLXB55BP90N1 / DVLXB55SP90N1
INSTALLER GUIDE
MH63830
This fireplace is design certified in accordance
with American National Standard/CSA Standard
ANSI Z21.88/CSA 2.33 and by Underwriters
Laboratories as a Direct Vent Gas Fireplace
Heater and shall be installed according to these
instructions.
630537_1

Important Safety Information 3
Introduction 8
Before You Start 10

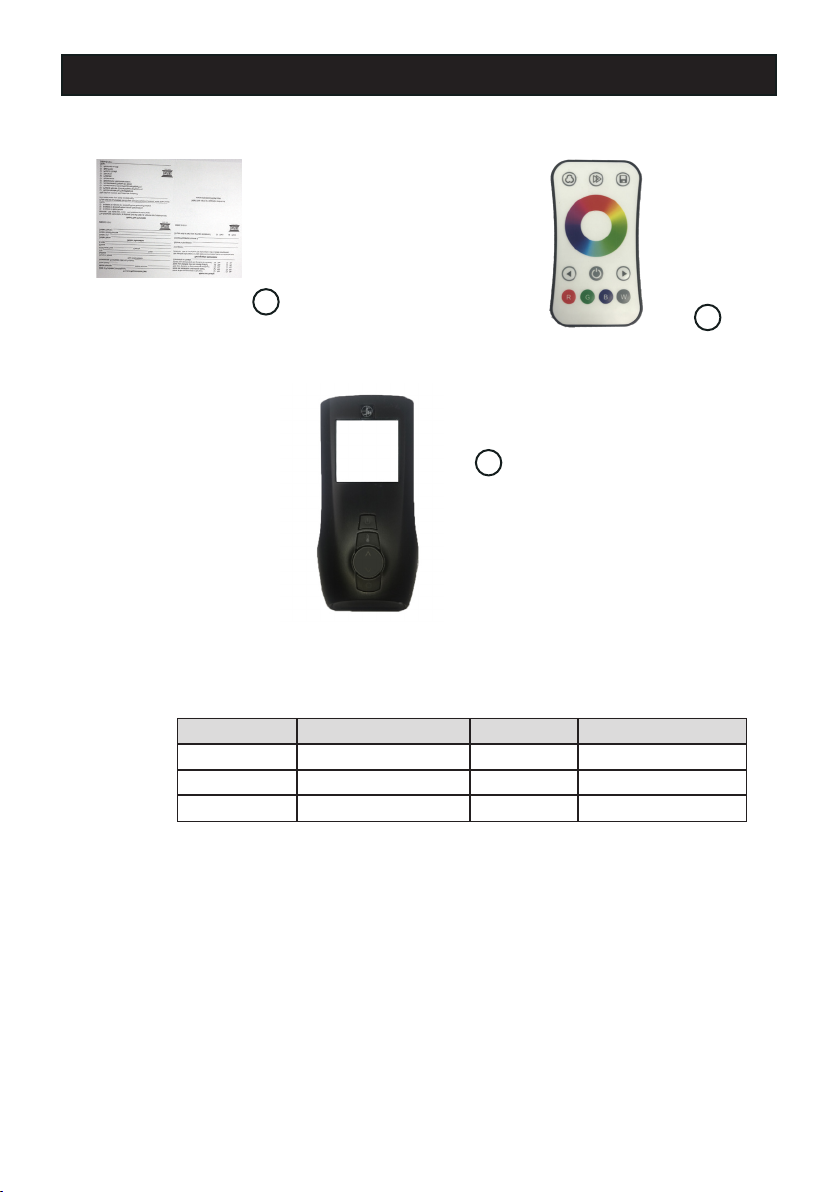

Carton Contents and Hardware Pack 12
Specifications 13

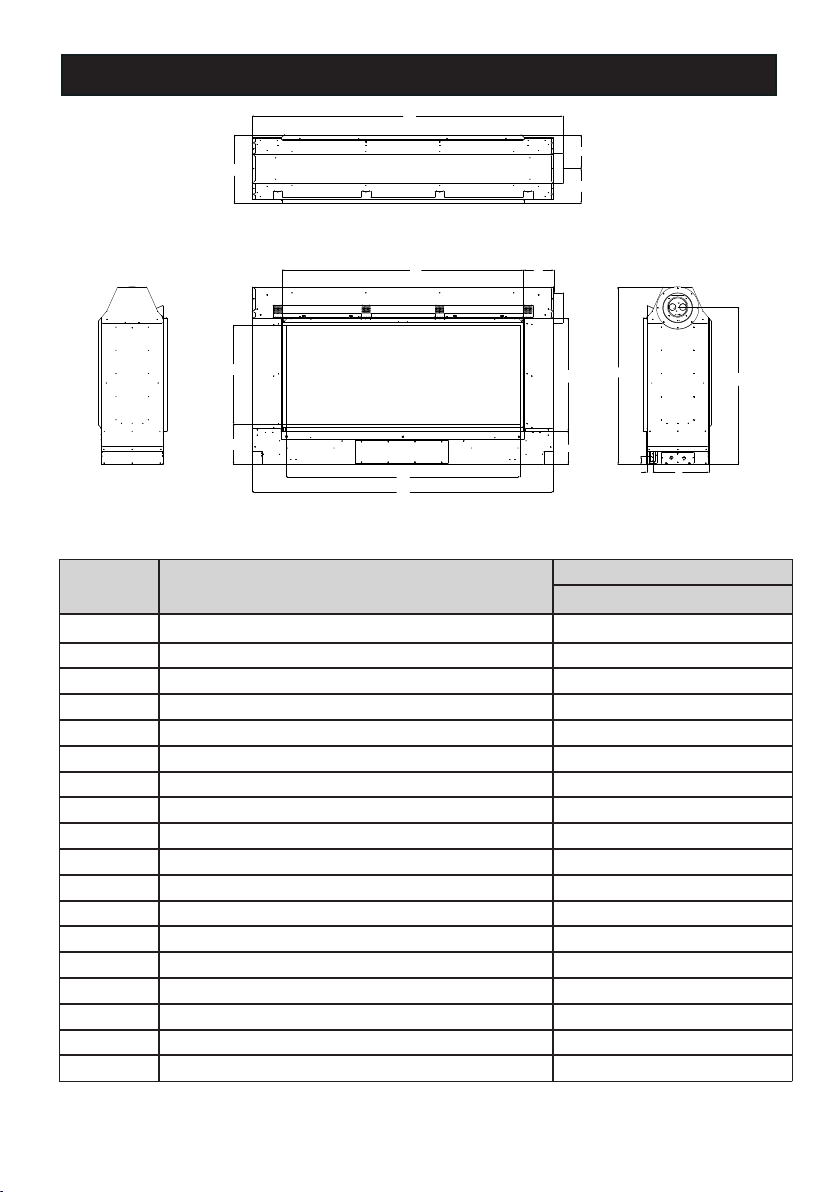

Fireplace Dimensions DVLXB55BP90N (SINGLE SIDED) 14
Fireplace Dimensions DVLXB55SP90N (DOUBLE SIDED) 15
Locating Fireplace 16

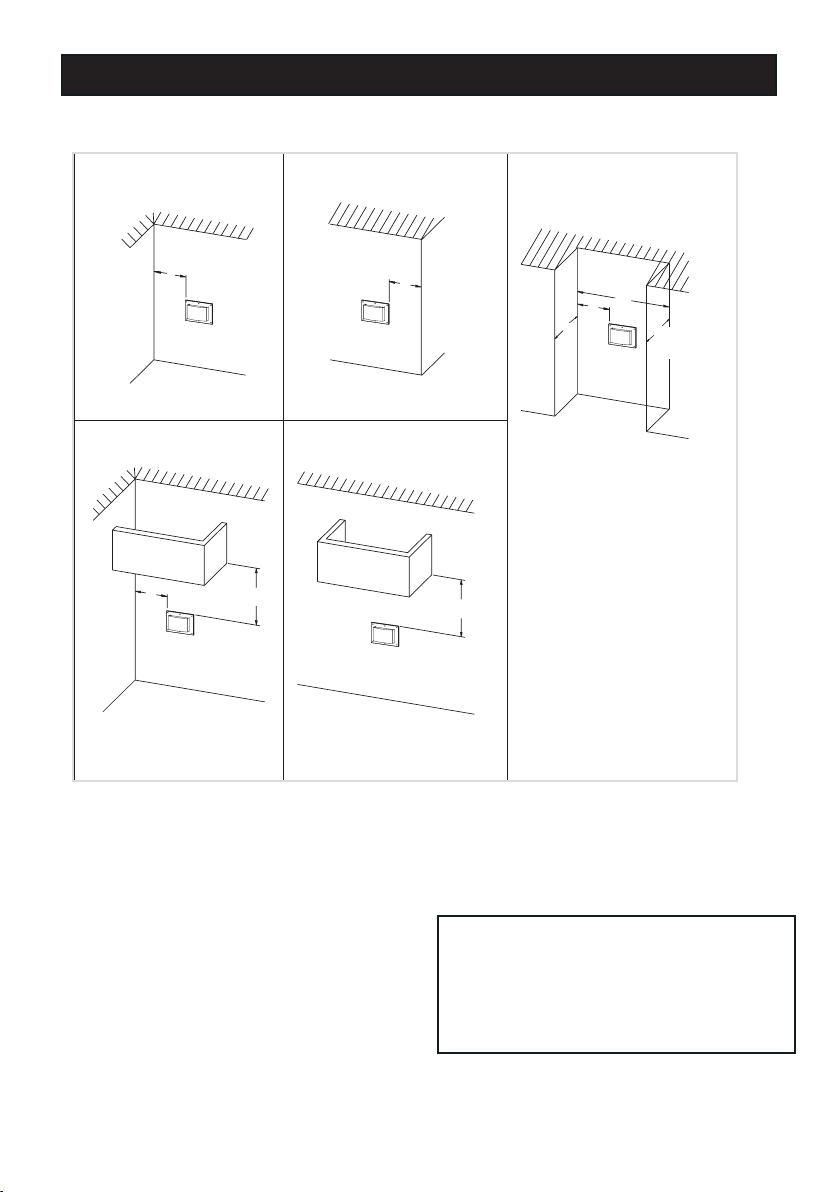

Clearances 17
Vent Termination Clearances 18
Gas Supply 20
Electrical Connections 22
Installation 23
Vent Framing and Finishing 27
Venting Fireplace 33
Vent System Identification - Vertical 34
Vent System Identification - Horizontal 35
Decorative Crushed Glass Placement 37
LOG Placement 38
Lighting Instructions 41
Multifunction Remote Operating Instructions 42
LED remote operating instructions 48
Intermittent Control System Troubleshooting 50
IPI Electronic System Wiring Diagram 53
Accessories 54
Parts List 55
Parts View 56
Maintenance and Service 57
How to order Repair Parts 63
Warranty 64
TABLE OF CONTENTS
SECTION PAGE

3
IMPORTANT SAFETY INFORMATION
WARNINGWARNING
CARBON MONOXIDE POISONING HAZARDCARBON MONOXIDE POISONING HAZARD
Failure to follow the steps outlined below for each appliance connected to the venting systemFailure to follow the steps outlined below for each appliance connected to the venting system
being placed into operation could result in carbon monoxide poisoning or death. The following stepsbeing placed into operation could result in carbon monoxide poisoning or death. The following steps
shall be followed for each appliance connected to the venting system being placed into operation,shall be followed for each appliance connected to the venting system being placed into operation,
while all other appliances connected to the venting system are not in operation:while all other appliances connected to the venting system are not in operation:
1. Seal any unused openings in the venting system.
2. Inspect the venting system for proper size and horizontal pitch, as required in the National
Fuel Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas and Propane Installation Code,
CSA B149.1 and these instructions. Determine that there is no blockage or restriction,
leakage, corrosion and other deficiencies which could cause an unsafe condition.
3. As far as practical, close all building doors and windows and all doors between the space in
which the appliance(s) connected to the venting system are located and other spaces of the
building.
4. Close fireplace dampers.
5. Turn on clothes dryers and any appliance not connected to the venting system. Turn on any
exhaust fans, such as range hoods and bathroom exhausts, so they are operating at maximum
speed. Do not operate a summer exhaust fan.
6. Follow the lighting instructions. Place the appliance being inspected into operation. Adjust
the thermostat so appliance is operating continuously.
7. Test for spillage from draft hood equipped appliances at the draft hood relief opening after 5
minutes of main burner operation. Use the flame of a match or candle.
8. If improper venting is observed during any of the above tests, the venting system must be
corrected in accordance with National Fuel Gas Code, ANSI Z223.1/NFPA and/or Natural
Gas and Propane Installation Code, CSA B149.1.
9. After it has been determined that each appliance connected to the venting system properly
vents when tested as outlined above, return doors, windows, exhaust fans, fireplace dampers
and any other gas-fired burning appliance to their previous conditions of use.

4
IMPORTANT SAFETY INFORMATION
For Installer
Annual Inspection
• Have the fireplace inspected annually before use.
• More frequent inspection and cleaning may be required if
the fireplace is installed in an area exposed to pet hair or
dust, or to excessive lint from new carpeting or bedding
materials.
During the Annual Checkup, the Technician Will:
• Inspect the pilot (flame safety system) and burners for
proper operation and replace any damaged parts.
• Test and measure the flame failure response time of the
flame safety system. It must de-energize the safety shut-
o in no more than 30 seconds.
• Vacuum and clean any foreign debris in the firebox that is
not supposed to be there.
• Inspect and ensure that the lighting of the burners
occurs within 4 seconds of the gas valve opening. Visual
inspection should match the information illustrated in the
manual. Inspect primary air openings for blockage.
• Check the glass and fiber tape for proper seal.
• Clean glass with a suitable fireplace glass cleaner.
Abrasive cleaners must not be used. Be careful not to
scratch the glass when cleaning.
• Check all glass retention components for proper
operation, tension, and ensure that relief mechanisms are
free from obstructions.
• Check the barrier screen for fit and structural integrity.
• Inspect the log set (if applicable) and decorative media (if
applicable) for debris or damage.
• Freshen up the glowing embers if applicable.
• Replace batteries in the remote if applicable.
• Inspect the venting and vent termination cap for damage,
corrosion, sooting, or obstruction and correct if present.
• Check all accessible gas-carrying tubes, connections,
pipes and other components for leaks.
• In addition, clean and inspect the fireplace following any
remodeling work in your home.
Maintenance Precautions
Installation and repair should be done by a qualified service
person. The fireplace should be inspected before use and at least
annually by a qualified service person. More frequent cleaning
might be required due to excessive lint from carpeting, bedding
material, etc. It is imperative that control compartments,
burners and circulating air passageways of the fireplace be kept
clean. Keep burner and control compartment clean. Examine
venting system periodically and replace damaged parts. Make
a periodic visual check of pilot and burners. Clean and replace
damaged parts.
Damaged Fireplace
Do not use this fireplace if any part has been under water.
Immediately call a qualified service technician to inspect the
fireplace and to replace any part of the control system and any
gas control which has been under water.
In the event of a natural disaster (tornado, earthquake, fire, etc.)
have a qualified technician inspect the fireplace for damage or
potential gas leaks. Repair or replace any damaged components
before operating this fireplace.
WARNING
Due to sharp edges, always use gloves when handling the
packaging and installing the appliance.
WARNING
Keep away from small children. Packaging film may cling to nose
and mouth and prevent breathing.
WARNING
Choking Hazard - Packaging contains small parts, keep away from
children.

5
• If this fireplace is installed directly on carpeting, tile or
other combustible material other than wood flooring
the fireplace shall be installed on a metal or wood panel
extending the full width and depth of the fireplace. The
base referred to above does not mean the fireproof base
as used on wood stoves. The protection is for rugs that are
extremely thick and light colored tile.
• Children and adults should be alerted to the hazards of high
surface temperatures and should stay away to avoid burns
or clothing ignition.
• Young children should be carefully supervised when they
are in the same room as the fireplace.
• Clothing or other flammable material should not be placed
on or near the fireplace.
• Adequate accessibility clearances for servicing and proper
operation.
• This fireplace must not share or be connected to a flue
serving a separate solid-fuel burning fireplace.
• Keep the area around your fireplace clear of combustible
materials, gasoline, and other flammable vapor and liquids.
• Under no circumstances should any solid fuels (wood, coal,
paper, cardboard, etc.) be used in this fireplace.
• The flow of combustion and ventilation air must not be
obstructed in any way.
• Due to high temperatures, the fireplace should be located
out of trac and away from furniture and draperies.
• The glass front or any part removed for servicing the
fireplace must be replaced prior to operating the fireplace.
Work should be done by a qualified service person.
• Any safety screen or guard removed for servicing the
fireplace must be replaced prior to operating the fireplace.
• Keep burner and control compartment clean.
• Vent cap is hot while fireplace is in operation and for some
time afterward.
• Installation and repair should be done by a QUALIFIED
SERVICE PERSON. The fireplace should be inspected
before use and at least annually by a qualified service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding materials, etc. It
is imperative that control compartments, burners and
circulating air passageways of the fireplace be kept clean.
IMPORTANT SAFETY INFORMATION
• DO NOT put anything around the fireplace that will
obstruct the flow of ventilation air.
• DO NOT use this fireplace if any part has been under
water. Immediately call a qualified service technician to
inspect the fireplace and to replace any part of the control
system and any gas control which has been under water.
• DO keep the fireplace area clear and free from
combustible material, gasoline, and other flammable
vapors and liquids.
• DO examine venting system periodically and replace
damaged parts.
• DO make a periodic visual check of pilot and burners.
Clean and replace damaged parts.
• Young children should be carefully supervised when they
are in the same room as the fireplace. Toddlers, young
children, and others may be susceptible to accidental
contact burns. A physical barrier is recommended if there
are at-risk individuals in the house. To restrict access to
the fireplace, install an adjustable safety gate to keep
toddlers, young children, and other at-risk individuals out
of the room and away from hot surfaces.
• A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this fireplace and shall
be installed for the protection of children and other at-
risk individuals.
• If the barrier becomes damaged, the barrier shall be
replaced with the manufacturer’s barrier for this fireplace.
• Any safety screen, guard, or barrier removed for servicing
a fireplace must be replaced prior to operating the
fireplace.
• A manufactured home (USA only) or mobile home OEM
installation must conform with the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part
3280, or, when such a standard is not applicable, the
Standard for Manufactured Home Installations, ANSI
A225.1/NFPA 501A, or Standard for Gas Equipped
Recreational Vehicles and Mobile Housing, CSA Z240.4.
WARNING
Read and follow these safety precautions prior to operating this
fireplace. Failure to follow these precautions may result in death,
injury, or property damage.
WARNING
Do not operate this fireplace without glass front panel installed.
Before enclosing the vent pipe assembly, operate the fireplace to
ensure it is venting properly.
WARNING
If the glass is cracked or damaged in any way, it should be replaced
only with a replacement from Empire.

6
Propane is a flammable gas which can cause fires and explosions.
In its natural state, propane is odorless and colorless. You may
not know all the following safety precautions which can protect
both you and your family from an accident. Read them carefully
now, then review them point by point with the members of your
household. Someday when there may not be a minute to lose;
everyone’s safety will depend on knowing exactly what to do. If,
after reading the following information, you feel you still need
more information, please contact your gas supplier.
PROPANE GAS WARNING ODOR
If a gas leak happens, you should be able to smell the gas
because of the odorant put in the Propane Gas. That’s your
signal to go into immediate action!
• Do not operate electric switches, light matches, or use your
phone. Do not do anything that could ignite the gas.
• IMMEDIATELY get everyone out of the building, vehicle,
trailer, or area.
• Close all gas tank or cylinder supply valves.
• Propane gas is heavier than air and may settle in low areas
such as basements. When you have reason to suspect a gas
leak, keep out of basements and other low areas. Stay out
until firefighters declare them to be safe.
• Use your neighbor’s phone and call a trained propane gas
service person and the fire department. Even though you
may not continue to smell gas, do not turn on the gas again.
Do not re-enter the building, vehicle, trailer, or area.
• Finally, let the service man and firefighters check for
escaped gas. Have them air out the area before you return.
Properly trained propane gas service people should repair
the leak, then check and relight the gas appliance for you.
NO ODOR DETECTED - ODOR FADE
Some people cannot smell well. Some people cannot smell the
odor of the chemical put into the gas. You must find out if you
can smell the odorant in propane. Smoking can decrease your
ability to smell. Being around an odor for a time can aect your
sensitivity or ability to detect that odor. Sometimes other odors in
the area mask the gas odor. People may not smell the gas odor or
their minds are on something else. Thinking about smelling a gas
odor can make it easier to smell.
The odorant in propane gas is colorless, and it can fade under
some circumstances. For example, if there is an underground
leak, the movement of the gas through soil can filter the odorant.
Odorants in propane gas are also subject to oxidation. This fading
can occur if there is rust inside the storage tank or in iron gas
pipes.
The odorant in escaped gas can adsorb or onto or into walls,
masonry and other materials and fabrics in a room. That will take
some of the odorant out of the gas, reducing its odor intensity.
SAFETY INFORMATION FOR USERS OF PROPANE GAS
Propane gas may stratify in a closed area, and the odor intensity
could vary at dierent levels. Since it is heavier than air, there
may be more odor at lower levels. Always be sensitive to the
slightest gas odor. If you detect any odor, treat it as a serious
leak. Immediately go into action as instructed earlier.
SOME POINTS TO REMEMBER
• Learn to recognize the odor of propane gas. Your local
propane gas dealer can give you a “Scratch and Sni”
pamphlet. Use it to find out what the propane odor smells
like. If you suspect that your propane gas has a weak or
abnormal odor, call your propane gas dealer.
• If you are not qualified, do not light pilot lights, perform
service, or make adjustments to appliances on the
propane gas system. If you are qualified, consciously think
about the odor of propane gas prior to and while lighting
pilot lights or performing service or making adjustments.
• Sometimes a basement or a closed-up house has a musty
smell that can cover up the propane gas odor. Do not try
to light pilot lights, perform service, or make adjustments
in an area where the conditions are such that you may not
detect the odor if there has been a leak of propane gas.
• Odor fade, due to oxidation by rust or adsorption on walls
of new cylinders and tanks, is possible. Therefore, people
should be particularly alert and careful when new tanks
or cylinders are placed in service. Odor fade can occur
in new tanks, or reinstalled old tanks, if they are filled
and allowed to set too long before refilling. Cylinders
and tanks which have been out of service for a time may
develop internal rust which will cause odor fade. If such
conditions are suspected to exist, a periodic sni test of
the gas is advisable. If you have any question about the
gas odor, call your propane gas dealer. A periodic sni
test of the propane gas is a good safety measure under
any condition.
• If, at any time, you do not smell the propane gas odorant
and you think you should, assume you have a leak. Take
the same immediate action recommended above for the
occasion when you do detect the odorized propane gas.
• If you experience a complete “gas out,” (the container
is under no vapor pressure), turn the tank valve o
immediately. If the container valve is left on, the
container may draw in some air through openings such
as pilot light orifices. If this occurs, some new internal
rusting could occur. If the valve is left open, then
treat the container as a new tank. Always be sure your
container is under vapor pressure by turning it o at the
container before it goes completely empty or having it
refilled before it is completely empty.

7
For all side wall horizontally vented gas fueled equipment installed
in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust vent termination
is less than seven feet above finished grade in the area of the
venting, including but not limited to decks and porches, the
following requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS.
At the time of installation of the side wall horizontal vented
gas fueled equipment, the installing plumber or gas-fitter
shall observe that a hard wired carbon monoxide detector
with an alarm and battery back-up is installed on the
floor level where the gas equipment is to be installed. In
addition, the installing plumber or gas-fitter shall observe
that a battery operated or hard wired carbon monoxide
detector with an alarm is installed on each additional level
of the dwelling, building, or structure served by the side
wall horizontal vented gas fueled equipment. It shall be the
responsibility of the property owner to secure the services
of qualified licensed professionals for the installation of
hard wired carbon monoxide detectors
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector
with alarm and battery back-up may be installed on
the next adjacent floor level.
b. In the event that the requirements of this
subdivision can not be met at the time of
completion of installation, the owner shall have
a period of thirty days to comply with the above
requirements; provided, however, that during
said thirty day period, a battery operated carbon
monoxide detector with an alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in accordance
with the above provisions shall comply with NFPA 720 and
be ANSI/UL 2034 listed and IAS certified.
3. SIGNAGE.
A metal or plastic identification plate shall be permanently
mounted to the exterior of the building at a minimum
height of eight feet above grade directly in line with the
exhaust vent termination for the horizontally vented gas
fueled appliance or equipment. The sign shall read, in print
size no less than 1/2 inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
REQUIREMENTS FOR MASSACHUSETTS
4. INSPECTION.
The state or local gas inspector of the side wall
horizontally vented gas fueled equipment shall not
approve the installation unless, upon inspection, the
inspector observes carbon monoxide detectors and
signage installed in accordance with the provisions of 248
CMR 5.08(2)
a. 1 through 4.
b. EXEMPTIONS: The following equipment is
exempt from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented”
in the most current edition of NFPA 54 as
adopted by the Board; and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or
structure separate from the dwelling, building,
or structure used in whole or in part for
residential purposes.
c. MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT
PROVIDED.
When the manufacturer of a Product Approved
side wall horizontally vented gas fueled equipment
does not provide the parts for venting the flue
gases, but identifies “special venting systems”, the
following requirements shall be satisfied by the
manufacturer:
1. The referenced “special venting system”
instructions shall be included with the appliance
or equipment installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions
for that system shall include a parts list and
detailed installation instruction.
a. A copy of all installation instructions for all
Product Approved side wall horizontally vented gas
fueled equipment, all venting instructions, all parts
lists for venting instructions, and/or all venting
design instructions shall remain with the appliance
or equipment at the completion of the installation.

8
Instructions to Installer
1. Leave instruction manual with owner.
2. Have owner complete the ‘Product Registration Card’
supplied with the fireplace or register online.
3. Show owner how to start and operate the fireplace.
This direct-vent gas fireplace heater is designed to operate with
all combustion air being siphoned from the outside of the building
and all exhaust gases expelled to the outside of the building. The
information contained in this manual pertains to all models and
gas control systems unless otherwise noted.
Appliance Certification
WARNING
This fireplace is not for use with solid fuels. Burning solid fuels
could cause personal injury or property damage.
This fireplace is design certified in accordance with American
National Standard/CSA Standard ANSI Z21.88/CSA 2.33 and by
Underwriters Laboratories as a Direct-Vent Gas Fireplace Heater
and shall be installed according to these instructions.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
Building Codes
Consult your local building code agency, prior to installation,
to ensure compliance with local codes-including permits and
inspections.
• The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code ANSI Z223.1/NFPA 54* Natural Gas and Propane
Installation Code, or CSA B149.1 in Canada. *Available
from the American National Standards Institute, Inc. 11
West 42nd St., New York, N.Y. 10036.
• The fireplace, when installed, must be electrically grounded
in accordance with local codes or, in absence of local
codes, with the National Electric Code ANSI/NFPA 70 or
Canadian Electric code, CSA C22.1.
INTRODUCTION
Qualified Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of equipment
shall be performed only by a qualified agency. The term
“qualified agency” means any individual, firm, corporation or
company which either in person or through a representative
is engaged in and is responsible for (a) the installation or
replacement of gas piping or (b) the connection, installation,
repair, or servicing of equipment, who is experienced in such
work, familiar with all precautions required, and has complied
with all the requirements of the authority having jurisdiction.
Commonwealth of Massachusetts: The installation
must be made by a licensed plumber or gas fitter in the
Commonwealth of Massachusetts.
WARNING
Any change to this fireplace or its controls can be dangerous.
Improper installation or use of the fireplace can cause
serious injury or death from fire, burns, explosions, or carbon
monoxide poisoning.
The installation must conform with local codes or, in the absence
of local codes, with the National Fuel Gas Code ANSI Z223.1/
NFPA 54* Natural Gas and Propane Installation Code, or
CSA B149.1 in Canada. *Available from the American National
Standards Institute, Inc. 11 West 42nd St., New York, N.Y.
10036.
Any alteration of the original design, installation other than
as shown in these instructions or use with a type of gas not
shown on the rating plate is the responsibility of the person and
company making the change.
NOTICE: All correspondence should refer to complete Model
Number, Serial Number, and type of gas.
High Altitude
When installing this fireplace at an elevation above 2000 feet
(in the United States) it may be necessary to decrease the input
rating by replacing the existing burner orifice with a smaller size.
Generally, you should be reduce input by 4 percent for each
1000 feet above sea level. However, if the heating value of the
gas has been reduced, this may not apply. Check with Empire
Comfort Systems for proper orifice size identification.
Canadian High Altitude
Altitude: 0-4500 feet (0-1370 m)
When installing this fireplace at an elevation above 4500 feet
(in Canada), check with Empire Comfort Systems for assistance
in determining the proper orifice for location.

9
Customer:
Lot/Address:
Model:
Serial #:
ATTENTION INSTALLER:
Date Installed:
Fireplace Location:
Installer:
Dealer Phone #:
Fireplace Installation Checklist
Use this checklist in conjunction with the instructions in this manual.
FIREPLACE INSTALLATION
Verified clearances to combustibles ........................................................................................
Fireplace is leveled and secured.................................................................................................
VENTING/CHIMNEY/PowerFlow™ HEAT DISTRIBUTION
Venting configuration complies to vent diagrams (pgs. 15 - 17)............................................
Venting installed, locked, secured in place with correct clearance........................................
Firestops installed.......................................................................................................................
Exterior wall/roof flashing installed and sealed........................................................................
Terminations installed and sealed (pg. 16)................................................................................
Light unit and test venting before enclosing the fireplace.....................................................
ELECTRICAL (pgs. 20 and 68)
Unswitched power (110-120 VAC) provided to the fireplace ..............................................
GAS (pgs. 18 - 19)
Proper appliance for fuel type..................................................................................................
Was a conversion performed?....................................................................................................
Leak check performed and inlet pressure verified...................................................................
FINISHING
Verified all clearances meet installation manual requirements..............................................
Mantels and wall projections meet requirements (pg. 11)......................................................
Granite or Clean Face finishing complies with clearance requirements...............................
Barrier for glass front properly installed...................................................................................
FIREPLACE SETUP
All packaging and protective materials removed (inside & outside of fireplace) ................
Media installed correctly............................................................................................................
Firebox glass cleaned, installed, and secured...................................................................
Accessories installed properly....................................................................................................
Started Fireplace and checked for gas leaks............................................................................
Manual envelope and all contents removed from the fireplace and given to homeowner..
□Comments
□
□
□
□
□
□
□
□
□
□
□
□
□
□Yes
□
□
□
□
□
□
□
□
□
□
□
□
□
□No
Empire recommends the following:
• Keep this checklist visible on the fireplace until the installation is complete.
• Photograph the installation and copy this completed checklist for your file.
Comments: Further description of any issues, who is responsible (Installer/Builder/Other, etc) and corrective action needed:
Comments communicated to responsible party by on

10
SAMPLE WARNINGS AND DEFINITIONS
DANGER
Indicates a hazardous situation which, if not avoided, will result
in death or serious injury.
WARNING
Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice: Addresses practices not related to personal injury.
This direct-vent gas fireplace and its components are tested and
safe when installed in accordance with this installation manual.
Report to your dealer any parts damaged in shipment, specifically
check glass for chips or cracks. Do not install fireplace with
damaged, incomplete, or substitute parts.
Read all instructions before starting installation and follow
them carefully to ensure safe operation. Failure to follow the
instructions will void the warranty and may cause a fire hazard.
The warranty will be voided by, and the warrantor disclaims any
responsibility for the following actions:
• Installation by anyone other than the dealer or his agent.
• Installation of any damaged fireplace or component.
• Modification of the fireplace or Direct-Vent system.
• Installation other than as instructed by Empire Comfort
Systems.
• Improper positioning of logs, glass door, or accessories.
• Installation and/or use of any component part not
manufactured or approved by Empire Comfort Systems.
All correspondence should refer to complete Model Number,
Serial Number and type of gas. Fill out the Homeowner
Reference Section on page 9.
UNPACKING THE FIREPLACE
1. Cut binding straps and shrink wrap.
2. Remove top board and corner posts.
3. Lift fireplace from the pallet and place it near installation
site.
4. Verify that the fireplace and components have not been
damaged during shipping.
5. Using the list on page 12 verify that you have all
components that shipped with fireplace.
BEFORE YOU START
Television Considerations
Installing a television above a fireplace has become increasingly
popular; however, the area above any fireplace gets hot and
most TV manufacturers recommend against placing their
products near a heat source.
If you install a television above this fireplace, Empire Comfort
Systems accepts no responsibility for damage or injuries. Follow
the television manufacturer’s installation instructions, including
any recommendations regarding proximity to heat sources.
If you have a TV above your fireplace, turn o the fireplace and
let it cool completely before servicing or touching any buttons
on the TV.
PREPARATION
This direct-vent gas fireplace and its components are tested and
safe when installed in accordance with this installation manual
Report any parts damaged in shipment; specifically check glass
condition. Do not install this unit with damaged, incomplete, or
substitute parts.
Read all instructions before starting installation and follow these
instructions carefully during installation to ensure maximum
benefit and safety. Failure to follow them will void the warranty
and may present a fire hazard.
This direct-vent gas fireplace is designed to operate with
combustion air siphoned from and all exhaust gases expelled to
the outside of the building. The information contained in this
manual pertains to all models and gas control systems listed on
the front page unless otherwise noted.
These models may be installed in a bedroom or bed-sitting room
in the U.S.A. and Canada.
WARNING
ANY CHANGE TO THIS FIREPLACE OR ITS CONTROLS
CAN BE DANGEROUS. Improper installation or use of the
fireplace can cause serious injury or death from fire, burns,
explosions, or carbon monoxide poisoning.
Before enclosing the vent pipe assembly, operate the appliance
to ensure it is venting properly.
Do not operate this appliance without the glass front installed.
• Due to high temperatures, the appliance must be located
out of trac and away from furniture and draperies.
• A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
be installed for the protection of children and other
at-risk individuals.
• If the barrier or glass front is removed during servicing
or cleaning, it must be installed prior to operating the
appliance.
• If the barrier becomes damaged, it must be replaced with
the manufacturer’s barrier for this appliance.
• Only components certified with the appliance shall be
used.

11
INSTALLATION CONSIDERATIONS

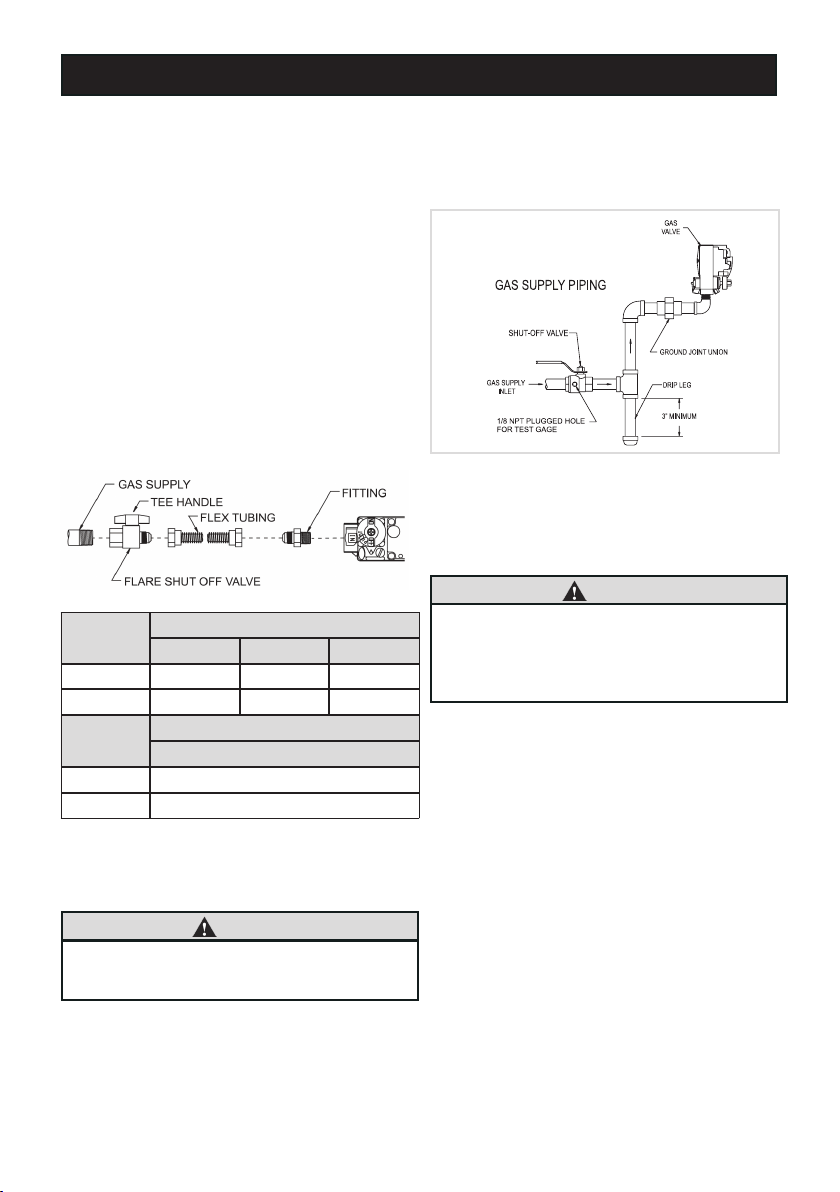

• Gas supply piping – See page 20.
• Electrical supply and connections 120V, 60Hz, 4 Amp,
right, left or both side entrances - See page 22.
• Allowable fireplace mounting surfaces:
1. A hard, flat, combustible or non-combustible surface
2. A raised platform of combustible or non-combustible
material.
3. The four corners of the fireplace on non-combustible
material – such as cinder blocks (where allowed by local
codes) – so that contact is made on all four perimeter
edges on the bottom of the fireplace.
• If the fireplace is installed directly on carpeting, tile or other
combustible material other than wood flooring, install a metal
or wood panel underneath extending the full width and depth
of the fireplace.
• This fireplace is designed to be installed in a zero-clearance
enclosure. Combustible material can come in contact with
the side stando spacers, and the fireplace can be secured
to combustible framing with the framing brackets provided.
PLANNING THE INSTALLATION
1. Read the safety information on pages 3 - 5.
2. Place the sticker located in the instruction envelope onto
the “Homeowner Reference Information” in Homeowner’s
manual on page 0.
3. Show the homeowner where the rating plate and lighting
instruction plate are located.
4. Install the venting. See page 27 to page 36.
5. Install and connect the gas lines. See page 20 and page
21.
6. Install the wiring. See page 22.
7. Remove the barrier assemblies. See page 57 to page 59.
8. Install the glass or log set, and rock wool. See their manuals.
9. Sync the remote. See page 42.
10. Adjust the rock wool for perfect burn.
11. Troubleshoot any issues. See page 51 - page 52.
12. Reinstall the barrier assembly.
13. Show the homeowner how to operate the fireplace insert.
14. Show the homeowner how do the basic maintenance.
15. Instruct the homeowner to never attempt to adjust the air
shutters or damper.
BEFORE YOU START CONT’D
ACCESSORIES
Accessories for this appliance may be installed prior to or after
fitting the fireplace into the framed opening.
WARRANTY REQUIREMENTS
Any alteration of the original design, installed other than as
shown in these instructions or use with a type of gas not shown
on the rating plate is the responsibility of the person and
company making the change.
The warranty will be voided by, and the warranter disclaims any
responsibility for the following actions:
• Installation of any damaged fireplace insert or vent system
component.
• Modification of the fireplace insert or direct vent system.
• Installation other than as instructed by Empire Comfort
Systems, Inc.
• Improper positioning of the logs or glass front assembly.
• Installation and/or use of any component part not
manufactured or approved by manufacturer.

12
CARTON CONTENTS AND HARDWARE PACK
12
3
Index Number Description Part Number Quantity Supplied
1 Product Registration Card 1
2 LED Remote ESC838024 1
3 SIT Remote Transmitter ESC838004 1

13
SPECIFICATIONS
DVLXB55BP90N/DVLXB55SP90N
Natural Propane
Input BTU/Hr Maximum 45,000 42,000
Input BTU/Hr Minimum 33,000 32,000
KWH (Maximum) 13.19 12.3
KWH (Minimum) 9.36 9.36
Orifice Center 2.3mm 1.2mm
Orifice Sides 1.95mm 1.05mm
Air Shutter Opening Center Burner Fully Closed Fully Open
Air Shutter Opening Side Burners Fully Closed Fully Open
Gas Inlet Shut-O Valve (Pipe) 1/2-in BSPP female 1/2-in BSPP female
Vent Size 4 x 6 4 x 6
GAS SUPPLY PRESSURES
(Dimension in inches water column - w.c.)
Gas Type Maximum Minimum Manifold
Natural 14.0 7.0 3.5
Propane 14.0 10.8 10.0

14
FIREPLACE DIMENSIONS DVLXB55BP90N SINGLE SIDED
A
B
C
D
E
G
H
I
JK
L
M
N
Q
O
P
R
INDEX
LETTER DIMENSION DESCRIPTION DVLXB55BP90N
(Dimensions in inches)
AThe maximum height of the firebox face (including standos) 39-1/4
BThe maximum width of the firebox face (excluding nailing flanges) 66-5/8
CThe maximum depth of the fireplace 15-1/8
DThe height of the firebox opening 24-15/16
EThe width of the firebox opening 53-5/16
FThe interior depth of the firebox (not shown) 10-23/32
GDepth from front trim to centerline of exhaust vent 7-21/32
HDepth from back of the box to centerline of exhaust vent 7-15/32
IHeight from bottom of the box to centerline of exhaust vent 34-25/32
JDepth from front of the box to gas line opening 1-11/32
KDepth from back of the box to gas line opening 12-13/32
LHeight from bottom of the box to gas line opening 1-3/4
MMesh width 51-23/32
NMesh height 31-13/16
OOverall width from exhaust vent collar to chassis side 68-21/32
PDistance from floor to fireplace opening 7-3/8
QDistance from floor to screen opening 8-29/32
RWidth from side of box to fireplace opening 6-21/32

15
FIREPLACE DIMENSIONS DVLXB55SP90N DOUBLE SIDED
A
B
C
D
E
G
H
I
JK
L
M
N
Q
O
P
R
INDEX
LETTER DIMENSION DESCRIPTION DVLXB55SP90N
(Dimensions in inches)
AThe maximum height of the firebox face (including standos) 39-1/4
BThe maximum width of the firebox face (excluding nailing flanges) 66-5/8
CThe maximum depth of the fireplace 15-5/16
DThe height of the firebox opening 24-15/16
EThe width of the firebox opening 53-5/16
FThe interior depth of the firebox (not shown) 10-23/32
GDepth from front trim to centerline of exhaust vent 7-21/32
HDepth from back of the box to centerline of exhaust vent 7-21/32
IHeight from bottom of the box to centerline of exhaust vent 34-25/32
JDepth from front of the box to gas line opening 1-11/32
KDepth from back of the box to gas line opening 12-13/32
LHeight from bottom of the box to gas line opening 1-3/4
MMesh width 51-23/32
NMesh height 21-13/16
OOverall width from exhaust vent collar to chassis side 68-21/32
PDistance from floor to fireplace opening 7-3/8
QDistance from floor to screen opening 8-29/32
RWidth from side of box to fireplace opening 6-21/32

16
NOTICE: For room divider installation, the horizontal portion of
the vent system must not exceed 50 feet. See details in Venting
Section.
NOTICE: When installing this fireplace against an exterior wall,
insulate to applicable insulation codes. (Single Sided ONLY)
LOCATING FIREPLACE
DVLXB55B Single Sided
DVLXB55S Double Sided
A peninsula room divider installation requires a minimum of 6
inches of clearance from the perpendicular wall to the front
opening of the fireplace.

17
Clearance to Combustibles
Back ZERO
Side ZERO
Floor ZERO
Top Stand-O Bracket ZERO
Top Framing Edge ZERO
NOTE: COMBUSTIBLE MATERIALS ALLOWED IN SHADED AREA
Vent Pipe Clearance
NOTICE: Horizontal vent, maintain a minimum 1-inch clearance
to the bottom and sides of the vent, and 1-inch minimum
clearance to combustibles above the vent pipe.
Side Wall and Ceiling
The minimum clearance from the floor to the ceiling is 36 inches.
The minimum clearance from the side of the fireplace opening to
an adjacent sidewall is 6 inches.
MIN.36”(915 mm)
MIN.6” (153 mm)
CLEARANCES
Mantel and TV Clearances
The minimum mantel and TV clearances are shown in the
diagrams below.
40° 9”
COMBUSTIBLE MANTELS &
TVs CAN BE INSTALLED
ANYWHERE IN THIS ZONE
TOP EDGE OF
FIREPLACE OPENING
A
B
C
D
E
F
G
1” Minimum
8”
MANTEL
Depth Height
A 11 3/4” 14”
B 10 3/4” 13”
C10” 12”
D 9 1/4” 11”
E 8 1/2” 10”
F 7 1/2” 9”
G 7” 8”

18
Vertical Sidewall Installations
Important! Minimum clearance between vent pipes and
combustible materials is 3 inch (76 mm) on top, and 1 inch (25
mm) on bottom and sides.
Important! When vent termination exits through foundation less
than 20 inch (508 mm) below siding outcrop, the vent pipe must
extend outward so that the horizontal vent termination is located
flush to, or beyond the outcrop siding.
Information on Various Venting Routes and Components
Important! It is always best to locate the fireplace in such a way
that minimizes the number of osets and horizontal vent length.
Since it is very important that the venting system maintain its
balance between the combustion air intake and the flue gas
exhaust, certain limitations as to vent configurations apply and
must be strictly adhered to.
VENT TERMINATION CLEARANCES
INSIDE CORNER OUTSIDE CORNER RECESSED LOCATION
A=COMBUSTIBLE 9” (229mm)
= NONCOMBUSTIBLE 2” (51mm)
AF
F = COMBUSTIBLE 6” (152mm)
= NONCOMBUSTIBLE 6” (152mm)
BALCONY
WITH PERPENDICULAR SIDE WALL
BALCONY
WITH NO SIDE WALL
G
G = COMBUSTIBLE 9” (229mm)
= NONCOMBUSTIBLE 2” (51mm)
H = COMBUSTIBLE 18” (457mm)
= NONCOMBUSTIBLE 12” (305mm)
H
I = COMBUSTIBLE 18” (457mm)
= NONCOMBUSTIBLE 12” (305mm)
I
E
D
C
E
C = CLEARANCE FROM CORNER IN
RECESSED LOCATION
COMBUSTIBLE 9” (229mm)
NONCOMBUSTIBLE 2” (51mm)
D = MINIMUM WIDTH FOR BACK WALL
OF A RECESSED LOCATION
COMBUSTIBLE 38” (965mm)
NONCOMBUSTIBLE 24” (610mm)
E = MAXIMUM DEPTH OF 48” (1,21mm)
FOR RECESSED LOCATION
The graph showing the relationship between vertical and
horizontal side wall venting will help to determine the various
vent lengths allowable.
The horizontal vent run refers to the total length of vent pipe
from the flue collar of the fireplace to the face of the outer wall.
Venting termination shall not be recessed into wall or siding.
ATTENTION: Vinyl Sot, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This
does not include vinyl. Empire Comfort Systems Inc. will not be
held responsible for heat damage caused from terminating under
vinyl overhangs, vinyl ceilings or vinyl ventilated/unventilated
sots.
Termination clearances for buildings with combustible and non-combustible exteriors.

19
Canadian Installations (1) US Installations (2)
A= Clearance above
grade, veranda, porch,
deck, or balcony
12 in (30 cm) 12 in (30cm)
B= Clearance to
window or door that
may be open
6 in (15 cm) for
appliances ≤ 10,000
Btuh (3 kW), 12 in (30
cm) for appliances >
10,000 Btuh (3 kW)
and ≤ 100,000 Btuh
(30 kW), 36 in (91 cm)
for appliances
> 100,000 Btuh (30
kW)
6 in (15 cm) for
appliances
≤ 10,000 Btuh (3
kW), 9 in (23 cm)
for appliances
> 10,000 Btuh (3
kW) and ≤ 50,000
Btuh (15 kW),
12 in (30 cm)
for appliances >
50,000 Btuh
(15 kW)
C= Clearance to
permanently
closed window
12 in (30 cm) 12 in (30 cm)
D= Vertical clearance
ventilated sot
located above the
terminal within a
horizontal distance of
2 feet (61 cm) from
the center line of the
terminal
24 in (61 cm) 24 in (61 cm)
E= Clearance to
unventilated sot
12 in (30 cm) 12 in (30 cm)
F= Clearance to
outside
corner
6 in (15 cm) 6 in (15 cm)
G= Clearance inside
corner
9 in (23 cm) 9 in (23 cm)
H= Clearance to
each side of center
line extended above
meter regulator
assembly
3 ft (91 cm) within a
height 15 ft (4.5 m)
above the meter/
regulator assembly
3 ft (91 cm)
I= Clearance to
service regulator vent
outlet
3 ft (91 cm) 6 ft
VENT TERMINATION CLEARANCES CONT’D
J= Clearance to non-
mechanical
air supply inlet to
building or the
combustion air
inlet to any other
appliance
6 in (15 cm) for
appliances
≤ 10,000 Btuh (3 kW),
12 in (30 cm) for
appliances > 10,000
Btuh (3 kW) and ≤
100,000 Btuh (30
kW), 36 in (91 cm) for
appliances
> 100,000 Btuh (30
kW)
6 in (15 cm) for
appliances
≤ 10,000 Btuh
(3 kW), 9 in (23
cm) for appliances
> 10,000 Btuh
(3 kW) and ≤
50,000 Btuh (15
kW), 12 in (30
cm) for appliances
> 50,000 Btuh
(15 kW)
K= Clearance to a
mechanical air supply
inlet
6 ft (1.83 m) 3 ft (91 cm) above
if within 10 ft (3 m)
horizontally
L= Clearance above
paved sidewalk or
paved driveway
located on public
property
7 ft (2.13 m) † 7 ft (2.13 m) †
M= Clearance under
veranda, porch deck,
or balcony
12 in (30 cm) ‡ 12 in (30 cm) ‡
1 In accordance with the current CSA B149.1, Natural Gas and Propane
Installation Code
2 In accordance with the current ANSI Z223.1/NFPA 54, National Fuel
Gas Code
† A vent shall not terminate directly above a sidewalk or paved driveway
that is located between two single family dwellings and serves both
dwellings
‡ Permitted only if veranda, porch, deck, or balcony is fully open on a
minimum of two sides beneath the floor.
* For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1,
one of the following shall be indicated
Clearance in accordance with local installation codes and the
requirements of the gas supplier.
ATTENTION: Vinyl Sot, Vinyl Ceiling, Vinyl Overhang
Disclaimer
Clearances are to heat resistant material (i.e. wood, metal). This does not
include vinyl. Empire Comfort Systems Inc. will not be held responsible
for heat damage caused from terminating under vinyl overhangs, vinyl
ceilings or vinyl ventilated/unventilated sots.

20
The gas pipeline can be brought in through the right side of the
fireplace. Consult the current National Fuel Gas Code, ANSI
Z223.1 CAN/CGA-B149 (.1 or .2) installation code.
NOTICE: Never use plastic pipe. Check to confirm whether your
local codes allow copper tubing or galvanized.
NOTICE: Since some municipalities have additional local codes, it
is always best to consult your local authority and installation code
The use of the following gas connectors is recommended:
• ANSI Z21.24 Appliance Connectors of Corrugated Metal
Tubing and Fittings.
• ANSI Z21.45 Assembled Flexible Appliance Connectors of
Other Than All-Metal Construction
The above connectors may be used if acceptable by the authority
having jurisdiction. The Commonwealth of Massachusetts requires
that a flexible appliance connector cannot exceed three feet in
length.
Flexible Gas Line Connection
Gas Supply Pressure (inches w.c.)
Minimum Normal Maximum
Natural Gas 4.5 7.0 14.0
Propane Gas 10.8 11.0 14.0
Manifold Pressure (inches w.c.)
Normal (HI)
Natural Gas 3.5
Propane Gas 10.0
GAS SUPPLY
A gas valve and ground joint union should be installed in the gas
line upstream of the gas control to aid in servicing. It is required
by the National Fuel Gas Code that a drip leg be installed near
the gas inlet. This should consist of a vertical length of pipe tee
connected into the gas line that is capped on the bottom in
which condensation and foreign particles may collect.
Installing a New Main Gas Shut-O Valve (Check Local Code)
Each fireplace should have its own manual gas shut-o valve. A
manual main gas shut-o valve should be located in the vicinity
of the fireplace. Where none exists, or where its size or location
is not adequate, contact your local authorized installer for
installation or relocation.
WARNING
Never pressure test with fireplace connected; control valve will
sustain damage! To prevent damage or injury, the fireplace and
its individual shut-o valve must be disconnected from supply
piping system during any pressure testing of that system at test
pressures in excess of 1/2 psig (3.5 kPa).
NOTICE: The gas control is equipped with a captured screw
type pressure test point, therefore it is not necessary to provide
a 1/8 inch test point up stream of the control.
When using copper or flex connector use only approved
fittings. The fireplace and its individual shut o valve must be
disconnected from supply piping system during any pressure
testing of that system at test pressures in excess of 1/2 psig (3.5
kPa).
The fireplace must be isolated from the gas supply piping
system by closing its individual manual shut o valve during any
pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psig (3.5 kPa).
Attention! If one of the procedures results in pressures in excess
of 1/2 psig (14in w.c.) (3.5 kPa) on the fireplace gas valve, it will
result in a hazardous condition.
WARNING
This step is to be carried out first before further installation has
takenplace, failure todo so will result inthe appliancehaving to be
partlydismantledbeforethefireplacecanbecommissionedforuse.
