Endless Pools E550 User manual

Fitness Systems
OWNER'S MANUAL 50HZ
by Endless Pools®

OWNER’S MANUAL
This Owner’s Manual will acquaint you with the operation and general maintenance of your new fitness system. We suggest
that you take some time to carefully review all sections. Please keep this manual available for reference.
If you have questions about any aspect of your fitness system’s set-up, operation or maintenance, contact your authorized
ENDLESS POOLS dealership. They are trained professionals who are familiar with the product, as well as new fitness
system ownership concerns. Their expertise will facilitate the enjoyment of your new fitness system.
The serial number/identification label is located within the equipment compartment of your fitness system. The serial
number should also be documented on the delivery receipt from your dealer.
IMPORTANT: Watkins Wellness reserves the right to change specifications, or design, without notification and without
incurring any obligation.
DATE PURCHASED: ___________________________________
DATE INSTALLED: _____________________________________
DEALER: ____________________________________________
ADDRESS: ___________________________________________
TELEPHONE: _________________________________________
MODEL/SERIAL NUMBER: ______________________________
COVER SERIAL NUMBER: ______________________________
In most cities and counties, permits will be required for the installation of electrical circuits or the construction of exterior surfaces (decks and
gazebos). In addition, some communities have adopted residential barrier codes which may require fencing and/or self-closing gates on the property
to prevent unsupervised access to the fitness system by children. As a general practice, your local Building Department will inform you of any
applicable barrier requirements at the time a permit is obtained for the installation of an electrical circuit. Your ENDLESS POOLS dealer can provide
information on which permits may be required.
WELCOME
Watkins Wellness congratulates you on your decision to enjoy the finest fitness system available.
Welcome to the growing family of fitness systems by ENDLESS POOLS owners.

TABLE OF CONTENTS
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS .......................... 1
IMPORTANT FITNESS SYSTEM INSTRUCTIONS....... 3
SITE REQUIREMENTS
INDOOR CONSIDERATIONS ............................................ 4
OUTDOOR CONSIDERATIONS........................................ 4
ELECTRICAL REQUIREMENTS ....................................... 4
DECK INSTALLATION ......................................................... 5
DELIVERY ACCESS ............................................................ 5
E500 MODELS....................................................................... 6
E700 MODELS....................................................................... 7
ELECTRICAL REQUIREMENTS
SINGLE PHASE (MODEL) WIRING .................................. 8
3 PHASE (MODEL) WIRING............................................... 9
EQUIPMENT COMPARTMENT ....................................... 10
DOOR PANEL REMOVE & REPLACE............................ 10
GETTING STARTED
MAIN FITNESS SYSTEM FEATURES ........................... 11
ADDITIONAL FITNESS SYSTEM FEATURES ............. 11
HYDROMASSAGE JETS .................................................. 12
WATERFALL VALVE........................................................... 12
AIR CONTROLS.................................................................. 12
SWIM MACHINE-HYDRAULIC ........................................ 12
QUICK START-UP INSTRUCTIONS............................... 13
OPERATING INSTRUCTIONS
MAIN CONTROL PANEL................................................... 15
SETTINGS............................................................................ 15
AUDIO IN.STREAM 2 (OPTIONAL)................................. 17
TEMPERATURE CONTROL ............................................ 17
JETS CONTROL ................................................................. 18
LIGHT CONTROL ............................................................... 18
PURGE TIME....................................................................... 18
ALL OFF / MEMORY ON.................................................... 18
WI-FI IN.TOUCH™2(OPTIONAL).................................. 18
AUXILIARY CONTROL PANEL........................................ 18
SMART WINTER MODE ................................................... 18
WATER QUALITY AND MAINTENANCE
BASIC INFORMATION....................................................... 19
CHEMICAL SAFETY ......................................................... 19
HOW TO ADD CHEMICALS TO THE WATER............... 19
FUNDAMENTALS OF WATER MAINTENANCE........... 19
THE ENDLESS POOLS WATER MAINTENANCE
PROGRAM........................................................................... 20
VACATION WATER CARE INSTRUCTIONS................. 21
GLOSSARY.......................................................................... 22
CARE AND MAINTENANCE
FILTER MAINTENANCE.................................................... 23
FILTER CARTRIDGE REMOVAL AND CLEANING
INSTRUCTIONS ................................................................. 23
DRAINING YOUR FITNESS SYSTEM.................................24
WINTERIZING YOUR FITNESS SYSTEM .................... 24
CARE OF THE EXTERIOR ............................................... 25
SERVICE INFORMATION
GENERAL INFORMATION................................................ 26
RCD AND HIGH LIMIT THERMOSTAT........................... 26
MISCELLANEOUS SERVICE INFORMATION ............. 26
ACTS INVALIDATING WARRANTY ................................ 26
DISCLAIMERS .................................................................... 27
WATKINS WELLNESS CUSTOMER SERVICE............ 27
TROUBLESHOOTING....................................................... 27

Page 1
Safety Information
Safety Information
IMPORTANT SAFETY
INSTRUCTIONS
(READ AND FOLLOW ALL
INSTRUCTIONS)
AVOIDING THE RISK TO CHILDREN
DANGER - RISK OF CHILD DROWNING
Extreme caution must be exercised to prevent unauthorized access by
children. To avoid accidents, ensure that children cannot use a fitness
system unless they are supervised at all times.
WARNING
To reduce the risk of injury, do not permit children to use this fitness
system unless they are closely supervised at all times.
• To reduce the risk of injury, lower water temperatures are
recommended for young children. Children are especially sensitive to
hot water.
• Extreme caution must be exercised to prevent unauthorized access
by children. To avoid accidents, ensure that children cannot use the
fitness system unless they are supervised at all times.
• The fitness system should not be used by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they receive supervision or
training.
DO:
• Make sure you always lock any child resistant locks after using the
fitness system for your children’s safety.
• Test the water temperature with your hand before allowing children to
enter the fitness system to be sure that it’s comfortable.
• Remind children that wet surfaces can be very slippery. Make sure
that children are careful when entering or exiting the fitness system.
DON'T:
• Allow children to climb onto a fitness system cover.
• Allow children to have unsupervised access to the fitness system.
AVOIDING THE RISK OF
ELECTROCUTION
DANGER - RISK OF ELECTROCUTION
• Connect only to a grounded source.
• Do not bury the power cord. A buried power cord may result in death,
or serious personal injury due to electrocution if direct burial-type cable
is not used, or if improper digging occurs.
• A ground terminal (pressure wire connector) is provided on the control
box inside the unit to permit connection of a minimum 8 mm²
solid copper bonding conductor between this point and any metal
equipment, metal water pipe, metal enclosures of electrical equipment,
or conduit within 1.5 m (5 feet) of the unit as needed to comply with
local requirements.
• Do not connect any auxiliary components (for example, cable,
additional speakers, headphones, additional audio components) to the
audio system unless approved by Watkins Wellness.
• Do not self service the audio component by opening or removing
fitness system door panel as this may expose dangerous voltage or
other risk of injury. Refer all servicing to qualified service personnel.
• Do not attach an external antennae to a fitness system audio system
unless installed by a licensed electrician in accordance with your
National Electric Code.
WARNING
• To reduce the risk of electrical shock, replace a damaged cord
immediately. Failure to do so may result in death or serious personal
injury due to electrocution.
• In order to avoid a hazard due to inadvertent resetting of the thermal
cut-out, this fitness system must not be supplied through an external
switching device, such as a timer, or connected to a circuit that is
regularly switched on and off by the utility.
• Always test the residual current device (RCD) before each use of the
spa. If the RCD does not perform properly, a ground current is flowing
indication the possibility of electric shock. Disconnect power to the
fitness system until the fault has been identified and corrected.
• NOTE: Failure to wait 30 seconds before resetting the RCD may
cause the fitness system to not work properly, if this happens, repeat
the RCD test procedure.
• Your fitness system must be supplied by a RCD - with a tripping rating
not exceeding 30 mA in an electrical subpanel.
DANGER - RISK OF ELECTRICAL SHOCK
• Install at least 1.5 m (5 feet) from all metal surfaces. A fitness system
may be installed within 1.5 m (5 feet) of a metal surface if each metal
surface is permanently connected by a minimum 10 mm² solid copper
conductor attached to the wire ground connector in the junction box
that is provided for this purpose if in accordance with your National
Electrical Codes.
• Install your fitness system in such a way that drainage is away from
the electrical compartment and from all electrical components.
• Do not permit any electrical appliances, such as a light, telephone,
radio, or television within 1.5 m (5 feet) of a fitness system. Failure to
maintain a safe distance may result in death, or serious personal injury
due to electrocution, if the appliance should fall into the fitness system.
DO:
• Be sure your fitness system is connected to the power supply correctly
- use a licensed electrical contractor.
• Disconnect the fitness system from the power supply before draining
the fitness system or servicing the electrical components.
• Test the Ground Fault Circuit Interrupter(s) before each use.
NO DIVING
Danger: Diving may result
in serious injury or death.

Page 2 Safety Information
• Replace audio components only with identical components (if your
fitness system is equipped with an audio component).
DON'T:
• Use the fitness system with the equipment compartment door
removed.
• Place electrical appliances within 1.5 m (5 feet) of the fitness system.
• Use an extension cord to connect the fitness system to its power
source. The cord may not be properly grounded and the connection is
a shock hazard. An extension cord may cause a voltage drop, which
will cause overheating of the jet pump motor and motor damage.
• Attempt to open the electrical control box. There are no user serviceable
parts inside.
RISKS TO AVOID
DANGER - RISK OF INJURY
• To reduce the risk of injury to persons, DO NOT remove suction fittings
(filter standpipes) located in the filter compartment.
• The suction fittings in the
fitness system are sized to match the
specific water flow created by the pump. Never replace a suction fitting
with one rated less than the flow rate marked on the original suction
fitting.
• There is a danger of slipping and falling. Remember that wet surfaces
can be very slippery. Take care when entering or exiting the
fitness
system .
• Never operate the fitness system if the suction fittings are broken or
missing.
• People with infectious diseases should not use the fitness system .
• Keep any loose articles of clothing, long hair, or hanging jewelry away
from rotating jets or other moving components. Long hair should be
tied up or placed under a bathing cap.
• Safe water temperature for aquatic exercise is approximately
29.5°C (85°F).
• DO NOT use this fitness system alone.
INCREASED SIDE EFFECTS OF MEDICATION
• The use of drugs or alcohol may cause unconsciousness with the
possibility of drowning.
• Persons using medications should consult a physician before using
a fitness system ; some medication may cause a user to become
drowsy, while other medication may affect heart rate, blood pressure,
and circulation.
• Persons taking medications which induce drowsiness, such as
tranquilizers, antihistamines, or anticoagulants should not use the
fitness system .
HEALTH PROBLEMS AFFECTED BY FITNESS
SYSTEM USE
• Pregnant women should consult a physician before using the fitness
system .
• Persons suffering from obesity, or with a medical history of heart
disease, low or high blood pressure, circulatory system problems, or
diabetes should consult a physician before using the fitness system .
UNCLEAN WATER
• Keep the water clean and sanitized with correct chemical care. The
recommended levels for your ENDLESS POOLS fitness system are:
Free Available Chlorine:
1.0-5.0 ppm
Total Alkalinity:
80-120 ppm
Water pH:
7.2-7.8
Calcium Hardness:
75-150 ppm
• Refer to Water Quality and Maintenance section for complete
instructions.
IMPORTANT: Turn on the swim machine for a least ten minutes after
adding ANY
fitness system water chemicals into the swim area.
Clean the filter cartridges monthly to remove debris and mineral buildup
which may affect the performance of the hydromassage jets, limit the
flow, or trip the high limit thermostat, which will turn off the entire fitness
system .
AVOIDING THE RISK OF HYPERTHERMIA
Prolonged immersion in hot water can result in HYPERTHERMIA, a
dangerous condition which occurs when the internal temperature of
the body reaches a level above normal 37°C (98.6°F). The symptoms
of hyperthermia include unawareness of impending hazard, failure to
perceive heat, failure to recognize the need to exit the fitness system ,
physical inability to exit the fitness system , fetal damage in pregnant
women, and unconsciousness resulting in a danger of drowning.
WARNING
The use of alcohol, drugs, or medication can greatly increase the risk of
fatal hyperthermia in fitness system s.
TO REDUCE THE RISK OF INJURY
• The water in the fitness system should never exceed 40°C (104°F).
Water temperatures between 26°C and 40°C (79°F and 104°F) are
considered safe for a healthy adult. The lower water temperatures
are recommended for extended use (exceeding ten minutes) and for
young children. Extended use can cause hyperthermia.
• Pregnant or possibly pregnant women should limit fitness system
water temperatures to 29.5°C (85°F) consult a physician prior to using
this product. Failure to do so may result in permanent injury to your
baby.
• Do not use the fitness system having water temperatures over 36°C
(100°F) immediately following strenuous exercise.
• Keep all breakables, especially glass, away from this fitness system .
• Never insert any objects into any openings.
• Keep all chemicals away from children and pets.
• DO NOT stack chemicals on top of one another.
• NEVER MIX CHEMICALS.
• Sanitizing chemicals must be stored separately from balancing
chemicals.

Page 3Safety Information
AVOIDING THE RISK OF SKIN BURNS
• To reduce the risk of injury, before entering a fitness system the user
should measure the water temperature with an accurate thermometer.
• Test the water with your hand before entering the fitness system to be
sure it’s comfortable.
SAFETY SIGN
Each ENDLESS POOLS fitness system is shipped with a SAFETY
SIGN in the owner’s package. The sign, which is required as a condition
of Product Listing, should be permanently installed where it is visible to
the users of the fitness system . To obtain additional SAFETY SIGNS,
contact your ENDLESS POOLS dealer. Safety labels that are affixed to
the shell are intended to be permanent and should not be removed.
Each ENDLESS POOLS fitness system is shipped with a
OPTIONAL TREADMILL SAFETY INFORMATION
WARNING:
• Consult a physician before you start an exercise program. Stop
exercising if you feel pain or tightness in your chest, become short of
breath, or feel faint. Contact your doctor before you use the machine
again.
• This machine contains moving parts. Do not wear loose clothing or
jewelry.
• Do not put fingers or other objects into moving parts of the exercise
equipment.
• Use caution while participating in other activities while walking on your
treadmill; such as watching television, reading, etc. These distractions
may cause you to lose balance or stray from walking in the center of
the belt; which may result in serious injury.
WARNING: TO AVOID THE RISK OF INJURY
• Pregnant women should always consult a physician prior to starting
an exercise program.
• NEVER operate this treadmill without reading and completely
understanding the results of any operational change you request from
the controller.
• Treadmill must be installed on a smooth and level surface.
• NEVER leave an operating treadmill unattended.
• NEVER mount or dismount the treadmill while the belt is moving.
• Hydraulic treadmills start at a very low speed and it is unnecessary to
straddle the belt during startup. Simply standing on the belt during this
slow acceleration is the proper way to start using this product.
• Always hold on to a handrail or grab bar while making control
changes.
• Never drop or insert any object into any openings.
• Children must be supervised while using this machine.
• The moving parts and other features of the machine can be
dangerous to children.
• Before each use, examine this machine for damage or signs of wear.
Do not use this product if found in this condition. Call Customer
Service for repair information.
IMPORTANT FITNESS
SYSTEM INSTRUCTIONS
The following contains important fitness system information, and we
strongly encourage you to read and apply them.
DO:
• Follow the fitness system Care and Maintenance recommendations
stated in this manual.
• Use only approved accessories and recommended fitness system
chemicals and cleaners.
DON'T:
• Leave the fitness system exposed to the sun without water or a cover
in place. Exposure to direct sunlight can cause solar distress of the
shell material.
• Roll or slide the fitness system on its side. This will damage the siding.
• Lift or drag the vinyl cover by using the cover lock straps; always lift or
carry the cover by using the handles.
• Attempt to open the electrical control box. There are no user
serviceable parts inside. Opening of the control box by the fitness
system owner will void the warranty. If you have an operational
problem, carefully go through the steps outlined in the Troubleshooting
section. If you are not able to resolve the problem, contact your
authorized ENDLESS POOLS dealer. Many problems can easily be
diagnosed over the telephone by an Authorized Service Technician.
FITNESS SYSTEM SHELL
Your fitness system has an acrylic shell. Stains and dirt generally
will not adhere to your fitness system ’s surface. A soft rag should
easily remove most dirt. Most household chemicals are harmful to your
fitness system ’s shell (see below for detailed information on cleaning
agents). Always rinse off any fitness system shell cleaning agent with
fresh water.
IMPORTANT:
1. The following products are the ONLY approved cleaning agents
for your fitness system shell: plain water, or Soft Scrub®. The use
of alcohol or any other household cleaner other than those listed to
clean the fitness system shell surface is NOT recommended. DO
NOT use any cleaning products containing abrasives or solvents
since they may damage the shell surface, specifically: Simple
Green®, Windex®or spa Mitt. NEVER USE HARSH CHEMICALS!
Damage to the shell by use of harsh chemicals is not covered under
the warranty. Always rinse off any fitness system shell cleaning
agent with fresh water.
2. Iron and copper in the water can stain the fitness system shell if
allowed to go unchecked. Ask your ENDLESS POOLS dealer about
a Stain and Scale Inhibitor to use if your fitness system has a high
concentration of dissolved minerals.
3. Keep all cleaners out of the reach of children and use care when
applying.
SAVE THESE INSTRUCTIONS

Page 4
SAVE THESE INSTRUCTIONS
Site Requirements
Site requirements
Your fitness system must be installed on a smooth and level surface
that can support the dead weight listed in the back of this manual.
If a new slab is poured, consult your local electrical codes regarding
grounding and bonding. Local code may require a bonding wire to be
attached to the reinforcing bar or wire mesh that is embedded in the
concrete. If new concrete is being poured, this is the ideal time to install
the conduit for the incoming electrical supply.
Even if a new pad has been poured, it is essential that the system site
is level and planar. There is a simple way to ensure that this is the case.
First, draw a chalk outline of the footprint of your
fitness system . Place
a two meter level along and around the footprint of the system. Verify
that there are no gaps between the level and floor. Next pour water
inside of the chalk footprint. Verify that the water does not puddle inside
the footprint.
Should there a be a gap or should the water puddle inside the footprint,
call your ENDLESS POOLS dealer prior to continuing to discuss the
best way to resolve this situation.
INDOOR CONSIDERATIONS
• Local electrical and plumbing codes.
• Ventilation fans and/or dehumidifiers should be provided to handle
the humidity developed by your fitness system . Walls, ceiling and
wood trim should be water resistant, also.
• Chemicals will vaporize from the water and may cause an odor
and possibly corrosion to certain home hardware. Never store
chemicals inside the fitness system cabinet.
• During the normal use of the fitness system , water will escape
the vessel. Never place on or over any materials, which may be
damaged by this water or the chemicals within the water. Keep
damageable materials far enough away to avoid water damage,
even if the fitness system should lose all its water.
• Consider and prepare for the unlikely event of rapid drainage. If
placement of the fitness system is permanent, you may wish to
provide floor drains to accommodate draining, etc. Always leave
room all around the fitness system for easy access in case
repairs are necessary.
• Consider and prepare for the unlikely event of removal.
• Do not set fitness system on finished floor without a waterproof
barrier protection underneath.
• The fitness system should be close to a source of water.
• Be sure that the location you choose is stable. It must be able
to support the weight of the fitness system when it is filled with
water, plus the weight of the occupants. The fitness system may
weigh up to 11,457 kg (25,258 lbs) when it is filled with water.
• Do not use the fitness system above a finished living area due to
the risk of water damage.
• The
fitness system is not designed for in-floor installation.
However, it is compatible with a deck system that is built flush with
the bar top, provided you leave access for service.
• Be sure to note any other considerations, such as aesthetics or
privacy concerns, that may affect the safety or enjoyment of using
the
fitness system .

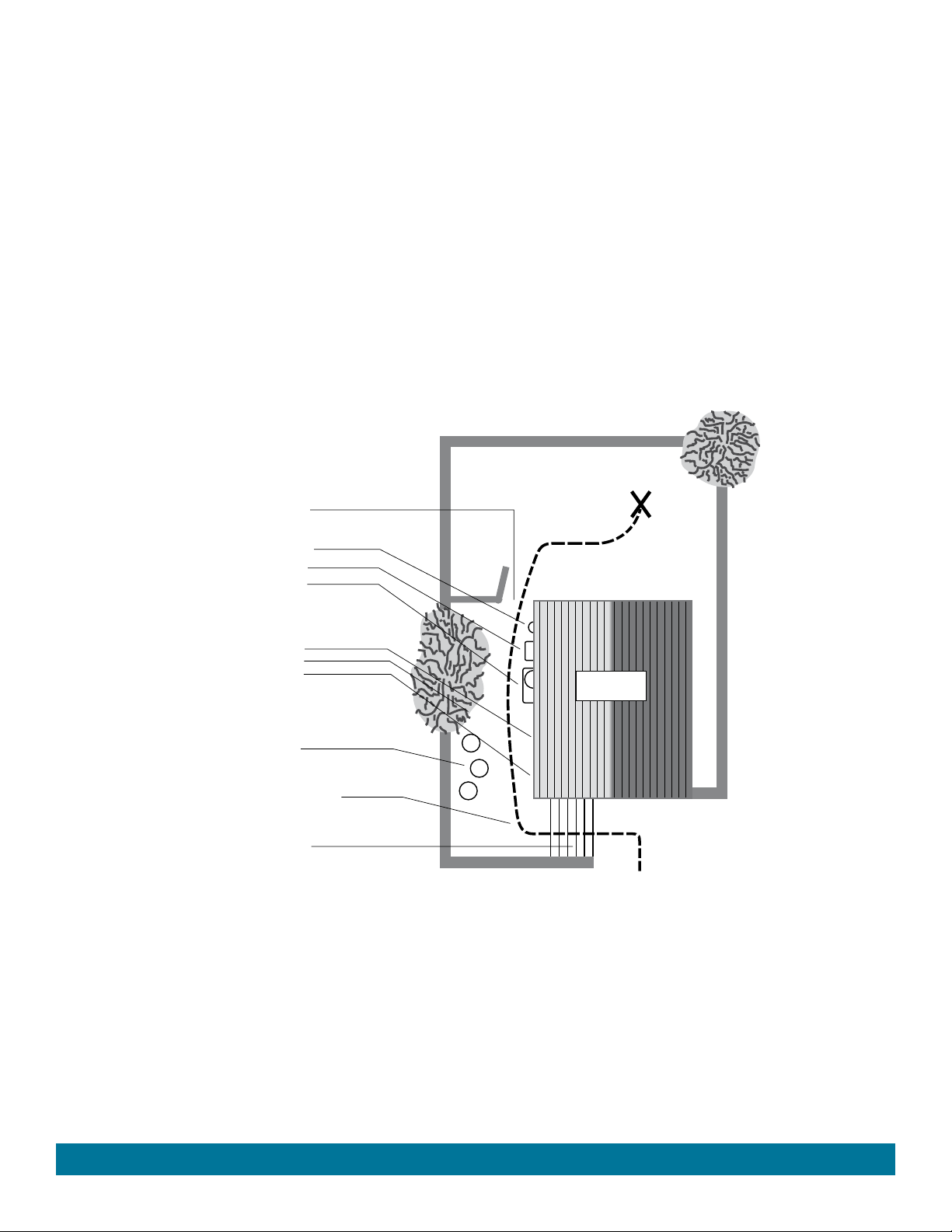

OUTDOOR CONSIDERATIONS
• Local electrical and plumbing codes.
• Consider local codes pertaining to fencing, enclosures, walls,
electrical and plumbing. You will need to ensure that your fitness
system is an adequate distance from power lines, both above
ground and underground. Your fitness system will also need to be
child proofed.
• View from house for aesthetics and supervisory needs.
• Distance from house for wintertime soaking.
• Nighttime lighting.
• Consider sunlight exposure, views, access, property lines, lighting,
wind direction, shielding, septic tanks, plants, and trees when
determining your location. Chemicals in the fitness system water
may splash damaging nearby plant life.
• If your
fitness system is to be located on a second story, be
positive support is adequate. Call your builder and a structural
engineer.
• Area for placement of support equipment where adequate space
will be needed to gain access to components for maintenance and
general servicing.
• Be sure to note any other considerations, such as aesthetics or
privacy concerns, that may affect the safety or enjoyment of using
the
fitness system .
• Provide adequate drainage away from the equipment and
adequate elevation to allow draining by siphon, if should be
required.
• Place the fitness system on a firm, level surface that will not shift.
ELECTRICAL REQUIREMENTS
1. The fitness system should have access to a power source
capable of supplying 220-240 volts AC power for single phase
models.
2. For 3 phase models the system has both 3 phase and single phase
equipment. 3 phase (L-L) 380 - 415 VAC & single phase (L-N) 220-
240 VAC required (380-415V, 3N~, 24A, 50Hz).
3. It must be wired directly into a grounded circuit with a RCD. No
other appliances should be on the same circuit.
4. Location of electrical supply 220-240 / 380-415 volt systems
require hard wire installed from the main electrical source, to
the sub panel, then to the fitness system terminal block. All
equipment must be ground fault circuit protected (NOT SUPPLIED).
All electrical wiring must comply with the national electric code.
5. Locations at least 1.5 m (5 feet) from all metal surfaces. A fitness
system may be installed within 1.5 m (5 feet) of metals surfaces
providing each metal surface is permanently connected by an
8.4 mm² copper conductor attached to the bonding wire connector
on the heater provided for this purpose. All installations must
comply with your national electric codes.

Page 5
DECK INSTALLATION
To be certain your deck can support your system you must know
the deck’s maximum load capacity. Consult a qualified building
contractor or structural engineer before you place the system on
an elevated deck. To find the weight of your system, its contents and
occupants, refer to the System Specification chart. This weight per
square meter must not exceed the structure’s rated capacity, or serious
structural damage could result.
DELIVERY ACCESS
It may be necessary to remove a gate, part of a fence, or other movable
obstructions in order to move the system to its installation site. Your
system will determine what equipment is necessary to move your system
to its final location. A roll back truck with a tilt bed is a good option if your site
can be accessed by an across road vehicle. When a small reach is needed
for the final placement of your system, a boom truck is ideal. A telehandler
vehicle can off load, traverse property and place your system in a more
challenging situation or terrain. When access to your site is limited a crane
may be used to lift your system over obstructions for precise placement.
The ENDLESS POOLS Exercise System delivery personnel will
supervise the crane delivery and complete the system installation.
NOTE: If your system delivery requires the use of a crane, you may be
required to pay for its services at the completion of the delivery.
How is your width and height clearance?
Protruding electric meters
A/C units
Do you have sufficient
overhead clearance?
Check low roof eaves,
overhanging branches,
rain gutters
Is the path clear?
Move away branches, dog
houses, firewood, etc.
If there is a 90 turn, can we
clear it? (The spa will not bend.)
No more than 6 consecutive
stairs without a landing
to accommodate the spa
Gas meters
Check all gates
HOUSE
BACK YARD
STREET
How is your width & height clearance?
Check all gates
Protruding electric meters
Gas Meters
A/C units
Do you have sufficient
overhead clearance?
Check low roof eaves,
overhanging branches,
rain gutters
Is the path clear?
Move away branches, dog
house, firewood, etc.
If there is a 90º turn, can we
clear it? (the Exercise System
will not bend)
No more than 6 consecutive
stairs without a landing to
accommodate the Exercise
System
Site Requirements

Page 6 Site Requirements

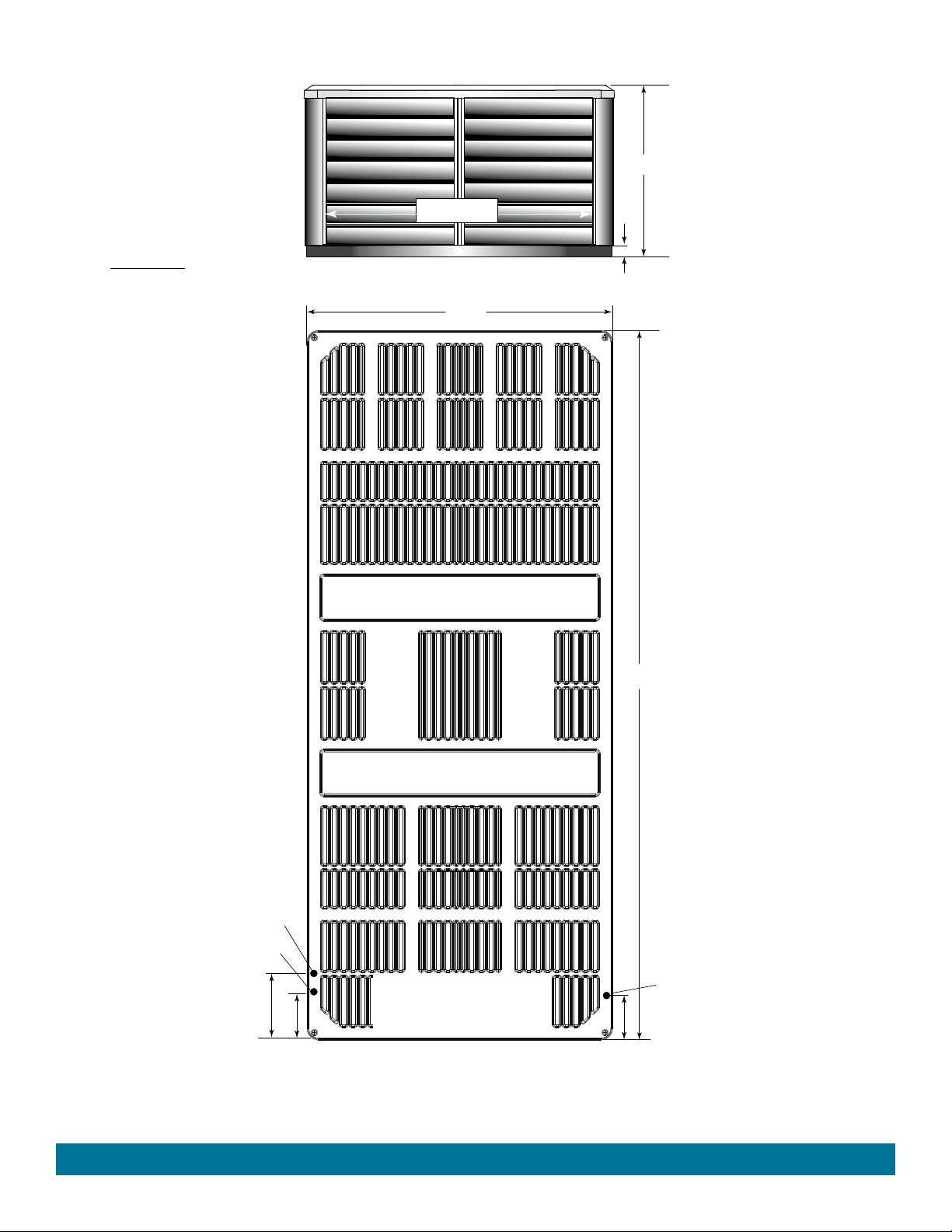

E500 MODELS
NOTE:ENDLESS POOLS requires that the E500 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the
“dead weight” found in the specification chart on the back page.
WARNING:The E500 Models must not be shimmed in any manner.
458 cm
226 cm
52 cm 35 cm 35 cm
10 cm
147 cm
DOOR
DOOR SIDE
4.5 cm
ELECTRICAL CUTOUT
4.5 cm
ELECTRICAL CUTOUT
MAIN DRAIN
TOP VIEW OF BASE
E500 Models:
E500-58 = 147 cm tall
E500-58 = 147 cm tall
Treadmill
Equipment Compartment
Location
Back
Side

Page 7
Site Requirements

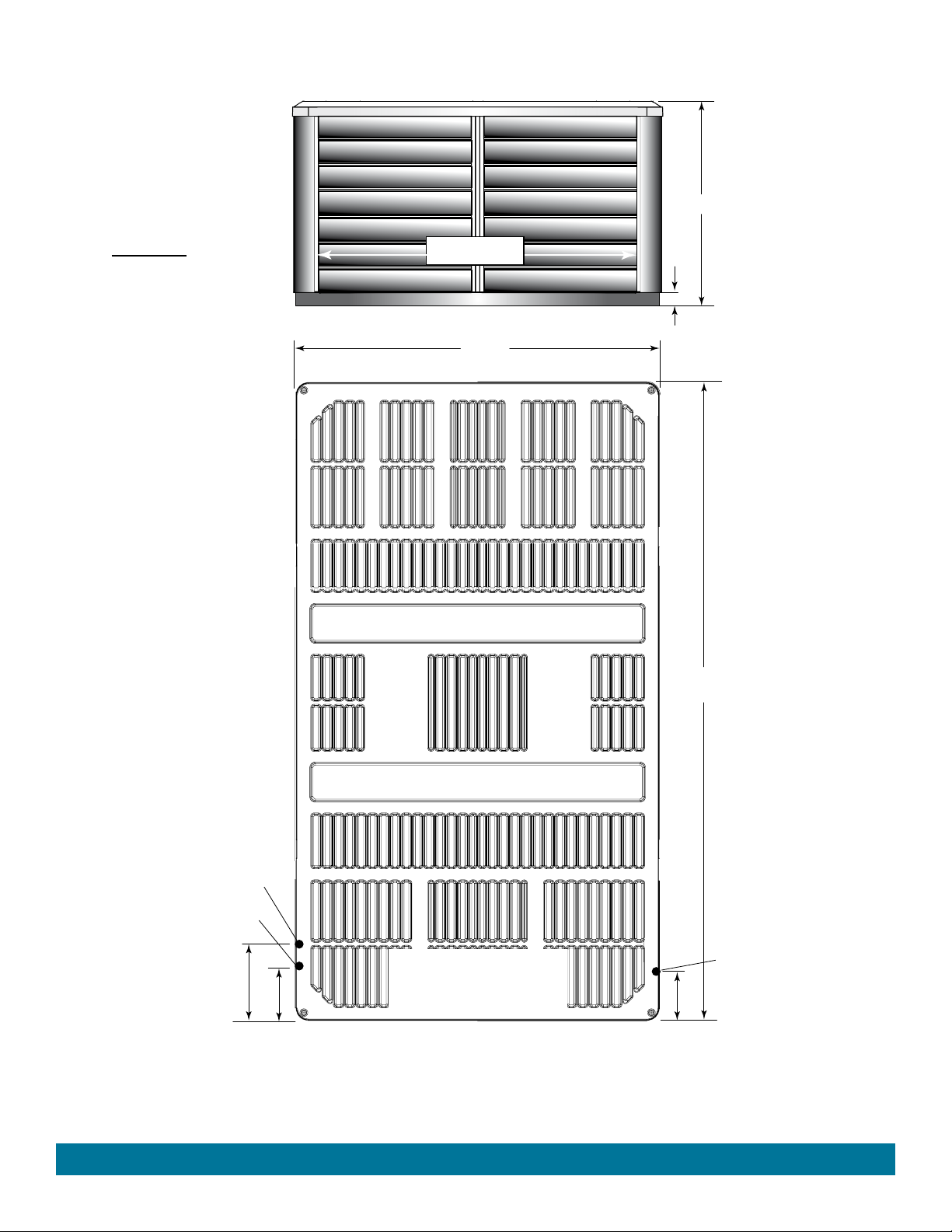

E550 MODEL
NOTE:ENDLESS POOLS requires that the E550 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the
“dead weight” found in the specification chart on the back page.
WARNING:The E550 Models must not be shimmed in any manner.
458 cm
239 cm
60cm
41 cm
10 cm
147 cm
184 cm
TOP VIEW OF BASE
Front
Left Side
Equipment
Compartment
Location
MAIN DRAIN
Back
Side
ELECTRICAL CUTOUT (4.5 cm )
Back
Left Side
DOOR SIDE

Page 8 Site Requirements
E700 MODELS
NOTE:ENDLESS POOLS requires that the E700 Models be installed on a minimum 15 cm (6") thick reinforced concrete pad or structurally sound deck able to support the
“dead weight” found in the specification chart on the back page.
WARNING:The E700 Models must not be shimmed in any manner.
E700 Models:
E700-58 = 147 cm (58") tall
E700-58 = 147 cm (58") tall
Treadmill
10 cm
226 cm
518 cm
52 cm 35 cm 35 cm
147 cm
DOOR
DOOR SIDE
4.5 cm
ELECTRICAL CUTOUT 4.5 cm
ELECTRICAL CUTOUT
MAIN DRAIN
TOP VIEW OF BASE
Equipment Compartment
Location
Back
Side

Page 9
Electrical Requirements
IMPORTANT : Fill the fitness system with water before turning on the power.
Your ENDLESS POOLS fitness system has been carefully designed to
give you maximum safety against electrical shock. Connecting the fitness
system to an improperly wired circuit will negate many of the fitness
system ’s safety features. Improper wiring may also cause electrocution,
risk of fire, and other risks of injuries. Please read and follow the electrical
installation requirements and instructions completely!
SINGLE PHASE (MODEL) WIRING
220-240 VOLT CONNECTED (STANDARD)
ENDLESS POOLS fitness system s must be wired in accordance with all
applicable local electrical codes. All electrical work should be done by an
experienced, licensed electrician. We recommend the use of appropriate
electrical conduit, fittings, and wire for all circuits.
The diagram below illustrates how to wire the fitness system model:
• The fitness system requires an electrical service using two RCD
breakers. A system with a treadmill requires one breaker rated for a
25 amp load and one rated for a 24 amp load, two 24 amp loads are
required with a system that doesn't have a treadmill.
• Disconnect switches with at least 3 mm separation between contacts
must be used for all electrical circuits to the fitness system .
• Mount the subpanel in the vicinity of the fitness system , but not closer
than 1.5 m (5 feet) away. Your fitness system , must be supplied by a
ground fault circuit interrupter - residual current device (RCD) - with a
tripping rating not exceeding 30 mA in an electrical subpanel.
• Open the
fitness system by removing the 4 screws holding
the vertical T-spacer located in the center of the equipment
compartment (back side of fitness system ). Slide panel towards
center, raise panel, pull bottom out, lower, disconnect light wires on
both side and remove, repeat for other panel.
• Insert power wires into fitness system from either side towards the
bottom, you will find a plastic cap attached to wall.
• Once your fitness system has been filled with water, turn it on
and test all of the circuit breakers.
IMPORTANT: If breaker immediately trips, verify that the wires are
correctly connected. Breaker should be tested prior to each use. Here’s
how:
1. Push the “TEST” button on each breaker - residual current device
(RCD), and observe it click OFF.
2. Wait 30 seconds, then push the breaker switch to the OFF (down)
position (to ensure that it has completely disengaged), then push
the breaker switch to the ON (up) position. If you don't wait 30
seconds, the fitness system ’s power indicator may continue to
blink – try again.
If any of the RCD breakers fails to operate in this manner, your fitness
system may have an electrical malfunction, and you may be at risk of
electrical shock. Turn off all circuits and do not use the fitness system
until the problem has been corrected by an authorized service agent.
WARNING: Removing, or bypassing any RCD breaker will result in
an unsafe fitness system and will void the warranty.
IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS fitness system, it is essential that you understand and apply these
installation requirements. Your ENDLESS POOLS fitness system has been carefully engineered to provide maximum safety against electric shock.
Remember, connecting the fitness system to an improperly wired circuit will negate many of its safety features.
NOTE: Long wiring runs may require larger-gauge wire than stated.
CAUTIONS
USE COPPER CONDUCTORS ONLY.
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE FITNESS SYSTEMS ARE INTENDED FOR USE WITH RCD
SUBPANEL.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE
SUB-PANEL FOR DETAILED WIRING INSTRUCTIONS.
Single Phase
220-240 VAC, 50Hz,
MORE THAN 152 cm
THE SUB-PANEL MUST
BE WITHIN SIGHT OF THE
FITNESS SYSTEM
DO NOT EXCEED 1525 cm
6.0 mm²
FITNESS SYSTEM JUNCTION BOX
MAIN INPUT
RCD BREAKER*
24 Amp Load
L1, HOT
L2, HOT
N2, NEUTRAL,
GROUND, 16.0 mm²
CIRCUIT 1 CIRCUIT 2
GND
N, NEUTRAL
6.0 mm²
6.0 mm²
6.0 mm²
6.0 mm²
L1, HOT
L2, HOT
N2, NEUTRAL,
N, NEUTRAL
6.0 mm²
6.0 mm²
6.0 mm²
RCD BREAKER*
24A Load or
25A Load with Treadmill
INPUT 1
INPUT 2
N N
Electrical Requirements
* Circuit System Load Rating Noted

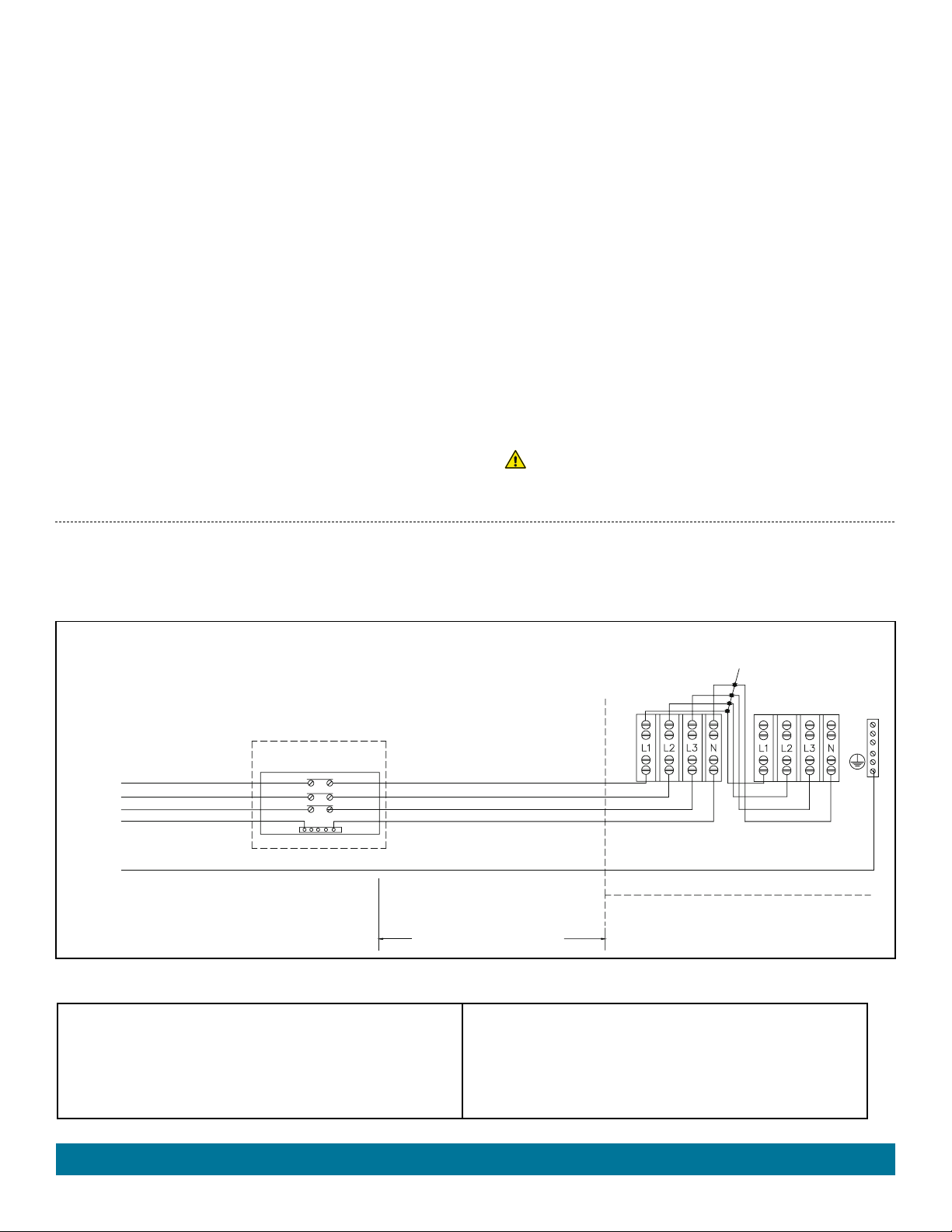

Page 10 Electrical Requirements
FIELD WIRING
INPUT 1
L1, HOT, 6.0 mm²
RCD BREAKER
16A AMP
L2, HOT, 6.0 mm²
L3, HOT, 6.0 mm²
N, NEUTRAL, 6.0 mm²
L1, HOT, 6.0 mm²
L2, HOT, 6.0 mm²
L3, HOT, 6.0 mm²
GROUND 16.0 mm²
MAIN INPUT
CIRCUIT 1 CIRCUIT 2
JUNCTION BOX
380-415V, 3N~, 16A, 50Hz
3 PHASE
16A/PHASE 50HZ
GND
MORE THAN 152 cm
THE SUB-PANEL MUST BE WITHIN
SIGHT OF THE FITNESS SYSTEM
DO NOT EXCEED 1525 cm
FACTORY INSTALLED JUMPERS
(DO NOT REMOVE)
3 PHASE (MODEL) WIRING
380-415V, 3N~, 16A, 50HZ VAC
PERMANENTLY CONNECTED
This system has both 3 phase and single phase equipment. 3 phase
(L-L) 380-415 VAC and single phase (L-N) 220-240 VAC required.
ENDLESS POOLS fitness system s must be wired in accordance with
all applicable local electrical codes. All electrical work should be done
by an experienced, licensed electrician. We recommend the use of
appropriate electrical conduit, fittings, and wire for all circuits.
The diagram below illustrates how to wire the
fitness system
model:
• The
fitness system requires an electrical service using a 16 amp 3
phase RCD breaker.
• Disconnect switches with at least 3 mm separation between
contacts must be used for all electrical circuits to the
fitness
system .
• Mount the subpanel in the vicinity of the fitness system , but not
closer than 1.5 m (5 feet) away. Your fitness system , must be
supplied by a residual current device (RCD) - with a tripping rating
not exceeding 30 mA in an electrical subpanel.
• Open the fitness system by removing the 4 screws holding the
vertical T-spacer located in the center of the equipment compartment
(back side of fitness system ). Slide panel towards center, raise
panel, pull bottom out, lower, disconnect light wires on both side and
remove, repeat for other panel.
• Insert power wires into
fitness system from either side towards the
bottom, you will find a plastic cap attached to wall.
• Once your fitness system has been filled with water, turn it on and
test all of the circuit breakers.
• Verify Phase rotation is correct for input.
IMPORTANT: If breaker immediately trips, verify that the wires are
correctly connected. Breaker should be tested prior to each use. Here’s
how:
1. Push the “TEST” button on each RCD breaker - residual current
device, and observe it click OFF.
2. Wait 30 seconds, then push the breaker switch to the OFF (down)
position (to ensure that it has completely disengaged), then push
the breaker switch to the ON (up) position. If you don't wait 30
seconds, the fitness system ’s power indicator may continue to
blink – try again.
If the RCD breaker fails to operate in this manner, your fitness system
may have an electrical malfunction, and you may be at risk of electrical
shock. Turn off all circuits and do not use the fitness system until the
problem has been corrected by an authorized service agent.
WARNING: Removing, or bypassing any RCD breaker will result in
an unsafe fitness system and will void the warranty.
CAUTIONS
USE COPPER CONDUCTORS ONLY.
USE SUPPLY WIRES SUITABLE FOR 75°C/167°F.
DISCONNECT ALL SUPPLY CONNECTIONS BEFORE SERVICING.
CONNECT ONLY TO A CIRCUIT PROTECTED BY A CLASS A
GROUND-FAULT INTERRUPTER.
THESE FITNESS SYSTEMS ARE INTENDED FOR USE WITH
RCD SUBPANEL.
INCORRECT WIRING WILL DAMAGE CIRCUIT BOARDS.
REFER TO THE WIRING INSTRUCTIONS INCLUDED WITH THE
SUB-PANEL FOR DETAILED WIRING INSTRUCTIONS.
IMPORTANT: If you ever need to move or relocate your ENDLESS POOLS fitness system, it is essential that you understand and apply these
installation requirements. Your ENDLESS POOLS fitness system has been carefully engineered to provide maximum safety against electric shock.
Remember, connecting the fitness system to an improperly wired circuit will negate many of its safety features.
NOTE: Long wiring runs may require larger-gauge wire.
N, NEUTRAL, 6.0 mm²

EQUIPMENT COMPARTMENT
The illustrations below are to be used as a reference only (your fitness system may look different). The equipment compartment is located behind the
hydromassage seats (back of the fitness system ) for the E500 & E700 and below the Control Panel on the front left side for the E550.
7
9
3
4
56
8
1
Page 11
Electrical Requirements
2
DOOR PANEL REMOVE & REPLACE
REMOVE
1. Locate the vertical T-spacer in the center of the equipment compartment
(back side of fitness system or front left side under control panel for E550 model) .
2. Remove the 4 screws (using an 8 mm [5/16"] socket) holding the T-spacer then remove the T-spacer.
3. Slide panel towards center until panel is no longer behind corner.
4. While holding panel, first pull panel up then pull bottom away from ENDLESS POOLS Fitness
system, lower panel and set on ground.
Disconnect light bar wires from each side of panel
and remove.
5. Repeat for other side.
REPLACE
1. Reconnect light bar wires.
2. Raise panel making sure it goes behind the bar top and rest on bottom frame.
3. Slide panel behind corner.
4. Replace other side panel using steps 1 & 2.
5. Attach T-spacer back in place using 4 screws to complete the installation.
10
11
12
1. Hydromassage Jets pump
2. Circulation Pump
3. Control Box & Heater
4. Bonding terminal
5. Swim Machine Hydraulic Unit
(smaller than illustrated)
6. Treadmill Hydraulic Unit (Optional
tandem unit used for both 5 & 6)
7. Junction Box
8. UV-C Ozone
9. Bluetooth Music (optional)
10. Subwoofer (optional)
11. Wi-Fi (optional)
12. Dual Output Power Supply for External.
lights
13. Isolation Valve
13
13
13
(A)
(B)
(C)
(D)
Disconnect Light bar wires
(see steps A-D above)

Page 12
Getting Started
E500 & E700 FITNESS SYSTEM
FEATURES

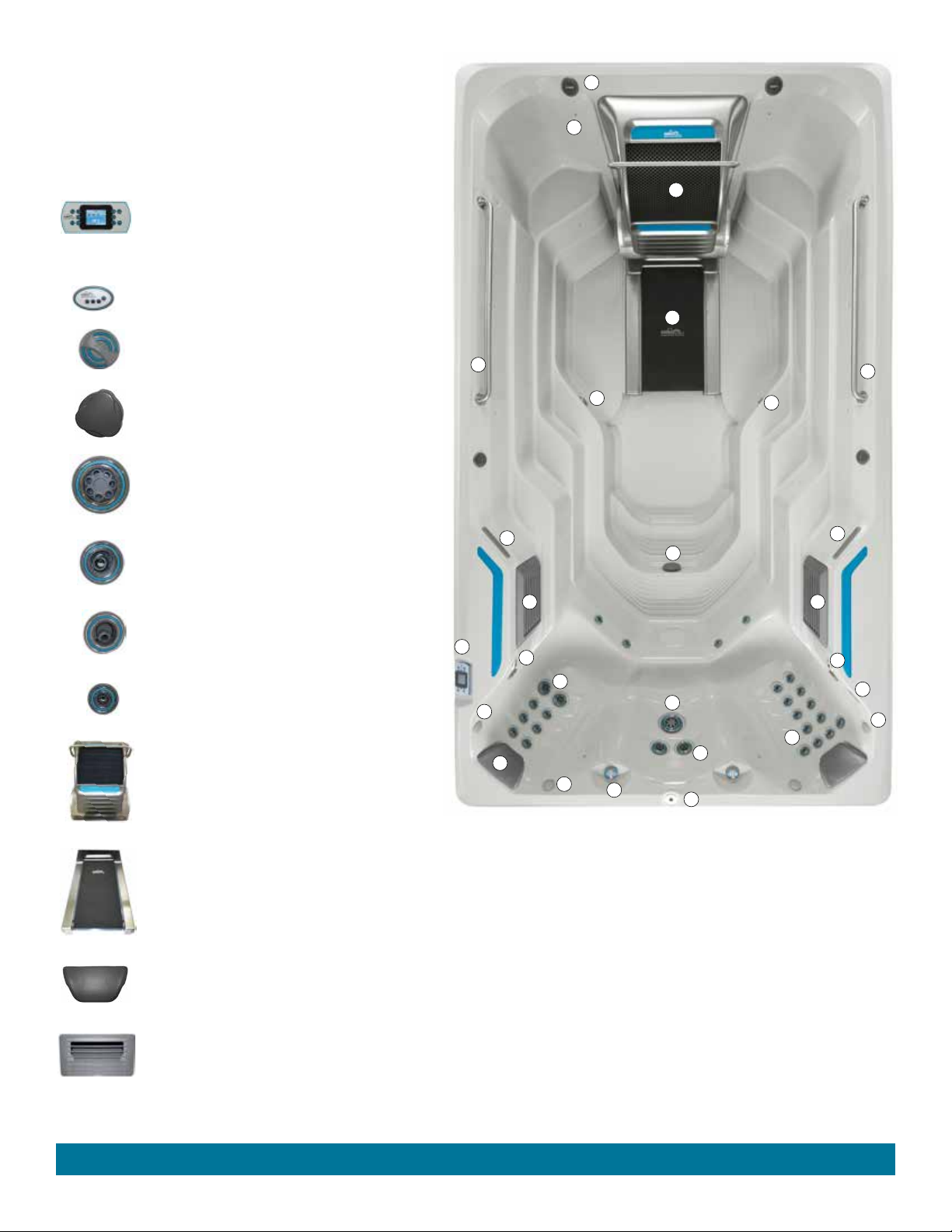

1 ) The control panel provides a quick visual
check of the fitness system ’s status and allows
the user to set different functions of the fitness
system .
2) The Aux panel allows you to control the
Hydromassage jets, interior and exterior lights.
3) The Air Valve allows you to add air to your
hydromassage jets.
4) The Water Feature Lever adjusts the amount
of water that flows from the water feature.
5) The Large Hydromassage jets provide a
unique, pulsating massage.
6) The Midsize Directional Hydromassage
jets, with eyeball nozzles, deliver a direct, more
focused massage.
7) The Midsize rotational Hydromassage jets,
provide a rotating massage.
8) The Mini Hydromassage jets feature a direct
more focused massage.
9) The Hydraulic Swim Machine uses a remote
control to adjust the speed of the current.
10) The Hydraulic Treadmill (Optional) uses
a remote control to adjust the speed of the
treadmill.
11) Pillow
12) Filter Compartment Grill
13) Swim Speaker (Optional)
14) Seating Area Speaker
(Optional)
15) Suction Screen
16) Water feature
17) Ozone Jet
18) Heater Return
19) Grab Rails
20) Points of Light
21) Exercise Anchor
22) Tether Anchor
1
2
4
5
6
10
11
12
13
3
8
17
14
ADDITIONAL FITNESS SYSTEM
FEATURES
16
19
9
18
7
15
4
16
20
21
22
19
Getting Started
Your fitness system may look different than the illustration
12
21

Page 13
Getting Started
1 ) The control panel provides a quick visual
check of the fitness system ’s status and allows
the user to set different functions of the fitness
system .
2) The Air Valve allows you to add air to your
hydromassage jets.
3) The Large Hydromassage jets provide a
unique, pulsating massage.
4) The Midsize rotational Hydromassage jets,
provide a rotating massage.
5) The Mini Hydromassage jets feature a direct
more focused massage.
6) The Hydraulic Swim Machine uses a remote
control to adjust the speed of the current.
7) The Hydraulic Treadmill (Optional) uses
a remote control to adjust the speed of the
treadmill.
8) Swim Speaker (Optional)
9) Back Side Speakers
(Optional)
10) Suction Screen
11) Ozone Jet
12) Heater Return
13) Grab Rails
14) Filter Compartment Grill
15) Points of Light
16) Exercise Anchor
17) Tether Anchor
ADDITIONAL FITNESS SYSTEM
FEATURES
E550 FITNESS SYSTEM
FEATURES
1
2
4
5
6
10
12
13
3
8
17
14
16
9
7
16 2
9
14
11
10
15
8
13
16
13 13
8
8
9
9
16

HYDROMASSAGE JETS
LARGE HYDROMASSAGE Jets - This jet provides a unique, pulsating
massage. The water flow is adjustable in that it can be turned from low
to high (by rotating the jet faceplate ¼ turn).
MIDSIZE DIRECTIONAL JET - These jets allow you to redirect the
jet stream by changing the position of the nozzle. The water flow is
adjustable in that it can be turned from low to high (by rotating the jet
faceplate ¼ turn).
MIDSIZE ROTATIONAL JET - These jets provide a rotating massage
pattern. The water flow is adjustable in that it can be turned from low to
high (by rotating the jet faceplate ¼ turn).
Mini JET - These jets deliver a direct, more focused massage. The
water flow is adjustable in that it can be turned from low to high (by
rotating the jet faceplate ¼ turn).
WATERFALL VALVE (E500 & E700)
Your fitness system is equipped with a waterfall feature.
It is activated by turning on the hydromassage jets
(either low or high speed). The flow is regulated by
turning the waterfall valve on the inside wall of the
fitness system.
AIR CONTROLS
Your fitness system is equipped with two air valves. The
air valves will add or remove air to the hydromassage jet
system. Rotate valve to see which hydromassage jets are
affected.
SWIM MACHINE-HYDRAULIC
SWIM MACHINE OPERATION - Two teal remote controls have been
provided with your system and have
been packaged in the owner's packet
inside the equipment compartment.
The swim machine is turned on
through the use of the remote control,
which also adjusts the speed of the current
faster or slower. When changing speed,
you must press and hold the buttons on the
remote, then wait a few seconds for the current
to adjust. Upon initial start-up you will find that the unit has been set to
its lowest speed; which is a barely perceptible current. You will need
to press and HOLD the FASTER button to increase the speed. The
standard top speed is roughly equivalent to a 1:14 / 100 meters
(1:08 / 100 yard) pace a speed for expert swimmers only. Set the water
speed at a comfortable level for your needs. Remotes are water resistant
but can not be submerged.
To stop swimming, simply press the on/off button on the remote. If left
running, the power unit will turn off automatically after thirty minutes
and can be restarted by pressing the on / off button again. Once you
have found an optimal speed for yourself, you may leave the system
at that setting. The controller for the swim machine is designed with a
“ramp-up” feature which forces the swim machine to start slowly, but will
increase to the last setting at which someone swam.
When you are first learning to swim in the swim current, it is often
useful to allow yourself to drift back to the rear of the fitness system. Let
your feet rest on the rear seat and then swim forward into position. By
starting from the back, you can get a feel for just how much room you
have. When swimming, center your outstretched arm about 30 cm from
the front grill .
TREADMILL-HYDRAULIC (OPTIONAL)
TREADMILL OPERATION - Two grey remote controls have
been provided with your system and have been packaged in the
owner's packet inside the equipment
compartment. These remotes are identical
to the swim machine remotes but a
different color.
Upon initial start-up you will find that unit
has been set to its lowest speed. You will
need to press and HOLD the FASTER
button to increase the speed.
The treadmill is turned on through the use of a remote control, which
also adjusts the speed of the treadmill faster or slower. When changing
speed, you must press and hold the buttons on the remote, then wait a
few seconds for the treadmill to adjust. Set the speed at a comfortable
level for your needs. Remotes are water resistant but can not be
submerged.
NOTE: Depending on duration, temperature, and speed, users may
experience slight pulsing when the treadmill is operated on the slowest
speed settings. This action is caused by the natural rotation of the
hydraulic motor and will lessen as the treadmill speed is increased.
To turn off the treadmill, simply press the on/off button on the remote. If
left running, the power unit will turn off automatically after
thirty minutes and can be restarted by pressing the on / off button
again. The treadmill will always default to the slowest speed when turned
on.
Page 14 Getting Started

Page 15
When you are first learning to use the treadmill in conjunction with the
swim machine, it is best to start at the lowest speeds for both the swim
machine and treadmill. The added resistance the swim machine offers
may allow for a slower treadmill speed than initially thought.
IMPORTANT: Do not use treadmill when circulation pump is OFF.
PACE DISPLAY (OPTIONAL)
SWIM PACE DISPLAY - For any ENDLESS POOLS’ product that
generates a swim current the default setting
for the display is 100 meters (100 yard) pace
(shown as minutes:seconds). This indicates
the water flow equivalent of swimming 100
meters (100 yards) in a traditional lap pool in
the indicated amount of time. Swim current
units can also be for a 100 meter pace. As the current speed is
increased, the value the display reads goes down, since the faster you
swim the less time it takes to swim 100 meters (100 yards). Any Pace
Display can be set for a percentage of 2-100.
TREADMILL PACE DISPLAY - For the optional hydraulic treadmill the
default setting for the display is miles per hour.
The pace can be also be converted to display
kilometers per hour. Unlike a swim current
display, as the speed of the treadmill is
increased, the value on the display will also
increase. Any Pace Display can be set for a
percentage of 2-100.
QUICK START-UP INSTRUCTIONS
BEFORE YOU FILL YOUR FITNESS SYSTEM
Make sure your fitness system has been properly installed per all local
codes, including the location of the fitness system, the foundation of the
fitness system, as well as the electrical installation of the fitness system.
DO:
• Know which water treatment system you will be using and make sure
you have necessary chemicals available. Read all of the instructions
that come with the system.
• Have 5-way Test Strips Available.
• Have pH/Alkalinity Up & Down available.
• Know the hardness of your water, contact your dealer to help you
with this information. See Water Quality and Maintenance for more
information.
• Purchase the Clean Screen™pre-filter to remove unwanted
contaminants from the tap water. This is recommended, not required.
START-UP
Your ENDLESS POOLS fitness system has been thoroughly tested
during the manufacturing process to ensure reliability and long-term
customer satisfaction. A small amount of water may have remained in
the plumbing after testing and, as a result, may have spotted the fitness
system shell or the fitness system siding prior to delivery. Before filling
the fitness system, wipe the fitness system shell clean with a soft rag.
The following instructions must be read and followed exactly to ensure
a successful start-up or refill.
CAUTIONS
• DO NOT CONNECT POWER TO AN EMPTY Fitness System.
Power to the fitness system automatically activates critical
components within the fitness system, such as controls, heater, and
other systems. If power is supplied to these components prior to the
fitness system being filled, the components will be damaged, and this
may result in a non-warranty component failure.
• DO NOT use your fitness system after filling until all of the steps listed
below are completed.
• DO NOT add chlorine if treating your fitness system with
polyhexamethylene biguanide (Biguanide, PHMB, eg. BaquaSpa®)
sanitizer.
• DO NOT use a salt-generated chlorine system, this will damage
components and is not covered under your warranty.
• Before filling your fitness system for the first time, remove the
equipment compartment door and check to ensure that the unions on
either side of the pump(s) and heater are hand-tight and the slide
valves are open.
1. CLOSE DRAIN, remove the filter compartment grill skimmer
tray and one filter (pg. 26). Fill your fitness system through the
filter compartment using the CleanScreen™pre-filter (optional from
dealer) that attaches to your garden hose. The water level of your
fitness system should be maintained at a level 15 cm (6") below the
top of the fitness system. Reinstall the filter, skimmer tray, and grill
once the fitness system is filled.
IMPORTANT: Watkins Wellness does not recommend that the
fitness system be filled with “softened” water, as this may damage
the fitness system’s equipment.
2. AFTER THE FITNESS SYSTEM HAS BEEN FILLED with
water and the equipment compartment door is secured, power
must be applied to the fitness system.
• FIRST activate power to the subpanel from the main house panel.
• NEXT open the door of the electrical subpanel and reset the RCD
breakers.
• FINALLY, close and secure the subpanel door.
Getting Started

Page 16 Getting Started
3. TO CHECK THE OPERATION OF THE HYDROMASSAGE JET
SYSTEM and to purge any remaining air from the system complete
the following steps:
• Press the jets button placing all hydromassage jets on High.
• Once the jet system is fully operational (as indicated by strong,
non-surging jets), priming of the fitness system is complete.
• To turn off the jets, press the jets button on the main control panel .
• If you do not feel a steady stream of water from your jets, refer
to the instructions for priming the pump in the fitness system
TROUBLESHOOTING section.
4. SET THE TEMPERATURE CONTROL to the desired temperature
between 15°C (59°F) and 40°C (104°F), then place the fitness
system cover on the fitness system and allow the water
temperature to stabilize approximately 0.5°C (1°F) per hour. Make
sure you secure the cover in place. Periodically check the fitness
system water temperature. When the water temperature reaches
desired temperature, proceed to the next step. The fitness system
temperature is pre-programmed to reach 29.5°C (85°F). You may
change the water temperature by pressing the  button on the
control panel to raise the temperature, or lower temperature by
pressing the ▼button.
5. USING A TEST STRIP AND APPLICABLE CHEMICALS adjust
Total Alkalinity (TA) to 80-120 ppm, Calcium Hardness (CH) to
50-150 ppm, then fitness system water pH to between 7.2 and 7.8.
These procedures are listed in the “Water Quality and Maintenance”
section.
OPERATION NOTE: Adjusting the Total Alkalinity as the first step
is important, as out-of balance TA will affect your ability to adjust the
pH correctly and will prevent the sanitizer from operating effectively.
IMPORTANT: Activate the swim machine by using the blue swim
machine remote and increase speed to at least 50% before adding
chemicals. Disperse the chemicals in the swim area away from the
walls.
6. SUPERCHLORINATE THE FITNESS SYSTEM WATER by adding
1½ teaspoons of chlorine (sodium dichlor) per 950 liters
(250 gallons) of water while running the swim machine above 50%
for 10 minutes. Disperse the chemicals in the swim area away from
the walls.
7. TEST THE FITNESS SYSTEM WATER FOR CHLORINE
RESIDUAL. If the residual is between 1 and 5 ppm on the test
strips, go on to the next step. If the residual is less than 1 ppm,
activate the swim machine above 50% for another 10 minutes and
add more chlorine as needed, then retest.
WARNING:High sanitizer levels can cause discomfort to the user’s
eyes, lungs and skin. Always allow the sanitizer level to fall to the
recommended range before using the fitness system.
8. RECHECK the Total Alkalinity (TA) 80-120 ppm, Calcium Hardness
(CH) 75-150 ppm, and the pH must be between 7.2 and 7.8.
The fitness system is ready for use when the fitness system water
has circulated and the bromine level remains between 1 and 2 ppm
or chlorine level remains between 1 and 5 ppm.

Page 17
Operating Instructions
MAIN CONTROL PANEL
The main control panel provides a bright, full color display, and intuitive
user experience, while its screen’s high resolution brings fitness system
user interfaces to a new level. Loaded with a large amount of memory
and a powerful on-board processor creating seamless graphic interface
that fitness system users have been waiting for.
MAIN CONTROL PANEL FUNCTIONS
When the screen is off, press any button to turn the control panel screen
on and display the home screen. After 30 minutes of inactivity the screen
will shut off.
The function description of the buttons below will only work from the
Home screen. Once the main control panel is placed in a submenu the
selection lights next to the buttons will light up to indicate which buttons
may be selected for a specific screen function.
SETTINGS
One press of the (Settings button) from the home page gives you
access to a menu to manage the settings of your fitness system where
you will find:
• Water care
• Audio (optional)
• Maintenance
• Date and time
• Keypad Settings
• Miscellaneous
• Wi-Fi (optional)
• Electrical configuration
• About
Use the or buttons to move up and down in the list. To select an
option, press the lit button beside the desired highlighted option.
IMPORTANT: At any point you can press the (Settings button) to
return to the home screen or top left button (hydromassage jets) to
go back.
WATER CARE / HEATER SETTINGS
The Water Care section will help you set up your ideal heater settings.
Choose from Away from Home, Standard,
Energy Savings, Super Energy Savings,
and Weekender, depending on your needs.
Use (middle left) button to choose
your setting. A green check mark will
appear on the selected icon to confirm.
When in Economy mode, the heating
set point will be reduced by 11°C (20°F),
which means that the heating system will not come on during the set time
unless the temperature falls 11°C (20°F) below the fitness system's set
temperature.
Because the fitness system uses a 24 hour circulation pump the filter
cycle settings are not applicable, however, the hydromassage jet pump
will purge for 1 minute at any of the filter cycle setting start times. The
factory filter cycle settings may be deleted to stop the 1 minute purge.
WATER CARE MODES
Away from home:
In this mode the fitness system will always be in economy
mode; the set point will be reduced by 11°C (20°F).
Standard:
The fitness system will never be in economy mode.
Energy Savings:
The fitness system will be in economy mode during the peak
hours of the day and resume normal mode on the weekend.
Super Energy:
The fitness system will always be in economy mode during
peak hours, every day of the week.
Weekender:
The fitness system will be in economy mode from Monday to
Friday, and will run normally on the weekend.
Default Settings:
By selecting this setting you will be asked to confirm your
choice. Doing so will revert all Water Care Modes back to
factory settings.
MODIFYING SCHEDULES
To modify a Water Care category, use
the (middle right) lit button, to open
the selected Water Care menu. The
menu screen is divided into two
settings, Economy and Purge cycle
with Economy being first. Set or
change the Day, Start and Stop time if
desired to keep the heater off
(Economy mode). Scroll down to
set or change the Purge Time Day
and Start time keeping in mind that
this will only set a 1 minute purge
cycle (duration is not changeable).
You can add schedules by scrolling
down to Add, and selecting by
using the (middle left) lit button.
Settings
Audio
Selection
Button
Selection Lights
Selection
Button
Hydromassage Jets All Off/Memory On
Up/
Temperature
Down/
Temperature
External
Lights
Internal Lights
Operating Instructions
