ENDLESS POOLS®HYDROSTRIDE™
INSTALLATION INSTRUCTIONS

Endless Pools®Hydrostride™Installation
IMPORTANT SAFETY INSTRUCTIONS /CONSIGNES DE SÉCURITÉ IMPORTANTES
READ AND FOLLOW ALL INSTRUCTIONS
LISEZ ET SUIVEZ TOUTES LES INSTRUCTIONS
Manufacturers Safety Instructions
DANGER: BEFORE INSTALLING OR USING THIS PRODUCT, READ AND FOLLOW ALL SAFETY INFORMATION.
FAILURE TO DO SO CAN RESULT IN DAMAGE, INJURY, OR DEATH.
DANGER: SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THIS PRODUCT IS NOT INSTALLED OR USED
CORRECTLY.
WARNING: This unit should be installed only per the manufacturer’s instructions.
WARNING: This product must be installed in accordance with any applicable state and local code. Consult the
local building and health code for more information.
WARNING: Before each use, examine the treadmill for damage or signs of wear. Do not use the product if found
in this condition. Contact Endless Pools Customer Service.
WARNING: This product contains moving parts. Moving parts and other features of this product can be danger-
ous. Do not put fingers or other objects into moving parts of this product. Do not wear loose clothing
or jewelry when using this product.
WARNING: NEVER operate the treadmill without reading and completely understanding the results of any opera-
tional change you request from the controller.
WARNING: NEVER leave an operating treadmill unattended.
WARNING: NEVER mount or dismount the treadmill while the belt is moving.
WARNING: NEVER adjust the tension of the belt. The belt tension is factory set. Tightening the belt may damage
the treadmill which could result in serious bodily injury.
WARNING: Consult a physician before using this product. Stop exercising if you feel pain or tightness in your
chest, become short of breath, or feel faint. Contact your doctor before using this product again.
WARNING: Use caution while participating in other activities while using this product; such as watching televi-
sion, reading, etc. These distractions may cause you to lose balance or stray from walking in the
center of the belt; which may result in serious injury.
WARNING: This appliance is not intended for use by persons with reduced physical, sensory or mental capabil-
ities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Keep children under the
age of 13 away from this machine.
WARNING: The treadmill must be submerged in at least 36" (91cm) of water before operating.
1

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
Other Important Safety Instructions
WARNING: To reduce the risk of injury, do not permit children to use this product unless they are closely super-
vised at all times.
AVERTISSEMENT: Pour réduire le risque de blessure, ne permettez pas aux enfants d’utiliser ce produit à moins
qu’ils ne soient surveillés de près en tout temps.
WARNING: To reduce the risk of injury. AVERTISSEMENT: Pour réduire le risque de blessure:
a) The water in a spa should never exceed 104°F (40 °C). Water temperatures between 100°F (38
°C) and 104°F (40°C) are considered safe for a healthy adult. Lower water temperatures are rec-
ommended for young children and when spa use exceeds 10 minutes. L’eau dans un spa ne doit
jamais dépasser 40°C (104°F). Les températures de l'eau comprises entre 38°C (100°F) et 40 °C
(104°F) sont considérées comme sûres pour un adulte en bonne santé. Des températures d'eau
plus basses sont recommandées pour les jeunes enfants et lorsque l'utilisation du spa dépasse 10
minutes.
b) Since excessive water temperatures have a high potential for causing fetal damage during the
early months of pregnancy, pregnant or possibly pregnant women should limit spa water tem-
peratures to 100°F (38°C). Étant donné que les températures excessives de l’eau ont un potentiel
élevé de causer des dommages au fœtus pendant les premiers mois de la grossesse, les femmes
enceintes ou éventuellement enceintes devraient limiter la température de l'eau du spa à 38°C
(100°F).
c) Before entering a spa, the user should measure the water temperature since the tolerance of water
temperature-regulating devices varies. Avant d’entrer dans un spa, l’utilisateur doit mesurer la
température de l’eau car la tolérance des dispositifs de régulation de la température de l’eau
varie.
d) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness
with the possibility of drowning. La consommation d’alcool, de drogues ou de médicaments avant
ou pendant l’utilisation du spa peut entraîner une perte de conscience avec possibilité de noyade.
e) Obese persons and persons with a history of heart disease, low or high blood pressure, circula-
tory system problems, or diabetes should consult a physician before using a spa. Les personnes
obèses et les personnes ayant des antécédents de maladie cardiaque, d'hypotension ou d’hy-
pertension artérielle, des problèmes de système circulatoire ou de diabète devraient consulter un
médecin avant d’utiliser un spa.
f) Persons using medication should consult a physician before using a spa since some medication
may induce drowsiness while other medication may affect heart rate, blood pressure, and circu-
lation. Les personnes qui prennent des médicaments devraient consulter un médecin avant d'uti-
liser un spa, car certains médicaments peuvent provoquer de la somnolence tandis que d'autres
médicaments peuvent affecter la fréquence cardiaque, la pression artérielle et la circulation.
DANGER: RISK OF INJURY: The suction fittings in this spa are sized to match the specific water flow created
by the pump. Should the need arise to replace the suction fittings or the pump, be sure that the flow
rates are compatible. Never operate spa if the suction fittings are broken or missing. Never replace a
suction fitting with one rated less than the flow rate marked on the original suction fitting.
DANGER: RISQUE DE BLESSURE: Les raccords d’aspiration de ce spa sont dimensionnés pour correspondre
au débit d’eau spécifique créé par la pompe. En cas de besoin de remplacement des raccords d’as-
piration ou de la pompe, assurez-vous que les débits sont compatibles. N’utilisez jamais le spa si les
raccords d’aspiration sont cassés ou manquants. Ne remplacez jamais un raccord d'aspiration par un
autre de moins que le débit indiqué sur le raccord d’aspiration d’origine.
DANGER: RISK OF ACCIDENTAL DROWNING: Extreme caution must be exercised to prevent unauthorized
access by children. To avoid accidents, ensure that children cannot use this spa unless they are super-
vised at all times.
DANGER: RISQUE DE NOYADE ACCIDENTELLE: Une extrême prudence doit être exercée pour empêcher
tout accès non autorisé aux enfants. Pour éviter les accidents, assurez-vous que les enfants ne peuvent
pas utiliser ce spa à moins qu'ils ne soient surveillés en tout temps.
2

Endless Pools®Hydrostride™Installation
DANGER: RISK OF ELECTRIC SHOCK: Install at least 5 feet (1.5 m) from all metal surfaces. As an
alternative, a spa may be installed within 5 feet of metal surfaces if each metal surface is
permanently connected by a minimum 8 AWG (8.4 mm2) solid copper conductor to the wire
connector on the terminal box that is provided for this purpose.
DANGER: RISQUE DE CHOC ÉLECTRIQUE: Installez à au moins 1,5 m (5 pieds) de toutes les sur-
faces métalliques. Comme alternative, un spa peut être installé à moins de 1,5 m des surfaces
métalliques si chaque surface métallique est connectée en permanence par un conducteur en
cuivre massif d'au moins 8,4 mm2 (8 AWG) au connecteur de fil sur la boîte à bornes qui est
fourni à cet effet.
A wire connector is provided on this unit to connect a minimum 8 AWG (8.4 mm2) solid
copper conductor between this unit and any metal equipment, metal enclosures of electrical
equipment, metal water pipe, or conduit within 5 feet (1.5 m) of the unit. Un connecteur de fil
est fourni sur cette unité pour connecter un conducteur en cuivre solide d'au moins 8,4 mm2
(8 AWG) entre cette unité et tout équipement métallique, les boîtiers métalliques de l'équipe-
ment électrique, la conduite d'eau métallique ou le conduit à moins de 1,5 m (5 pieds) de
l'unité.
DANGER: RISK OF ELECTRIC SHOCK: Do not permit any electric appliance, such as a light, tele-
phone, radio, or television, within 5 feet (1.5 m) of a spa.
DANGER: RISQUE DE CHOC ÉLECTRIQUE: Ne laissez aucun appareil électrique, comme une
lampe, un téléphone, une radio ou une télévision, à moins de 1,5 m (5 pieds) d'un spa.
WARNING: CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT SUPERVISION.
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER UNE CUVE DE RELAXATION SANS SURVEILLANCE.
WARNING: DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE INSTALLED TO
PREVENT BODY AND HAIR ENTRAPMENT.
AVERTISSEMENT: POUR ÉVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS PUISSENT ÊTRE ASPIRÉS, NE
PAS UTILISER UNE CUVE DE RELAXATION SI LES GRILLES DE PRISE D'ASPIRATION NE SONT
PAS TOUTES EN PLACE.
WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL HISTORY
SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.
AVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MÉDICAMENTS ET (OU) ONT DES PROBLÈMES DE
SANTÉ DEVRAIENT CONSULTER UN MÉDECIN AVANT D'UTILISER UNE CUVE DE RELAX-
ATION.
WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT TUB.
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFECTIEUSES NE DEVRAIENT PAS UTILISER
UNE CUVE DE RELAXATION.
WARNING: TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB.
AVERTISSEMENT: POUR ÉVITER DES BLESSURES, USER DE PRUDENCE EN ENTRANT DANS UNE CUVE DE
RELAXATION ET EN SORTANT.
WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA OR HOT TUB
TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING.
AVERTISSEMENT: POUR ÉVITER L’ÉVANOUISSEMENT ET LA NOYADE ÉVENTUELLE, NE PRENDRE NI DROGUE
NI ALCOOL AVANT D’UTILISER UNE CUVE DE RELAXATION NI QUAND ON S’Y TROUVE.
3

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
WARNING: PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD CONSULT A PHYSICIAN BEFORE
USING A SPA OR HOT TUB.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE SOIT CONFIRMÉE OU NON,
DEVRAIENT CONSULTER UN MÉDECIN AVANT D’UTILISER UNE CUVE DE RELAXATION.
WARNING: WATER TEMPERATURE IN EXCESS OF 100 °F (38 °C) CAN BE INJURIOUS TO YOUR
HEALTH.
AVERTISSEMENT: IL PEUT ÊTRE DANGEREUX POUR LA SANTÉ DE SE PLONGER DANS DE L'EAU À PLUS DE
38 °C (100 °F).
WARNING: BEFORE ENTERING THE SPA OR HOT TUB, MEASURE THE WATER TEMPERATURE WITH AN
ACCURATE THERMOMETER.
AVERTISSEMENT: AVANT D’UTILISER UNE CUVE DE RELAXATION, MESURER LA TEMPÉRATURE DE L’EAU À
L’AIDE D'UN THERMOMÈTRE PRÉCIS.
WARNING: DO NOT USE A SPA OR HOT TUB IMMEDIATELY FOLLOWING STRENUOUS EXERCISE.
AVERTISSEMENT: NE PAS UTILISER UNE CUVE DE RELAXATION IMMÉDIATEMENT APRÈS UN EXERCICE FATI-
GANT.
WARNING: PROLONGED IMMERSION IN A SPA OR HOT TUB CAN BE INJURIOUS TO YOUR HEALTH.
AVERTISSEMENT: L’UTILISATION PROLONGÉE D'UNE CUVE DE RELAXATION PEUT ÊTRE DANGEREUSE POUR
LA SANTÉ.
WARNING: DO NOT PERMIT ELECTRIC APPLIANCES (SUCH AS A LIGHT, TELEPHONE, RADIO, OR TELE-
VISION) WITHIN 5 FEET (1.5 M) OF THIS SPA OR HOT TUB.
AVERTISSEMENT: NE PAS PLACER D’APPAREIL ÉLECTRIQUE (LUMINAIRE, TÉLÉPHONE, RADIO, TÉLÉVISEUR,
ETC) À MOINS DE 1.5 M (5 PIEDS) DE CETTE CUVE DE RELAXATION.
CAUTION: MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH MANUFACTURER'S INSTRUC-
TIONS.
ATTENTION: LA TENEUR DE L'EAU EN MATIÈRES DISSOUTES DOIT ÊTRE CONFORME AUX DIRECTIVES
DU FABRICANT.
Hyperthermia occurs when the internal temperature of the body reaches a level several degrees above the normal
body temperature of 98.6 °F (37 °C). The symptoms of hyperthermia include drowsiness, lethargy, and an increase
in the internal temperature of the body. The effects of hyperthermia include. L'hyperthermie se produit lorsque la
température interne du corps atteint un niveau supérieur de plusieurs degrés à la température corporelle normale de
37 °C (98.6 °F).
Les symptômes de l'hyperthermie comprennent la somnolence, la léthargie et une augmentation de la température
interne du corps. Les effets de l'hyperthermie comprennent.
a) unawareness of impending hazard/ méconnaissance d'un danger imminent.
b) failure to perceive heat/ incapacité à percevoir la chaleur.
c) failure to recognize the need to exit spa/ incapacité à reconnaître la nécessité de quitter le spa.
d) physical inability to exit spa/ incapacité physique de quitter le spa.
e) fetal damage in pregnant women/ dommages foetaux chez les femmes enceintes.
f) unconsciousness and danger of drowning/ inconscience et danger de noyade.
SAVE THESE INSTRUCTIONS. CONSERVEZ CES INSTRUCTIONS.
4

Endless Pools®Hydrostride™Installation
Section 1: GENERAL OVERVIEW OF ENDLESS POOLS HYDROSTRIDE
The Endless Pools Hydrostride is an underwater hydraulically driven treadmill that adds a smooth and adjustable workout to
any conventional pool under new construction. Research shows that, compared to land-based treadmills, underwater tread-
mills allow the end user to burn more calories, enjoy an increased range of motion, and suffer less joint impact.

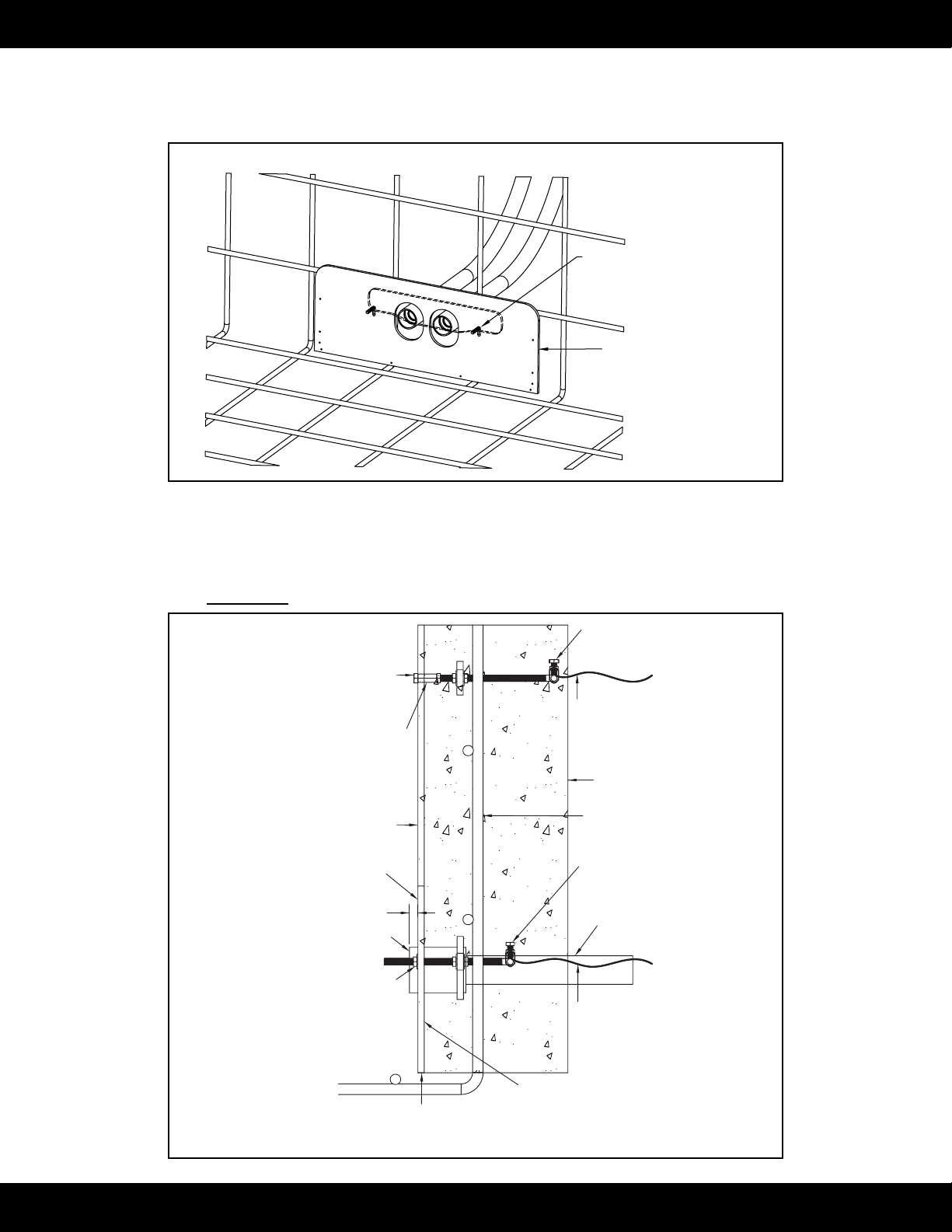

The Hydrostride attaches directly to the pool wall with the use of a wall mounting bracket. Two hydraulic hoses carrying a
non-food grade, biodegradable hydraulic uid run between the Hydrostride and remotely located hydraulic power unit, thus
eliminating the need for electricity poolside. The hydraulic hoses that carry the uid from the power unit to the Hydrostride
are hidden in the pool wall and under the pool deck. Because the wall mounting bracket is embedded in the pool wall, the
Hydrostride is ideal for new pool construction or pool refurbishment.
The Hydrostride features a spacious 18-3/4" (48cm) wide belt for walking or running. With its 5-HP motor, the Hydrostride
reaches a top speed of 5.5 mph. The Hydrostride is activated using a water-resistant remote control that turns the unit on and
off and adjusts the speed. The Endless Pools Fastlane®(swim current) can also be installed and used in conjunction with the
Hydrostride to add intensity to the workout.
The Hydrostride can be installed in multiple ways:

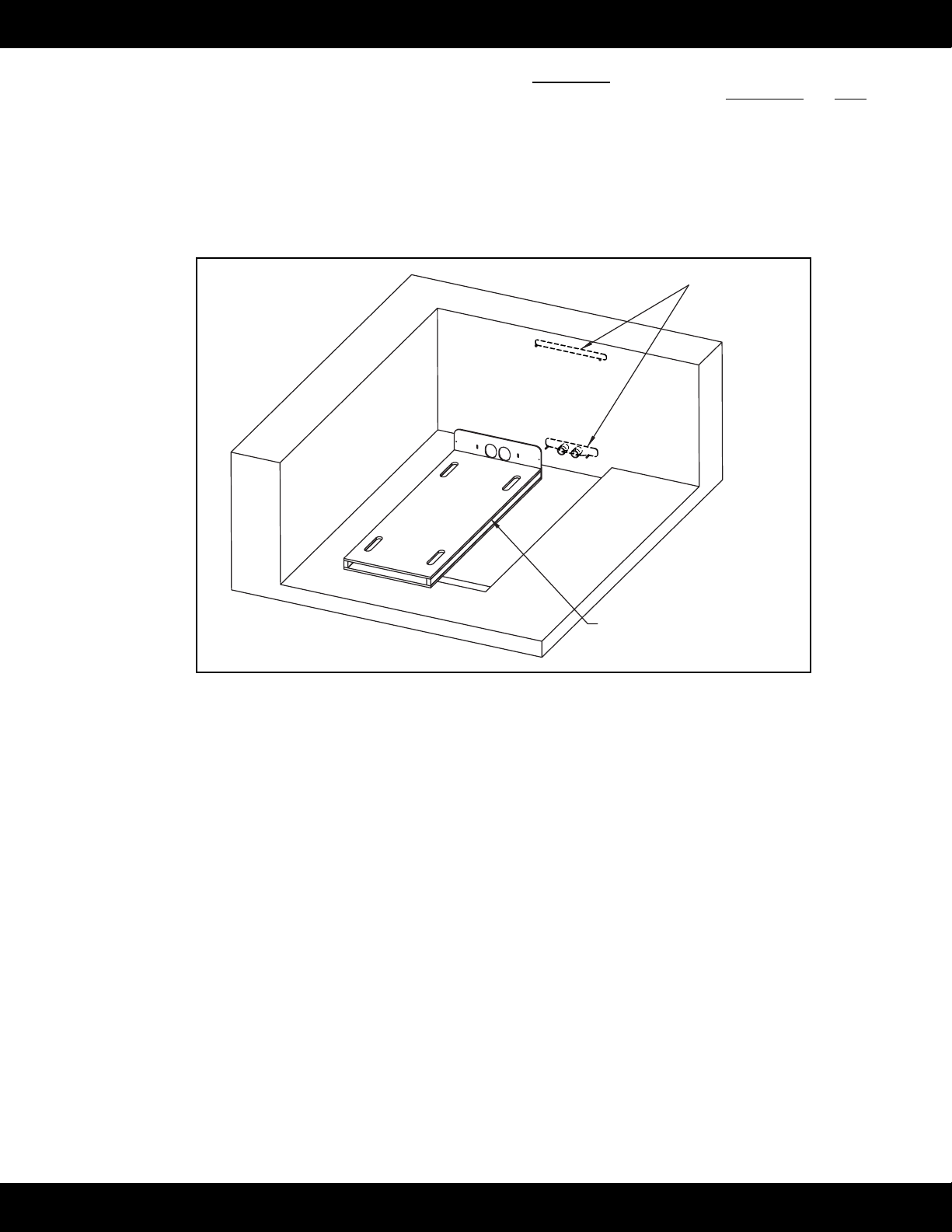

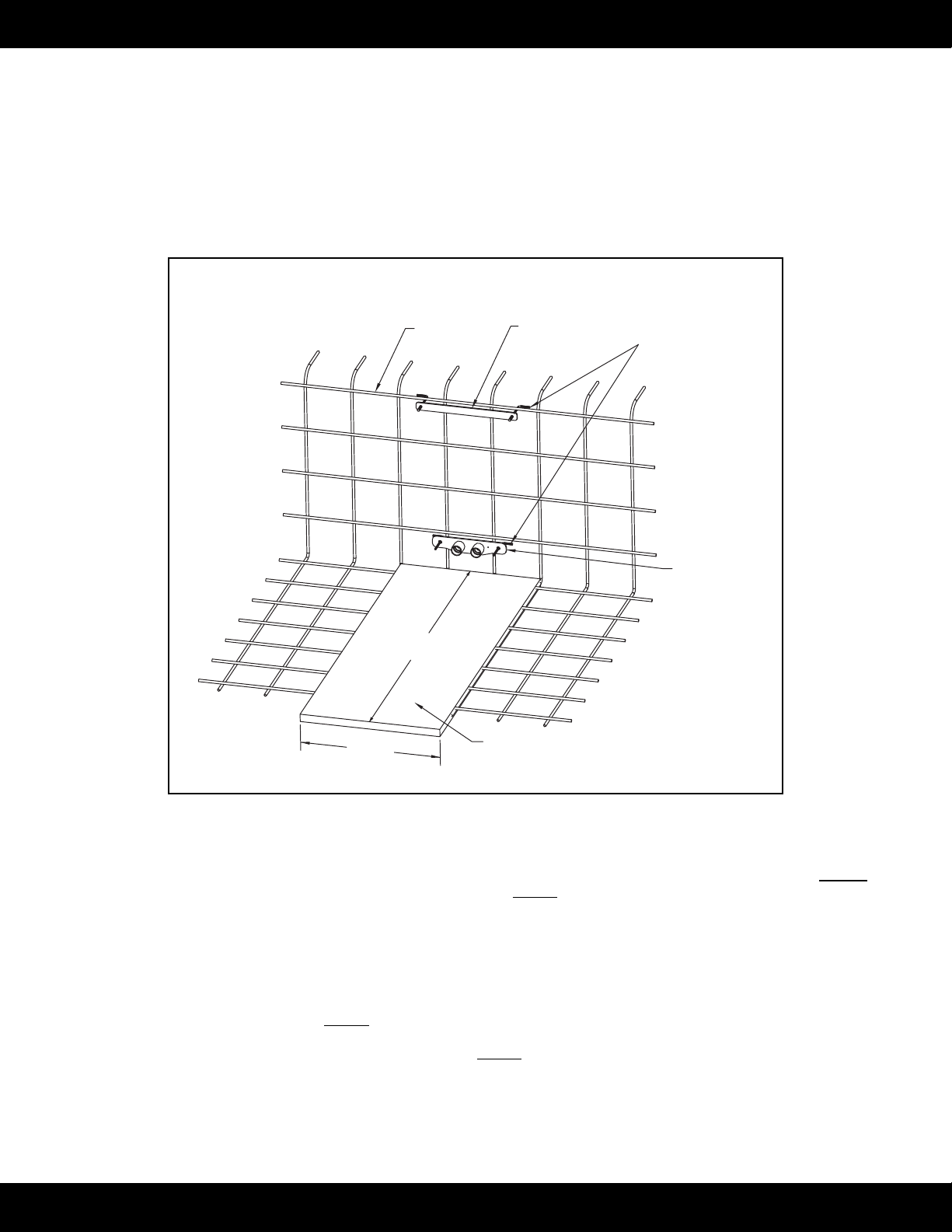

If installing in a traditional gunite pool, the Hydrostride can sit above the pool oor as shown in Figure 1.1 or can be recessed
so that the unit sits ush with the pool oor as shown in Figure 1.2.
Fig. 1.1
Fig. 1.2
5
INSTALLATION INSTRUCTIONS TABLE OF CONTENTS
Warnings and Safety Information ....................1
Endless Pools Hydrostride Overview .................5
Choosing a Location ..............................6
Receiving the Hydrostride .........................7
Hydrostride & Grab Bar Mounting Kit Installation
– Gunite Pool ...................................8
Hydrostride & Grab Bar Mounting Kit Installation
– Gunite Pool With Vinyl Liner ....................20
Hydrostride & Grab Bar Mounting Kit Installation
– Steel Panel Pool With Vinyl Liner .................31
Junction Box ...................................39
Hydrostride Assembly............................40
Hydrostride & Grab Bar Installation
– Gunite Pool ..................................44
Hydrostride & Grab Bar Installation
– Gunite/Steel Panel Pool With Vinyl Liner ...........48
Installation Of The Hydraulic Power Unit ............52
Electrical Requirements For The United States (60HZ)..54
Electrical Requirements For The UK (50HZ) . . . . . . . . . 55
Equipment Start Up..............................56
Using The Hydrostride ...........................57
Bonding The Hydrostride .........................58
Maintenance ...................................60

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
Section 2: CHOOSING A LOCATION FOR THE HYDROSTRIDE
Hydrostride
The Hydrostride can t into virtually any swimming pool. For optimal use, it’s recommended that the Hydrostride is installed
no closer than 18" (46cm) to any adjacent wall. In addition, 18" (46cm) of clearance is recommended at the rear of the
Hydrostride. These recommendations allow ample space for stepping on and off the unit. The water depth where the Hydro-
stride is installed should be based upon the height and preference of the end user. It’s recommended that the waterline on the
user is higher than the waist, but lower than the shoulders. The treadmill belt sits approximately 4-5/8" (12cm) above the pool
oor. This MUST be considered when determining the appropriate water depth.
24”
61 cm
12’
3,65 m
46”
1,16 m
24”
61 cm
21”
53,3 cm
18”
46 cm
4-5/8”
12 cm
18”
46 cm
31-3/4”
81 cm
18”
46 cm
62”
1,58 cm
31”
78,7 cm
Fig. 2.1
6

Endless Pools®Hydrostride™Installation
Hydrostride & Fastlane®Pro
If installing the optional Fastlane Pro in conjunction with the Hydrostride, 24" (61cm) of clearance is required on each side of
the swim unit to any adjacent wall. In addition, the water depth where the swim unit is installed MUST be a minimum of 46"
(1,16m) deep. For optimal performance, 12' (3,65m) is recommended between the wall on which the swim unit is installed
and the opposing wall in line with the swim unit.
24”
61 cm
12’
3,65 m
46”
1,16 m
24”
61 cm
21”
53,3 cm
18”
46 cm
4-5/8”
12 cm
18”
46 cm
31-3/4”
81 cm
18”
46 cm
62”
1,58 cm
31”
78,7 cm
Fig. 2.2
Equipment
When choosing the location of the Hydrostride/Fastlane Pro, the equipment location outside the pool MUST be considered.
Typically, the hydraulic power unit is located with the rest of the pool equipment. The power unit MUST be installed on a
solid level surface and preferably not on wet ground. The power unit can be installed outside but should not be subject
to driving rain.
Considerations must be made for the route of the hydraulic hoses to run under the pool deck and back to the remotely
located power unit. The standard 3/8" (9,5mm) hydraulic hose length is 25' (7,6m). If the hydraulic hose run is greater than
25' (7,6m), the hoses MUST be attached to a larger diameter hose which will then connect directly to the power unit in order
to reduce pressure loss and a potential reduction in top speed. It is at a junction box where a step up to the larger diameter
1/2" (12,7mm) hose occurs. The junction box is typically buried under the pool deck. Access to the junction box MUST be
maintained. See Section 5: Junction Box for detailed information.
Section 3: RECEIVING THE HYDROSTRIDE
The Endless Pools Hydrostride and all associated components are shipped in a wooden crate. Most shipping companies will
lower the crates to the ground with a hydraulic fork lift. The contents can remain in the crate until you are ready to begin
installation.
Upon arrival, the crate should be inspected for external damage. Should there be visible damage, you MUST complete a
damage-claim report provided by the truck driver. Please call the Endless Pools shipping department immediately at 800-
732-8660.
To begin installation, open the crate by removing the wooden top and sides.
7

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation

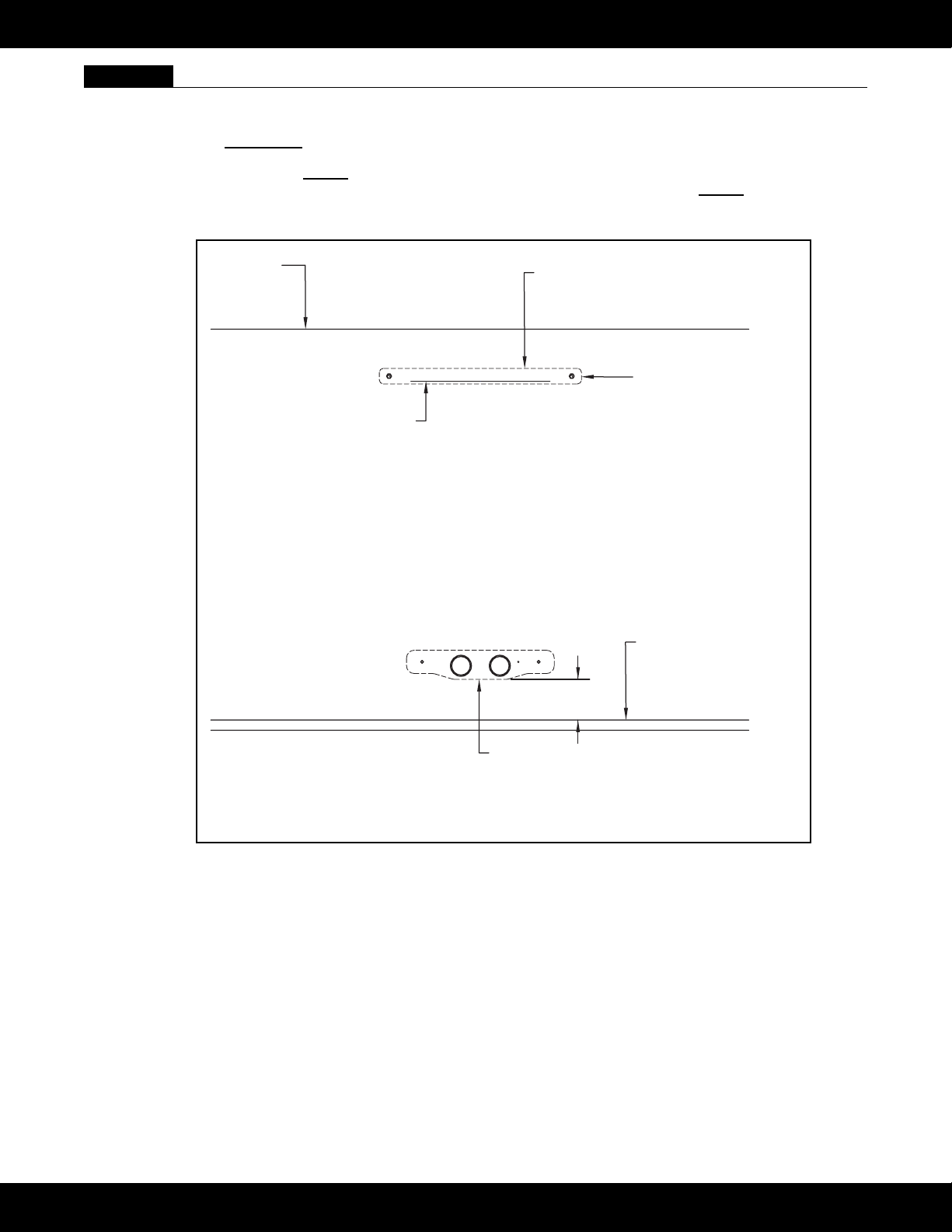

Section 4A: HYDROSTRIDE & GRAB BAR MOUNTING KIT INSTALLATION – GUNITE POOL
A The Hydrostride and grab bar for the Hydrostride attach directly to the pool wall with the use of a wall mounting bracket.
The mounting brackets are to be embedded into the pool wall as shown in Figures 4A.1. & 4A.2. The placement of the brack-
ets on the pool wall is CRITICAL.
The Hydrostride mounting bracket MUST be positioned so that the distance between the expected nished pool oor (gunite
and nish coat) and bottom edge of the bracket is 5-1/4" (13,3cm). The grab bar mounting bracket MUST be centered above
the Hydrostride bracket and positioned on the pool wall so that waterline mark etched into the bracket sits along the pool’s
expected waterline (Fig. 4A.1).
5-1/4"
(13,3cm)
Bottom edge of
Hydrostride
mounting
bracket
Finished pool floor
(Gunite & Finish Coat)
Grab Bar
mounting
bracket
Center above
Hydrostride
mounting
bracket
Pool Wall
Waterline mark
on bracket will
sit along pool's
waterline
Fig. 4A.1
8

Endless Pools®Hydrostride™Installation

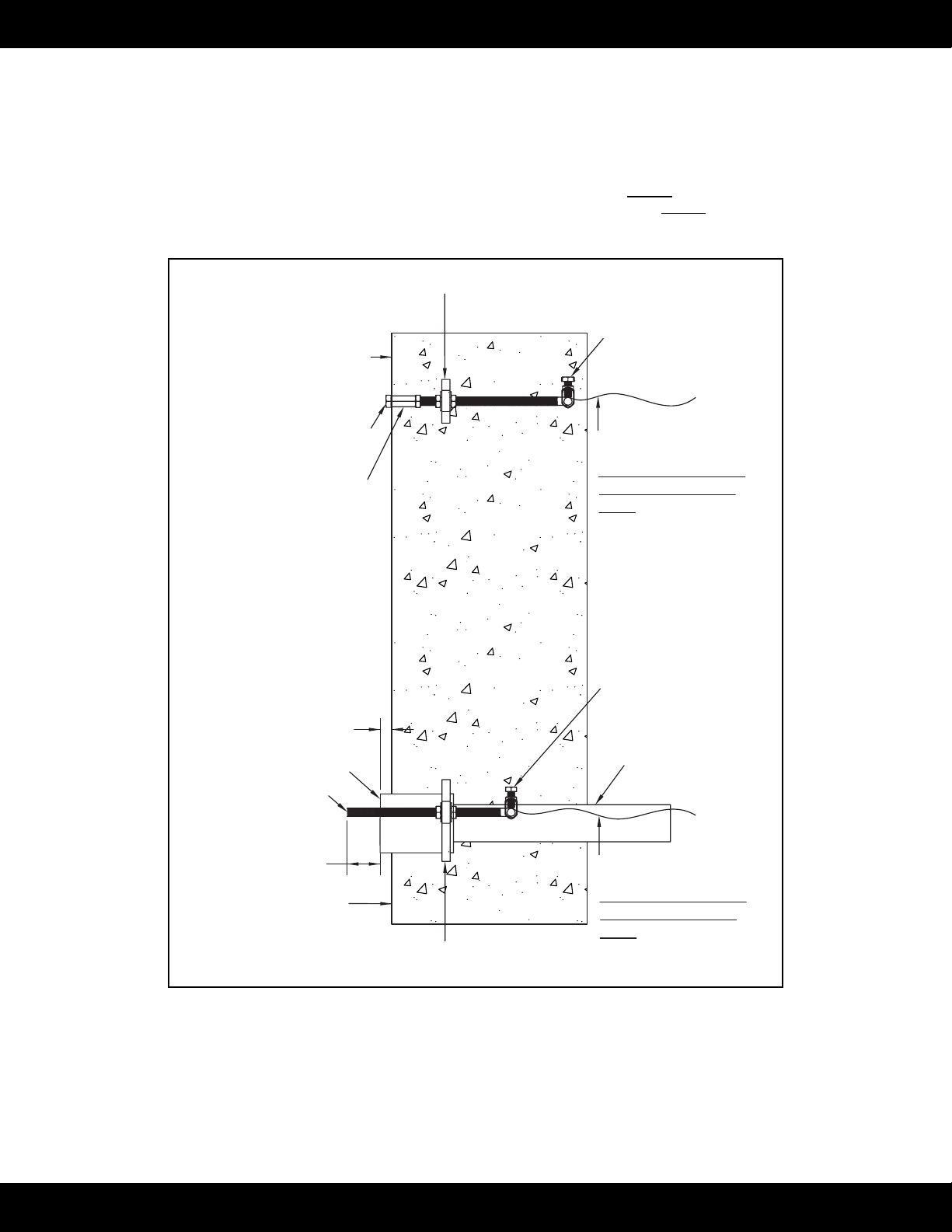

Both the Hydrostride and grab bar mounting brackets will be tied to the rebar grid of the pool prior to the gunite applica-
tion. Additionally, the threaded rods of the brackets will be tied to the bonding grid of the pool using the provided bonding
clamps and a # 8 solid copper wire (not provided by Endless Pools). Flexible PVC pipe is to be glued into the bushing
reducers on the backside of the Hydrostride bracket which will serve as conduits for the hydraulic lines.
After the gunite and nish coat application, the mounting brackets should end up in the middle of the nished pool wall
as shown in Figure 4A.2. The PVC couplings of the Hydrostride mounting bracket should extend no more than 1/2"
(12,7mm) into the nished pool. The coupling nuts of the grab bar mounting bracket MUST be ush with the nished
pool wall. The sacricial bolts will then be removed to mount the grab bar. The pool wall MUST be sharp with a max
radius of 4" (10,16cm). Any radius in the pool wall will require a modication to the end covers of the Hydrostride
to accommodate the radius.
1/2" (12,7mm)
MAX
1-1/2" (38mm)
Finished Inside Pool Wall
(Gunite & Finish Coat)
PVC Coupling
Threaded
Rod
Pool wall MUST be
sharp with max radius
of 4" (10,16cm)
Coupling Nut
to be flush with
finished pool
wall (gunite &
finish coat)
Sacrificial Hex
Bolt
PVC Flex Pipe
#8 Solid Copper Wire
MUST BE ATTACHED
TO POOL BONDING
GRID
#8 Solid Copper Wire
MUST BE ATTACHED
TO POOL BONDING
GRID
Bonding
Clamp
Bonding
Clamp
Grab Bar Mounting
Bracket Assembly
Hydrostride Mounting
Bracket Assembly
Fig. 4A.2
:
9

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation

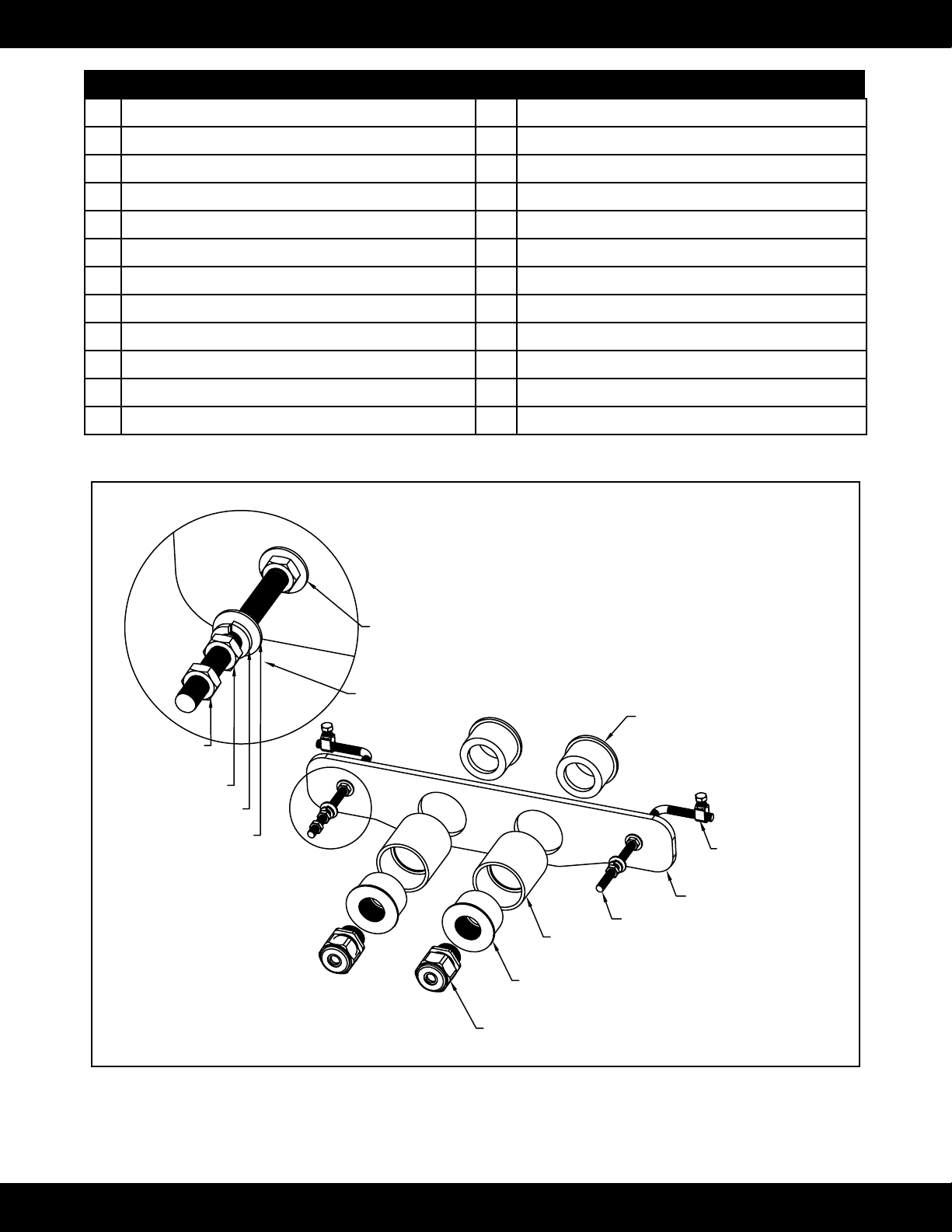

Qty Description Qty Description
1 Wall Mounting Bracket 1 Wall Mounting Bracket
2 2” (51mm) SPG x 1-1/2” (38mm) FSlip PVC Bushing Reducer 2 3/8” (9,5mm) Threaded Rod
2 2” (51mm) FSlip PVC Coupling 2 3/8” (9,5mm) Coupling Nut
2 2” (51mm) SPG x 1” (25mm) FPT PVC Bushing Reducer 6 3/8” (9,5mm) Jam Nut
2 1” (25mm) NPT Cord Grip Liquid Tight Fitting 2 3/8” (9,5mm) x 3/4” (19mm) Hex Head Bolt (sacricial bolt)
2 3/8” (9,5mm) Threaded Rod 2 3/8” (9,5mm) x 3/4” (19mm) Hex Head Bolt (mounting bolt)
8 3/8” (9,5mm) Jam Nut 2 Bonding Clamp
8 3/8” (9,5mm) Flat Washer
2 3/8” (9,5mm) Lock Washer
2 Bonding Clamp
1Mounting Template
Hydrostride Mounting Kit – Gunite Pool Grab Bar Mounting Kit – Gunite Pool
Hydrostride Mounting Kit Detail
1" (25mm)
Liquid Tight Fitting
2" (51mm) x 1" (25mm)
Bushing Reducer
2" (51mm)
PVC Coupling
Bonding
Clamp
Wall Mounting Bracket
2" (51mm) x 1-1/2" (38mm)
Bushing Reducer
Threaded Rod
Flat Washer
Split Washer
Jam Nut
Jam Nut
(Bonding)
Flat Washer/Jam Nut
(Front & Back of Bracket)
Treadmill
Mounting
Hardware
Fig. 4A.3
10

Endless Pools®Hydrostride™Installation

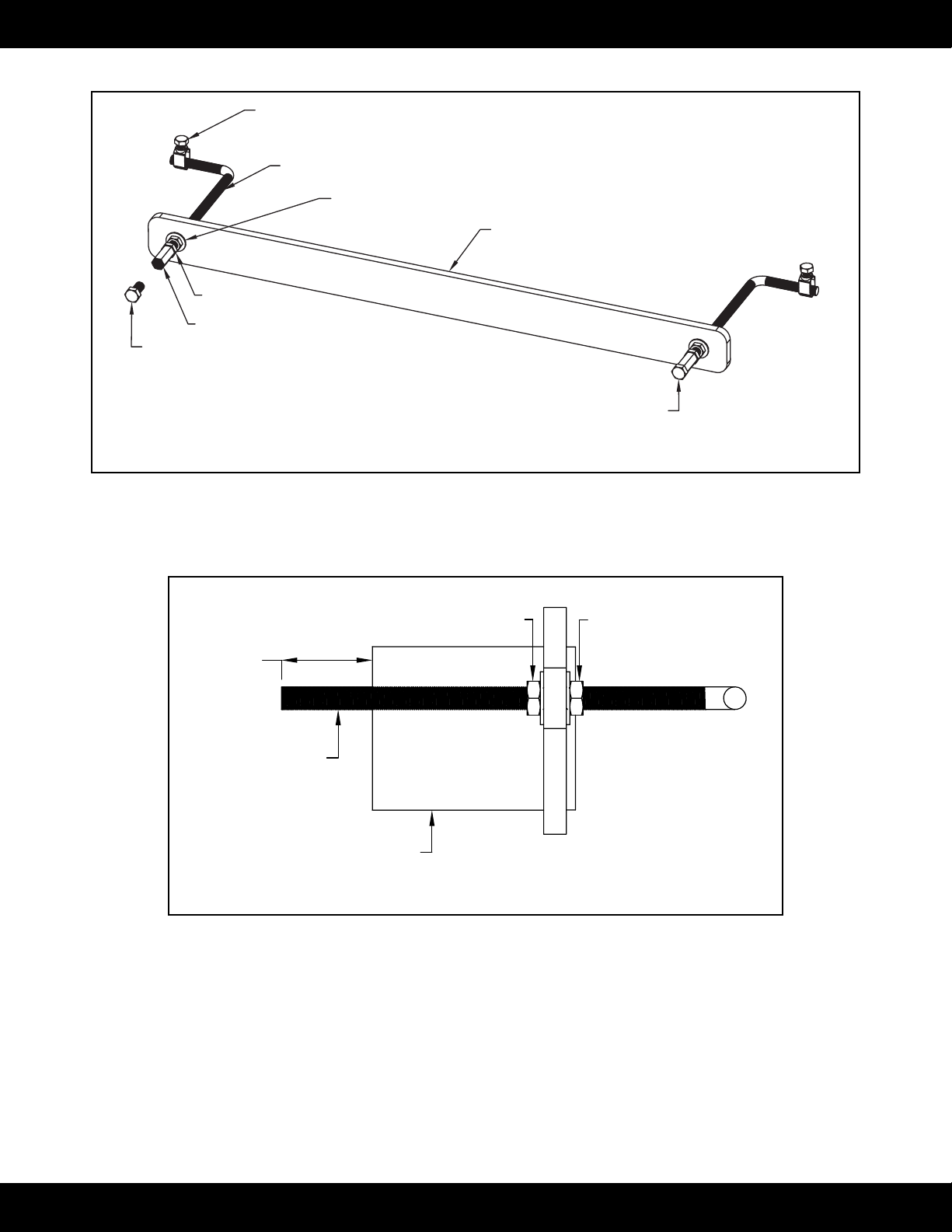

Grab Bar Mounting Kit Detail
Bonding
Clamp
Hex Head Bolt
(Installed after
gunite application
to mount grab bar) Sacrificial Bolt
(Installed prior to
gunite application)
Coupling Nut
Mounting Bracket
Jam Nut/Washer
(front and back
of bracket)
Threaded
Rod
Jam Nut
Fig. 4A.4
1. Starting with the Hydrostride mounting bracket, ensure the threaded rods extend approximately 1-1/2" (38mm) past the
couplings. The threaded rods can be adjusted by loosening the jam nuts (Fig. 4A.5).
1-1/2"
(38mm)
Coupling
Jam Nut/Washer
Jam Nut/Washer
Threaded
Rod
Fig. 4A.5
11

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
2. Loosely position the Hydrostride mounting bracket into the rebar grid of the pool so that the bottom edge of the bracket is
5-1/4" (13,3cm) above the expected nished pool oor. The thickness of the gunite and nish coat MUST be accounted for
when positioning the bracket. If the Hydrostride is to be recessed into the pool oor, it’s recommended to pour a level con-
crete slab prior to positioning the bracket in the rebar. The slab will serve as the base of the recessed area that the unit will
sit in. Next, loosely position the grab bar mounting bracket into the rebar making sure it’s centered above the Hydrostride
bracket and at the appropriate height. The waterline mark on the bracket should sit along the pool’s expected waterline
(Fig. 4A.6).
Once both mounting brackets are positioned, tie the threaded rods to the rebar grid with rebar wire. Make sure both brack-
ets are level (Fig. 4A.6). If installing a Fastlane Pro in conjunction with the Hydrostride, the Fastlane Pro mounting
bracket should be installed at this time. Refer to the Fastlane Pro Owner’s Manual for detailed information.
7-1/2'
(2,28m)
3'
(9,44cm)
Grab Bar
Mounting
Bracket
Hydrostride
Mounting
Bracket
Tie threaded rods
to rebar grid with
rebar wire
Pool Rebar
Grid
Concrete slab recommended
if Hydrostride is being recessed
into pool floor
Fig. 4A.6
3. The location of the Hydraulic Power Unit should be determined at this point in the installation. Unroll lengths of 1-1/2"
(38mm) exible PVC pipe from the back of the Hydrostride mounting bracket to the Power Unit. The conduit run MUST
travel above the pool’s waterline. Any bends in the exible pipe MUST be gradual sweeps and not sharp to allow the
hydraulic hoses to easily be fed through each conduit.
If the Hydraulic Power Unit is within 25' (7,6m) of the pool: Each length of exible pipe should exit the ground within
4' (1,2m) of the Power Unit. Approximately 4' (1,2m) of hydraulic hose is required to make the hydraulic connections at
the Power Unit.
If the Hydraulic Power Unit is more than 25' (7,6m) away from pool: 25' (7,6m) of exible pipe, a junction box, and
an additional length of exible pipe MUST be employed. It is at the junction box where a step up to a larger diameter hy-
draulic hose occurs to reduce pressure loss and a potential reduction in performance. In this case, the length of exible pipe
between the Hydrostride mounting bracket and junction box MUST be 24' 6" (7,5m). This will allow the hydraulic hoses
to terminate just inside the junction box. An additional length of exible pipe coming out of the junction box should exit
the ground within 4' (1,2m) of the Power Unit. See Section 5: Junction Box for detailed information.
12

Endless Pools®Hydrostride™Installation
Glue the lengths of exible pipe into the bushing reducers located on the backside of the Hydrostride mounting bracket
(Fig. 4A.7).
PVC Flex Pipe
Hydraulic
Power
Unit
1-1/2" (38mm)
PVC Flex Pipe
Bushing
Reducer
Detail A
Fig. 4A.7
4. The threaded rods attached to BOTH the Hydrostride and grab bar mounting brackets MUST be tied into the pool’s bond-
ing grid. Secure a bonding clamp onto each threaded rod (4 total). Attach a # 8 solid copper wire to each bonding clamp.
The other end of each copper wire MUST be attached to a bonding connection that’s incorporated into the pool’s bonding
grid. In most cases this will be a connection at the rebar (Fig. 4A.8).
Bonding
Clamp
Threaded
Rod
#8 Solid Copper Wire
MUST BE ATTACHED TO POOL BONDING GRID
Fig. 4A.8
13

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
5.1

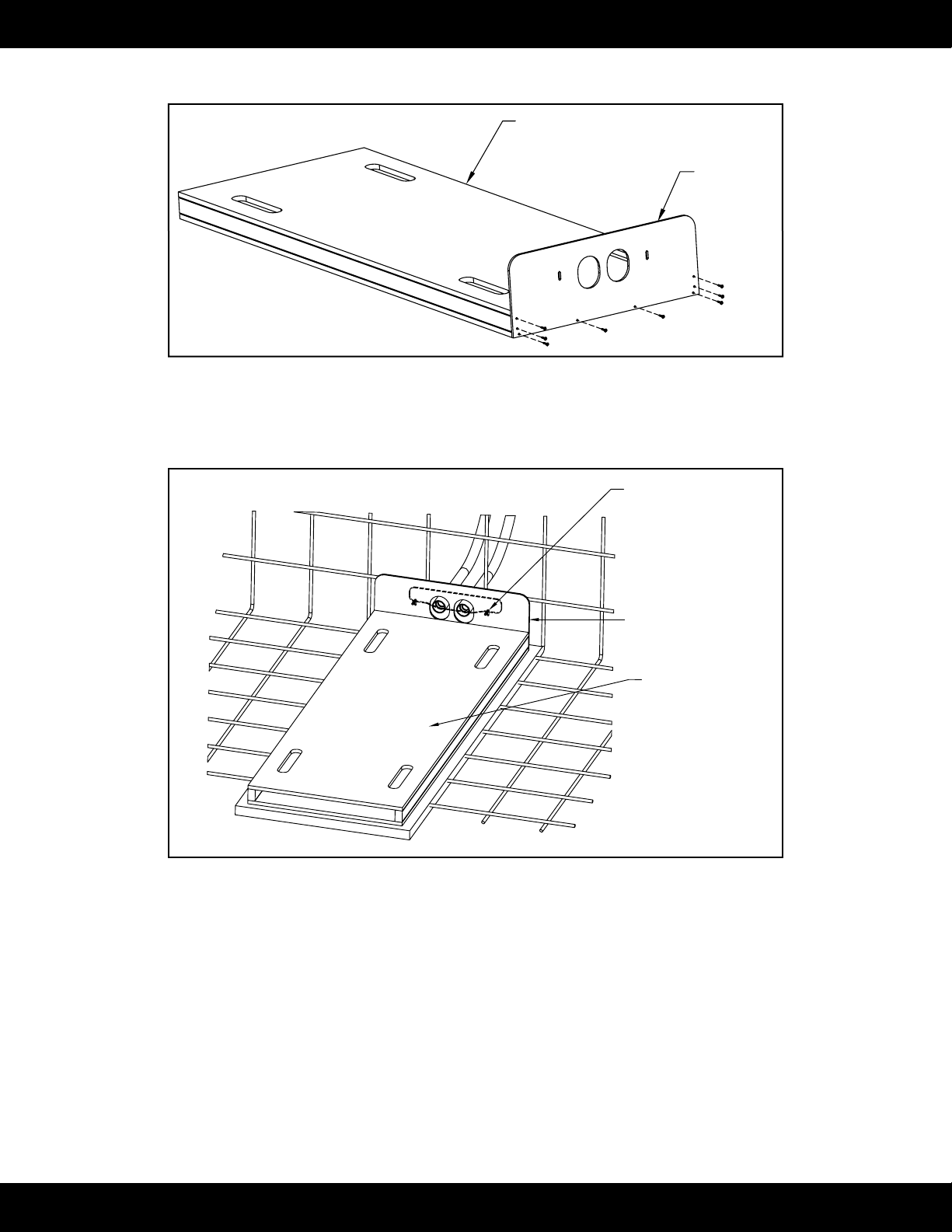

A mounting template has been provided to ensure proper placement of the Hydrostride mounting bracket during the gunite
application. If the Hydrostride is to be recessed into the pool oor, skip to steps 5.4 – 5.9. Loosely hang the mounting
template from the threaded rods of the Hydrostride mounting bracket, making sure the rods are at the top of the slotted
holes in the template (Fig. 4A.9). The bottom of the template represents the nished pool oor (gunite and nish coat).
Mounting
Template
Hang the mounting template
from the threaded rods making
sure the rods are at the top of
the slotted holes
Fig. 4A.9
5.2 Adjust the position of the mounting template on the threaded rods so that the PVC couplings extend a maximum of 1/2"
(12,7mm) past the front of the template. Use the additional at washers and jam nuts to secure the template in place
during the gunite application. The back of the template represents the gunite pool wall. Once gunite is shot to the back of
the template, the template will be removed prior to the nish coat application. The height of the nished pool oor (gunite
and nish coat) MUST NOT exceed the bottom of the template (Fig. 4A.10).
1/2" (12,7mm) Max
PVC Coupling PVC Flex Pipe
#8 Solid Copper Wire
#8 Solid Copper Wire
Bonding
Clamp
Bonding
Clamp
Jam Nut/Washer
Gunite to be shot to
the back of the template.
Template will then be
removed prior to finish
coat application.
Finished Inside Pool Wall
(Gunite & Finish Coat)
Mounting
Template
Height of finished pool floor
(gunite & finish coat) MUST
NOT exceed bottom of template
Gunite should cover
bonding hardware
Rebar Grid
Coupling Nut to
be flush with
finished pool
wall (gunite &
finish coat)
Sacrificial bolt
will be removed
after finish coat
is applied
Fig. 4A.10
14

Endless Pools®Hydrostride™Installation
5.3 The next step is the gunite application. Prior to shooting gunite, it is CRITICAL that the openings of the PVC couplings,
threaded rods, and sacricial bolts be covered. Gunite cannot be embedded in these areas. It is also CRITICAL that ALL
bonding connections are secured. It’s important to closely monitor the mounting brackets during the gunite applica-
tion to ensure they remain in position and remain level.
After the gunite is shot up to the back of the mounting template, the template can be removed and the nish coat can be
applied. Again, the PVC couplings of the Hydrostride mounting bracket should extend a maximum of 1/2" (12,7mm) into
the nished pool. The coupling nuts of the grab bar mounting bracket should be ush with the nished pool wall, leaving
the sacricial bolts just inside the nished pool wall for removal (Fig. 4A.11). Proceed to Section 6: Hydrostride Assem-
bly.
Remove mounting
template after gunite
application
Brackets
embedded
into pool wall
Remove sacrificial
bolts from coupling
nuts
Fig. 4A.11
15

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
5.4 If the Hydrostride is to be recessed into the pool oor, it’s recommended to construct a mold using plywood, lumber, and
the provided mounting template. The intent of the mold is to form the recessed area in the pool oor during the applica-
tion of the gunite as shown in Figure 4A.12. The height of the mold is intended to allow for a nish coat of approximately
5/8" (15mm) over the gunite outside the recessed area to become ush with the side decks of the unit. A clearance of 12"
(30,48cm) is recommended for the removal of the mold.
Treadmill Mold
12" (30,48cm) of clearance
recommended for mold
removal
The height of the treadmill
mold is intended to allow for
a finish coat of approximetely
5/8" (15mm) over the gunite
outside the recessed area to
become flush with the treadmill
side decks
Fig. 4A12
5.5 Construct the treadmill mold using plywood and lumber as shown in Figure 4A.13. It’s recommended to cut lifting holes
into the top piece of plywood to assist with the removal of the mold. IMPORTANT NOTE: The height of the tread-
mill side decks is approximately 4-5/8" (12cm). In the example below, the height of the mold is 4" (10,2cm) which
allows for a nish coat of approximately 5/8" (15mm) outside the recessed area. The thickness of the nish coat
MUST be considered when constructing the mold.
31-7/8"
(81cm)
85-5/8"
(217cm)
Plywood
Cut lifting holes
into plywood
Lumber
4"
(10,2cm)
Fig. 4A.13
16

Endless Pools®Hydrostride™Installation
5.6 Attach the mounting template to the mold. Make sure the bottom of the template is ush with the bottom of the mold (Fig.
4A.14).
Mounting
Template
Treadmill Mold
Fig. 4A.14
5.7 Position and loosely hang the mold from the threaded rods of the Hydrostride mounting bracket, making sure the rods
are at the top of the slotted holes in the mounting template. The bottom of the template represents the nished pool oor
(gunite and nish coat). (Fig. 4A.15).
Treadmill Mold
Hang the treadmill mold
from the threaded rods
making sure the rods are
at the top of the slotted
holes in the treadmill
mounting template
Mounting Template
Fig. 4A.15
17

Endless Pools®Hydrostride™Installation Endless Pools®Hydrostride™Installation
5.8 Adjust the position of the mold on the threaded rods so that the PVC couplings extend a maximum of 1/2” (12,7mm)
past the front of the mounting template. Use the additional at washers and jam nuts to secure the mold in place during
the gunite application. The back of the template represents the gunite pool wall. Once gunite is shot to the back of the
template, the mold will be removed prior to the nish coat application. The height of the nished pool oor (concrete slab
and nish coat) MUST NOT exceed the bottom of the template (Fig. 4A.16).
1/2" (12,7mm) Max
PVC Coupling PVC Flex Pipe
#8 Solid Copper Wire
#8 Solid Copper Wire
Bonding
Clamp
Bonding
Clamp
Jam Nut/Washer
Gunite to be shot to
the back of the template.
Template will then be
removed prior to applying
finish coat.
Finished Pool Wall
(Gunite & Finish Coat)
Mounting
Template
Height of finished pool floor
(concrete slab & finish coat)
MUST NOT exceed bottom of
template
Gunite should cover
bonding hardware
Rebar Grid
Coupling nut to
be flush with
finished pool
wall (gunite &
finish coat)
Sacrificial bolt
will be removed
after finish coat
is applied
Treadmill
Mold
Concrete Slab
Fig. 4A.16
18

Endless Pools®Hydrostride™Installation
5.9 The next step is the gunite application. Prior to shooting gunite, it is CRITICAL that the openings of the PVC couplings,
threaded rods, and sacricial bolts be covered. Gunite cannot be embedded in these areas. It is also CRITICAL that ALL
bonding connections are secured. It’s important to closely monitor the mounting brackets during the gunite applica-
tion to ensure they remain in position and remain level.
After the gunite is shot up to the back of the mounting template, the mold can be removed and the nish coat can be
applied outside the recessed area. The recessed area should be sealed with an appropriate hydraulic cement without
adding height to the oor. Again, the PVC couplings of the Hydrostride mounting bracket should extend a maximum of
1/2” (12,7mm) into the nished pool. The coupling nuts of the grab bar mounting bracket should be ush with the nished
pool wall, leaving the sacricial bolts just inside the nished pool wall for removal (Fig. 4A.17). Proceed to Section 6:
Hydrostride Assembly.
Remove mold after
gunite application
Brackets
embedded
into pool wall
Fig. 4A.17
19
Table of contents
Other Endless Pools Fitness Equipment manuals
Popular Fitness Equipment manuals by other brands

Keys Fitness
Keys Fitness Leg Press Hack Squat KF-LPHS owner's manual

SportsArt Fitness
SportsArt Fitness A993 owner's manual

Matrix
Matrix AURA Series instruction manual

CAPITAL SPORTS
CAPITAL SPORTS 10040010 manual

Reebok
Reebok Accsy Rip60 Suspension Trnr manual

DS Produkte
DS Produkte 08468 operating instructions
