Endon EL- 40094 User manual

The Light pack contains:
Wall light and bracket.
Terminal connection block.
The following tools may be required:
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
INSTRUCTION MANUAL
These products are only suitable for connection to a 240V~50Hz supply.
It is recommended that these lights are installed by a qualified electrician in accordance with current IEE
Wiring Regulations and Building Regulations (Part P).
These fittings should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature circuit
breaker).
These lights have an IP44 (splash proof) rating suitable for use outdoors.
Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm2
(not supplied) to selected site, ensuring it is adequately protected through the full length of the cable run, it
must come out of the flat surface of the mounting surface in line with the entry to the fitting.
Except where installed in a conduit or duct , which provides equivalent protection against mechanical damage,
a cable buried in the ground shall incorporate an earthed armour or metal sheath or both, suitable for use as a
protective conductor, or be of insulated concentric construction. Buried cables shall be marked by cable
covers or a suitable marking tape. Buried conduits and ducts shall be suitably identified. Buried cables,
conduits and ducts shall be at a sufficient depth to avoid being damaged by any reasonably foreseeable
disturbance of the ground.
These products contain breakable parts – be careful during handling and maintenance to avoid breakage.
The shades can become hot in use. Switch off and allow 10 minutes to cool before cleaning (using a dry cloth
only – do not use liquid or abrasive cleaners).
If the covers are broken or cracked then they must be replaced immediately to preserve the water ingress
protection, please consult your retailer. This is represented by the symbol
IMPORTANT: To achieve maximum corrosion resistance the surface of the Stainless Steel must be kept clean.
Surface contamination and the formation of deposits are critical factors which may lead to drastically reduced
life. An example is salt deposits from marine conditions. Cleaning with soap or a mild detergent and warm
water followed by a careful clean water rinse and finally wiping dry is usually adequate for most S/S items
used in the domestic environment. Care must be taken to turn off the mains supply until the cleaning process
has been completed and the fitting is completely dry.
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new light and retain for reference.
Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit breaker
before commencing installation.
Ensure that no one else has access that would enable the supply to be inadvertently reconnected.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
This type of Light Fitting may be connected to a Dimmer if a Tungsten incandescent bulb is used (as
supplied). If a CFL type bulb is fitted then these cannot (generally) be controlled by a dimmer.
EL- 40094 / EL- 40095 – Single / Twin Outdoor wall fittings.
Safety Warnings

Endon Lighting
LS9 0SE
20160701
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician. The
twin light has been shown here but the same general instruction applies to the single light version.
Assembly / user instructions
N210 116
Diagram A
Diagram B
Diagram C

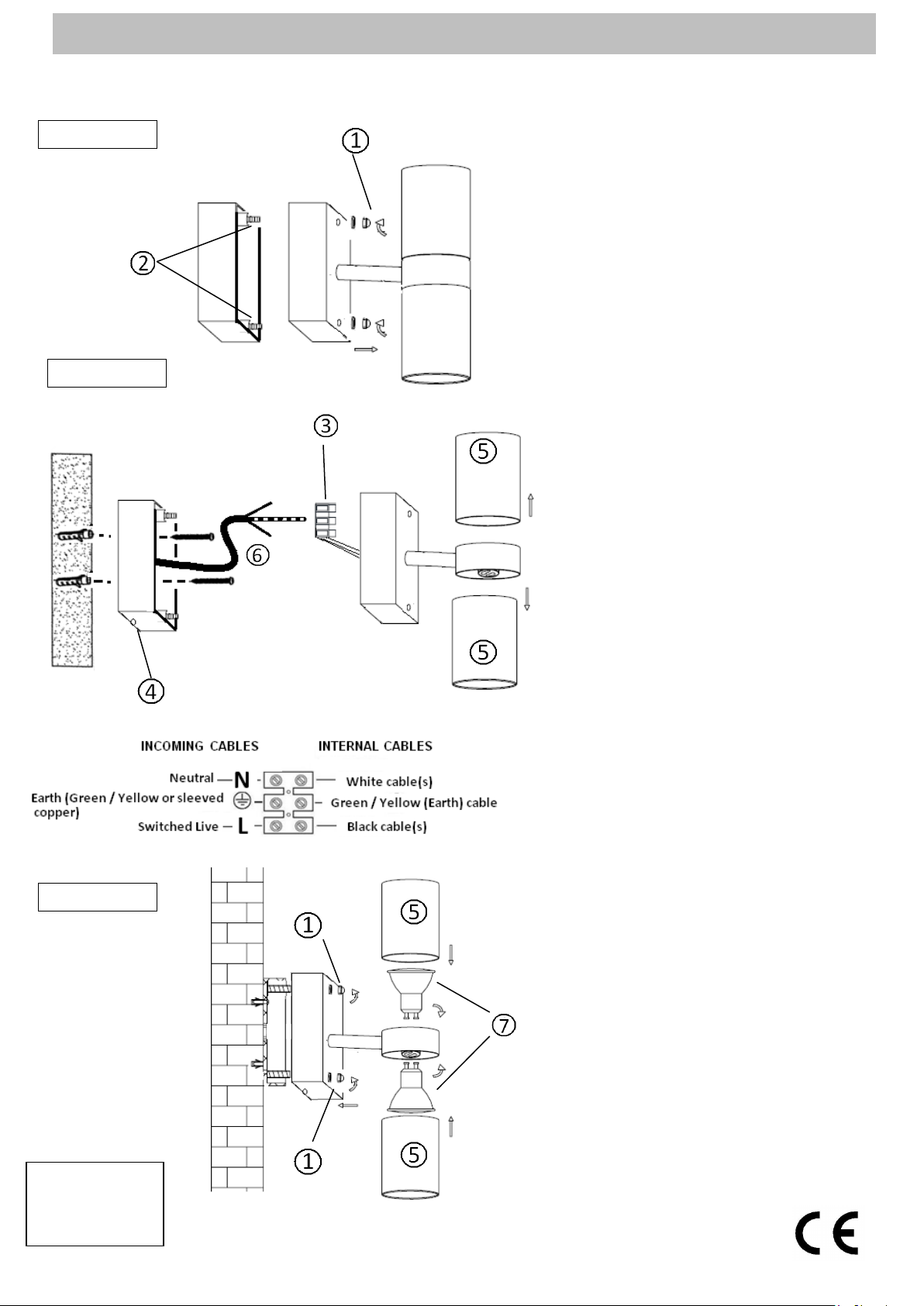

1. Determine the position of your light
fitting taking into account the exit
position of the cable. Ensure that the
mounting surface is solid, preferably a
brick or block wall and ensure that
there are no other cables or pipes
beneath the surface. Use appropriate
fixings. Wall plugs and screws as
supplied are shown here.
2. Diagram A. Separate the plastic back
plate from the fitting by removing the
two domed nuts / washers (1) on the
front of the fitting. Leave the threaded
(2) bolts in the back plate.
3. Diagram B. The internal terminal block
(3) can be removed from its mounting
position inside the back plate to ease
fitment of the back plate. Use the back
plate as a template to mark the screw
holes. Make sure the back plate is
correctly aligned with the drain hole (4)
at the lowest position. NOTE: The
GU10 bulbs will be fitted on receipt but
at times of replacement, the bulb cover
end caps (5) need to be unscrewed
and then the bulbs removed / fitted.
4. Use a sharp object such as a
screwdriver to pierce the rubber
grommet in the back plate. Feed the
incoming cable (6) through the rubber
grommet and attach the back plate to
the wall. Do not over tighten as this
could damage the back plate.
5. Connect the house wiring to the
internal terminal block (3). NOTE: This
is a Class I fitting and must be
earthed.
See wiring details.
6. Diagram C. Place the fitting over the
back plate, ensuring that the bolts in
the back plate are aligned with the
holes in the front of the fitting. Replace
the domed nuts / washers (1) to secure
the fitting. Do not over tighten. Fit the
bulbs (7) (supplied) into the lamp
holders – see NOTE in 3 above.
NOTE: Never fit bulbs of a higher
wattage or of a type other than those
specified on the label (as these may
cause overheating and damage the
fitting).
7. Fit the bulb covers (5).
8. Turn on the power and test.
