Endress+Hauser OUSAF11 User manual

Products Solutions Services
Operating Instructions
OUSAF11
Optical sensor for the measurement of VIS/NIR
absorption
BA00474C/07/EN/16.16
71330142

Table of contents
Endress+Hauser 3
Table of contents
1 Document information ......... 4
1.1 Warnings ........................... 4
1.2 Symbols ............................ 4
1.3 Symbols on the product ............... 5
2 Basic safety instructions ....... 6
2.1 Requirements for the personnel ........ 6
2.2 Designated use ...................... 6
2.3 Occupational safety .................. 6
2.4 Operational safety ................... 6
2.5 Product safety ....................... 7
3 Product description ............. 7
3.1 Sensor design ....................... 7
3.2 Measuring principle .................. 8
4 Incoming acceptance and
product identification .......... 9
4.1 Incoming acceptance ................. 9
4.2 Product identification ................. 9
4.3 Scope of delivery .................... 10
4.4 Certificates and approvals ............ 10
5 Installation .................... 11
5.1 Installation conditions ............... 11
5.2 Mounting the sensor ................ 14
5.3 Post-installation check ............... 15
6 Electrical connection .......... 15

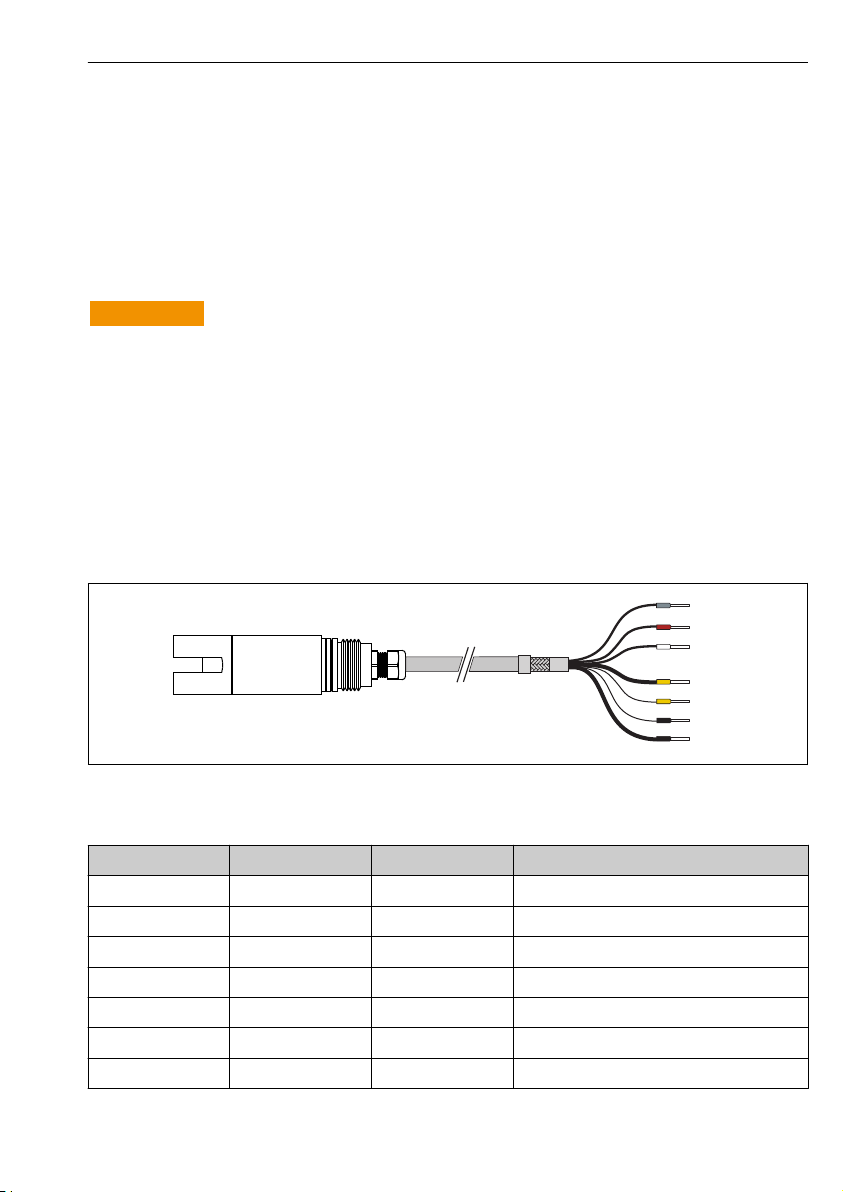

6.1 Connecting the sensor ............... 15
6.2 Lamp voltage ....................... 16
6.3 Ensuring the degree of protection ..... 16
6.4 Post-connection check ............... 16
7 Commissioning ................ 17
7.1 Function check ..................... 17
7.2 Calibrating/adjusting the sensor ...... 17
8 Maintenance .................. 17
8.1 Maintenance schedule ............... 17
8.2 Clean sensor ....................... 18

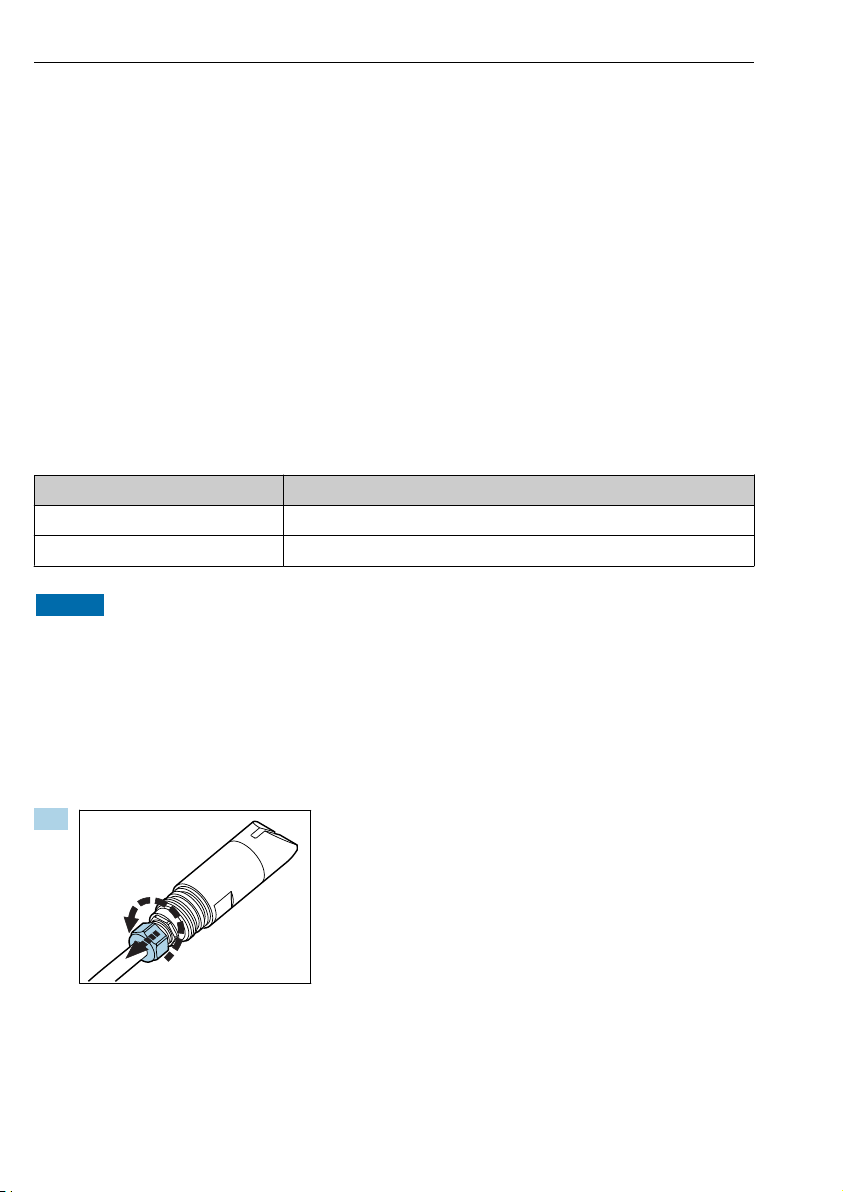

8.3 Replace lamp ....................... 18
8.4 Replacing the O-ring ................ 20
9 Repairs ......................... 23
9.1 Spare parts ........................ 23
9.2 Return ............................ 23
9.3 Disposal ........................... 23
10 Accessories .................... 23
10.1 Assembly .......................... 24
11 Technical data ................. 24
Index ................................. 27

Document information OUSAF11
4 Endress+Hauser
1 Document information
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
Consequences of non-compliance (if
applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious injury.
LWARNING
Causes (/consequences)
Consequences of non-compliance (if
applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious injury.
LCAUTION
Causes (/consequences)
Consequences of non-compliance (if
applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
Consequences of non-compliance (if
applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to property.
1.2 Symbols
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step

OUSAF11 Document information
Endress+Hauser 5
1.3 Symbols on the product
Symbol Meaning
Reference to device documentation

Basic safety instructions OUSAF11
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements for the personnel
• Installation, commissioning, operation and maintenance of the measuring system may be
carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the specified
activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions and
must follow the instructions contained therein.
• Measuring point faults may be repaired only by authorized and specially trained personnel.
Repairs not described in the Operating Instructions provided may only be carried out
directly by the manufacturer or by the service organization.
2.2 Designated use
The OUSAF11 sensor measures the VIS/NIR absorption of liquids. The sensor is suitable for
use in a wide range of applications , such as:
• Interphase detection
• Applications in the food and beverage industry
– Milk detection in CIP solutions
– Phase separation, e.g. milk/water
– Product loss detection in outlet
• Measurement of solids in:
– Primaries industry
– Mining
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Occupational safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable European standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.
2.4 Operational safety
1. Before commissioning the entire measuring point, verify that all connections are
correct. Ensure that electrical cables and hose connections are undamaged.

OUSAF11 Product description
Endress+Hauser 7
2. Do not operate damaged products, and safeguard them to ensure that they are not
operated inadvertently. Label the damaged product as defective.
3. If faults cannot be rectified:
Take the products out of operation and safeguard them to ensure that they are not
operated inadvertently.
2.5 Product safety
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.
3 Product description
3.1 Sensor design
123
A0021712

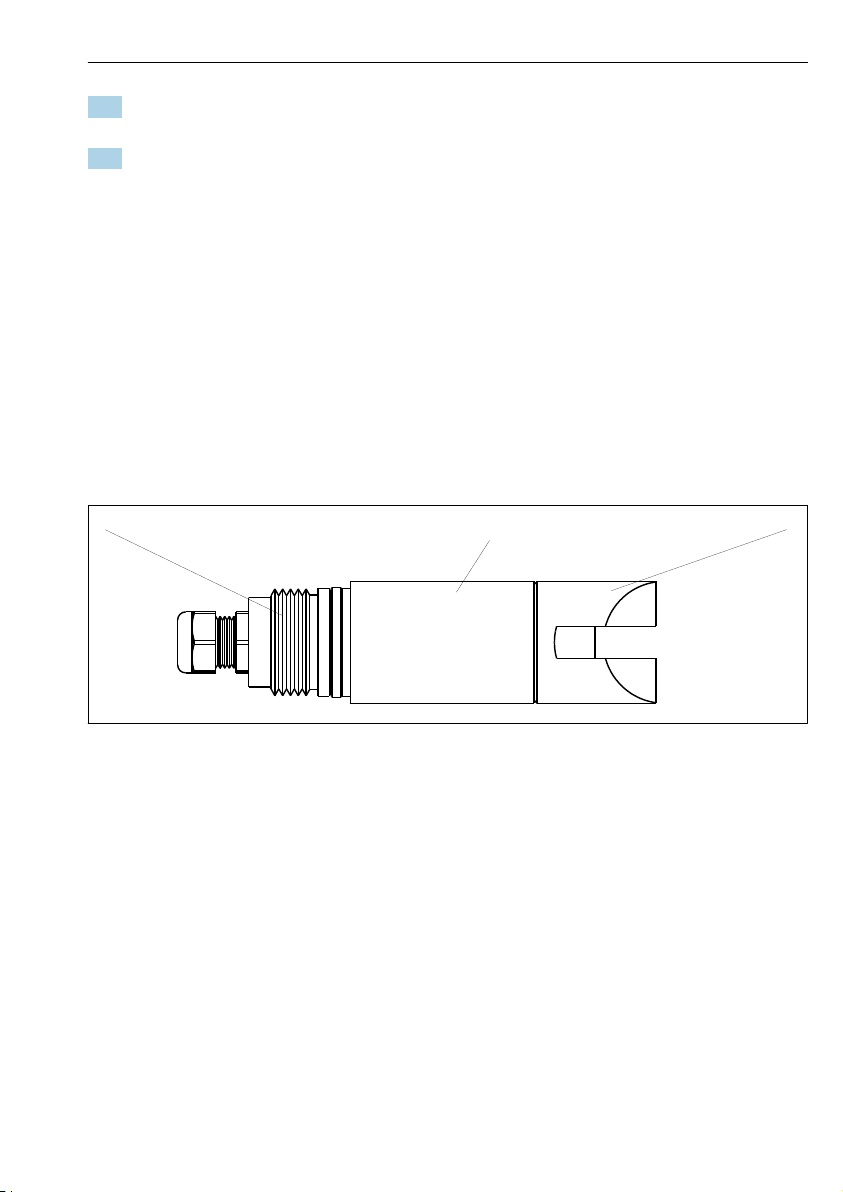

 1 Design of OUSAF11
1 Process connection (e.g. external thread)
2 Sensor shaft
3 Sensor head

Product description OUSAF11
8 Endress+Hauser
3.2 Measuring principle
Light absorption
The measuring principle is based on the Lambert-Beer law.
There is a linear dependency between the absorption of light and the concentration of the
absorbing substance:
A = -log(T) = ε . c . OPL
T = I/I0
T ... Transmission
I ... Intensity of received light at detector
I0 ... Intensity of transmitted light of light source
A ... Absorption
ε ... Extinction coefficient
c ... Concentration
OPL ... Optical path length
A light source emits radiation through the medium and the incident radiation is measured on
the detector side.
The intensity of the light is determined by a photodiode and converted to a photocurrent.
The subsequent conversion to absorbance units (AU, OD) is performed in the associated
transmitter.
2
1OPL 23
4
5
A0029401

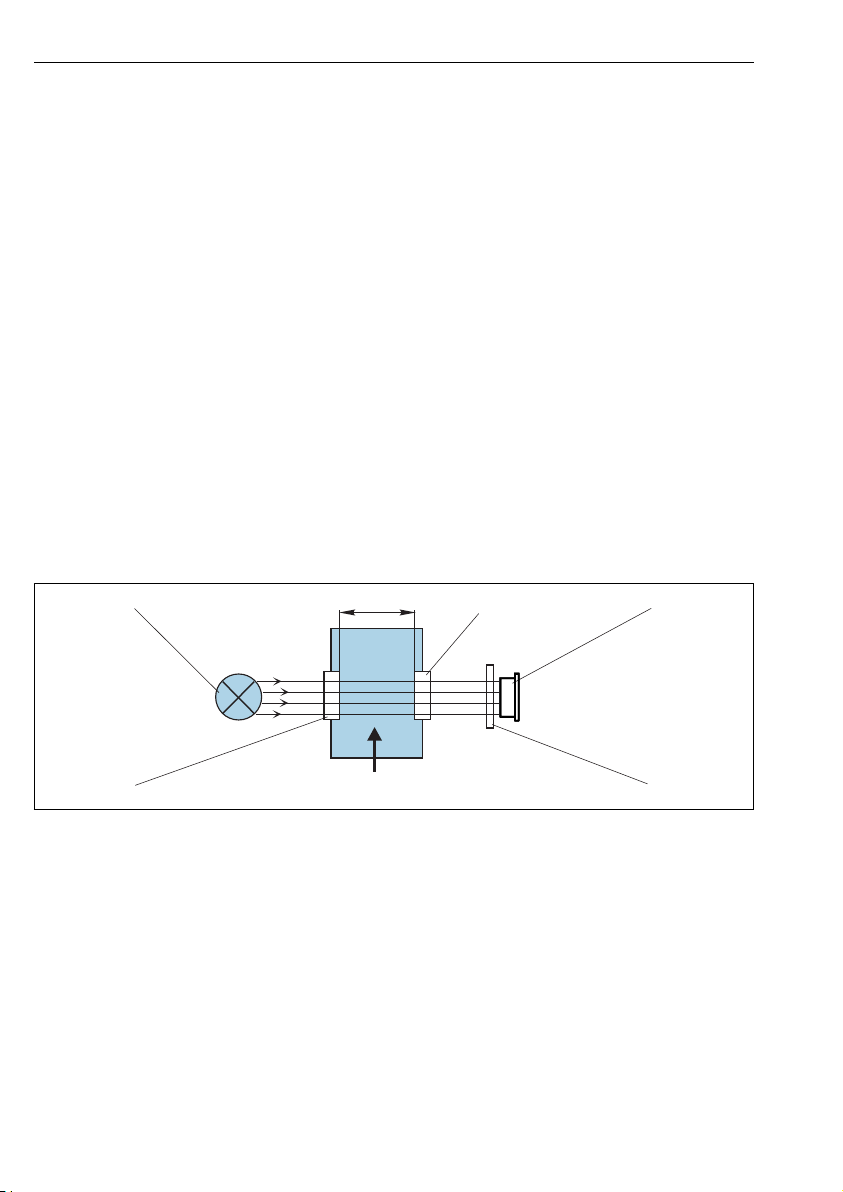

 2 Absorption measurement
1 Light source
2 Optical windows of the sensor
3 Detector
4 Measurement filter (depends on sensor, not provided on all sensors)
5 Medium flow

OUSAF11 Incoming acceptance and product identification
Endress+Hauser 9
4 Incoming acceptance and product identification
4.1 Incoming acceptance
1. Verify that the packaging is undamaged.
 Notify your supplier of any damage to the packaging.
Keep the damaged packaging until the matter has been settled.
2. Verify that the contents are undamaged.
 Notify your supplier of any damage to the delivery contents.
Keep the damaged products until the matter has been settled.
3. Check the delivery for completeness.
 Check it against the delivery papers and your order.
4. Pack the product for storage and transportation in such a way that it is protected
against impact and moisture.
 The original packaging offers the best protection.
The permitted ambient conditions must be observed (see "Technical data").
If you have any questions, please contact your supplier or your local sales center.
4.2 Product identification
4.2.1 Nameplate
The nameplate provides you with the following information on your device:
• Manufacturer identification
• Order code
• Extended order code
• Serial number
• Safety information and warnings
‣Compare the data on the nameplate with your order.
4.2.2 Product identification
Product page
www.endress.com/ousaf11
Interpreting the order code
The order code and serial number of your product can be found in the following locations:
• On the nameplate
• In the delivery papers
Obtaining information on the product
1. Go to the product page for your product on the Internet.

Incoming acceptance and product identification OUSAF11
10 Endress+Hauser
2. At the bottom of the page, select the "Online Tools" link followed by "Check your device
features".
 An additional window opens.
3. Enter the order code from the nameplate into the search field, and then select "Show
details".
 You will receive information on each feature (selected option) of the order code.
4.3 Scope of delivery
The scope of delivery consists of the following :
• OUSAF11 sensor
• Operating Instructions
Ordering the sensor together with a transmitter:
If you select the calibration option in the Product Configurator for the transmitter, the
complete measuring system (transmitter, sensor, cable) is factory-calibrated and shipped
as one package.
If you have any questions, please contact your supplier or your local sales center.
4.4 Certificates and approvals
4.4.1  mark
Declaration of Conformity
The product meets the requirements of the harmonized European standards. As such, it
complies with the legal specifications of the EU directives. The manufacturer confirms
successful testing of the product by affixing to it the  mark.
4.4.2 FDA conformity
All non-metal parts in contact with medium, such as rubber and plastic parts, meet the
requirements of FDA 21 CFR 177.2600. The plastic and elastomer parts of the sensor in
contact with medium have passed the biological reactivity tests according to USP <87> and
<88> Class VI.
4.4.3 3-A
Certified according to the 3-A standard 46-xx for versions with Tri-Clamp and Varivent
process connections
3-A hygiene standard for sensors whose spare parts and process connections are designed for
use in milk and dairy product plants

OUSAF11 Installation
Endress+Hauser 11
5 Installation
5.1 Installation conditions
5.1.1 Measuring system
An optical measuring system comprises:
• OUSAF11 sensor (photometer)
• Transmitter, for example Liquiline CM44P
• Sensor fixed cable
1
3
2
A0029243

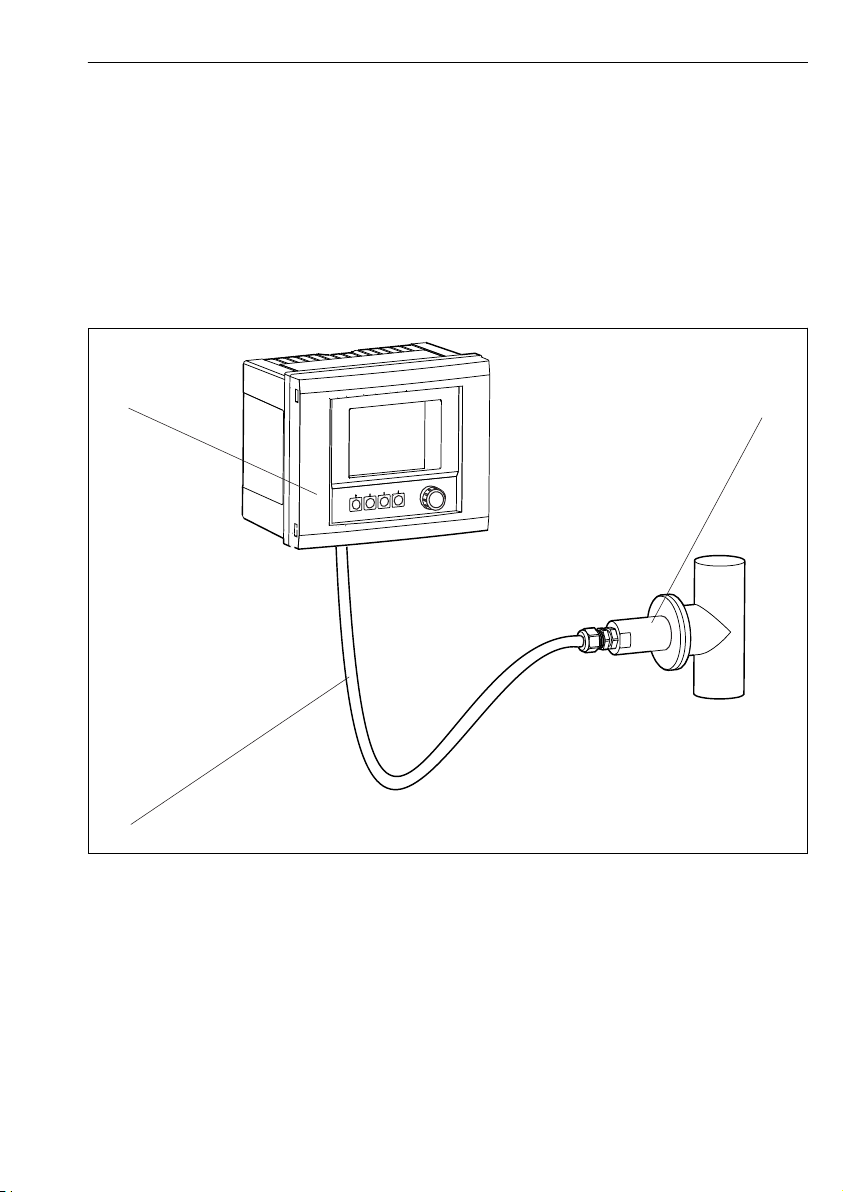

 3 Example of a measuring system with a photometer sensor
1 CM44P transmitter
2 OUSAF11 sensor
3 Sensor fixed cable

Installation OUSAF11
12 Endress+Hauser
5.1.2 Dimensions
139.0
(5.47)
135.5
(5.33)
149.1
(5.87)
21 3
38.1
(1.5)
A0021260
 4 Design and dimensions in mm (inch)
1 Submersible sensor
2 Tri-Clamp or VARIVENT process connection
3 Sensor with external thread
5.1.3 Mounting angles
The sensor can be installed up to the horizontal in an assembly, support or suitable process
connection. Other angles of inclination are not recommended.
Do not install the sensor vertically through the floor of a pipe. In this way, you avoid any
sedimentation and ensure a constant flow through the measuring gap. This guarantees
correct measured values and complete drainage in hygienic applications.

OUSAF11 Installation
Endress+Hauser 13
A
A0029248

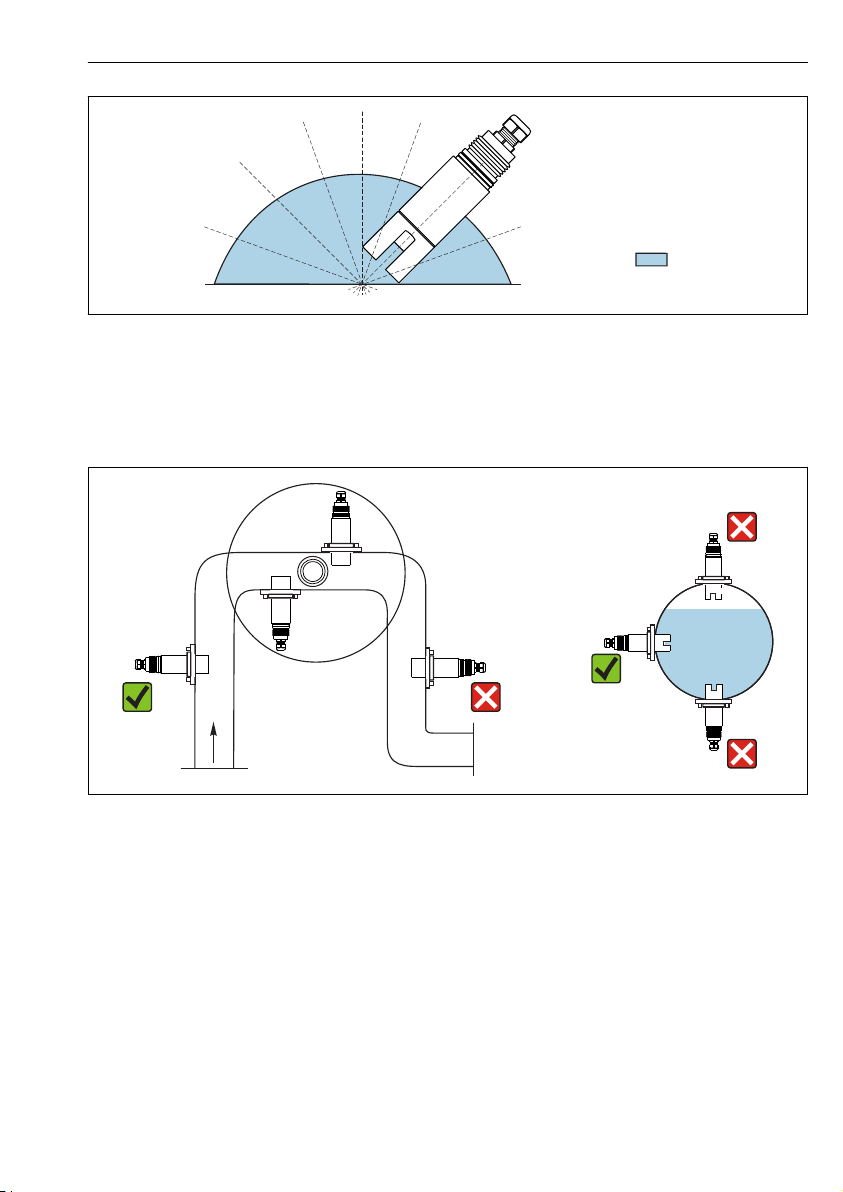

 5 Mounting angles
A Permitted mounting angle: 0 to 180°
5.1.4 Mounting in pipes
41
5
2
3
Detail A
Detail A
90°
5
3
2
A0029259
 6 Permitted and unacceptable installation positions in pipes

Installation OUSAF11
14 Endress+Hauser
Comply with the following conditions. Otherwise you run the risk of damaging the measuring
point or obtaining incorrect measured values.
‣The diameter of the pipe must be at least 50 mm (2").
‣Install the sensor in places with consistent flow conditions.
‣The best installation location is in the ascending pipe (item 1).
‣Installation in the horizontal pipe (item 5) is also possible. In this case, you must turn the
sensor so that the measuring slit is aligned with the direction of flow at an angle of at least
12° but not more than 45°. → diagram
12 ... max. 45°
BA C
A0031255
 7 3-A-permitted sensor orientation when installed in horizontal pipes
A →  13, item 5
B Lateral view (270° in relation to A), arrow indicates the direction of flow
C 3D view
‣Do not install the sensor in places where air pockets or bubbles occur (→  6,  13, item
3) or where sedimentation may occur (item 2).
‣Avoid installation in the down pipe (item 4).
‣Align the sensor in such a way that the medium flows through the measuring gap (self-
cleaning effect).
5.2 Mounting the sensor
NOTICE
Mounting errors
Possibility of sensor damage, twisted cables or similar
‣Make sure that the sensor body is protected against damage from external forces - such as
trolleys on adjacent paths.
‣Make sure to avoid exerting excessive tensile force on the cable (e.g. from jerky pulling
movements).
‣Make sure to observe the national grounding regulations when using metal assemblies.
The sensor can be installed directly in tanks and pipes with a suitable process connection, or
in a suitable assembly.

OUSAF11 Electrical connection
Endress+Hauser 15
5.3 Post-installation check
Put the sensor into operation only if you can answer "yes" to the following questions:
• Are the sensor and cable undamaged?
• Have you chosen a correct mounting angle?
6 Electrical connection
LWARNING
Device is live
Incorrect connection may result in injury or death
‣The electrical connection may be performed only by an electrical technician.
‣The electrical technician must have read and understood these Operating Instructions and
must follow the instructions contained therein.
‣Prior to commencing connection work, ensure that no voltage is present on any cable.
6.1 Connecting the sensor
The sensor is connected to the transmitter using the pre-terminated or labeled sensor fixed
cable.
YE
RD
WH
YE
BK
BK
GY
A0029261
 8 OUSAF11 fixed cable
CM44P terminal CVM40 terminal Cable color Assignment
P+ V1.1 YE (thick) Lamp voltage +
S+ V1.3 YE (thin) Detection of lamp voltage +
S- V1.4 BK (thin) Detection of lamp voltage -
P- V1.2 BK (thick) Lamp voltage -
A (1) S1.1 RD Sensor +
C(1) S1.2 WH Sensor -
SH (1) S1.S GY Shield

Electrical connection OUSAF11
16 Endress+Hauser
6.2 Lamp voltage
Sensor version Lamp type Lamp voltage [V]
OUSAF11-xxxxx Incandescent lamp 4.9 ± 0.1
6.3 Ensuring the degree of protection
Only the mechanical and electrical connections which are described in these instructions and
which are necessary for the required, designated use, may be carried out on the device
delivered.
‣Exercise care when carrying out the work.
Individual types of protection permitted for this product (impermeability (IP), electrical safety,
EMC interference immunity) can no longer be guaranteed if, for example:
• Covers are left off.
• Different power units to the ones supplied are used.
• Cable glands are not sufficiently tightened (must be tightened with 2 Nm for the confirmed
level of IP protection).
• Modules are not fully secured.
• The display is not fully secured (risk of moisture entering due to inadequate sealing).
• Loose or insufficiently tightened cables/cable ends.
• Conductive cable strands are left in the device.
6.4 Post-connection check
Device condition and specifications Notes
Are the sensor, assembly and cable free from damage on the outside? Visual inspection
Electrical connection Notes
Does the supply voltage of the connected transmitter match the data on the
nameplate?
Visual inspection
Are the installed cables strain-relieved and not twisted?
Has the cable been routed without loops and cross-overs? Check that it is firmly seated (by
pulling gently)
Are the signal cables connected correctly according to the connection diagram?
Are all cable entries mounted, tightened and leak-tight? For lateral cable entries, make sure
the cables loop downwards to allow
water to drip off.
Are the PE distributor rails grounded (if present)? Grounding at the point of
installation

OUSAF11 Commissioning
Endress+Hauser 17
7 Commissioning
7.1 Function check
Before first commissioning, check if:
‣the sensor is correctly installed
‣the electrical connection is correct.
7.2 Calibrating/adjusting the sensor
Measuring points consisting of a photometer sensor and a transmitter are adjusted at the
factory. Normally adjustment is not required when commissioning for the first time.
If an adjustment is necessary nevertheless, you have the following adjustment option:
Adjustment with calibration standards
8 Maintenance
Take all the necessary precautions in time to ensure the operational safety and reliability of
the entire measuring system.
NOTICE
Effects on process and process control
‣When carrying out any work on the system, take into account possible repercussions for
process control or the process itself.
‣For your own safety, only use genuine accessories. With genuine parts, the function,
accuracy and reliability are also ensured after maintenance work.
NOTICE
Sensitive optical components
If you do not proceed with care, you can damage or severely dirty the optical components.
‣Maintenance work may only be carried out by appropriately qualified staff.
‣Wear talc-free latex or cotton gloves during maintenance.
‣Use ethanol and a lint-free cloth which is suitable for cleaning lenses to clean all the
optical components.
8.1 Maintenance schedule
• Maintenance and servicing intervals are based on the individual application.
• Cleaning intervals depend on the medium.
• Perform a visual inspection once a month and clean the sensor if necessary.

Maintenance OUSAF11
18 Endress+Hauser
Maintenance checklist
• Replace lamp
The lamp is typically replaced after 8000 to 10 000 operating hours (→  26).
• Replace O-rings in contact with the medium
The replacement of O-rings in contact with the medium depends on the specific
requirements of the process.
Never re-use a used O-ring.
8.2 Clean sensor
Cleaning the sensor
If the sensor is dirty, this can influence the measurement results and even cause a
malfunction. Therefore the sensor must be cleaned regularly in order to guarantee reliable
measurement results. The frequency and intensity of the cleaning process depend on the
medium. Clean the sensor:
• before every calibration/adjustment/zero point adjustment
• before you send the sensor in for repair
Fouling Cleaning
Lime deposits ‣Immerse the sensor in 1-5 % hydrochloric acid (for a few minutes).
Dirt particles on the optical windows ‣Fold the cloth and wipe the cell.
NOTICE
Cleaning agent residue
Cleaning agent residue can affect the measurement.
‣Rinse the sensor carefully with water after every cleaning.

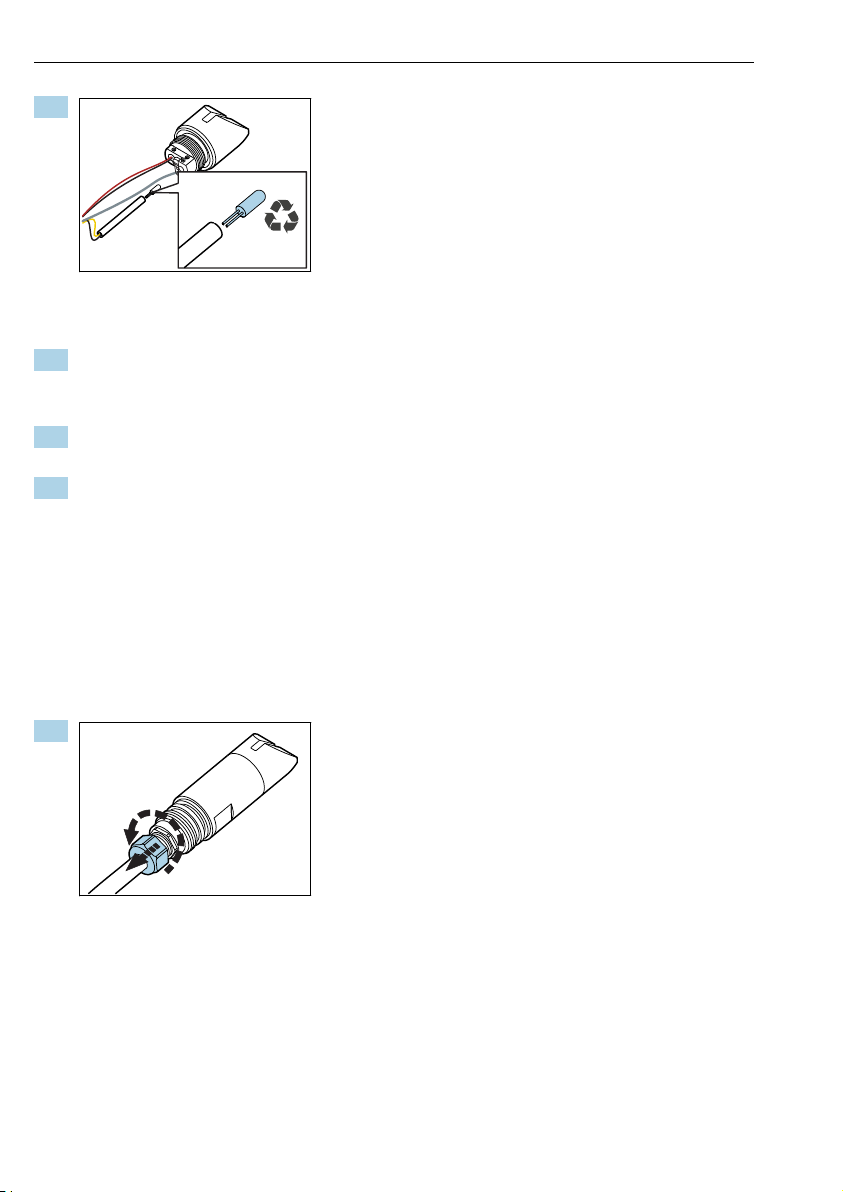

8.3 Replace lamp
‣Switch off the lamp at the transmitter using the software function.
‣Allow the lamp to cool down (30 minutes).
1.
Release the cable gland and pull it over the cable to remove it from the sensor.

OUSAF11 Maintenance
Endress+Hauser 19

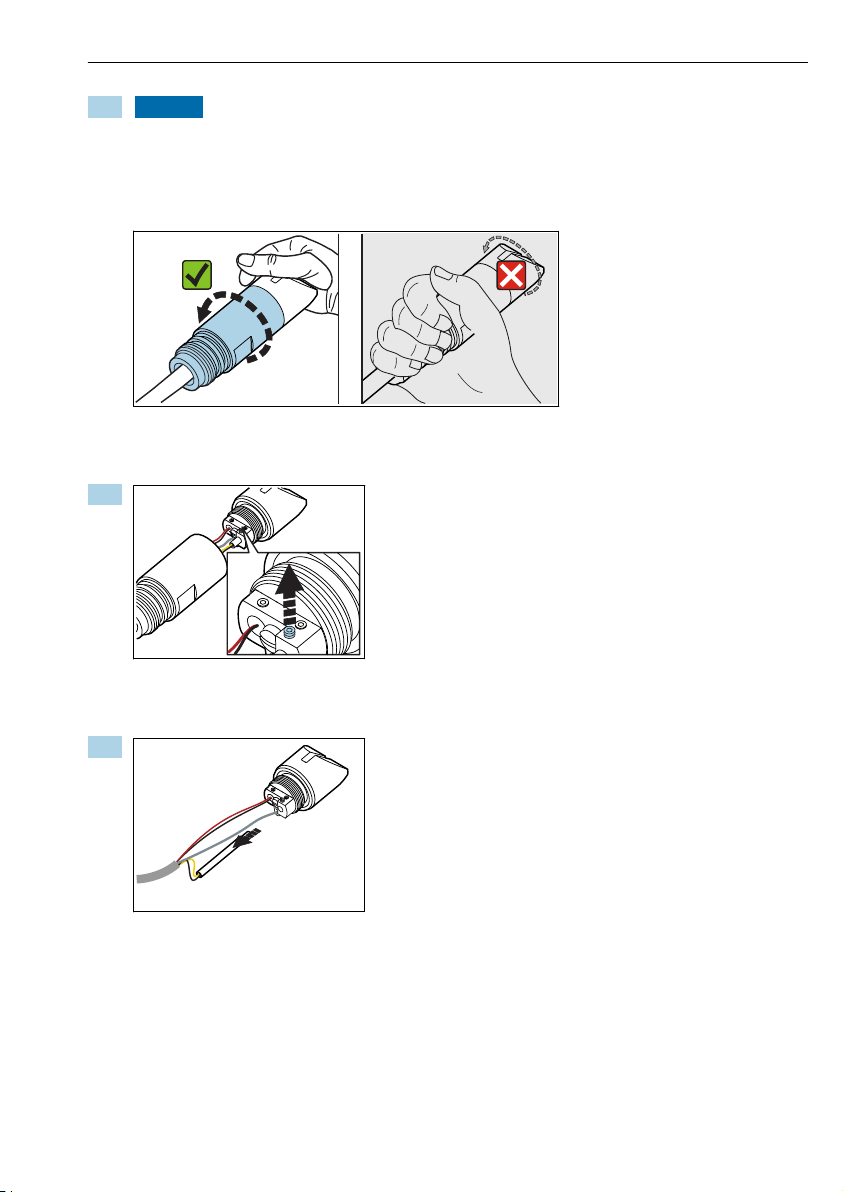

2. NOTICE
Incorrect turning
The cables can be damaged and the sensor no longer functions
‣Only turn the shaft. Never turn by the sensor head!
‣Make sure that the cable is not twisted.
Hold the sensor head firmly in position and unscrew the sensor shaft from the sensor
head.
3.
Using the Allen screw remove the securing screw indicated from the lamp kit
(71122199).
4.
Remove the lamp module from the sensor head.

Maintenance OUSAF11
20 Endress+Hauser
5.
Remove the lamp from the fitting and replace it with a new one. Use a paper towel to
insert the new lamp.
6. Without graphics:
Once you have inserted the new lamp, clean it with a paper towel and ethanol, if
available. Make sure you do not touch the optical surfaces again after cleaning.
7. Insert the lamp module back into the sensor head until it is firmly seated in the correct
position. Tighten the securing screw slightly.
8. Mount the sensor again.  In doing so, use PTFE tape to seal the thread of the sensor
head.
 Check the function of the sensor afterwards.
Always replace the O-ring each time you replace the lamp. Read the following section for this
purpose.
8.4 Replacing the O-ring
‣Switch off the lamp at the transmitter using the software function.
‣Allow the lamp to cool down (30 minutes).
1.
Release the cable gland and pull it over the cable to remove it from the sensor.
