Operating Instructions
Indumax CLS54
Conductivity sensor
0
BA01591C/07/EN/03.17
71377428
AUTHORIZED DISTRIBUTOR:
InstrumentsAndControl.com
Houston, Texas USA
[e-mail]
281-609-7170

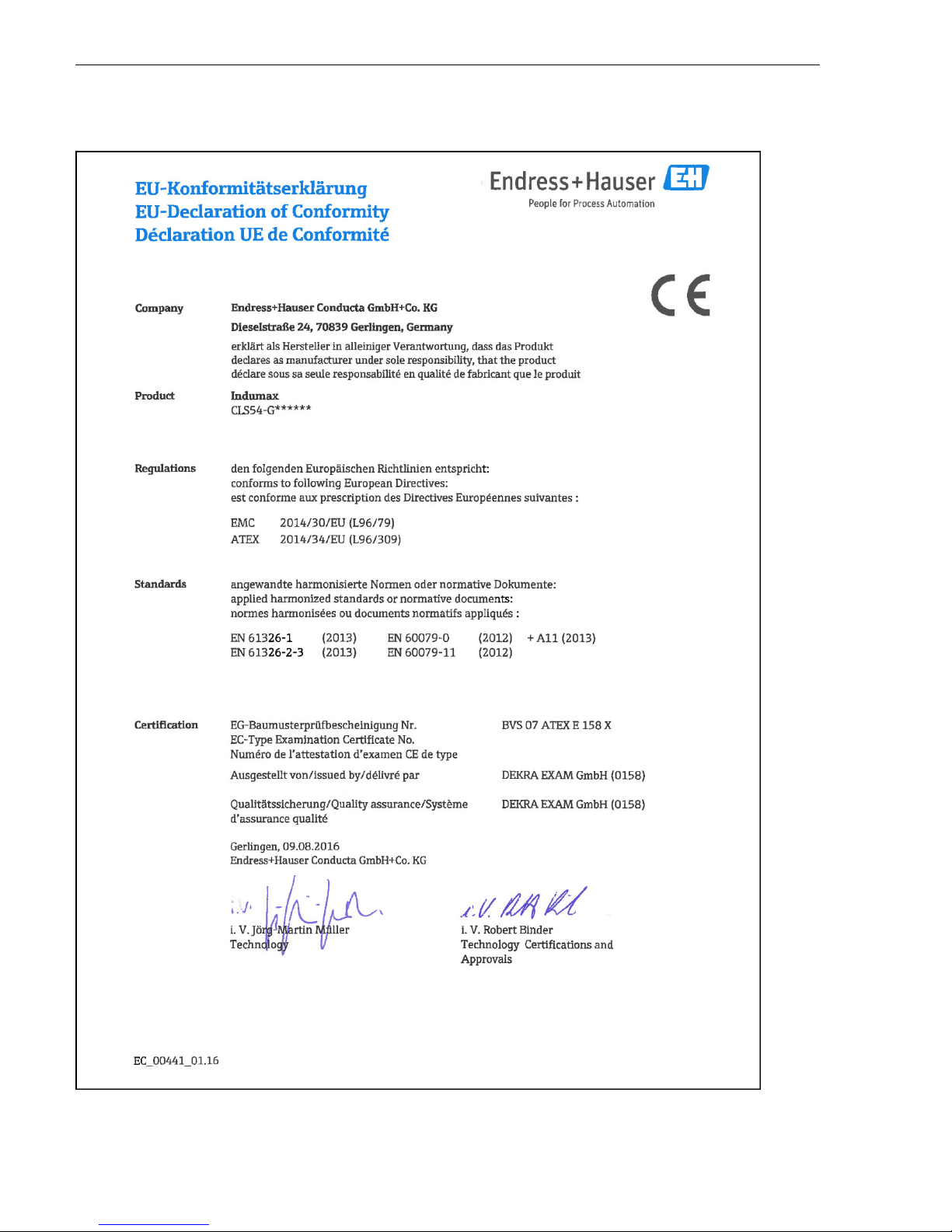

EU declaration of conformity Indumax CLS54
2 Endress+Hauser
EU declaration of conformity

Indumax CLS54 Table of contents
Endress+Hauser 3
Table of contents
1 Document information ......... 4
1.1 Warnings ........................... 4
1.2 Symbols used ........................ 4
1.3 Symbols on the device ................ 5
2 Basic safety instructions ....... 6
2.1 Requirements for the personnel ........ 6
2.2 Designated use ...................... 6
2.3 Occupational safety .................. 6
2.4 Operational safety ................... 7
2.5 Product safety ....................... 7
3 Incoming acceptance and
product identification .......... 8
3.1 Incoming acceptance ................. 8
3.2 Scope of delivery ..................... 8
3.3 Product identification ................. 9
3.4 Certificates and approvals ............ 10
4 Installation .................... 11
4.1 Installation conditions ............... 11
4.2 Installing the sensor ................. 14
4.3 Dimensions ........................ 15
4.4 Post-installation check ............... 17
5 Electrical connection .......... 18
5.1 Connection conditions ............... 18
5.2 Connecting to the transmitter ......... 19
5.3 Ensuring the degree of protection ..... 19
5.4 Post-connection check ............... 20
6 Maintenance .................. 20
7 Repairs ......................... 21
7.1 Return ............................ 21
7.2 Disposal ........................... 21
8 Accessories .................... 21
8.1 Cable extension ..................... 21
8.2 Calibration solutions ................ 22
9 Technical data ................. 22
Index ................................. 26

Document information Indumax CLS54
4 Endress+Hauser
1 Document information
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious injury.
LWARNING
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious injury.
LCAUTION
Causes (/consequences)
If necessary, Consequences of non-
compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
If necessary, Consequences of non-
compliance (if applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to property.
1.2 Symbols used
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step

Indumax CLS54 Document information
Endress+Hauser 5
1.3 Symbols on the device
Symbol Meaning
Reference to device documentation

Basic safety instructions Indumax CLS54
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements for the personnel
• Installation, commissioning, operation and maintenance of the measuring system may be
carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the specified
activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions and
must follow the instructions contained therein.
• Faults at the measuring point may only be rectified by authorized and specially trained
personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Designated use
Indumax CLS54 is designed for the inductive measurement of the conductivity of liquids. The
sensor is particularly suitable for use in hygienic applications in the food, beverage,
pharmaceutical and biotech industry.
Use with Liquiline CM42, and Liquisys CLM223/253 transmitters; part of the Smartec
CLD134 measuring system.
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Occupational safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
• Regulations for explosion protection
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable European standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.

Indumax CLS54 Basic safety instructions
Endress+Hauser 7
2.4 Operational safety
1. Before commissioning the entire measuring point, verify that all connections are
correct. Ensure that electrical cables and hose connections are undamaged.
2. Do not operate damaged products, and safeguard them to ensure that they are not
operated inadvertently. Label the damaged product as defective.
3. If faults cannot be rectified:
Take the products out of operation and safeguard them to ensure that they are not
operated inadvertently.
2.5 Product safety
2.5.1 State of the art
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.

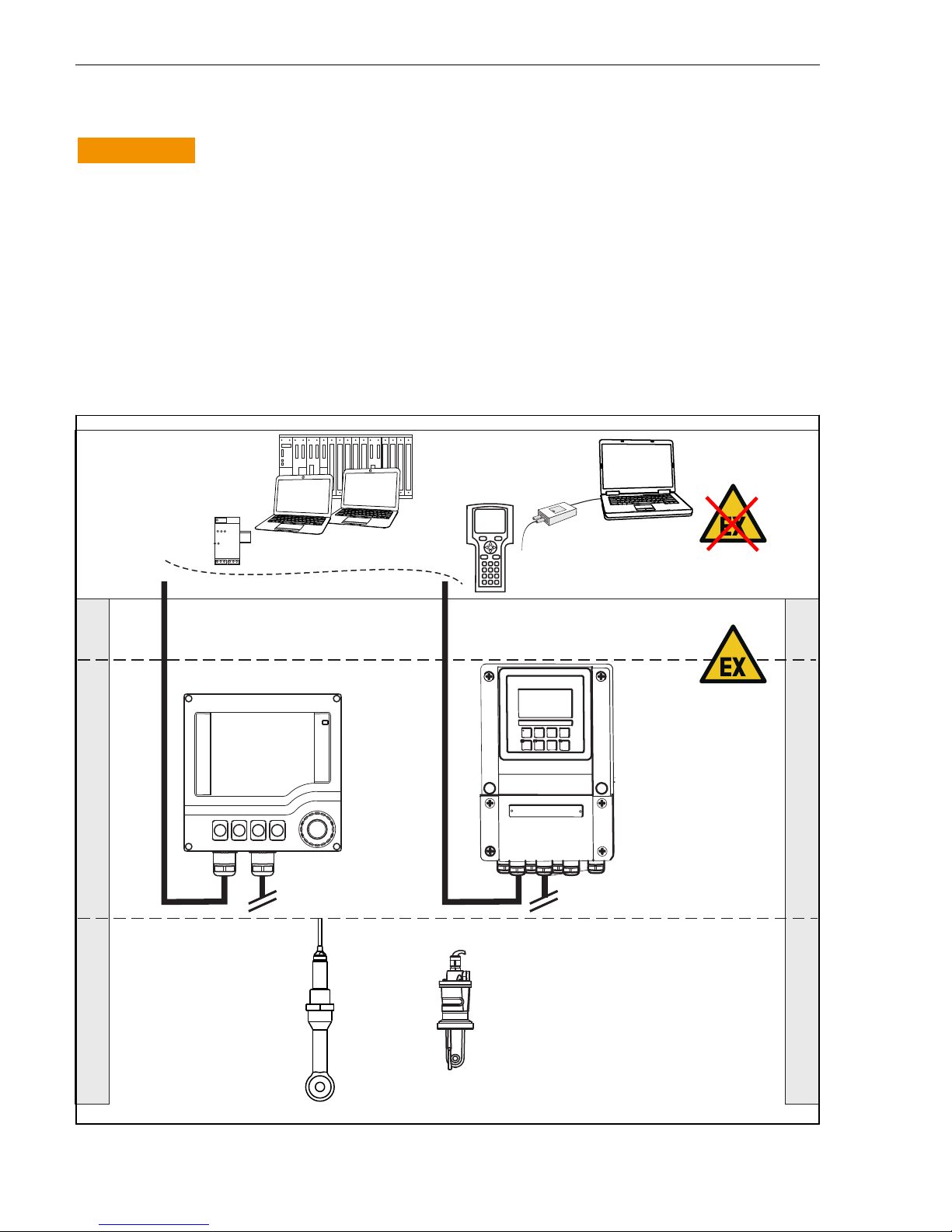

2.5.2 Electrical equipment in hazardous areas
The sensor may be connected to the following transmitters:
• Liquiline M CM42, EC type-examination certificates TÜV 13 ATEX 7459 X, TÜV 14 ATEX
7510 X, TÜV 14 ATEX 7509 X, EX5 05 03 30266 012
• Mycom S CLM153-G, EC type-examination certificate DMT 01 ATEX E 174
CLS54-G****** and CLS54-K******
• The sensor has been developed and manufactured in accordance with the applicable
European standards and guidelines and is suitable for use in hazardous areas.
• The Declaration of Conformity confirms compliance with the harmonized European
standards for using the sensor in hazardous areas and is included in the Operating
Instructions.
• The sensor must be connected and operated in accordance with the associated Operation
Instructions. All sensor operating data must be observed.
• Ensure that it is professionally installed in order to achieve the degree of protection (IP65)
for the housing. Use the original seal, and install the cable entry properly.
• Compliance with the specified ambient and process temperature ranges is a prerequisite for
safe use of the device!
• The sensors may only be used in liquid media with a conductivity >10 nS/cm.
• To avoid electrostatic charges, all CLS54 versions with metal surfaces (depends on process
connection) must be electrostatically connected in such a way that R ≤1 MΩ.
• The maximum permitted length of the measuring cable is 50 m.
• Full compliance with regulations for electrical systems in hazardous areas (EN 60079-14) is
mandatory when using the devices and sensors.

Incoming acceptance and product identification Indumax CLS54
8 Endress+Hauser
Temperature classes
Temperature class Ambient temperature range TaMedium temperature range Tmed
T6 -20 °C to +60 °C -10 °C ≤ Tmed ≤ + 55 °C
T4 -10 °C ≤ Tmed ≤ + 105 °C
T3 -10 °C ≤ Tmed ≤ + 125 °C 1)
1) 150 °C for maximum 60 min
Sensors with CSA approval (CLS504-O******)
Observe the documentation and the control drawings of the transmitter.
3 Incoming acceptance and product identification
3.1 Incoming acceptance
1. Verify that the packaging is undamaged.
 Notify your supplier of any damage to the packaging.
Keep the damaged packaging until the matter has been settled.
2. Verify that the contents are undamaged.
 Notify your supplier of any damage to the delivery contents.
Keep the damaged products until the matter has been settled.
3. Check the delivery for completeness.
 Check it against the delivery papers and your order.
4. Pack the product for storage and transportation in such a way that it is protected
against impact and moisture.
 The original packaging offers the best protection.
The permitted ambient conditions must be observed (see "Technical data").
If you have any questions, please contact your supplier or your local sales center.
3.2 Scope of delivery
The scope of delivery includes:
• Sensor in the version ordered
• Operating Instructions

Indumax CLS54 Incoming acceptance and product identification
Endress+Hauser 9
3.3 Product identification
3.3.1 Type code for versions with explosion protection
Name Type Version
Indumax CLS54 - G xxx x x x + x
for use in hazardous areas, ATEX II 1G
Ex ia IIC T3/T4/T6 Ga
Process connections, additional options,
cable connection, temperature sensor,
identification
No Ex relevance
Name Type Version
Indumax CLS54 - O xxx x x x + x
For use in hazardous areas, CSA IS NI
Cl.I Div.1&2,Gr. A-D
Process connections, additional options,
cable connection, temperature sensor,
identification
No Ex relevance
Name Type Version
Indumax CLS54 - K xxx x x x + x
For use in hazardous areas, EAC Ex, 0Ex
ia IIC T6/T4 Ga X
Process connections, additional options,
cable connection, temperature sensor,
identification
No Ex relevance
3.3.2 Nameplate
The nameplate can be found on the sensor.
The following information is provided on the nameplate:
• Manufacturer identification
• Order code
• Extended order code
• Serial number
• Cell constant (nominal value)
• Protection class
• Pressure specification at 20 °C
• Continuous service temperature
Compare the data on the nameplate with your order.
3.3.3 Product identification
Product page
www.endress.com/cls54

Incoming acceptance and product identification Indumax CLS54
10 Endress+Hauser
Interpreting the order code
The order code and serial number of your product can be found in the following locations:
• On the nameplate
• In the delivery papers
Obtaining information on the product
1. Go to the product page for your product on the Internet.
2. At the bottom of the page, click the link Online Tools and then select Access device
specific information.
 An additional window opens.
3. Enter the order code from the nameplate into the search field and then select Show
details.
 You will receive information on each feature (selected option) of the order code.
Manufacturer's address
Endress+Hauser Conducta GmbH+Co. KG
Dieselstraße 24
D-70839 Gerlingen
3.4 Certificates and approvals
3.4.1 Hygiene
FDA
All materials in contact with the product are listed by the FDA.
EHEDG
Certified cleanability according to EHEDG TYPE EL-class I.
When using the sensor in hygienic applications, please note that the cleanability of the
sensor also depends on the way the sensor is installed. To install the sensor in a pipe, use
the appropriate and EHEDG-certified flow vessels for the particular process connection.
3-A
Certified according to 3-A Standard 74- ("3-A Sanitary Standards for Sensor and Sensor
Fittings and Connections Used on Milk and Milk Products Equipment").
Biological reactivity (USP class VI) (option)
Biological reactivity test certificate (Certificate of Compliance) according to USP (United States
Pharmacopoeia) part<87> and part <88> class VI with lot number traceability of materials in
contact with the medium.

Indumax CLS54 Installation
Endress+Hauser 11
3.4.2 Ex approvals
• ATEX II 1G Ex ia IIC T3/T4/T6
• CSA IS/NI Cl. I Div. 1 & 2 GP A - D in conjunction with the Liquiline M CM42 transmitter
• EAC Ex, 0Ex ia IIC T6/T4 Ga X
– Zone 0
– Certificate number: TC RU C-DE.AA87.B.00088
– The product has been certified in accordance with Directive TR CU 012/2011 which
applies in the European Economic Area (EEA). The EAC conformity mark has been
affixed to the product.
3.4.3 Regulation (EC) No. 1935/2004
Meets the requirements of Regulation (EC) No. 1935/2004
3.4.4 Pressure approval
Canadian pressure approval for pipes according to ASME B31.3
3.4.5  mark
The product meets the requirements of the harmonized European standards. As such, it
complies with the legal specifications of the EU directives. The manufacturer confirms
successful testing of the product by affixing to it the  mark.
4 Installation
4.1 Installation conditions
4.1.1 Orientation
The sensor must be completely immersed in the medium. Avoid air bubbles in the area of the
sensor.

Installation Indumax CLS54
12 Endress+Hauser
> 1 m (3.3 ft)
A0017691
 1 Installation positions of the conductivity sensor
If the flow direction changes (after pipe bends), turbulence in the medium can result.
Install the sensor at a distance of at least 1 m (3.3 ft) downstream from a pipe bend.
The product should flow along the hole of the sensor (see the arrows on the housing). The
symmetrical measuring channel allows flow in both directions.
For a 3-A compliant installation, the following must be noted:
After the instrument is installed its hygienic integrity shall be maintained. All process
connections must be 3-A compliant.

Indumax CLS54 Installation
Endress+Hauser 13
4.1.2 Installation factor
The ionic current in the liquid is affected by the walls in
confined installation conditions. This effect is compensated
by what is referred to as the installation factor. The
installation factor can be entered in the transmitter for the
measurement or the cell constant is corrected by multiplying
by the installation factor.
The value of the installation factor depends on the diameter
and the conductivity of the pipe nozzle as well as the
distance a between the sensor and the wall.
The installation factor f (f = 1.00) can be disregarded if the
distance to the wall is sufficient (a > 15 mm, from DN 65).
If the distance to the wall is smaller, the installation factor
increases for electrically insulating pipes (f > 1), and
decreases for electrically conductive pipes (f < 1).
It can be measured using calibration solutions, or a close
approximation can be determined from the diagram below.
a
A0032680
 2 Installation CLS54
a Wall distance
1
2
a [inch]
0510 15 20 2525 a [mm]
0.80
1.00
1.20
1.40
f
0.20 0.39 0.59 0.79 0.98
A0005441
 3 Relationship between installation factor f and wall distance a
1 Electrically conductive pipe wall
2 Electrically insulating pipe wall
4.1.3 Air set
To compensate residual coupling in the cable and between the two sensor coils, zero
adjustment in air ("air set") must be performed before installing the sensor. Follow the
instructions provided in the Operating Instructions of the transmitter used.

Installation Indumax CLS54
14 Endress+Hauser
4.2 Installing the sensor
A0028428
 4 Installation of CLS54, arrow indicates direction of flow
When installing, align the sensor in such a way that the medium flows through the flow
opening of the sensor in the direction of medium flow. The sensor head must be completely
immersed in the medium.
The symmetrical measuring channel allows flow in both directions.

Indumax CLS54 Installation
Endress+Hauser 15
4.3 Dimensions
54.5(2.15)
Ø 64(2.52)
10.2(0.40)
33(1.30)
Ø 9
(0.35)
11.5(0.45)
28.5(1.12)
Ø 6(0.24)
126(4.96)
78.5(3.09)
58(2.28)
A0005429

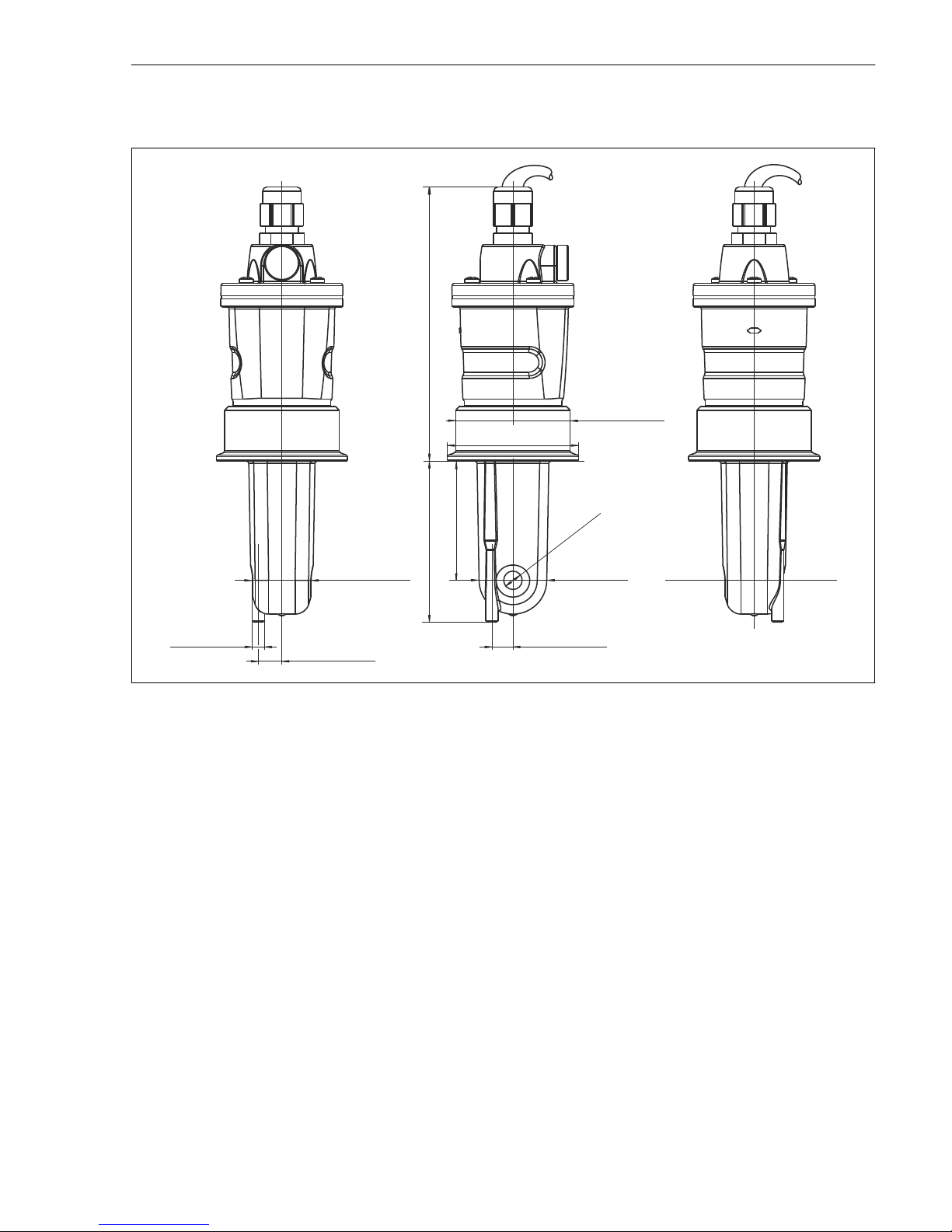

 5 Dimensions in mm(inch) (long version)

Installation Indumax CLS54
16 Endress+Hauser
4.3.1 Process connections
Ø 6(0.24)
36.5(1.44)
16(0.63)
0
126(4.96) 126(4.96)
0
16(0.63)
36.5(1.44)
Ø 6(0.24)
AB
17(0.67)
Ø 89.5
(3.52) 12.5(0.49)
Ø 84
(3.31)
A0004949
 6 Process connections for CLS54 (short version), dimensions in mm (inch)
A NEUMO BioControl D50 for pipe connection: DN 40 (DIN 11866 series A, DIN 11850); DN 42.4 (DIN
11866 series B, DIN EN ISO 1127); 2" (DIN 11866 series C, ASME-BPE)
B Varivent N DN 40 to 125

Indumax CLS54 Installation
Endress+Hauser 17
62.6(2.46)
78.5(3.09)
58(2.28)
0
11(0.43)
126(4.96)
Ø 64.7(2.55)
Ø 57.7(2.27)
78.5(3.09)
58(2.28)
0
4(0.16)
126(4.96)
78.5(3.09)
58(2.28)
0
2.85(0.11) 54.5(2.15)
64(2.52)
126(4.96)
78.5(3.09)
58(2.28)
66.85(2.63)
0
126(4.96)
AB
CD
A0005436
 7 Process connections for CLS54 (long version), dimensions in mm (inch)
A Sanitary connection DIN 11851, DN 50
B SMS coupling 2"
C Clamp ISO 2852 , 2"
D Aseptic coupling DIN 11864-1 form A, for pipe according to DIN 11850, DN 50
4.4 Post-installation check
Put the sensor into operation only if you can answer "yes" to the following questions:
• Are the sensor and cable undamaged?
• Is the orientation correct?
• Has the sensor been installed in the process connection, and does not suspend freely from
the cable?

Electrical connection Indumax CLS54
18 Endress+Hauser
5 Electrical connection
LWARNING
Device is live
Incorrect connection may result in injury or death
‣The electrical connection may be performed only by an electrical technician.
‣The electrical technician must have read and understood these Operating Instructions and
must follow the instructions contained therein.
‣Prior to commencing connection work, ensure that no voltage is present on any cable.
5.1 Connection conditions
5.1.1 Connection diagram: Sensors for Zone 0 (ATEX/EAC Ex)
CLS50 CLS54
IIC 2G
IIC 1G IIC 3G
Zone 1
Zone 0 Zone 2
Ex ia Ex ia
A0032676

Indumax CLS54 Electrical connection
Endress+Hauser 19
5.1.2 Sensors with CSA approval
The instructions in the Control Drawing apply for sensors with FM or CSA approval. You can
find the Control Drawing in the Operating Instructions of the transmitter used.
5.2 Connecting to the transmitter
The sensor is supplied with a fixed cable. The wiring diagram is provided in the Operating
Instructions of the transmitter used.
Connection via a VBM junction box is necessary for a cable connection. The extension to the
transmitter is via the CLK6 cable.
WH
RD
Pt 1000
YE
GN
Ferrule RD
WH
Ferrule BU
Screen
Inner connector
BN n.c.
Cable
}
Ferrule RD
Ferrule BU
Screen
Inner connector
Coax WH
}
}
Coax RD
A0005433-EN
 8 Fixed cable / measuring cable CLK6
Cable length: maximum 55 m (180 ft) total length (non-Ex
versions)
maximum 50 m (180 ft) total length (Ex versions)
5.3 Ensuring the degree of protection
Only the mechanical and electrical connections which are described in these instructions and
which are necessary for the required, designated use, may be carried out on the device
delivered.
‣Exercise care when carrying out the work.
Otherwise, the individual types of protection (Ingress Protection (IP), electrical safety, EMC
interference immunity) agreed for this product can no longer be guaranteed due, for example,
to covers being left off or cable (ends) which are loose or insufficiently secured.

Maintenance Indumax CLS54
20 Endress+Hauser
5.4 Post-connection check
Device condition and specifications Notes
Are the outside of the sensor, assembly, cable undamaged? Visual inspection
Electrical connection Notes
Are the installed cables strain-relieved and not twisted?
Is a sufficient length of the cable cores stripped, and is it positioned
in the terminal correctly?
Check the fit (by pulling gently)
Are all the screws terminals properly tightened? Tighten
Are all cable entries mounted, tightened and leak-tight? For lateral cable entries, make sure the cables
loop downwards to allow water to drip off
Are all cable entries installed downwards or mounted laterally?
6 Maintenance
LCAUTION
Corrosive chemicals
Danger of chemical burns to the eyes and skin. Danger of damage to clothing and equipment
‣It is absolutely essential to protect the eyes and hands properly when working with acids,
bases and organic solvents!
‣Wear protective goggles and safety gloves.
‣Clean away splashes on clothes and other objects to prevent any damage.
‣Pay particular attention to the information provided in the safety data sheets for the
chemicals used.
As there is no galvanic contact with the medium, inductive sensors are considerably less
sensitive to dirt and fouling than conventional conductive sensors.
However, dirt can clog the measuring channel which, in turn, can alter the cell constant. In
such cases, an inductive sensor also needs to be cleaned.
Clean away fouling on the sensor as follows depending on the type of fouling:
• Oily and greasy films:
Clean with grease remover, e.g. alcohol, acetone, possibly hot water and dishwashing
detergent.
• Lime and metal hydroxide buildup:
Dissolve buildup with diluted hydrochloric acid (3 %) and then rinse thoroughly with plenty
of clear water.
• Sulfidic buildup (from flue gas desulfurization or sewage treatment plants):
Use a mixture of hydrochloric acid (3 %) and thiocarbamide (commercially available) and
then rinse thoroughly with plenty of clear water.
• Buildup containing proteins (e.g. food industry):
Use a mixture of hydrochloric acid (0.5 %) and pepsin (commercially available) and then
rinse thoroughly with plenty of clear water.
