Proline Promag H Brief Operating Instructions for flowmeter
Endress+Hauser 3
Brief Operating Instructions for flowmeter
The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals
that together form the Brief Operating Instructions for the flowmeter:
• Brief Operating Instructions Part 1: Sensor
• Brief Operating Instructions Part 2: Transmitter
Please refer to both parts of the Brief Operating Instructions when commissioning the device,
as the contents of the manuals complement one another:
Brief Operating Instructions Part 1: Sensor
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Brief Operating Instructions Part 2: Transmitter
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are the Brief Operating Instructionspart 1: Sensor.
The "Brief Operating Instructions part 2: Transmitter" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline Promag H
4 Endress+Hauser
Table of contents
1 About this document .............................................................. 5
1.1 Symbols used ......................................................................... 5
2 Basic safety instructions .......................................................... 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Designated use ........................................................................ 7
2.3 Workplace safety ...................................................................... 8
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 8
2.6 IT security ............................................................................ 9
3 Incoming acceptance and product identification ................................. 10
3.1 Incoming acceptance ................................................................... 10
3.2 Product identification .................................................................. 11
4 Storage and transport ........................................................... 12
4.1 Storage conditions .................................................................... 12
4.2 Transporting the product ................................................................12
5 Installation ...................................................................... 14
5.1 Installation conditions .................................................................. 14
5.2 Mounting the measuring device ...........................................................18
5.3 Post-installation check ................................................................. 23
6 Disposal ......................................................................... 24
6.1 Removing the measuring device .......................................................... 24
6.2 Disposing of the measuring device ......................................................... 24

Proline Promag H About this document
Endress+Hauser 5
1 About this document
1.1 Symbols used
1.1.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

About this document Proline Promag H
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.1.4 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.5 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction

Proline Promag H Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
Application and media
The measuring device is intended only for the flow measurement of liquids with a minimum
conductivity of 5 μS/cm(Promag 10, 100, 300, 500) or 20 μS/cm (Promag 200).
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified pressure and temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣If the ambient temperature of the measuring device is outside the atmospheric
temperature, it is absolutely essential to comply with the relevant basic conditions as
specified in the device documentation.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
LWARNING
Danger of breakage due to corrosive or abrasive fluids and ambient conditions!
‣Verify the compatibility of the process fluid with the sensor material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Keep within the specified pressure and temperature range.

Basic safety instructions Proline Promag H
8 Endress+Hauser
NOTICE
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
LWARNING
The electronics and the medium may cause the surfaces to heat up or freeze. This
presents a burn hazard!
‣For elevated or low fluid temperatures, ensure protection against contact.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.
2.4 Operational safety
Risk of injury!
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Ambient requirements for transmitter housing made of plastic
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this
can damage the housing.
‣If you are unsure, please contact your Endress+Hauser Sales Center for clarification.
‣If used in an approval-related area, observe the information on the nameplate.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.

Proline Promag H Basic safety instructions
Endress+Hauser 9
2.6 IT security
Our warranty is valid only if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the settings.
IT security measures, which provide additional protection for the device and associated data
transfer, must be implemented by the operators themselves in line with their security
standards.

Incoming acceptance and product identification Proline Promag H
10 Endress+Hauser
3 Incoming acceptance and product identification
3.1 Incoming acceptance
1
2
1
2
Are the order codes on
the delivery note (1)
and the product sticker
(2) identical?
Are the goods
undamaged?
Order code:
Ser. no.:
Ext. ord. cd.:
ii
Date:
Do the nameplate data
match the ordering
information on the
delivery note?
Is the envelope present
with accompanying
documents?
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center.
• The Technical Documentation is available via the Internet or via the Endress+Hauser
Operations App.

Proline Promag H Incoming acceptance and product identification
Endress+Hauser 11
3.2 Product identification
The following options are available for identification of the device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note

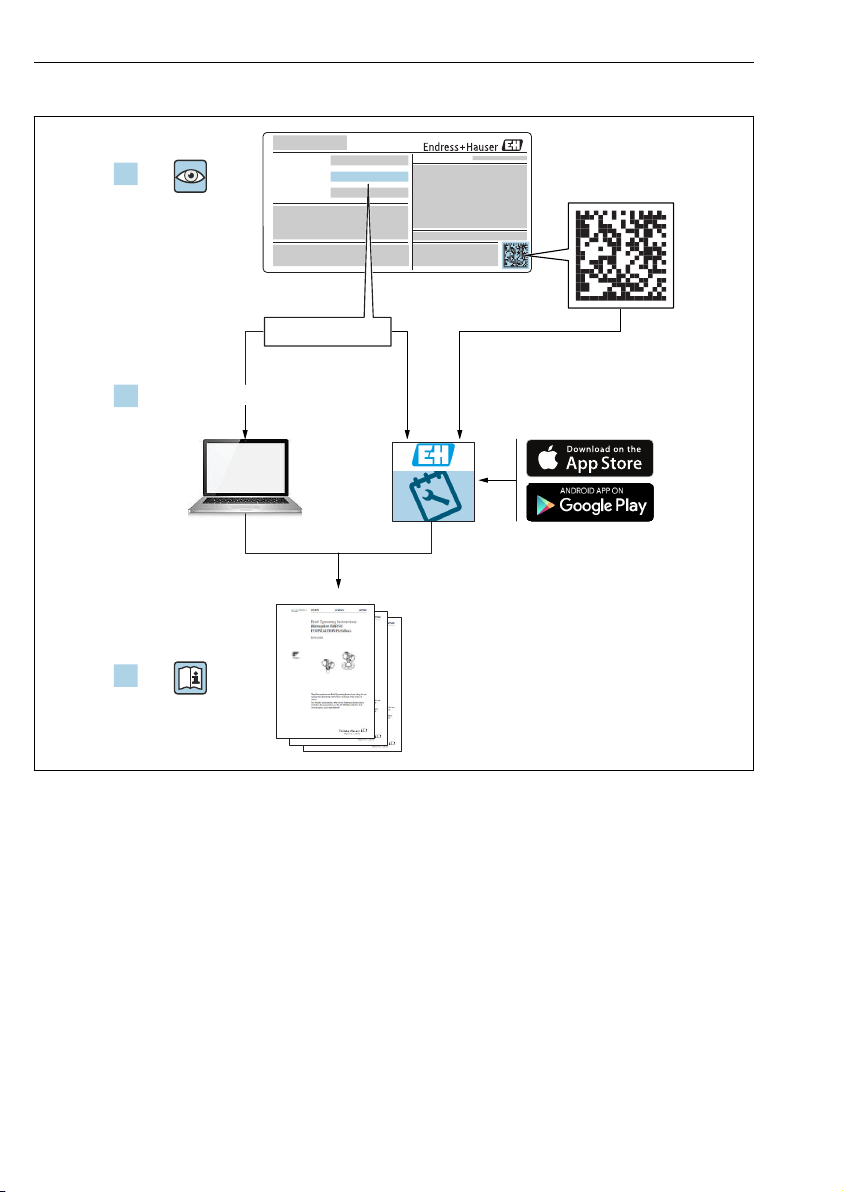

• Enter serial numbers from nameplates in the W@M Device Viewer
(www.endress.com/deviceviewer): All information about the device is displayed.
• Enter the serial number from nameplates in the Endress+Hauser Operations App or scan the
2-D matrix code (QR code) on the nameplate using the Endress+Hauser Operations App: All
information about the device is displayed.
Order code:
Ext. ord. cd.:
Ser. no.:
Order code:
Ext. ord. cd.:
Ser. no.:
1
2
3
4
A0030196

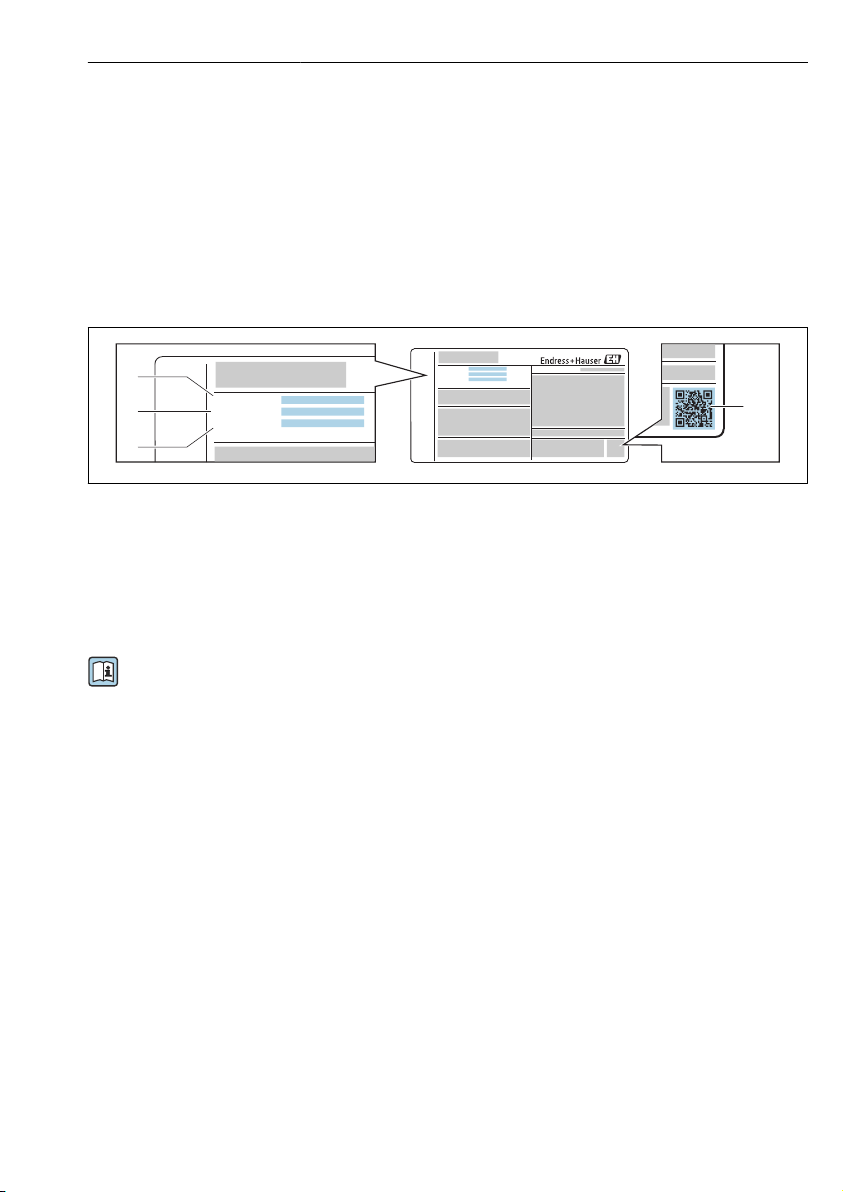

 1 Example of a nameplate
1 Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)
4 2-D matrix code (QR code)
For detailed information on the breakdown of the specifications on the nameplate, see
the Operating Instructions for the device .

Storage and transport Proline Promag H
12 Endress+Hauser
4 Storage and transport
4.1 Storage conditions
Observe the following notes for storage:
‣Store in the original packaging to ensure protection from shock.
‣Do not remove protective covers or protective caps installed on process connections. They
prevent mechanical damage to the sealing surfaces and contamination in the measuring
tube.
‣Protect from direct sunlight to avoid unacceptably high surface temperatures.
‣Select a storage location where moisture cannot collect in the measuring device as fungus
and bacteria infestation can damage the liner.
‣Store in a dry and dust-free place.
‣Do not store outdoors.
4.2 Transporting the product
Transport the measuring device to the measuring point in the original packaging.
A0029252
Do not remove protective covers or caps installed on process connections. They prevent
mechanical damage to the sealing surfaces and contamination in the measuring tube.
4.2.1 Measuring devices without lifting lugs
LWARNING
Center of gravity of the measuring device is higher than the suspension points of the
webbing slings.
Risk of injury if the measuring device slips.
‣Secure the measuring device against slipping or turning.
‣Observe the weight specified on the packaging (stick-on label).

Proline Promag H Storage and transport
Endress+Hauser 13
A0029214
4.2.2 Measuring devices with lifting lugs
LCAUTION
Special transportation instructions for devices with lifting lugs
‣Only use the lifting lugs fitted on the device or flanges to transport the device.
‣The device must always be secured at two lifting lugs at least.
4.2.3 Transporting with a fork lift
If transporting in wood crates, the floor structure enables the crates to be lifted lengthwise or
at both sides using a forklift.
LCAUTION
Risk of damaging the magnetic coil
‣If transporting by forklift, do not lift the sensor by the metal casing.
‣This would buckle the casing and damage the internal magnetic coils.
A0029319

Installation Proline Promag H
14 Endress+Hauser
5 Installation
5.1 Installation conditions
5.1.1 Mounting position
Mounting location
h
A0029343
h ≥ 2 × DN
Installation in down pipes
Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥
5 m (16.4 ft). This precaution is to avoid low pressure and the consequent risk of damage to
the measuring tube. This measure also prevents the system losing prime.
h
2
1
A0028981

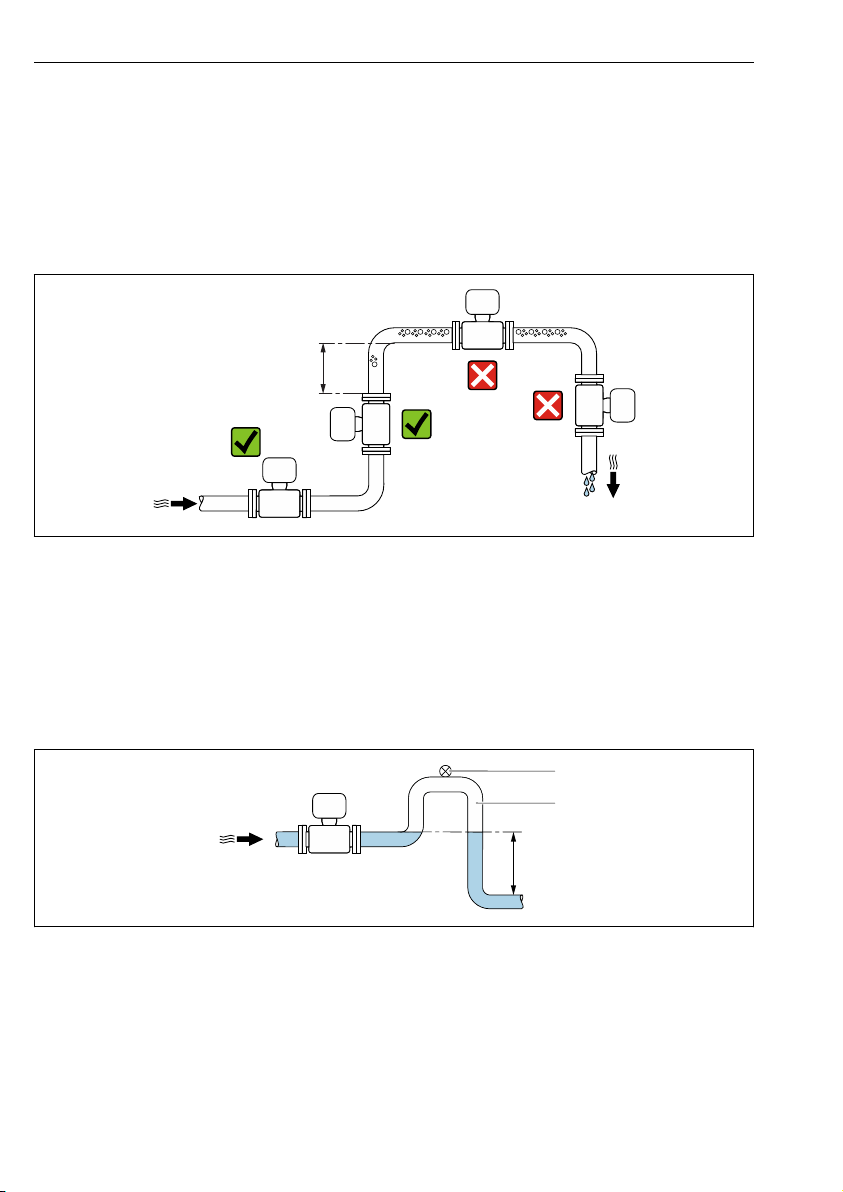

 2 Installation in a down pipe
1 Vent valve
2 Pipe siphon
h Length of down pipe
Installation in partially filled pipes

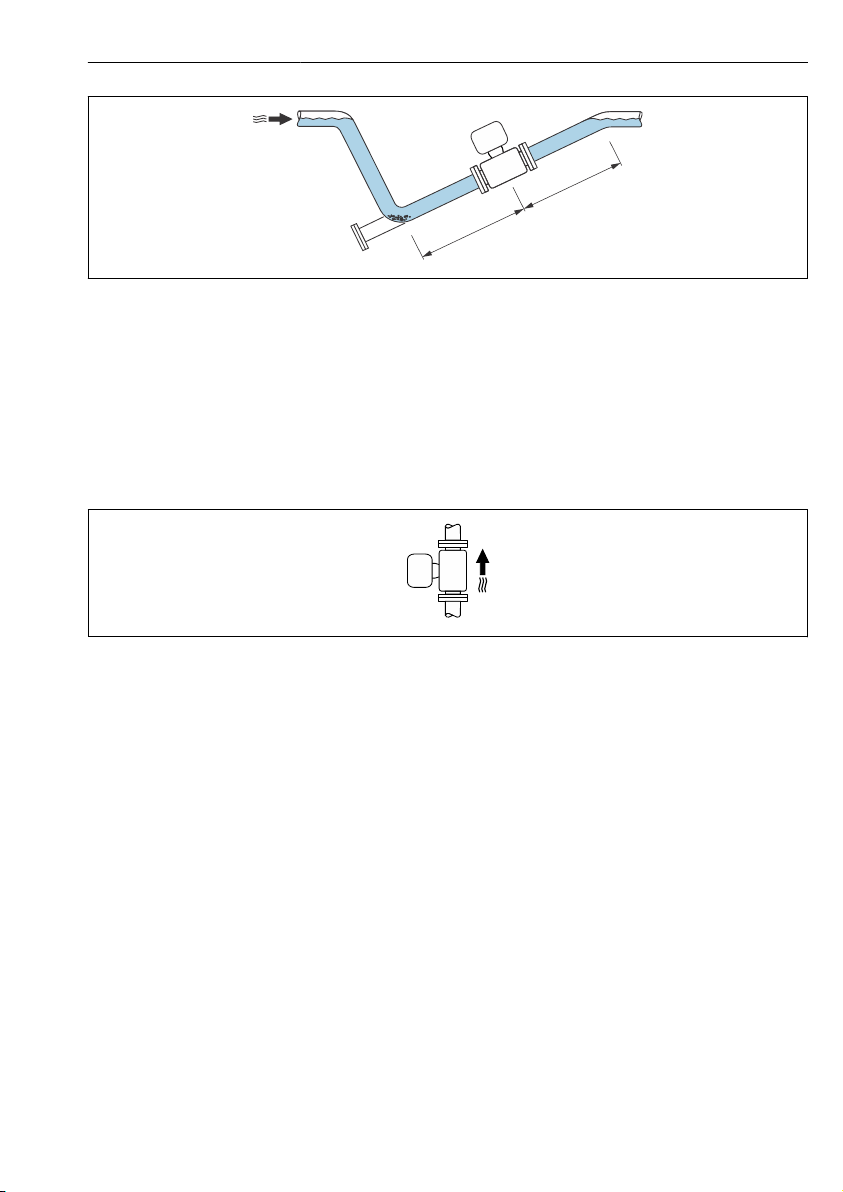

A partially filled pipe with a gradient necessitates a drain-type configuration.

Proline Promag H Installation
Endress+Hauser 15
2 x DN³
5 x DN³
A0029257
Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor according
to the flow direction.
An optimum orientation position helps avoid gas and air accumulations and deposits in the
measuring tube.
Vertical
A0015591
Optimum for self-emptying pipe systems and for use in conjunction with empty pipe
detection.
Horizontal
• Ideally, the measuring electrode plane should be horizontal. This prevents brief insulation
of the measuring electrodes by entrained air bubbles.
• Empty pipe detection only works if the transmitter housing is pointing upwards as
otherwise there is no guarantee that the empty pipe detection function will actually respond
to a partially filled or empty measuring tube.

Installation Proline Promag H
16 Endress+Hauser
1
22
A0028998
1 EPD electrode for empty pipe detection (available from DN > 15 mm (¹⁄₂ in))
2 Measuring electrodes for signal detection
Measuring devices with a nominal diameter < DN 15 mm (¹⁄₂ in) do not have an EPD
electrode. In this case, empty pipe detection is performed via the measuring electrodes.
Inlet and outlet runs
≥ 5 × DN ≥ 2 × DN
A0028997
For the dimensions and installation lengths of the device, see the "Technical Information"
document, "Mechanical construction" section .
5.1.2 Environment and process requirements
Ambient temperature range
For detailed information on the ambient temperature range, see the Operating
Instructions for the device.
If operating outdoors:
• Install the measuring device in a shady location.
• Avoid direct sunlight, particularly in warm climatic regions.
• Avoid direct exposure to weather conditions.
Temperature tables
For detailed information on the temperature tables, see the separate document entitled
"Safety Instructions" (XA) for the device.

Proline Promag H Installation
Endress+Hauser 17
System pressure
A0028777
Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are
used.
Vibrations
L > 10 m (33 ft)
A0029004
 3 Measures to prevent vibration of the device

Installation Proline Promag H
18 Endress+Hauser

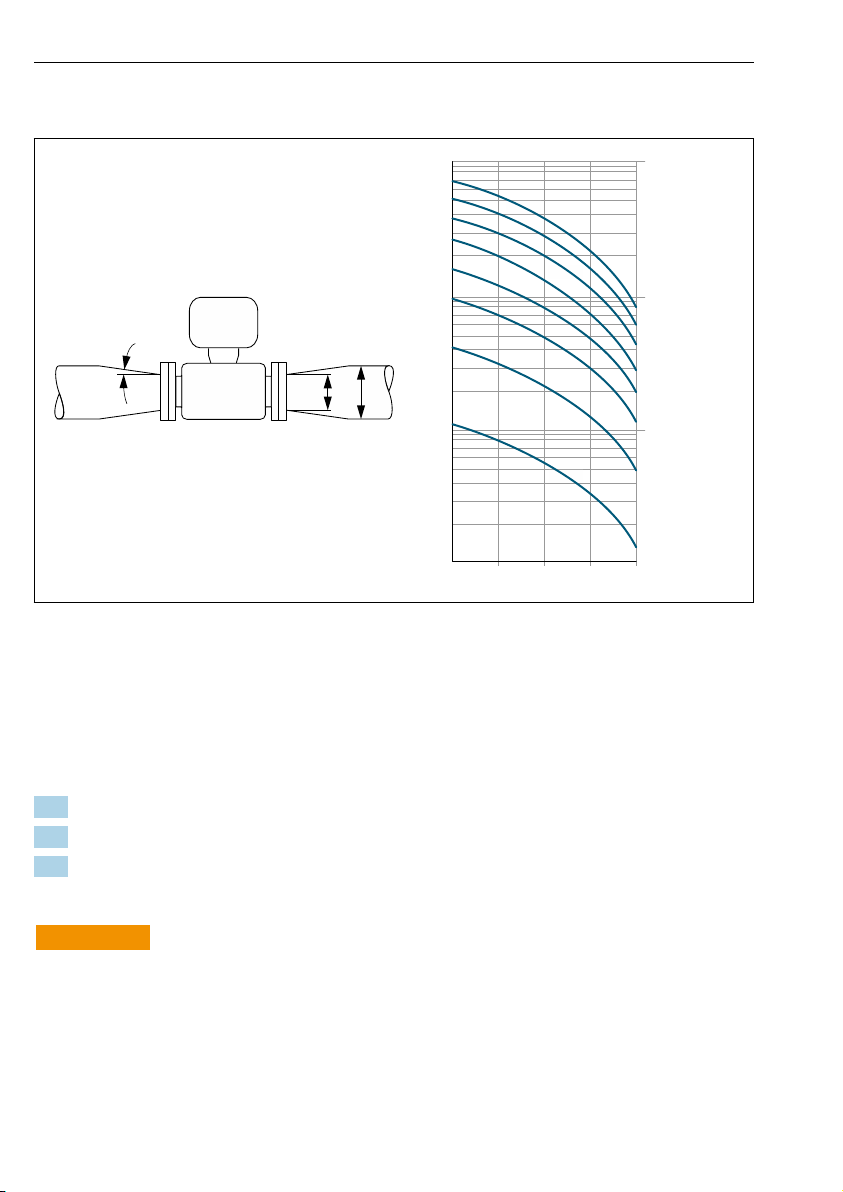

Adapters
100
10
0.5 d / D
[mbar]
0.6 0.7 0.8 0.9
1 m/s
2 m/s
3 m/s
4 m/s
5 m/s
6 m/s
7 m/s
8 m/s
1
D
d
max. 8°
A0029002
5.2 Mounting the measuring device
5.2.1 Required tools
For flanges and other process connections, use an appropriate mounting tool
5.2.2 Preparing the measuring device
1. Remove all remaining transport packaging.
2. Remove any protective covers or protective caps present from the sensor.
3. Remove stick-on label on the electronics compartment cover.
5.2.3 Mounting the sensor
LWARNING
An electrically conductive layer could form on the inside of the measuring tube!
Risk of measuring signal short circuit.
‣Ensure that the inside diameters of the gaskets are greater than or equal to that of the
process connections and piping.
‣Ensure that the gaskets are clean and undamaged.
‣Install the gaskets correctly.
‣Do not use electrically conductive sealing compounds such as graphite.

Proline Promag H Installation
Endress+Hauser 19
LWARNING
Danger due to improper process sealing!
‣Ensure that the inside diameters of the gaskets are greater than or equal to that of the
process connections and piping.
‣Ensure that the seals are clean and undamaged.
‣Secure the seals correctly.
1. Ensure that the direction of the arrow on the sensor matches the flow direction of the
medium.
2. To ensure compliance with device specifications, install the measuring device between
the pipe flanges in a way that it is centered in the measurement section.
3. Install the measuring device or turn the transmitter housing so that the cable entries do
not point upwards.

A0029263
Process connections
The sensor is supplied to order, with or without pre-installed process connections. Pre-
installed process connections are firmly secured to the sensor by 4 or 6 hexagonal-headed
bolts.
The sensor may need to be supported or additionally secured depending on the
application and pipe length. In particular, it is absolutely essential to secure the sensor
additionally if plastic process connections are used. An appropriate wall mounting kit can
be ordered separately as an accessory from Endress+Hauser.
Seals
• In the case of metal process connections, the screws must be tightened securely. The
process connection forms a metal connection with the sensor, which ensures a defined
compression of the seal.
• In the case of plastic process connections, observe the maximum torques for lubricated
threads: 7 Nm (5.2 lbf ft); always insert a seal between the connection and the
counterflange.
• Depending on the application the seals should be replaced periodically, particularly if
molded seals are used (aseptic version)! The interval between changes depends on the
frequency of the cleaning cycles, the cleaning temperature and the medium temperature.
Replacement seals can be ordered as an accessory.
• For "PFA" lining: additional seals are always required (Promag 200).

Installation Proline Promag H
20 Endress+Hauser
A
B
C
DN 2…25
( 1")1/12…
DN 40…1 05
(1 ½… ")6
A0019804
 4 Seals of process connections Promag H 100
A Process connections with O-ring seal
B Process connections with aseptic molded seal, DN 2 to 25 (1/12 to 1")
C Process connections with aseptic molded seal, DN 40 to 150 (1 ½ to 6")
A
B
DN 2…25
( 1")1/12…
A0018782
 5 Seals of process connections Promag H 200
A Process connections with O-ring seal
B Process connections with aseptic gasket seal
Mounting grounding rings, DN 2 to 25 (1/12 to 1")
For information on potential equalization, see the Transmitter Brief Operating
Instructions.
In the case of plastic process connections (e.g. flange connections or adhesive fittings),
additional ground rings must be used to ensure potential matching between the sensor and
the fluid. If grounding rings are not installed, this can affect the measuring accuracy or cause
