Brief Operating Instructions
Cerabar S
PMC71, PMP71, PMP75
Process pressure measurement
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• these Brief Operating Instructions
• a CD-ROM with the Operating Instructions

Table of contents Cerabar S 4...20 mA HART
2Endress+Hauser
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Operational safety and process safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Safety icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 General installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Installation instructions for devices without diaphragm seals PMP71, PMC71 . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Installation instructions for devices with diaphragm seals PMP75 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Assembling and mounting the "separate housing" version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Connecting the measuring unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

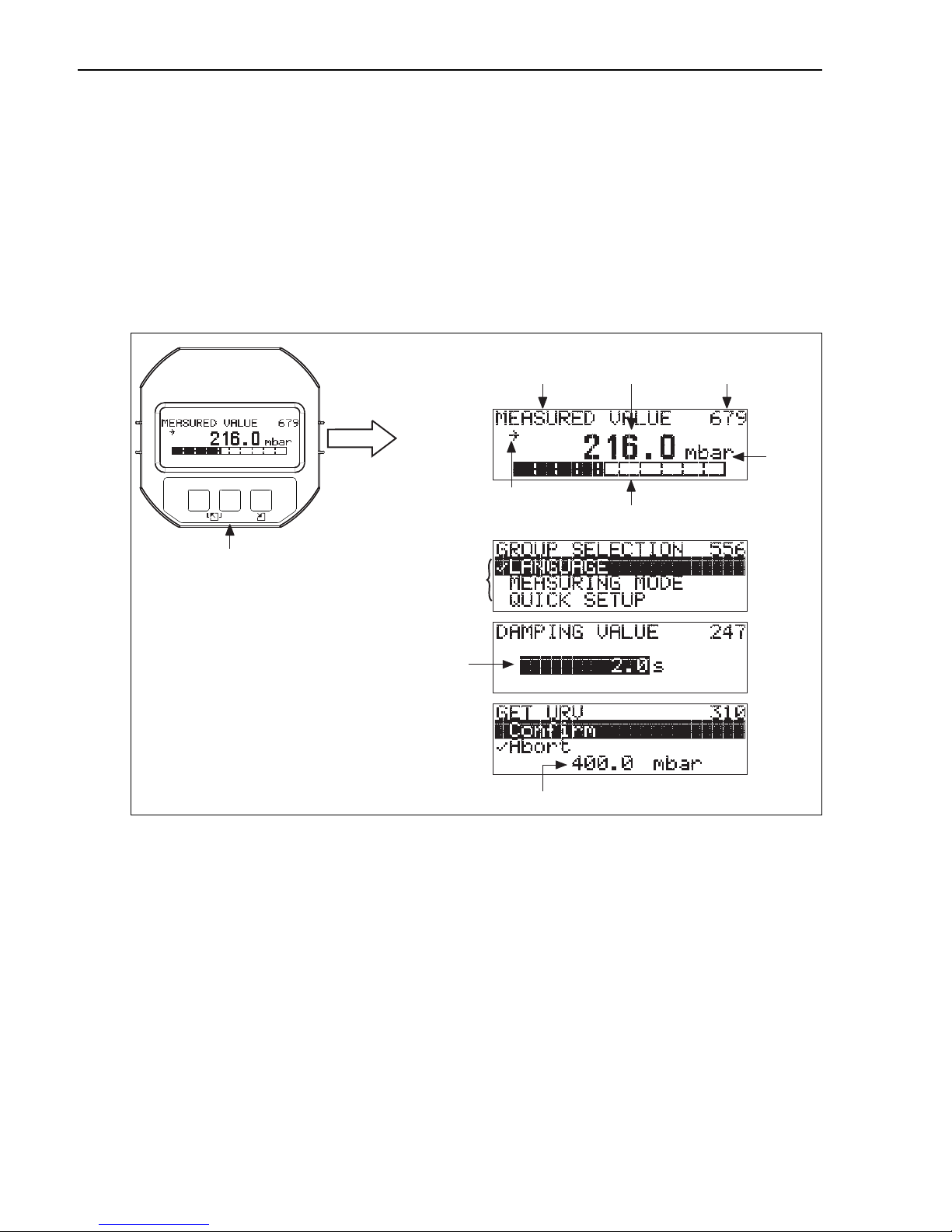

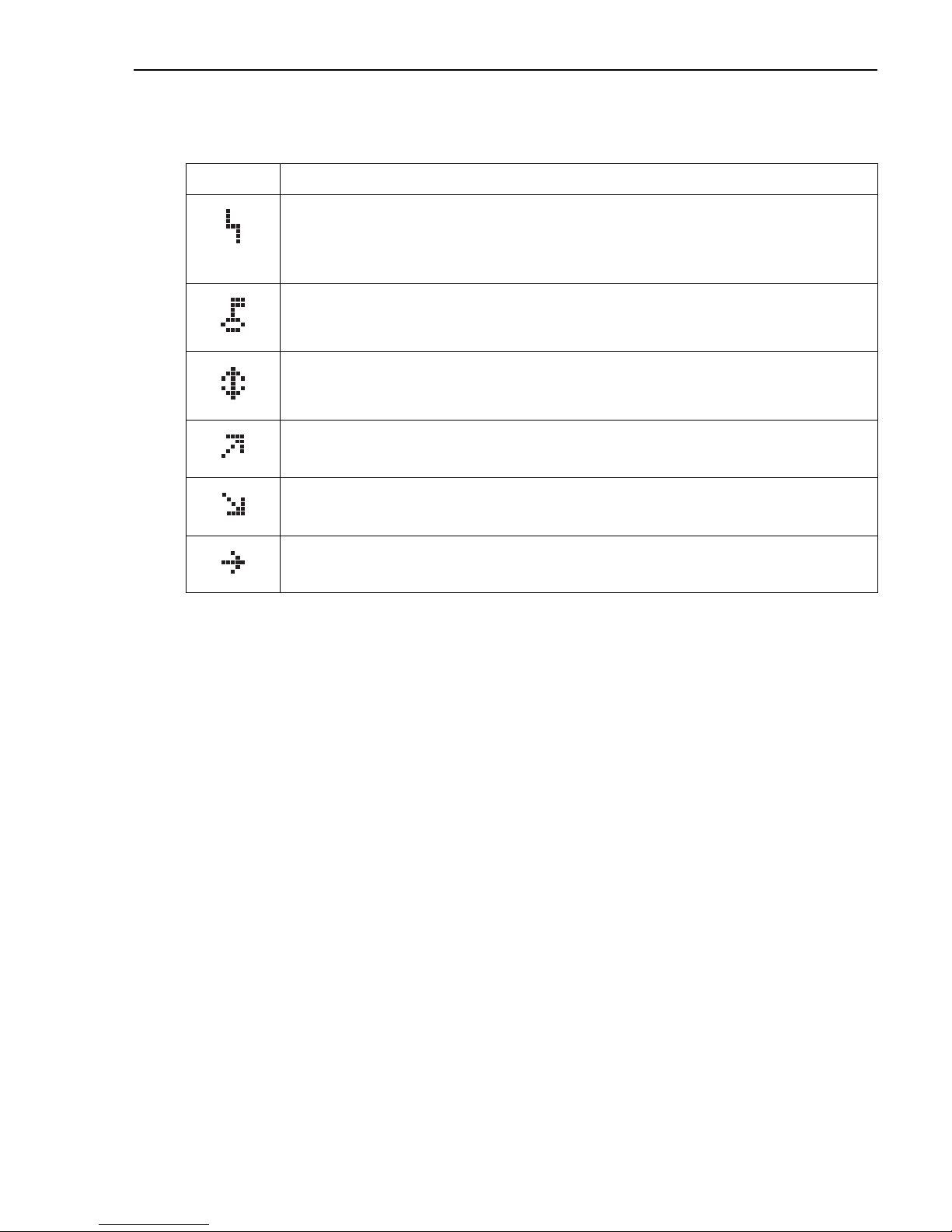

4.1 On-site display (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
4.2 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.3 On-site operation via on-site display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4 Locking/unlocking operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.1 Position adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.2 Pressure measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.3 Level measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Cerabar S 4...20 mA HART Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
The Cerabar S is a pressure transmitter for measuring pressure and level.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than
that designated.
1.2 Installation, commissioning and operation
• The device must only be installed, connected, commissioned and maintained by qualified and
authorized specialists (e.g. electrical technicians) in full compliance with the instructions in
this manual, the applicable norms, legal regulations and certificates (depending on the
application).
• The specialist must have read and understood this manual and must follow the instructions it
contains. If you are unclear on anything in these Brief Operating Instructions, you must read
the Operating Instructions (on the CD-ROM). The Operating Instructions provide detailed
information on the device/measuring system.
• The device may only be modified or repaired if such work is expressly permitted in the
Operating Instructions (→ see CD-ROM).
• If faults cannot be rectified, the device must be taken out of service and secured against
unintentional commissioning.
• Do not operate damaged devices. Mark them as defective.
1.3 Operational safety and process safety
• Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
• The device is safely built and tested according to state-of-the-art technology and has left the
factory in perfect condition as regards technical safety. The applicable regulations and
European standards have been taken into account.
• Pay particular attention to the technical data on the nameplate.
• Devices for use in hazardous areas are fitted with an additional nameplate. If the device is to
be installed in an explosion hazardous area, then the specifications in the certificate as well as
all national and local regulations must be observed. The device is accompanied by separate
"Ex documentation", which is an integral part of this Operating Instructions. The installation
regulations, connection values and Safety Instructions listed in this Ex document must be
observed. The documentation number of the related Safety Instructions is also indicated on
the additional nameplate.
• If using devices for applications with safety integrity level, the separate manual on functional
safety must be observed thoroughly (→ see CD-ROM).

Installation Cerabar S 4...20 mA HART
4Endress+Hauser
1.4 Return
Follow the instructions on returning the device as outlined in the Operating Instructions on the
CD-ROM provided.
1.5 Safety icons
2 Installation
2.1 General installation instructions
#Warning!
The process seal is not allowed to press on the process isolating diaphragm as this could affect
the measurement result.
!Note!
• If a heated Cerabar S is cooled during the cleaning (e.g. by cold water), a vacuum develops
for a short time, whereby water can penetrate the sensor through the pressure compensation
(1). If this is the case, mount the sensor with the pressure compensation (1) pointing
downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contaminations.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal injury,
a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury or
incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect operation
or may lead to an instrument response which is not planned.
1
1
1
FIELD TERMINALS
FIELD TERMINALS

Cerabar S 4...20 mA HART Installation
Endress+Hauser 5
• Do not clean or touch process isolating diaphragm of the diaphragm seals with hard or pointed
objects.
• Due to the orientation of the Cerabar S, there may be a shift in the measured value, i.e. when
the container is empty, the measured value does not display zero. You may correct this zero
point shift either directly on the device using the "E"-key or by remote operation. → See
Page 14, Section "Position of operating elements", Page 15, Section 4.2.2 "Function of the
operating elements" and Page 23, Section 5.1 "Position adjustment".
• For PMP75, please refer to Section 2.3 "Installation instructions for devices with diaphragm
seals", Page 6.
• The PMC71 High temperature version and the PMP75 must only be insulated up to a certain
height.
• To ensure optimal readability of the on-site display, it is possible to rotate the housing up to
380°.
• The onsite display can be rotated in 90° stages.
• Endress+Hauser offers a mounting bracket for installing on pipes or walls.
2.2 Installation instructions for devices without diaphragm seals
PMP71, PMC71
Cerabar S without diaphragm seal are mounted as per the norms for a manometer
(DIN EN 837-2). We recommend the use of shut-off devices and siphons. The orientation
depends on the measuring application.
2.2.1 Pressure measurement
Pressure measurement in gases
• Mount Cerabar S with shut-off device above the tapping point so that any condensate can flow
into the process.
Pressure measurement in steams
• Mount Cerabar S with siphon above the tapping point. The siphon reduces the temperature
to almost ambient temperature.
• Fill the siphon with fluid before commissioning.
Pressure measurement in liquids
• Mount Cerabar S with shut-off device below or at the same level as the tapping point.

Installation Cerabar S 4...20 mA HART
6Endress+Hauser
2.2.2 Level measurement
• Mount Cerabar S below the lowest measuring point.
• Do not mount the device at the following positions:
In the fill flow, in the tank outlet or at a point in the container which could be affected by
pressure pulses from an agitator.
• The calibration and functional test can be carried out more easily if you mount the device after
a shut-off device.
2.3 Installation instructions for devices with diaphragm seals
PMP75
!Note!
• The diaphragm seal, together with the pressure transmitter, forms a closed, calibrated system,
which is filled through openings in the diaphragm seal and in the measurement system of the
pressure transmitter. This openings are sealed and must not be opened.
• Do not remove the protection of the process isolating diaphragm until shortly before
installation.
• When using a mounting bracket, sufficient strain relief must be ensured for the capillaries in
order to prevent the capillary bending down (bending radius ≥ 100 mm).
• Please note that the hydrostatic pressure of the liquid column in the capillary can cause zero
point shift. The zero point shift can be corrected. → See Page 14, Section "Position of
operating elements", Page 15, Section 4.2.2 "Function of the operating elements" and
Page 23, Section 5.1 "Position adjustment".
• Please note the application limits of the diaphragm seal filling oil as detailed in the Technical
Information for TI00383P, Section "Planning instructions for diaphragm seal systems" or at
"www.endress.com/applicator".
In order to obtain more precise measurement results and to avoid a defect in the device, mount
the capillaries as follows:
• vibration-free (in order to avoid additional pressure fluctuations)
• not in the vicinity of heating or cooling lines
• insulate if the ambient temperature is below ore above the reference temperature
• with a bending radius of ≥100 mm.

Cerabar S 4...20 mA HART Installation
Endress+Hauser 7
2.3.1 Vacuum application
For applications under vacuum, Endress+Hauser recommends mounting the pressure
transmitter underneath the diaphragm seal. A vacuum load of the diaphragm seal caused by the
presence of filling oil in the capillary is hereby prevented.
When the pressure transmitter is mounted above the diaphragm seal, the maximum height
difference H1 in accordance with the illustration below on the left must not be exceeded. The
maximum height difference is dependent on the density of the filling oil and the smallest ever
pressure that is permitted to occur at the diaphragm seal (empty container), see illustration
below, on the right.
P01-PMx7xxxx-11-xx-xx-xx-008
Fig. 1: Installation above the diaphragm seal
P01-PMP75xxx-05-xx-xx-xx-010
Fig. 2: Diagram of maximum installation height above the
diaphragm seal for vacuum applications dependent on the
pressure at the diaphragm seal
H1
FIELD TERMINALSFIELD TERMINALS
0.0
2.0
4.0
6.0
8.0
10.0
12.0
50 100 300 400 500 600 700 800 900 1000
200
Inert oil
High temperature
oil
Vegetable oil
Silicone oil
Pressure, diaphragm seal positive side [mbarabs]
Height difference H1[m]
Low temperature oil

Installation Cerabar S 4...20 mA HART
8Endress+Hauser

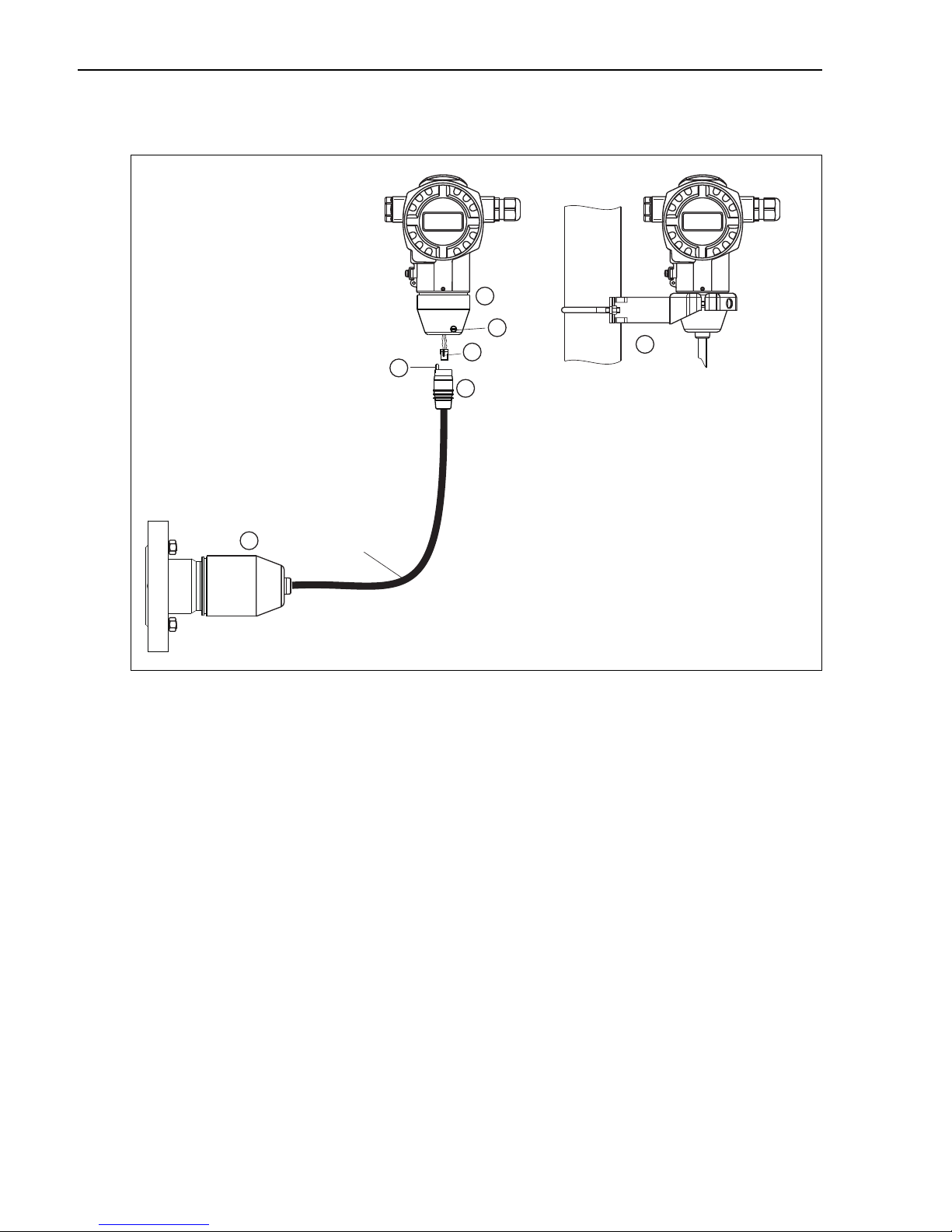

2.4 Assembling and mounting the "separate housing" version
P01-PMx7xxxx-11-xx-xx-xx-011
Fig. 3: "Separate housing" version
1 In the "separate housing" version, the sensor is supplied with process connection and cable fitted.
2 Cable with connection jack
3 Pressure compensation
4Plug
5 Locking screw
6 Housing fitted with housing adapter, included
7 Mounting bracket suitable for wall and pipe mounting, included
Assembly and mounting
1. Connect plug (item 4) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 6).
3. Tighten the locking screw (item 5).
4. Mount the housing on a wall or pipe using the mounting bracket (item 7). When
mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least
5 Nm.
Mount the cable with a bending radius (r) ≥120 mm.
r³120 (4.72)
mm (in)
1
2
34
5
6
7

Cerabar S 4...20 mA HART Wiring
Endress+Hauser 9
3 Wiring
#Warning!
• If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
Risk of electric shock!
In a wet environment, do not open the cover if voltage is present.
• Risk of electric shock and/or explosion in hazardous areas! In a wet environment, do not open
the cover if voltage is present.
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.

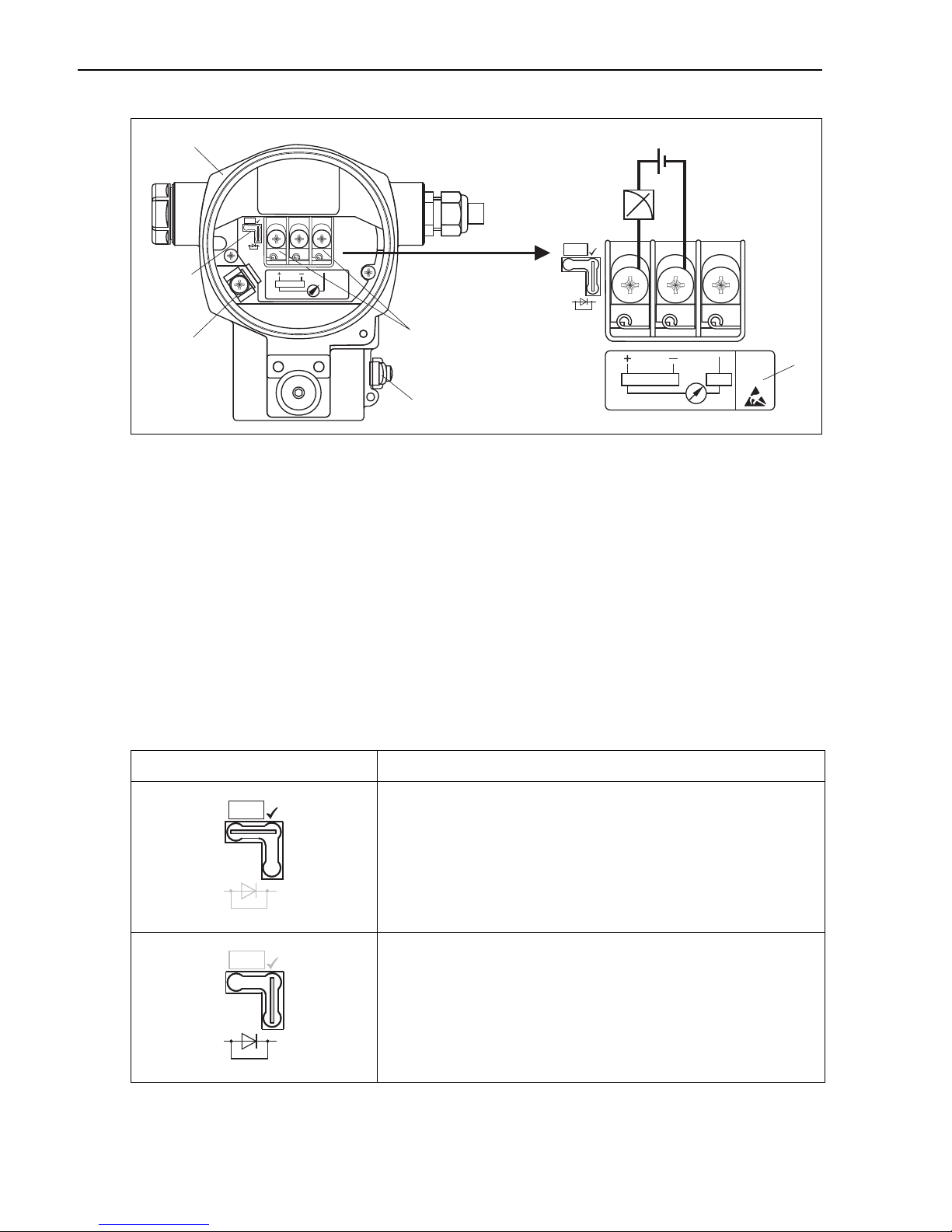

3.1 Connecting the device
!Note!
• Devices with integrated overvoltage protection must be earthed.
• Protective circuits against reverse polarity, HF influences and overvoltage peaks are installed.
• The supply voltage must match the supply voltage on the nameplate.
• Switch off the supply voltage before connecting the device.
• Remove housing cover of the terminal compartment.
• Guide cable through the gland. Preferably use twisted, screened two-wire cable.
• Connect device in accordance with the following diagram.
• Screw down housing cover.
• Switch on supply voltage.

Wiring Cerabar S 4...20 mA HART
10 Endress+Hauser
P01-xMx7xxxx-04-xx-xx-xx-001
Fig. 4: Electrical connection 4...20 mA HART → Observe also the following section.
For devices with Harting Han7D or M12 plug see Operating Instructions.
1Housing
2 Jumper for 4...20 mA test signal. → See also the following section.
3 Internal earth terminal
4 External earth terminal
5 4...20 mA test signal between plus and test terminal
6 Minimum supply voltage = 10.5 V DC, jumper is inserted in accordance with the illustration.
7 Minimum supply voltage = 11.5 V DC, jumper is inserted in "Test" position.
8 Devices with integrated overvoltage protection are labelled OVP (overvoltage protection) here.
3.2 Connecting the measuring unit
3.2.1 Supply voltage and taking 4...20 mA test signal
4…20 mA
➅
10.5VDC
➆
11.5VDC
4... 20mA
Test
Test
➀
➁
➂
➃
➄
Test
➇
4... 20mATest
Jumper position for test signal Description
– Taking 4...20 mA test signal via plus and test terminal:
possible. (Thus, the output current can be measured without interruption
via the diode.)
– Delivery status
– minimum supply voltage (at the terminals): 11.5 V DC
– Taking 4...20 mA test signal via plus and test terminal:
not possible.
– minimum supply voltage (at the terminals): 10.5 V DC
Test
TestTest

Cerabar S 4...20 mA HART Wiring
Endress+Hauser 11
3.2.2 Cable specification
• Endress+Hauser recommends using twisted, screened two-wire cables.
• Terminals for wire cross-sections 0.5...2.5 mm2
• Cable external diameter: 5...9 mm
3.2.3 Screening/potential matching
• You achieve optimum screening against disturbances if the screening is connected on both
sides (in the cabinet and on the device). If you have to reckon with potential equalisation
currents in the plant, only earth screening on one side, preferably at the transmitter.
• When using in hazardous areas, you must observe the applicable regulations.
Separate Ex documentation with additional technical data and instructions is included with
all Ex systems as standard.

Operation Cerabar S 4...20 mA HART
12 Endress+Hauser
4Operation
4.1 On-site display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The on-site display shows
measured values, dialog texts, fault messages and notice messages.
The display of the device can be turned in 90° steps.
Depending on the installation position of the device, this makes it easy to operate the device and
read the measured values.
P01-xMx7xxxx-07-xx-xx-xx-001
E
+
–Bargraph
Operating keys
SymbolBargraph
ValueFunction name
Measured value display
Unit
Header line
Information
line
Main line
Parameter
Identification
number
Editing modes
Selection
options
Value that
can be edited
Current measured value

Cerabar S 4...20 mA HART Operation
Endress+Hauser 13
The following table illustrates the symbols that can appear on the on-site display. Four symbols
can occur at one time.
Symbol Meaning
Alarm symbol
– Symbol flashing: warning, device continues measuring.
– Symbol permanently lit: error, device does not continue measuring.
Note: The alarm symbol may overlie the tendency symbol.
Lock symbol
The operation of the device is locked. Unlock device, → see Page 21, Section 4.4.
Communication symbol
Data transfer via communication
Tendency symbol (increasing)
The measured value is increasing.
Tendency symbol (decreasing)
The measured value is decreasing.
Tendency symbol (constant)
The measured value has remained constant over the past few minutes.

Operation Cerabar S 4...20 mA HART
14 Endress+Hauser
4.2 Operating elements
4.2.1 Position of operating elements
With regard to aluminium housings and stainless steel housing (T14), the operating keys are
located either outside the device under the protection cap or inside on the electronic insert. In
hygenic stainless steel housings (T17), the operating keys are always located inside on the
electronic insert. Additionally, three operating keys are located on the optional on-site display.
P01-PMx7xxxx-19-xx-xx-xx-009
Fig. 5: Operating keys, external
1 Operating keys on the exterior of the device under
the protective flap
P01-xxxxxxxx-19-xx-xx-xx-104
Fig. 6: Operating keys, internal
1 Operating keys
2 Slot for optional display
3 Slot for optional HistoROM®/M-DAT
4 DIP-switch for locking/unlocking
measured-value-relevant parameters
5 DIP-switch for damping on/off
6 Green LED to indicate value being accepted
➀
➂
➀
➁
➃
21
PC
t
on
off
➅
➄

Cerabar S 4...20 mA HART Operation
Endress+Hauser 15
4.2.2 Function of the operating elements – on-site display not connected
Press and hold the key or the key combination for at least 3 seconds to execute the
corresponding function. Press the key combination for at least 6 seconds for a reset.
Operating key(s) Meaning
Adopt lower range value. A reference pressure is present at the device.
→See also Page 26, Section 5.2.2 "Pressure measuring mode" or Page 29, Section
5.3.2 "Level measuring mode".
Adopt upper range value. A reference pressure is present at the device.
→See also Page 26, Section 5.2.2 "Pressure measuring mode" or Page 29, Section
5.3.2 "Level measuring mode".
Position adjustment
and and
Reset all parameters. The reset via operating keys corresponds to the software reset
code 7864.
and
Copy the configuration data from the optional HistoROM®/M-DAT module to the
device.
and
Copy the configuration data from the device to the optional HistoROM®/M-DAT
module.
P01-xxxxxxxx-19-xx-xx-xx-057
– DIP-switch 1: for locking/unlocking measured-value-relevant parameters
Factory setting: off (unlocked)
– DIP-switch 2: damping on/off,
Factory setting: on (damping on)
12
τon
off

Operation Cerabar S 4...20 mA HART
16 Endress+Hauser
4.2.3 Function of the operating elements – on-site display connected
Operating key(s) Meaning
O– Navigate upwards in the picklist
– Edit the numerical values and characters within a function
S– Navigate downwards in the picklist
– Edit the numerical values and characters within a function
F–Confirmentry
– Jump to the next item
Oand FContrast setting of on-site display: darker
Sand FContrast setting of on-site display: brighter
O and S
ESC functions:
– Exit edit mode without saving the changed value.
– You are in a menu within a function group. The first time you press the keys
simultaneously, you go back a parameter within the function group. Each time you
press the keys simultaneously after that, you go up a level in the menu.
– You are in a menu at a selection level. Each time you press the keys simultaneously,
you go up a level in the menu.
Note: The terms function group, level and selection level are explained in Section
4.3.1, Page 17.

Cerabar S 4...20 mA HART Operation
Endress+Hauser 17
4.3 On-site operation via on-site display
4.3.1 Structure of the operating menu
The menu is split into four levels. The three upper levels are used to navigate while you use the
bottom level to enter numerical values, select options and save settings.
→ For the entire menu see CD-ROM, Operating Instructions BA00271P.
The structure of the OPERATING MENU depends on the measuring mode selected, e.g. if the
"Pressure" measuring mode is selected, only the functions necessary for this mode are displayed.
P01-xxxxxxxx-19-xx-xx-xx-145
Fig. 7: Structure of the operating menu
1 1. Selection level
2 2. Selection level
3Functiongroups
4 Parameter
➀
➂
➁
➃
Measured value
GROUP SELECTION
DISPLAYSETTINGS
EXTENDED SETUP
POS. ZERO ADJUST
POS. INPUT VALUE
CALIB. OFFSET
POSITION ADJUSTMENT BASIC SETUP
OPERATING MENU
QUICK SETUP
MEASURING MODELANGUAGE

Operation Cerabar S 4...20 mA HART
18 Endress+Hauser
4.3.2 Selecting an option
Example: select "English" as the language of the menu.
4.3.3 Editing a value
Example: adjusting DAMPING VALUE function from 2.0 s to 30.0 s. → See also Page 16,
Section 4.2.3 "Function of the operating elements".
On-site display Operation
P01-xxxxxxxx-19-xx-xx-xx-017
German is selected as the language. A ✓in front of the
menu text indicates the active option.
P01-xxxxxxxx-19-xx-xx-xx-033
Select English with "+" or "–".
P01-xxxxxxxx-19-xx-xx-xx-034
1. Confirm your choice with "E". A ✓in front of the
menu text indicates the active option. (English is now
selected as the menu language.)
2. Jump to the next item with "E".
On-site display Operation
P01-xxxxxxxx-19-xx-xx-xx-023
The on-site display shows the parameter to be changed.
The value highlighted in black can be changed. The "s"
unit is fixed and cannot be changed.
P01-xxxxxxxx-19-xx-xx-xx-027
1. Press "+" or "–" to get to the editing mode.
2. The first digit is highlighted in black.

Cerabar S 4...20 mA HART Operation
Endress+Hauser 19
P01-xxxxxxxx-19-xx-xx-xx-028
1. Use "+" to change "2" to "3".
2. Confirm "3" with "E". The cursor jumps to the next
position (highlighted in black).
P01-xxxxxxxx-19-xx-xx-xx-029
The decimal point is highlighted in black, i.e. you can now
edit it.
P01-xxxxxxxx-19-xx-xx-xx-030
1. Keep pressing "+" or "–" until "0" is displayed.
2. Confirm "0" with "E".
The cursor jumps to the next position. ↵ is displayed
and is highlighted in black. → See next graphic.
P01-xxxxxxxx-19-xx-xx-xx-031
Use "E" to save the new value and exit the editing mode.
→See next graphic.
P01-xxxxxxxx-19-xx-xx-xx-032
The new value for the damping is now 30.0 s.
– Jump to the next parameter with "E".
– You can get back to the editing mode with "+" or
"–".
On-site display Operation

Operation Cerabar S 4...20 mA HART
20 Endress+Hauser
4.3.4 Taking pressure applied at device as value
Example: configuring upper range value – assign 20 mA to the pressure value 400 mbar.
On-site display Operation
P01-xxxxxxxx-19-xx-xx-xx-035
The bottom line on the on-site display displays the pressure
present, here 400 mbar.
P01-xxxxxxxx-19-xx-xx-xx-036
Use "+" or "–" to switch to the "Confirm" option. The active
selection is highlighted in black.
P01-xxxxxxxx-19-xx-xx-xx-037
Use "E" to assign the value (400 mbar) to the GET URV
parameter. The device confirms the calibration and jumps
back to the parameter, here GET URV (see next graphic).
P01-xxxxxxxx-19-xx-xx-xx-035
Switch to the next parameter with "E".
