Endress+Hauser Cerabar S PMC71 User manual

BA00271P/00/EN/18.14
71270361
valid from Software version:
02.20.zz
Operating Instructions
Cerabar S PMC71, PMP71, PMP75
Process pressure measurement

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
2Endress+Hauser
A0023555
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . 4
1.4 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Product identification . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 8
2.5 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 8
3 Installation . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Incoming acceptance, transport, storage . . . . . . . . . . 9
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Installation instructions . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 18
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 19
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 19
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 21
4.3 Potential matching . . . . . . . . . . . . . . . . . . . . . . . . 23
4.4 Overvoltage protection (optional) . . . . . . . . . . . . . . 23
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 23
5 Operation . . . . . . . . . . . . . . . . . . . . . . 24
5.1 On-site display (optional) . . . . . . . . . . . . . . . . . . . . 24
5.2 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . 25
5.3 On-site operation –
on-site display not connected . . . . . . . . . . . . . . . . . 27
5.4 On-site operation –
on-site display connected . . . . . . . . . . . . . . . . . . . . 30
5.5 HistoROM®/M-DAT (optional) . . . . . . . . . . . . . . 32
5.6 Operation via SFX100 . . . . . . . . . . . . . . . . . . . . . . 36
5.7 Endress+Hauser operating program . . . . . . . . . . . . 36
5.8 Locking/unlocking operation . . . . . . . . . . . . . . . . . 37
5.9 Factory setting (reset) . . . . . . . . . . . . . . . . . . . . . . 38
6 Commissioning. . . . . . . . . . . . . . . . . . 40
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.2 Selecting language and measuring mode . . . . . . . . 40
6.3 Position adjustment . . . . . . . . . . . . . . . . . . . . . . . . 41
6.4 Pressure measurement . . . . . . . . . . . . . . . . . . . . . . 42
6.5 Level measurement . . . . . . . . . . . . . . . . . . . . . . . . 44
7 Maintenance. . . . . . . . . . . . . . . . . . . . 48
7.1 Cleaning instructions . . . . . . . . . . . . . . . . . . . . . . . 48
7.2 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . 48
8 Trouble-shooting . . . . . . . . . . . . . . . . . 49
8.1 Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
8.2 Response of outputs to errors . . . . . . . . . . . . . . . . . 57
8.3 Confirming messages . . . . . . . . . . . . . . . . . . . . . . . 59
8.4 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.5 Repair of Ex-certified devices . . . . . . . . . . . . . . . . . 60
8.6 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.7 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.9 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
9 Technical data . . . . . . . . . . . . . . . . . . . 63
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Safety instructions Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Cerabar S is a pressure transmitter for measuring pressure and level.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than that
designated.
1.2 Installation, commissioning and operation
The device has been designed to operate safely in accordance with current technical, safety and EU
standards. If installed incorrectly or used for applications for which it is not intended, however, it is
possible that application-related dangers may arise, e.g. product overflow due to incorrect
installation or calibration. For this reason, the instrument must be installed, connected, operated
and maintained according to the instructions in this manual: personnel must be authorised and
suitably qualified. The manual must have been read and understood, and the instructions followed.
Modifications and repairs to the device are permissible only when they are expressly approved in
the manual. Pay particular attention to the technical data on the nameplate.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
1.3.1 Hazardous areas (optional)
Devices for use in hazardous areas are fitted with an additional nameplate (ä6). If the device is
to be installed in an explosion hazardous area, then the specifications in the certificate as well as all
national and local regulations must be observed. The device is accompanied by separate "Ex
documentation", which is an integral part of this Operating Instructions. The installation
regulations, connection values and Safety Instructions listed in this Ex document must be observed.
The documentation number of the related Safety Instructions is also indicated on the additional
nameplate.
• Ensure that all personnel are suitably qualified.
1.3.2 Functional Safety SIL3 (optional)
If using devices for applications with safety integrity, the Functional Safety Manual (SD00190P)
must be observed thoroughly.

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its nameplate, it can be installed in an explosion
hazardous area or a non-explosion hazardous area, according to the approval.
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection.
.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection. Lines used in
hazardous areas must meet the necessary safety-related characteristic quantities.
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied
or supplied.
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of
an earth grounding system.
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment.
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C (185 °F).
Safety instruction
For safety instructions refer to the manual for the appropriate instrument version.
t >85°C

Identification Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
6Endress+Hauser
2 Identification
2.1 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
For an overview of the technical documentation provided, enter the serial number from the
nameplates in the W@M Device Viewer (www.endress.com/deviceviewer).
2.2 Device designation
2.2.1 Nameplate
!Note!
• The MWP (maximum working pressure) is specified on the nameplate. This value refers to a
reference temperature of 20°C (68°F) or 100°F (38 °C) for ASME flanges.
• The pressure values permitted at higher temperatures can be found in the following standards:
– EN 1092-1: 2001 Tab. 18 1)
– ASME B 16.5a – 1998 Tab. 2-2.2 F316
– ASME B 16.5a – 1998 Tab. 2.3.8 N10276
– JIS B 2220
• The test pressure corresponds to the over pressure limit (OPL) of the device = MWP x 1.5 2).
• The Pressure Equipment Directive (EC Directive 97/23/EC) uses the abbreviation "PS".
The abbreviation "PS" corresponds to the MWP (maximum working pressure) of the measuring
device.
Aluminium and stainless steel housing (T14)
A0016056
Fig. 1: Nameplate
1 Device name
2 Order code (for re-orders)
3 Extended order code (complete)
4 Technical data
5 Serial number (for identification)
6 Address of manufacturer
1) With regard to their temperature stability properties, the materials 1.4404 and 1.4435 are grouped under 13E0 in
EN 1092-1 Tab. 18. The chemical composition of the two materials can be identical.
2) The equation does not apply for PMP71 and PMP75 with a 40 bar (600 psi) or a 100 bar (1500 psi) measuring cell.
Ser. no.:
Order code:
Ext. order code:
25
6
3
4
1

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Identification
Endress+Hauser 7
Devices for use in hazardous areas are fitted with an additional nameplate.
A0021222
Fig. 2: Additional nameplate
1 Approval-specific information
2 Document number for safety instructions or drawing number
Devices suitable for oxygen applications or with PVDF process connection are fitted with an
additional nameplate.
A0022683
Fig. 3: Additional nameplate
1 Application limits
Hygenic stainless steel housing (T17)
A0021552
Fig. 4: Nameplate
1 Device name
2 Address of manufacturer
3 Order code (for re-orders)
4 Extended order code (complete)
5 Serial number (for identification)
6 Technical data
7 Approval-specific information and document number for safety instructions or drawing number
2.2.2 Identifying the sensor type
See parameter "Sensor Meas.Type" in Operating Instruction BA00274P.
2
1
1
2
7
3
4
5
6
1
Ser. no.:
Order code:
Ext. ord. cd.:

Identification Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
8Endress+Hauser
2.3 Scope of delivery
The scope of delivery comprises:
• Cerabar S pressure transmitter
• For devices with the "HistoROM/M-DAT" option:
CD-ROM with Endress+Hauser operating program
• Optional accessories
Documentation supplied:
• The Operating Instructions BA00271P and BA00274P are available via the Internet.
See: www.endress.com Download.
• Brief Operating Instructions KA01019P
• Leporello KA00218P
• Final inspection report
• Also Safety Instructions with ATEX, IECEx and NEPSI devices
• Optional: factory calibration form, test certificates
2.4 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EC Directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.5 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademarks of E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of Ladish & Co., Inc., Kenosha, USA
HART®
Registered trademark of the HART Communication Foundation, Austin, USA.
GORE-TEX®
Registered trademark of W.L. Gore & Associates, Inc., USA

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Installation
Endress+Hauser 9
3 Installation
3.1 Incoming acceptance, transport, storage
3.1.1 Incoming acceptance
• Check the packaging and the contents for damage.
• Check the shipment, make sure nothing is missing and that the scope of supply matches your
order.
3.1.2 Transport
"Caution!
Follow the safety instructions and transport conditions for devices of more than 18 kg (39.69 lbs).
Transport the measuring device to the measuring point in its original packaging or at the process
connection.
3.1.3 Storage
The device must be stored in a dry, clean area and protected against damage from impact
(EN 837-2).
Storage temperature range:
• –40 °C to +90°C (–40 °F to +194°F)
• On-site display: –40 °C to +85°C (–40 °F to +185°F)
• Separate housing: –40 °C to +60°C (–40 °F to +140°F)
3.2 Installation conditions
3.2.1 Dimensions
For dimensions, please refer to "Mechanical construction" section in TI00383P.
3.3 Installation instructions
!Note!
• Due to the orientation of the Cerabar S, there may be a shift in the measured value, i.e. when the
container is empty, the measured value does not display zero. You may correct this zero point
shift either directly on the device using the "E"-key or by remote operation. See
ä26, "Function of the operating elements – on-site display not connected" or
ä41, "Position adjustment".
• For PMP75, please refer to ä12, "Installation instructions for devices with diaphragm seals –
PMP75".
• To ensure optimal readability of the on-site display, it is possible to rotate the housing up to 380°.
ä18, "Rotating the housing".
• Endress+Hauser offers a mounting bracket for installing on pipes or walls.
ä15, "Wall and pipe-mounting (optional)".

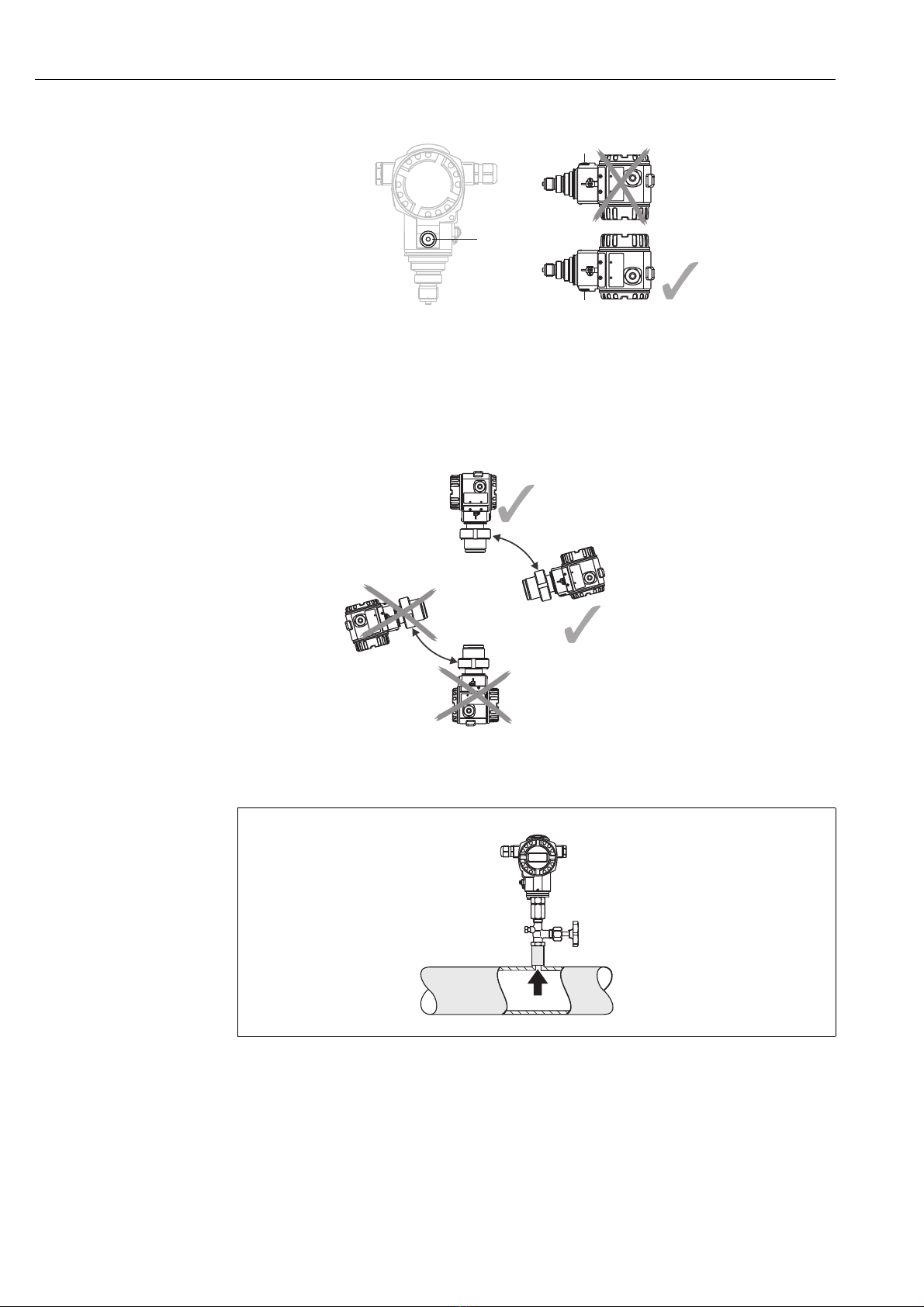

3.3.1 Installation instructions for devices without diaphragm seals –
PMP71, PMC71
!Note!
• If a heated Cerabar S is cooled during the cleaning (e.g. by cold water), a vacuum develops for a
short time, whereby water can penetrate the sensor through the pressure compensation (1).

Installation Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
10 Endress+Hauser
If this is the case, mount the sensor with the pressure compensation (1) pointing downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contaminations and water.
• Cerabar S without diaphragm seal are mounted as per the norms for a manometer
(DIN EN 837-2). We recommend the use of shut-off devices and siphons. The orientation
depends on the measuring application.
• Do not clean or touch process isolating diaphragm seals with hard or pointed objects.
• The device must be installed as follows in order to comply with the cleanability requirements of
the ASME-BPE (Part SD Cleanability):
Pressure measurement in gases
P01-PMx7xxxx-11-xx-xx-xx-001
Fig. 5: Measuring arrangement for pressure measurement in gases
1 Cerabar S
2 Shut-off device
Mount Cerabar S with shut-off device above the tapping point so that any condensate can flow into
the process.
1
1
1
FIELD TERMINALS
FIELD TERMINALS
FIELDTERMINALSFIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
➀
➁

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Installation
Endress+Hauser 11
Pressure measurement in steams
P01-PMx7xxxx-11-xx-xx-xx-002
Fig. 6: Measuring arrangement for pressure measurement in steams
1 Cerabar S
2 Shut-off device
3 U-shaped siphon
4 Circular siphon
• Use siphons for pressure measurement in steam. The siphon reduces the temperature to almost
ambient temperature. Preferably mount the Cerabar S with the siphon below the tapping point.
Advantages:
– defined water column only causes minimal/negligible measured errors
– only minimal/negligible thermal effects on the device
Mounting above the tapping point is also possible. Pay attention to the maximum permitted
ambient temperature of the transmitter!
• Fill the siphon with liquid before commissioning.
Pressure measurement in liquids
P01-PMx7xxxx-11-xx-xx-xx-003
Fig. 7: Measuring arrangement for pressure measurement in liquids
1 Cerabar S
2 Shut-off device
Mount Cerabar S with shut-off device below or at the same level as the tapping point.
➂
➀
➁
➃
➀
➁
➀
➁

Installation Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
12 Endress+Hauser

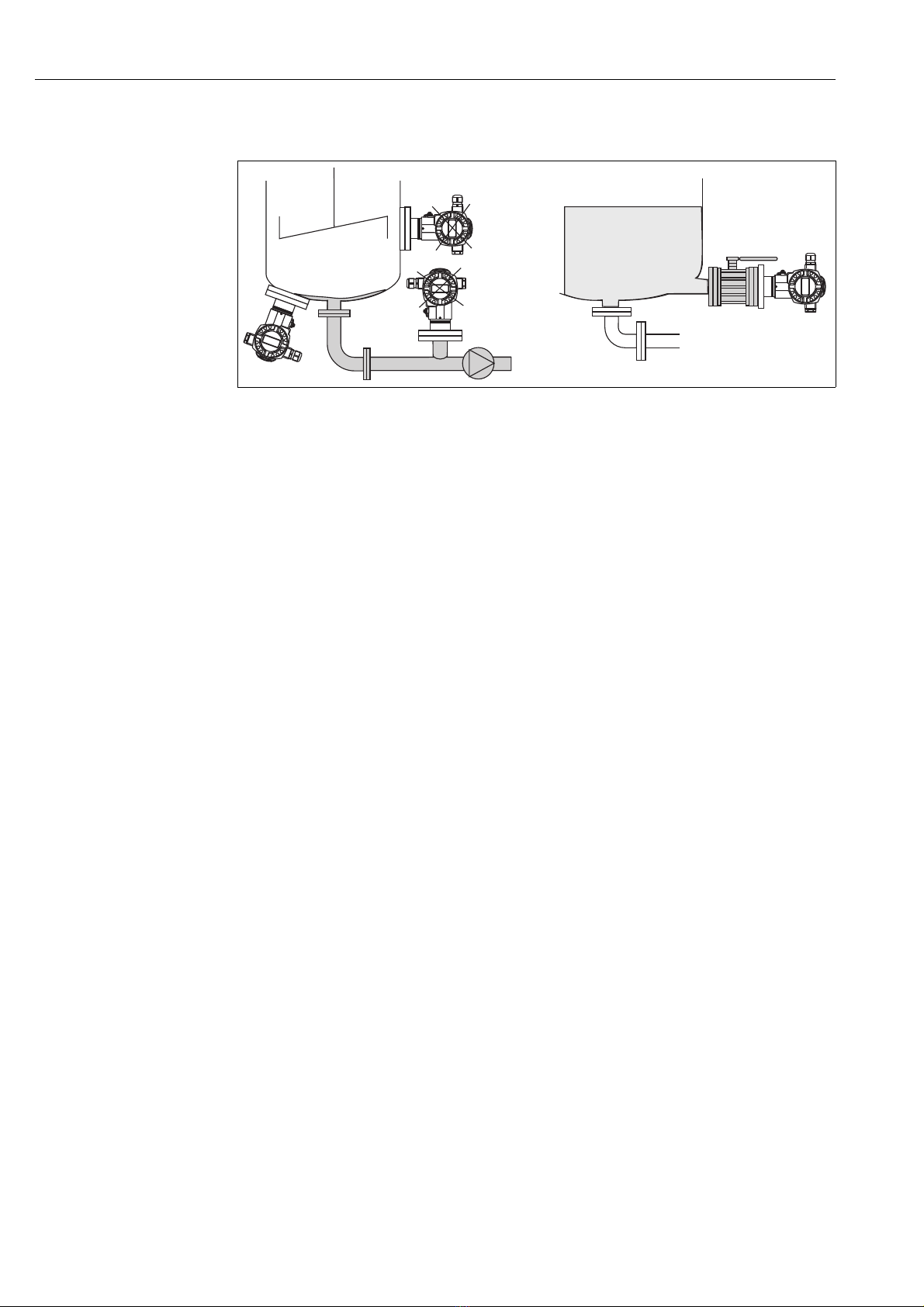

Level measurement
P01-PMP75xxx-11-xx-xx-xx-000
Fig. 8: Measuring arrangement for level
• Mount Cerabar S below the lowest measuring point.
• Do not mount the device at the following positions:
In the fill flow, in the tank outlet or at a point in the container which could be affected by pressure
pulses from an agitator.
• Do not mount the device in the suction area of a pump.
• The calibration and functional test can be carried out more easily if you mount the device after a
shut-off device.
PVDF adapter
!Note!
For instruments with PVDF adapter, a maximum torque of 7 Nm (5.16 lbf ft) is permitted.
The thread connection may become loose at high temperatures and pressures. This means that the
integrity of the thread must be checked regularly and may need to be tightened using the torque
given above. Teflon tape is recommended for sealing with the 1/2 NPT thread.
3.3.2 Installation instructions for devices with diaphragm seals –
PMP75
!Note!
• The Cerabar S with diaphragm seal is screwed in, flanged or clamped, depending on the type of
diaphragm seal.
• The diaphragm seal and the pressure sensor together form a closed an calibrated system which is
filled with filling fluid through a hole in the upper part. This hole is sealed and not to be opened.
• Do not clean or touch process isolating diaphragm of the diaphragm seals with hard or pointed
objects.
• Do not remove the protection of the process isolating diaphragm until shortly before installation.
• When using a mounting bracket, sufficient strain relief must be ensured for the capillaries in order
to prevent the capillary bending down (bending radius 100 mm (3.94 in)).
• Please note that the hydrostatic pressure of the liquid columns in the capillaries can cause zero
point shift. The zero point shift can be corrected. ä41, "Position adjustment".
• Please note the application limits of the diaphragm seal filling oil as detailed in the Technical
Information for Cerabar S TI00383P, Section "Planning instructions for diaphragm seal systems".
In order to obtain more precise measurement results and to avoid a defect in the device, mount the
capillaries as follows:
• Vibration-free (in order to avoid additional pressure fluctuations)
• Not in the vicinity of heating or cooling lines
• Insulate if the ambient temperature is below ore above the reference temperature
• With a bending radius of 100 mm (3.94 in).

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Installation
Endress+Hauser 13

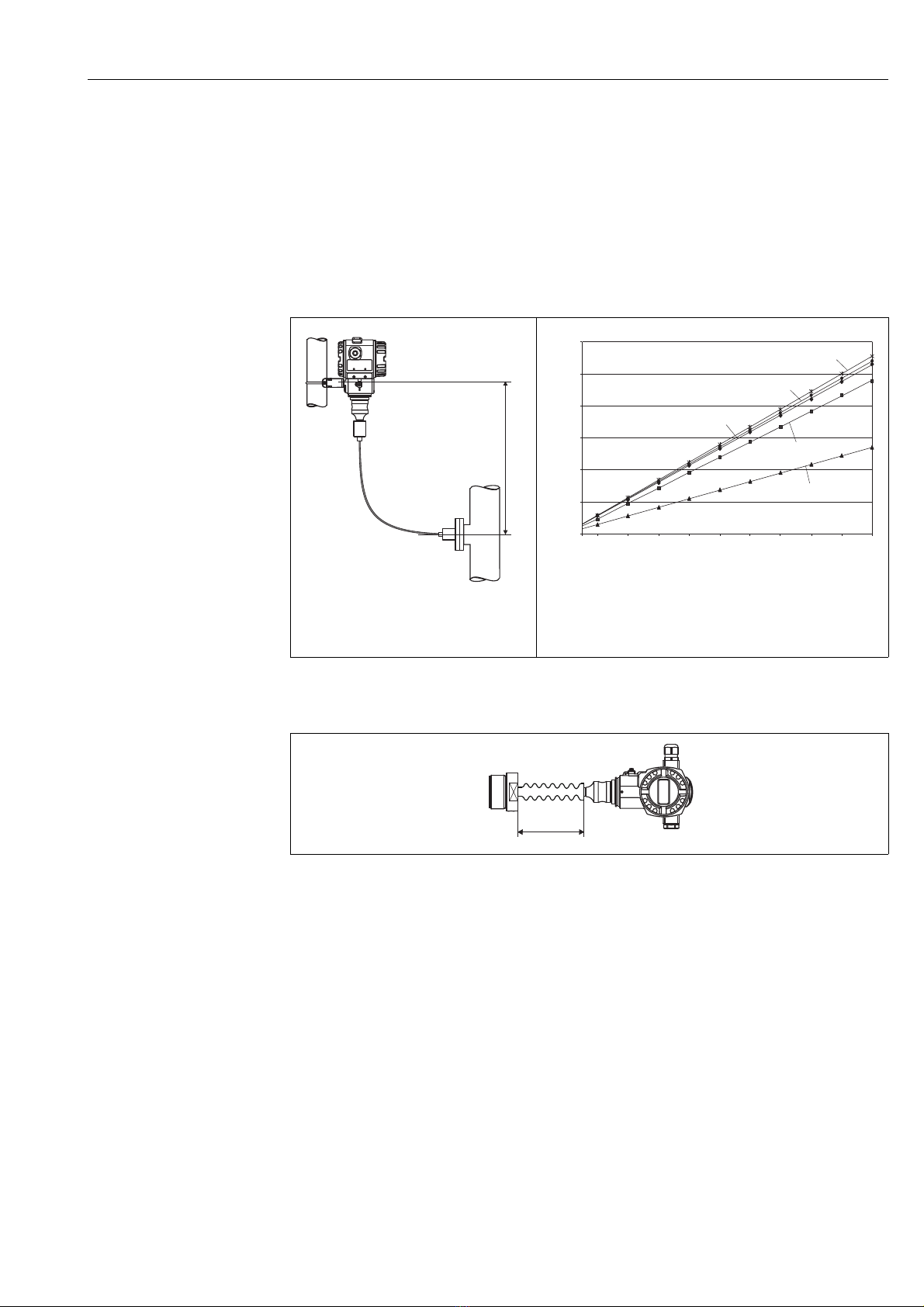

Vacuum application
For applications under vacuum, Endress+Hauser recommends mounting the pressure transmitter
underneath the diaphragm seal. A vacuum load of the diaphragm seal caused by the presence of
filling oil in the capillaries is hereby prevented.
When the pressure transmitter is mounted above the diaphragm seal, the maximum height
difference H1 in accordance with the illustration below on the left must not be exceeded.
The maximum height difference is dependent on the density of the filling oil and the smallest ever
pressure that is permitted to occur at the diaphragm seal (empty container), see illustration below,
on the right.
Mounting with temperature isolator
P01-PMx7xxxx-11-xx-xx-xx-005
Endress+Hauser recommends the use of temperature separators in the event of constant extreme
fluid temperatures which lead to the maximum permissible electronics temperature of +85 °C
(+185 °F) being exceeded. To minimise the influence of rising heat, Endress+Hauser recommends
the device be mounted horizontally or with the housing pointing downwards. The additional
installation height also brings about a zero point shift of approx. 21 mbar (0.315 psi) due to the
hydrostatic columns in the temperature isolator. You can correct this zero point shift. See also
ä26, "Function of the operating elements – on-site display not connected" or
ä41, "Position adjustment".
P01-PMx7xxxx-11-xx-xx-xx-008
Fig. 9: Installation above the diaphragm
seal
P01-PMP75xxx-05-xx-xx-xx-011
Fig. 10: Diagram of maximum installation height above the
diaphragm seal for vacuum applications dependent on
the pressure at the diaphragm seal
H1
FIELDTERMINALSFIELDTERMINALS
0.0
2.0
4.0
6.0
8.0
10.0
12.0
50100 300 400 500 600 700 800 900 1000
200
Inert oil
High temperature
oil
Vegetableoil
Silicone oil
Pressure atdiaphragm seal [mbarabs]
Heightdifference H1 [m]
Lowtemperature oil
max.
115 (4.53)
mm (in)

Installation Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
14 Endress+Hauser
3.3.3 Seal for flange mounting
P01-FMD7xxxx-11-xx-xx-xx-002
Fig. 11: Mounting the versions with flange or diaphragm seal
1 Process isolating diaphragm
2Seal
#Warning!
The seal is not allowed to press on the process isolating diaphragm as this could affect the
measurement result.
3.3.4 Installation with heat insulation – PMC71 high temperature
version and PMP75
The devices must only be insulated up to a certain height. The maximum permitted insulation
height is labelled on the devices and applies to an insulation material with a specific heat
conductivity and to the maximum permitted ambient and process temperature (see following table).
The data were determined under the most critical application "quiescent air".
P01-PMx7xxxx-11-xx-xx-xx-010
Fig. 12: Maximum insulation height, here e.g. PMC71 with flange
➁➀
T
A
T
P
Insulation
material
PMC71 PMP75
Ambient temperature (TA)70°C (158°F) 70°C (158°F)
Process temperature (TP)150°C (302°F) 400°C (752°F) 1))
1) Depending on the diaphragm seal filling oil used (see Technical
Information TI00383P Cerabar S)
Heat conductivity
Insulation material 0,04 W/(m x K)

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Installation
Endress+Hauser 15
3.3.5 Wall and pipe-mounting (optional)
Endress+Hauser offers a mounting bracket for installing on pipes or walls.
P01-xMx5xxxx-06-xx-xx-xx-001
Please note the following when mounting:
• Devices with capillary lines: mount capillaries with a bending radius of 100 mm (3.94 in).
• In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a torque
of at least 5 Nm (3.69 lbf ft).
52 (2.05)
140(5.51)
122 (4.8)
70 (2.76)
6(0.24)
mm (in)

Installation Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
16 Endress+Hauser
3.3.6 Assembling and mounting the "separate housing" version
P01-PMx7xxxx-11-xx-xx-xx-011
Fig. 13: "Separate housing" version
1 In the "separate housing" version, the sensor is supplied with process connection and cable fitted.
2 Cable with connection jack
3 Pressure compensation
4Plug
5Lockingscrew
6 Housing fitted with housing adapter, included
7 Mounting bracket suitable for wall and pipe mounting, included
Assembly and mounting
1. Connect plug (item 4) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 6).
3. Tighten the locking screw (item 5).
4. Mount the housing on a wall or pipe using the mounting bracket (item 7). When mounting
on a pipe, tighten the nuts on the bracket uniformly with a torque of at least 5 Nm (3.69 lbf ft).
Mount the cable with a bending radius (r) 120 mm (4.72 in).
r³120 (4.72)
mm (in)
1
2
34
5
6
7

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Installation
Endress+Hauser 17
3.3.7 PMP71, version prepared for diaphragm seal mount –
welding recommendation
P01-PMP71xxx-11-xx-xx-xx-000
Fig. 14: Version U1: prepared for diaphragm seal mount
1 Hole for filling fluid
2Bearing
3 Threaded pin
A1 See the following table "Welding recommendation"
Welding recommendation
For the "U1 Prepared for diaphragm seal mount" version in feature 70 "Process connection;
Material" in the order code of up to including 40 bar (600 psi)-sensors, Endress+Hauser
recommends welding on the diaphragm seal as follows: the total welding depth of the fillet weld is
1 mm (0.04 in) at an external diameter of 16 mm (0.63 in). Welding is performed according to the
WIG method.
ø2.5 (0.1)
5 (0.2)
➀➂➁
ø7.95 (0.31)
A1
mm (in)
Consecutive
seam no.
Sketch/welding groove
shape, dimension as per
DIN 8551
Base material
matching
Welding
process
DIN EN
ISO 24063
Welding
position
Inert gas,
additives
A1
for sensors
40 bar
(600 psi)
P01-PMP71xxx-11-xx-xx-xx-001
Adapter made of
316L (1.4435)
to be welded to
diaphragm seal made of
316L (1.4404/1.4435)
141 PB Inert gas
Ar/H 95/5
Additive:
1.4430
(ER 316L Si)
s1 a0.8

Installation Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
18 Endress+Hauser
3.3.8 Rotating the housing
The housing can be rotated up to 380° by loosening the Allen screw.
P01-PMx7xxxx-17-xx-xx-xx-000
Fig. 15: Aligning the housing
– T14 housing: Loosen setscrew with a 2 mm (0.08 in) Allen key.
Hygenic T17 housing:Loosen setscrew with a 3 mm (0.12 in) Allen key.
– Rotate housing (max. up to 380°).
– Retighten setscrew with 1 Nm (0,74 lbf ft).
3.3.9 Closing the housing cover
!Note!
When closing the housing cover, please ensure that the thread of the cover and housing are free
from dirt, e.g. sand.If you feel any resistance when closing the cover, check the thread on both again
to ensure that they are free from dirt.
Close cover on a hygenic stainless steel housing (T17)
P01-PMD75xxx-17-xx-xx-xx-000
Fig. 16: Close cover
The covers for the terminal and electronics compartment are hooked into the casing and closed with
a screw. These screws should be finger-tightened (2 Nm (1.48 lbf ft)) to the stop to ensure that the
covers sit tightly.
3.4 Post-installation check
After installing the device, carry out the following checks:
• Are all screws firmly tightened?
• Are the housing covers screwed down tight?
FIELD TERMINALSFIELD TERMINALS
max. 380°

Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART Wiring
Endress+Hauser 19
4 Wiring
4.1 Connecting the device
#Warning!
Risk of electric shock!
If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
In a wet environment, do not open the cover if voltage is present.
#Warning!
Limitation of electrical safety due to incorrect connection!
• Risk of electric shock and/or explosion in hazardous areas! In a wet environment, do not open
the cover if voltage is present.
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
• Devices with integrated overvoltage protection must be earthed.
• Protective circuits against reverse polarity, HF influences and overvoltage peaks are installed.
• The supply voltage must match the supply voltage on the nameplate (ä6, "Nameplate").
• Switch off the supply voltage before connecting the device.
• Remove housing cover of the terminal compartment.
• Guide cable through the gland. Preferably use twisted, screened two-wire cable.
• Connect device in accordance with the following diagram.
• Screw down housing cover.
• Switch on supply voltage.
P01-xMx7xxxx-04-xx-xx-xx-001
Fig. 17: Electrical connection 4 to 20 mA HART. Observe also ä21, "Supply voltage".
1 Housing
2 Jumper for 4 to 20 mA test signal.
ä21, "Taking 4 to 20 mA test signal" part.
3 Internal earth terminal
4 External earth terminal
5 4 to 20 mA test signal between plus and test terminal
6 Minimum supply voltage = 10.5 V DC, jumper is inserted in accordance with the illustration.
7 Minimum supply voltage = 11.5 V DC, jumper is inserted in "Test" position.
8 Devices with integrated overvoltage protection are labelled OVP (overvoltage protection) here.
4…20 mA
➅
10.5V DC
➆
11.5V DC
4... 20mA Test
Test
➀
➁
➂
➃
➄
Test
➇
4... 20mA Test

Wiring Cerabar S PMC71, PMP71, PMP75 with 4 to 20 mA HART
20 Endress+Hauser
4.1.1 Devices with Harting plug Han7D
P01-xxx7xxxx-04-xx-xx-xx-001
Fig. 18: Left: electrical connection for devices with Harting plug Han7D
Right: view of the plug connector at the device
4.1.2 Devices with M12 plug
4.1.3 Connecting the cable version
P01-PMx4xxxx-04-xx-xx-xx-010
Fig. 19: rd = red, bk = black, gnye = green-yellow
Han7D
–
+
+–
–
+
15
4
6
7
8
23
PIN Meaning
1 signal +
2notused
3 signal -
4ground
21
3
4
+
–
nc
–
+
+
PE
–
rd
bk
gnye
4...20mA
