XA02744C/66/EN/01.21
Safety Instruction
TDLAS Gas Analyzer
SS500, SS2000, and SS3000
SS500e, SS2000e, and SS3000e
SS500XP and SS2000XP

Revision History
Copyright © 2021 Endress+Hauser. No part of this manual may be reproduced in whole or in part without
the express written permission of Endress+Hauser. Endress+Hauser reserves the right to change product
design and specifications at any time without prior notice.
Revision Engineering Order Date
01.21 EO18996 February 25, 2022

XA02744C TDLAS Gas Analyzer
i Endress+Hauser
Table of Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Who Should Read This Manual . . . . . . . . . . . . . . . . . . . . . . . . .1
How to Use This Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Conventions used in this manual . . . . . . . . . . . . . . . . . . . .1
Associated Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Manufacturer Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2 General Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 5
Intended Equipment Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

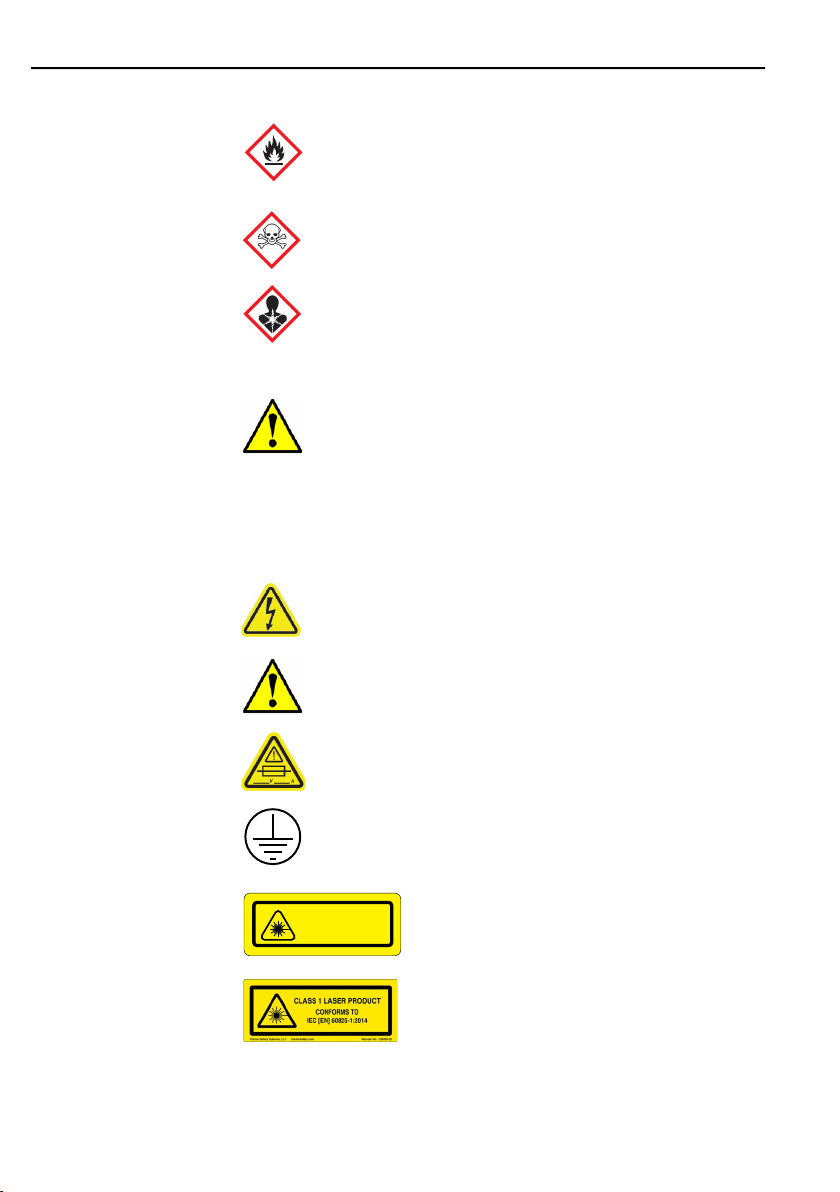

Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Safety label. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Equipment labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Instructional symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Potential Risks Affecting Personnel . . . . . . . . . . . . . . . . . . . . .7
Personnel Responsibility . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Mitigating risks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Electrocution hazard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Explosion/fire hazard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3 SS500, SS2000, and SS3000 TDLAS Gas Analyzer . . . . . . 9
Analyzer Technical Specifications . . . . . . . . . . . . . . . . . . . . . . .9
Peripheral devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Equipment rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Equipment Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Lifting/carrying the analyzer. . . . . . . . . . . . . . . . . . . . . . 16
Mounting the Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Opening/Closing the Analyzer Enclosure . . . . . . . . . . . 18
Protective Chassis and Ground Connections . . . . . . . . . 18
Electrical Wiring Requirements. . . . . . . . . . . . . . . . . . . . 18
External Circuit Breaker Requirements . . . . . . . . . . . . . 18
Connections to the Supply . . . . . . . . . . . . . . . . . . . . . . . . 19
To connect the sample supply line . . . . . . . . . . . . . . . . . 19
Ventilation Requirements . . . . . . . . . . . . . . . . . . . . . . . . 20
Equipment Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Intermittent Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4 SS500XP and SS2000XP TDLAS Gas Analyzer. . . . . . . . . 21
Analyzer Technical Specifications . . . . . . . . . . . . . . . . . . . . . 21
Peripheral devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Equipment rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Equipment Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Lifting/carrying the analyzer. . . . . . . . . . . . . . . . . . . . . . 25
Mounting the Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . 26

TDLAS Gas Analyzer XA02744C
ii Endress+Hauser
Opening/Closing the Analyzer Enclosure . . . . . . . . . . . 26
Protective Chassis and Ground Connections . . . . . . . . . 27
Electrical Wiring Requirements. . . . . . . . . . . . . . . . . . . . 27
External Circuit Breaker Requirements . . . . . . . . . . . . . 27
Connections to the Gas Supply . . . . . . . . . . . . . . . . . . . . 27
Ventilation Requirements . . . . . . . . . . . . . . . . . . . . . . . . 28
Equipment Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Operating Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Preparing the analyzer for shipment or storage . . . . . . 28
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5 SS500e, SS2000e, and SS3000e TDLAS Gas Analyzer . . 29
Analyzer Technical Specifications . . . . . . . . . . . . . . . . . . . . . 29
Peripheral devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Equipment rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Equipment Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lifting/carrying the gas analyzer . . . . . . . . . . . . . . . . . . 36
Mounting the Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Opening/Closing the Analyzer Enclosure . . . . . . . . . . . 37
Protective Chassis and Ground Connections . . . . . . . . . 37
Electrical Wiring Requirements. . . . . . . . . . . . . . . . . . . . 37
External Circuit Breaker Requirements . . . . . . . . . . . . . 37
Connections to the Gas Supply . . . . . . . . . . . . . . . . . . . . 38
To connect the sample supply line . . . . . . . . . . . . . . . . . 38
Ventilation Requirements . . . . . . . . . . . . . . . . . . . . . . . . 39
Equipment Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operating Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Firmware Version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Intermittent Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6 Maintenance and Service . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning and Decontamination . . . . . . . . . . . . . . . . . . . . . . . 40
To clean the TDLAS gas analyzer exterior . . . . . . . . . . . 40
Fuse Ratings and Characteristics . . . . . . . . . . . . . . . . . . . . . . 40
Troubleshooting and Repair. . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacing a fuse. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacing a relay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Replacing the membrane separator . . . . . . . . . . . . . . . . 46
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

TDLAS Gas Analyzer XA02744C
Endress+Hauser 1
1 Introduction
Endress+Hauser’s TDLAS Gas Analyzer products are high-speed, diode laser-
based extractive analyzers designed for extremely reliable monitoring of
standard concentrations of specific components in various background
gases.
This manual applies to the following analyzers:
• SS500, SS2000, SS3000
• SS500e, SS2000e, SS3000e
• SS500XP, SS2000XP
To operate the analyzer safely, it is important to closely review all informa-
tion contained in the manuals related to system installation, operation and
maintenance, as referenced in Associated Documents below. Each chapter in
this manual includes product-specific safety instructions in the following
topics:
• General Safety Instructions
• Equipment Installation
• Equipment Operation
Common procedures for equipment maintenance and service follow the
product-specific sections.
Who Should Read This
Manual
This manual should be read and referenced by anyone installing, operating
or having direct contact with the analyzer. Endress+Hauser highly recom-
mends that the responsible party and/or operator of the equipment be qual-
ified to handle this equipment.
How to Use This
Manual
Read the Table of Contents for an overview of the most common safety
issues regarding the installation and operation of the TDLAS gas analyzers
referenced in this manual. Additional information on the installation, oper-
ation and maintenance is in the Operating Instruction. Please note that only
qualified users should perform these tasks.
Images, tables and charts are included to provide a comprehensive under-
standing of the analyzer and its functions. Carefully read the section on spe-
cial symbols which provide key information on the system’s configuration
and/or operation.
Conventions used in this manual
In addition to the symbols and instructional information, use “hot links” to
quickly navigate between different sections. These links include table, figure
and section references and are identified by a pointing finger cursor
when rolling over the text. Click on the link to navigate to the reference.
Associated
Documentation
Enclosed in your analyzer system order is the product Safety Instruction for
your reference. Please review all necessary safety instructions before install-
ing or operating your analyzer.

XA02744C TDLAS Gas Analyzer
2 Endress+Hauser
This document is an integral part of the complete document package, which
includes:
Part
Number Document Type Description
SS500
BA02182C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01642C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
SS2000
BA02182C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01644C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
SS3000
BA02185C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01653C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
SS500XP
BA02183C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.

TDLAS Gas Analyzer XA02744C
Endress+Hauser 3
TI01642C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
SS2000XP
BA02183C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01644C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
SS500e
BA02164C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01657C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
SS2000e
BA02164C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01658C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
Part
Number Document Type Description

XA02744C TDLAS Gas Analyzer
4 Endress+Hauser
For additional instruction manuals, please refer to the following:
• For custom orders:
• Refer to the Endress+Hauser website for the list of local sales chan-
nels who can provide the requested order-specific documentation1:
https://www.endress.com/contact
• For standard orders:
• Refer to the Endress+Hauser website to download the published op-
erating instructions: www.endress.com
Manufacturer
Address
Endress+Hauser
11027 Arrow Route
Rancho Cucamonga, CA 91730
United States
www.endress.com
SS3000e
BA02164C Operating
Instruction
A complete overview of the
operations required to install,
commission and maintain the
device.
TI01659C Technical
Information
Provides technical data on the
device with an overview of asso-
ciated models available.
Device Parameters
GP01181C Description of Device
Parameters
HC12 v2.51
Provides the user with an over-
view of the HC12 v2.51 firm-
ware functionality.
1. Order-specific documentation is located by analyzer serial number (SN).
Part
Number Document Type Description

TDLAS Gas Analyzer XA02744C
Endress+Hauser 5
2 General Safety Information
This chapter reviews the general safety instruction for the TDLAS Gas Ana-
lyzer.
Intended Equipment
Use
The natural gas analyzers are intended for use as explained in the documen-
tation provided. Endress+Hauser recommends that the qualified technician
read and reference the documentation when installing, operating or having
direct contact with the TDLAS Gas Analyzer. Any use of the equipment in a
manner not specified by Endress+Hauser could lead to physical injury and
damage to the equipment.
Warning Labels Equipment labels are adhered to the TDLAS Gas Analyzer to alert the user of
potential hazards. Instructional symbols are also used in the equipment
manuals to indicate potential hazards, important information and valuable
tips, and are not labeled on the analyzer. Following are the equipment labels
and instructional symbols with associated warning and caution types to
observe when servicing the analyzer.
Safety label
A warning label is affixed to the front side of all analyzer enclosures that con-
tain sample gas. An example of the warning label is shown below.
Hazards may vary by stream composition. One or more of the following con-
ditions may apply.
The safety of the analyzer is the responsibility of the installer
and the organization represented.

XA02744C TDLAS Gas Analyzer
6 Endress+Hauser
Equipment labels
Flammable. Gases used in the processing of this analyzer
may be extremely flammable. Any work in a hazardous area
must be carefully controlled to avoid creating any possible
ignition sources (e.g., heat, arcing, sparking, etc.).
Toxins. Endress+Hauser analyzers measure a variety of
gases, including high-level H

S. Follow all safety protocols
governing toxic gases and potential leaks.
Inhalation. Inhaling toxic gases or fumes may cause physical
damage or death.
Technicians are expected to follow all safety protocols
established by the customer that are necessary for servicing
or operating the analyzer. This may include, but is not
limited to, lockout/tag-out procedures, toxic gas monitoring
protocols, personal protective equipment (PPE)
requirements, hot work permits and other precautions that
address safety concerns related to performing service or
operation on process equipment located in hazardous areas.
Warning statement for hazardous voltage. Contact may
cause electric shock or burn. Turn off and lock out the system
before servicing.
Failure to follow all directions may result in damage to or the
malfunction of the analyzer.
Maximum voltage and current specifications for fuses.
PROTECTIVE EARTH GROUND — Symbol indicates the
connection point of the ground wire from the main power
source.
LASER RADIATION
AVOID EXPOSURE TO BEAM
CLASS 3B LASER PRODUCT
INVISIBLE LASER RADIATION — Avoid
exposure to beam. Class 3b Radiation Product.
Refer servicing to the manufacturer-qualified
personnel.
CLASS 1 LASER PRODUCT — Invisible laser
radiation when open. Avoid direct exposure to
the beam.

TDLAS Gas Analyzer XA02744C
Endress+Hauser 7
Instructional symbols
Potential Risks
Affecting Personnel
This section addresses what to do when hazardous situations occur during or
before servicing the analyzer. Not all potential hazards are listed in this doc-
ument. The user is responsible for identifying and mitigating any potential
hazards present when servicing the analyzer.
FUNCTIONAL EARTH GROUND — Symbol indicates
grounding points intended primarily for troubleshooting.
Removing label from measurement cell optical
head will void analyzer warranty.
General notes and important information concerning the
installation and operation of the analyzer.
Failure to follow all directions may result in damage or the
malfunction of the analyzer.
Failure to follow all directions or substitution of components
may result in explosion.
Failure to follow all directions may result in fire.
Maximum voltage and current specifications for fuses.
Technicians are expected to follow all safety protocols
established by the customer that are necessary for servicing
the analyzer. This may include, but is not limited to, lockout/
tagout procedures, toxic gas monitoring protocols, PPE
requirements, hot work permits and other precautions that
address safety concerns related to performing service on
process equipment located in hazardous areas.

XA02744C TDLAS Gas Analyzer
8 Endress+Hauser
Personnel Responsibility
Mitigating risks
Refer to the instructions for each situation listed below to mitigate risks.
Electrocution hazard
1. Shut off power at the main disconnect external to the analyzer.
2. Open enclosure door.
3. If service must be performed with power engaged, do the following:
a. Note any live electrical components and avoid all contact with them.
b. Only use tools with a safety rating for protection against accidental
contact with voltage up to 1000V (IEC 900, ASTF-F1505-04, VDE
0682/201).
Explosion/fire hazard
Any work in a hazardous area must be carefully controlled to avoid creating
any possible ignition sources (e.g., heat, arcing, sparking, etc.). All tools must
be appropriate for the area and hazards present. Electrical connections must
not be made or broken with power on (to avoid arcing).
The safety of the analyzer is the responsibility of the installer
and the organization he/she represents.
Complete this action before performing any service that
requires working near the main input power or
disconnecting any wiring or other electrical components.

TDLAS Gas Analyzer XA02744C
Endress+Hauser 9
3 SS500, SS2000, and SS3000 TDLAS Gas
Analyzer
The information in this chapter includes technical specifications as well as
safety warnings and considerations for equipment installation and equip-
ment operation for the SS500, SS2000, and SS3000 TDLAS Gas Analyzers.
For complete instructions refer to the Operating Instruction →  1.
Analyzer Technical
Specifications
Technical specifications are provided in the following tables that outline rec-
ommended equipment settings, ratings, and physical specifications.
Peripheral devices
For systems equipped with peripheral devices, e.g., probe assemblies, only
devices that meet with Endress+Hauser' specifications may be used. Refer to
documentation provided by the manufacturer for instruction on installation,
operation, etc.
Equipment rating
The following equipment rating information is provided by model type for
each TDLAS Gas Analyzer in the Operating Instruction.
Table 3–1 SS500 analyzer specifications
Measurement data
Target components HO in natural gas
Principle of
measurement
Tunable Diode Laser Absorption Spectroscopy
(TDLAS)
Measurement ranges 0.25 to 20, 0.25 to 50, 0.25 to 100 lbs/MMscf
5 to 422, 5 to 1055, 5 to 2110 ppmv
Repeatability ±1 ppmv or ±1% of reading (whichever is
greater)
Accuracy ±10 ppmv or ±2% of reading (whichever is
greater)
Application Data
Ambient
temperature range
-20 °C to 50 °C (-4 °F to 122 °F)

XA02744C TDLAS Gas Analyzer
10 Endress+Hauser
Sample cell pressure
range
700 to 1400 mbara
Sample cell
temperature range
-20 °C to 50 °C (-4 °F to 122 °F)
Maximum cell
pressure
70 kPag (10 psig)
Sample flow rate 0.5 to 1.0 L/min (1 to 2 scfh)
Bypass flow rate 1 L/min (2 scfh)
Electrical and communication
Input Voltage
(Electronics)
120 - 240 VAC ±10%, 50 to 60 Hz, 20W Max
24 VDC, 1.6 A Maximum
12 VDC, 3.2 A Maximum
Input Voltage
SCS Heater
(Optional)
120 VAC or 240 VAC +/-10%, 50 to 60 Hz sin-
gle phase, 200 W
Max current 0.8 A maximum at 120 VAC
1.6 A at 24 VDC, 3.2 A at 12 VDC
Communication Analog: One or two 4-20mA isolated, 1200
ohms at 24 VDC max load
Serial: RS232C
Protocol: Modbus Gould RTU or Daniel RTU or
ASCII
Alarms 2, general fault and concentration alarms via
Modbus and analog output(s)
LCD display Concentration, cell pressure and temperature,
diagnostics
Physical Class I, Division 2
Electronics
enclosure type
Type 3R - 304
stainless steel

TDLAS Gas Analyzer XA02744C
Endress+Hauser 11
Table 3–2 SS2000 analyzer specifications
Electronics with
sample cell
dimensions
444 mm H x 376 mm W x 135 mm D (17.5 x
14.8 x 5.8 inches)
Weight
approximately
11.5 kg (25 lbs)
Sample cell
dimensions
438 mm H x 108 mm W (17.3 x 4.3 inches)
Number of sample
cells
1
Area Classification
Certification cCSAus Class I, Division 2, Groups A, B, C, D,
T3C
cCSAus Class I, Zone 2 IIC T3C
Measurement data
Target components HO or CO in natural gas
Principle of
measurement
Tunable Diode Laser Absorption Spectroscopy
(TDLAS)
Measurement ranges HO: 0 to 20, 0 to 50, 0 to 100, 0 to 250 lbs/
MMscf
0 to 422, 0 to 1055, 0 to 2110, 0 to
5275 ppmv
CO: 0 to 5%, 0 to 10%, 0 to 20%
Repeatability HO: ±1 ppmv or ±1% of reading (whichever
is greater)
CO: ±400 ppmv or ±2% of reading (which-
ever is greater)
Accuracy HO: ±2 ppmv plus 2% of reading

XA02744C TDLAS Gas Analyzer
12 Endress+Hauser
Application data
Ambient
temperature range
-20° C to 50 °C (-4° F to 122 °F)
Sample cell pressure
range
700 to 1400 mbara
Sample cell
temperature range
-20 °C to 50 °C (-4 °F to 122 °F)
Maximum cell
pressure
70 kPag (10 psig)
Sample flow rate 0.5 to 1.0 L/min (1 to 2 scfh)
Bypass flow rate 1 L/min (2 scfh)
Electrical and communication
Input Voltage
Electronics
120 - 240 VAC ±10%, 50 to 60 Hz, 20W Max
24 VDC, 1.6 A Max
12 VDC, 3.2 A Max
Input Voltage
SCS Heater
(Optional)
120 VAC or 240 VAC +/-10%, 50 to 60 Hz sin-
gle phase, 200 W
Max current 0.8 A maximum at 120 VAC
1.6 A at 24 VDC, 3.2 A at 12 VDC
Communication Analog: One or two 4-20mA isolated, 1200
ohms at 24 VDC max load
Serial: RS232C
Protocol: Modbus Gould RTU or Daniel RTU or
ASCII
Alarms 2, general fault and concentration alarms via
Modbus and analog output(s)
LCD display Concentration, cell pressure and temperature,
diagnostics

TDLAS Gas Analyzer XA02744C
Endress+Hauser 13
Table 3–3 SS3000 analyzer specifications
Physical Class I, Div 2
Electronics
enclosure type
Type 3R - 304 stainless steel*
Electronics with
sample cell
dimensions
444 mm H x 376 mm W x 135 mm D (17.5 x
14.8 x 5.8 inches)
Weight approximate 11.5 kg (25 lbs)
Sample cell
dimensions
438 mm H x 108 mm W (17.3 x 4.3 inches)
Number of Sample
Cells
1
Area classification
Certification cCSAus Class I, Div 2, Groups A, B, C, D, T3C
cCSAus Class I, Zone 2 IIC T3C
Measurement data
Target components HO and/or CO in natural gas
Principle of
measurement
Tunable Diode Laser Absorption Spectroscopy
(TDLAS)
Measurement ranges HO: 0 to 20, 0 to 50, 0 to 100, 0 to 250 lbs/
MMscf
0 to 422, 0 to 1055, 0 to 2110, 0 to
5275 ppmv
CO: 0 to 5%, 0 to 10%, 0 to 20%
Repeatability HO: ±1 ppmv or ±1% of reading (whichever
is greater)
CO: ±400 ppmv or ±2% of reading (which-
ever is greater)

XA02744C TDLAS Gas Analyzer
14 Endress+Hauser
Accuracy HO: ±2 ppmv plus 2% of reading
Application data
Ambient
temperature range
-20 °C to 50 °C (-4 °F to 122 °F)
Sample cell pressure
range
700 to 1400 mbara
Sample cell
temperature range
-20 °C to 50 °C (-4 °F to 122 °F)
Maximum cell
pressure
70 kPag (10 psig)
Sample flow rate 0.5 to 1.0 L/min (1 to 2 scfh)
Bypass flow rate 1 L/min (2 scfh)
Electrical and communication
Input Voltage
Electronics
120 - 240 VAC ±10%, 50 to 60 Hz, 20W Max
24 VDC, 1.6 A Max
12 VDC, 3.2 A Max
Input Voltage
SCS Heater
(Optional)
120 VAC or 240 VAC +/-10%, 50 to 60 Hz sin-
gle phase, 200 W
Max current 0.8 A maximum at 120 VAC
1.6 A at 24 VDC, 3.2A at 12 VDC
Communication Analog: One or two 4-20mA isolated, 1200
ohms at 24 VDC max load
Serial: RSlcC
Protocol: Modbus Gould RTU or Daniel RTU or
ASCII
Alarms Four general fault and concentration alarms
via Modbus and analog output(s)
LCD display Concentration, cell pressure and temperature,
diagnostics

TDLAS Gas Analyzer XA02744C
Endress+Hauser 15
Equipment
Installation
The information in this section is related to safety considerations for equip-
ment installation.
Physical Class I, Div 2
Electronics
enclosure type
Type 3R - 304 stainless steel*
Electronics with
sample cell
Dimensions
444 mm H x 376 mm W x 135 mm D (17.5 x
14.8 x 5.8 inches)
Weight
approximately
11.5 kg (25 lbs)
Sample cell
dimensions
438 mm H x 108 mm W (17.3 x 4.3 inches)
Sample cell
construction
316L series polished stainless steel
Number of Sample
Cells
2
Area classification
Certification cCSAus Class I, Division 2, Groups A, B, C, D,
T3C
cCSAus Class I, Zone 2 IIC T3C
Endress+Hauser Class I Division 2 analyzers use a non-
incendive protection method, and as such all portions of the
local installation codes apply. The maximum allowed
inductance to resistance ratio (L/R ratio) for the field wiring
interface must be less than 25 µH/Ω. The maximum total
loop capacitance shall be 0.27 microfarads.
The safety of the analyzer is the responsibility of the installer
and the organization he/she represents.

XA02744C TDLAS Gas Analyzer
16 Endress+Hauser
Lifting/carrying the analyzer
The SS500, SS2000, and SS3000 analyzers can be easily lifted from the pack-
aging and moved to the installation location. Take care not to lift or carry the
analyzer by the measurement cells or the cables connected at the top of the
analyzer, or damage may occur. For analyzers configured inside enclosures
and weighing more than 18 kg (approximately 40 lbs), lift the unit by the
mounting brackets using at least two individuals and distribute the weight
among personnel to avoid injury.
Configurations requiring optional accessories, e.g., probe
assemblies, with specific characteristics must meet
manufacturer specifications.
Endress+Hauser analyzers are designed for operation within
the specified ambient temperature range of -20 °C to 50 °C (-
4 °F to 122 °F). Intense sun exposure in some areas may
cause the analyzer temperature to exceed the maximum.
Lifting
Points
Lifting
Points
Figure 3–1 Lifting and carrying the SS500 and SS2000 TDLAS Gas Analyzers
