Operating Instructions
Solitrend MMP20 (Option D)
Material moisture measurement
BA01947M/00/EN/02.19
71462899
2019-12-27

Solitrend MMP20 (Option D)
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:

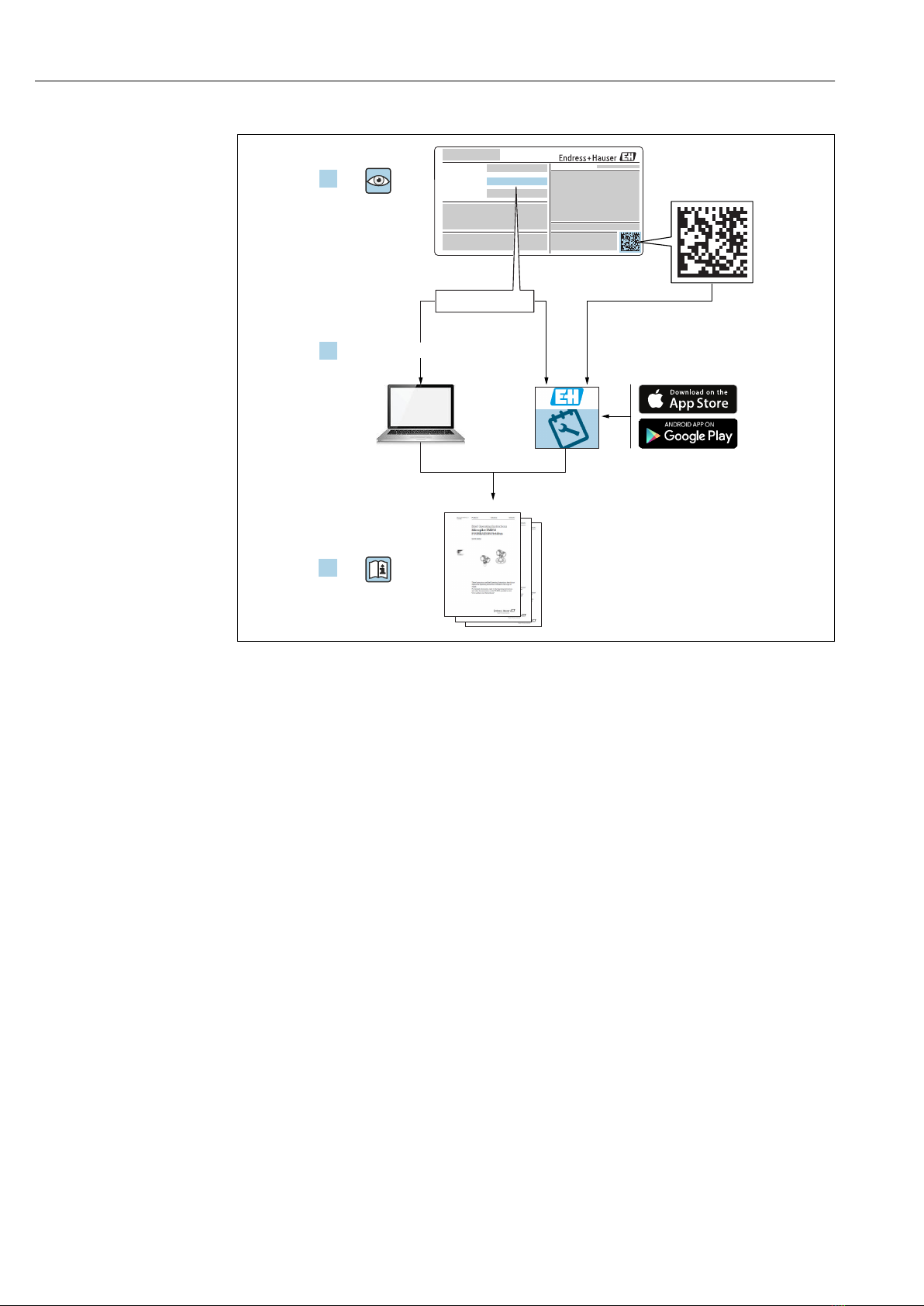

www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Solitrend MMP20 (Option D) Table of contents
Endress+Hauser 3
Table of contents
1 About this document ................ 4
1.1 Document function ..................... 4
1.2 Symbols used .......................... 4
1.3 Terms and abbreviations ................. 6
1.4 Documentation ........................ 6
2 Basic safety instructions ............ 7
2.1 Requirements for personnel ............... 7
2.2 Designated use ........................ 7
2.3 Workplace safety ....................... 7
2.4 Operational safety ...................... 7
2.5 Product safety ......................... 8
3 Product description ................. 9
3.1 Design ............................... 9
4 Incoming acceptance and product
identification ..................... 10
4.1 Incoming acceptance ................... 10
4.2 Product identification ................... 10
4.3 Manufacturer's address ................. 10
4.4 Storage, transport ..................... 10
5 Electrical connection .............. 11
5.1 Connecting the probe ................... 11
5.2 Charging the battery ................... 11
6 Operating options ................. 12
6.1 Operating elements .................... 12
6.2 Description of the function of the keys ...... 12
6.3 Description of the icons on the display ...... 13
6.4 Meaning of displayed text ............... 14
7 Commissioning .................... 15
7.1 Checking the packaging contents .......... 15
7.2 Charging the battery ................... 15
7.3 Connecting the probe ................... 15
7.4 Switching the handheld device on/off ....... 15
7.5 Configuration and measurement .......... 16
7.6 General G-Set parameter ................ 17
7.7 Setting or changing the three concrete
formulation parameters ................. 18
7.8 EC-T: a parameter for cement analysis ...... 20
7.9 General settings ....................... 21
8 SWZ probe ........................ 25
8.1 Introduction ......................... 25
8.2 Measuring volume ..................... 25
8.3 Measurement procedure ................ 26
8.4 Potential problems in the laboratory and at
the concrete plant ..................... 30
9 Commissioning fresh concrete
measurement ..................... 32
9.1 Procedure ........................... 32
9.2 Core moisture, core water and water
absorption ........................... 35
9.3 Kiln-drying as a reference value ........... 36
9.4 Measurement of earth-dry fresh concrete
(i.e. no-slump, stiff concrete) with F1
consistence .......................... 37
9.5 The three types of water measured by the
SWZ probe .......................... 37
9.6 Air voids, glass fibers and steel fibers ....... 38
10 Managing and archiving concrete
formulations ...................... 39
11 S1 moisture probe ................. 40
11.1 Connecting the S1 probe ................ 40
11.2 Measurement ........................ 40
11.3 Settings ............................. 41
11.4 Using the S1 probe ..................... 47
12 Technical data .................... 53
12.1 Handheld device ...................... 53
12.2 SWZ probe .......................... 53
12.3 S1 probe ............................ 53

About this document Solitrend MMP20 (Option D)
4 Endress+Hauser
1 About this document
1.1 Document function
These Operating Instructions provide all of the information that is required in various
phases of the life cycle of the device including:
• Product identification
• Incoming acceptance
• Storage
• Installation
• Connection
• Operation
• Commissioning
• Troubleshooting
• Maintenance
• Disposal
1.2 Symbols used
1.2.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Symbols for certain types of information and graphics
Permitted
Procedures, processes or actions that are permitted
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
Series of steps

Solitrend MMP20 (Option D) About this document
Endress+Hauser 5
Result of a step
1, 2, 3, ...
Item numbers
A, B, C, ...
Views

About this document Solitrend MMP20 (Option D)
6 Endress+Hauser
1.3 Terms and abbreviations
BA
Document type "Operating Instructions"
TI
Document type "Technical Information"
SD
Document type "Special Documentation"
TDR
Time Domain Reflectometry
HW
Hardware version
FW
Firmware version
1.4 Documentation
The following documentation types are available in the Downloads section of the Endress
+Hauser website (www.endress.com/downloads):
For an overview of the scope of the associated Technical Documentation, refer to the
following:
•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number
from nameplate
•Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2D matrix code (QR code) on the nameplate
1.4.1 Technical Information (TI)
Planning aid
The document contains all the technical data on the device and provides an overview of
the accessories and other products that can be ordered for the device.

Solitrend MMP20 (Option D) Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Personnel must be authorized by the plant owner/operator.
‣Be familiar with federal/national regulations.
‣Before starting work: personnel must read and understand the instructions in the
manual and supplementary documentation as well as the certificates (depending on
the application).
‣Personnel must follow instructions and comply with general policies.
The operating personnel must fulfill the following requirements:
‣Personnel are instructed and authorized according to the requirements of the task by
the facility's owner-operator.
‣Personnel follow the instructions in this manual.
2.2 Designated use
Application and media
The device serves as a mobile terminal for measuring material moisture.
The following probes can be connected: SWZ, S1, S1C, S2
Incorrect use
Only probes specially designed for this device may be connected to it. If a probe that is not
designed for the device is connected to it, this may damage the device and/or the
connected probe.
The manufacturer is not liable for damage caused by improper or non-designated use.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from the manufacturer only.

Basic safety instructions Solitrend MMP20 (Option D)
8 Endress+Hauser
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the
hazardous area (e.g. explosion protection, pressure vessel safety):
‣Based on the nameplate, check whether the ordered device is permitted for the
intended use in the hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an
integral part of these Instructions.
2.5 Product safety
This device is designed in accordance with good engineering practice to meet state-of-the-
art safety requirements, has been tested, and left the factory in a condition in which it is
safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. The manufacturer
confirms this by affixing the CE mark to the device.

Solitrend MMP20 (Option D) Product description
Endress+Hauser 9
3 Product description
The device is used to determine material moisture based on time-domain reflectometry
(TDR) technology.
The measuring system is suitable for mobile use (battery operation) and consists of a
handheld device and a connected probe.

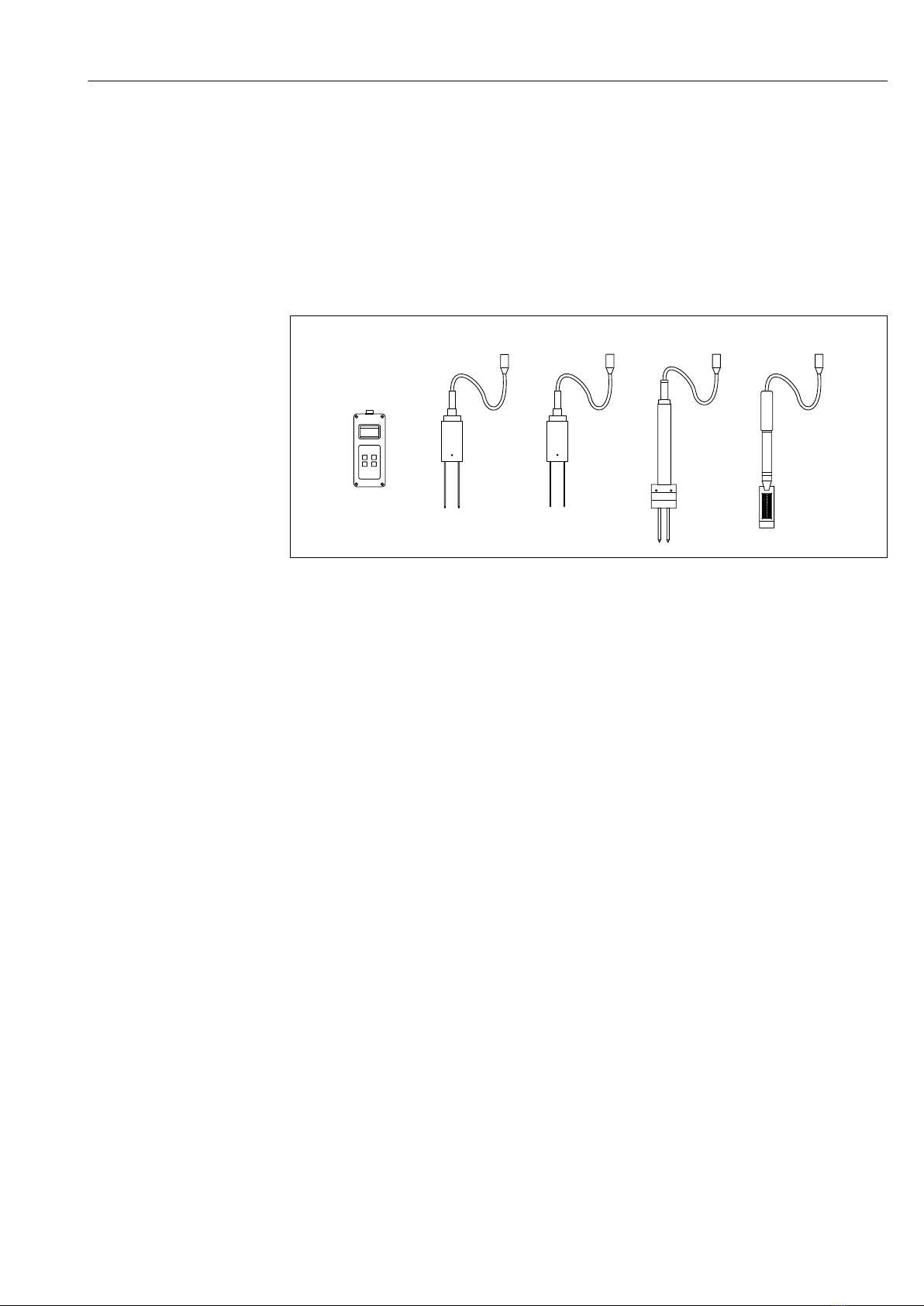

3.1 Design
AD
C
BE
A0041531
 1
A Handheld device
B S1 two-rod probe
C S1C two-rod probe
D S2 two-rod probe
E SWZ probe

Incoming acceptance and product identification Solitrend MMP20 (Option D)
10 Endress+Hauser
4 Incoming acceptance and product
identification
4.1 Incoming acceptance
Check the following during incoming acceptance:
 Are the order codes on the delivery note and the product sticker identical?
 Are the goods undamaged?
 Do the nameplate data match the ordering information on the delivery note?
 If required (see nameplate): Are the safety instructions (XA) provided?
If one of these conditions is not met, please contact the manufacturer's sales office.
4.2 Product identification
The following options are available for the identification of the measuring device:
• Nameplate specifications
• Extended order code with breakdown of the device features on the delivery note
‣Enter the serial number from the nameplates into W@M Device Viewer
(www.endress.com/deviceviewer)
 All the information about the measuring device and the scope of the associated
Technical Documentation are displayed.
‣Enter the serial number from the nameplate into the Endress+Hauser Operations App
or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code)
provided on the nameplate
 All the information about the measuring device and the scope of the associated
Technical Documentation are displayed.
4.3 Manufacturer's address
Endress+Hauser SE+Co. KG
Hauptstraße 1
79689 Maulburg, Germany
4.4 Storage, transport
4.4.1 Storage temperature
–20 to +80 °C (–4 to +176 °F)
Use the original packaging
4.4.2 Transporting the product to the measuring point
Transport the device to the measuring point in the original packaging or case (accessory).

Solitrend MMP20 (Option D) Electrical connection
Endress+Hauser 11
5 Electrical connection
5.1 Connecting the probe
The probe to be used is connected to the handheld device by means of a 7-pin plug.
Incorrect use
Only probes specially designed for this device may be connected to it. If a probe that is not
designed for the device is connected to it, this may damage the device and/or the
connected probe.
The manufacturer is not liable for damage caused by improper or non-designated use.
5.2 Charging the battery
The maximum operating times indicated apply under ideal conditions. The ambient
temperature and recharging cycle can significantly reduce the performance times. In
addition, for technical reasons the recharging capacity drops over time or if the unit is
stored at very high or low temperatures.
Only use the charger supplied to recharge the device. A different charging voltage can
damage the device. If the device heats up while it is charging, this is normal behavior and
is not dangerous. If the device only works briefly or not at all despite being charged
repeatedly, the integrated battery is defective and must be replaced.
Never replace the in-built rechargeable battery yourself. If the battery is defective,
contact the manufacturer directly.

Operating options Solitrend MMP20 (Option D)
12 Endress+Hauser
6 Operating options
6.1 Operating elements
5
4
1
2
3
A0040883

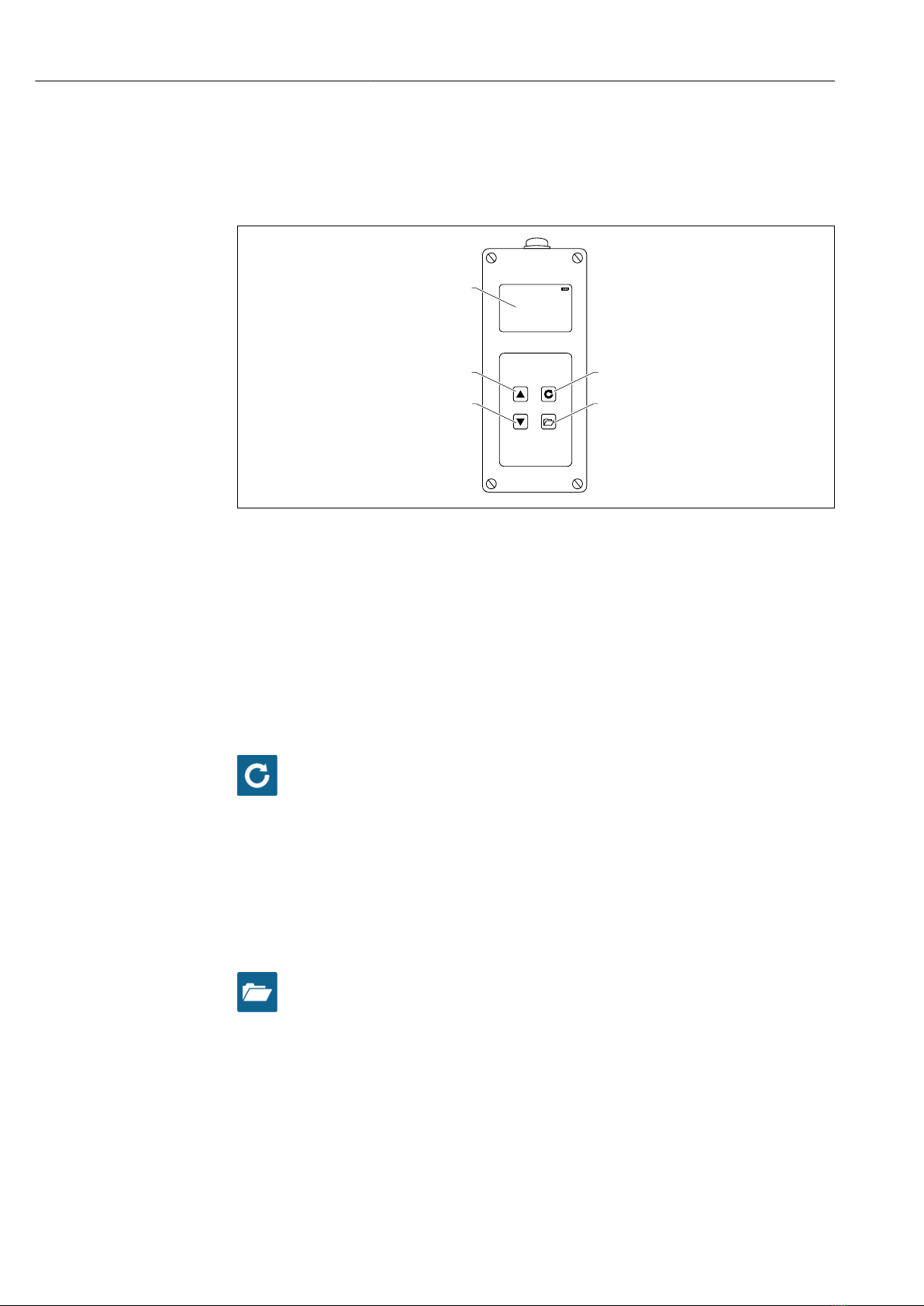

 2 Operating elements
1 "Down" navigation key
2 "Up" navigation key
3 Display
4 Enter key
5 Folder key
6.2 Description of the function of the keys
6.2.1 Enter key
•Switch on/off: press and hold for 1 s
•Take a measurement: press briefly
•Select/activate a menu item: press briefly
•Save a setting: press briefly
6.2.2 Folder key
•Activate device settings: press and hold for > 1 s
•Quit "Settings": press briefly
•Go back from the menu items: press briefly

Solitrend MMP20 (Option D) Operating options
Endress+Hauser 13
6.2.3 "Up" navigation key
Previous menu item or setting: press briefly
6.2.4 "Down" navigation key
•Next menu item or setting: press briefly
•Clear the value memory (Average mode): press briefly
6.3 Description of the icons on the display
 3 Remaining battery capacity
 4 Measurement active
 5 Setting saved
 6 Brightness of background lighting
 7 Time until switchoff (lighting / APO)
 8 Press "Up" key
 9 Press "Down" key

Operating options Solitrend MMP20 (Option D)
14 Endress+Hauser
 10 Warning: water content values below 100 l/m3 are not taken into consideration or the validity of the
measured value is called into question if the values vary too much.
6.4 Meaning of displayed text
Density: raw density value of the measured fresh concrete
Water content: kiln-dry water content in l/m3
EC-T: electrical conductivity based on the TDR radar signal and therefore an assessment of
the cement in the concrete mix.
Serial No.: serial number of the probe
HW: hardware version
FW: firmware version

Solitrend MMP20 (Option D) Commissioning
Endress+Hauser 15
7 Commissioning
7.1 Checking the packaging contents
• Handheld device
• Power adapter (12 V/2 A)
• Charging adapter
• Protection cap
• Manual
• SWZ probe
7.2 Charging the battery
Charging the battery before using the probe for the first time
1. Insert the charging adapter into the 7-pin socket on the handheld device
2. Connect the power adapter to the charging adapter
 Charging commences immediately if the device is already switched on or the
battery is over-discharged.
3. Otherwise, switch on the device by pressing the Enter key for approximately 1 s
 An animated battery symbol on the display indicates that charging is active. The
built-in charging electronics charge the battery until it is fully charged. Charging
takes around 2 h if the battery was fully discharged. As soon as the battery is
finished charging, all 4 "battery bars" appear permanently on the display screen
and trickle charging commences.
Only charge the battery at room temperatures. If the temperature is too low, end-
of-charge cutoff might not work correctly and the battery may be overcharged. If
ambient temperatures are too high, the device can be damaged by the heat generated
during charging.
7.3 Connecting the probe
1. Insert the probe into the 7-pin socket on the device
2. Tighten the coupling nut
7.4 Switching the handheld device on/off
1. Press the Enter key for approximately 1 s
 The device tries to communicate with the connected probe during the power-up
process. This takes around 4 s. If no probe is connected or if the probe cannot be
found for some other reason, an error message appears on the screen. If the
device managed to successfully find the probe, the measurement background
appears on the screen, depending on the specific operating mode. The message
"Calibrating" appears on the bottom of the display during the power-up process.
The device adjusts to the probe.
2. The device is now ready for use
3. Switch off the device
 Press the Enter key for approximately 1 s

Commissioning Solitrend MMP20 (Option D)
16 Endress+Hauser
7.5 Configuration and measurement
For the device to be able to display the water content as a kiln-dried value with a required
accuracy of ±1 to 3 l/m3, the system must be set beforehand to a specific "concrete
formulation characteristic" and to the rock used. This setting is made using the CHAR and
G-Set parameters.
7.5.1 CHAR parameter for the concrete formulation characteristic
With its radar measuring field, the SWZ probe shows the dependency of the grading curve
on various concrete formulations. Therefore the handheld device offers users 4 different
possible settings, which can be entered as a CHAR parameter.
100
80
60
40
20
0
00.125 0.25 0.5 1248 16 31.5
%
mm
1
2
3
4
A0040877

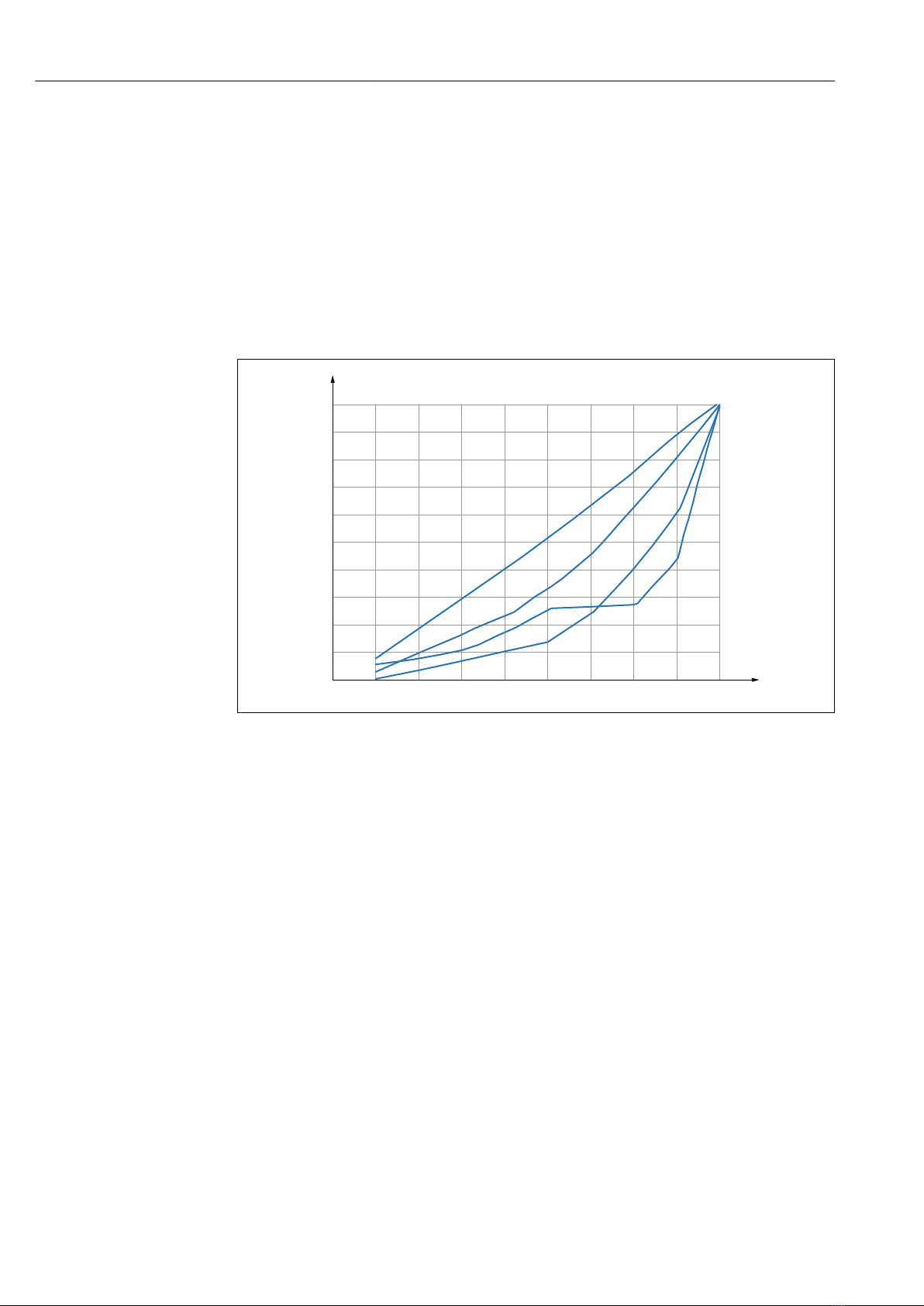

 11 The 4 possible CHAR parameters
1 Fine (grading curve C)
2 Normal (grading curve B)
3 Coarse (grading curve A)
4 Special (gap-graded U)
Fine (grading curve C)
The probe measures slightly too little water and therefore has to adjust the water content
upwards slightly
• Concrete with a high mortar content, i.e. a very high quantity of sand, particularly with a
high fines content, a high quantity of cement
• Standard admixtures, standard additives as well as perchloroethylene (PCEs)
Normal (grading curve B)
No or minor correction
• Constant and relatively well-distributed grading curves
• Standard admixtures, standard additives as well as PCEs
Coarse (grading curve A)
The probe measures slightly too much water and therefore has to adjust the water content
downwards slightly
• Concrete with higher k-values and low mortar content
• Concrete with constant and relatively well-distributed B-grading curves with one
peculiarity: low target water content that is less than 160 l/m3, and large amounts of
superplasticizers (PCE) which improve general flow characteristics/rheology.

Solitrend MMP20 (Option D) Commissioning
Endress+Hauser 17
Special (gap-graded U)
The probe measures slightly too much water and therefore has to adjust the water content
downwards slightly
• Very little or no gravel of size 2/8mm or 4/8mm
• Standard admixtures, standard additives as well as PCEs
7.6 General G-Set parameter
The probe measures both the free effective water in fresh concrete and a share of the core
water or absorbed water. While there are types of rock that absorb very little core water,
there are aggregates, such as sandstone or lime grit, that can absorb up to 50 l of core
water. The core or absorbed water is not used to bind the cement and is therefore not
processed for the w/c-ratio.
7.6.1 The SWZ probe measures three types of water
In principle, the probe measures the water parts as the kiln-drying method
The free water
The free water in the concrete mix which enters into the calculation of the w/c-ratio. This
water is the actual value that is sought when using the probe.
A share of the core water
Water that is absorbed by the aggregates. The probe can only measure a percentage
(approx. 1/3) of this core water. The core water can be 10 to 35 l/m³ depending on the
type of rock. This (correction) value is represented in the G-Set parameter (approx. 2/3 of
the core water), depending on the formulation and rock. The G-Set value is typically
approx. –10 l/m³ assuming a core water content of 15 l/m³. These –10 l/m³ are then
automatically subtracted from the measurement in the handheld device so that the
reading in the handheld device matches the effective water content. See also the chapter
on "Core moisture, core water and absorbed water".
Additives
Additives that behave like water are also measured by the SWZ probe. This must be taken
into consideration.
For the G-Set parameter, it is therefore necessary to adjust the probe (one time only) to
the type of rock that is used, which depends on the concrete formulation. To be able to
display the effective (or kiln-dried) water content in the handheld device, it is necessary to
factor in a value for the "G-Set" parameter for the formulation used with the type of rock.
This value must be determined once.
If the water content that the probe displays for a special concrete is too high, G-Set must
be adjusted by the corresponding number of liters. The exact G-Set value to be factored in
for the concrete formulation with the rock type (location) and entered into the handheld
device can be verified or determined in two ways:
• By comparing the probe measurements with several correct values for the water content
of the concrete, for example by mixing concrete with dry aggregates.
• By comparing the probe measurements with several correct (!) kiln-dried values after
kiln-drying. It is important to take the possible sources of error into consideration during
the kiln-drying process.
The kiln-dry water content is calculated as follows:
Kiln-dried value = effective water + core water + additives that behave like water. See
also the chapter on "Core moisture, core water and water absorption".

Commissioning Solitrend MMP20 (Option D)
18 Endress+Hauser
7.7 Setting or changing the three concrete formulation
parameters
7.7.1 Changing or entering the raw density
Values must first be entered for the configurable parameters before the handheld device
can switch to the measurement mode to measure the water content.
1 Raw density D
2 Characteristics
3 General-Set
Characteristics of the concrete formulation with 4 possible settings: coarse A (minus
correction), normal B (no correction), fine C (plus correction), or special U (minus
correction for gap grading). Note: This parameter is significantly influenced by the mortar
content in the concrete.
General-Set: Fine adjustment of the probe to concrete variety with rock type and core
water. Entry max. ±50 l typically: –10 l (2/3 of core water) which are automatically
subtracted during the measurement if the effective water content (the effective water) is
to be measured.
If the kiln-dry water content is to be measured with the SWZ probe, enter a positive
value for the G-Set, with 1/3 of core water!
Entering the raw density
1. The first parameter to be configured is the raw density, which can be set in
increments of ±0.005. Ideally, the raw density is set correctly in the handheld device
before the measurement of the water content
2. Set the density value D of the fresh concrete, which is determined with a concrete
specimen, with the navigation keys
3. Press Enter to confirm your entry
 This automatically takes you back to the "Change" menu
It is important to enter the raw density value, as it is used directly to calculate the
water content. If the raw density cannot be determined on site, it is also possible to
enter the target raw density in order to obtain acceptable measurement results. A
density deviation of ±0.02 would mean an error of ±1.6 l in the water content
measurement. A difference of 0.1 in the raw density, i.e. from the density value 2.200
to 2.300 means a water content difference of 8 l!
7.7.2 Setting the CHAR formulation characteristic
The CHAR parameter is entered by activating one of the four possible settings:
• Fine C
• Medium B
• Coarse A
• Gap U
The CHAR parameter is significantly influenced by the mortar content in the concrete.

Solitrend MMP20 (Option D) Commissioning
Endress+Hauser 19
Entering the CHAR parameter
1. Using the navigation keys , select one of the four possible options for CHAR (fine
C, medium B, coarse A, or gap U)
2. Press Enter to confirm your entry
7.7.3 G-Set fine adjustment for concrete variety with rock type and
core water
The G-Set value is entered in liters/m3 and can be entered in increments of 1 l/m3 up
to a maximum of ±50 l/m3. Once a G-Set value is identified for a certain type of rock,
it is advisable to archive this value
Entering the G-Set value
1. Using the navigation keys , set the G-Set value in increments of 1 l/m3 up to
maximum ±50 l/m3
2. Press Enter to confirm your entry
 Once you have changed or set the raw density, the CHAR parameter and the G-
Set, you are taken automatically to the "Meas" menu when you press the Enter
key .
7.7.4 Measuring in the "Average" operating mode
The following screen appears in the "Meas" menu once the raw density and G-Set values
have been entered. The handheld device generally measures in the "Average" mode and
determines the kiln-dry water content of a fresh concrete sample in liters/m3 using the
raw density entered.
Starting a single measurement
1. Press the Enter key briefly
 The device starts the single measurement and a rotating symbol appears instead
of the battery symbol in the top right-hand corner for the duration of the
measurement process. No other actions can be performed during this time. A
single measurement takes around 2 to 3 s. When the measurement is finished,
the battery symbol appears on the display again.
2. The water content, calculated using the raw density D, is displayed in liters/m3 on the
screen. The number of individual measurements is displayed below this value in "No.
values".

Commissioning Solitrend MMP20 (Option D)
20 Endress+Hauser

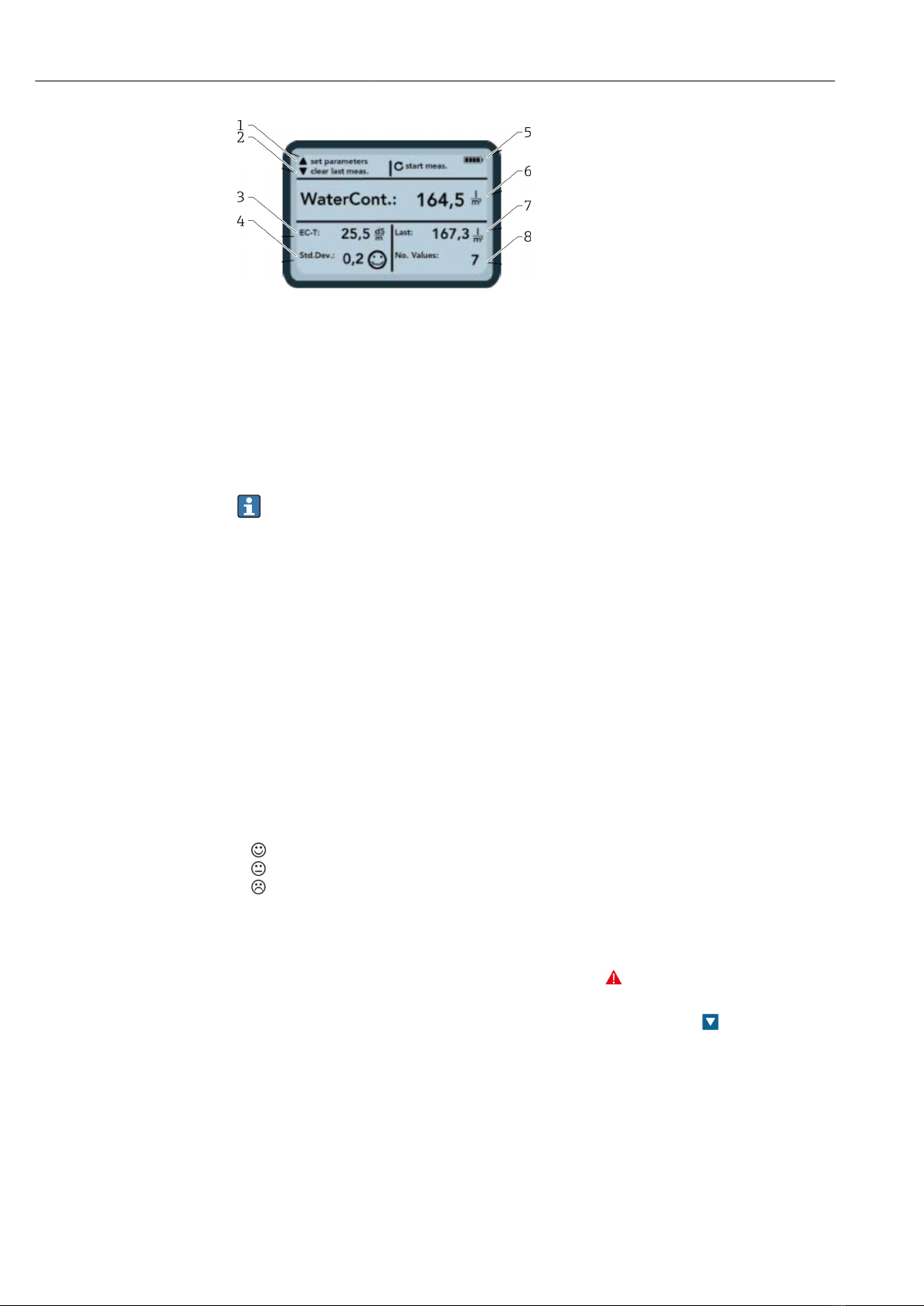

 12 The Meas menu
1 Set new parameters
2 Pressed briefly: delete last individual measurement value; pressed for longer: delete entire measurement
series
3 Conductivity / assessment of the cement
4 Standard deviation: more single measurements are needed if the std-dev is > 0.5 !
5 Remaining battery
6 Water content as an average value
7 Last single measurement (can be deleted)
8 Number of measurements performed
• To obtain a representative value for the material mix, take at least 5 individual
measurements (see Measurement cycle for SWZ probe).
• In the case of concretes that tend to bleed, taking a higher number of individual
measurements increases the accuracy and ensures a more representative value.
• Large gravel pieces directly at the surface of the probe can affect a reading; a lower
water content is measured, for example.
• Incorrectly mixed concretes are difficult to measure with the probe.
Measurement quality:
The standard deviation StdDev displayed by the handheld device reflects the quality of the
reading. If the StdDev value is >0.5, the concrete mix is too heterogeneous; more single
measurements are required. At least 6 single measurements should be taken and a StdDev
of 0.1 to 0.5 should be displayed before you can stop taking single measurements and
accept the measured value as the final result.
It is very difficult, however, to achieve a StdDev of <0.5 for very heterogeneous concrete
(e.g. concrete that bleeds significantly).
Smileys on the display screen indicate whether the standard deviation is good, acceptable
or not acceptable:
• good (<0.2)
• acceptable (0.2 to 0.49)
• not acceptable (>0.5)
The handheld device automatically filters out water content values that are less than
100 l/m3. For example, if the start button is accidentally pressed during a measurement
series or if the probe was not yet fully introduced into the concrete.
Values that are too low are flagged with a warning sign and are not used to calculate
the average.
The measurement series can be cleared by pressing the navigation key and the
handheld device is then ready for a new measuring cycle.
7.8 EC-T: a parameter for cement analysis
The EC-T parameter is displayed on the screen. With the TDR measurement method, the
electrical conductivity (EC-T) of the concrete is determined using high-frequency
attenuation of the radar pulse, making it possible to assess the cement content or cement
type. The displayed EC-T parameter can be interpreted as a preliminary value for the
cement content or cement type during single measurements, thereby ensuring enhanced
