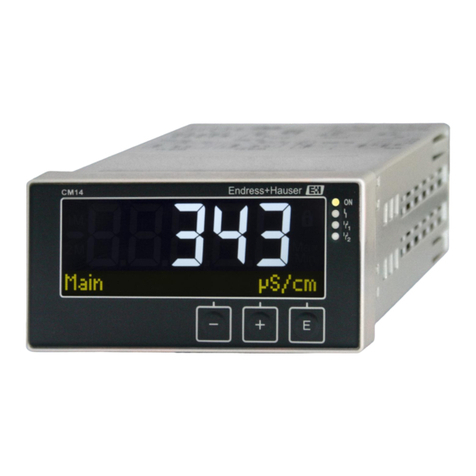

Operating Instructions
Liquiline CM14
Four-wire transmitter with Memosens input for
oxygen content
BA01033C/09/EN/04.22-00
71591816
2022-10-31
Valid as of FW version:
02.01.

Liquiline CM14 Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions .............. 4
1.1 Workplace safety .................... 4
1.2 Requirements concerning the staff ...... 4
1.3 Operational safety ................... 4
1.4 Intended use ........................ 4
1.5 Technical improvement ............... 5
1.6 Return ............................. 5
1.7 Notes on safety conventions and icons ... 5
2 Incoming acceptance and
product identification .......... 6
2.1 Incoming acceptance ................. 6
2.2 Product identification ................. 6
2.3 Certificates and approvals ............. 7
2.4 Storage and transport ................. 7
3 Mounting ........................ 8
3.1 Installation conditions ................ 8
3.2 Dimensions ......................... 8
3.3 Mounting procedure .................. 8
3.4 Post-installation check ................ 9
4 Electrical connection ........... 9
4.1 Connection conditions ................ 9
4.2 Connecting the transmitter ........... 10
4.3 Post-connection check ............... 11
5 Operation ...................... 11
5.1 Display and device status indicator /
LED ............................... 12
5.2 Local operation at the device .......... 12
5.3 Icons .............................. 13
5.4 Operating functions ................. 14
5.5 Hold function ...................... 14
6 Commissioning ................ 14
6.1 Post-installation check and switching
on the device ....................... 14
6.2 Display settings (Display menu) ....... 15
6.3 Notes on setup access protection ...... 15
6.4 Configuration of the device (Setup
menu) ............................ 16
6.5 Extended configuration (Extended
setup menu) ....................... 17
6.6 Device diagnostics (Diagnostics menu) .20
7 Calibration ..................... 22
7.1 Definitions ......................... 22
7.2 Device functions for calibration ....... 24
8 Maintenance .................. 24
8.1 Cleaning ........................... 24
9 Accessories .................... 25
9.1 Sensors ........................... 25
10 Diagnostics and
troubleshooting ............... 25
10.1 Troubleshooting instructions ......... 25
10.2 Diagnostic messages ................ 25
10.3 Firmware history ................... 29
10.4 Spare parts ........................ 30
10.5 Return ............................ 31
10.6 Disposal ........................... 31
11 Technical data ................. 31
11.1 Input .............................. 31
11.2 Output ............................ 31
11.3 Current outputs, active ............... 32
11.4 Relay outputs ...................... 32
11.5 Wiring ............................ 33
11.6 Performance characteristics .......... 34
11.7 Mounting conditions ................ 34
11.8 Environment ....................... 35
11.9 Mechanical construction ............. 36
11.10 Display and operating elements ....... 37
11.11 Certificates and approvals ............ 37
Index ................................. 38

Safety instructions Liquiline CM14
4 Endress+Hauser
1 Safety instructions
Safe operation of the transmitter is only guaranteed if these Operating Instructions have been
read and the safety instructions have been observed.
1.1 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment as per national regulations.
1.2 Requirements concerning the staff
The personnel for installation, commissioning, diagnostics and maintenance must fulfill the
following requirements:
‣Trained, qualified specialists: must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
‣Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
‣Being instructed and authorized according to the requirements of the task by the facility's
owner-operator
‣Following the instructions in these Operating Instructions
1.3 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for the interference-free operation of the device.
Modifications to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers!
‣If modifications are nevertheless required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability:
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to the repair of an electrical device.
‣Use only original spare parts and accessories.
1.4 Intended use
The transmitter evaluates measured values of an analytical sensor and visualizes them on its
multicolored display. Processes can be monitored and controlled with the device's outputs and
limit relays. The device is equipped with a wide array of software functions for this purpose.

Liquiline CM14 Safety instructions
Endress+Hauser 5
• The manufacturer accepts no liability for damages resulting from incorrect use or use other
than that intended. It is not permitted to convert or modify the device in any way.
• The device is designed for installation in a panel and must only be operated in an installed
state.
1.5 Technical improvement
The manufacturer reserves the right to adapt technical details to the most up-to-date
technical developments without any special announcement. Please contact your sales center
for information on modifications or updates to the Operating Instructions.
1.6 Return
For a return, e.g. in case of repair, the device must be sent in protective packaging. The
original packaging offers the best protection. Repairs may only be carried out by your
supplier's service organization.
When returning the device for repair, enclose a note with a description of the problem
and the application.
1.7 Notes on safety conventions and icons
1.7.1 Safety information
LDANGER
Causes (/consequences)
Consequences of non-compliance (if applicable)
‣Protective measure
‣This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
LWARNING
Causes (/consequences)
Consequences of non-compliance (if applicable)
‣Protective measure
‣This symbol alerts you to a dangerous situation. Failure to avoid the situation can result in
serious or fatal injury.
LCAUTION
Causes (/consequences)
Consequences of non-compliance (if applicable)
‣Protective measure
‣This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
moderate or minor injuries.

Incoming acceptance and product identification Liquiline CM14
6 Endress+Hauser
NOTICE
Causes (/consequences)
Consequences of non-compliance (if applicable)
‣Protective measure
‣This symbol alerts you to situations which may result in damage to property.
1.7.2 Document symbols
Permitted
Indicates procedures, processes or actions that are permitted.
Preferred
Indicates procedures, processes or actions that are preferred.
Forbidden
Indicates procedures, processes or actions that are forbidden.
Additional information, tips
Reference to documentation
Reference to a page in this manual
Reference to a graphic
2 Incoming acceptance and product identification
2.1 Incoming acceptance
Proceed as follows on receipt of the device:
1. Check whether the packaging is intact.
2. If damage is discovered:
Report all damage immediately to the manufacturer.
3. Do not install damaged material, as the manufacturer cannot otherwise guarantee
compliance with the safety requirements and cannot be held responsible for the
consequences that may result.
4. Compare the scope of delivery to the contents of the order.
5. Remove all the packaging material used for transportation.
2.2 Product identification
The following options are available for identification of the device:
• Nameplate specifications
• Extended order code with breakdown of the device features on the delivery note
2.2.1 Nameplate
The right device?

Liquiline CM14 Incoming acceptance and product identification
Endress+Hauser 7
Check the information on the nameplate of the device:
• Product name and manufacturer ID
• Order code, extended order code and serial number
• Power supply and power consumption
• Approvals
• Temperature range
• Firmware version and device revision
2.2.2 Name and address of manufacturer
Name of manufacturer: Endress+Hauser Conducta GmbH+Co. KG
Address of manufacturer: Dieselstraße 24, D-70839 Gerlingen
2.3 Certificates and approvals
For certificates and approvals valid for the device: see the data on the nameplate
2.3.1 Other standards and guidelines
• IEC 60529:
Degrees of protection provided by enclosures (IP code)
• IEC 61010-1:
Safety requirements for electrical equipment for measurement, control and laboratory use
• EN 60079-11:
Explosive atmospheres - Part 11: Equipment protection by intrinsic safety "I" (optional)
2.4 Storage and transport
Please note the following:
The permitted storage temperature is –40 to 85 °C (–40 to 185 °F); it is possible to store the
device at borderline temperatures for a limited period (48 hours maximum).
Pack the device for storage and transportation in such a way that it is reliably protected
against impact and external influences. The original packaging offers the best protection.
Avoid the following environmental influences during storage and transport:
• Direct sunlight
• Vibration
• Aggressive media

Mounting Liquiline CM14
8 Endress+Hauser
3 Mounting
3.1 Installation conditions
NOTICE
Overheating due to buildup of heat in the device
‣To avoid heat buildup, please always ensure that the device is sufficiently cooled.
Operating the display in the upper temperature limit range decreases the operating life
of the display.
The transmitter is designed for use in a panel.
The orientation is determined by the readability of the display. The connections and outputs
are provided on the rear. The cables are connected via coded terminals.
Ambient temperature range: –10 to +60 °C (14 to 140 °F)
3.2 Dimensions
Observe the installation depth of 150 mm (5.91 ") for the device incl. terminals and fastening
clips.
More dimensions can be found in the "Technical data" section →  31.
• Panel cutout: 92 mm x 45 mm (3.62 in x 1.77 in).
• Panel thickness: max. 26 mm (1 in).
• Max. viewing angle range: 45° to the left and right from the central display axis.
• If the devices are arranged horizontally beside one another in the X-direction, or arranged
vertically on top of one another in the Y-direction, the mechanical distance (specified by the
housing and front section) must be observed.
3.3 Mounting procedure
The necessary panel cutout is 92 mm x 45 mm (3.62 in x 1.77 in).
A0015216
 1 Installation in a panel

Liquiline CM14 Electrical connection
Endress+Hauser 9
1. Screw the threaded rods (item 2) into the positions provided on the mounting frame
(item 1). Four opposing screw positions (item 3/4) are available for this purpose.
2. Push the device with the sealing ring through the panel cutout from the front.
3. To secure the casing in the panel, hold the device level and push the mounting frame
(item 1), with the threaded rods screwed in, over the casing until the frame locks into
position.
4. Tighten the threaded rods to fix the device in place.
To remove the device, the mounting frame can be unlocked at the locking elements (item 5)
and then removed.
3.4 Post-installation check
• Is the sealing ring undamaged?
• Is the mounting frame securely fastened on the housing of the device?
• Are the threaded rods properly tightened?
• Is the device located in the center of the panel cutout?
4 Electrical connection
4.1 Connection conditions
LWARNING
Danger! Electric voltage!
‣The entire connection of the device must take place while the device is de-energized.
Danger if protective ground is disconnected
‣The protective ground connection must be established before all other connections.
NOTICE
Cable heat load
‣Use suitable cables for temperatures of 5 °C (9 °F) above ambient temperature.
Incorrect supply voltage can damage the device or cause malfunctions
‣Before commissioning the device, make sure that the supply voltage matches the
specifications on the nameplate (bottom side of the housing).
Check emergency shutdown for device
‣Provide suitable switch or circuit breaker in building installation. This switch must be
provided close to the device (within easy reach) and marked as a circuit breaker.
Protect the device from overload
‣Provide overload protection (nominal current = 10 A) for power cable.
Incorrect wiring may result in the device being destroyed
‣Note terminal designation on the rear of the device.

Electrical connection Liquiline CM14
10 Endress+Hauser
Energy-rich transients in the case of long signal lines
‣Connect a suitable overvoltage protection in series upstream.
The mixed connection of safety extra-low voltage and dangerous contact voltage to the
relay is permitted.
4.2 Connecting the transmitter
A0015215
 2 Connection diagram of the transmitter
Terminal Description
87 Terminal for Memosens cable, brown, sensor power supply U+
88 Terminal for Memosens cable, white, sensor power supply U-
97 Terminal for Memosens cable, green, Com A
98 Terminal for Memosens cable, yellow, Com B
SHD Terminal for Memosens cable, shield
D11 Terminal for alarm output, +
D12 Terminal for alarm output, -
L/+
Terminal for transmitter supply voltage
N/-
 PE
133 Terminal for analog output 1, +
134 Terminal for analog output 1, -
