Endress+Hauser AT5000 User manual

BA01012G/08/en/13.10
71124748
Operating Instructions
Analog Transmitter AT5000 AT500
Alarm transmitter for mechanical level gauges

Analog Transmitter AT500
Endress+Hauser 2
Teble of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . 3
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Notes on safety conventions and symbols . . . . . . . . . . . . . 4
2 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Scope of delive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.4 Certificates and approvals . . . . . . . . . . . . . . . . . . . . . . . . . 7
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
3.1 Incoming acceptance, transport, storage . . . . . . . . . . . . . . 8
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.4 Alarm settup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
4.1 A contact point: Normal open . . . . . . . . . . . . . . . . . . . . 15
4.2 B contact point: Normal open . . . . . . . . . . . . . . . . . . . . 15
4.3 C contact point: Transfer . . . . . . . . . . . . . . . . . . . . . . . . 16
5 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
6.1 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.2 Trouble-shooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.4 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.5 Contact addresses of Endress+Hauser . . . . . . . . . . . . . . 20
7 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Analog Transmitter AT500
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
The AT500 Analog transmitters are used in conbination with LT11/12/14/16 of mechanical float tank
gauge.
When level gauge indicator reaches alarm setting point, AT500 transmitter output an alarm contact output by
operating microswitch.
The AT500 is a limit contact unit that has six contacts available for controlling the level of the tank contents.
1.2 Installation, commissioning and operation
• Mounting, electrical installation, start-up and maintenance of the instrument may only be carried out by
trained personnel authorized by the operator of the facility.
• Personnel must absolutely and without fail read and understand these installation instructions before carry-
ing out the procedures..
• The instrument may only be operated by personnel who are authorized and trained by the operator of the
facility. All instructions in this manual are to be observed without fail.
• The installer must make sure that the measuring system is correctly wired according to the wiring diagrams.
The measuring system is to be grounded.
• Please observe all provisions valid for your country and pertaining to the opening and repairing of electrical
devices.
1.3 Operational safety
1.3.1 Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex documentation",
which is an integral part of this Operating Manual. Strict compliance with the installation instructions and
ratings as stated in this supplementary documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as pipe as national and local regulations.
1.3.2 FCC approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution!
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
1 Safety instructions

Analog Transmitter AT500
4Endress+Hauser
1.4 Notes on safety conventions and symbols
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
Symbol Meaning
Warning!
A warning highlights actions or procedures which, if not performed correctly,
will lead to personal injury, a safety hazard or destruction of the instrument.
Caution!
Caution highlights actions or procedures which, if not performed correctly,
may lead to personal injury or incorrect functioning of the instruments.
Note!
A note highlights actions or procedures which, if not performed correctly,
may indirectly affect operation or may lead to an instrument response which
is not planned.
Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed
in an explosion hazardous area.
Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous area.
- Devices located in and wiring entering areas with the designation
"explosion hazardous areas" must conform with the stated type of
protection.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous
areas.
- Devices located in safe areas still require a certificate if their outputs run
into explosion hazardous areas.
Direct voltage
A terminal to which or from which a direct current or voltage may be
applied or supplied
Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or
voltage may be applied or supplied
Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already
grounded by means of an earth grounding system.
Protective grounded (earth) terminal
A terminal which must be connected to earth ground prior to making any
other connection to the equipment.
Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g.
neutral star or equipotential line according to national or company practice
EX
EX
1 Safety instructions

Analog Transmitter AT500
Endress+Hauser 5
2 Identification
2.1 Device designation
2.1.1 Nameplate
The follow technical data are given on the instrument nameplate:
TIIS approval type
ԙ
Order cord
Measuring range
Type
Serial number
Explosion model
Protection class
Rating (contact output)
Rating (contact output)
Rating (contact output)
This name plate is attached by customer’ requests.
2 Identification

Analog Transmitter AT500
6Endress+Hauser
2.2 Ordering information
010 Alarm Output:
2 2-point
4 4-point
6 6-point
9 Special version, TSP-no. to be spec.
020 Function:
0Basic version
1Special version, TSP-no. to be spec.
030 Approval:
B Flame proof d2G4,cable gland, TIIS
E Flame proof d2G4, TIIS
W Weather proof IP65
YSpecial version, TSP-no. to be spec.
040 Level Gauge Combination:
1 LT1100/1200/3100/3200 R:300mm Low pressure LT version
2 LT1400/1600/3400/3600 R:300mm High pressure LT version
3 LTC 2100 L:600mm
4 LTC 2230/2240 R:600mm
9Special version, TSP-no. to be spec.
050 Measuring Range:
1 2.5ｍ(not available for LTC)
25ｍ
310ｍ
520ｍ
630ｍ
9Special version, TSP-no. to be spec.
060 Alarm Contact:
1 A ＝ normal open
2 B ＝ normal close
3 C ＝ transfer contact
YSpecial version, TSP-no. to be spec.
070 Cable Entry:
A Thread PF(G)3/4
C Thread PF(G)1-1/2
G Gland PF(G)1, TF22-13
H Gland PF(G)1, TF22-15
K Gland PF(G)1-1/4, TF28-21
R ThreadNPT3/4
S Thread NPT1
T Thread M25
YSpecial version, TSP-no. to be spec.
080 Colour:
0 Sliver
9Special version, TSP-no. to be spec.
AT500- Complete product designation
2 Identification

Analog Transmitter AT500
Endress+Hauser 7
2.3 Scope of delive
Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring instruments given in the chapter "Incoming acceptance, transport, storage".
The scope of delivery consists of:
• Assembled instrument
Accompanying documentation:
• Operating manual (this manual)
2.4 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the factory in a
condition in which it is safe to operate. The device complies with the applicable standards and regulations as
listed in the EC declaration of conformity and thus complies with the statutory requirements of the EG
directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.
2 Identification

Analog Transmitter AT500
8Endress+Hauser
3 Installation
3.1 Incoming acceptance, transport, storage
3.1.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.1.2 Transport
Caution!
Follow the safety instructions and transport conditions for instruments of more than 18kg. Do not lift the
measuring instrument by its housing in order to transport it.
3.1.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The original
packing material provides the optimum protection for this.
The permissible storage temperature is -20°C...+60°C (-4°F...+140°F)
3 Installation

Analog Transmitter AT500
Endress+Hauser 9
3.2 Installation conditions
3.2.1 Dimensions
Flame proof
Flame proof Dimensions
228mm
Ø 136mm
152mm
Ø 116mm
228mm
Ø 136mm
Ø 136mm
168mm
255mm
Ø 218mm
Ø 136mm
208mm
A
larm contact : 2, 4 points (A, B contact)
Terminal box
Locking
Cover
Housing
Alarm contact : 4 points (C contact)
Housing
Terminal box
Locking
Cover
Alarm contact : 6 points
Housing
Terminal box
Locking
Cover
3 Installation

Analog Transmitter AT500
10 Endress+Hauser
Weather proof
Weatherproof Dimensions
228mm
Ø 136mm
169mm
Ø 116mm
228mm
Ø 136mmØ 136mm
159mm
266mm
Ø 218mm
Ø 136mm
193mm
Terminal box
Cover
Housing
Alarm contact : 2, 4 points (A, B contact)
Alarm contact : 4 points (C contact)
Housing
Terminal box
Cover
Cover
Alarm contact : 6 points
Housing
Terminal box
Cover
Cover
3 Installation

Analog Transmitter AT500
Endress+Hauser 11
3.3 Installation
Attach the stud bolt, nut, washer, and coupling as shown in the diagram.
• Screw the stud bolt on the back of the level gauge as shown in the diagram.
(the side with the shorter screw is the rear side)
Note!
Terminal box is available in any direction, but it is preferable to install in sideways.
Installation with Float Tank Gauge
• Insert the coupling in the core nozzle of the transmitter.
Tightly wind the coupling into the transmitter using the washer and nut.
• Attach the transmitter and the level gauge by connecting coupling gap on the transmitter and the coupling
pin on the level gauge. If the coupling’s gap and the pin do not meet perfectly, the transmitter and the level
gauge cannot be connected. If the connection does not go smoothly, check to make sure that you are con-
necting the correct points (coupling gap and pin) on both sides of the device.
Note!
If you press the transmitter and the level gauge too firmly against each other, you might break the main shaft
and the device will no longer be good for use.
Level gauges
Stud bolt Coupling
AT500 transmitter
Terminal box
Connecting flange of transmitter
Shaft
Coupling
Float Level gauge
Transmitter
3 Installation

Analog Transmitter AT500
12 Endress+Hauser

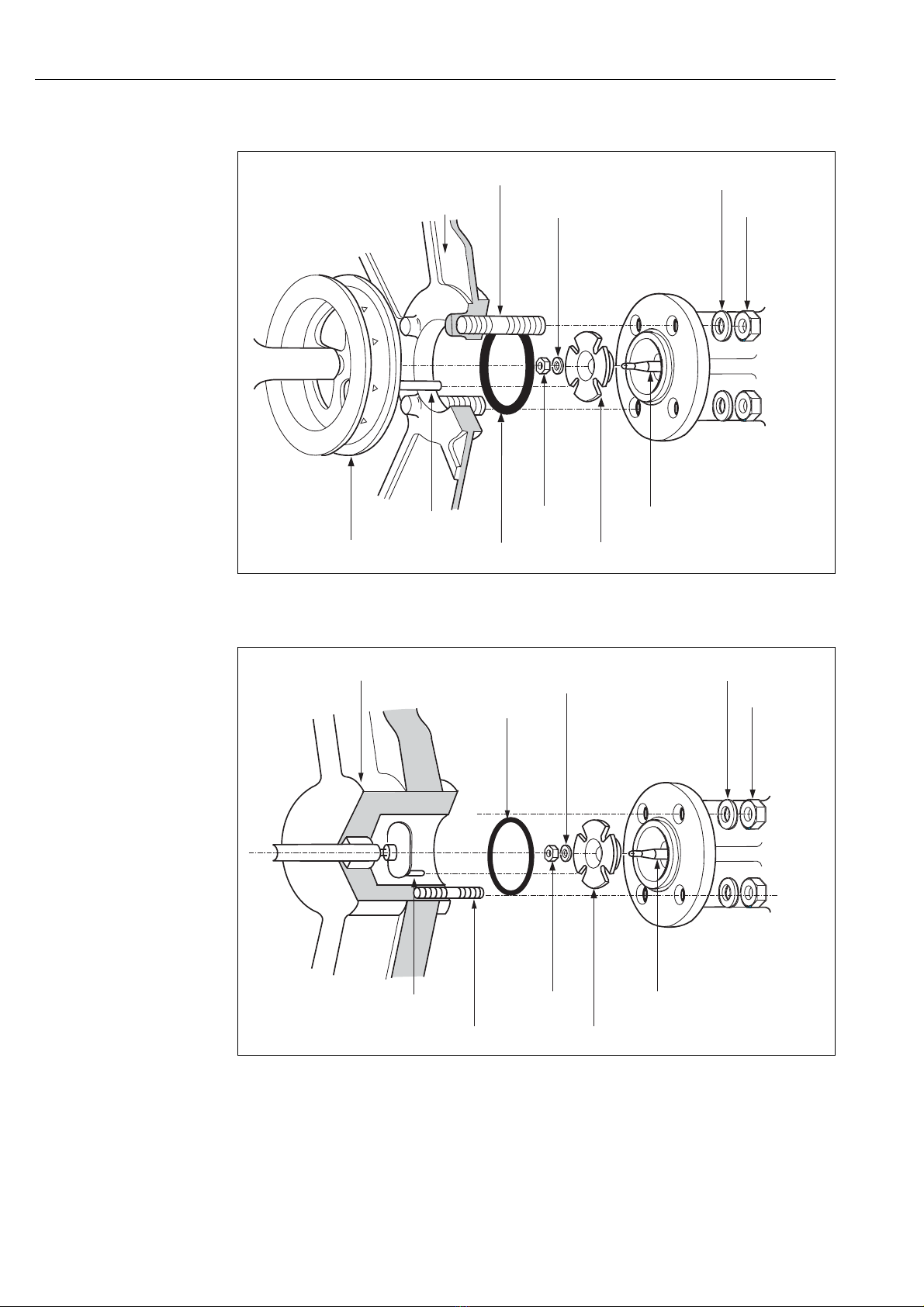

Installation with Low pressure (LT11/12/31/32)
Installation with Medium and high prresure(LT14/16/34/36)
Rear of float level gauge
Threaded bolt
Studded washer
Spring washer
Hexagonal nu
t
Sprocket wheel
Drive shaft
O-ring
Hexagonal nut
Coupling
Drive pin
Rear of float level gauge
O-ring
Studded washer Spring washer
Hexagonal nut
Drive pin
Threaded bolt
Hexagonal nut
Coupling
Drive shaft
3 Installation

Analog Transmitter AT500
Endress+Hauser 13
Tank installation with Float Tank Gauge
Terminal box Transmitter Float level gauge
Universal fitting
Flexible fitting
Thick steel
with M-type (both ends) union
See cable entry for transmitter
3 Installation

Analog Transmitter AT500
14 Endress+Hauser
3.4 Alarm settup
• First, the transmitter must be installed onto the float level gauge, after indicating adjustment of
float level gauge. After the installation, remove the transmitter’s cover.
• Loosen the screw on the warm gear, rotate camshaft and set the level setting scale to the level
data of the float level gauge, and tighten the screw on the warm gear.
• Next, loosen the two screws and adjust the scale point to the desired alarm setting on the alarm
scale. After the scale setting is complete, fasten the cam screw to finish the setup. If you are hand-
ling the multiple point model, repeat this process.
Upper and Lower limit Setting
Adjustment screw
Micro switch
Screw
Index
Level-setting scale
Alarm cam
Scale
Alarm scale
Warm gear
Warm gear screw
Cam shaft
5
2m
0
5
0
5
0
Lower limit Upper limit
Switch: ON Switch: ON
Locking screw Locking screw
Upper limit : 2m
Lower limit : 4m
e.g.
Red mark
Red mark
Locking screw
Loosen locking screw on cam and
adjust red mark to 2m on scal.
Lock with screws.
Main scale plate
Loosen locking screw on cam and
adjust red mark to 4m on scal.
Lock with screws.
3 Installation

Analog Transmitter AT500
Endress+Hauser 15
4 Wiring
The cable used for the wiring should be IV 1.25 mm2 (JIS600V) or better.
4.1 A contact point: Normal open
4.2 B contact point: Normal open
TerminalNo.
2 contacts
4 contacts
6 contacts
Terminal No.
Alarm
contact
2 contacts
4 contacts
6 contacts
L, L
12 3456 789
10 11 12
H
L
L, L
L, L, L
L
H, H
H
L
L, L
H
L
H, H
HH, H H, H, H
1
2
3
4
5
6
7
8
9
10
11
12
e.g. : contact output
Note!
High and Low combination is changed by customer specification
2 contacts
4 contacts
6 contacts
Terminal No.
Alarm
contact
2 contacts
4 contacts
6 contacts
L, L
12 3456 78 9 10 11 12
H
L
L, L
L, L, L
L
H, H
H
L
L, L
H
L
H, H
HH, H H, H, H
1
2
3
4
5
6
7
8
9
10
11
12
Terminal No.
e.g. : contact output
Note!
High and Low combination is changed by customer specification
4 Wiring

Analog Transmitter AT500
16 Endress+Hauser
4.3 C contact point: Transfer contact
2 contacts
4 contacts
6 contacts
Terminal No.
Alarm
contact
2 contacts
4 contacts
6 contacts
L, L
12 3456 78 9 10 11 12
H
L
L, L
L, L, L
L
H, H
H
L
L, L
H
L
H, H
HH, H H, H, H
1
2
3
4
5
6
7
8
9
10
11
12
Terminal No.
e.g. : contact output
Note!
High and Low combination is changed by customer specification
13
14
18
17
16
15
4 Wiring

Analog Transmitter AT500
Endress+Hauser 17
5 Maintenance
After adjusting for transmitter and receiver installation, there is no need to consider about operating
procedure.
Please check on AT500 periodically in accordance with following maintenance procedure.
Repaires
The Endress+Hauser repair concept assumes that the measuring devices have a modular design and that
customers are able to undertake repairs themselves. Spare parts are contained in suitable kits. They contain
the related replacement instructions. All the spare parts kits which you can order from Endress+Hauser for
repairs to the Prothermo are listed with their order numbers on "6. Spare parts".
Please contact Endress+Hauser Service for further information on service and spare parts.
Repaires to Ex-approved devices
When carrying out repairs to Ex-approved devices, please note the following:
• Repairs to Ex-approved devices may only be carried out by trained personnel or by the Endress+Hauser
Service.
• Comply with the prevailing standards, national Ex-area regulations and certificates.
• Only use original spare parts from Endress+Hauser.
• When ordering a spare part, please note the device designation on the nameplate. Only replace parts with
identical parts.
• Carry out repairs according to the instructions. On completion of repairs, carry our the specified routine test
on the device.
• Only Endress+Hauser Service may convert a certified device into a different certified variant.
• Document all repair work and conversions.
Checking spot Checking procedure Countermeasure
Alarm cam Check alarm cam (switching point) If switching point shifts from the right
place, adjust the point again.
Alarm micro-switch Check a contact performance. Replace performance failure micro-switch.
Wiring and connected
terminal
Check disconnection and connection
terminal loose
5 Maintenance

Analog Transmitter AT500
18 Endress+Hauser
6Troubleshooting
6.1 Spare parts
Spare parts are contained in kits. Spare parts which you can order from Endress+Hauser for the Transmitter
are shown with their order numbers in the diagram below. For more information on service and spare parts,
contact Endress+Hauser.
㪇
㪌
㪈㪇
㪈㪇
㪇
㪌
㪈㪇
21
21
21
21
11
11
57
Internal unit
31
Alarm assembly
58
11
56
75
11
2 and4 points
Weather proof
6 points
Flame proof
6 points
2 and 4 points (A/B contact)
Flame proof
4 points (C contact)
6 points (A/B/C contact)
Weather proof
4 points (C contact)
6 points (A/B/C contact)
Weather and flame proof
Weather and flame proof
6 Troubleshooting

Analog Transmitter AT500
Endress+Hauser 19
11
017880-5025
017880-5026
017880-5027
017880-1231
O-ring, main body, NBR
21
017871-1230
017860-6324
017871-6329
017860-6326
Cover terminal box,large
31 Microswitch
56
017871-1221 Main shaft assembly, AT500
57
017871-1215
017871-1216
017871-1217
017871-1218
017871-1219
Gear wheel, LT2.5m, LTC5m, AT500
58
56004259
56004262
56004258
56004260
56004261
71071076
56004264
56004267
56004263
56004265
56004266
71071079
56004269
56004272
56004268
56004270
56004271
71071080
75 017871-1233
017871-1232
O-ring, terminal box, small, NBR
O-ring, EI-compartment, large
O-ring, coupling
Large-long cover main body
Large-short cover main body
Gear wheel, LT5m, LTC10m, AT500
Gear wheel, LT10m, AT500
Gear wheel, LT20m, AT500
Gear wheel, LT30m, AT500
Alarm assembly, 2 contacts, LT2.5m, AT500
Alarm assembly, 2 contacts, LT5m, AT500
Alarm assembly, 2 contacts, LT10m, AT500
Alarm assembly, 2 contacts, LT20m, AT500
Alarm assembly, 2 contacts, LT30m, AT500
Alarm assembly, 2 contacts, LTC5m, AT500
Alarm assembly, 4 contacts, LT2.5m, AT500
Alarm assembly, 4 contacts, LT5m, AT500
Alarm assembly, 4 contacts, LT10m, AT500
Alarm assembly, 4 contacts, LT20m, AT500
Alarm assembly, 4 contacts, LT30m, AT500
Alarm assembly, 4 contacts, LTC5m, AT500
Alarm assembly, 6 contacts, LT2.5m, AT500
Alarm assembly, 6 contacts, LT5m, AT500
Alarm assembly, 6 contacts, LT10m, AT500
Alarm assembly, 6 contacts, LT20m, AT500
Alarm assembly, 6 contacts, LT30m, AT500
Alarm assembly, 6 contacts, LTC5m, AT500
Coupling, transmitter,LT11,12
Coupling, transmitter,LT14,16
6 Troubleshooting

Analog Transmitter AT500
20 Endress+Hauser
6.2 Troubleshooting
6.3 Return
The following procedures must be carried out before a transmitter is sent to Endress+Hauser e.g. for repair or
calibration:
• Remove all residue which may be present. Pay special attention to the gasket grooves and crevices where
fluid may be present. This is especially important if the fluid is dangerous to health, e.g. corrosive,
poisonous, carcinogenic, radioactive, etc.
• Always enclose a duly completed “Declaration of contamination” form (a copy of the “Declaration of
contamination is included at the end of this operating manual). Only then can Endress+Hauser transport,
examine and repair a returned device.
• Enclose special handling instructions if necessary, for example a safety data sheet as per EN 91/155/EEC.
Additionally specify:
• An exact description of the application.
• The chemical and physical characteristics of the product.
• A short description of the error that occurred (specify error code if possible)
• Operating time of the device.
6.4 Disposal
In case of disposal please separate the different components according to their material
consistence.
6.5 Contact addresses of Endress+Hauser
The addresses of Endress+Hauser are given on the back cover of this operating manual. If you have
any questions, please do not hesitate to contact your Endress+Hauser representative.
Error condition Cause Countermeasure
Signal is not
switched
Microswitch failure Microswitch replacement
Alarm setup position gap Readjust as necessary
Level gauge failure Check Level gauge
6 Troubleshooting
