User Manual
1/2.8” Network Dome, Fixed,
Day&Night, 1920x1080,
Infrared, 12VDC, PoE, IP66
IED-62F0036M0A
IED-62V2812M0A

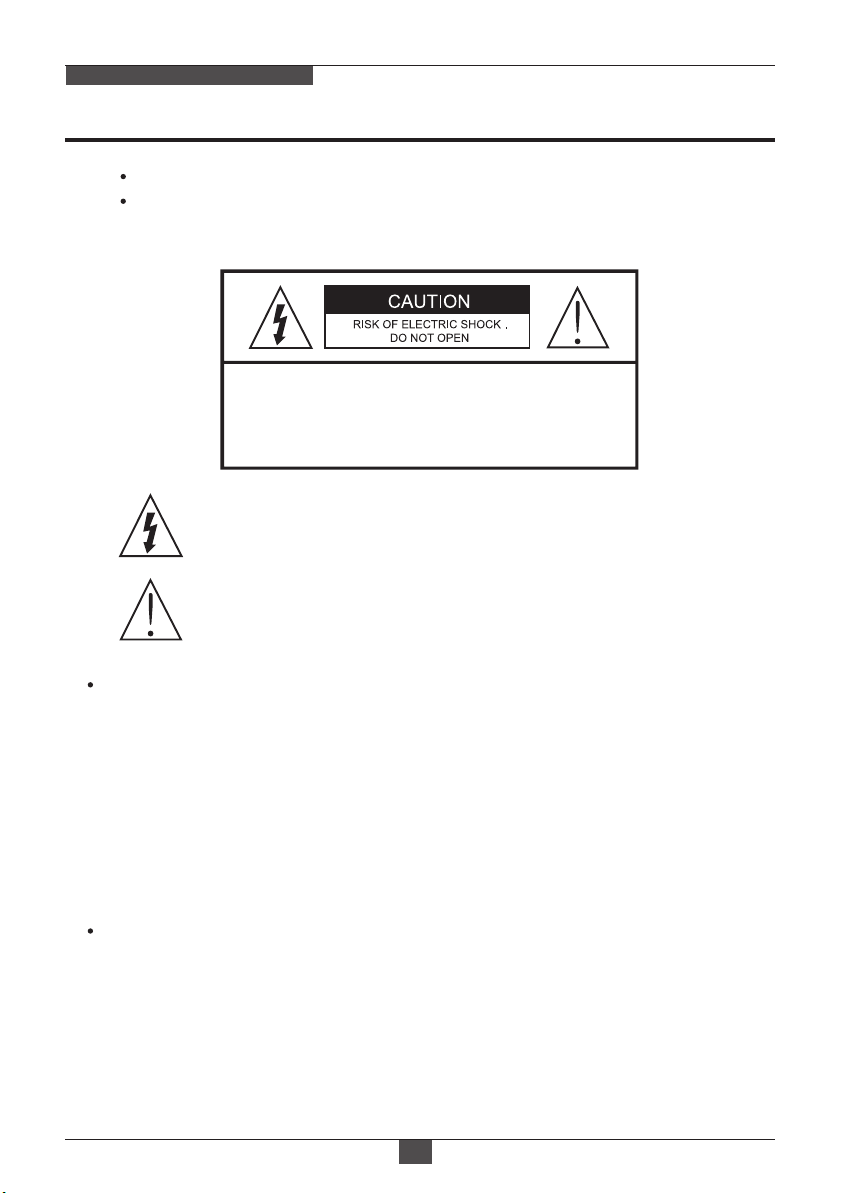

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
To prevent electric shocks and risk of fire hazards, do NOT use other than
specific power source.
Warning :
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.
Caution :
Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority
to operate the equipment.
Mains power quality should be that of a typical commercial environment. If the user
of the model requires continued operation during power mains interruptions, it is
recommended that the model be powered from an uninterruptible power supply
(UPS) or a battery.
The symbol is intended to alert the user to the presence of important
operating and maintenance(servicing) instructions in the literature
accompanying the unit.
The symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
Safety Precaution
03
MEGA-PIXEL NETWORK CAMERA

Safety Precaution
04
MEGA-PIXEL NETWORK CAMERA
NOTICE
• The image used in this instruction manual are processed to help comprehension
and may differ from actual video of the camera.
• Avoid installing areas where has shock or vibration which results in the problems.
•Pay attention to safety when laying the connection cable and observe that the cable
is not subjected to heavy loads, kinks or damage and no moisture can get in.
• Never open the device such as boards or lens.
The warranty becomes void if repairs are undertaken by unauthorized persons.
• Maintenance and repair have to be carried out only by authorized service centers.
• Use only a mild detergent to clean the housing body only but never for the clear
bubble dome.
• The camera should never be operated beyond the technical specifications.
This can lead to destruction.
• The camera should never be operated in water.

Contents
05
MEGA-PIXEL NETWORK CAMERA
Safety Precaution
p.03~04
Contents
p.05
Features
p.06
Composition
p.07
Dimensions
p.07
Part Names
p.08
Installation Instructions
p.09~10
Operating Instructions
p.11~18
Troubleshooting
p.19~20
Specifications
p.21~22

Features
06
MEGA-PIXEL NETWORK CAMERA
• Full-HD 2Mega Pixel, NETWORK CAMERA, 1920x1080(30p/25p)
• ONVIF Conformance
• Zero configuration
• Cross Web Browsing (IE, Edge, Safari, Firefox, Chrome)
• Adaptive web resizing depending on layout & resolution of
display device by RESPONSIVE WEB
• Increased usability for all PC, tablet and mobile
• Simultaneously H.264 & MJPEG (Triple streaming)
• ONVIF Event Mapping
• Lens
>IED-62V2812M0A : f=2.8~12mm F1.4, Mega pixel Vari-focal lens
>IED-62F0036M0A : f=3.6mm F2.3, Mega pixel Fixed lens
• Dual Filter Switcher
• D-WDR (Digital Wide Dynamic Range)
• Improved noise figure with the enhanced 3DNR
• Motion Detection, Privacy Mask, Tamper, Defog, BLC/HLC,
D-Zoom(~16x), Mirror/Flip, LDC(Lens Distortion Correction),
Sens-up(Slow Shutter), Smart IR, Hue, Contrast, Brightness,
Saturation, Sharpness, Auto-Flickerless, VerticalView(90°/270°)
• Circuit protection against faulty connection in power polarity
• PoE(IEEE Std. 802.3af) & DC12V
• Built-in 30pcs IR-LED
• 3-Axis Gimbal, Surface mount
• Optimized Cooling System
• IP66 Protection

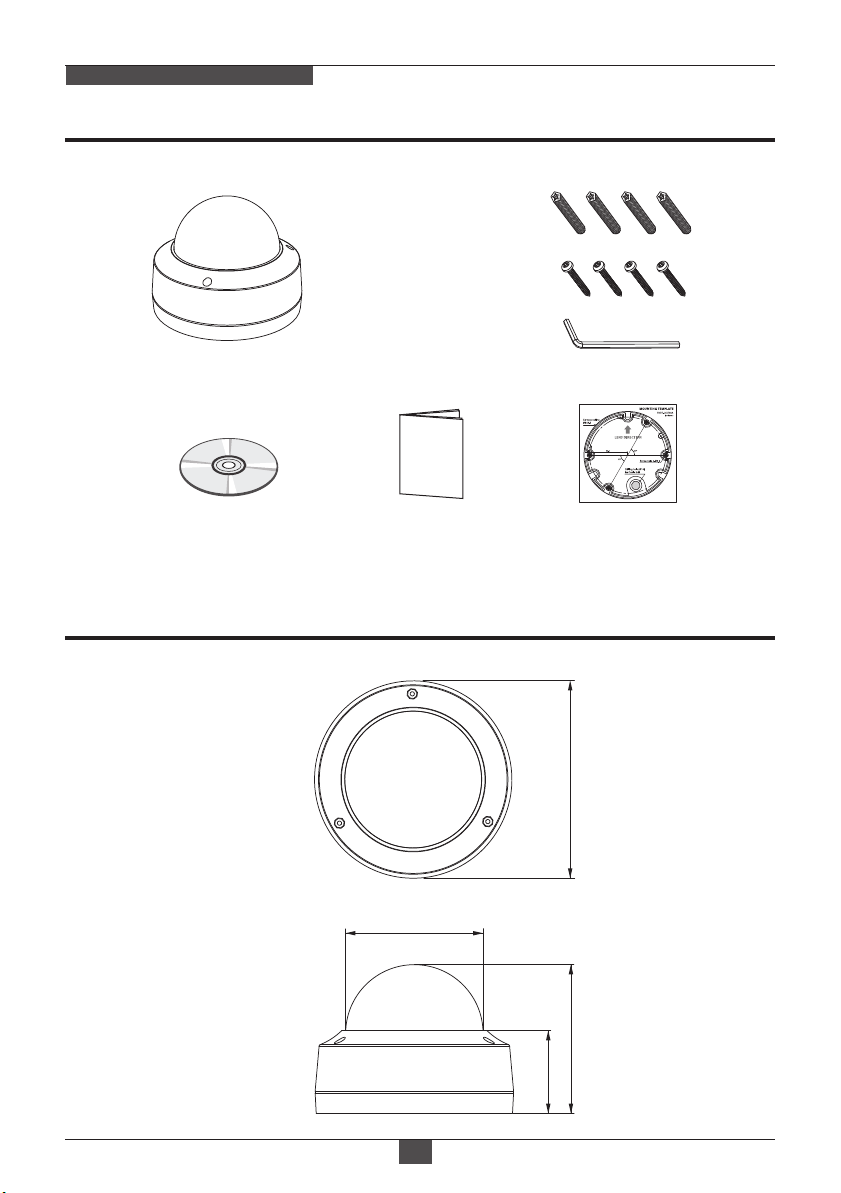

Composition
07
Dimensions
MEGA-PIXEL NETWORK CAMERA
(unit : mm)
Network Camera
Installation CD
Ø144
Ø100
108
60
Mounting TemplateOperating Instruction
Mounting Screw:
4 x 25mm (4pcs)
Plastic Anchor:
6.5 x 26.6mm (4pcs)
L-Wrench (1pc)

Part Names
08
MEGA-PIXEL NETWORK CAMERA
3-Axis
Gimbal
Dome
Cover
REAR VIEW
Bubble Dome
Dome Base
Power Cable
Zoom
lever
RESET button
Focus
lever
[ IED-62V2812M0A ] [ IED-62F0036M0A ]

Installation Instructions
09
MEGA-PIXEL NETWORK CAMERA

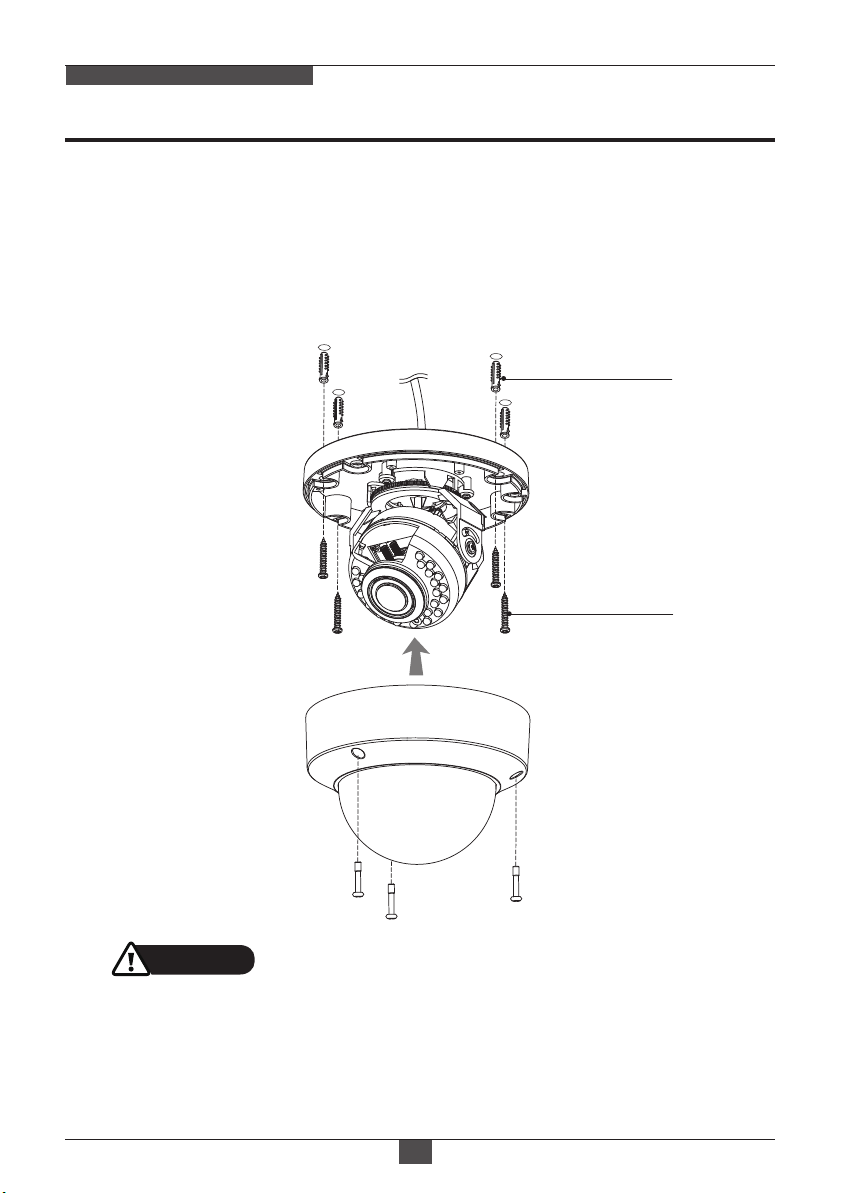

Mounting Screw
(4x25mm)
Plastic Anchor
(6.5x26.6mm)
• Extreme care should be taken NOT to scratch the lens and the bubble dome
surface while the camera installing or adjusting.
• Care should be taken the cable is NOT to be damaged, kinked or exposed in
the hazardous area.
• Do not expose the camera directly to a strong light source such as the sun or
spot light.
CAUTION
1. Drill four holes for mounting on the ceiling or wall.
2. Place the dome base at the pre-drilled installation position and fix it by using
mounting screws.
3. Route the power & ethernet cable to the connecting place.
4. Adjust the camera’s viewing angle (Pan, Tilt, Rotation)
5. Assemble the dome cover to the dome base unit.

Installation Instructions
10
MEGA-PIXEL NETWORK CAMERA
Limit of Pan & Tilt
Installation and commissioning Instructions
• Make sure the power is removed before the installation.
• After all connections are finished properly, follow the order for applying power.
a) Plug the network cable into RJ-45 Ethernet Port.
If PoE is the unique power, there will be no need to connect Power jack.
b) When DC12V Local power is necessary, connect the low voltage (DC12V)
first, then plug the DC adapter to DC outlets to avoid an improper reset from
power jitter and a damage from the surge voltage when no load.
► When PoE and Local DC power are connected at the same time,
Local power has priority.
1) Pan limit:
Adjusts the first pan angle by turning
the gimbal 360˚.
2) Tilt limit:
Tilt is limited to 25°min ~ 90°max. with
reference to the ceiling when the
inclination of camera module is 0°, that
is, the image is aligned horizontally.
3) Rotation limit
(Horizontal image alignment):
Adjust the rotation angle by turning
the upper gimbal 360°.
Pan
Tilt
Rotation
• Be careful with the cable twisting
during pan or tilt adjustments.
CAUTION
Zoom & focus adjustments (Vari-focal lens type)
• Turn the Focus lever to “N”(Near) or “∞”(Far) until the sharpest focus is made.
• To widen the viewing angle, turn the Zoom to “W”(Wide) and to obtain a closer
view, turn it to “T”(Tele)
25º
90º
