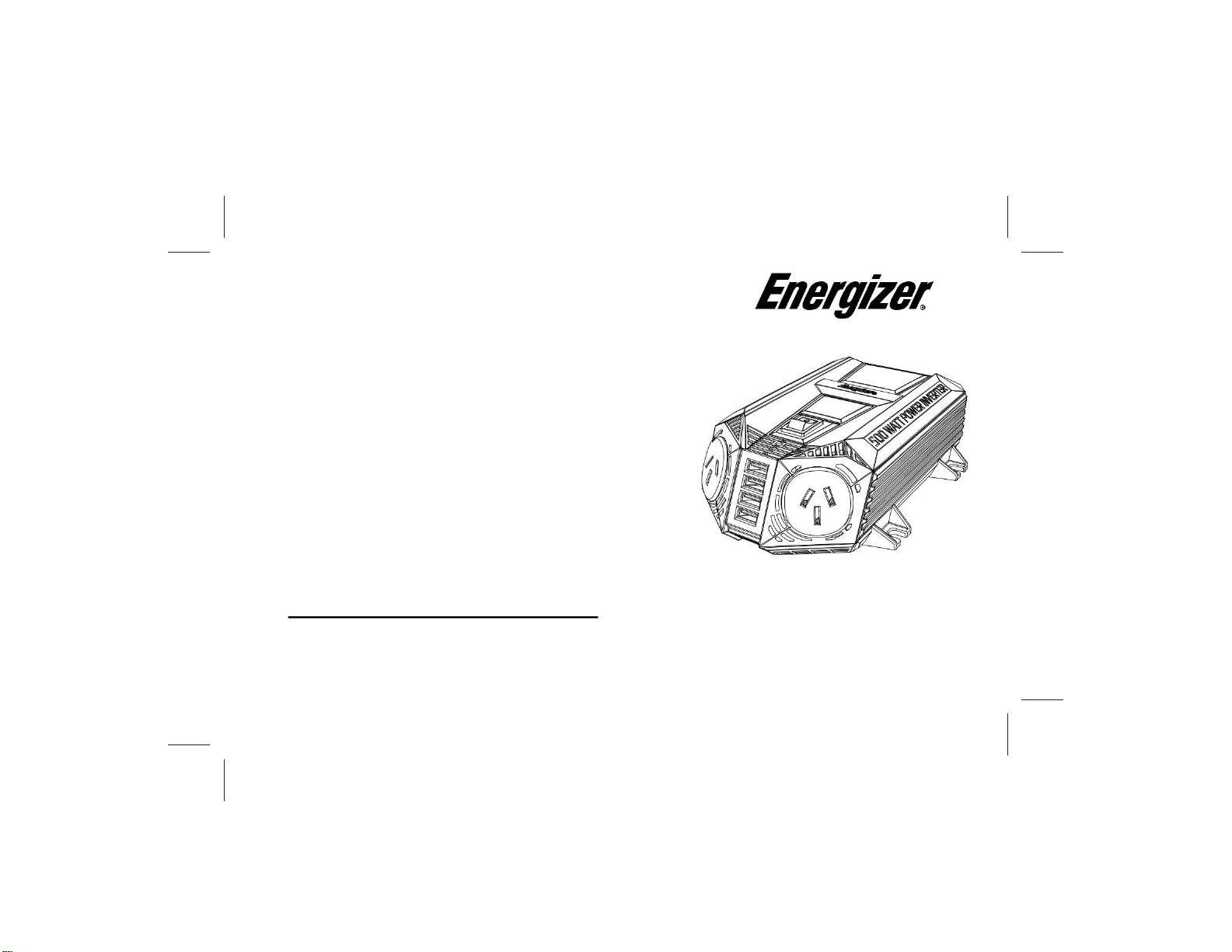

Energizer ENA548 User manual

WARNING:
This Unit employs Components that tend to produce arcs or sparks –To
prevent fire or explosion, do not install in compartments containing
batteries or flammable materials - SHOCK HAZARD. DO NOT OPEN.
CAUTION:
OUTPUT NON-SINUSOIDAL REFER TO MANUAL - Provided with
integral protection against overloads. To prevent fire, do not cover or
obstruct ventilation openings. Do not mount in Zero-Clearance
compartment. Overheating may result.
Notice :
The output of this device is not sinusoidal. It has a total harmonic
distortion of 30% and maximum single harmonic of 8%
© 2020 Energizer. Energizer and certain graphic designs are trademarks of
Energizer Brands, LLC and related subsidiaries and are used under license by
Bright Manufacturing, LLC. All other brand names are trademarks of their
respective owners. Neither Bright Manufacturing, LLC nor Energizer Brands,
LLC is affiliated with the respective owners of their trademarks.
Energizerpower.com
Printed in China
ENA548
Owner's Guide

1. Introduction
Thank you for purchasing the Energizer® ENA548.
The ENA548 can efficiently and reliably power a
wide variety of devices through both the AC outlets
and USB port. Read this guide before connecting or
using the ENA548 and save it for future reference.
We hope you enjoy using your ENA548 and if you
require any assistance, please contact our help desk:
energizerpower.com/au
2. Important Safety Information
Misusing or incorrectly connecting the ENA548 may
damage the equipment or create hazardous
conditions for users. Read the following safety
instructions and pay special attention to all Caution
and Warning statements in the guide.
Warnings identify conditions that may result in
Personal injury or loss of life.
Caution: Identify conditions or practices that may
damage the unit or other equipment.
WARNING
Keep children away from the ENA548. The
inverter generates the same potentially lethal AC
1
power as a normal household wall outlet.

Warnings and Cautions
The ENA548 housing may become uncomfortably
warm, reaching 60° C under extended high power
operation. During operation, keep away
from materials that may be affected by high
temperatures.
Do not use the ENA548 in the presence of
flammable fumes or gases, such as in the bilge of a
gasoline powered boat, or near propane tanks. Do
not use the ENA548 in an enclosure
containing automotive-type lead-acid batteries.
These batteries, unlike sealed batteries, vent
explosive hydrogen gas, which can be ignited by
sparks from electrical connections.
WARNING: Shock hazard
Use caution when inserting an AC plug into the
three-prong AC outlet. The prongs of an AC plug can
be bent from misuse. If an AC plug is
improperly inserted into the AC outlet, a bent prong
can slip outside the inverter and become a shock
hazard.
Grip the inverter carefully when inserting or
removing an AC plug. Keep your fingers clear of the
AC outlet. Ensure that your fingers do not contact
the prongs of an AC plug when the plug is partially
inside the inverter.
2

CAUTION: Risk of Fire.
Do not replace any vehicle fuse with a rating higher
than recommended by the Vehicle Manufacturer.
Ensure that the electrical system in your vehicle
can supply this product without causing the vehicle
fusing to open. Information on the vehicle fuse
rating is typically found in the vehicle operator’s manual.
If a vehicle fuse opens repeatedly, do not keep on
replacing it. The cause of the overload must be found.
On no account should fuses be patched up with
tin foil or wire as this may cause serious damage
elsewhere in the electrical circuit or
3

CAUTION: Output non-sinusoidal
Some chargers for small nickel-cadmium batteries
can be damaged if connected to the ENA548
Do not use the inverter with the following
appliances:
•Small battery-operated appliances like
rechargeable flashlights, some rechargeable
shavers, and night lights that are plugged
directly into an AC receptacle to recharge.
•Battery chargers used in hand power tools.
These chargers display a warning label stating
that dangerous voltages are present at the
charger battery terminals.
CAUTION
Do not connect live AC power to the ENA548
AC outlets. This will damage the inverter,
and the damage is not covered by warranty.
Do not connect any AC load which has its neutral
conductor connected to ground to the ENA548
4

Additional Safety Guidelines
•Do not insert foreign objects in the
ENA548 outlets or other openings.
•Never connect the inverter to power utility AC
distribution wiring.
•Do not use the ENA548 in temperatures over
40° C.
•Do not expose the ENA548 to water, rain,
snow, or spray.
Failure to follow these safety guidelines may cause
personal injury and/or damage to the ENA548
It may also void your product warranty.
3. Safety Features
•Overload protection with automatic shutdown
•Low battery voltage shutdown
•High-input voltage protection with automatic
shutdown
•Overheat protection with automatic shutdown
•Output short circuit protection.
5

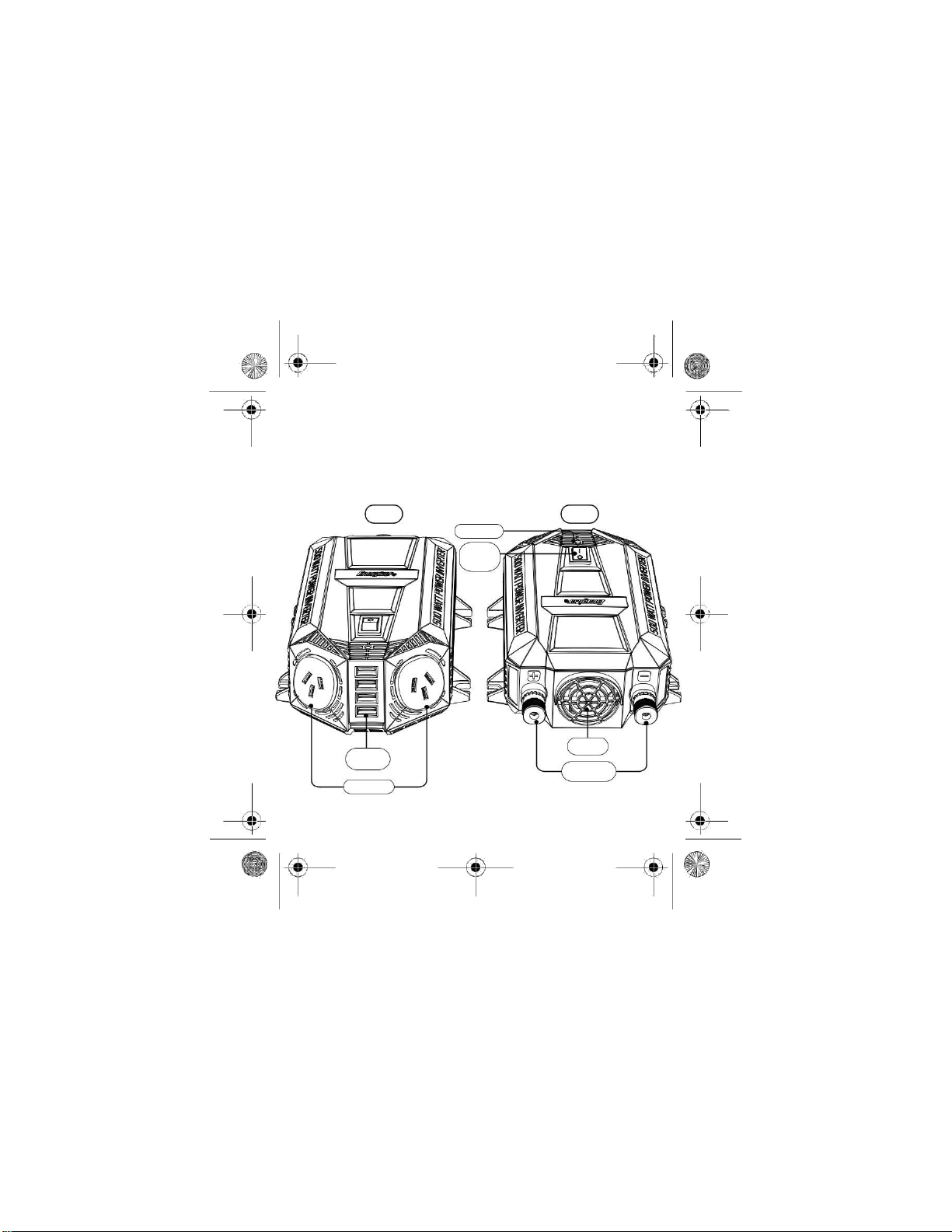

4. Inverter Features
ENA548
Front Back
LED Light
ON/OFF
Power
Button
Cooling
USB port
Fan
2.4 Amp
DC
Connectors
AC Outlets
6

5. Using the Inverter
Through its AC outlet, the ENA548 is capable
of powering most 240V AC devices that consume
500W or less. The ENA548 can also power or
charge most consumer electronics that have
USB power ports.
The ENA548 AC output waveform, called
“modified sine wave” is designed to function
similarly to the sine wave shape of utility power.
Most devices are not affected by a "modified sine
wave", you may need to consult with the
manufacturer of the device you wish to run prior to
connection with inverter.
7

1. Connect the DC cable port on the ENA548
and connect to a 12V cigarette lighter
receptacle.
2. Plug the device you want to operate into
the ENA548
3. When the inverter is not in use, unplug it from
the 12V outlet to prevent slight discharge of
the battery.
4. When using a device which consumes more
than 120W, connect the alligator clip cables
to the ENA548 and connect the clip end
directly to a 12V battery.
8

6. Inverter Operation
1. When properly connected to a 12V outlet, the
light will glow GREEN, indicating the
inverter is ready.
2. Plug the product(s) you want to operate into the
AC outlet or USB port and switch them
on (if necessary).
Operating Guidelines
•As the battery depletes, the voltage will start falling.
When the ENA548 senses that the input DC voltage
has dropped to 10.5V, the inverter automatically
shuts down and the light will turn RED, indicating a
fault. This prevents the battery from being
damaged. Turn off any devices that the ENA548 is
powering.
9

Important: Vehicle batteries are designed to provide
brief periods of very high current needed for engine
starting. They are not intended for constant deep
discharge. Regularly operating the ENA548 from a vehicle
battery until low-voltage shutdown will shorten the life of
the battery.
•If an AC product rated higher than 500W is
plugged into the ENA548, the inverter will
shut down. The LED light will alternate from
GREEN to RED continuously.
•If the ENA548 exceeds a safe operating
temperature, due to insufficient ventilation or a
high-temperature environment, it automatically
shuts down. The RED FAULT light comes on.
•Should a defective battery charging system cause
the battery voltage to rise to dangerously high
levels, the ENA548 automatically shuts
down. The RED FAULT light comes on.
10

CAUTION
Although the ENA548 incorporates protection
against over-voltage, it may still be damaged
if the input voltage exceeds 16 V.
•In the event of an overload, low battery voltage or
overheating, the ENA548 automatically shuts
down.
Battery Operating Time
Operating time will vary depending on the charge
level of the battery, its capacity and the power level
drawn by the particular AC load, USB load, or
combination of both.
When using a vehicle battery as a power source, it is
strongly recommended to start the vehicle every hour
or two to recharge the battery before its capacity drops
too low. The ENA548 can operate while the
engine is running, but the normal voltage drop that
occurs during starting of the engine may trigger the
inverter’s low voltage shutdown feature.
11

Interference with Electronic Equipment
Generally, most AC products operate with ENA548
just as they would with household AC power.
Below is information concerning two possible
exceptions.
Buzzing sound in audio systems and radios
Some inexpensive stereo systems and AM-FM radios
have inadequate internal power supply filtering and
will “buzz” slightly when powered by the ENA548
Generally, the only solution is an audio product
with a higher quality filter.
Television interference
The ENA548 is shielded to minimize its interference
with TV signals. However, with weak TV signals
interference may be visible in the form of
lines scrolling across the screen. The following
should minimize or eliminate the problem:
•Increase the distance between the
ENA548 and the TV, antenna and
cables.
•Adjust the orientation of the
ENA548 television, antenna and
cables.
•Maximize TV signal strength by using a better
antenna and use shielded antenna cable where
possible. 12

7. Troubleshooting
PROBLEM: AC product will not operate, no inverter
lights are ON.
Possible cause
Solution
Battery is defective.
Check battery and replace if
required.
Loose connections.
Check connections.
PROBLEM: Measured inverter output is too low.
Possible cause
Solution
Standard “average-
Inverter’s “modified sine
reading” AC voltmeter
wave” output requires “true
used to measure output
RMS” voltmeter for
voltage, resulting in an
accurate measurements
apparent reading 5 to 15
V too low.
13

PROBLEM: AC product will not operate, RED FAULT
light ON.
Possible cause
Solution
AC product(s) connected
are rated at more than the
inverter’s continuous
power rating; overload
shutdown has occurred.
Use a product with a power
rating less than the inverter’s
continuous power rating.
AC product is rated less
than the inverter’s
continuous power rating;
high starting surge has
caused overload
shutdown
Product exceeds inverter’s surge
capability. Use a product with
starting surge power within the
inverter’s capability.
The inverter has over
heated due to poor
ventilation and has shut
down
Unplug inverter from DC socket
and allow to cool for 15 minutes.
Remove objects covering unit.
Move the inverter to a cooler
location. Reduce continuous
load operation. Restart.
14

8.
Specifications: ENA548
Description
Specifications
Output Continuous Watts (W)
500 W + 48W（USB）
Surge Capacity (Peak Power)
1000 W
Rated Input DC (V,A)
13VDC, 45A
Input Voltage Range
10.5 to 15.5 VDC
Rated Frequency (Hz)
50 Hz±1
Rated Output AC (V,A)
8.2A(220-240)
Rates Output USB (V,A)
4 * 2.4A max.9.6A (iPad)
No Load Current
<0.3A DC
Optimum Efficiency
90% min.
Fuse (A)
35A*2
Fuse Type
Internal Blade
15

Specifications: ENA548 (continued)
Specifications
Description
Output Wave Form
Modified Sine Wave
Max. Touch Temperature
65°C Max
Operating Temperature
0° to 40°C
Operating/Storage Humidity RH
5 to 95%
Cooling System
Fan Cooling over temperature
THD
35%
Power Factor
0.65 Min
Ripple & Noise(Peak to Peak)
<250mV
Dimensions LxWxH (cm)
21.1 x 13.1 x 5.8
Assembled Weight (Kg)
0.9
NOTE:
All specifications are typical at nominal line, half load, and 25° C unless
otherwise noted. Specifications are subject to change without notice.
16

Warranty and Return
What does this warranty cover? This Limited Warranty provided
covers defects in workmanship and materials in your ENA548.
This warranty period lasts for 24 months from the date of
purchase at the point of sale to you, the original end user
customer. Proof of purchase is required to make warranty claims.
How do you get service? If your product requires
troubleshooting or warranty service, contact your dealer.
If you are unable to contact your dealer, or the dealer is unable
to provide service, contact us directly at:
Bright Manufacturing LLC
Fort Lauderdale, FL
www.energizerpower.com
What does this warranty not cover? This Limited Warranty does
not cover normal wear and tear of the product or costs related to
the removal, installation, or troubleshooting of the customer's
electrical systems. This warranty does not apply to, and we will
not be responsible for, any defect in or damage to:
17

1. the product has been misused, neglected, improperly
installed, physically damaged or altered, either internally or
externally, or damaged from improper use or use in an
unsuitable environment;
2. the product has been subjected to water, generalized
corrosion, biological infestations, or input voltage that creates
operating conditions beyond the maximum or minimum limits
listed in the product specifications including high input voltage
from generators and lightning strikes;
3.the product if repairs have been done to it;
4. the product if it is used as a component part of a product
expressly warranted by another manufacturer;
5. The product if its original identification (trade-mark, serial
number) markings have been defaced, altered, or removed.
Warning: Limitations of Use
Please refer to your product manual for limitations on uses of
the product.
SPECIFICALLY, PLEASE NOTE THAT ENA548 SHOULD
NOT BE USED IN CONNECTION WITH LIFE SUPPORT
SYSTEMS OR OTHER MEDICAL EQUIPMENT OR
DEVICES. WITHOUT LIMITING THE GENERALITY OF
THE FOREGOING, WE MAKE NO REPRESENTATIONS
OR WARRANTIES REGARDING THE USE OF THE
POWERTECH ENA548 IN CONNECTION WITH LIFE
SUPPORT SYSTEMS OR OTHER MEDICAL EQUIPMENT
OR DEVICES.
18
