Energizer EZG1300 User manual

2
The engine exhaust from this product contains chemicals known
to cause cancer, birth defects or other reproductive harm.
© 2015 Energizer. Energizer and certain graphic designs are
trademarks of Energizer Brands, LLC and related subsidiaries and
are used under license by Midland Power Inc..
EZG1300_UG_EN_2015-10-14

3series
Thanks for choosing the EZG Series!
You're excited to power up, so we'll keep this brief. Let's get started!

4

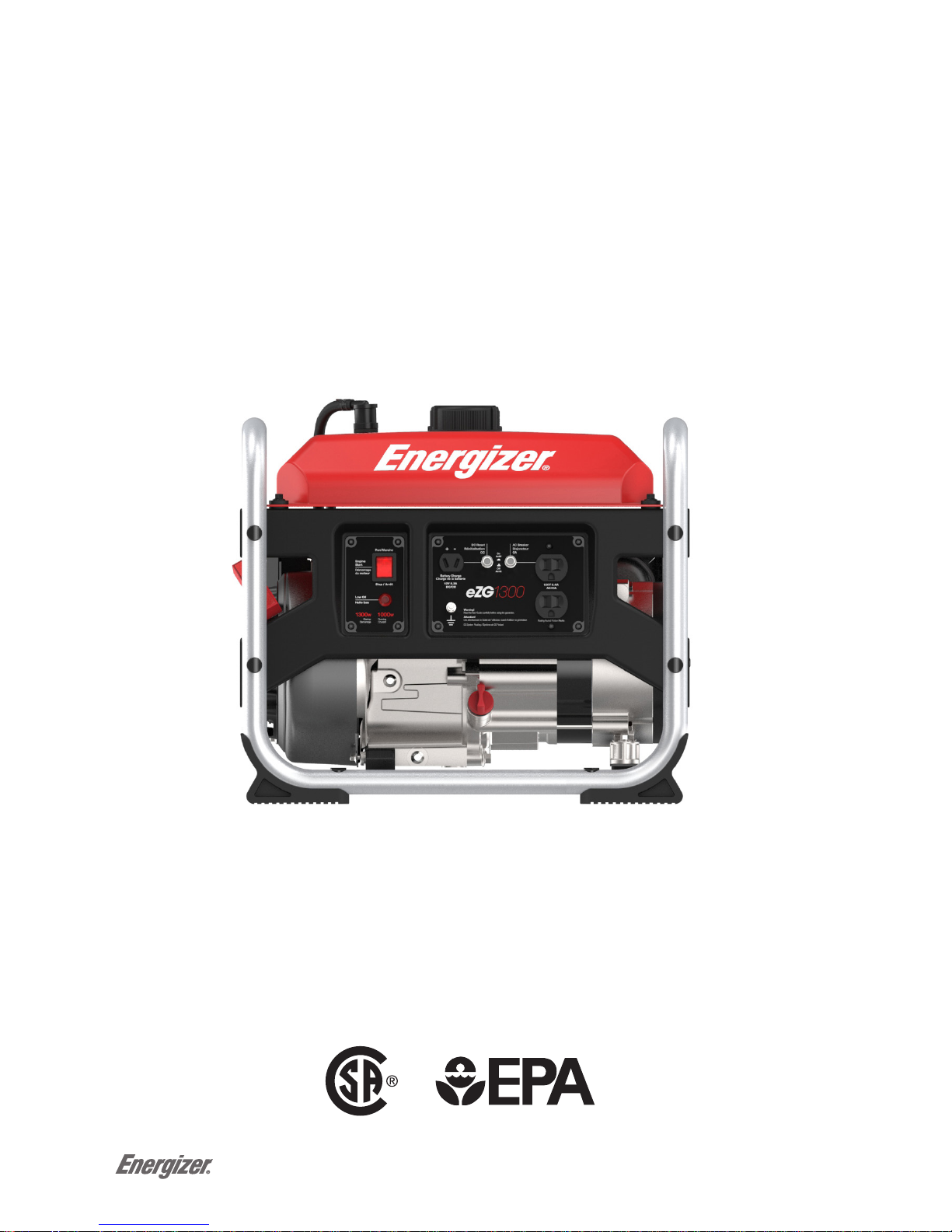

THIS PRODUCT MEETS ALL
CERTIFICATION REQUIREMENTS FROM:

5series
WE'VE GOT YOU COVERED!
Contact us by phone at 1-877-528-3772,
email us at [email protected],
or visit us online at www.energizergenerators.com.
SAVE THESE INSTRUCTIONS - This user guide
contains important instructions for your product,
that should be followed during installation and
mainteneance of the generator and batteries.
All information in this publication is based on the latest
product information available at the time of print.
Visit www.energizergenerators.com for user
guide updates and operation notices.
No part of this publication may be reproduced
without written permission.

6
WARRANTY INFORMATION
YOU CAN REGISTER EASILY USING OUR ONLINE FORM:
www.energizergenerators.com
See page 31 for more information.
Product registration will allow you to request warranty support in
the future. Product registration is required for all product support
and warranty coverage.
Warranty support, operation assistance and product support
is provided by Midland Power Inc., a licensed manufacturer of
Energizer Generators. Please contact us directly for any warranty
service questions.
1-877-528-3772
[email protected]
www.energizergenerators.com

7series
CONTENTS PAGE
Safety First 8
Safety while using your generator 8
Understanding AC safety 9
Safety while maintaining your generator 9
Other safety tips 10
Learn About Your Generator 11
Identification of componants 11
What's included in the box 13
Setting Up Your Generator 14
Checking the engine oil level 15
Checking the fuel level 15
Checking the air filter 16
Using Your Generator 17
Starting your generator 17
Using the generator with your appliances 19

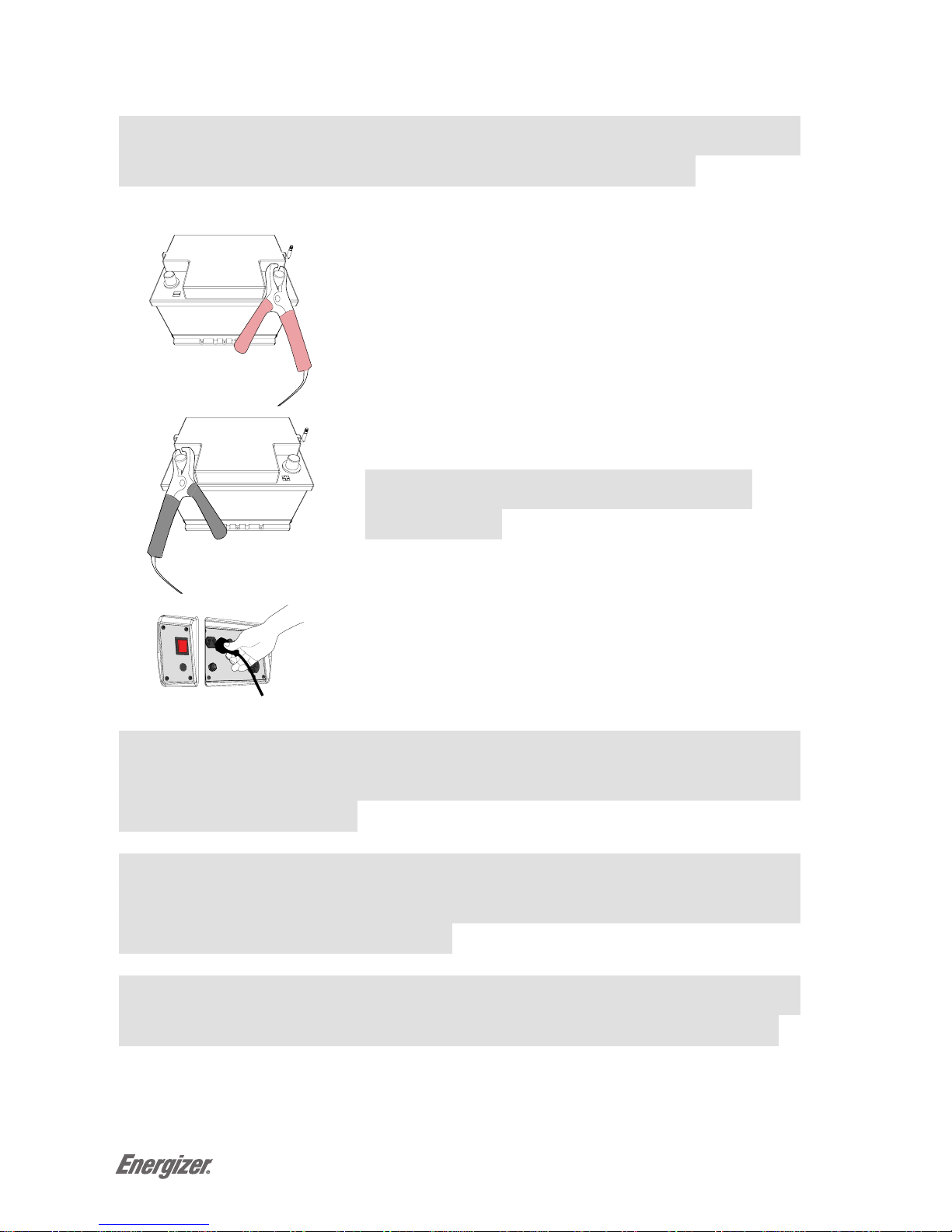

Using the generator to charge automotive batteries 20
Stopping your generator 21
Maintaining Your Generator 22
Maintainance Schedule 22
General inspection tips 23
Cleaning the air filter 23
Changing the engine oil 24
Replacing and cleaning the spark plug 25
Handling and storage 26
Troubleshooting 28
Specifications 29
Wiring Diagram 30
Learn About Your Warranty 31

8
Chapter 1 — Safety
Playing it safe when working with power equipment is always a good idea. Here are
some
important precautions to make sure you stay safe.
1.1 Safety while Operating Your Generator
• Always perform an oil, fuel and air filter check before starting the engine.
• Properly clean and maintain the equipment.
• Operate the generator according to instructions for safe and dependable
service.
• Before operating the generator, read the user guide carefully. Otherwise, it
may result in personal injuries or equipment damage.
• Never run the generator in an enclosed area to avoid harm from exhaust
emissions of a poisonous carbon monoxide gas.
• The engine exhaust from this product contains chemicals known to cause
cancer, birth defects or other reproductive harm.
• Be careful not to touch the exhaust system, compressor pump or
discharge tubing during operation due to risk of burns.
• Pay attention to the warning labels. The engine exhaust system will
become heated during operation and remain hot immediately after the
engine is stopped.
• Gasoline is a highly flammable and explosive liquid. Refuel in a well
ventilated area with the engine stopped.
• This portable generator is not for use with gasoline/ethanol blends with
over 15% ethanol.
• When refueling the generator, keep it away from cigarettes, open flames,
smoke and/or sparks.
• Place the generator at least 3 feet away from buildings or other equipment
during operation.
• Run the generator on a level surface. Tilting the generator may result in fuel
spills.
• Know how to stop the generator quickly and understand operation of all
the controls. Never permit anyone to operate the generator without proper
instructions.

9series
• Keep children, pets and machinery with rotating parts away during
operation.
• Do not operate the generator in rain or snow.
• Do not allow any moisture to come in contact with the generator.
• Do not touch the spark plug while the engine is operating or shortly after
the engine has been shut down.
1.2 Understanding AC Safety
Before connecting the generator to an electrical device or power cord:
• Make sure that everything is in proper working order. Faulty devices or
power cords can lead to an electrical shock.
• Turn off the generator immediately if the device begins to operate
abnormally. Then disconnect the device and investigate the problem.
• Make sure that the electrical rating of the device does not exceed that of
the generator. If the power level of the device is between the maximum
output power and the running power of the generator, the generator should
not be used for more than 30 minutes.
• Connections for standby power to a building’s electrical system must be
done by a qualified electrician and must comply with all applicable laws
and electrical codes. Improper connections may cause serious injuries to
electrical workers during a power outage, and when the utility power is
restored, the generator may explode or cause fires. The generator shall be
connected through transfer equipment that switches all conductors other
than the equipment grounding conductor. The frame of the generator shall
be connected to an approved grounding electrode.
• For power outages, permanently installed stationary generators are better
suited for providing backup power to the home. Even a properly connected
portable generator can become overloaded. This may result in overheating
or stressing the generator components, possibly leading to a generator
failure.
1.3 Safety while Maintaining Your Generator
• After any maintenance is performed, wash immediately using soap and
clean water because repeated exposure to lubricant may cause skin
irritation.

10
• Do not clean the filter element with flammable liquids like gasoline because
an explosion may occur.
• Turn off the engine before performing any maintenance. Otherwise it can
cause severe personal injury or death.
• Allow the generator set to cool down before performing any maintenance.
• Always wear safety glasses when cleaning the generator set with air.
• Do not clean the generator set with a pressure washer because it can
cause damage to the generator set.
• Before working with batteries, ventilate the area, wear safety glasses, do
not smoke and always disconnect the negative cable first and reconnect it
last.
• Use rubber gloves when coming into contact with engine oil.
• Always stop the generator set before removing the oil filler cap.
• Only qualified maintenance personnel with knowledge of fuels, electricity,
and machinery hazards should perform maintenance procedures.
• Lubricate all exposed metal parts regularly. See chapter 5.1 for
maintenance schedule.
1.4 Other Safety Tips
• To avoid breathing in poisonous carbon monoxide from the exhaust gases,
adequate ventilation should be provided if the generator set is running in a
partially enclosed space.
• If the generator set is stored outdoors, check all the electrical components
on the control panel before each use. Moisture can damage the generator
and can lead to an electric shock.
• Generators vibrate in normal use. During and after the use of the generator,
inspect the generator as well as extension cords and power supply cords
connected to it for damage resulting from vibration. Have damaged items
repaired or replaced as necessary. Do not use plugs or cords that show
signs of damage such as broken or cracked insulation or damaged blades.
• If you start to feel sick, dizzy, or weak after the generator has been running,
move to fresh air RIGHT AWAY. See a doctor. You could have carbon
monoxide poisoning.

11 series
Chapter 2 — Learn About Your Generator
This section will show you how to identify key parts of your generator. Going over
the terminology below will make sure we're on the same page.
2.1 Identification of Components
Choke lever
Fuel Valve
Recoil Starter
Handle
Fuel CapFuel Gauge
Accessory
Mount
Fume Vent
Power
Control Panel
Engine
Control Panel
Oil Dipstick

12
On/Off Switch 12V DC Outlet DC Reset AC Breaker
Low Oil Light Ground 120V AC Outlets

13 series
2.2 What's Included in the Box
ITEMS INCLUDED QUANTITY
English user guide 1
French user guide 1
450mL engine oil 1
Oil funnel 1
Funnel extension tube 1
Spark plug wrench 1
Flat head screwdriver for spark plug wrench 1
DC battery charging cables 1

14
Chapter 3 — Setting Up your eZG1300 Generator
Setup should be done everytime you start up your generator, these quick checks will
ensure you get the most out of your generator.
Exhaust gas contains poisonous carbon monoxide. Never run the generator
in an enclosed area. Be sure to provide adequate ventilation. Operate the
generator on a level surface. If the generator is tilted, fuel spillage may
result. Keep away from rotating parts while the generator is running. The
generator is air-cooled and may be damaged if ventilation is inadequate.

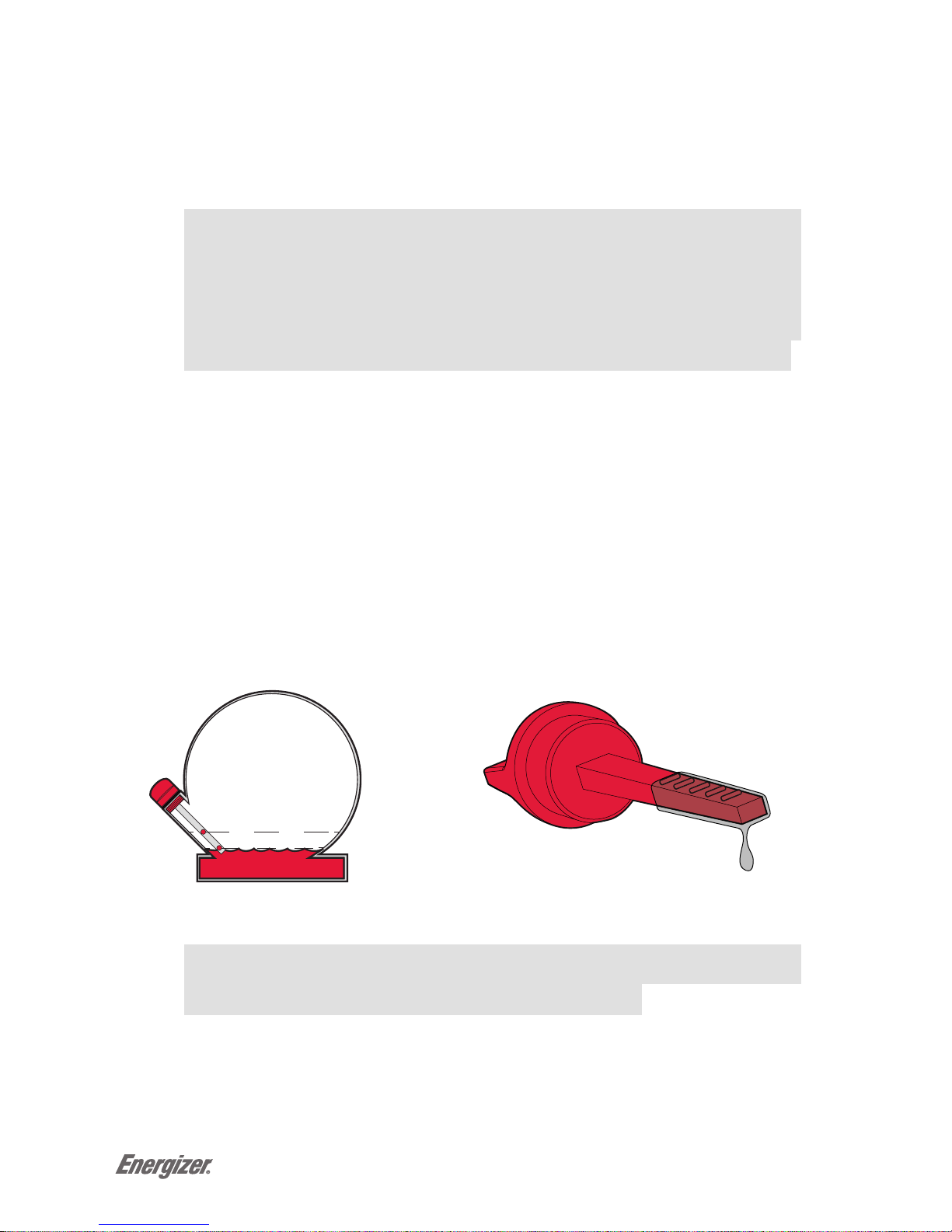

3.1 Checking the Engine Oil Level
1. Ensure the generator is on a level surface.
2. Inspect engine oil:
• Take out the oil filler cap and clean the dipstick.
• Check the oil level by reinserting the oil filler cap without rotating it. Remove
the oil filler cap and examine the oil level. If the oil level is at or below the
minimum oil level, refill the oil to the maximum oil level mark. (10W30)
Reinsert the oil filler cap and tighten securely. (Refer to figure below)
Engine oil is a major factor affecting engine performance and service life.
Non-detergent or vegetable oils are not recommended.
Maximum Oil Level
Minimum Oil Level
Empty
Full

15 series
3.2 Checking the Engine Fuel Level
1. Check the fuel level by reading the gauge or removing the fuel tank cap to
visually check the level.
2. Refuel if level is too low. Tighten the fuel tank cap securely after refilling
(Refer to Figure below)
Gasoline is highly flammable and explosive under certain conditions. Refuel
in a well-ventilated area with the engine stopped.
Do not smoke or allow open flames or sparks in the area where the generator
is being refueled or where gasoline is stored.
Do not overfill the tank. Be careful not to spill fuel when refueling. Wipe up
any spilled gasoline and let the area dry before starting the engine.
Gasoline substitutes such as gasohol are not recommended. They may be
harmful to the fuel system components.
Empty
Full
Vide
Plein

16
3.3 Check the Air Filter
3. Loosen the knob and remove the air filter cover. Remove the air filter
element and observe for cleanliness.
4. Clean the air filter element with soap and water or solvent. Squeeze dry
and then soak in clean engine oil.
5. Squeeze out all excess oil and reinstall. Replace the element if it is
damaged.
Check the air filter using the maintenance schedule. Always inspect air
filter before using the generator. Clean Air Filter every 3 months or after
50hrs of operation according to Section 5.4 Cleaning the Air Filter.
Knob
Filter
Filter cap
Filter Cap
Filter
Knob

17 series
Chapter 4 — Using Your eZG1300 Generator
DANGER - CARBON MONOXIDE
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous
gas you cannot see or smell. If you can smell the generator exhaust you are
breathing CO. Even if you can not smell the exhaust, you could be breathing
CO. NEVER use a generator inside a home, garage, crawlspace, or other partly
enclosed area, deadly levels of carbon monoxide can build up in these areas.
Using a fan or opening windows and doors will NOT supply enough fresh air.
ONLY use a generator outdoors and far away from open windows, doors, and
vents. These openings can pull in generator exhaust. Even when you use a
generator correctly, CO may leak into the home. ALWAYS use a CO alarm in
your home. If you start to feel sick, dizzy, or weak after the generator has been
running, move to fresh air RIGHT AWAY and seek medical attention. You could
have carbon monoxide poisoning.
4.1 Starting Your Generator
Before using generator, a ground wire must be connected to the ground
terminal. The Ground terminal is located on the Front Panel. Before using
the ground terminal consult a qualified electrician.
Leave the Choke lever at the OPEN position if the engine is warm or if the
air temperature is higher than 50°F (10°C).
We know you're excited to get using your generator. Please be sure to follow the
startup instructions below thoroughly to ensure the best lifespan for your generator.

18
1. Rotate the fuel valve lever to ON position (Vertical
position).
This is located on the left side of your generator, it is
attached to the bottom of the fuel tank.
2. If the engine is cold: push the choke lever into the
CLOSED position.
You can find the choke lever above the air filter cap
on the left side of your generator.
3. Disconnect all devices from the outlets on the
generator panel. Then press the engine switch to the
RUN position.
4. Grasp the recoil stater handle and pull it until the
generator starts.
Do not allow the recoil starter to snap back. Re-
turn it slowly by hand.
5. Push the choke lever to the OPEN position as the
engine warms up. The choke is used to provide the
proper air-fuel mixture when the engine is cold.

19 series
4.2 Using the EZG1300 with your Appliances
After starting the eZG1300 you can connect your devices to it. If you want to use the
DC output to charge an automotive battery, skip to section 4.4. Before starting make
sure that you know what you are able to power with your Generator. Here's how you
can decide:
Add the watt ratings of all the loads that the generator set will be powering at the same
time. Make sure that total wattage will not exceed the generator rating.
EXAMPLE:
A generator set rated 5000W can power two 1500W heaters, a 900W circular saw, a
500W drill and a 100W light at the same time (4500W combined). However, to operate
a second 900W saw, it will be necessary to disconnect one of the 1500 W heaters.
1. Turn off the switches of devices before
connecting them to your generator.
2. Insert the plug of the device into your generator
based on its voltage requirements. Your eZG1300
generator includes two (2) 120V AC outlets and one
(1) DC outlet for charging automotive batteries.
See Section 4.4 before using the DC outlet
3. You can now turn your devices on and use them.
To stop the engine in an emergency, turn the engine switch “OFF”. Always connect
the ground terminal at the front panel to the ground (earth) to prevent electrical
shock.

20
4.3 Using the EZG1300 to Charge Automotive Batteries
You can use 12V 8.3A DC output to charge automotive batteries. Be sure to monitor
the battery charge time. Over-charge may cause explosion and injury.
1. Connect the positive (red) terminal of the battery to
the red (positive) terminal, the 12V 8.3A DC Output
Terminal on the front panel of your generator.
2. Connect the negative (black) terminal of the battery
to the black (negative) terminal, the 12V 8.3A DC
output terminal on the front panel of your generator.
DO NOT REVERSE THE POLARITY OF THESE
CONNECTIONS.
3. Plug in the DC plug into the DC receptacle.
Start the generator as instructed in Section 4.2
An explosive hydrogen gas is discharged through vent holes in the battery during
charging. Do not allow sparks or open flames around the generator or battery
during the charging process.
Electrolyte fluid can burn eyes and clothing. Be extremely careful to avoid any
contact. If injured, wash the affected area immediately with large amounts of water
and seek medical attention immediately.
When charging a large capacity battery or totally discharged battery, excessive
current may force the DC breaker to turn off. In this case, use a battery charger.
