Technical Manual

22
IP2253EN - 2017-08-21
Contents
Key
Subject Page
1. General safety precautions 23
2. Declaration of incorporation of partly completed machinery 24
2.1 Machinery Directive 24
3. Technical specifications 25
4. Standard installation 27
5. Dimensions and gearmotor references 28
6. Installation 29
6.1 Preliminary checks 29
6.2 Fastening the brackets 30
6.3 Using the positioning template 31
6.4 Installing the gearmotor 32
6.5 djusting the mechanical end stops 33
6.6 djusting the lever limit switch 33
6.7 Electrical connections 34
7. Routine maintenance plan 35
8. Troubleshooting 35
9. Disposal 35
Operating instructions 36
General safety precautions for the user 36
Manual release instructions 37
i
his symbol indicates instructions or notes regarding safety, to which special atten-
tion must be paid.
his symbol indicates useful information for the correct operation of the product.

23
IP2253EN - 2017-08-21
1. General safety precautions
Failure to respect the information given in this manual
may cause personal injury or damage to the device.
Keep these instructions for future reference
This installation manual is intended for qualified personnel only.
Installation, electrical connections and adjustments must be performed in accordance
with Good Working Methods and in compliance with the present standards.
Read the instructions carefully before installing the product.
Incorrect installation could be dangerous.
Before installing the product, make sure it is in perfect condition.
Before installing the motorisation device, make all the necessary structural modifi-
cations to create safety clearance and to guard or isolate all the crushing, shearing,
trapping and general hazardous areas.
Make sure the existing structure is up to standard in terms of strength and stability.
The motorisation device manufacturer is not responsible for failure to observe Good
Working Methods when building the frames to be motorised, or for any deformations
during use.
The safety devices (photocells, safety edges, emergency stops, etc.) must be installed
taking into account the applicable laws and directives, Good Working Methods, installa-
tion premises, system operating logic and the forces developed by the motorized gate.
The safety devices must protect the crushing, shearing, trapping and general hazardous
areas of the motorised door.
Display the signs required by law to identify hazardous areas.
Each installation must bear a visible indication of the data identifying the motor-
ized gate.
When requested, connect the motorized gate to an effective earthing system that
complies with current safety standards.
During installation, maintenance and repair operations, cut off the power supply before
opening the cover to access the electrical parts.
The automation protection casing must be removed by qualified personnel only.
The manufacturer of the motorisation device declines all responsibility if compo-
nent parts not compatible with safe and correct operation are fitted.
Only use original spare parts when repairing or replacing products.
The installer must supply all information on the automatic, manual and emergency op-
eration of the motorised gate, and must provide the user with the operating instructions.

24
IP2253EN - 2017-08-21
2. Declaration of incorporation of partly com-
pleted machinery
(Directive 2006/42/EC, nnex II-B)
The manufacturer Entrematic Group B, with headquarters in Lodjursgatan 10, SE-261 44
Landskrona, Sweden, declares that the Ditec PWR50 automation for swing gates:
- is designed to be installed on a manual gate to form a machine pursuant to Directive 2006/42/
EC. The manufacturer of the motorised gate must declare conformity with Directive 2006/42/
EC (annex II- ) prior to initial machine start-up;
- complies with the applicable essential safety requirements indicated in nnex I, Chapter 1 of
the Directive 2006/42/EC;
- complies with the Electromagnetic Compatibility Directive 2014/30/EU;
- complies with the RED Directive 2014/53/EU;
- the technical documentation complies with nnex VII-B of the Directive 2006/42/EC;
- the technical documentation is managed by the Technical Office of Entrematic Italy (with
headquarters in Largo U. Boccioni 1 – 21040 Origgio (V ) – IT LY) and is available upon request,
sending an e-mail to [e-mail] ;
- a copy of the technical documentation will be given to competent national authorities, following
a suitably justified request.
Landskrona, 01-07-2016 Matteo Fino
(Chairman)
2.1 Machinery Directive
Pursuant to the Machinery Directive (2006/42/EC), the installer who motorises a door or gate has
the same obligations as the manufacturer of machinery and as such must:
- prepare the technical data sheet which must contain the documents indicated in nnex V of the
Machinery Directive;
(the technical data sheet must be kept and placed at the disposal of competent national author-
ities for at least ten years from the date of manufacture of the motorised door or gate);
- draw up the EC Declaration of Conformity in accordance with nnex II- of the Machinery
Directive and deliver it to the customer;
- affix the EC marking on the motorised door or gate, in accordance with point 1.7.3 of nnex I of
the Machinery Directive.

25
IP2253EN - 2017-08-21

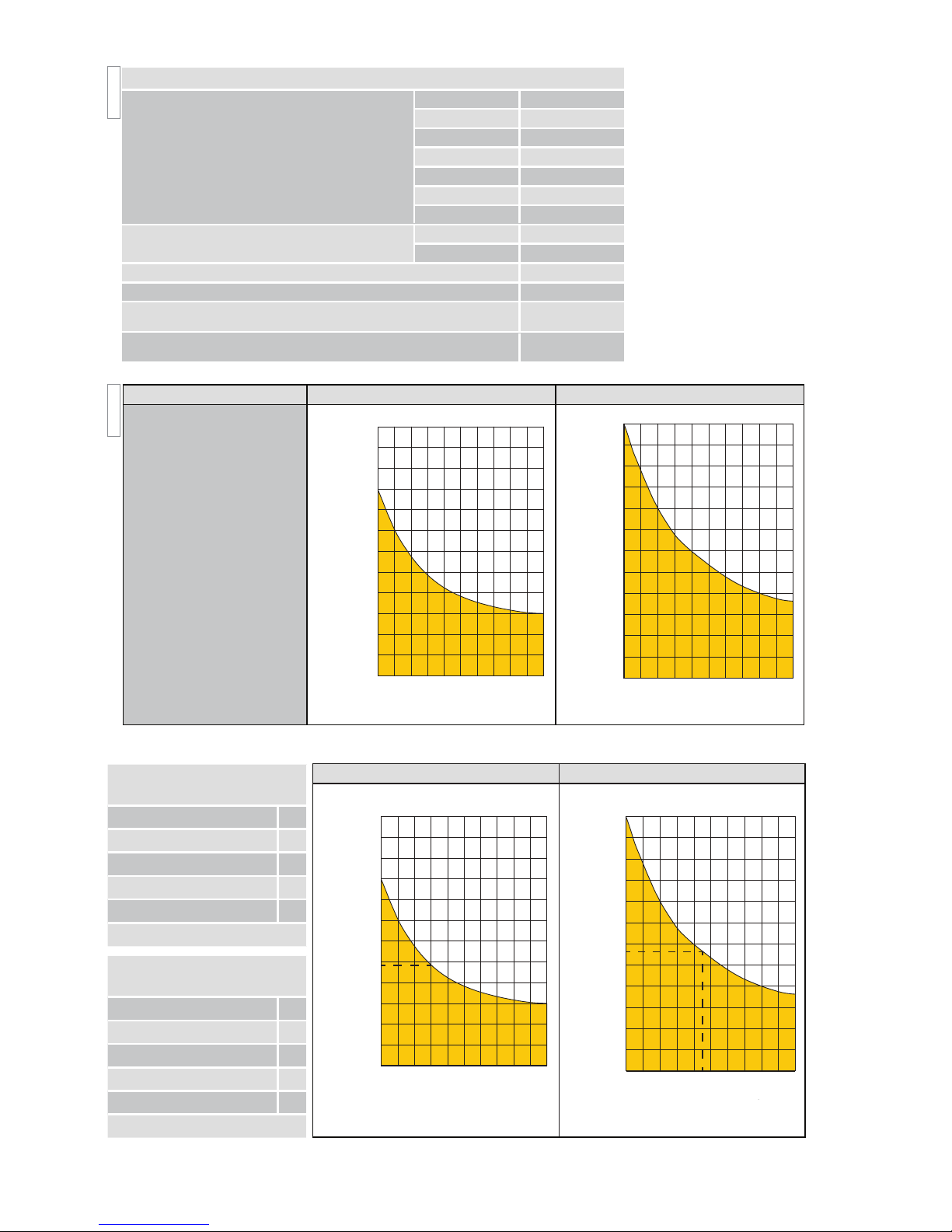

3. Technical specifications
PWR50H PWR50HV PWR50HR
Type Non-reversible Non-reversible Reversible
Stroke management (limit
s itch) Mechanical close stops Magnetic limit switches Mechanical close stops
Po er supply 24V
Max absorption 12
Po er absorbed 65W nom / 288W max
Max thrust 6000 N
Maximum stroke 500mm
Opening time 14÷80 s / 90°
Intermittence 200 cycles/day [max]
60 consecutive cycles at 20°C
Lifespan
From 150,000 to 450,000 cycles based on the condi-
tions indicated in table 3.1 (see the durability graphs
of the product)
From 180,000 to 600,000
cycles based on the con-
ditions indicated in table
3.1 (see the durability
graphs of the product)
Operating temperature -20°C / +55°C (-35°C + 55°C with NIO active)
Degree of protection IP44
Dimensions (mm) 1044 x 100 x 120h
Weight (kg) 10.5
Tab. 3.0
Chart 3.0
Usage limits
(gate ing eight and idth)
1
0
100
200
300
400
500
600
700
800
2 3
(m)
(Kg)
4 5
(m)
(kg)

26
IP2253EN - 2017-08-21
Index of conditioning factors
Gate wing weight
>150kg -
>200kg -
>300kg -
>400kg -
>500kg 10
>600kg 20
>700kg 30
Gate wing width >3m 10
>4m 20
Solid gate wing 15
Windy area 15
VA/VC/PO/PC speed setting higher than the default values 10
Force R1/R2 setting higher than the default values 10
PWR50H-HV PWR50HR
Durability of the product
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di
g
ravosità
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
PWR50H-HV PWR50HR
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
0
10
20
30
40
50
60 70
80
90
100
0
50.000
indice di gravosità
250.000
300.000
350.000
100.000
150.000
200.000
400.000
450.000
500.000
550.000
600.000
n° massimo di cicli
Tab. 3.1Tab. 3.2
Two examples of the operator durability calculation are shown below:
The product lifespan is
conditioned by the ex-
tent of other onerous
conditions:
with reference to Tab. 3.1,
various corrective factors
have been assessed in
relation to the weight and
width of the gate wing
and the usage conditions;
when taken as a whole,
they affect the lifespan of
the object (see Tab. 3.2).
Esempio di calcolo durata
per PWR50HR
Wing weight > 400 Kg 0
Wing width > 4,5m 20
R1/R2 = 80 (default 50) 10
Windy area 15
Total severity index 45
Estimated duration 280.000 cycles
Example of the duration
calculation for PWR50H-HV
Wing weight > 400 Kg 0
Wing width > 4,5m 20
R1/R2 = 80 (default 50) 10
Solid wing 0
Total severity index 30
Estimated duration 240.000 cycles
Severity index Severity index
max no. of cycles
max no. of cycles
max no. of cycles max no. of cycles
Severity index Severity index

27
IP2253EN - 2017-08-21
4. Standard installation
Ref. escription Cable
1Transmitter /
2Flashing light 2 x 1mm²
ntenna (integrated in the flashing light) coaxial 58 Ω
3Key selector switch 4 x 0.5mm²
Digital combination wireless keypad /
4ctuator without magnetic limit switches 2 x 1.5mm²
ctuator with magnetic limit switches 3 x 1.5mm²
5Photocells 4 x 0.5mm²
6Control panel 3G x 1.5mm²
A
Connect the power supply to a type-approved omnipolar switch (not supplied), with a
contact opening distance of at least 3mm.
Connection to the mains must be via an independent channel, separated from the
connections to the command and safety devices.
1
4
6
A
32
5
5
4
5

28
IP2253EN - 2017-08-21

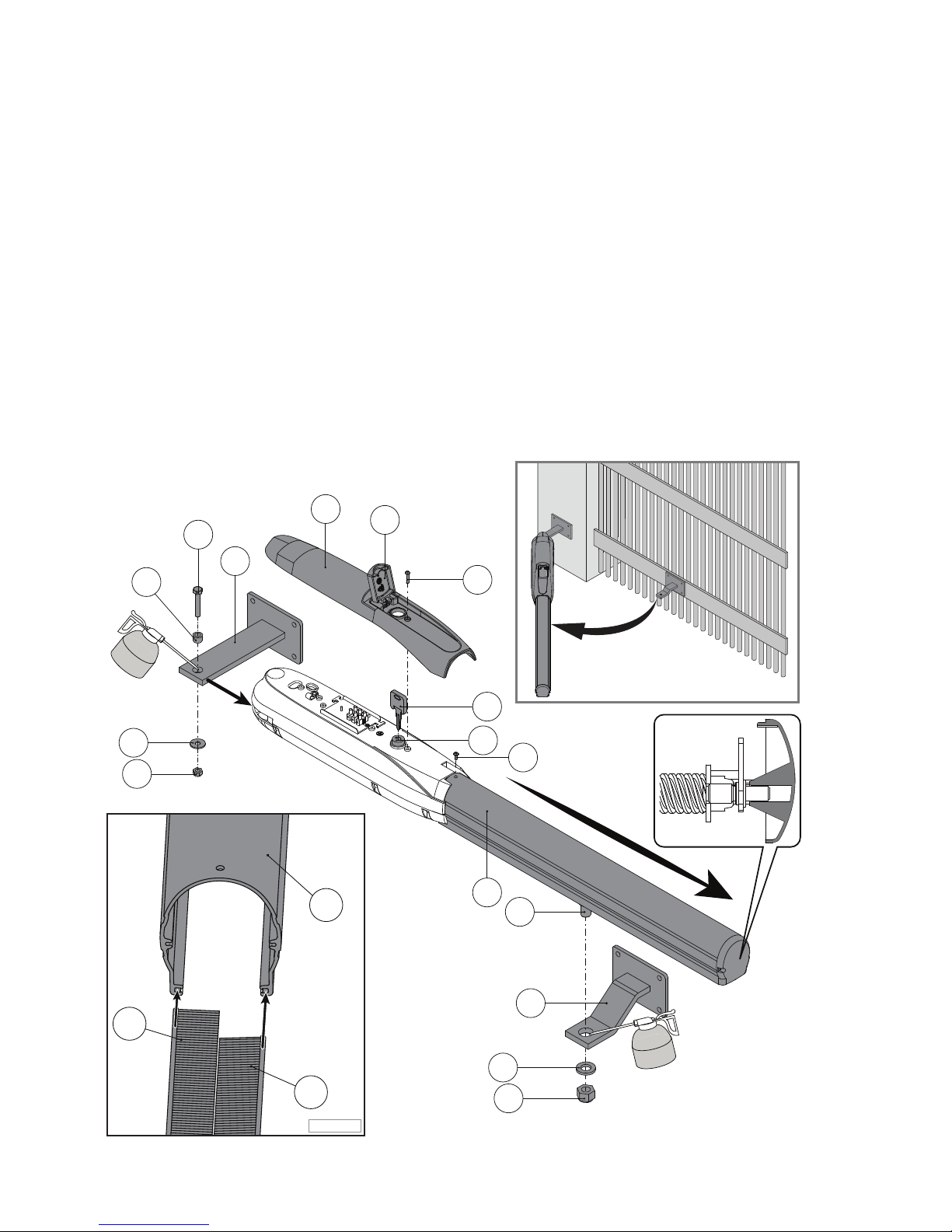

5. Dimensions and gearmotor references
Ref. escription
7Rear cover
8Release lock window
9Screw for fastening the rear cover
10 Screw for fastening the front cover
11 Front cover
12 Protective brushes
13 Mechanical close stops
14 Magnetic limit switches
15 Drive screw
16 Split nut + magnet
107
100
525
1044
10
11
9
12
15
16
13
7
8
10
11
9
12
7
8
14
16
15
PWR50H/HR PWR50HV
Fig. 5.1 Fig. 5.2

29
IP2253EN - 2017-08-21
6.1 Preliminary checks
6. Installation
The declared operating and performance features can only be guaranteed with the use of EN-
TREM TIC accessories and safety devices.
Unless otherwise specified, all measurements are expressed in mm.
Make sure the gate structure is sturdy and the hinges are lubricated and smooth.
If possible, fit an opening and closing stop. Otherwise, use the built-in mechanical stops and/or
the electric limit switches (optional) if available. The mechanical construction elements must
comply with the requisites of Standard EN12604.
The installation measurements indicated in the table allow you to choose the values of [ ] and [B] on
the basis of the required opening angle and in relation to the on-site spaces and overall dimensions.
Increasing measurement [ ], you reduce the opening approach speed.
Reducing measurement [B], you increase the gate opening angle.
Measurements [ ] and [B] must, however, be compatible with the effective piston stroke.
P
D
E
L
B
C
min 60 con apertura a 90°
S
i
he automation fastening point varies according to the space available and the gate to be
automated. he installer must therefore choose the best solution to ensure that the system
works correctly in each individual situation.
min 60 with 90° opening
Tab. 6.1
A B C S D E L P min
200 190 20 170 120°
120 910
220
200 200 50 150 110° 220
100 220 50 170 90° 120
130 210 70 140 95° 150
170 220 100 120 95° 190
200 190 100 90 100° 220
150 220 150 70 95° 170
130 290 220 70 90° 150

30
IP2253EN - 2017-08-21

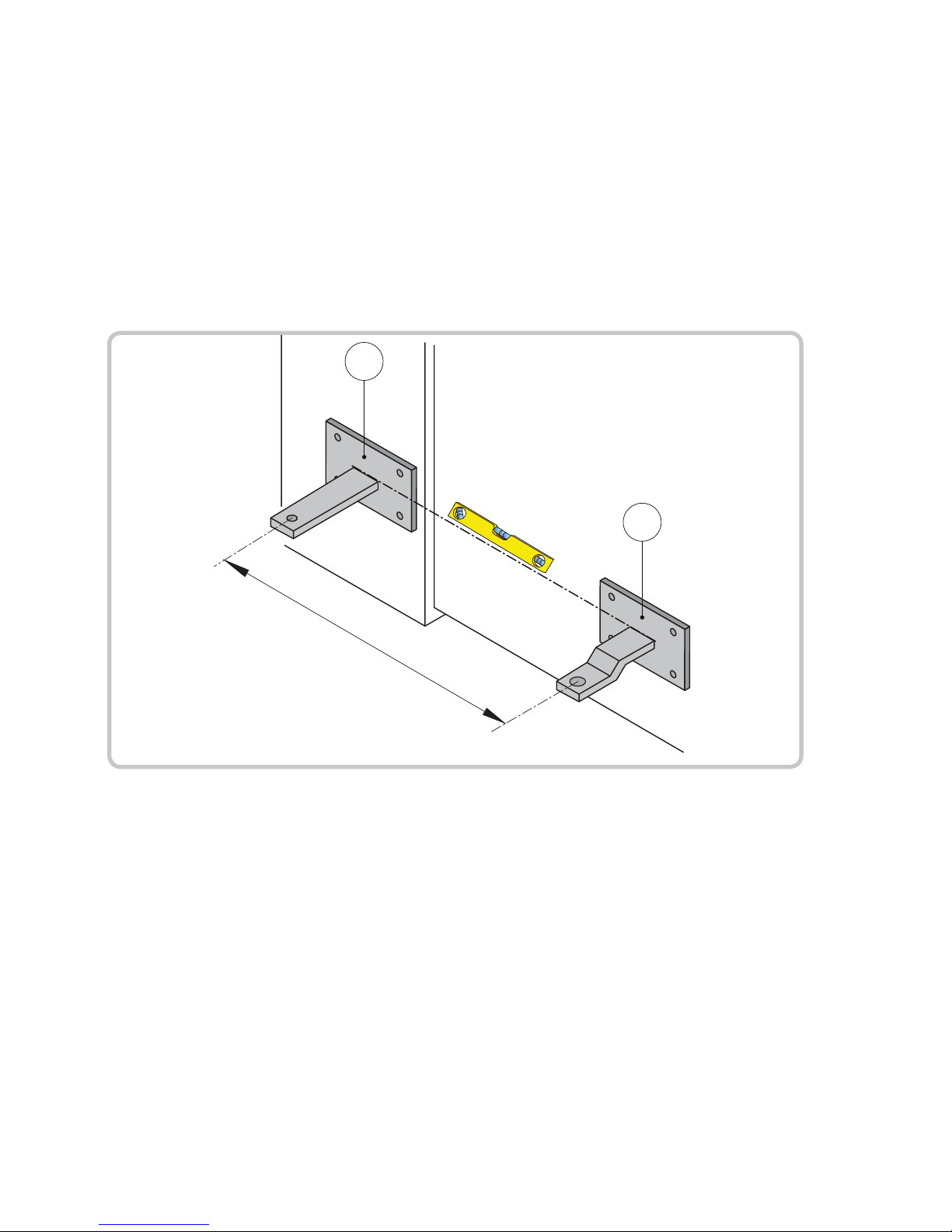

fter selecting the most suitable point for fastening the front bracket [18] to the gate wing, to
establish its height you must first size, position and fasten the rear bracket [17].
If necessary, shorten the rear bracket [17] following the indications given in Tab. 6.1.
- Once you have fastened the rear bracket [17] following the measurements given on page 12,
fasten the front bracket [18] to the gate.
- With the gate fully closed, position the front bracket [18], respecting the measurement (L).
Make sure the front bracket [18] and rear bracket [17] are properly levelled, as shown in the
figures below, then fasten the front bracket [18] to the gate.
6.2 Fastening the brackets
L
17
18

31
IP2253EN - 2017-08-21
During installation, the bracket positioning operation can be greatly simplified by using the po-
sitioning template (optional accessory) which allows you to establish the correct position of the
brackets and the distance between them. This avoids positioning errors and incorrect fixing hole
alignment, thanks also to the built-in spirit-level.
The installation template is compatible with all the pistons of the PWR, Obbi and Luxo ranges.
6.3 Using the positioning template
80 60
115
90
Ø9 6
185
15 170
10
Ø14
S
17
E
18
140
20
50
10 42
120
Ø22
80 60
115
90
Ø9 6
50

32
IP2253EN - 2017-08-21
6.4 Installing the gearmotor
• Open the lock window [8], loosen the screw 6.3 x 19mm [9] and remove the rear cover [7].
Loosen the screw M4 x 8mm [10] and take out the front cover [11] as shown in the figure.
Release the piston by inserting the key [23] in the relative lock [24] and turning it clockwise (see
the USER INSTRUCTIONS).
• Fasten the piston to the rear bracket [17] using the screw M8 x 45mm [19], the bush [20] and the
washer Ø 24mm [21], then tighten the self-locking nut M8 [22] as far as it will go.
• Open the gate wing manually and insert the front coupling pin [25] in the hole of the front fas-
tening bracket [18]. Lock the pin in the bracket using the washer Ø30mm [26] and nut M16 [27]
supplied. Before installing the piston, grease the rotation points.
NB: pay special attention to the correct positioning of the washer on the brackets.
• Insert the protective brushes [12] in the relative guides on the front cover [11] and push them
well down (see Fig. 6.1). fter making the adjustments (par. 6.5 and 6.6), insert the front cover
[11] on the drive screw and fix it in place using the screw [10].
NB: make sure the drive screw [25] enters the head of the cover [11] correctly (detail shown in
the figure below).
9
24
10
23
21
22
25
18
26
27
8
7
19
17
11
20
11
12
12
Fig. 6.1

33
IP2253EN - 2017-08-21

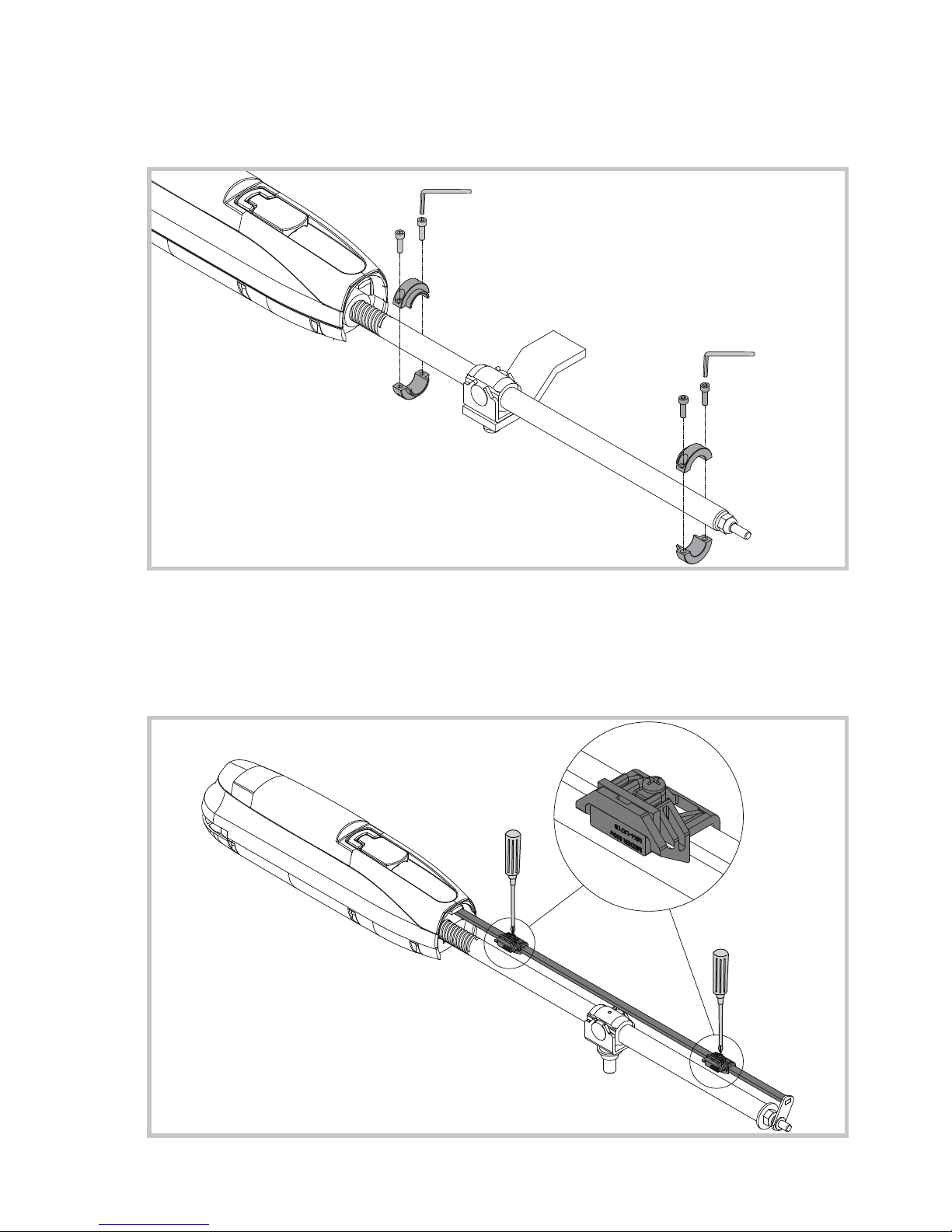

6.5 djusting the mechanical end stops (standard on PWR50H/HR)
6.6 djusting magnetic limit switch (standard on PWR50HV)
Bring the gate wing to its fully open or closed position. Loosen the mechanical end stops with a
4mm llen wrench, just enough so that they can slide along the drive screw, then move them up
against the split nut and fix them in place.
Bring the gate wing to its fully open or closed position. Loosen the limit switches with a Phillips
screwdriver, just enough so that they can slide along the guide, then bring them above the split
nut [16] until the magnetic sensor is activated. Fix them in place.
4 mm
4 mm

34
IP2253EN - 2017-08-21
6.7. Electrical connections
The PWR50H/HR/HV gearmotors can be connected to the LCU40H control panels.
To connect the automation to the control panel, proceed as follows:
• Remove the rear cover [7] as explained in paragraph 6.4.

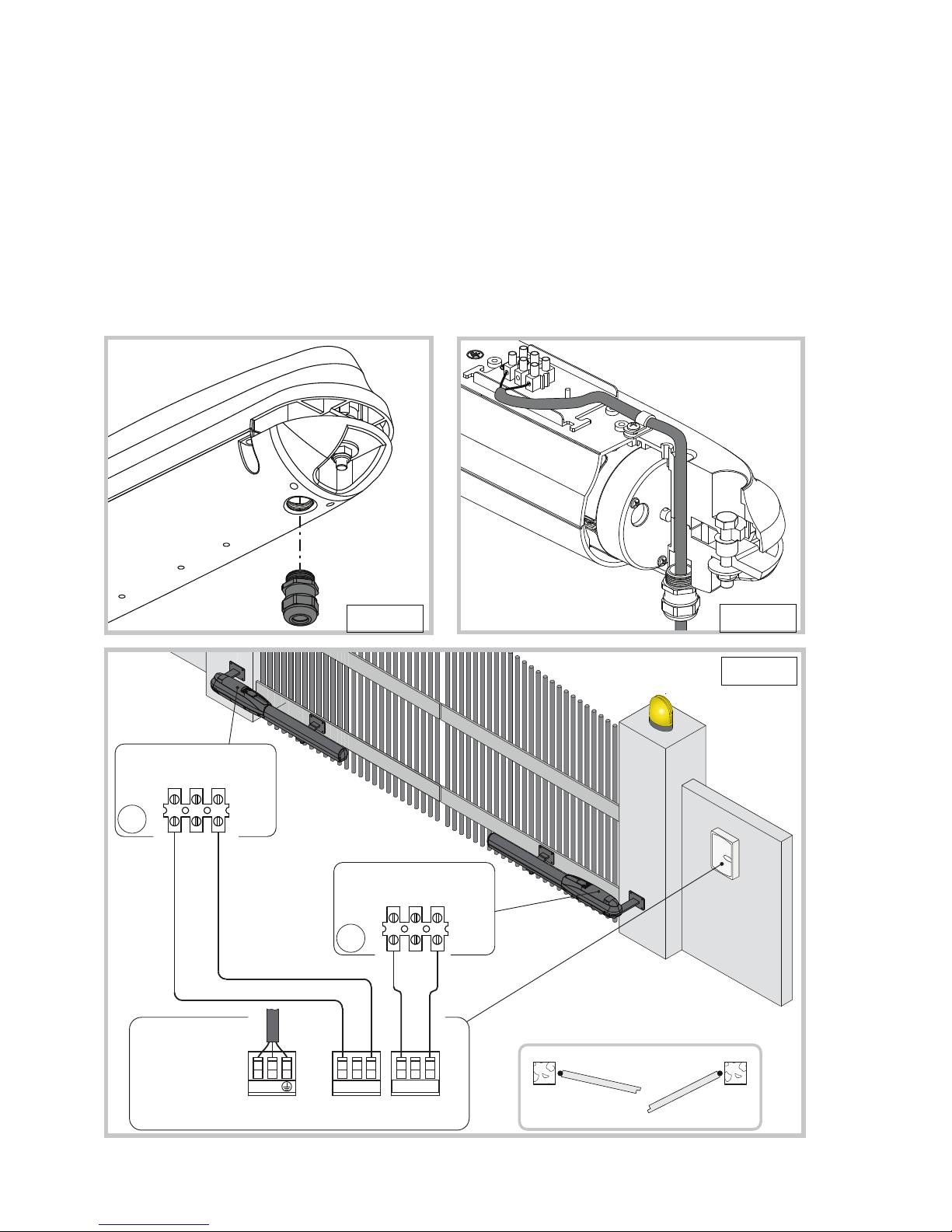

• Fit the cable gland on the automation, inserting it in the relative threaded hole in the metal
fusion (Fig. 6.2 and 6.3).
• Connect the various wires as shown in the electrical diagram in Fig. 6.4.
• Fasten the rear cover [7] to the gearmotor.
The electrical connections and start-up of the PWR50H/HR/HV gearmotors are explained in the
installation manuals of the LCU40H control panels.
To increase the protection of the motor cable, a corrugated flexible tube can be used.
Fig. 6.2 Fig. 6.3
Fig. 6.4
L N 33 32 31
36 35 34
limentazione
230V ~ - 50/60 Hz
24V 24V
Motoriduttore 24V con
ritardo in apertura
33/36 32/35 31/34
Motoriduttore 24V con
Quadro elettronico
ritardo in chiusura
33/36 32/35 31/34
M2
M1
M1
M2
24V gearmotor = with
opening delay
24V gearmotor = with
closure delay
Power supply
230V ~ - 50/60 Hz
Control panel

35
IP2253EN - 2017-08-21
Carry out the following operations and checks every 6 months or 36.000 cycles.
Disconnect the 230V~ power supply and batteries (if present):
- Clean and lubricate the gate rotation pins, hinges and drive screw with neutral grease.
- Check the state of wear of the brushes [12], and replace them if necessary.
- Check the resistance of the fixing points.
- Check the electrical connections are in good condition.
Reconnect the 230V~ power supply and batteries (if present):
- Check the power adjustment.
- Check all the commands and safety functions (photocells) are operating correctly.
- Check the release system is working correctly.
-
If batteries are fitted, check they are working properly (in continuity) by disconnecting the power supply
and performing a series of consecutive operations. t the end, reconnect the 230V~ power supply.
7 . Routine maintenance plan
The packaging components (cardboard, plastic, etc.) must be separated out for recycling.
Refer to the local disposal regulations before proceeding.
The packaging materials must not be discarded in the environment or left within reach of chil-
dren, as they are a potential source of danger.
To dispose of electrical and electronic equipment, batteries and accumulators correctly,
take the product to the differentiated disposal and recycling centres, respecting the regulations
in force.
NB: for spare parts, refer to the spares price list.
8 . Troubleshooting
i
Problem Possible cause Operation
The gate doesn't
open or close
No power supply. Make sure the mains supply is active.
Gearmotor released. See the release instructions.
Photocells occupied. Check the photocells are clean and op-
erating correctly.
Permanent STOP command. Check the STOP command or the con-
trol panel.
Faulty selector. Check the selector or control panel.
Faulty remote control. Check the condition of the batteries.
Electric lock not working. Check the lock is positioned and work-
ing correctly.
The gate opens,
but it doesn't close
Photocells occupied. Check the photocells are clean and op-
erating correctly.
9 . Disposal

36
IP2253EN - 2017-08-21
Operating instructions
ETACH AN ELIVER TO THE USER
These precautions are an integral and essential part of the product and
must be supplied to the user.
Read them carefully since they contain important information on safe in-
stallation, use and maintenance.
These instructions must be kept and forwarded to all possible future users
of the system.
This product must only be used for the specific purpose for which it was
designed.
ny other use is to be considered improper and therefore dangerous. The
manufacturer cannot be held responsible for any damage caused by im-
proper, incorrect or unreasonable use.
void operating in the proximity of the hinges or moving mechanical parts.
Do not enter within the operating range of the motorised door or gate while
it is moving.
Do not obstruct the motion of the motorised door or gate, as this may cause
a dangerous situation.
The motorised door or gate may be used by children over the age of 8 and
by people with reduced physical, sensorial or mental abilities, or lack of
experience or knowledge, as long as they are properly supervised or have
been instructed in the safe use of the device and the relative hazards.
Children must be supervised to make sure they do not play with the device,
nor play/remain in the sphere of action of the motorised door or gate.
Keep remote controls and/or any other command devices out of the reach
of children, to avoid any accidental activation of the motorised door or gate.
In the event of a product fault or malfunction, turn off the power supply
switch. Do not attempt to repair or intervene directly, and contact only
qualified personnel.
Failure to comply with the above may cause a dangerous situation.
ny repairs or technical interventions must be carried out by qualified
personnel.
Cleaning and maintenance work must not be carried out by children unless
General safety precautions for the user

37
IP2253EN - 2017-08-21
For any problems and/or information, contact the Technical Service.
Manual release instructions

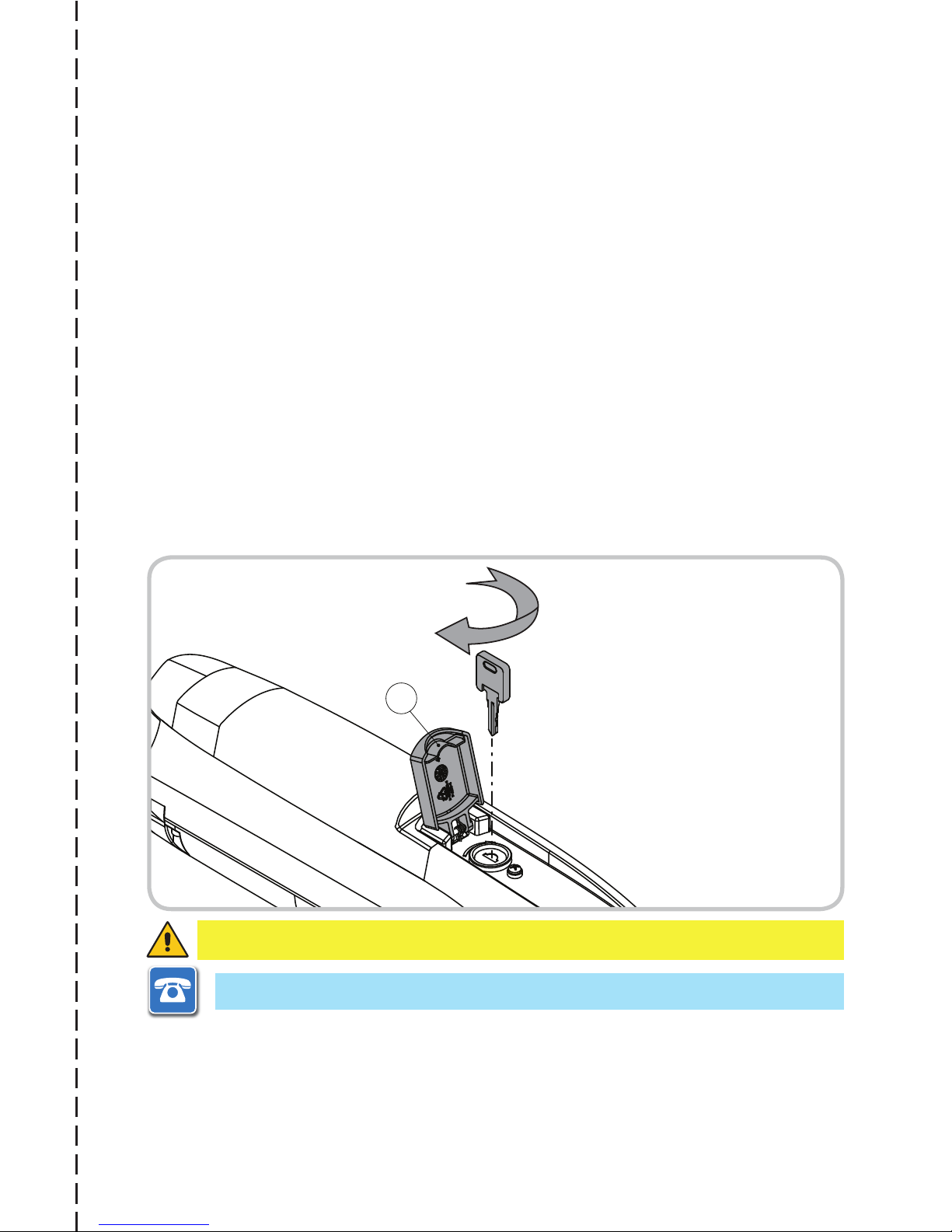

In the event of a fault or a power failure, open the window (8), insert the key in the relative lock and
turn it clockwise (as indicated by the arrow).
Release the electric lock (if present). Manually open the gate.
To lock the gate wings again, turn the key anti-clockwise.
W RNING: Only lock and release the door wings when the motor is switched off.
All the rights concerning this material are the exclusive property of Entrematic Group AB.
Although the contents of this publication have been drawn up with the greatest care, Entrematic Group AB
cannot be held responsible in any way for damage caused by any possible mistakes or omissions. We reserve
the right to make changes without prior notice.
Copying, scanning or changing in any way is expressly forbidden unless authorised in writing by Entrematic
Group AB.
8
they are supervised.
To ensure that the system works efficiently and correctly, the manufactur-
er’s indications must be complied with and only qualified personnel must
perform routine maintenance on the motorised door or gate. In particular,
regular checks are recommended in order to verify that the safety devices
are operating correctly.
ll installation, maintenance and repair work must be documented and
made available to the user.
Only lock and release the door wings when the motor is switched off. Do not
enter within the operating range of the wing.
ETACH AN ELIVER TO THE USER

IP2253EN - 2017-08-21
Entrematic Group AB
Lodjursgatan 10
SE-261 44, Landskrona
Sweden
www.entrematic.com
