enware Oras Safira User manual

I00346_Jun 20
Installation and Maintenance Instructions
Enware-Oras Safira
In-Wall Compact Shower Mixer
Call 1300 369 273
www.enware.com.au
Enware Australia Pty Limited
9 Endeavour Rd Caringbah NSW 2229 Australia
Ph: 02 8536 4000 [e-mail]
SAF608

2 Call 1300 369 273 www.enware.com.au
dimensions
SAF608
All measurements are in millimetres.
ø90 3
95
48 min
Wall Depth
90 max
44
14
32 36
COLD IN
G1/2”
HOT IN
G1/2”
MIXED OUT
G1/2”

www.enware.com.au Call 1300 369 27 3
technical data
Inlet Connection 15mm (1/2” BSP)
Recommended Working Pressure
Range
50 - 500 kPa
Hot and cold water inlet pressures should be
balanced
Static Inlet Pressure 50 - 1000 kPa
Maximum 1600 kPa for testing purposes only
Operating Temperature Range 0 - 80 °C
Wall Depth 48 - 90mm
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA)
and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the
product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB
and Local Government regulations when considering the choice of, and the installation of
these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
installation compliance

4 Call 1300 369 273 www.enware.com.au
installation
• All supply lines must be flushed thoroughly to remove debris prior to the installation of this
product, as per AS/NZS 3500.1. Strainers (40 mesh) are recommended if debris is an
ongoing problem.
• A pressure reduction valve may be required to comply with the recommended maximum
supply pressure and/or balanced pressure requirements.
IN-WALL BODY COMPONENT
1. Secure the shower body to the internal cavity within
the wall.
Wall depth: minimum 48mm – maximum 90mm from
finished wall surface. Finished wall markings are
indicated on the protective cover.
This shower cannot be installed sideways, or upside
down. The mixer body must be installed in the
correct direction, with the shower outlet aligned in the
vertical plane facing up, to ensure the handle points
downwards. The handle can only be installed in one
way – once the mixer body is installed the handle
cannot be flipped upside down or sideways contrary
to the mixer body in wall.
The shower body has a protective cover which
should be left on until the wall is finished.
IMAGE 02
min
max.
1
°C +
°C-
HOT / WARM
SUPPLY
COLD
SUPPLY
TO SHOWER
OUTLET
IMAGE 01
ø90
3
95
48 min
Wall Depth
90 max

www.enware.com.au Call 1300 369 27 5

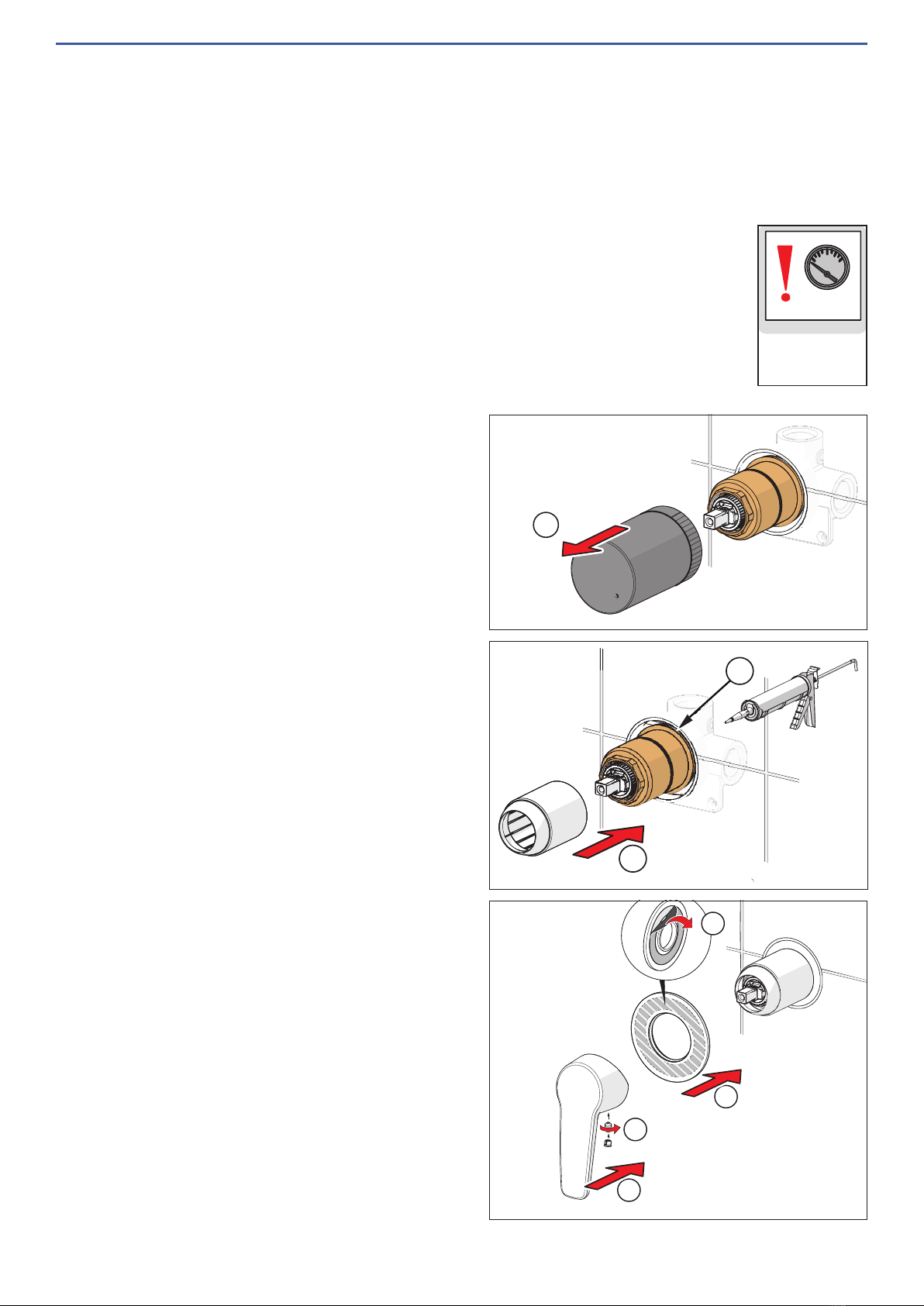

2. Connect water supply to the hot and cold inlets.
3. Connect the mixer shower outlet to the riser leading to shower rose/outlet.
WARNING: Heat must not be applied to the inlets and outlet of the mixer
as this will result in damage to the cartridge and void the warranty.
4. Turn on water to the mixer and test for leaks. Take off the protective cover
and loosely place lever handle on stem of mixer cartridge to test the outlet
line.
5. Maximum static pressure - 1600 kPa for pressure testing purposes only.
6. Fit protective cover back on the body, and leave it on until the wall is finished.
TEST
max.
1600 kPa
FIT-OFF – FACIA AND HANDLE
1. After the wall is finished, take off protective
cover. SEE IMAGE 03
2. Slide chrome sleeve over mixer body.
3. Seal any gaps between the wall cut-out
and shower body with neutral cure silicone
sealant. SEE IMAGE 04
4. Put on self-adhesive seal on cover plate.
5. Slide cover plate over the cartridge sleeve
and push firmly against the wall.
SEE IMAGE 05
6. Fit handle onto the cartridge stem. Place
the screw through the hole under the handle
lever, and tighten to fix the handle in place.
SEE IMAGE 05
7. Push the handle plug onto handle.
8. Turn water on and test for leaks. Test the
mixer tap and check for correct operation.
1
2
3
5
4
6
7
IMAGE 03
IMAGE 04
IMAGE 05

6 Call 1300 369 273 www.enware.com.au
operation
°C+
°C-
COLD
HOT/
WARM
OFF
ON
• To turn water on, lift handle up.
• To turn water off, lower handle down.
• Turn handle to the left for hot or warm water.
• Turn handle to the right for cold water.
limiting the flow rate
The lever handle lift angle can be limited to reduce the maximum water flow. This can
be done without shutting off water supply to the tap.
Take off the handle and chrome cover cap, then turn the screw located inside the
spindle. To limit to a lower flow (i.e. smaller handle lift angle), tighten the screw
clockwise until the screw protrudes past the spindle on the other side. The screw limits
the travel of the lever handle. SEE IMAGE 07
1
2
3
4
5
IMAGE 06
IMAGE 07

www.enware.com.au Call 1300 369 27 7

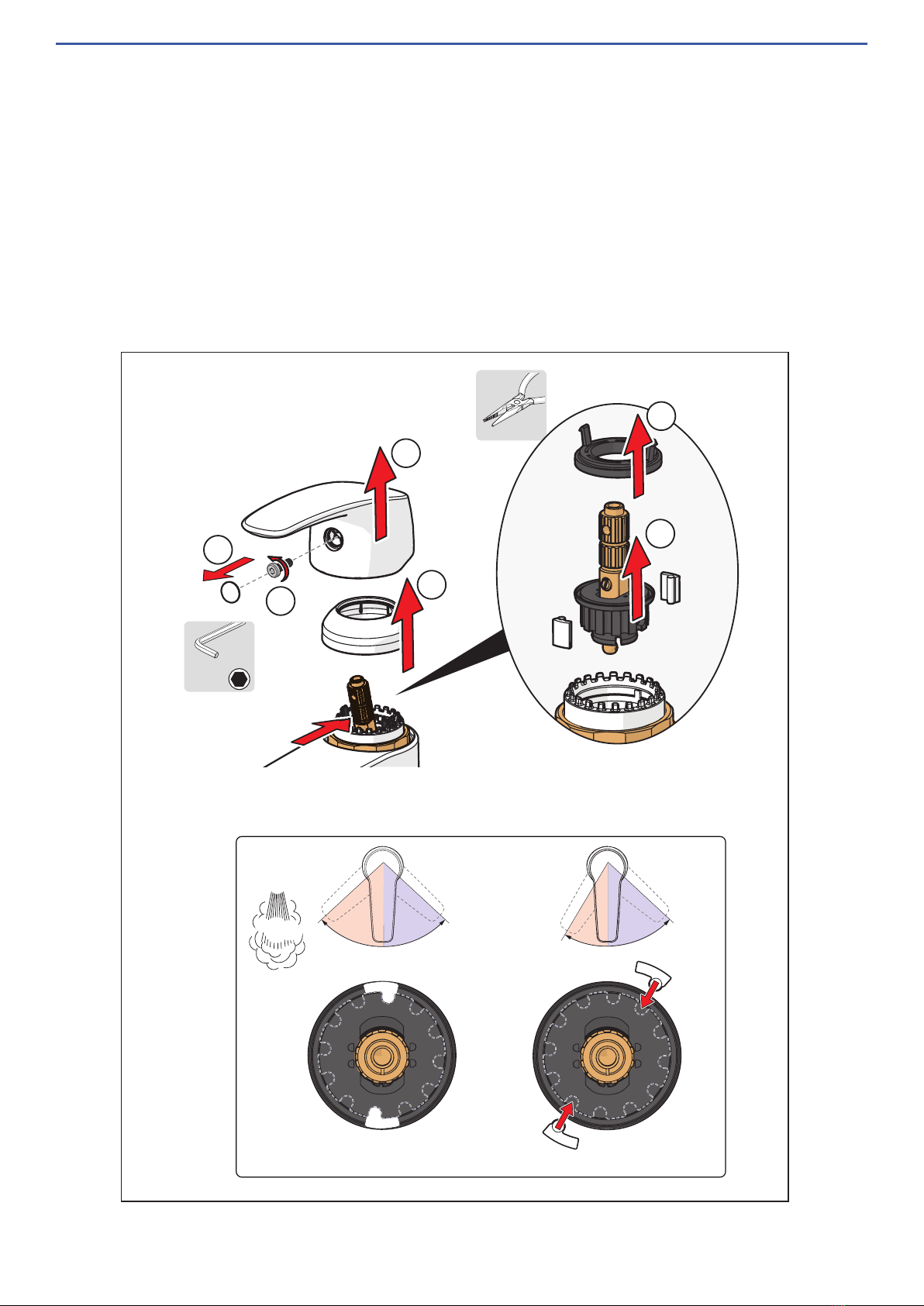

temperature limiter adjustment
The temperature of the hot water can be limited by restricting the swing angle of the lever
handle. This can be done without shutting off water supply to the tap.
Detach the lever handle and cover cap. (1 – 4) SEE IMAGE 08
Detach the black retaining ring on cartridge with a screwdriver or long-nose pliers (5).
Pull out the regulating shaft with its white limiters (6). Adjust the position of the white limiters
to the required angle. Moving the front limiter to the left will reduce the limit on the maximum
hot water temperature.
2.5
5
6
1
2
3
4
°C+
IMAGE 08

8 Call 1300 369 273 www.enware.com.au
maintenance
CLEANING
Enware products should be cleaned with a soft damp cloth using only mild liquid
detergent or soap and water. Do not use cleaning agents containing a corrosive acid,
scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive.
Use of unsuitable cleaning agents may damage the surface. Any damage caused in this
way will not be covered by warranty.

www.enware.com.au Call 1300 369 27 9
REPLACING CARTRIDGE
1. The cartridge is a non-serviceable part. A
new cartridge must be used if the existing
cartridge is damaged.
2. Turn water supply off and turn mixer handle
on to drain water.
3. Remove the mixer handle by firstly prying
off the handle plug from the front of the
handle. Use a slotted screwdriver to
unscrew the handle locking screw and
remove screw. SEE IMAGE 10
4. Pull the handle off the spindle.
5. Using a small slotted screwdriver, carefully
lever the cover cap from under its inside
edge and remove it from tap body.
6. Use Oras Cartridge Socket or suitable
38mm socket wrench on the flats of the
cartridge fixing nut to unscrew and remove
the fixing nut.
7. Pull up vertically on the stem of the
cartridge until the seal is released. Remove
the cartridge from the mixer body.
8. Inspect and replace as per the trouble-
shooting guide and spare parts list.
REASSEMBLING
1. Align the locating lug on the cartridge to the
locating hole in the tap body, and press the
cartridge into position.
2. Screw cartridge fixing nut into mixer body
and tighten using the cartridge key or
38mm socket wrench.
3. Fit cover cap and handle components back
on.
2.5
38
1
2
3
4
5
6
8
For specific problems such as a leaking tap refer to Troubleshooting on page 11 for
instructions.
IMAGE 10

10 Call 1300 369 273 www.enware.com.au

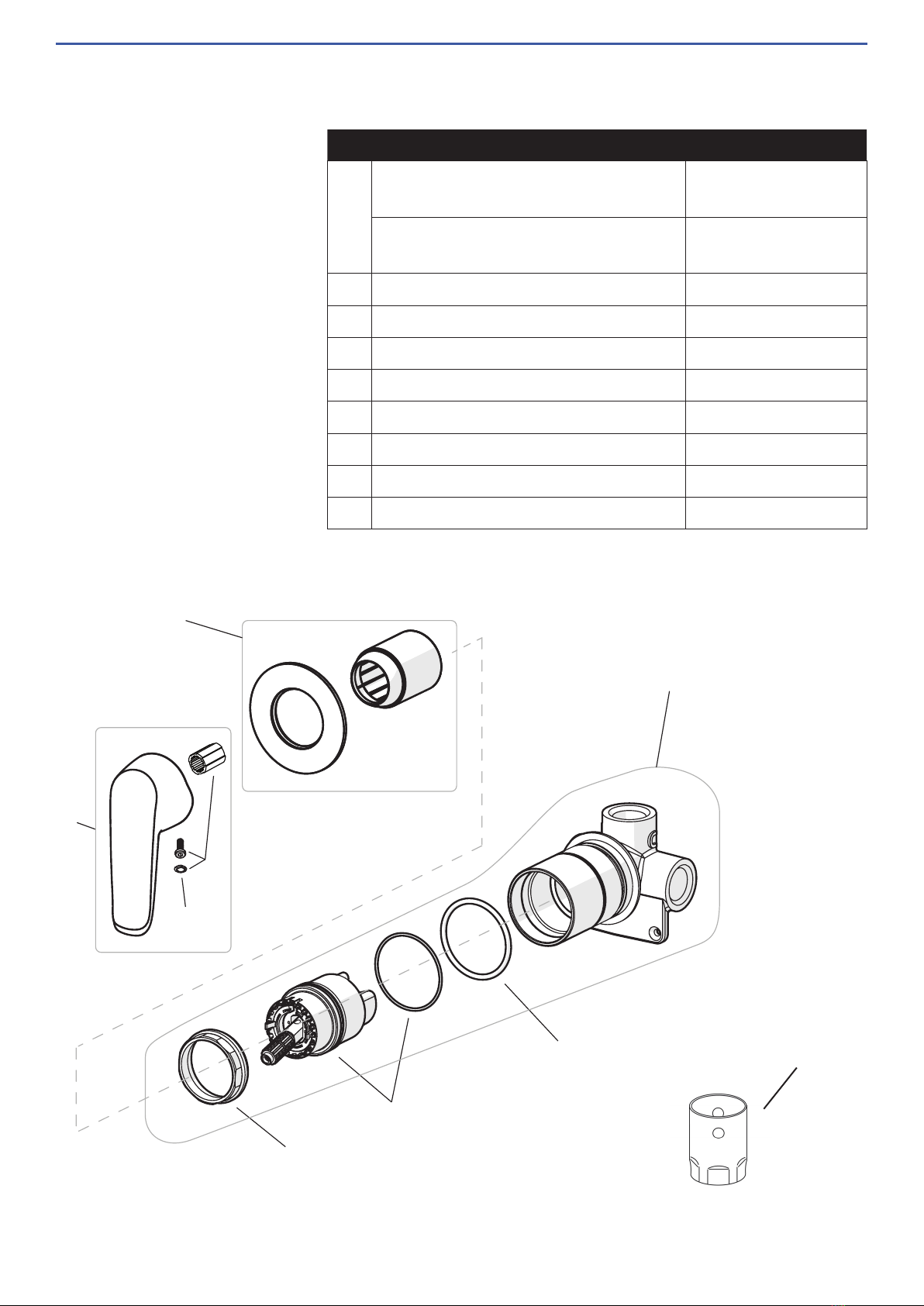

spare parts
DESCRIPTION PART CODE
1 Lever Handle - Safira (Red/Blue)
with fixing screw and handle cap
SAF606HDL-RB
Lever Handle - Safira (Yellow/Blue)
with fixing screw and handle cap
SAF606HDL-YB
2 Safira Handle Fixing Kit 891540
3 Handle Plug (each) SLMS635
4 Cover Plate and Chrome Sleeve 891535
5 Cartridge Fixing Nut SLMS606
6 Oras Cartridge with O-ring SLMS690
7 Sleeve Sealing O-ring
8 In-Wall Shower Assembly 891534
9 Oras Cartridge Key SLMS622
9
1
2
5
6
7
3
4
8

www.enware.com.au Call 1300 369 27 11
troubleshooting
PROBLEM CAUSE RECTIFICATION
Leaking from outlet. Cartridge is damaged or
split.
Supply pressures too high.
Incorrect installation.
Check pressure and install
a pressure reduction valve.
Replace cartridge.
Cartridge fixing nut has been
over tightened. Replace
cartridge.
Cartridge has debris caught
in the mechanism.
Remove cartridge and
inspect. Remove debris
and/or replace cartridge if
damaged.
Install an inline strainer.
Cartridge fixing nut is loose. Check cartridge bottom seal
and tighten cartridge fixing
nut.
Water is leaking from top
of mixer body.
Mixer body O-rings are worn.
Cartridge seals are worn.
Replace cartridge.
Water is not flowing from
tap.
Water turned off. Turn water on.
Outlet / Flow control or
check valve is blocked by
debris.
Remove outlet / flow control
and clean debris.
Install an inline strainer.
Clean check valve.
Hot water flows when
handle is turned anti-
clockwise.
Hot and cold connections
are incorrect.
Reconnect hot and cold
supply correctly to mixer.
Refer to the following troubleshooting chart for specific problems and solutions.

product warranty for Australia Eecve 1 September 2014
Enware Australia Pty Limited (ACN 003 988 314)
(“we” or “us”) warrants that this product (also referred
to as “our goods”) will be free from all defects in
materials and workmanship for 15 years* from the date
of purchase. Our liability under this warranty is limited at
our opon to the repair or replacement of the defecve
product or part, the cost of repair of the defecve
product or part or the supply of an equivalent product or
part, in each case if we are sased the loss or damage
was due to a defect in the materials or workmanship
of the product or part. All products must be installed in
accordance with the manufacturer’s instrucons, the
PCA, and AS/NZS3500 including any other applicable
regulatory requirements.
exceptions
This warranty does not apply in respect of any damage or
loss due to or arising from:
a) Failure by you or any other person to follow any
instrucons for use (including instrucons and direcons
relang to the handling, storage, installaon, ng,
connecon, adjustment or repair of the product)
published or provided by us;
b) Failure by you or any other person responsible for the
ng, installaon or other work on the product to follow
or conform to applicable laws, standards and codes
(including the AS/NZ 3500 set of Standards, all applicable
State and Territory Plumbing Codes, the Plumbing Code
of Australia and direcons and requirements of local and
other statutory authories); or
c) Any act or circumstance beyond our control including
faulty installaon or connecon, accident, abnormal use,
acts of God, damage to buildings, other structures or
infrastructure and loss or damage during product transit
or transportaon.
making a claim
To make a claim under this warranty you must
nofy us in wring within 7 days of any alleged defect
in the product coming to your aenon and provide
us with proof of your purchase of the product and
completed the Online Product Service and Warranty
Form available on website www.enware.com.au/
product-serviceenquiry .
All nocaons and accompanying forms must be sent to
us marked for the aenon of the Enware Australia Pty
Limited, 9 Endeavour Road, Caringbah NSW 2229. We
can also be contacted by telephone [phone]) or by
email ([e-mail]).
Your costs in making a claim under this warranty,
including all freight, collecon and delivery costs, are
to be borne and paid by you. We also reserve the right
at our cost to inspect any alleged defect in the product
wherever it is located or installed or on our premises.
*Condional warranty: Ceramic Cartridge Oras Single Lever
Mixers - 2 years Oras parts and labour warranty from the
date of purchase of the product. *Aer 2 years, a further 3
years Oras replacement part only warranty is applicable to
the ceramic disc cartridge only; aer 5 years an addional
10** years Enware replacement part warranty is applicable
to the ceramic disc cartridge only. **This extended parts
only warranty is applicable to Oras Ceramic Disc Single
Lever Mixer products purchased within Australia
other conditions
Except as provided or referred to in this document, we
accept no other or further liability for any damages
or loss (including indirect, consequenal or economic
loss) and whether arising in contract, tort or otherwise.
Any benets available to you under this warranty are in
addion to any non-excludable rights or remedies you
may have under applicable legislaon, including as a
“consumer” under the Australian Consumer Law. To that
extent you need to be aware that: Our goods come with
guarantees that cannot be excluded under the Australian
Consumer Law. You are entled to a replacement or
refund for a major failure and for compensaon for any
other reasonably foreseeable loss or damage. You are
also entled to have the goods repaired or replaced if
the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
