ergolet Universal Basic User manual

Full slings
User manual
- Universal Basic
- Universal Comfort
- Universal Hammock
- Universal Amputee
Important information
Read this user manual before using
the product.
This user manual is aimed at care
personnel, family members and
therapists in connection with the use
and maintenance of slings made by
ErgoSling.
Date: 31.07.2015 - Version 06
Universal
Basic
Universal
Comfort
Universal
Hammock
Universal
Amputee

2

3
Contents
1 Purpose 4
2 Safety instructions 4
3 Check before use 5
4 Lifting 6
5 Maintenance
5.1 Washing instructions 8
5.2 Storage 8
6 Inspection 9
7 Quality and the environment
7.1 Disposal 9
7.2 Quality 9
7.3 Symbols and abbreviations 10
Universal Basic
Use 11
Specifications 11
Universal Comfort
Use 12
Specifications 12
Universal Hammock
Use 13
Specifications 13
Universal Amputee
Use 14
Specifications 14

4
1. PURPOSE
All ErgoSlings in this range are Universal full slings that are intended for use in lifting or
transferring people with reduced mobility.
Transfer can be achieved in combination with stationary or mobile personal hoists.
These slings can be used at hospitals, in the context of home care, at institutions and
in private homes.
The slings can be used for transfers from a wheelchair/chair or from a chair to a
bathing and toilet chair etc.
All models of the Universal sling are available in various sizes, and some are available
with or without a head support. See the specifications for the various sling models in
this user manual.
NOTE: All sling models are described in this manual. Illustrations and descriptions are
applicable to all versions, unless a separate description is provided.
NOTE: ErgoSlings must not be used for any purposes other than those described in this user
manual.
2. SAFETY INSTRUCTIONS
Read the user manual and these safety instructions thoroughly before using the sling:
Do not exceed the sling's maximum lifting capacity.
Use the correct size and model of sling for the user.
Make sure the sling has no visible damage or signs of wear. In particular check that the
seams are intact. The hoist straps must not be frayed, and they must not be knotted.
For hygiene reasons, the sling must be clean. See the washing instructions in section 5.
Qualified personnel must always be present when attaching the sling and during lifting.
It must be ensured that hazardous situations do not arise when using any other
equipment, e.g.: the sling straps becoming caught in the wheels of a wheelchair, or
similar.
It must be ensured that neither the helper nor the user can be injured while using the
sling.
The user must never be left alone in the sling.
The helper is responsible for ensuring that the sling is used properly, and is also
responsible for ensuring that safety is maintained. See section - 3. Check before use.
!
!
Important –Warning!

5
3. CHECK BEFORE USE
The carer is responsible for ensuring that the sling is checked before use, and that instructions
for use have been provided.
Check the following points before use:
1) Check that the sling used is the correct model and is the right size, so that it is right for
the lifting situation and the user.
Note: All the slings have a coloured loop that indicates the size
and the centre line of the sling.
Size chart with head support (all measurements are approximate)
Size chart without head support (all measurements are approximate)
2) It is important to check that a sling with the correct spreader bar size is used in order to
fit the user's shoulder measurement.
3) Check that the fabric of the sling and the straps are intact. There must not be any wear or
damaged seams.
4) Check that the sling is clean.
5) If in any doubt about how to use the sling, Ergolet can be contacted for advice and
guidance.
White
Red
Yellow
Green
Blue
Black
Colour
White
Red
Yellow
Green
Blue
Black
Colour

6
4. LIFTING
Note: The lifting situation must always be planned, and it must be ensured that the user feels
secure when being lifted in the sling.
Lifting from a sitting position:
Applies to Basic, Comfort and Amputee slings:

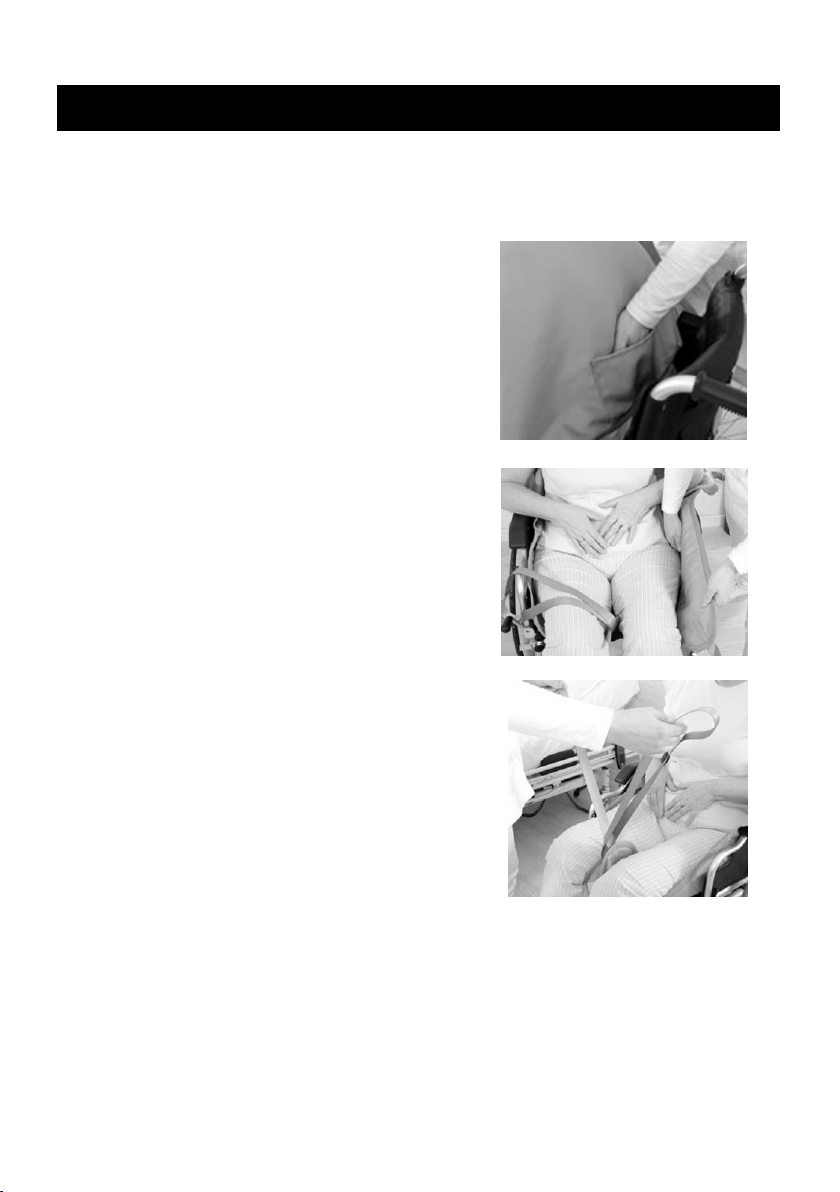

1) Place the sling behind the user's back with the
coloured loop by the label indicating the centre
line. The centre line must be aligned with the
user's spine.
2) Push your hand down into the positioning
pocket and push the sling as far as possible
beneath the user's lower back.
3) Place the sling's leg supports alongside the
user's legs and carefully feed the leg straps
underneath the legs.
Note: Make sure you do not pull on the straps when
placeing them underneath the user's legs. It can help
the procedure to place the user's feet on a footstool
or by using a slider.
Applies to the Basic sling:
4) Once both leg supports have been correctly
positioned beneath the legs, cross over the leg
straps.
5) Attach the sling straps to the hook on the
spreader bar. See page 8 of the instructions.
6) Now carefully lift the user, and once the straps
are straightened out the sling can be
straightened so that it is positioned correctly.

7
Applies to Comfort and Amputee slings:
Follow points 1-3 for "Lifting from a sitting position".
4) For the amputation sling, adjust the Velcro
straps around the leg stump.
5) Cross the short coloured strap over the lifting
strap on the opposite side. (A)
Next cross the straps from the legs supports
with the leg straps from the insides of the thigh
(B).
6) Attach the sling straps to the hook on the
spreader bar. See page 8 of the instructions.
7) Now carefully lift the user. Once the straps are
straightened out, the sling can be straightened
so that it is positioned correctly.
Lifting from a lying position:
1) Place the user on his or her side and fold up the
sling to its centre line. Place the folded part
beneath the user.
2) Next roll the user onto his or her other side,
completely unfold the sling and then return the
user to a lying position.
3) Place the leg straps underneath the legs and pull
them out between the user's legs.
4) Attach the sling straps to the hook on the
spreader bar. See page 8 of the instructions.
5) Now carefully lift the user. Once the straps are
straightened out, the sling can be straightened
so that it is positioned correctly.
A
B

8
Attach the sling to the spreader bar
Ergolet excludes any liability if the sling is not correctly attached to the hook on the
spreader bar.
It is always the responsibility of the helper to ensure that the correct sling is used
and that it is suitable for the need/purpose.
1) Attach the sling strap to the open hook.
Note: On some models, there are straps of different colours. It
is important here that the same colour is used on the hooks on
each side in order to avoid an uneven lift.
2) Pulling the strap down causes the lock to close with a
”click”.
Note: The lifting hook is designed in such a way that the user's
weight automatically keeps the hook locked.
To unhook the strap, pulling the strap up causes the hook to open.
Care should be taken to avoid the user’s fingers becoming caught in the hook.
5. MAINTENANCE
5.1 Washing instructions
All Universal slings can be machine-washed and tumble-dried
at a low temperature.
Follow the washing instructions as indicated by symbols and
printed instructions on the sling label.
Note: On models with head supports, the plastic ribs must be
removed before machine-washing.
Note: Do not use softener.
A key to the symbols can be found under section 7.3 - Symbols and abbreviations.
5.2 Storage
If the sling is not being used, it should be packed in its original packaging and stored in a clean
and dry place at a temperature between 0-40°C.
!
Plastic ribs
!

9
6. INSPECTION
ErgoSlings should be inspected at least once every six months in accordance with EN/ISO
10535, Annex B, which recommends that inspection should be carried out by a qualified person
who is familiar with use of the sling.
The legal owner of the product is responsible for ensuring that inspection is carried out. An
inspection schedule can be requested from Ergolet.
Guarantee
There is a two-year guarantee on materials and manufacture defects, on condition that there is
compliance with safety and washing instructions.
7. QUALITY AND THE ENVIRONMENT
ErgoSlings have an expected lifetime of 5 - 10 years assuming normal daily use. This also
assumes that the recommended inspection and maintenance is carried out.
7.1 Disposal
ErgoSlings may be disposed of together with flammable materials at the recycling centre, or
they can be returned to Ergolet.
7.2 Quality
Ergolet is certified in accordance with ISO 9001 and ISO 13485 quality standards.
These certificates mean that the product and the company meet applicable international
standards for quality management and standards for traceability for medical products.
ErgoSlings are classified as Medical equipment class 1 product.

10
7.3 Symbols and abbreviations
Machine-wash at the indicated temperature.
Do not iron.
Do not use bleach.
Do not dry-clean.
Tumble-dry at low temperature.
See the user manual.
The product can be disposed of with general waste.
SWL
Safe working load = (user + accessories)
The product is CE-marked.

11
UNIVERSAL BASIC
Universal Basic with head support
Universal Basic with head support, mesh

Universal Basic without head support
Universal Basic without head support, mesh
Use:
Universal Basic for users with lack of upper body stability and who therefore require
extra support to their thighs and upper body.
Universal Basic available with a head support, which can be used for users who do not
have full head control.
Universal Basic, mesh dries faster and can be used for bathing situations.
Specification:
SWL
275 kg
Material
Polyester
Padding
Yes
Spreader bar compatibility
2, 3 and 4-point
Sling is available in sizes
XS - XXL
Divided leg support
Yes
Scan the QR-code for
further information

12
UNIVERSAL COMFORT
Universal Comfort with head support
Universal Comfort with head support, mesh
Universal Comfort without head support
Universal Comfort without head support, mesh
Use:
Universal Comfort for users with reduced physical functionality or amputation, or users
requiring upper body support.
Universal Comfort available with a head support, which can be used for users who do
not have full head control.
Universal Comfort, mesh dries faster and can be used for bathing situations.
Specifications:
SWL
275 kg
Material
Polyester
Padding
Yes
Spreader bar compatibility
2, 3 and 4-point
Sling is available in sizes
XS - XXL
Divided leg support
Yes
Scan the QR-code for
further information

13
UNIVERSAL HAMMOCK
Universal Hammock with head support, mesh
Universal Hammock without head support, mesh
Universal Hammock with head support, mesh and
toilet opening, mesh
Universal Hammock without head support, mesh
and toilet opening, mesh
Use:
Universal Hammock for users with reduced muscle tone and who require the sling to be
left in place after transfer.
Universal Hammock available with a head support, which can be used for users who do
not have head control.
Universal Hammock, with and without head support, is available with a toilet opening,
which allows the user to remain in the sling when using the toilet.
Universal Hammock, mesh dries faster and can be used for bathing situations.
Specifications:
SWL
275 kg
Material
Polyester
Padding
Yes
Spreader bar compatibility
2, 3 and 4-point
Sling is available in sizes
XS - XXL
Divided leg support
No
Scan the QR-code for
further information

14
UNIVERSAL AMPUTEE
Universal Amputee with head support
Universal Amputee without head support
Use:
Universal Amputee for users with reduced physical functionality or amputation, or users
requiring upper body support.
Universal Amputee available with a head support, which can be used for users who do
not have full head control.
Specifications:
SWL
275 kg
Material
Polyester
Padding
Yes
Spreader bar compatibility
XS - XXL
Sling is available in sizes
2, 3 and 4-point
Divided leg support
Yes
Scan the QR-code for
further information

15

16
Phone: + 45 70 27 37 20
Fax: + 45 70 27 37 19
Email: [e-mail]
www.ergolet.com
Manufacturer:
Ergolet
Tårnborgvej 12 C
4220 Korsør
Denmark
9 3 / 4 2 / E Ø F C L A S S I
I S O 1 0 5 3 5
910-00767UK
