UNIVERSAL MULTI-UNIT CHARGER
STANDARD & RAPID
LBI-38706B
Operator’s Manual
ericssonz

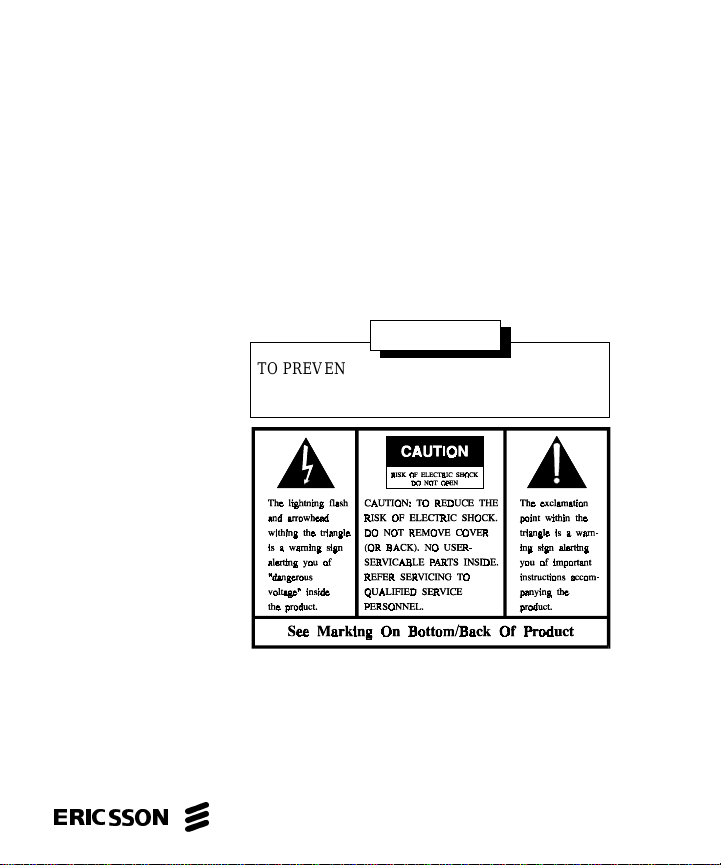

TO PREVENT FIRE OR ELECTRIC SHOCK HAZ-
ARD DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE
WARNING

NOTE: The Universal Chargers 344A3072P1 & P8 have been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are de-
signed to provide reasonable portection against harmful interference in a residential installa-
tion. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
Copyright©June 1992, Ericsson GE Mobile Communications.
TABLE OF CONTENTS Page
IMPORTANT SAFETY INFORMATION . . . . . . . . . . . 3
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . 7
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 9
INDICATORS . . . . . . . . . . . . . . . . . . . . . . . . . 10
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . 13
DEFINITIONS . . . . . . . . . . . . . . . . . . . . . . . . . 14
TROUBLESHOOTING CHART . . . . . . . . . . . . . . . 15
ACCESSORIES AND REPLACEMENT PARTS . . . . . . 17
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . 23
This manual is published by Ericsson Inc., without any warranty. Improvements and changes to this manual necessitated by
typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by
Ericsson Inc., at any time and without notice. Such changes will be incorportated into new editions of this manual. No part
of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photo-
copying and recording, for any purpose, without the express written permission of Ericsson Inc.
2

IMPORTANT SAFETY
INFORMATION
1. SAVE THIS MANUAL - It contains important safety and operating in-
structions for Universal Desk Charger.
2. Before using the battery charger, read all instructions and cautionary
markings on (1) the battery charger, (2) the battery, and (3) the product
using the battery.
3. CAUTION - To reduce the risk of injury, charge only Ericsson battery
packs using the proper battery sleeve. Charging any other battery pack
or batteries may cause the battery to burst and cause personal injury or
damage.
4. Do not expose charger to rain or snow.
5. Do not use auxiliary equipment not recommended or sold by the manu-
facturer. To do so may result in a risk of fire, electric shock, or injury to
persons.
6 To reduce risk of damage to electric plug and cord, pull by the plug
rather than the cord when disconnecting the charger.
7. Make sure the cord is located so that it will not be stepped on, tripped
over, or otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use
of an improper extension cord could result in a risk of fire and electric
shock. If an extension cord must be used, make sure:
a. That pins on the plug of the extension cord are the same number,
size, and shape as those on the charger’s plug;
b. That the extension cord is properly wired and in good condition;
and
3

IMPORTANT SAFETY
INFORMATION
c. That the wire size is large enough for the AC ampere rating of the
charger as specified in Table 1.
TABLE 1
RECOMMENDED MINIMUM SIZE FOR
EXTENSION CORDS
LENGTH OFEXTENSION CORD (ft.) 25 50 100 150
AWG SIZE OF EXTENSION CORD 18 18 18 16
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
10. Do not operate charger if it has received a sharp blow, been dropped, or
otherwise damaged in any way; return it to a qualified service shop.
11. Do not disassemble the charger; return it to a qualified service shop
when service or repair is required. Incorrect reassembly may result in a
risk of electrical shock or fire.
12. To reduce risk of electric shock, unplug the charger from the outlet be-
fore attempting any maintenance or cleaning.
4

IMPORTANT SAFETY
INFORMATION
13. GROUNDING AND AC POWER CORD CONNECTION - To reduce
the risk of electrical shock use only a properly grounded outlet. The
charger is equipped with an electric cord having an equipment-ground-
ing conductor and a grounding plug. Be sure the outlet is properly in-
stalled and grounded in accordance with all local codes and ordinances.
14. DANGER - Never alter the AC cord or plug. If it will not fit in the out-
let, have a proper outlet installed by a qualified electrician. Improper
connection can result in risk of an electric shock .
15. The Rapid Charger 120 Vac line cord has a grounding plug that looks
like the plug illustrated in Figure 1. A temporary adapter, which looks
like the adapter illustrated in sketches B and C, may be used to connect
this plug to a two-pole receptacle as shown in sketch B if a properly
grounded outlet is not available. The temporary adapter should be used
only until a properly grounded outlet can be installed by a qualified
electrician.
16. DANGER - Before using an adapter as illustrated, be certain the center
screw of the outlet plate is grounded. The green- color rigid ear or lug
extending from the adapter must be connected to a properly grounded
outlet--make certain it is grounded. If necessary, replace the outlet cover
plate screw with a longer screw that will secure adapter ear or lug to
outlet plate and make ground connection to grounded outlet.
17. Care should be taken when placing the charger in service to insure
proper top and bottom ventilation. A minimum of 1/4" is required be-
tween the bottom of the charger and the surface on which it sits.
5

IMPORTANT SAFETY
INFORMATION
Figure 1 - Grounding Methods
Due to the temperature characteristics of nickel-cadmium batteries, the
batteries will not accept a full charge at temperature extremes. For
maximum capacity, recharge the battery pack at a room temperature of
65°to 85°Fahrenheit, whenever possible.
NOTE
6

SPECIFICATIONS
VOLTAGE SOURCE
120 volt switch position 96-144 Vac, 50/60 Hz
230 volt switch position 176-264 Vac, 50/60 Hz
POWER CONSUMPTION
Rapid Charger 170 watts
Standard Charger 30 watts
FUSE RATING
Rapid Charger F1 - 5 Amp 250 volt
Standard Charger F1 - 315 mA, 250 volt
F2 - 600 mA, 250 volt
RECHARGE TIME
Rapid Charger 1 hour
Standard Charger 14 hours
OPERATING
TEMPERATURE RANGE + 5° to +45°C
( + 41° to + 113°F)
DIMENSIONS (H x W x D)
Height 4.6 inches (117 mm)
Width 12.4 inches (315 mm)
Depth 18.2 inches (461 mm)
WEIGHT
Rapid Charger 15.8 lb. (7.1 kg)
Standard Charger 15.2 Ib. (6.8 kg)
7

DESCRIPTION

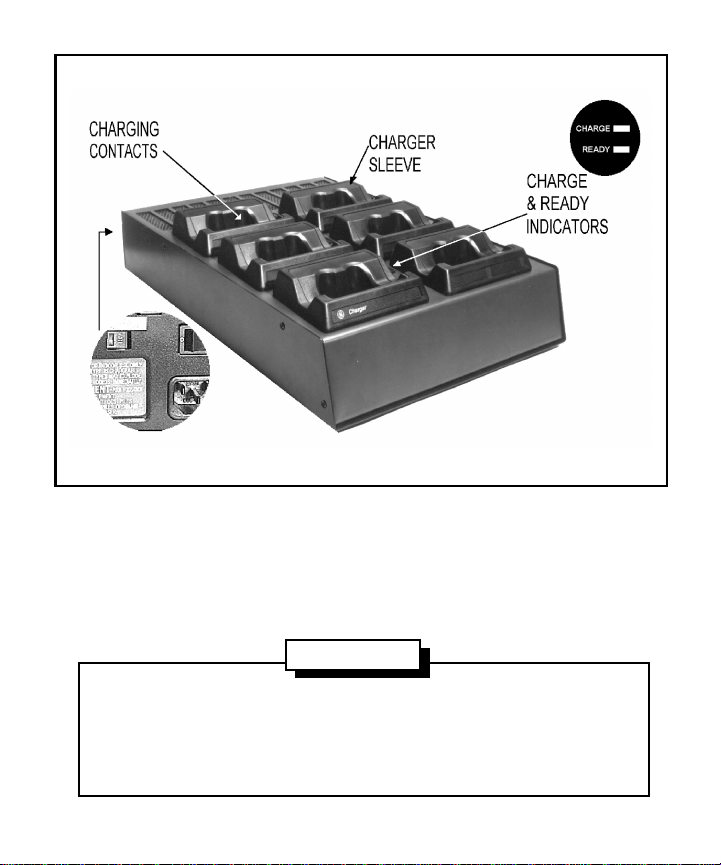

The Universal Multi-unit Charger is designed to charge Ericsson per-
sonal radio battery packs. The charger is available either as a Standard or
Rapid Charger and is capable of charging up to six battery packs at one time.
The Standard Multi-unit Charger is capable of fully charging battery
packs in 14 hours and Rapid Desk Charger charges most battery packs in
one hour or less. The use of interchangeable battery sleeves permits charging
different battery pack families at the same time (i.e. two M-RK and four M-
PD sleeve inserts in the same charger).
Both the Standard and Rapid Multi-unit Chargers may be powered by
either a 120 Vac (50/60 Hz) or 230 Vac (50/60 Hz) power source. Power
source selection is made by switching the Voltage Selection switch to the
proper source voltage and using the correct power cable (see Accessories
and Replacement parts).
Battery Pack sleeves are available for the following Ericsson personal ra-
dios:
RADIO TYPE SLEEVE NUMBER
M-PA, M-PD, MTL, PLS, & TPX 344A3072P5
PCS 344A3072P6
M-RK 344A3072P7
Recharging any battery pack or batteries other than the ones your
equipment was designed to charge may result in damage to equipment,
leakage, or explosion.
CAUTION
8

INSTALLATION
The Multi-unit Charger may be located on a desk or other flat surface or
mounted on a vertical wall in a convenient location. Ensure either a 120 or
230 Vac 50/60 Hz power source is located near the charger. Check the
charger’s voltage selection switch and verify it matches the source voltage.
When locating it on a flat surface be sure to allow 1/4" clearance around the
top and bottom covers to provide adequate ventilation.
When mounting the Universal Multi-charger on a wall be sure the wall is
strong enough to support the charger and a full compliment of radios.
Hollow walls - It is not recommended that the charger be mounted di-
rectly to the wall due to the possible weight (26 lbs max) involved. We sug-
gest mounting the charger on an 18" x 18" plywood panel secured to the
wall studs. The following steps describe the process for installing the panel
and mounting the charger.
1. Locate the studs, studs are normally 16" apart, measured center-to-cen-
ter.
2. Position the top of the panel at the desired height and drill pilot holes
through the panel into the studs. Secure the panel to the studs using four
2 1/2" long screws.
3. Using the template, locate keyhole slots for the Multi-charger mounting
screws. Install the four No. 8 x 1 1/2" mounting screws and mounting
spacers (provided). Install charger on mounting spacers by pressing
down on the charger allowing the mounting spacers to seat into the
charger keyhole slots. The weight of the charger will hold it firmly to
the wall.
9

Solid walls - To install the charger on a brick or concrete wall, first insert
four wood dowels or fiber, plastic or masonry mounting anchors. Use the
following procedure:
1. Using the mounting template provided, locate and mark the charger
keyhole mounting points. Drill the holes to match the anchor’s diameter
and depth using a carbide drill. Insert the anchor into the holes.
2. Screw the four No. 8 x 1 1/2" screws and mounting spacers (provided)
into the anchors.
3. Install the charger on the mounting spacers by pressing down on the
charger allowing the mounting spacers to seat into the charger keyhole
slots. The weight of the charger will hold it firmly to the wall.
10

INDICATORS
CHARGE (RED) CONTINUOUS: Indicates battery is charging at the se-
lected charging rate
STANDARD MULTI-UNIT CHARGER
11

RAPID MULTI-UNIT CHARGER
If both CHARGE and READY indicators are blinking fast, immedi-
ately unplug the charger and return it for service. If left in this con-
dition, the battery may be severely overcharged causing personal
injury or damage.
WARNING
12

STAND-BY Both indicators are OFF. Battery not installed.
CHARGE (RED) CONTINUOUS: Indicates battery is charging at the se-
lected charging rate.
BLINKS SLOWLY: Indicates a BATTERY FAULT
condition which is preventing an acceptable rapid
charge. This condition may result if the battery is too
hot or cold, weak or dead, or defective. If the blinking
CHARGE indicator does not turn to a continuous RED
after 15 minutes, remove and reinsert the battery.
Weak or Dead Battery - The CHARGE indicator goes to
continuous RED after the battery has an acceptable pre-
charge (typically less than 10 minutes).
Cold or Hot Battery - The CHARGE indicator stays in a
blinking RED condition until the battery temperature
reaches acceptable limits and the battery is removed
and reinserted to clear the fault condition.
Defective Battery - The CHARGE indicator stays in a
blinking RED condition after clearing the fault by re-
moving and reinserting the battery .
READY
(GREEN) CONTINUOUS: Indicates charging is complete and charger has switched to trickle charge.
PROBLEM
(RED/GREEN) BLINKING FAST: When both indicators are blinking fast, either the output has a short circuit or an abnormal
output condition exists.
13

OPERATION
Using The Desk Charger
1. Plug in the charger and turn it on using the ON/OFF power switch lo-
cated in the rear.
2. Turn the radio OFF and place it into the proper charging sleeve with
the speaker facing the front of the charger. If only charging a battery
pack, properly insert the battery pack into the charger as indicated on
the battery pack making sure the ON-OFF switch on the battery pack is
in the OFF position (M-RK battery packs do not have an ON/OFF
switch).
3. STANDARD MULTI-UNIT CHARGER: The CHARGE (red) indicator
will light indicating the battery is being charged The proper charge cur-
rent for long or short case battery packs is selected by the insert micro
switch. To charge the battery to maximum capacity, let the battery pack
charge for at least 14 hours
4. RAPID MULTI-UNIT CHARGER: The CHARGE (red) indicator will
light indicating the battery is being charged. (If the CHARGE indicator
is blinking slowly - the charger is in the pre-charging mode. The charger
should switch to normal charge within 10 minutes). When the READY
(green) indicator lights - charging is complete and the charger is in
trickle charge mode.
For indoor use only. To reduce risk of injury, charge only nickel cad-
mium type rechargable batteries. Other types of batteries may explode
causing personal injury or damage. Replace defective cords immedi-
ately.
CAUTION
14

To Remove ABattery Pack
Simply reach into the cutouts provided in the sides of the charging insert
and lift the battery pack out.
DEFINITIONS
Dead Battery Battery pack with low voltage due to long term self
discharge or extreme discharge.
Hot Battery Battery Pack excessively warmed by charging or en-
vironmental temperature conditions.
Cold Battery Battery pack excessively cooled by an environmental
condition.
Defective Battery Battery pack with one or more of the internal cells
shorted.
On occasion when charging a new battery or a battery which has been
out of use for a few months, the charger will prematurely switch to the
trickle charge before the battery has been fully charged. If this hap-
pens, allow the battery to continue trickle charging overnight. Then re-
move and reinsert the battery and observe that the battery goes
through a normal rapid charge before putting it into service.
NOTE
15

TROUBLESHOOTING CHART
SYMPTOM CHECK FOR
1. RED LED indicator
does not light. 1. Power cable not plugged in securely.
2. Power switch not turned on.
3. Battery pack not properly
installed in charger.
4. Defective charger. Return to a
qualified service shop for repair.
5. Charging contacts on the battery
or charger are dirty. Clean with
soft eraser.
2. Pre-charge too long
RED LED blinks slowly
for over 10 minutes.
(Rapid charger only)
1. Defective battery with shorted
cells.
3. Red charge LED ON for
several seconds then
starts to blink slowly.
(Rapid Charger only)
1.
2.
Hot battery (above 45°C).
Cold battery (below 0°C).
Remove battery and re-insert
after temperature has stabilized.
4. RED and GREN LED’s
blink rapidly (Rapid
Charger only).
1. Defective charger, return
charger to a qualified service
shop.
16

ACCESSORIES AND REPLACEMENT PARTS
Accessories and replacement parts may be obtained from your local
dealer or by calling the Ericsson Inc. After Market Services 24-Hour Toll
Free Number 1-800-368-3277 (USA only) or FAX [phone]. Please
provide the description and part number when ordering [e.g. PCS sleeve,
344A3072P6] .
The following pages illustrate and identify the accessories and replace-
ment parts available. NOTE: Complete chargers must be ordered using ap-
plicable package number.
120 Vac Line Cord
344A3072P10 230 Vac Line Cord
344A3072P11
Only an authorized or certified electronic technician should attempt to
disassemble or service the charger.
Refer to Universal Multi-unit Charger Maintenance Manual if it is nec-
essary to change the charger sleeve or to replace printed wiring boards,
components or assemblies.
NOTE
17

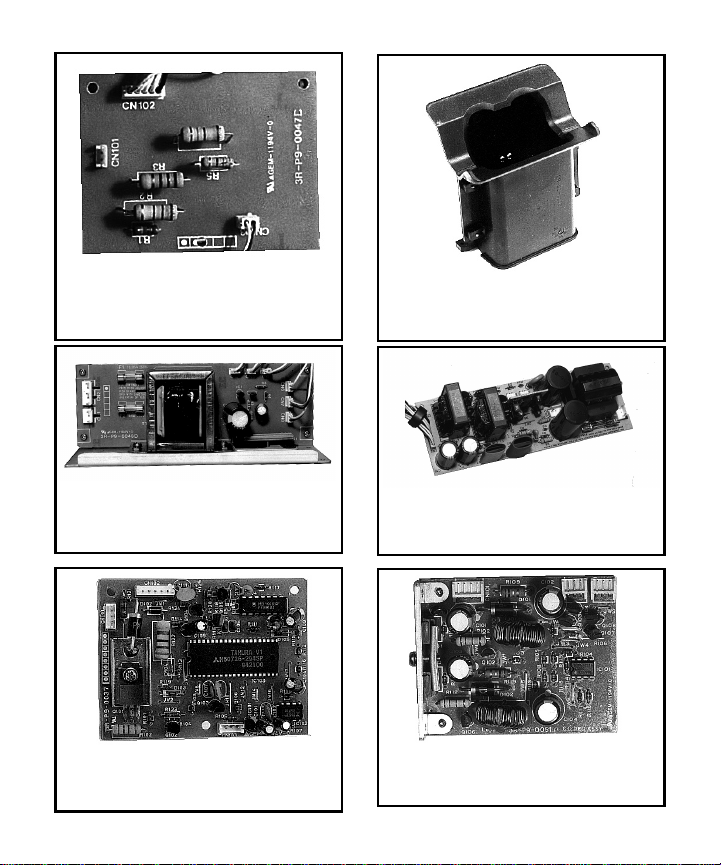

STD Charger Power Supply
F29/4R-A9-0095
Rapid Charger Constant Current
F29/4R-A9-0092
Rapid Charger Power Supply
F29/4R-A9-0091
Rapid Charger Control Board
F29/4R-A9-0083
Standard Charger Control Board
F29/4R-A9-0096 Charger Sleeve
See Package Chart
18

PACKAGE BASE SLEEVE CORD
120V M-PA RAPID 344A3072P8 344A3072P5 344A3072P10
120V M-PA STANDARD 344A3072P9 344A3072P5 344A3072P10
120V PCS RAPID 344A3072P8 344A3072P6 344A3072P10
120V PCS STANDARD 344A3072P9 344A3072P6 344A3072P10
120V M-RK RAPID 344A3072P8 344A3072P7 344A3072P10
120V M-RK STANDARD 344A3072P9 344A3072P7 344A3072P10
230V M-PA RAPID 344A3072P8 344A3072P5 344A3072P11
230V M-PA STANDARD 344A3072P9 344A3072P5 344A3072P11
230V PCS RAPID 344A3072P8 344A3072P6 344A3072P11
230V PCS STANDARD 344A3072P9 344A3072P6 344A3072P11
230V M-RK RAPID 344A3072P8 344A3072P7 344A3072P11
230V M-RK STANDARD 344A3072P9 344A3072P7 344A3072P11
REFER TO CURRENT MOBILE PRICE CATALOG FOR COMPLETE PACKAGE
ORDERING INFORMATION.
19

NOTES
