(Original) Use and maintenance manual
Type: SK-270
Model: Skiving machine 270 mm
IMPORTANT:
Read this user manual and follow the instructions and warnings before operating this device.
Any modification or transformation performed on this machine may cause loss of the
manufacturer’s guarantee and liability.
This manual must always remain near to the machine and visible to all the operating and
maintenance staff, for any future consultation, forming part of the equipment.
The SK-270 skiver is guaranteed against factory defect for a period of 24 months from the date
of purchase.
The warranty is null and void in the event of non-compliant use or use other than that foreseen
or illustrated in this manual.
POOR USE, NEGLIGENCE, POWER SUPPLY AT DIFFERENT VOLTAGES OR ATTEMPTS TO
REPAIR OR ALTER PARTS BY UNAUTHORISED PERSONNEL NULL AND VOID THE
WARRANTY.

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 2
Index:
Page
-CE Declaration of conformity: ................................................................................................................................................3
-Description: ..................................................................................................................................................................................4
-Connecting to the mains supply:...........................................................................................................................................4
-Technical Characteristics: .......................................................................................................................................................4
-Usage instructions:.....................................................................................................................................................................4
Changing and adjusting the abrasive ape:.................................................................................................................................................... 7
Cutting the abrasive ape:...................................................................................................................................................................................... 9
-Warnings: ................................................................................................................................................................................... 10
-Possible problems and solutions:...................................................................................................................................... 11
-Spare parts:................................................................................................................................................................................ 12

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 3
-CE Declaration of conformity:
WE DECLARE, under our responsibility, that the machine:
- Type: Skiver machine
- Brand: ERM Engineering
- Model: SK-270
- Serial No.: xxxxxx
- Manufacturer date: 2021
Inspired by the directives of the Official Journal of the European Communities:
2006/42/CE Machinery Directive
2014/35/UE Low Voltage Directive
2014/30/UE Electromagnetic Compatibility Directive
Complies with the design and construction specifications of the European Standards on General
Machine Safety:
EN 349 –EN 614-1 –EN 614-2 –EN 1005-1 –EN 1005-2 –EN 1005-3 –EN 1005-4 –EN
14118 - EN 12100–EN 13850 –EN 13857 –EN 14118 - EN 14120 –EN 60204-1 –EN
11161 –EN 61310-1 - EN 13849-1 –EN 13849-2 –EN 60204-1
General Manager: Eduardo Ramos Martínez
Arenys de Munt (Barcelona)-SPAIN
Date: 2021/08

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 4
-Description:
Transmission belt skiving, with motor-driven abrasive roller and manual table advance with
inclination adjustment for various bevelling angles. Abrasive roller height adjustment using an
eccentric shaft.
-Connecting to the mains supply:
The machine should be connected to a 2-phase 230V mains electricity supply, depending on the
voltage stated on the technical specifications plate, together with the corresponding earth
connection. Attention must be paid to the motor rotation direction.
-Technical Characteristics:
•Dimensions 592x460x445mm (L x W x H)
•Weight 32Kg
•Roller width 270 mm
•Bevel travel 180 mm
•Roller diameter 100 mm
•Maximum thickness 8 mm
•Revolutions 490 rpm
•Bevel angle from 0º to 3.5º (30 Points)
•Motor 0.75KW 5.6Amp 2 Phases 230V
-Usage instructions:
Once the mains supply connection has been made, it should be verified that the motor is rotating
in the correct direction, (if it does not, then the connections for two of the phases should be
reversed).
Fit the adhesive tape over the white nylon plate in the working zone, just as shown in the figure.
This operation is essential to obtaining a good finish since it will prevent stretching and breaking
during the process:

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 5
The belt should be passed under the retaining bar up to the edge of the table, adhering the end to
be bevelled on the adhesive tape just at the table end, as shown in the following photo:
Fix the belt in place using the bar by means of the knobs (A) always attempting to maintain
parallelism with the table, in other words, performing this operation on both sides at the same
time and in the same proportion.
We then adjust the bevelling angle as given in the values table (Page 7), releasing the milled knob
towards the outside of the machine as shown in the diagram and turning it to the required point
and then locking it again:

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 6
Starting-up the motor by pressing the red button on the motor box:
Slowly move the skiving table trough the steering wheel C:

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 7
Changing and adjusting the abrasive ape:
We also recommend that the polycarbonate protection is removed to provide more working
space and to avoid any damage to this protection.
When changing the abrasive belt, the machine must be disconnected from the mains electricity
supply in order to guarantee a safe working environment. Once this has been done, the motor head
should be fully opened roller cover protection:

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 8
Loosen the transmission belt using key 13mm and remove two bolts of motor:
Separate the motor and disconnect the transmission belt:
Unscrew the 8 screws of the roller support.

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 9

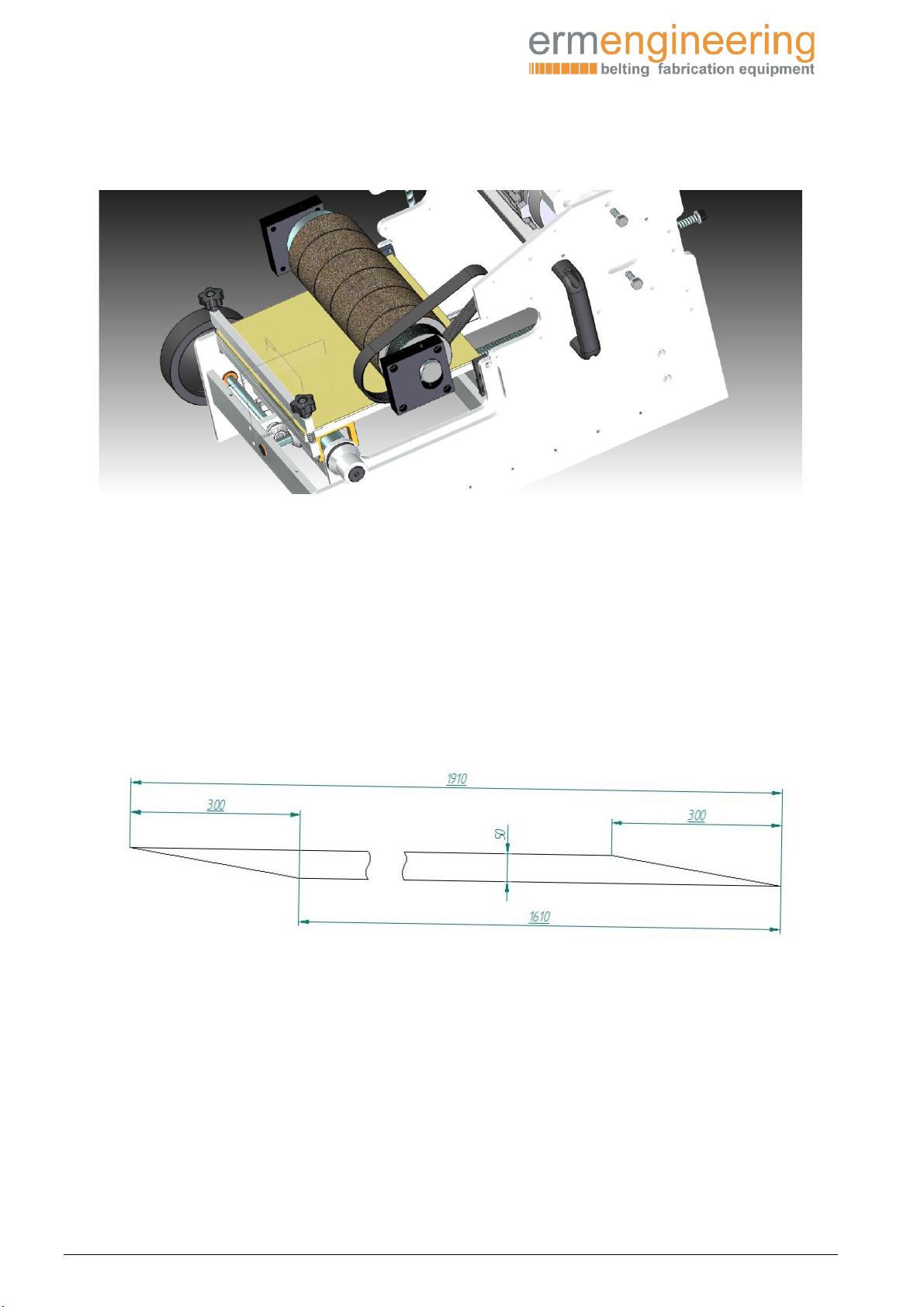

Remove the abrasive roller.
The old tape should be removed by pulling on it at one end and rotating the roller until it is
completely free.
The entire roller surface should be cleaned with alcohol or a similar product in order to
guarantee good adherence of the new belt and a uniform level without any thickening.
Cutting the abrasive ape:

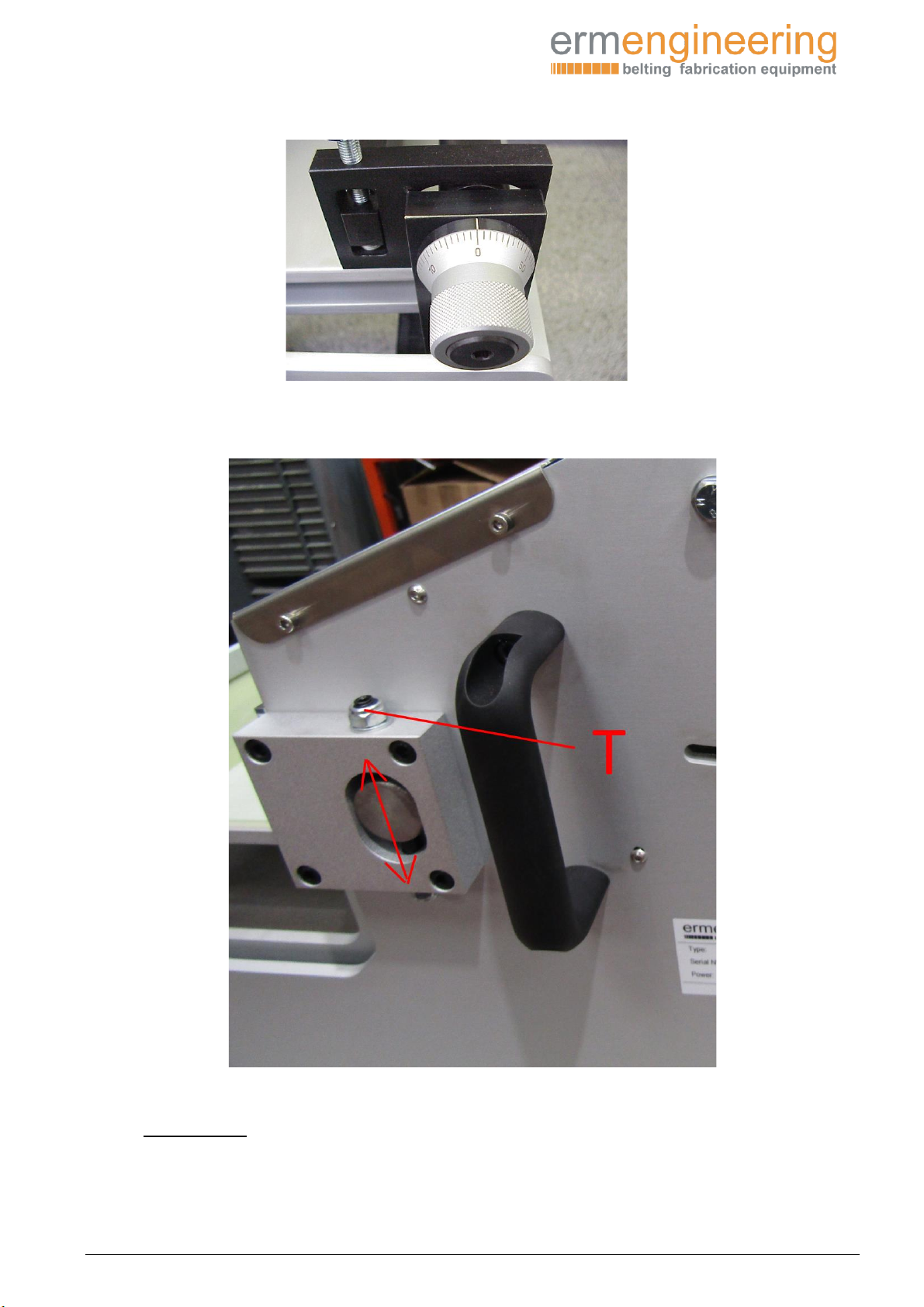

Adjust setting of the inclination control to the 0 position:

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 10
Adjust and level the roller with table in 0 POINT using the bolts T of roller shaft.
-Warnings:
➢The machine should always be connected to the main electricity supply via thermal-
magnetic and differential breakers and protected by an earth connection.

Use and maintenance manual
Skiving machine
Model: SK-270
_______________________________________________________________________________________________________________________
P a g . 11
➢Under no circumstances should any work be carried out without the belt and roller
protections.
➢The suction nozzle should be connected to prevent the possibility of inhaling toxic
particles.
➢Remove the mains electricity supply plug from the socket before carrying out any
adjustment or similar operation.
-Possible problems and solutions:
If the motor doesn’t start up…
✓Check that main electricity is available.
If bevel operation is incorrect…
✓Check the abrasive tape condition or level the table.

Use and maintenance manual
Skiving machine
Model: SK-270
_________________________________________________________________________________________________________________________________________________________________________
P a g 12

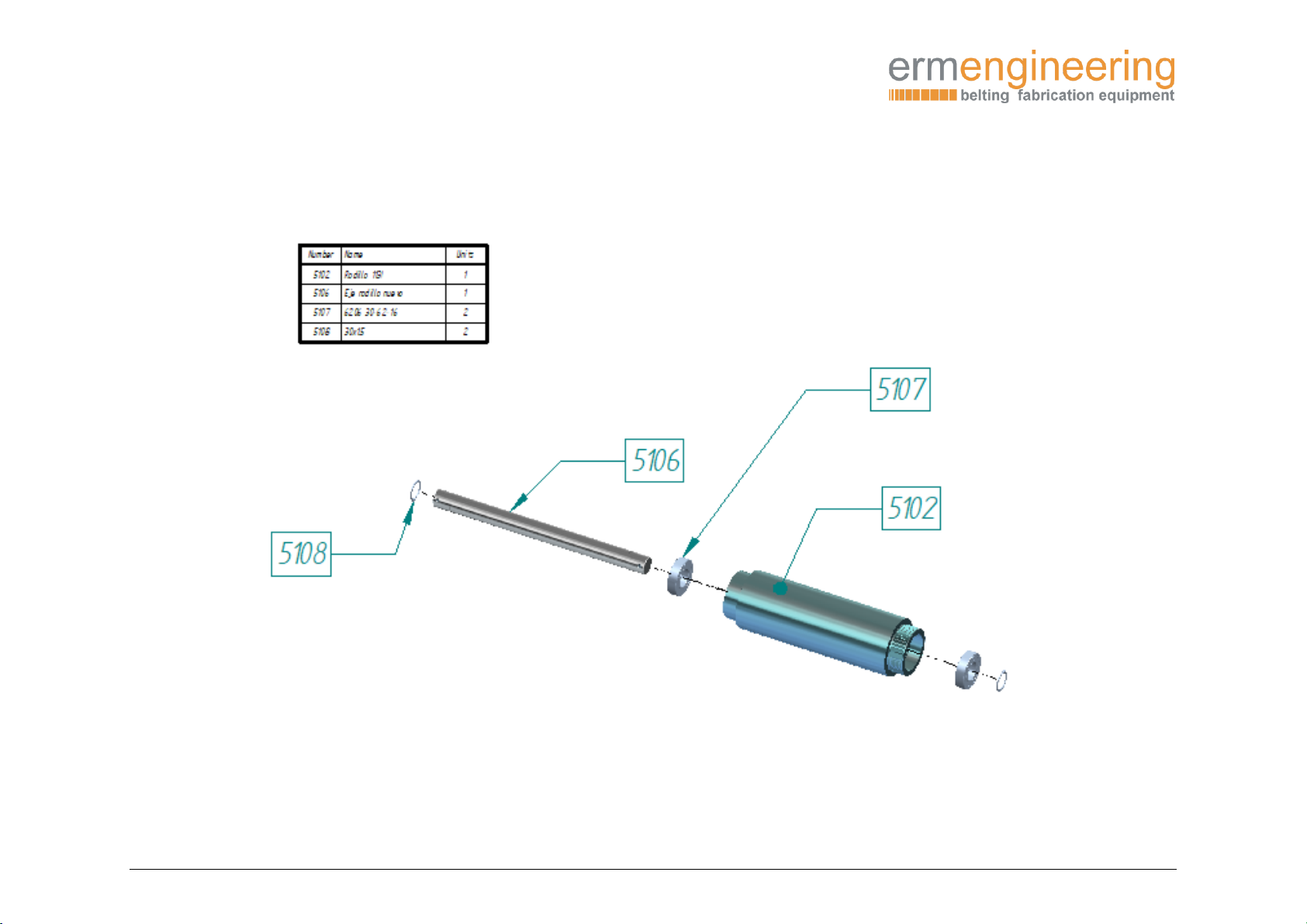

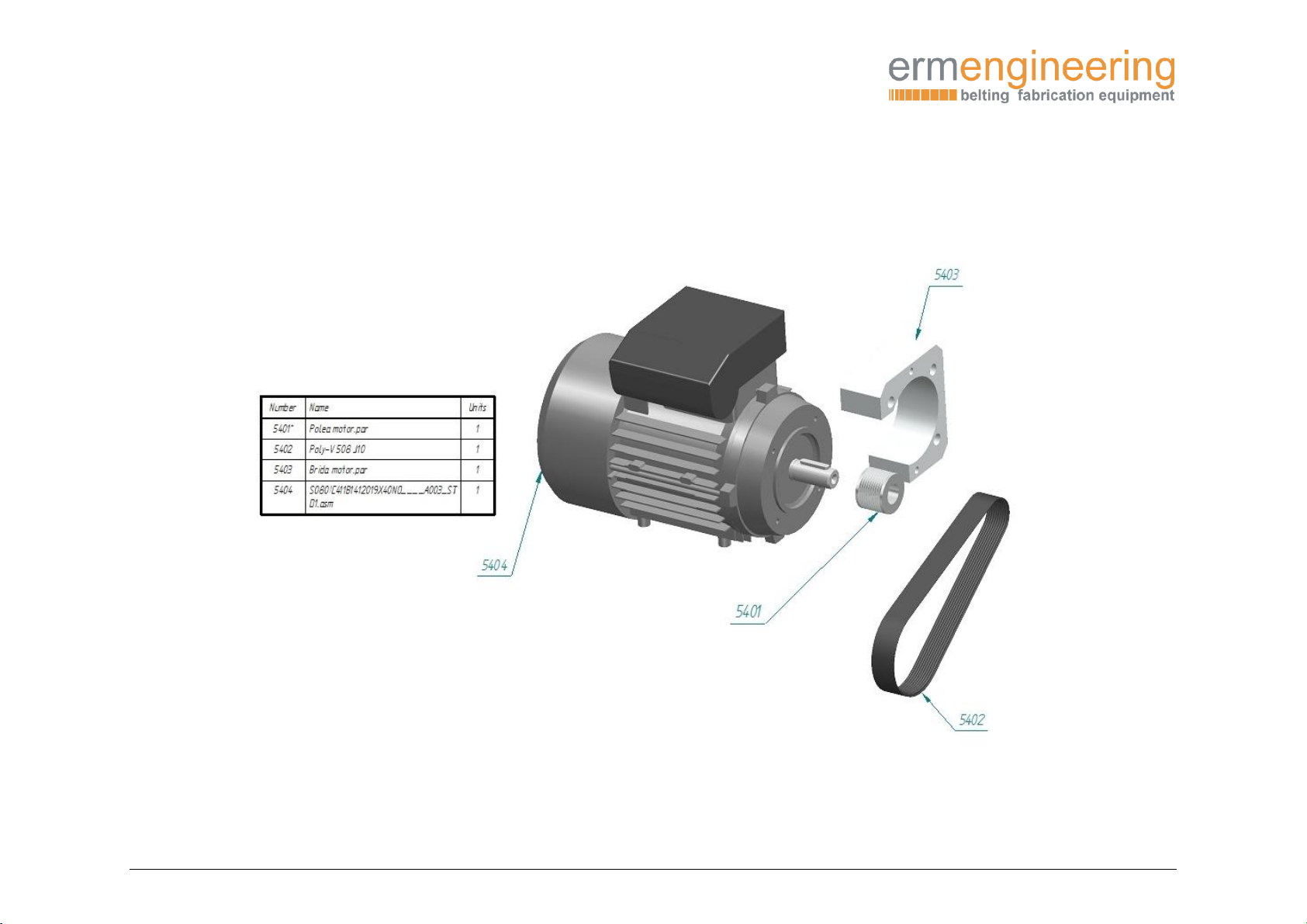

-Spare parts:
