Eskimo Eskape 2400 User manual

39206
ECN # 13208
REV1: 04/16/2021
©Copyright 2021 Ardisam, Inc.
All Rights Reserved.

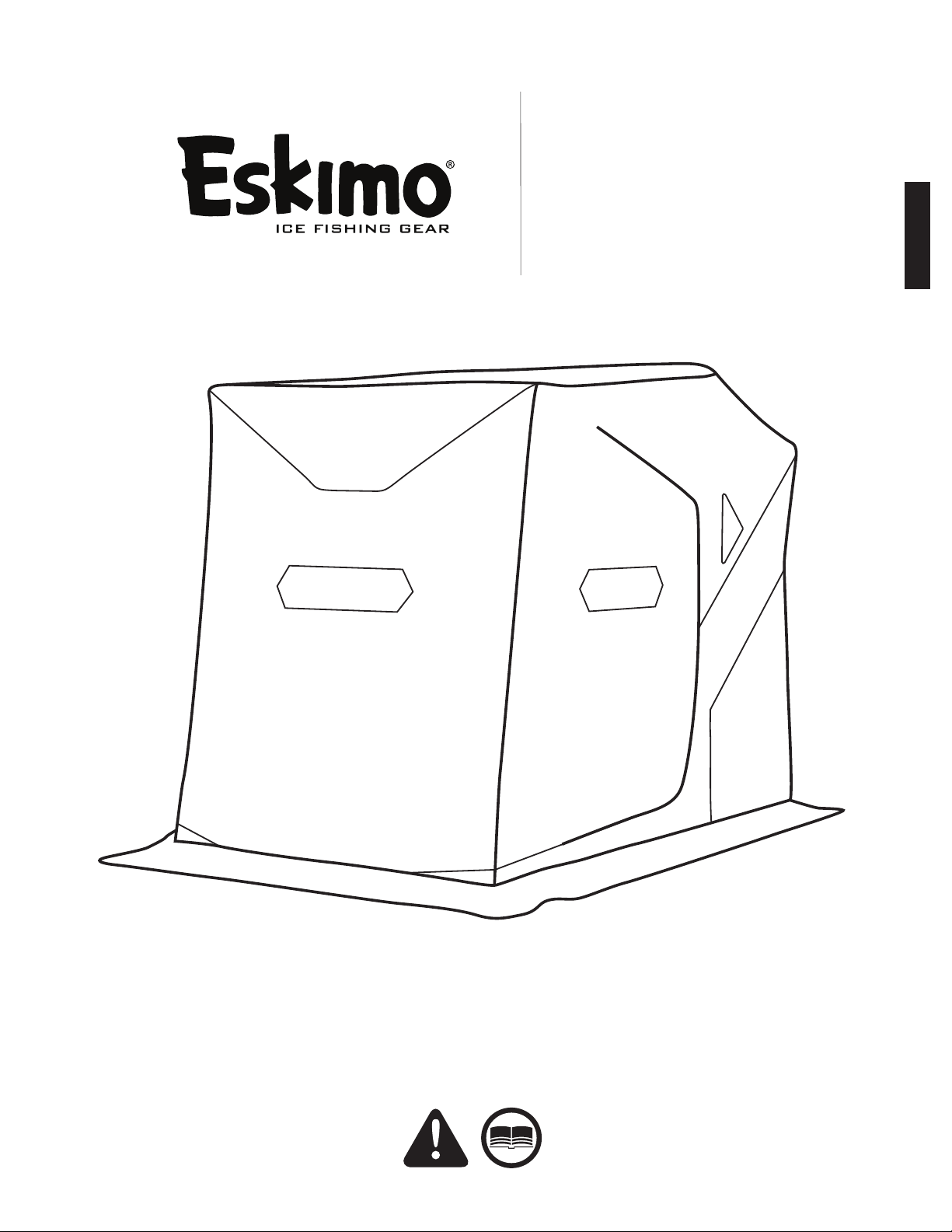

Operator's Manual
Eskape™ 2400
Flip-Style Sled Shelter
Get parts online at
www.GetEskimo.com
GAS/OIL
RATIO
50:1
ENGLISHENGLISH
MODEL #38200

2
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
INTRODUCTION
Eskimo® Ice Shelters are engineered with the ice sherman in mind. We make quality and durability our priority, and we appreciate
your purchase of one of our ice shelters. Follow these simple instructions and your ice shelter will provide you many years of
trouble-free enjoyment. Save these instructions for future reference. If for any reason you have a problem with your product,
DO NOT return to the retailer, contact the Eskimo® customer service department at 1-800-345-6007 or by email at info@
geteskimo.com for assistance. Congratulations on your investment in quality. Ardisam, Inc. reserves the right to change or alter this
manual without notice.
CONTENTS
Introduction .......................................................................................................................................................................................................................................2
Registration ........................................................................................................................................................................................................................................2
Important Safety Precautions......................................................................................................................................................................................................3
Parts Explosion..............................................................................................................................................................................................................................4-5
Assembly.........................................................................................................................................................................................................................................6-7
Shelter Skin Installation ...........................................................................................................................................................................................................8-10
Setup and Take-Down Instructions .........................................................................................................................................................................................11
Long-Term Storage ........................................................................................................................................................................................................................11
Troubleshooting and Repair.......................................................................................................................................................................................................11
Warranty ............................................................................................................................................................................................................................................12
REGISTRATION AND SERVICE
Record the product model number and serial number in the space provided for easy reference when ordering parts or requesting
technical support. You can register your warranty online by visiting www.GetEskimo.com, or by mailing it to: Ardisam, Inc., P.O. Box
666, Cumberland, WI 54829. For service questions, call our customer service department at [phone]. Warranty is valid only if
the completed registration card is received by Ardisam, Inc. within 30 days of purchase.
OWNERSHIP RECORDS
Place of Purchase:
Place of Purchase Address:
City: State/Province: Zip Code/Postal Code:
Model Number: Serial Number (found next to warning tag):
Date of Purchase:
Notes:
This manual may contain information for several models. Read and keep this manual for future reference. This manual contains important information
on SAFETY, ASSEMBLY, OPERATION, AND MAINTENANCE. The owner must be certain that all the product information is included with the unit. This
information includes the MANUAL, the REPLACEMENT PARTS and the WARRANTIES. This information must be included to make sure state laws and
other laws are followed. This manual should remain with the unit even if it is resold.

3
ENGLISHENGLISH
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
WARNING
WARNING INDICATES A HAZARD WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS
INJURYTO PERSONNEL AND/OR PROPERTY DAMAGE.
CAUTION
CAUTION INDICATES YOUR EQUIPMENT CAN BE
DAMAGED IF THE SAFETY INSTRUCTIONS THAT
FOLLOW THIS SIGNAL WORD ARE NOT OBEYED.
IMPORTANT
INDICATES HELPFUL INFORMATION FOR PROPER
ASSEMBLY, OPERATION, OR MAINTENANCE OF
YOUR EQUIPMENT.
IMPORTANT SAFETY PRECAUTIONS
This shelter is made with ame resistant fabric, however
it is not reproof. The fabric will burn if left in continuous
contact with any ame source. The application of any
foreign substance to the shelter fabric may render the
ame resistant properties ineective.
Fuel-based heat sources burn oxygen and may emit carbon
monoxide (an odorless, colorless, poison gas). Breathing
carbon monoxide can cause headaches, drowsiness,
nausea, dizziness, confusion and eventually death. Use
caution with heaters. Be sure you have adequate fresh
ventilation, including open windows and doors. All vents
must be opened when using fuel-based heaters in your
shelter.
• Do not use candles, matches or open ames of any
kind in or near an ice shelter.
• Do not cook inside the shelter.
• Exercise extreme caution when using fuel-powered
lanterns or heaters inside a tent. Use battery-operated
lanterns whenever possible.
• Do not refuel lamps, heaters or stoves inside a tent.
• If you are shing and falling asleep intermittently, turn
o all lanterns and heaters.
• Do not smoke in shelter.
• Do not store ammable liquids inside of the shelter .
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
SAFETY, SETUP & USE INSTRUCTIONS PROVIDED
BEFORE USE. FAILURE TO FOLLOW ALL WARNINGS AND
INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR
DEATH.
DO NOT USE OPEN FLAME HEATERS INYOUR ICE SHELTER.
WARNING: KEEP ALL FLAME AND HEAT SOURCES AWAY
FROM THIS TENT FABRIC. THIS TENT IS MADE WITH FLAME
RESISTANT FABRIC. IT IS NOT FIRE PROOF. THE FABRIC
WILL BURN IF LEFT IN CONTINUOUS CONTACT WITH ANY
FLAME SOURCE.
DUE TO TRAFFIC ON LAKES, ICE FISHING CAN BE
HAZARDOUS AT NIGHT. IF YOU CHOOSE TO FISH AT
NIGHT OR IN CONDITIONS WITH POOR VISIBILITY, BE
SURE TO TAKE PRECAUTIONS.
NEVER LEAVE THE ICE SHELTER UNATTENDED.
SECURELY ANCHOR THE ICE SHELTER TO THE ICE IN
HIGH WIND CONDITIONS.

4
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
23
24
24
DETAIL
23
DETAIL
2
15
3
10
1
5
12
13
14
4
8
7
9
6
11

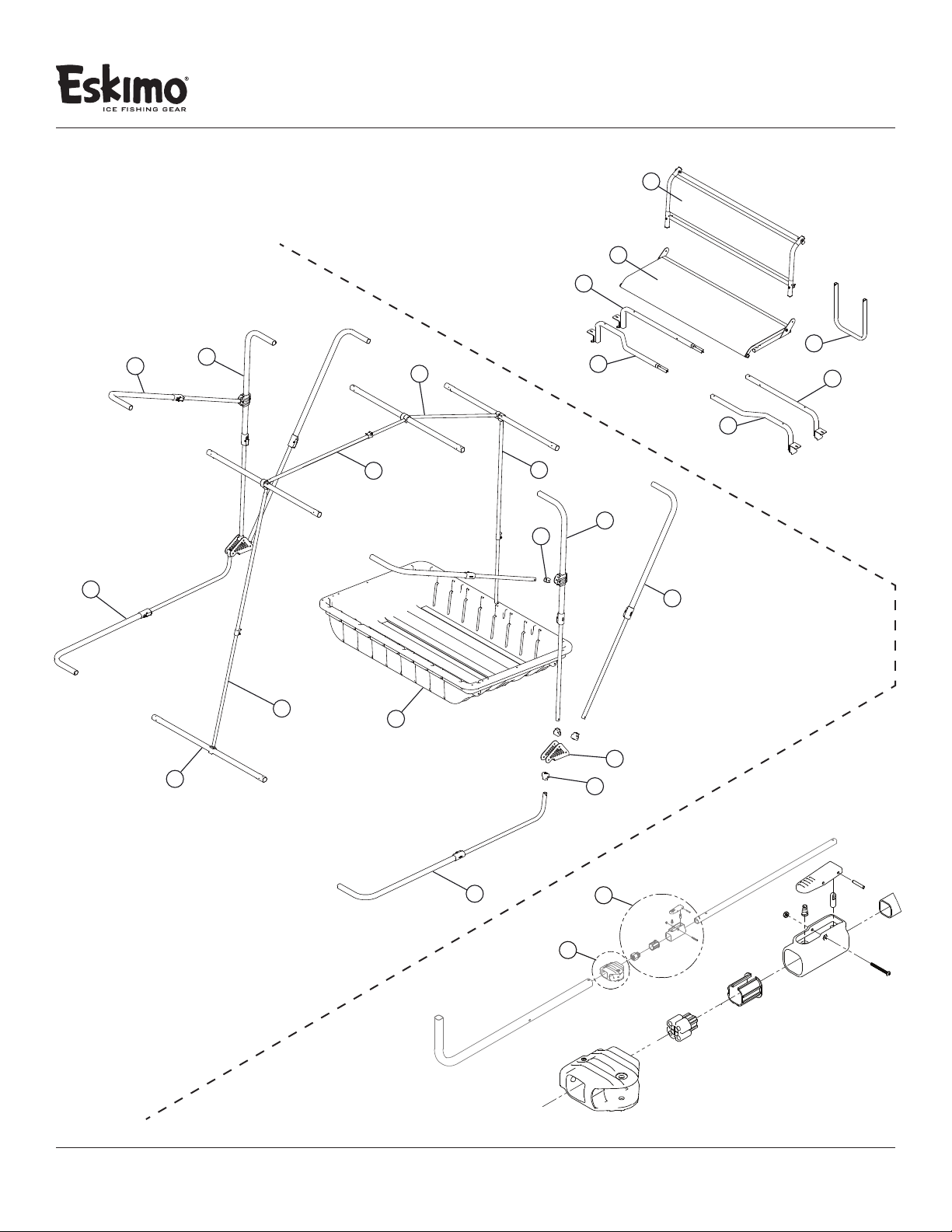

PARTS EXPLOSION
Eskape™ 2400
FRAME
ASSEMBLY
PARTS
QRS
ASSEMBLIES
BENCH
ASSEMBLY
PARTS
16
21
17
18
19
22
20

5
ENGLISHENGLISH
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
PARTS LIST
NO. DESCRIPTION PART NO. Q T Y.
1SLED 60X37X10IN LG SIDE SHELTER ORIENT 38948 1
2HINGE LIGHTWEIGHT DBL SIDE 3 HOLE 36618 2
3POLE BTM SLED FRONT 62.3 IN EXT X 6.64 IN DROP 33635 1
4POLE BTM SLED REAR 62.3 IN EXT X 6.64 IN DROP 33636 1
5TUBE 29.5MM SQUARE MID SECTION 43 IN 38584 4
6ASSEMBLY EXT TUBE CNR SIDE EXT ESKAPE SLED FNT 36625 1
7ASSEMBLY EXT TUBE CNR SIDE EXT ESKAPE SLED BK 36626 1
8ASSEMBLY EXT TUBE CNR ESKAPE DOOR 51.5 IN 36916 2
9ASSEMBLY EXT TUBE AND CNR 26539 2
10 ASSEMBLY SPREADER POLE ADJUSTABLE 43.5  80 INCHES 36628 1
11 ASSEMBLY SPREADER POLE 35IN AL 26544 1
12 ASSEMBLY SPREADER POLE ADJUSTABLE REAR 27730 1
13 ASSEMBLY SPREADER POLE ADJUSTABLE FRONT 27729 1
14 CAP 20.5MM SQUARE TUBE 27MM WIDE 36858 2
15 CAP 20.5MM SQUARE TUBE 27821 6
16 ASSEMBLY SEAT BENCH 48 IN 38819 1
17 ASSEMBLY BACKREST BENCH SEAT 48 IN 38816 1
18 WELDMENT BENCH FNT SPAN TUBE F 60IN SLD 38821 1
19 WELDMENT BENCH FNT SPAN TUBE M 60IN SLD 38822 1
20 WELDMENT BENCH BK SPAN TUBE F 60IN SLD 38825 1
21 WELDMENT BENCH BK SPAN TUBE M 60IN SLD 38826 1
22 SUPPORT TUBE 60IN SLD BENCH 38902 1
23 KIT QRS REPLACEMENT 33581 
24 ASSEMBLY HINGE ESKAPE QRS 36642 2
ITEMS BELOW NOT SHOWN
 BOLT 1/420 X 13/4 PTH 69180 2
 BOLT 1/420 X 21/2 PTH 67430 6
BOLT 1/4 X 20 X 21/2 IN HH CS GR5 BLK ZN 48270B 2
BOLT 1/4 X 20 X 21/4 IN HH CS GR5 BLK ZN PT 48271B 2
BOLT 1/420 X 13/4 HHCS GR5 BLK ZN PT 48250B 4
BOLT 1/420 X 11/2 HHCS GR5 ZN 48240B 2
BOLT 1/420 X 1 HH GR5 ZN 69345 8
SCREW #6 X 1/2 PTH BLK ZN 36953 16
SCREW #8 X 1/2 IN PPH SELFDRILLING 48320 16
NUT 1/420 NYLK GR2 ZN 67538B 10
NUT 1/420 HFNYLK BLK ZN 48752B 16
WASHER 1/4 X 5/8 X 0.07 IN GR8 ZN 48261B 26
WASHER 8.1 X 19 X 1.6 MM PLASTIC WN516 8
EDGE TRIM 3/8 IN X 106 IN 39577 1
SKIN SEWN COMPLETE ESKAPE 2400 38585 1
WINDOW HEXAGON 37546 4
WINDOW TRIANGLE 37547 2
ROPE 1/4 IN X 10 FT TWISTED BLK 27921 1

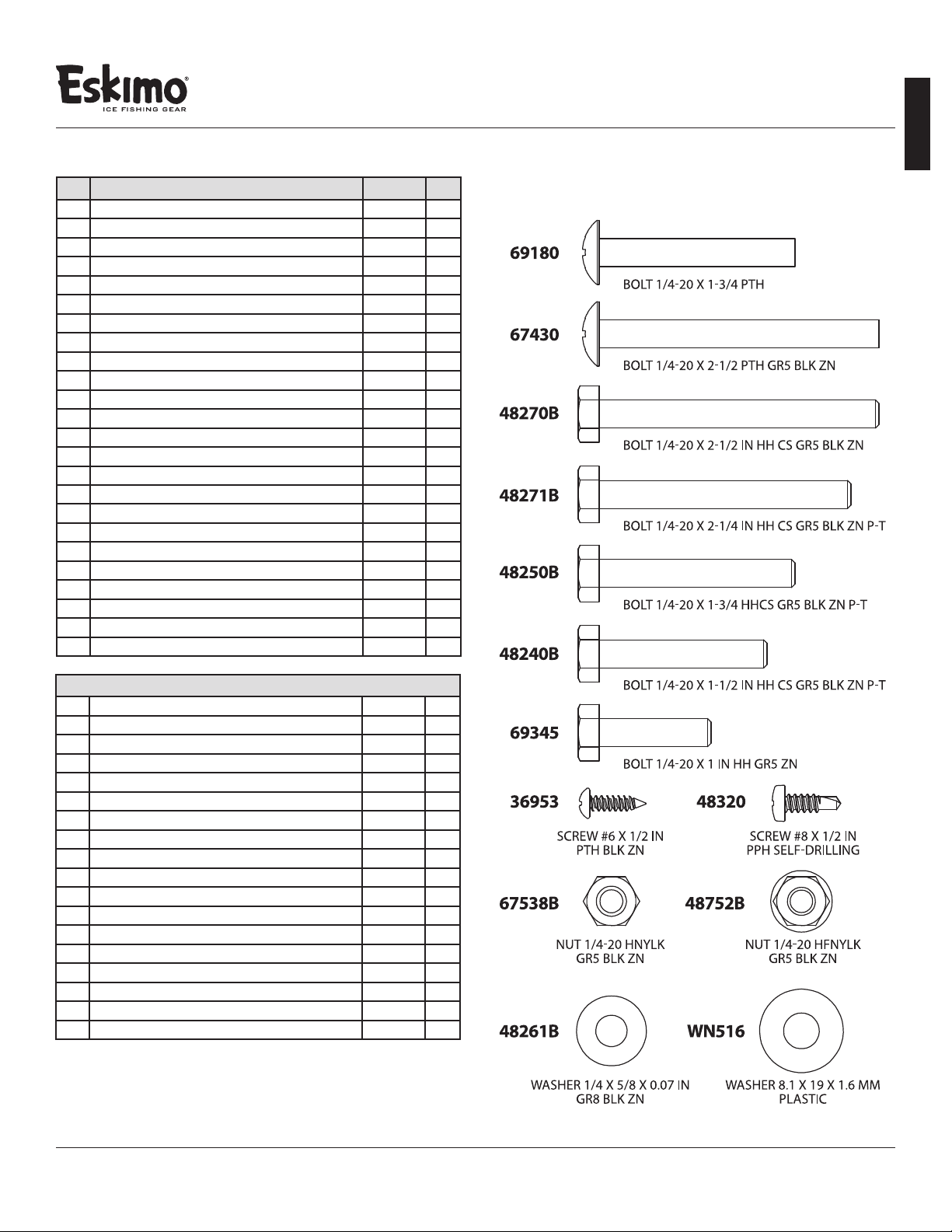

HARDWARE IDENTIFICATION CHART
Not all bolt sizes shown are included with all shelters. Bolts shown are for size reference only.
Extra hardware may be included in the parts bag.

6
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007

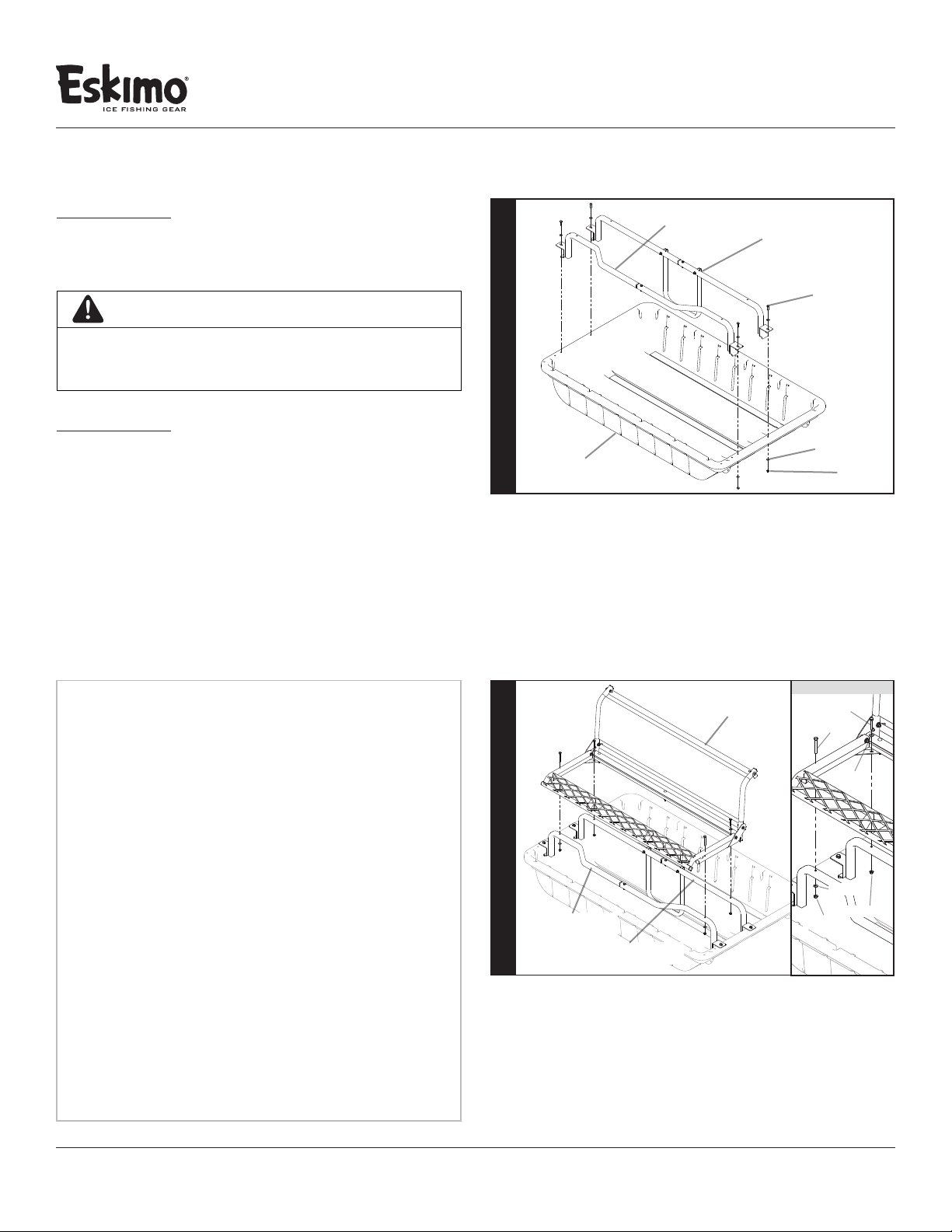

BENCH SEAT MOUNTING
FIGURE 1FIGURE 2
#38948
#69345
#48261B
#48752B
(38826/38825/38902)
ASSEMBLY
(38822/38821)
ASSEMBLY
(38819/38816)
ASSEMBLY
(A) Assemble (38826/38825/38902) onto #38948 using
(2) 1 IN bolts, (2) nuts, and (4) washers.
(B) Assemble (38822/38821) onto #38948 using
(2) 1 IN bolts, (2) nuts, and (4) washers.
NOTE: Be sure to reference Figure 1 for correct hole placement
when mounting assemblies. First two holes must be left open for
mounting hinges later on.
(A) Assemble (38819/38816) onto (38822/38821)
using (2) 2½ IN bolts, (2) nuts, and (2) washers.
(B) Assemble (38819/38816) onto (38826/38825/38902)
using (2) 1¾ IN bolts, (2) nuts, and (2) washers.
NOTE: Tighten all hardware from previous steps.
1
2
SEE DETAIL
Reference the separate
insert sheet (#39050)
Eskape Bench
Seat Assembly
Instructions
for guidance on assembling
your bench seat.
Once assembled, return here
to mount it to your sled.
DETAIL
#48752B
#48752B
(38822/38821)
ASSEMBLY
(38826/38825/38902)
ASSEMBLY
ASSEMBLY INSTRUCTIONS
TOOLS NEEDED:
• (2) 7/16" wrenches and/or socket driver
• Cordless drill with #1 Philips head bit
IMPORTANT ASSEMBLY TIP
DO NOT FULLY TIGHTEN ANY NUT AND BOLT COMBINATION
UNTIL INSTRUCTED IN LATER NOTES. THIS WILL HELP WITH
HOLE ALIGNMENT FOR ALL PARTS.
ASSEMBLY TIPS:
• This ice shelter should be assembled in an indoor setting due to the
time and length of assembly. Identify and familiarize yourself with all
parts and hardware before assembly. Allow 2 hours for assembly.
• The use of a cordless drill with socket will make assembly of your
ice shelter much quicker. Be sure to set the drill speed on low so
you do not over tighten any nut and bolt combination.
• If a tracking kit is purchased with the shelter it should be mounted
to the sled before assembly of the ice shelter for convenience.
#48261B
#48261B
#48270B
#48250B

7
ENGLISHENGLISH
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007

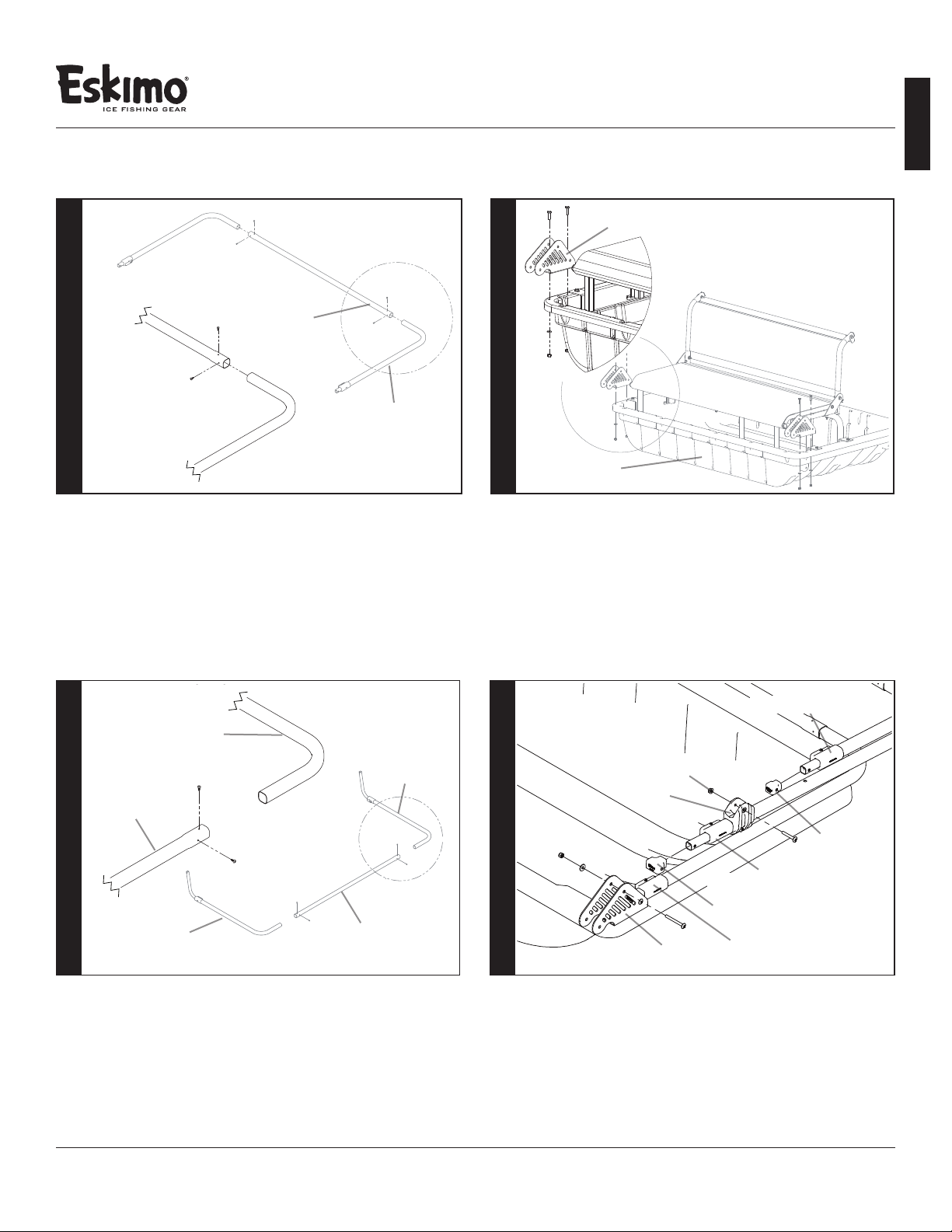

ALUMINUM FRAME ASSEMBLY
FIGURE 3
Assemble (2) #26539 assemblies to #38584 with the
included ½ IN self-drilling screws, (2) screws per side
at pre-drilled locations on #38584. Repeat this step for
(2) #36916 assemblies to #38584, and (36625/36626)
assemblies to #38584. There should be (3) total loop pole
nished assemblies when this step is complete.
NOTE: Be careful not to overtighten and strip screw holes.
#26539
#38584
SEE DETAIL
3
FIGURE 4
Assemble #33636 and #33635 to #38584 with the
included ½ IN self-drilling screws, (2) screws per side
at pre-drilled locations on 38584.
NOTE: Be careful not to overtighten and strip screw holes.
4
SEE
DETAIL
#33635
#38584
#38584
#33636
#33635

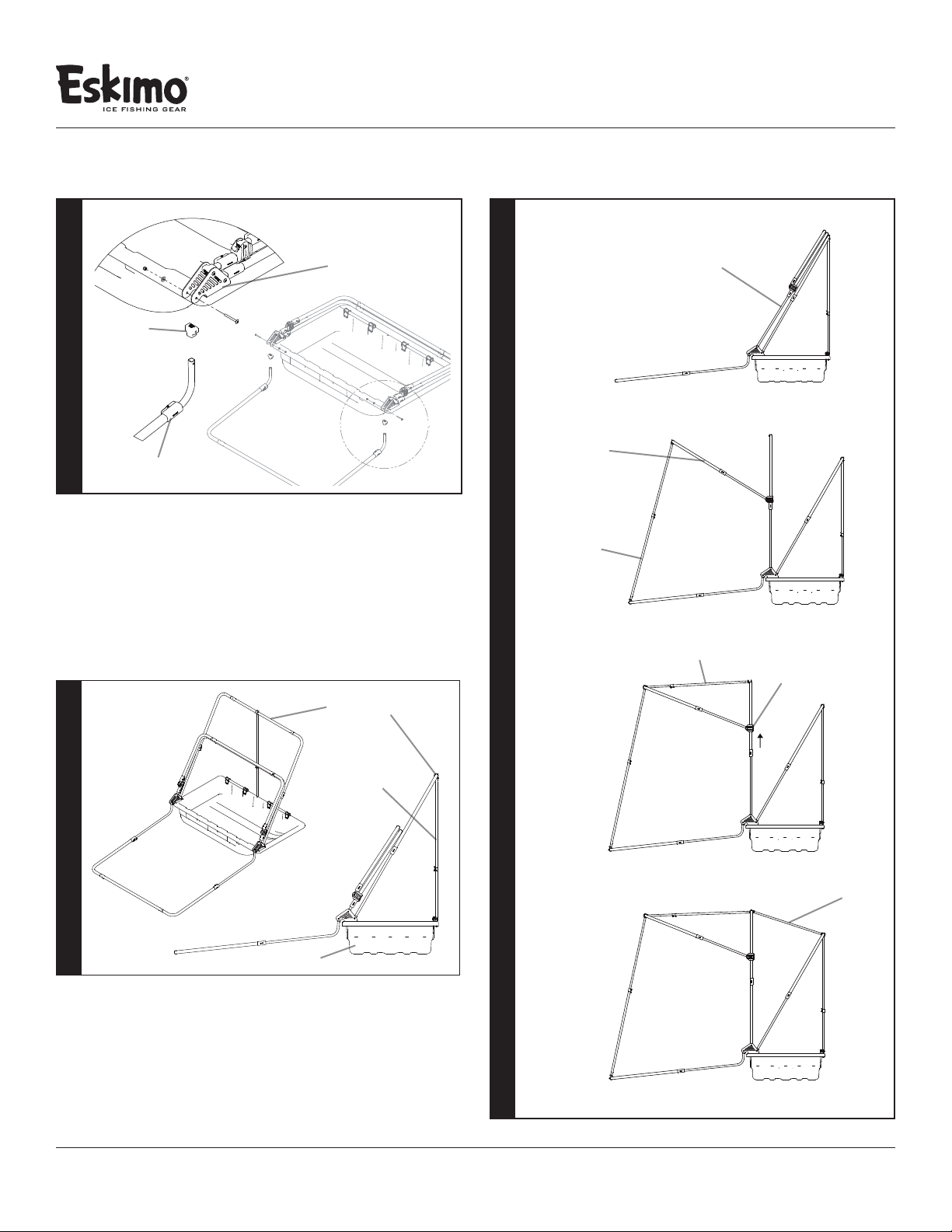

FIGURE 6
6(A) Assemble (26539/38584) assembly to (36618) using (2) 2-½ IN Philips
drive bolts, (2) washers, and (2) nuts at the back bottom hole on #36618.
(B) Repeat above step to assemble (36625/36626/38584) assembly (using
middle top hole in #36618).
NOTE: #36642 push button should be face down.
(C) Assemble (36916/38584) to #36642 hinge on (36625/38584/36626)
pole assembly using (2) #36858, (2) 1-¾ IN Philips drive bolts, (2) washers,
and (2) ange nuts.
NOTE: Tighten hardware.
FLANGE NUT
Assemble #36618 to #38948 using (2) 1 IN bolts,
(2) washers, and (2) nuts. Repeat step for remaining
#36618 component.
NOTE: Be sure that hinges are perpendicular to the sled front,
and are parallel to each other. Tighten hardware.
5
FIGURE 5
#38948
#36618
SEE DETAIL
#36642
(36916/38584)
ASSEMBLY
#36858
(36625/38584/36626)
ASSEMBLY
#27821
#36618
(26539/38584)
ASSEMBLY

8
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
SPREADER POLE ATTACHMENT / SKIN ASSEMBLY
FIGURE 7
Assemble (33635/38584/33636) to #27821 and
#26536 using (2) 2-½ IN Philips drive bolts, (2) washers,
and (2) nuts.
NOTE: Tighten hardware.
7
SEE
DETAIL
FIGURE 8
(A) Attach #27730 to #38948 and (26539/38584)
as shown in Figure 8. Be sure to fully extend
(26539/38584) assembly until locked prior to
attaching #27730.
(B) Adjust height of #27730 until the (26539/38584)
assembly is tangent to the edge of #38948 as shown
in Figure 8.
8
#27730
(26539/38584)
ASSEMBLY
#38948
(33635/38584/33636)
ASSEMBLY
#26536
#27821
FIGURE 9
#27729
#36642
#36628
(36625/38584/36626)
ASSEMBLY
(36916/38584/36916)
ASSEMBLY
A
C
#27729
#36642
#36628
#26544
(36625/38584/36626)
ASSEMBLY
(36916/38584/36916)
ASSEMBLY
A
C
B
D
#27729
#36642
#36628
(36625/38584/36626)
ASSEMBLY
(36916/38584/36916)
ASSEMBLY
A
C
#27729
#36642
#36628
#26544
(36625/38584/36626)
ASSEMBLY
(36916/38584/36916)
ASSEMBLY
A
C
B
D

9
ENGLISHENGLISH
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007
All spreader poles should be adjusted with hook and
loop skin attachments now in place. Each adjustable
spreader pole should keep poles in desired location
as shown in Figure 9. Make any adjustments needed
to t the skin. There should be equal skin tension
throughout, and no spreader poles creating more
tension than needed.
11
FIGURE 10
10 (A) With all spreader poles in place, begin working the
#38585 skin assembly over the aluminum frame work.
(B) There are hook-and-loop connections sewn on
the inside of the skin to attach/locate each aluminum
frame assembly. Secure each connection as snug as
possible. This will determine how tight the skin will
be once attached to the #38948 sled.
#38585
(A) Start by extending the (36625/38584/36626)
assembly.
(B) Next extend the (36916/38584/36916) assembly,
and attach the (2) #36628 front spreader poles to
the extended pole assembly and the bottom pole
assembly (spreader poles should be placed as far to
each corner as possible without being in the radius).
(C) Next push the #36642 assemblies up until there
is a click, setting them in the “up” position. Add the
#27729 spreader pole and appropriately adjust the
length to t while maintaining the vertical position of
the (36625/38584/36626) pole assembly.
(D) Finally add the #26544 spreader pole as shown.
9
Reference
Figure 9
on previous page
for spreader pole
assembly sequence.
Visit GetEskimo.com
for videos and
helpful tips on skin
attachment and more.

10
Operator’s Manual
38200 |Eskape™ 2400 Flip-Style Sled Shelter
Check for parts online at www.GetEskimo.com or call 800-345-6007

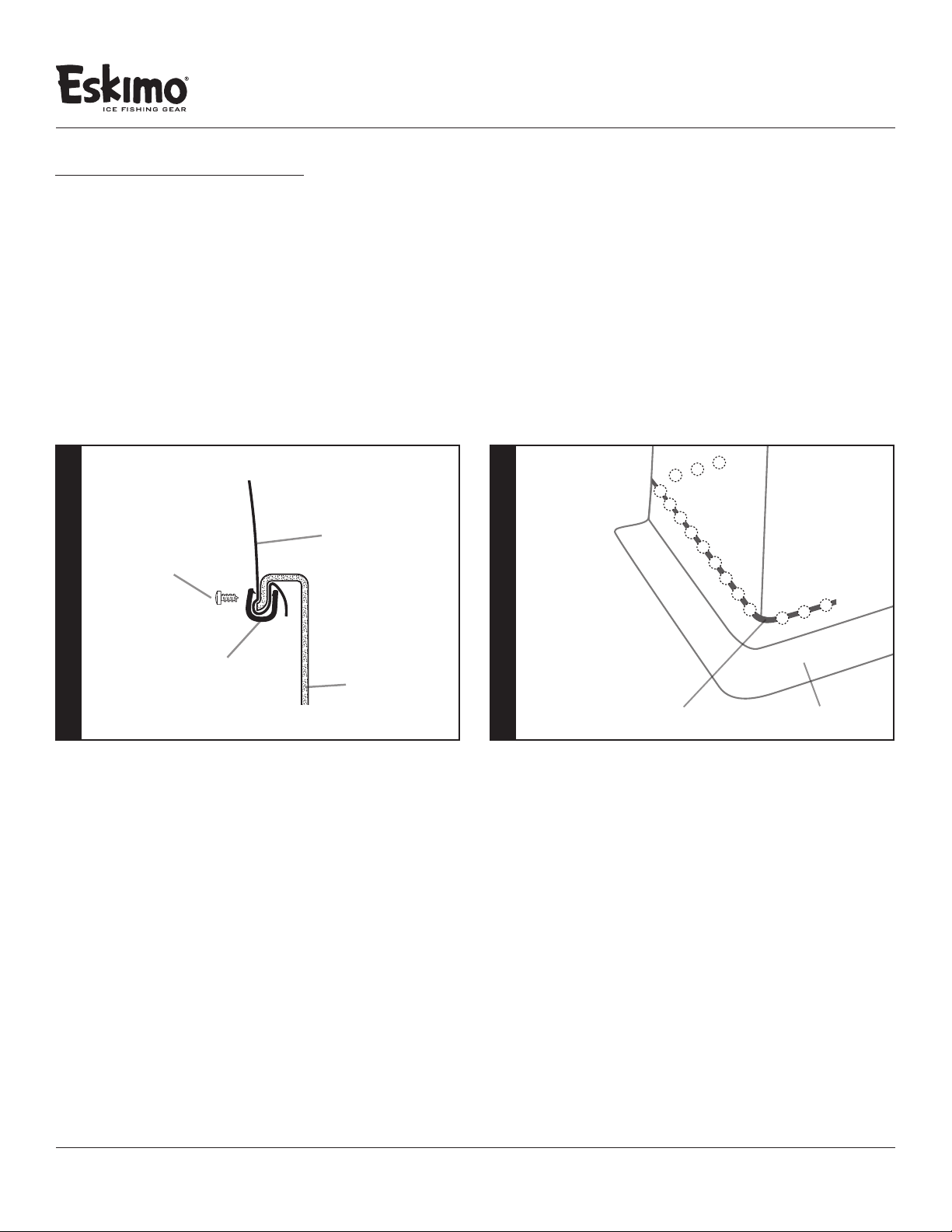

Secure the edge trim to the back of the #38948 sled using
the included #6 X ½ IN Philips drive screws.
Start with a screw center of sled back, then one at each
end corner, then split the dierence between the corners
and middle. Next, place screws at the corner on each side,
and one at each end of the edge trim. Finally, split the
dierence between corner and end on the side, and place
remaining screws equally spaced between existing screws
on the back. See Figure 12.
NOTE: Make sure the skin is tight and even before installing
the edge trim screws. It will be easier to make adjustments
before all the screws have been installed.
13
SKIRT
EDGE TRIM
FIGURE 12
1
7
7
7
7
3
3
2
2
4
4
5
5
6
6
SKIN
SLED
EDGE TRIM
#6  1/2"
SCREW
FIGURE 11
(A) Shorten the front (#36628) spreader poles by 1
inch, still leaving them attached. Also shorten the back
(#27730) spreader pole by 1 inch.This will ensure there is
appropriate tension on the skin while in use, without the
need for spreader poles. The skin and frame should be self-
standing without spreaders once the edge trim is attached.
(B) Locate the 8'10" rubber edge trim included in the parts
box. Find the center of the length of edge trim. This will be
the starting point during the assembly of the edge trim to
the skin.
(C) Move to the rear of the shelter and locate the center of
the #38948 sled. This will be the point where the edge trim
will be attached rst.
(D) Pull down on the skin at the center-back of the skin,
being sure to apply tension below the point of attachment.
While maintaining tension, push the edge trim onto the
sled lip and begin working it around the sled. Maintain
tension in front of the edge trim being pushed on, as this
will keep the skin tight and free of wrinkles.
12
ASSEMBLY TIPS FOR STEPS 12 & 13:
• It is recommended to secure the entire back of the skin before
working the edge trim around the corners of each sled. This
will keep the skin even and prevent any more or less fabric
being pulled from one side.
• The edge trim attachment can be re-done until satisfactory
results are achieved. This is recommended, as it will increase
the performance of the shelter.
• Once the edge trim is satisfactory, remove all spreader poles and
ensure the skin is self-supporting correctly, before permanently
xing the edge trim with screws.
• We recommend the use of a cordless drill during STEP 13.
The rubberized edge trim has a metal core to provide
additional structure, but is also sometimes dicult to
screw through. It is important to place screws higher on
the width of the edge trim to make sure full contact is made
with the sled.
NOTE:
Follow numbered
screw attachment
locations for
Step 13.
