Installation Instruction
MAGPRO-WS is аn addressable Wall Mount Sounder designed for installing in addressable fire alarm systems supporting MAGPRO
communication protocol. The device is powered on from the panel and can be controlled via the communication protocol.
The device SensoIRIS WS is compatible with fire base MAGPRO-DB for ceiling or wall mounting and WSB IP65 for wall mounting.
Attention: Power off the loop circuit before installing the MAGPRO-WS addressable fire base!
1.󱆱Choose the proper place for installation of the device.
2. Set the device address using MAGPRO-PROG Programmer or directly from addressable fire panel. The address must be in the range from
1 to 250.
3. Mount the fire base on the ceiling or on the wall of the protected premises using fixings according the mounting surface.
4. Connect the base to the fire panel using the wiring diagram.
5. Insert the sounder into the base and rotate clockwise until it drops into place - the short mark on the base fits with that on the sounder body.
Continue to rotate the sounder until its mark coincides with the long mark on the base - a click is heard.
6. Program the device parameters. Choose in consecutiveness from the control panel: System - Programming - Devices - Loop. Find the
installed sounder, as enter address, loop and zone number - the panel automatically will recognize the type of the device. Choose the button
MORE to enter in the additional settings menu.
7. Test the sounder for proper operation.
TECHNICAL SPECIFICATIONS
18020180; RevC; 01/2018

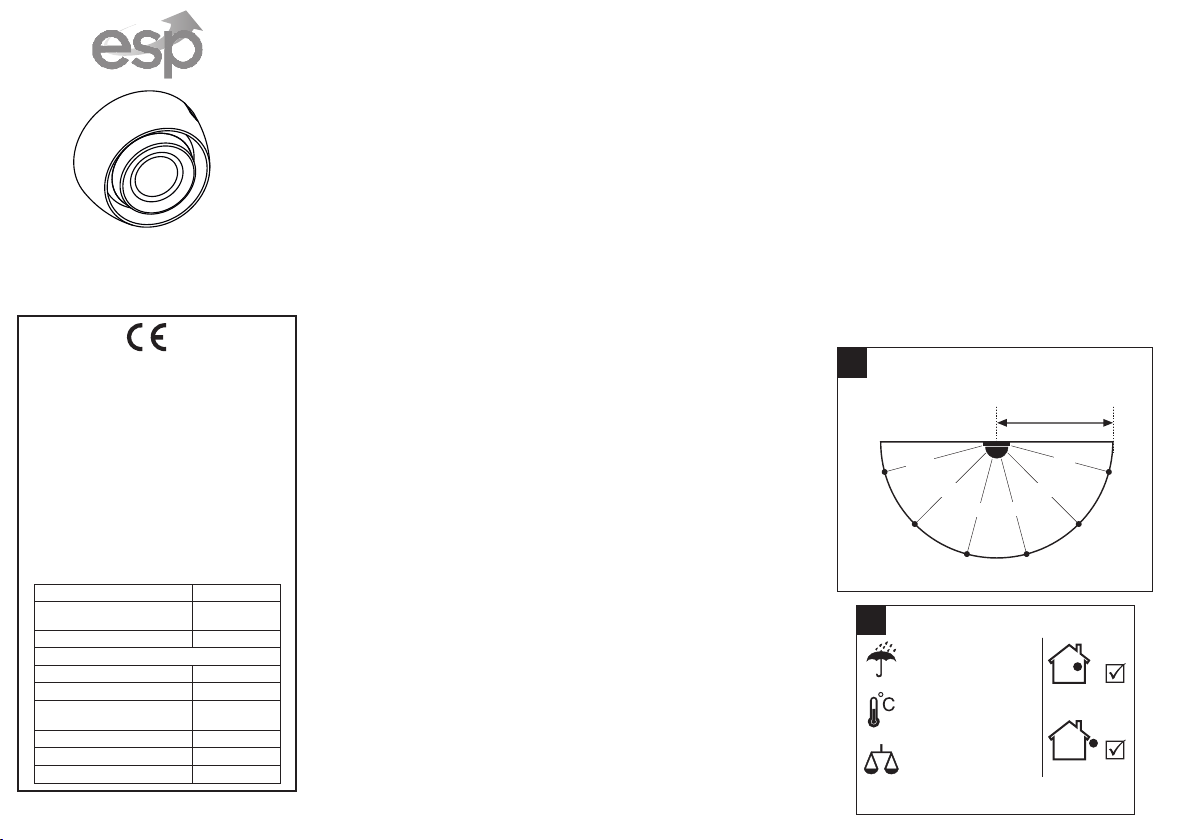

!A-weighted sound
level diagram
ATTENTION: Read carefully this installation Instructions before installing
the device!
This manual is subject to change without notice!
91dB
96dB95dB
90dB
86dB
1m
86dB
15°
45°
75°
105°
135°
165°
EN54-3:2001
EN54-3:2001/A1:2002
EN54-3:2001/A2:2006
Sounder Type B
DoP No: 040
1293-CPR-0463 Rev.1
1293 17
Operating Voltage Range . . . . . . . . . . . . . . . . . . 15 - 32VDC (Nom. 27VDC)
Nominal consumption (stand-by) . . . . . . . . . . . . <500μА@27VDC
Maximal consumption (main tone type 27):
- low volume level......................<5mА
- high volume level . . . . . . . . . . . . . . . . . . . . . <16.5mА
Maximal consumption (other tone types):
- low volume level......................<4mА
- high volume level . . . . . . . . . . . . . . . . . . . . . <10mА
Power volume (main tone type 27):
- low volume..........................~ 80dB (A) ± 6dB @ 1m
- high volume.........................~ 92dB (A) ± 5dB @ 1m
Power volume (other tone types):
- low volume..........................75-85dB ± 3dB @ 1m
- high volume . . . . . . . . . . . . . . . . . . . . . . . . . 80-95dB ± 3dB @ 1m
Number of tone types.....................32
Supported communication protocol. . . . . . . . . . . MAGPRO
2
Wire Gauge for terminals . . . . . . . . . . . . . . . . . . 2.5mm
Relative humidity resistance ................(93 ± 3)% @ 40°C
Dimensions.............................116x55mm
Color ..................................red
Material................................ABS
Essential characteristics
Performance under fire
conditions
Performance
Operational reliability
Pass
Pass
Temperature resistance
Humidity resistance
Corrosion resistance
Resistance to ingress
Electrical stability
Shock and vibration
resistance
Durability:
Pass
Pass
Pass
Pass
Pass
Pass -10°C ÷ +50°C
Installation
~183g
Indoor use*
Outdoor use**
!
IP43C (ЕN54-3)*
IP65 (EN60529)**
* When used with base MAGPRO-DB
** When used with base WSB IP65

Tone types and description
1
Tone Tone Type Tone Description
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
970Hz
800Hz/970Hz @ 2Hz
800Hz - 970Hz @ 1Hz
970Hz 1s OFF/1s ON
970Hz, 0.5s/ 630Hz, 0.5s
554Hz, 0.1s/ 440Hz, 0.4s (AFNOR NF S 32 001)
500 - 1200Hz, 3.5s/ 0.5s OFF (NEN 2575:2000)
420Hz 0.625s ON/0.625s OFF (Australia AS1670 Alert tone)
500-1200Hz, 0.5s/0.5s OFF x 3/1.5s OFF (AS1670 Evacuation)
550Hz/440Hz @ 0.5Hz
970Hz, 0.5s ON/0.5s OFF x 3/ 1.5s OFF (ISO 8201)
2850Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201)
1200Hz - 500Hz @ 1Hz (DIN 33 404)
400Hz
550Hz, 0.7s/1000Hz, 0.33s
1500Hz - 2700Hz @ 3Hz
750Hz
2400Hz
660Hz
660Hz 1.8s ON/1.8s OFF
660Hz 0.15s ON/0.15s OFF
510Hz, 0.25s/ 610Hz, 0.25s
800/1000Hz 0.5s each (1Hz)
250Hz - 1200Hz @ 12Hz
500Hz - 1200Hz @ 0.33Hz
2400Hz - 2900Hz @ 9Hz
2400Hz - 2900Hz @ 3Hz (2500Hz - main sound frequency)
800Hz - 970Hz @ 100Hz
800Hz - 970Hz @ 9Hz
800Hz - 970Hz @ 3Hz
800Hz, 0.25s ON/1s OFF
500Hz - 1200Hz, 3.75s/0.25s OFF (AS2220)
Wiring Diagrams
RI - Remote Indicator; +Loop - Positive loop wire; -Loop - Negative loop wire
1Base MAGPRO-DB 2Address programming
Down
Right
Up
Modify
Esc
Enter
MAGPRO-
PROG
NOTE:
You may also program
the address directly
from the fire panel.
34
Mounting MAGPRO-DB Mounting the sounder
Fire Panel
Earth
RI
+Loop
-Loop
-Loop
+Loop
MAGPRO-DB
(fire detector)
MAGPRO-DB
(sounder)
